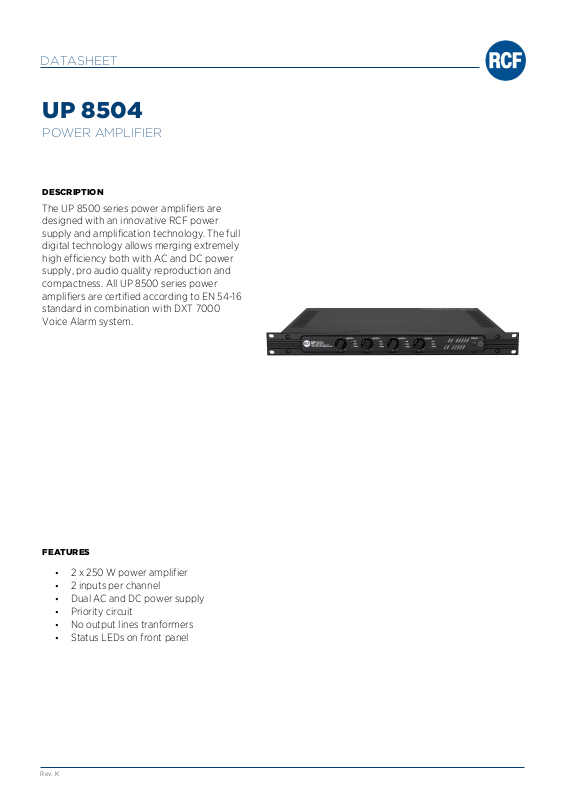

UP 8504
POWER AMPLIFIER
DESCRIPTION
The UP 8500 series power amplifiers are
designed with an innovative RCF power
supply and amplification technology. The full
digital technology allows merging extremely
high efficiency both with AC and DC power
supply, pro audio quality reproduction and
compactness. All UP 8500 series power
amplifiers are certified according to EN 54-16
standard in combination with DXT 7000
Voice Alarm system.
FEATURES
• 2 x 250 W power amplifier
• 2 inputs per channel
• Dual AC and DC power supply
• Priority circuit
• No output lines tranformers
• Status LEDs on front panel
DATASHEET
Rev. K
TECHNICAL SPECIFICATIONS
Amplifier specifications
Amplifier Class:
D
Number of channels:
4
Power output (@ 100 V):
500 W RMS
Frequency Response (-3dB):
40 Hz ÷ 16 kHz
Signal/noise rate (”A” weighted)
>86 dB dB
Crosstalk
<60 dB dB
Distortion (THD+N) @ 1 kHz nominal
power:
<0.3 %%
Input section
Total number of inputs:
8
Balanced:
8
Mono:
4
Stereo:
4
Line inputs:
8
Line connectors:
Euroblock
General Purpose Inputs (GPI):
6
Output section
Power output connectors:
Euroblock
General Purpose Outputs (GPO):
1
Controls
Configuration:
DIP switch, Front panel
Priority:
Yes
Protections
Cooling:
Forced
Short circuit:
Yes
Thermal:
Yes
DC:
Yes
Fuses:
Yes
Power requirement
Operating voltage:
220-240/115 V~ 50/60HzV ~ Hz
Voltage selection:
Internal
DC power:
Yes
DC power value:
48 V
Power consumption:
800 W
Standard compliance
EN54-16 certified:
Yes
CE marking:
Yes
CPR number:
1438-CPR-0241
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Rack mounting:
19", 1U
Size
Height:
44 mm / 1.73 inches
Width:
482 mm / 18.98 inches
Depth:
375 mm / 14.76 inches
Weight:
5.4 kg / 11.9 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
Shipping informations
Package Height:
170 mm / 6.69 inches
Package Width:
575 mm / 22.64 inches
Package Depth:
480 mm / 18.9 inches
Package Weight:
7.4 kg / 16.31 lbs
PART NUMBER
• 12135100
UP 8504
115V
EAN 8024530010881
• 12135079
UP 8504
220-240V
EAN 8024530007324
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
482 mm
44 mm
432 mm
375 mm
MASTER A POWER
+-
Signal
Peak
Overloa d
refii
lpm
A
re
tsaM
USP
C
D
l
a
mr
eh
T
s
ni
aM
CA
d
e
l
ba
s
iD
yb-dna
tS
n
oit
cet
orP
e
cneserP
ec
nes
e
rP
USP
CD
de
rewo
P
s
n
i
aM
C
A
dere
wo
P
MASTER B
+-
Signal
Peak
Overloa d
MASTER C
+-
Signal
Peak
Overloa d
MASTER D
+-
Signal
Peak
Ove rload
4x125 W
CLASS D
+
POWER AMPLIFIER
UP 8504
MASTER A POWER
+-
Signal
Peak
Overload
r
e
fi
i
lpmA
retsa
M
USP C
D
l
amr
eh
T
s
ni
a
M
C
A
de
l
ba
s
iD
yb-dna
tS
n
oit
c
et
orP
e
cneserP
e
c
nes
e
r
P
USP
CD
de
rewo
P
s
n
iaM
C
A
derewo
P
MASTER B
+-
Signal
Peak
Overload
MASTER C
+-
Signal
Peak
Overload
MASTER D
+-
Signal
Peak
Overload
4x125 W
CLASS D
+
POWER AMPLIFIER
UP8504
INPUT 2INPUT 1 PRIOR
ls rfiilpA
NO / yB-dnatS
sutatS daolrevO
-
+
FFO
DG
115/230V - 50/60Hz - 800 W ma x
V07 01
-
rtlF A
sa
lo
FFO
Testa b/L
a
-
+
-
+
-
+
FFO
07 01
tl
V07 C
rtlF C
0 D
rtlF D
Front panel
DRAWINGS
PANELS
Rear panel
