TTS 15-A
ACTIVE HIGH POWER SUBWOOFER
DESCRIPTION
The RCF TTS 15-A is a compact, high output
subwoofer module ideal in combination with
TT+ two way touring systems. The RCF TTS 15
-A features low weight for easy handling,
weatherproof cabinet, a 15” woofer powered
by a 1100 watt RMS SMPS class-D Amplifier
with full DSP and RDNet network capabilities
FEATURES
• 134 dB SPL Max
• 35-400 Hz Frequency Range
• 1 x 15" woofer
• DSP Controlled Input Section with selectable presets (e.g.cardioid)
• 1100W RMS Class-D Amplifier
• RDNet remote monitoring and control
• Vertical and horizontal placement with M20 pole receptacle on top and side
• Baltic Birch Cabinet
DATASHEET
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
40 Hz ÷ 400 Hz
Max SPL @ 1m:
134 dB
Transducers
Woofer:
15'', 3.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Hi-Pass Frequencies:
40 Hz, 50 Hz
Low-Pass Frequencies:
Variable from 60 Hz to 400 Hz
Protections:
Thermal, RMS
Limiter:
Fast Limiter
Controls:
Gain, Eq, Prest Switch, Out Delay
RDNet:
Yes
Power section
Total Power:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
2 x M20
Handles:
2 Side
Grille:
Steel
Color:
Black
Size
Height:
600 mm / 23.62 inches
Width:
445 mm / 17.52 inches
Depth:
633 mm / 24.92 inches
Weight:
36.5 kg / 80.47 lbs
Shipping informations
Package Height:
670 mm / 26.38 inches
Package Width:
705 mm / 27.76 inches
Package Depth:
520 mm / 20.47 inches
Package Weight:
41.3 kg / 91.05 lbs
PART NUMBER
• 13000543
TTS 15-A
EAN 8024530015381
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
VISTA 3D / 3D VIEW
445 17.5[ ]
600 23.6[ ]
632.5 24.9[ ]
345 13.6[ ] 185 7.3[ ]
185 7.3[ ]
SUBWOOFER TTS 15-A 90-240V
REV.
A
DATASHEET
DATASHEET

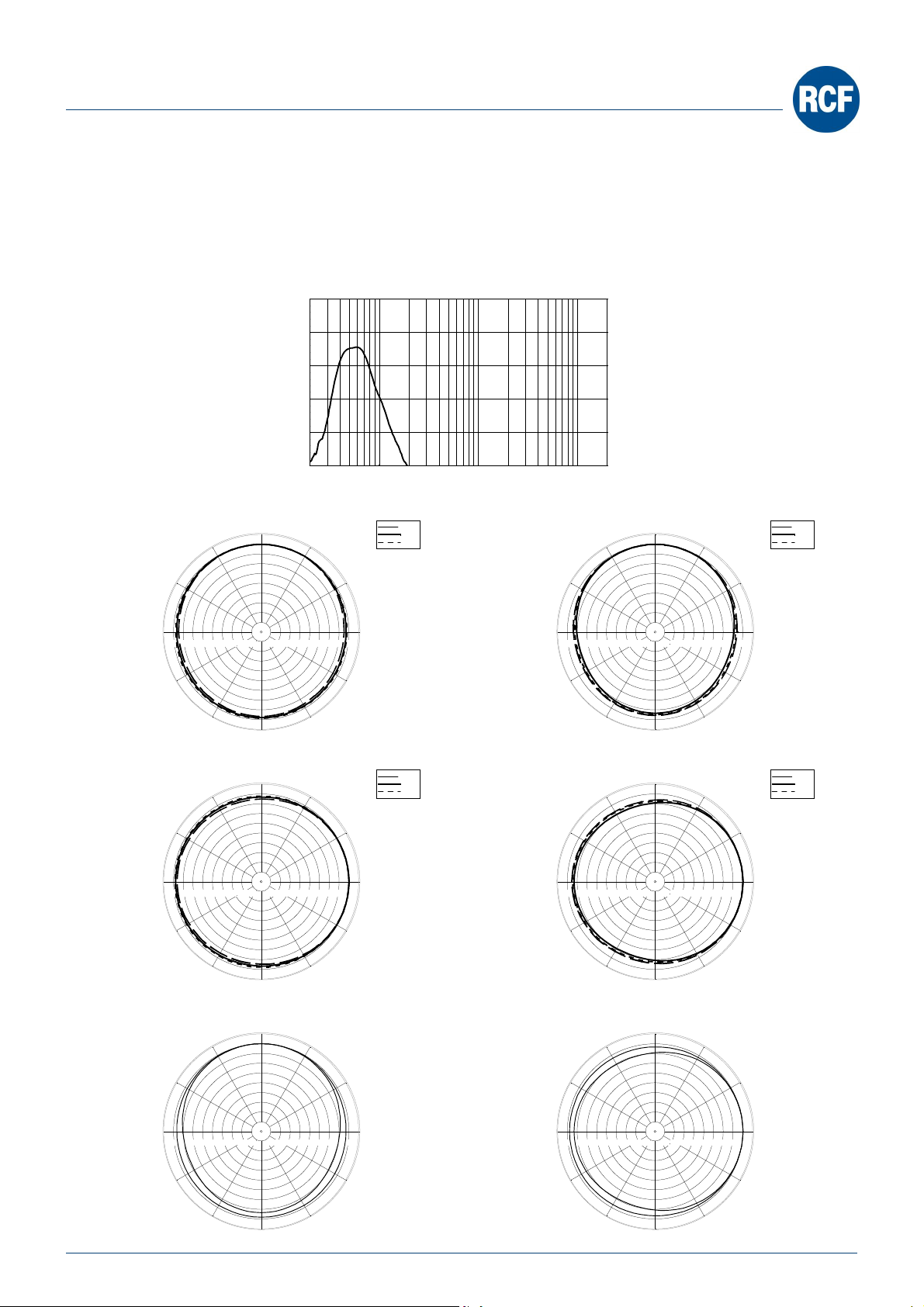

Horizontal 1/3 Octave Polars
