TT 22-A II
ACTIVE HIGH OUTPUT TWO-WAY SPEAKER
DESCRIPTION
TT22-A II is a 2-way active system featuring a
12” neodymium woofer, 86 mm voice coil in a
bass reflex configuration and a 1.4” exit, 75
mm voice coil neo compression driver. An
extremely careful acoustic design plus the
highest quality transducers and a powerful
amplifier make the TT22-A II speaker system
the perfect solution from live sound situations
to playback and monitoring. The amplifier
section features 1100 watt power – 800 watt
low frequency, 300 watt high frequency. The
cabinet is made of marine Baltic birch
plywood and features high-resistance
polyurea coating. The cabinets has 2 side
handles, 6 x fly-track rigging points, quick
lock pin receptacles and a steel pole mount.
FEATURES
• 1100 W Class D Amplifier
• 90 x 60 constant directivity coverage angle
• 12" neo woofer, 3.5" mm voice coil
• 1.5 " neo c. driver, 3.0" mm voice coil
• DSP Processing
• Onboard RDNet Control
• Multifunctional cabinet
• Very high output
DATASHEET
Rev. J
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.5'' neo, 3.0'' v.c
Woofer:
12'' neo, 3.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
800 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
proces., 8 sel. presets
RDNet:
Yes
Power section
Total Power:
2200 W Peak, 1100 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1600 W Peak, 800 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
6 x fly tracks, quick lock, pole mount
Handles:
2 on side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black

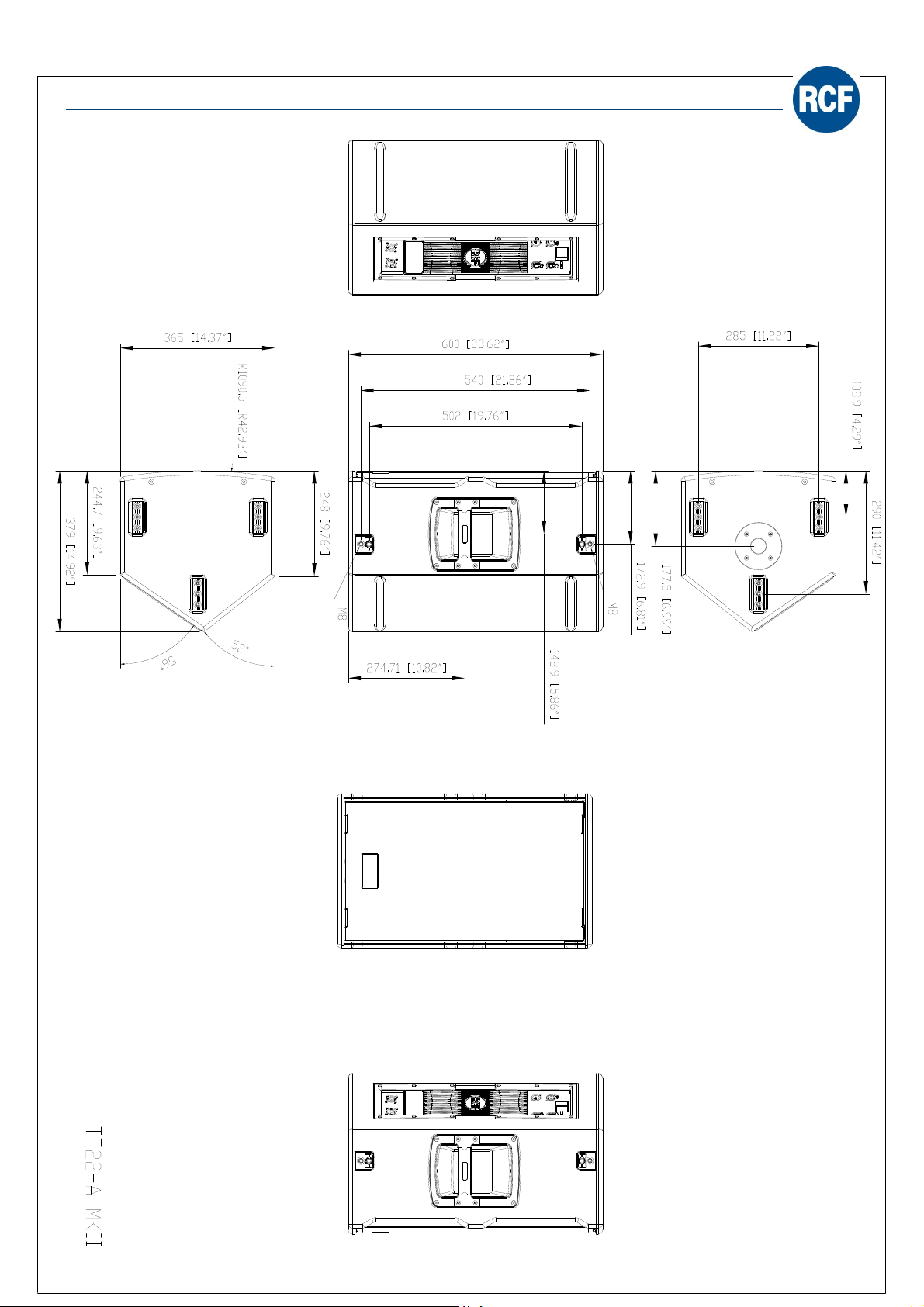

Size
Height:
600 mm / 23.62 inches
Width:
365 mm / 14.37 inches
Depth:
379 mm / 14.92 inches
Weight:
22.6 kg / 49.82 lbs
Shipping informations
Package Height:
655 mm / 25.79 inches
Package Width:
410 mm / 16.14 inches
Package Depth:
420 mm / 16.54 inches
Package Weight:
25.5 kg / 56.22 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
PART NUMBER
• 13000445
TT 22-A II
115V
EAN 8024530013219
• 13000444
TT 22-A II
220-240V
EAN 8024530012991
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
DATASHEET
DATASHEET

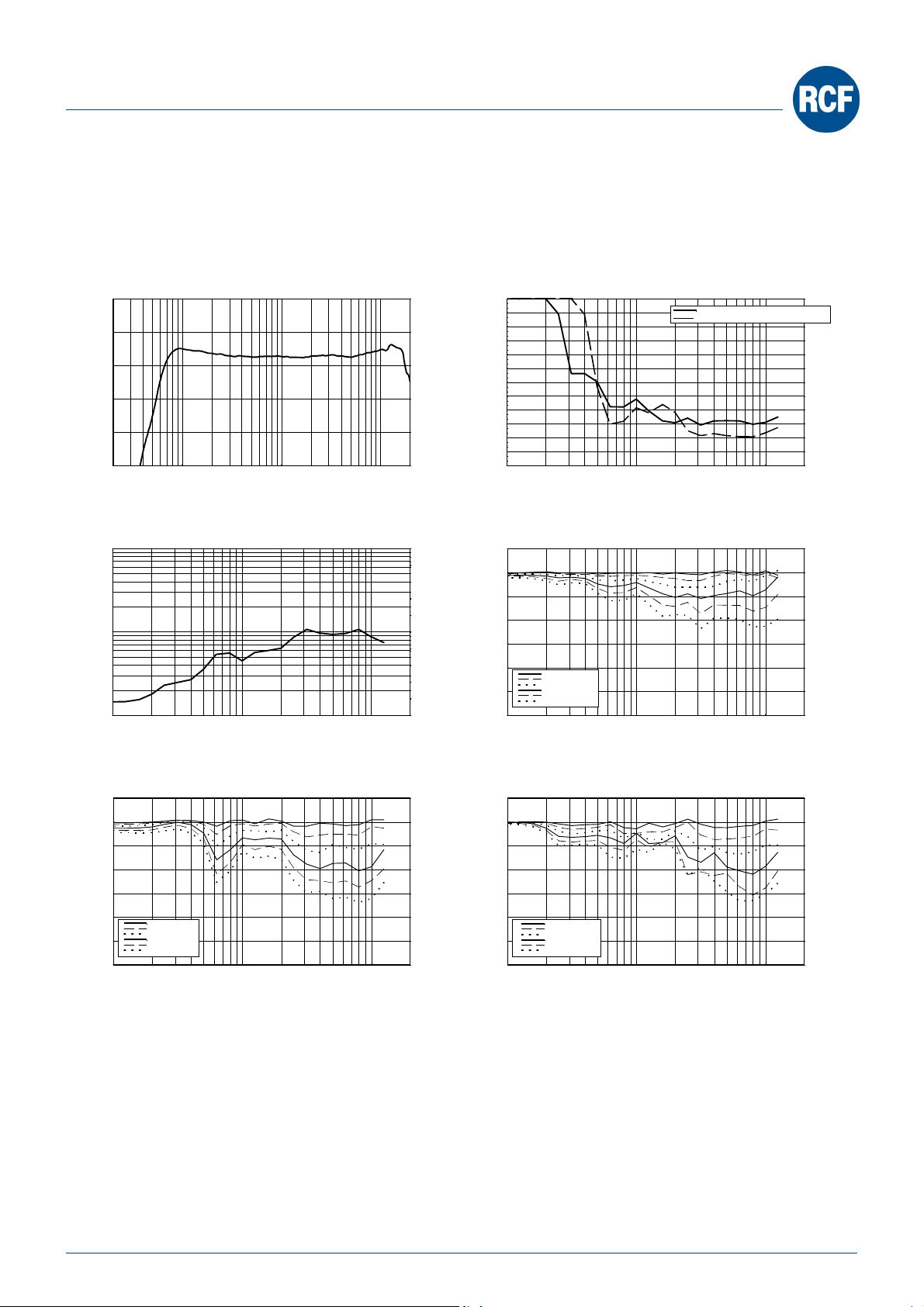

120
Response -20dBu/1m
110
100
dB SPL
90
80
70
20
100
10
Total Q
1
100 1000 10000
100 1000 10000
Frequency (Hz)
Directivity Index and Q
Frequency (Hz)
360
330
300
Beamwidth vs. Frequency
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
270
240
210
180
150
120
Coverage Angle (Deg.)
90
60
30
0
100 1000 10000
20
18
16
14
Directivity index Di, dB
12
10
8
6
4
2
0
5
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Horizontal ±10 degrees
Horizontal ±20 degrees
Horizontal ±30 degrees
Horizontal ±40 degrees
Horizontal ±50 degrees
Horizontal ±60 degrees
Frequency (Hz)
Normalized Horizontal off-axis Response
Frequency (Hz)
5
Normalized Vertical off-axis Response. Above the box
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Vertical +10 degrees
Vertical +20 degrees
Vertical +30 degrees
Vertical +40 degrees
Vertical +50 degrees
Vertical +60 degrees
Frequency (Hz)
5
Normalized Vertical off-axis Response. Below the box
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Vertical -10 degrees
Vertical -20 degrees
Vertical -30 degrees
Vertical -40 degrees
Vertical -50 degrees
Vertical -60 degrees
Frequency (Hz)
TT22-A II
DATASHEET
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
330°
210°
210°
180°
180°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
160
125
100
90°
630
500
400
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
210°
330°
330°
210°
180°
0°
180°
315
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
250
200
90°
1250
1000
800
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
210°
330°
210°
180°
180°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
2500
2000
1600
90°
10000
8000
6300
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
300°
270°
240°
330°
210°
330°
210°
180°
180°
0°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
Horizontal One Octave Polars
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
5000
4000
3150
90°
90°
TT22-A II
DATASHEET
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
160
125
100
0°
630
500
400
0°
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
240°
120°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
315
250
200
0°
1250
1000
800
0°
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
2500
2000
1600
0°
10000
8000
6300
0°
Vertical 1/3 Octave Polars
150°
180°
210°
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
Vertical One Octave Polars
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
5000
4000
3150
0°
0°
TT22-A II
ACCESSORIES
AC PMA - POLE MOUNT
PART NUMBER
13360034
EAN:
8024530007713
AC PM-M20
PART NUMBER
13360067
EAN:
8024530014599
AC PMX POLE MOUNT M20
PART NUMBER
13360232
EAN:
8024530010058
AC PRO-FS PROFESS. LOCKING FLOOR STAND
PART NUMBER
13360109
EAN:
8024530006471
AC PRO-LF PROFESSIONAL LOCKING FLANGE
PART NUMBER
13360111
EAN:
8024530006495
AC PRO-PM PROFESS. LOCKING POLE MOUNT
PART NUMBER
13360110
EAN:
8024530006488
AC XLR-3M3F XLR CONN. 3MALE3FEMALEXCABLE
PART NUMBER
13360102
EAN:
8024530006402
CABLES KIT CBL ETHERCON 0.7M
PART NUMBER
12399016
EAN:
8024530013844
CABLES KIT CBL ETHERCON 1.5M
PART NUMBER
12399017
EAN:
8024530013851
DATASHEET
CABLES KIT CBL ETHERCON 3M
PART NUMBER
12399035
EAN:
8024530013868
CABLES KIT CBL ETHERCON 5M
PART NUMBER
12399018
EAN:
8024530013875
CABLES KIT CBL ETHERCON TO XLR F 0.2M
PART NUMBER
12399019
EAN:
8024530013882
CABLES KIT CBL ETHERCON TO XLR M 0.2M
PART NUMBER
12399020
EAN:
8024530013899
COVER CVR TT 22 II
PART NUMBER
13360325
EAN:
8024530013424
DOUBLE STUD 4X
PART NUMBER
13360030
EAN:
SPEAKER CABINET FLOOR STAND-STEEL
PART NUMBER
13360035
EAN:
8024530005030
VERTICAL BRACKET V-BR PRO12
PART NUMBER
13360107
EAN:
8024530010416
VERTICAL BRACKET V-BR TT 22 II
PART NUMBER
13360328
EAN:
8024530013332
DATASHEET
