TT 08-A II
ACTIVE TWO-WAY HIGH DEFINITION SPEAKER
DESCRIPTION
The RCF TT08-A II is by far the smallest
member of the TT+ family, whilst being the
most flexible and powerful tool in its class.
Perfect for live sound to playback and
monitoring, corporate events and broadcast
studios. Though remarkably compact and
lightweight, the TT 08-A II offers an incredible
maximum sound pressure level of 128 dB. Its
performance efficiency is higher than many
larger 10” speaker systems.
FEATURES
• 128 dB SPL Max
• 1000W RMS, two-way Class-D amplifier
• Rotatable 90° x 70° constant directivity horn
• Quick Fit Bracket Socket
• FiRPHASE
• 8’’ neodymium Woofers, 2.5’’ voice coil
• Horn-loaded 1” neo comp. driver, 1,75’’ voice coil
• RDNet Networked Management
• 60 ÷ 20000 Hz Frequency Range
DATASHEET
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
128 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°
Transducers
Compression Driver:
1 x 1.0'' neo, 1.75'' v.c
Woofer:
8'' neo, 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
900 HZ
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
Bypass, Linear/High Pass, Volume, RDnet
on boar
RDNet:
Yes
Power section
Total Power:
2000 W Peak, 1000 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
3X M10 TOP AND BOTTOM
2X PIN D.10 AND M10 SIDE
Handles:
1 TOP
Grille:
Steel
Color:
Black
Size
Height:
450 mm / 17.72 inches
Width:
270 mm / 10.63 inches
Depth:
278 mm / 10.94 inches
Weight:
11 kg / 24.25 lbs
Shipping informations
Package Height:
500 mm / 19.69 inches
Package Width:
330 mm / 12.99 inches
Package Depth:
320 mm / 12.6 inches
Package Weight:
12.7 kg / 28 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
PART NUMBER
• 13000558
TT 08-A II
115V
• 13000547
TT 08-A II
220-240V
EAN 8024530017118
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.

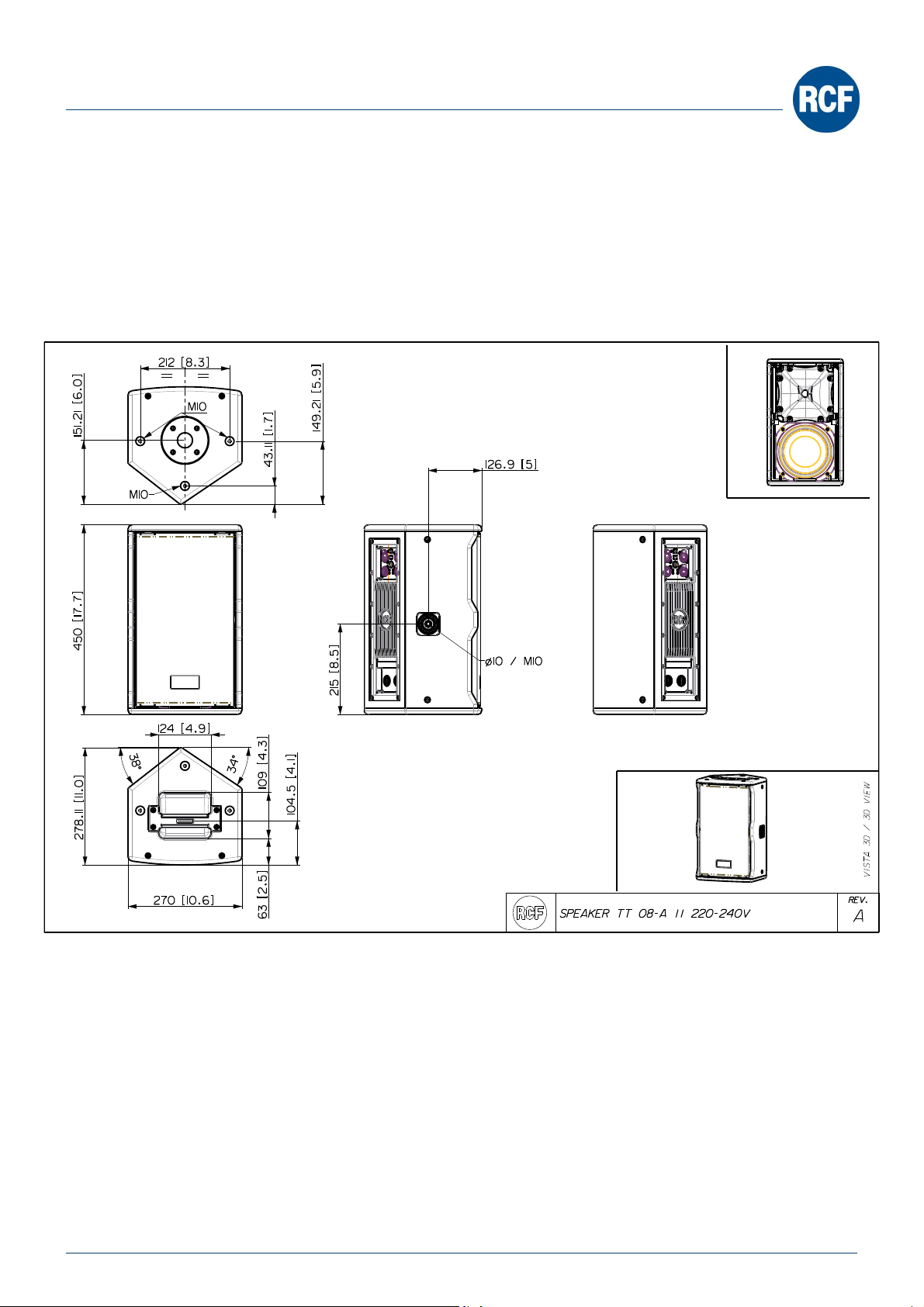

VISTA 3D / 3D VIEW
278.11 11.0[ ]
450 17.7[ ]
270 10.6[ ]
212 8.3[ ]
149.21 5.9[ ]
43.11 1.7[ ]
151.21 6.0[ ]
215 8.5[ ]
126.9 5[ ]
104.5 4.1[ ]
109 4.3[ ]63 2.5[ ]
124 4.9[ ]
38$
34$
SPEAKER TT 08-A II 220-240V
REV.
A
M10
M10
DATASHEET
ACCESSORIES
AC PMA - POLE MOUNT
PART NUMBER
13360034
EAN:
8024530007713
AC PM-M20
PART NUMBER
13360067
EAN:
8024530014599
AC PMX POLE MOUNT M20
PART NUMBER
13360232
EAN:
8024530010058
AC PRO8 V-BR - VERTICAL BRACKET
PART NUMBER
13360106
EAN:
8024530010409
AC PRO-FS PROFESS. LOCKING FLOOR STAND
PART NUMBER
13360109
EAN:
8024530006471
AC PRO-LF PROFESSIONAL LOCKING FLANGE
PART NUMBER
13360111
EAN:
8024530006495
AC PRO-PM PROFESS. LOCKING POLE MOUNT
PART NUMBER
13360110
EAN:
8024530006488
AC XLR-3M3F XLR CONN. 3MALE3FEMALEXCABLE
PART NUMBER
13360102
EAN:
8024530006402
COVER CVR TT 08 II
PART NUMBER
13360403
EAN:
8024530016326
DATASHEET
HORIZONTAL BRACKET H-BR TT 08 II
PART NUMBER
13360399
EAN:
8024530016289
KIT EYEBOLT 4 X
PART NUMBER
13360031
EAN:
RAIN PROTECTION RP 1X HDL 6
PART NUMBER
13360381
EAN:
8024530015169
SPEAKER CABINET FLOOR STAND-STEEL
PART NUMBER
13360035
EAN:
8024530005030
VERTICAL BRACKET V-BR TT 08 II
PART NUMBER
13360400
EAN:
8024530016296
DATASHEET
