SUB 8005-AS
ACTIVE SUBWOOFER
DESCRIPTION
The SUB 8005-AS is on of the most powerful 21” subwoofers in pro-sound
category.
Featuring a high power, hypervented 21” woofer, with 4.5” inside/outside
voice coils, this cabinet is designed to deliver a serious amount of low
frequency
Powered by a 2500W digital amplifier module, the SUB 8005-AS can perform
in the most demanding situations. As a self-powered system, the transducers,
amplification and DSP control electronics of the SUB 8005-AS are designed to
optimize performance and maximize its power.
The SUB 8005-AS ‘s efficiently tuned cabinet houses two RCF Precision backvented, long-excursion, new high power 21” inch cone drivers, providing a
deep and controlled reproduction of the bass frequency range. Featuring a
4,5” inside/outside voice coil to minimize power compression and extend the
life of this product.
The drivers have also been engineered for extreme efficiency, using highgauss ferrite magnets for the most powerful magnetic field strength. High
magnetic field strength increases the driver’s sensitivity, which yields greater
output, while keeping heat dissipation requirements within operational
tolerances.
Powered by a 1250W digital amplifier module, the SUB 8005-AS can perform
in the most demanding situations. The input board includes volume control,
deep/punch switch, high pass switch, phase switch, cardioid, time delay.
An easy to reach delay knob on the back allows to set the overall delay of the
speaker, in meters, according to its application. 3 status LEDs – Power / Signal
/ Status are provided for monitoring the system
The amplifier features a solid mechanical aluminium structure which not
only stabilize the amplifier during transportation but also assist in the heat
dissipation and, with DSP control electronics and power supply, is integrated
into a single, field-replaceable module mounted in the rear of the cabinet.
The cabinet is constructed of multi-ply hardwood and coated with a textured
black finish. Integral metal grilles lined with acoustical black mesh protect the
cone drivers. Integrated mechanics are for multiple configuration with HDL
20-A and HDL 10-A.
MAIN APPLICATIONS
• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies
MAIN FEATURES
• 2500 Watt Peak, 1250 Wat RMS
• 137 dB max SPL
• 27 Hz - 120 Hz frequency response
• 21” Woofer, 4.5” voice coil vented woofer
• DSP controlled Input section with selectable presets
• Delay control
• Baltic birch tour grade cabinet
• Compatible with NXL23-A (stacking)
• Compatible with NXL24-A (stacking)
• Multiple configurations with HDL 10-A and HDL 20-A

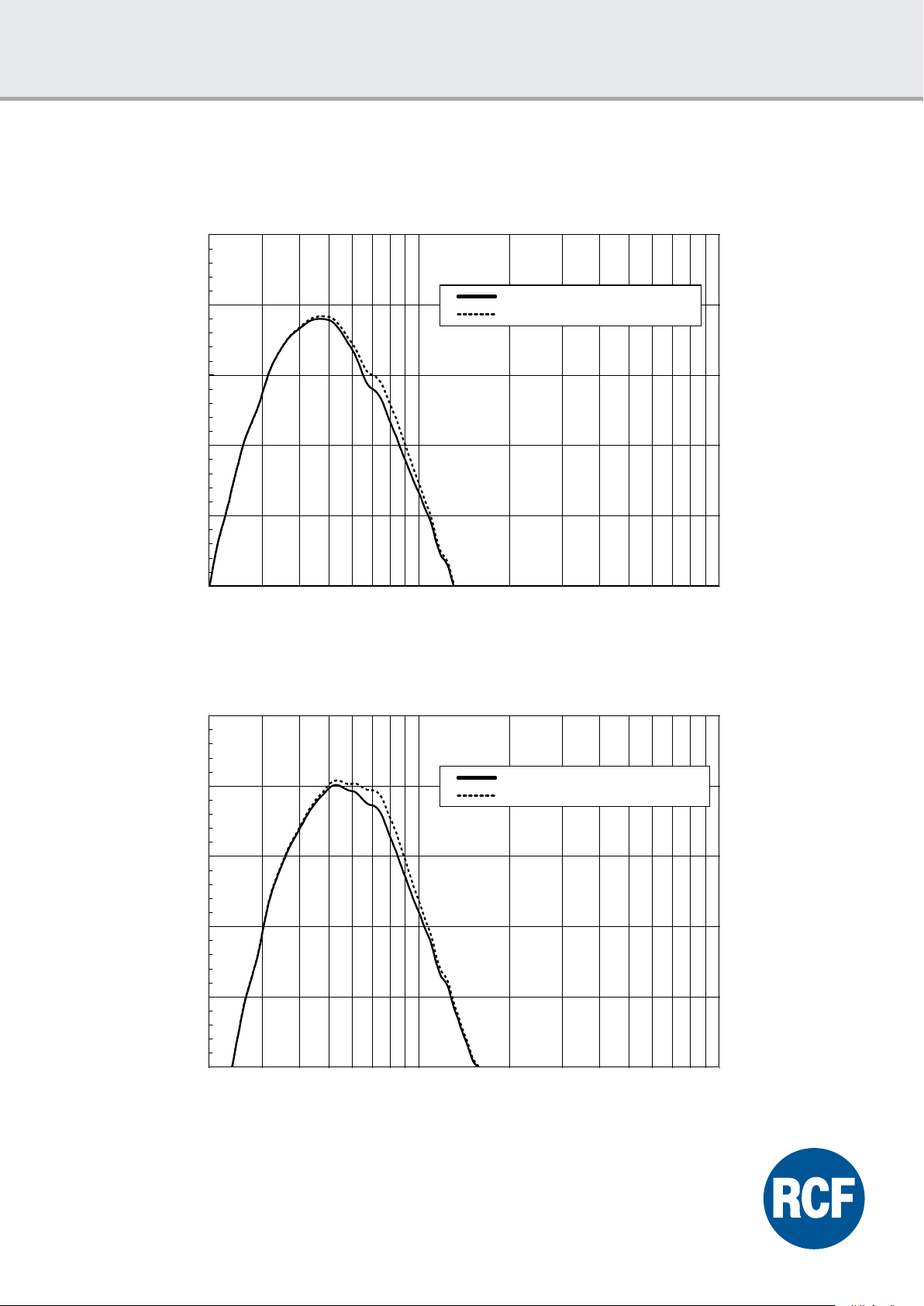

SUB 8005-AS
120
Response
110
100
dB SPL
90
80
70
20
SUB8005-A
120
LOW PASS 90 Hz - DEEP
LOW PASS 90 Hz - PUNCH
100 1000
Frequency (Hz)
Response
110
100
dB SPL
90
80
70
20
SUB8005-A
LOW PASS 120 Hz - DEEP
LOW PASS 120 Hz - PUNCH
100 1000
Frequency (Hz)
SUB 8005-AS
180°
180°
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
Vertical 1/3 Octave Polars
120°
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
Vertical 1/3 Octave Polars
120°
120°
200
160
125
60°
90°
200
160
125
0°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
150°
90°
60°
120°
100
80
63
60°
90°
100
80
63
0°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
150°
90°
60°
180°
210°
150°
240°
270°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
300°
0°
330°
180°
210°
150°
240°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
300°
270°
30°
0°
330°
SUB 8005-AS
PART NUMBERS
13000422 - 230V
13000423 - 115V
DIMENSIONS (All data are in mm)
ACCESSORIES
AC PRO-LF Steel professional adapter sleeve for speaker floor
AC PRO-PM Steel pole mount accessory for a satellite speaker
AC PMA Speaker pole mount
AC PMX Speaker pole mount with pushbutton system and
AC PRO WHEELS Kit no 4 fixed castor 80mm/3” dia black wheel
AC CONNECTION
SUB 8006-AS
POLE MOUNT KIT
NX L24-A
STACKING BAR
NX L23-A
STACKING KIT 2X
NX L24-A
stand, tube diametro 35 mm. Load capacity up to
50Kg, Weight 0.7 Kg, H 27.5 cm
on a subwoofer, tube diametro 35 mm. Load
capacity up to 35Kg, Weight 2.4 Kg, H MIN/MAX
95cm/137cm
hand crank avoid uncontrolled reverse motion
locking screw provides additional safety.
with roller bearings
Accessory to lock FLY BAR HDL 10-18 to the SUB
8004-AS. M20 fixing point.
Pole mount accessory for stacking 1 x NXL24 on
SUB 8004-AS (or M20 pole mount).
Accessory for NX L23-A for stacking option on SUB
8004-AS and SUB 8006-AS
Pole mount accessory for stacking 2 x NXL24 on
SUB 8004-AS (or M20 pole mount).
1.0-J-J
ACOUSTICAL SPECIFICATIONS
Frequency response: 27 Hz - 120 Hz frequency response
Max SPL: 137 dB
Horizontal coverage angle: Vertical coverage angle: Compression driver: Midrange: Woofer: 21”, 4.5” v.c.
INPUT SECTION
Input signal (Impedance): bal/unbal
Input/Output connector: XLR
Input sensitivity: -2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies: Protections: Themel - RMS
Sensitivity control: yes
Limiter: soft limiter
High pass: yes
Controls:
RCF products are continually improved. All specifications are therefore subject to change without notice.
Xover, Phase switch, Deep/Punch, Output
Delay Settings, Cardioid
AMPLIFIER
Power supply: 2500 Watt
High frequencies: Mid frequencies: Low frequencies: switching / 2500 Watt
Cooling: Convection
Connection: Powercon in/out
PHYSICAL
Height: 825 mm (32.48”)
Width: 600 mm (23.62”)
Depth: 805 mm (31.69”)
Weight: 66.6 kg (146.8 lbs)
Cabinet: baltic birch
Hardware: Handles: 2 side
Pole mount cap yes
Colour: Black
www.rcf.it
