RCF S4012 Data Sheet
S 4012
BANDPASS SUB WOOFER
DESCRIPTION
The S4012 high-efficiency band pass
subwoofer is the ideal bass frequency
extension to complement the RCFACUSTICA
Compact series two-way loudspeakers for
small size installations and distributed music
systems.
The low-frequency transducer is an RCF
Precision high-power 12” woofer with a 3”
inside/outside voice coil to minimize power
compression and extend the life of the
product. This new woofer design guarantees
a fast and controlled reproduction of the bass
frequency range. Using bandpass loading to
the transducer, the subwoofer design ensures
an efficient acoustic response down to 45 Hz.
The cabinet features two Neutrik Speakon™
connectors in a recessed input plate.
FEATURES
• 12" high-efficiency RCF Precision 3" voice-coil woofer with Inside/Outside Coil Technology
• Horn reflex loaded woofer
• 124 dB maximum sound pressure level
• Response down to 45 Hz
• Rectangular box enclosure with protective metal grille
• Baltic Birch cabinet with black, heavy duty, textured epoxy paint
• 35 mm standard pole mount in top section of cabinet
• Integrated hand carry points
DATASHEET
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response (-10dB):
45 Hz ÷ 200 Hz
Max SPL @ 1m:
124 dB
System Sensitivity:
92 dB
Power section
Nominal Impedance (ohm):
8 ohm
Power Handling:
400 W RMS
Peak Power Handling:
1600 W PEAK
Recommended Amplifier:
800 W
Transducers
Woofer:
12'', 3.0'' v.c
Nominal Impedance (ohm):
8 ohm
Input Power Rating:
400 W AES, 800 W PEAK
Sensitivity:
97 dB, 1W @ 1m
Input/Output section
Input connectors:
Speakon® NL4
Output connectors:
Speakon® NL4
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black

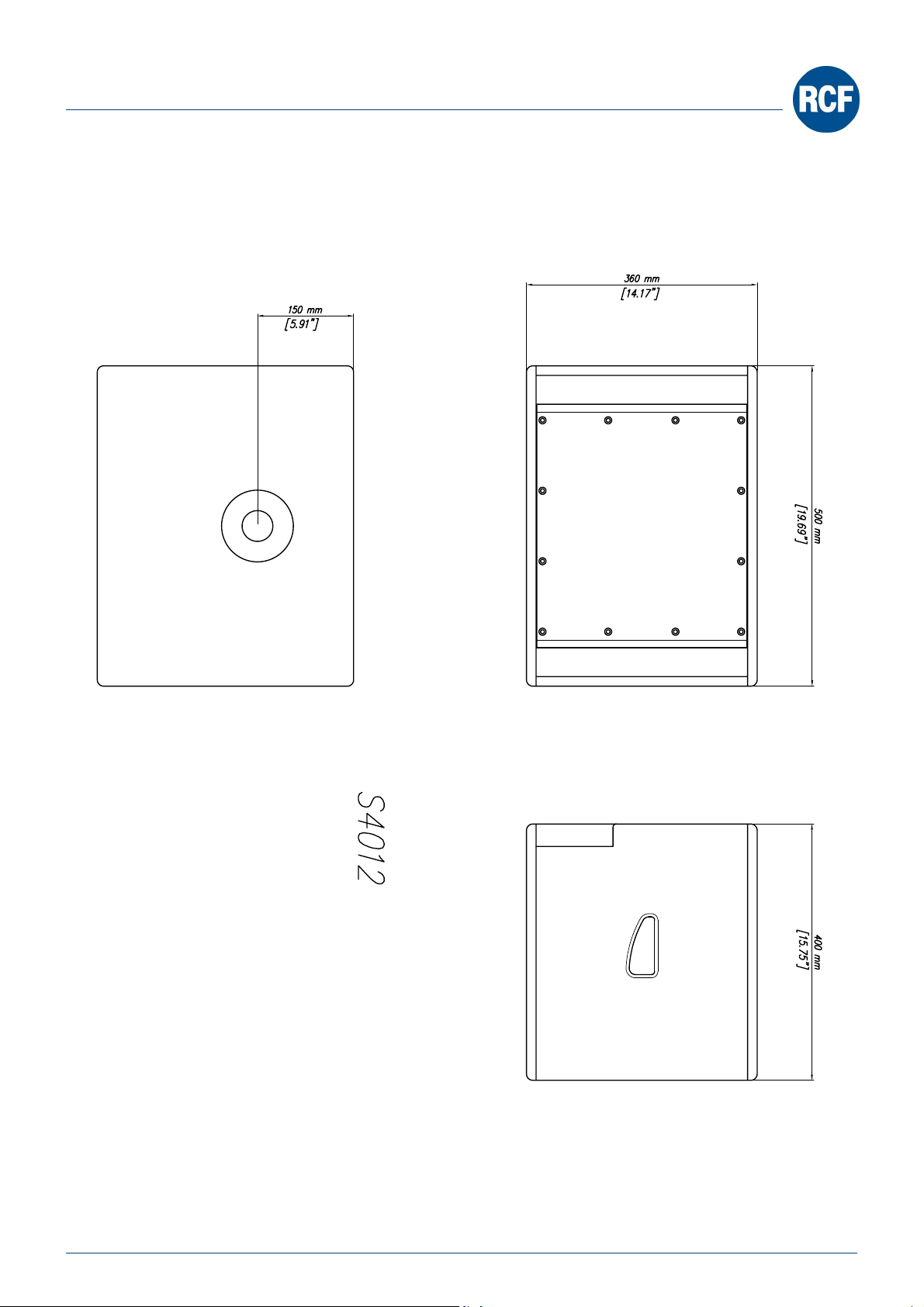

Size
Height:
360 mm / 14.17 inches
Width:
500 mm / 19.69 inches
Depth:
400 mm / 15.75 inches
Weight:
21 kg / 46.3 lbs
Shipping informations
Package Height:
560 mm / 22.05 inches
Package Width:
480 mm / 18.9 inches
Package Depth:
510 mm / 20.08 inches
Package Weight:
24 kg / 52.91 lbs
PART NUMBER
• 13000048
S 4012
EAN 8024530007874
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
