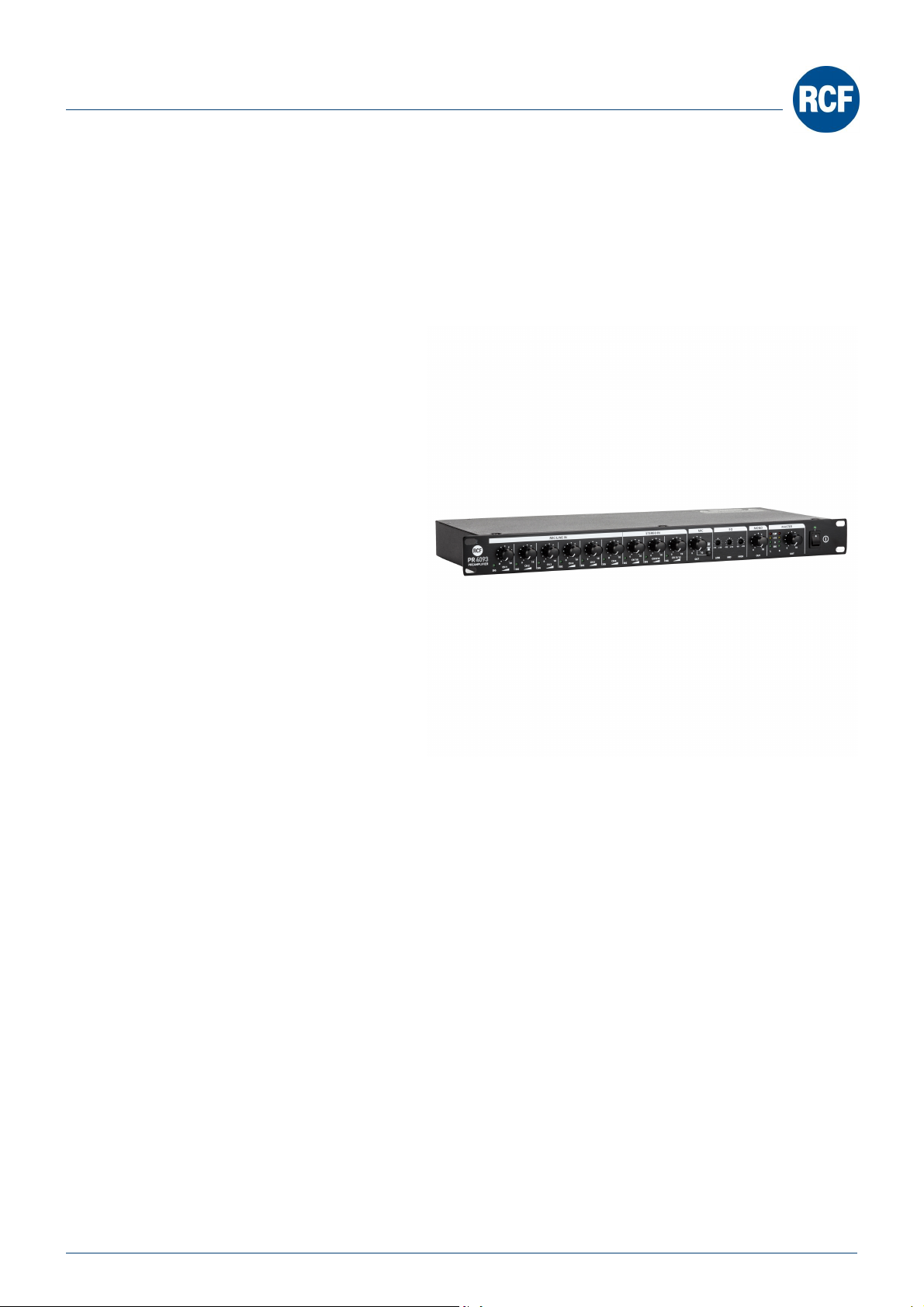

PR 4093
9 INPUTS, 3 OUTPUTS PREAMPLIFIER
DESCRIPTION
PR 4093 has been designed to provide a
flexible solution for paging and music
application in PA systems. It offers 6 balanced
inputs mic/line with PHANTOM facility, the
first of them with priority triggered by VOX
circuit. In addition, 3 stereo input on RCA
connectors are available. Outputs offer
different functionalities, included tone control
on front panel, dedicated mixing of inputs 1-6
e connection to recording devices.
FEATURES
• 6balanced XLR inputs with MIC/LINE sensibility and selectable PHANTOM power
• 3 stereo inputs on RCA connectors
• SIGNAL presence LED for each input
• Priority function on input 1, activatable through VOX circuit
• 1 XLR stereo output with tone control LOW, MID, HIGH on front panel
• 1 MONO output on ¼'' jack connnector
• 1 MIC output on ¼'' jack connnector
• Connection to recording device on RCA connectors
• LED output level indicator
• 230V AC functioning and 24V DC emergency power supply
DATASHEET
TECHNICAL SPECIFICATIONS
Audio performance
Frequency Response (-3dB):
20 Hz ÷ 22 kHz
Crosstalk (on the whole bandwitch):
<-68 dB
Distortion (THD+N) @ 1 kHz nominal
power:
<0.03 %
Input section
Total number of inputs:
9
Balanced:
6
Unbalanced:
3
Mono:
6
Stereo:
3
Line inputs:
3
Line connectors:
RCA
Mic+Line inputs:
6
Mic+Line connectors:
XLR
Mic+Line Phantom:
18 V DC - 21 V DC
VOX:
Yes
Output section
Signal output number:
3
Signal output connectors:
JACK, RCA, XLR
Processing
Tone controls:
Yes
Controls
Configuration:
Front panel
Protections
Cooling:
Convection
Power requirement
Operating voltage:
220-240/115 V~ 50/60Hz
Voltage selection:
Internal
DC power:
Yes
DC power value:
24 V
Power consumption:
18 W
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Rack mounting:
19", 1U
Size
Height:
44 mm / 1.73 inches
Width:
483 mm / 19.02 inches
Depth:
195 mm / 7.68 inches
Weight:
2.8 kg / 6.17 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
Shipping informations
Package Height:
95 mm / 3.74 inches
Package Width:
540 mm / 21.26 inches
Package Depth:
265 mm / 10.43 inches
Package Weight:
3.6 kg / 7.94 lbs
PART NUMBER
• 17100007
PR 4093
115V
EAN 8024530015367
• 17100003
PR 4093
220-240V
EAN 8024530013677
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
483 mm
44 mm
432 mm
195 mm
PANEL
PR
PREAMPLIFIER
CH 2 CH 3 CH 4 CH 5
CH 6 CH 7/8 CH 9/10 CH 11/12
SIG
CH 1
0 10
0 10 0 10 0 10 0 10 0 10 0 10 0 10 0 10 0 10 0 100 10
L R
CLIP
+10
0
SIG
0
-15
+15
0
-12
+12
0
-15
+15
HIGHMIDLOW
SIG SIG SIG SIG SIG SIG SIG SIG
OUT OUTOUT
MIC/LINE IN STEREO IN MIC EQ MONO MASTER
ON
OFF
PR
PREAMPLIFIER
CH 2 CH 3 CH 4 CH 5 CH 6 CH 7/8 CH 9/10 CH 11/12
SIG
CH 1
0 10
0 10 0 10 0 10 0 10 0 10 0 10 0 10 0 10 0 10 0 100 10
L R
CLIP
+10
0
SIG
0
-15
+15
0
-12
+12
0
-15
+15
HIGHMIDLOW
SIG SIG SIG SIG SIG SIG SIG SIG
OUT OUTOUT
MIC/LINE IN STEREO IN MIC EQ MONO MASTER
ON
OFF
Front panel
DRAWINGS
PANELS
Rear panel
