PL 8X
COAXIAL CEILING SPEAKER
DESCRIPTION
The PL8X is a ceiling speakers featuring
elegant and innovative design that can be
flush-mounted in false ceilings or panels.
Incorporating a 200 mm (8”) loudspeaker.
Both have a coaxial 25 mm (1”) tweeter
placed on a bridge support. The speakers are
equipped with a line transformer that enables
direct connection to constant voltage
systems at 70 V or 100 V. The multiple
sockets on the transformer make it possible
to select the output power from among
several values. Installation is quick and easy
thanks to a special three-hook system that
avoids the need for using screws and pallet or
other attachment elements.
FEATURES
• Two way speaker system with dome tweeter recommended for hi level speech and background-music
reproduction
• Music power/RMS: 40/20W
• 8" woofer with coaxial tweeter
• Low impedance (8O) or 100V
• Built-in multi-tapped transformer for 100/70V constant voltage connection
• Body in self-extinguishing plastic (UL 94V-0) and front metal grille RAL 9003 White
• IP 44 protection
DATASHEET
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
109 dB
Coverage angle:
80°
System Sensitivity:
93 dB
Power section
Nominal Impedance (ohm):
8 ohm
Power Handling:
20 W RMS
Peak Power Handling:
80 W PEAK
Recommended Amplifier:
40 W
Transducers
Dome Tweeter:
Coaxial 1.0''
Woofer:
Coaxial 8''
Input/Output section
Input connectors:
Euroblock
Constant Voltage Transformer:
70/100 V
Power selection 1 (100 V):
20 W - 500 ohm
Power selection 2 (100 V):
10 W - 1000 ohm
Power selection 3 (100 V):
5 W - 2000 ohm
Power selection 4 (100 V):
2.5 W - 4000 ohm
Standard compliance
IP protection grade:
IP 44
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Plastic
Hardware:
Plastic Material
Grille:
Steel
Color:
White - RAL 9003
Size
Depth:
88 mm / 3.46 inches
Recessed Depth:
80 mm / 3.15 inches
Diameter:
247 mm / 9.72 inches
Cut out diameter:
224 mm / 8.82 inches
Weight:
1.23 kg / 2.71 lbs
Shipping informations
Package Height:
280 mm / 11.02 inches
Package Width:
280 mm / 11.02 inches
Package Depth:
130 mm / 5.12 inches
Package Weight:
2.09 kg / 4.61 lbs
PART NUMBER
• 13133043
PL 8X
EAN 8024530004965
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.

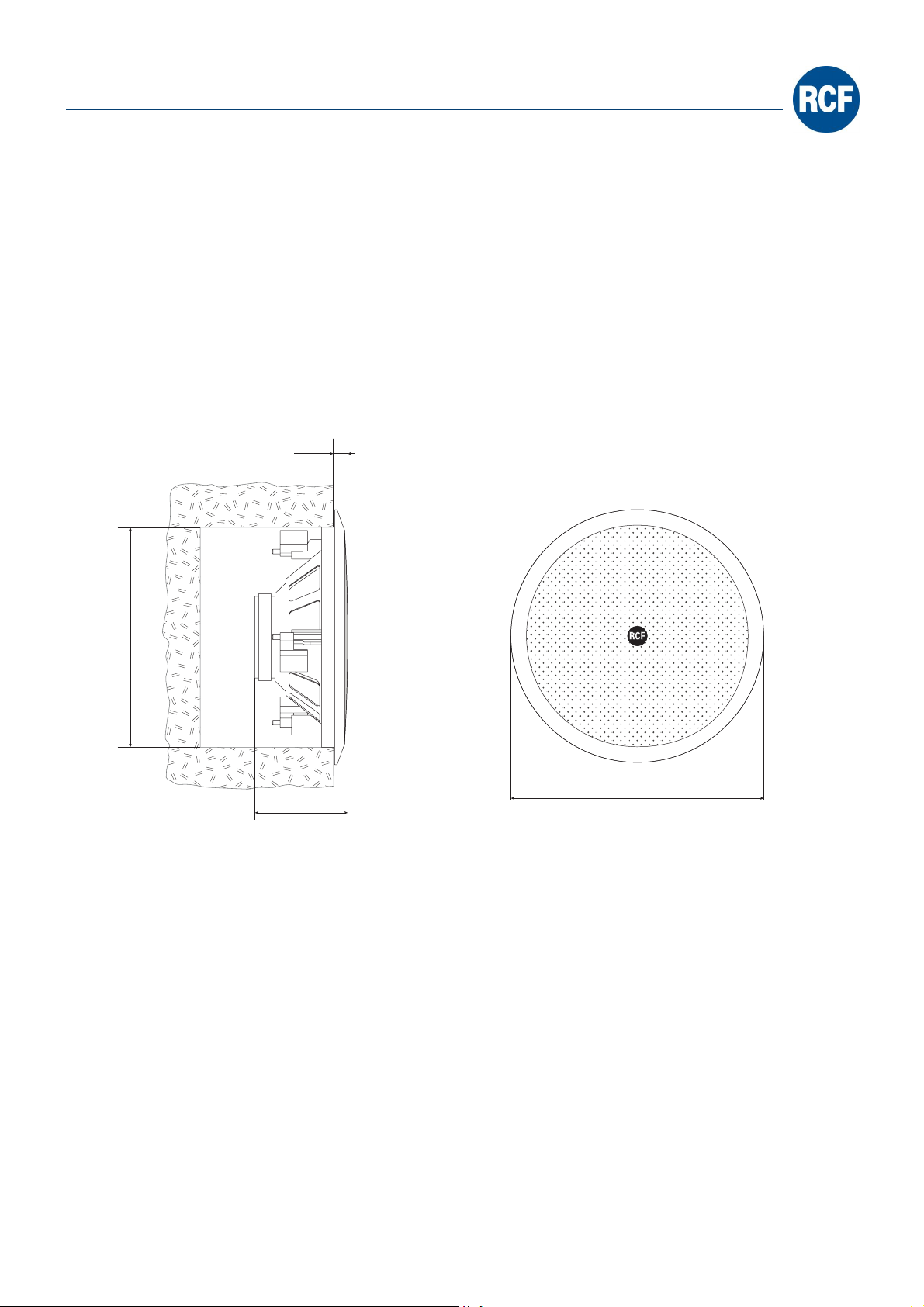

247 mm
88 mm
8 mm
224 mm
DRAWINGS
DATASHEET

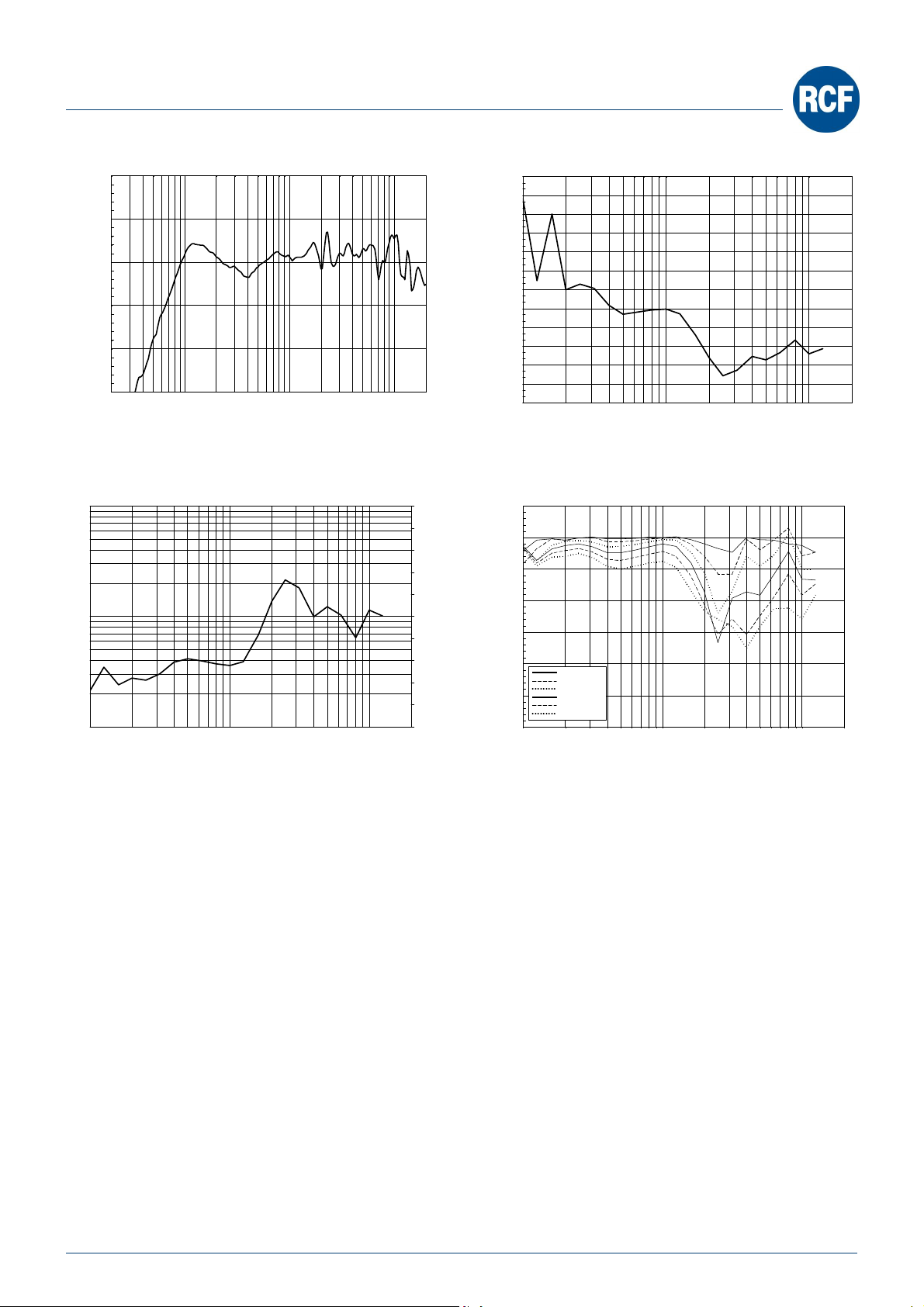

100 1000 10000
Frequency (Hz)
60
70
80
90
100
110
dB SPL
20
Response 1W/1m
PL8X
100 1000 10000
Frequency (Hz)
1
10
100
Total Q
0
2
4
6
8
10
12
14
16
18
20
Directivity index Di, dB
Directivity Index and Q
100 1000 10000
0
30
60
90
120
150
180
210
240
270
300
330
360
Coverage Angle (Deg.)
Beamwidth vs. Frequency
100 1000 10000
Frequency (Hz)
-30
-25
-20
-15
-10
-5
0
5
Attenuation in dB
±10 degrees
±20 degrees
±30 degrees
±40 degrees
±50 degrees
±60 degrees
Normalized off-axis Response
DATASHEET

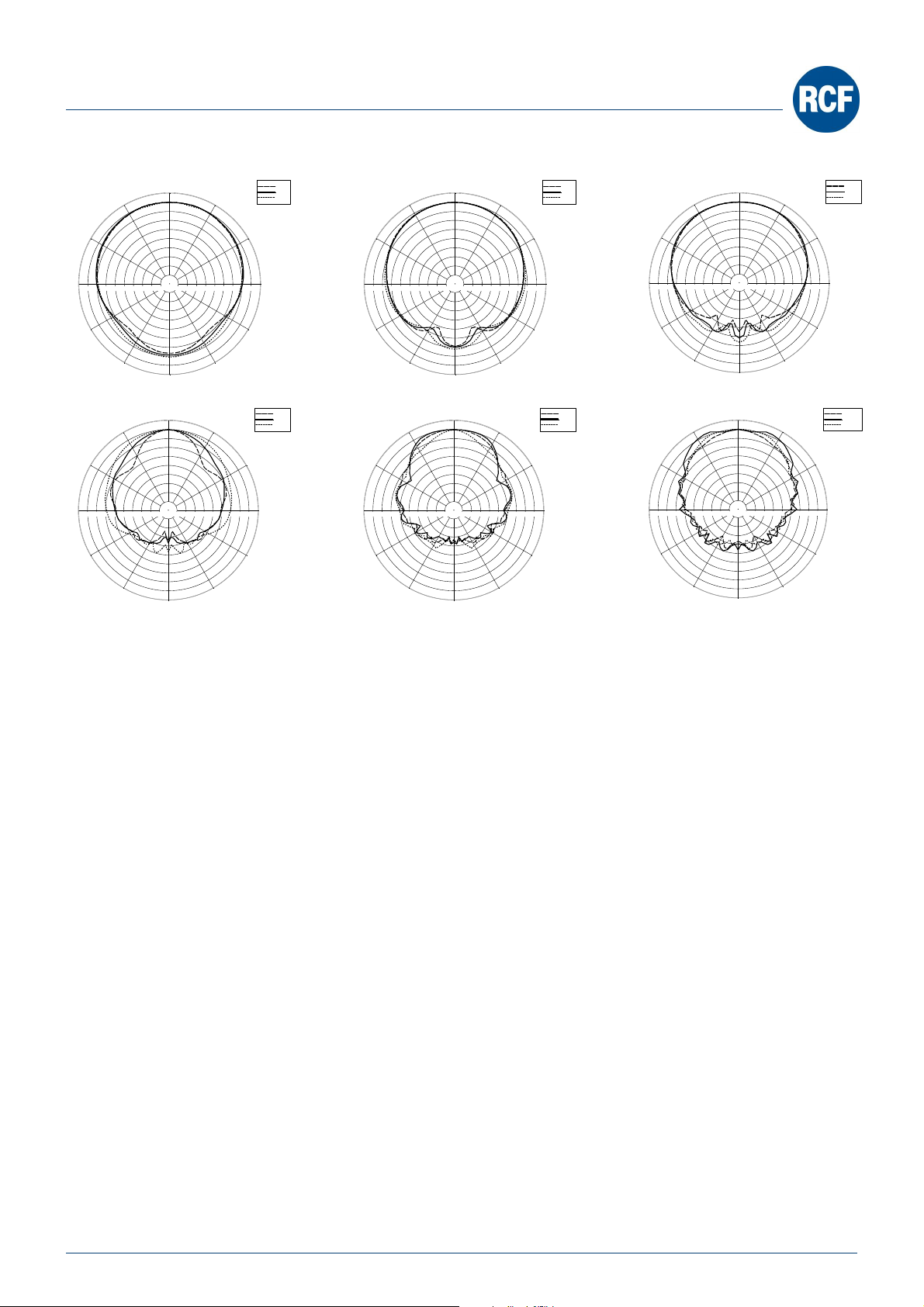

-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
315
250
200
1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
2500
2000
1600
1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
630
500
400
1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
5000
4000
3150
1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
1250
1000
800
1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
10000
8000
6300
1/3 Octave Polars
HORIZONTAL 1/3 POLAR PLOT
DATASHEET
