NX 915-A
PROFESSIONAL ACTIVE SPEAKER
DESCRIPTION
NX 915-A is masterfully engineered from the
ground up to deliver stellar audio
performance for solo musicians, bands, and
DJs. The combination of 1.75" compression
driver, 15" woofer, two-channel 2100W
amplifier, and a constant directivity
waveguide produces coherent 100° x 60°
coverage for the listening area with up to 131
dB SPL, distortion-free sound. Used standalone speaker for FOH system, satellite (with
subwoofer), stage monitor, or flown speaker,
the NX 915-A blends high-performance and
reliability in a compact package. Built
specifically for demanding live sound
applications, it also features multiple rigging
points for fixed installation. Blending RCF
proprietary FiRPHASE and Bass Motion
Control DSP processing, NX 9 Series speakers
are perfectly tuned for each model, delivering
absolute clarity and deep, powerful bass
response. The tour-ready, rugged all-wood
cabinet is easy to carry and secure to install
on a pole-, flown-, wall-, or truss-mounted
using the dedicated rigging points available.
FEATURES
• Up to 131 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• 45-20000 Hz linear frequency response
• 1.75" Compression Driver
• 15" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management
DATASHEET
Rev. E Last update: 08/07/2021
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
45 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
15'', 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
1600 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Linear, Boost, Stage, Volume
Power section
Total Power:
2100 W Peak
High frequencies:
700 W Peak
Low frequencies:
1400 W Peak
Cooling:
Convection
Connections:
VDE
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
2 x M10 Top, 1 x M10 each side, 1 x M10
bottom, 1 x M10 rear
Handles:
1 x Each Side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
705 mm / 27.76 inches
Width:
420 mm / 16.54 inches
Depth:
451 mm / 17.76 inches
Weight:
24.1 kg / 53.13 lbs
Shipping informations
Package Height:
751 mm / 29.57 inches
Package Width:
506 mm / 19.92 inches
Package Depth:
474 mm / 18.66 inches
Package Weight:
26.6 kg / 58.64 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
PART NUMBER
• 13000690
NX 915-A
115V
EAN 8024530019051
• 13000674
NX 915-A
220-240V
EAN 8024530018979
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.

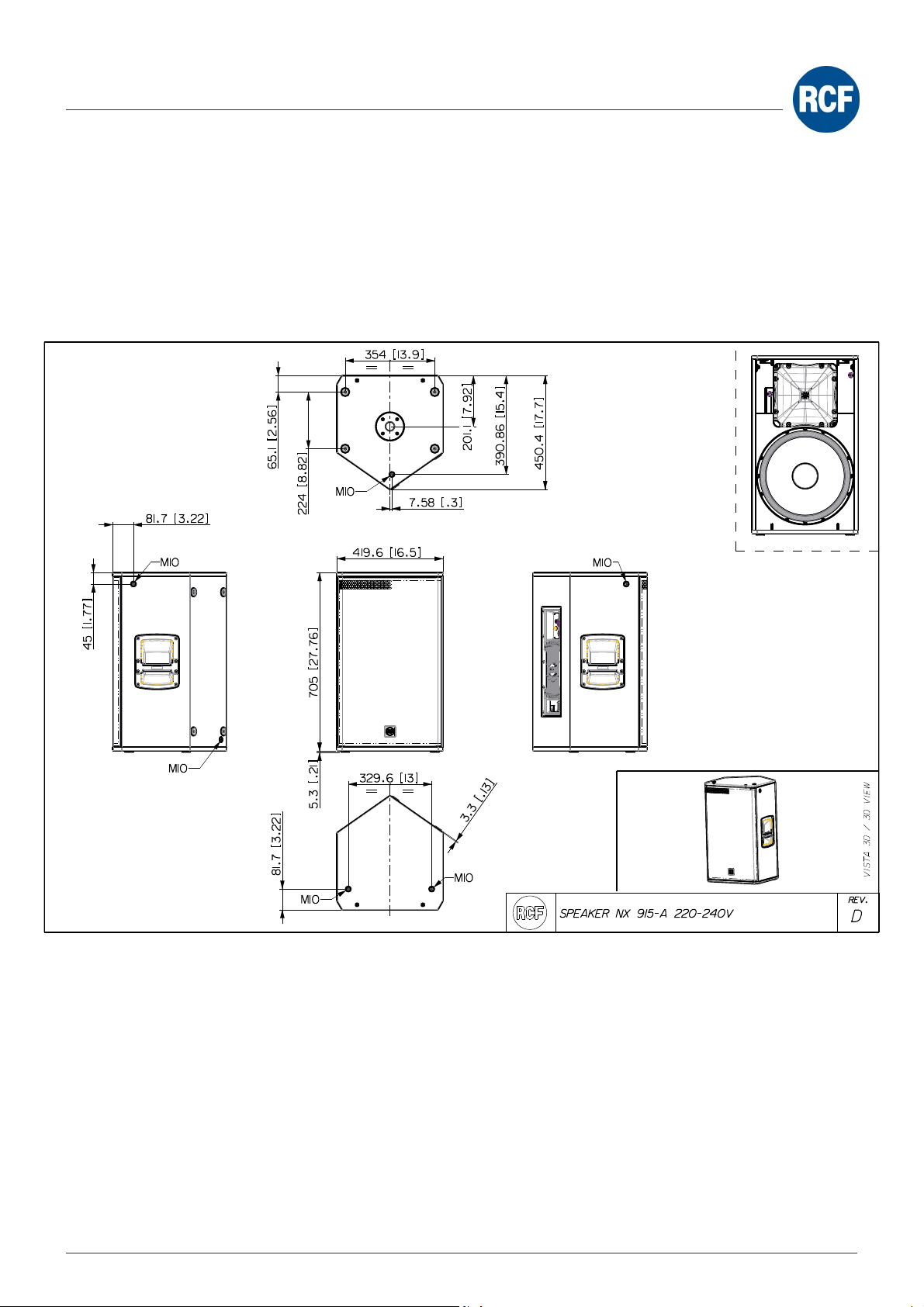

VISTA 3D / 3D VIEW
450.4 [ 17.7 ]
419.6 [16.5 ]
329.6 [13]
705 [27.76 ]
45 [1.77 ]
390.86 [15.4 ]
201.1 [7.92 ]
65.1 [2.56 ]
224 [8.82 ]
354 [13.9 ]
7.58 [.3 ]
81.7 [ 3.22 ]
81.7 [ 3.22 ]
5.3 [.21 ]
3.3 [.13
]
SPEAKER NX 915-A 220-240V
REV.
D
M10
M10
M10
M10
M10
M10
DATASHEET
ACCESSORIES
AC PMA - POLE MOUNT
PART NUMBER
13360034
EAN:
8024530007713
AC PM-M20
PART NUMBER
13360067
EAN:
8024530014599
AC PMX POLE MOUNT M20
PART NUMBER
13360232
EAN:
8024530010058
AC PRO-FS PROFESS. LOCKING FLOOR STAND
PART NUMBER
13360109
EAN:
8024530006471
AC PRO-PM PROFESS. LOCKING POLE MOUNT
PART NUMBER
13360110
EAN:
8024530006488
COVER CVR NX 915
PART NUMBER
13360497
EAN:
8024530019501
DATASHEET
