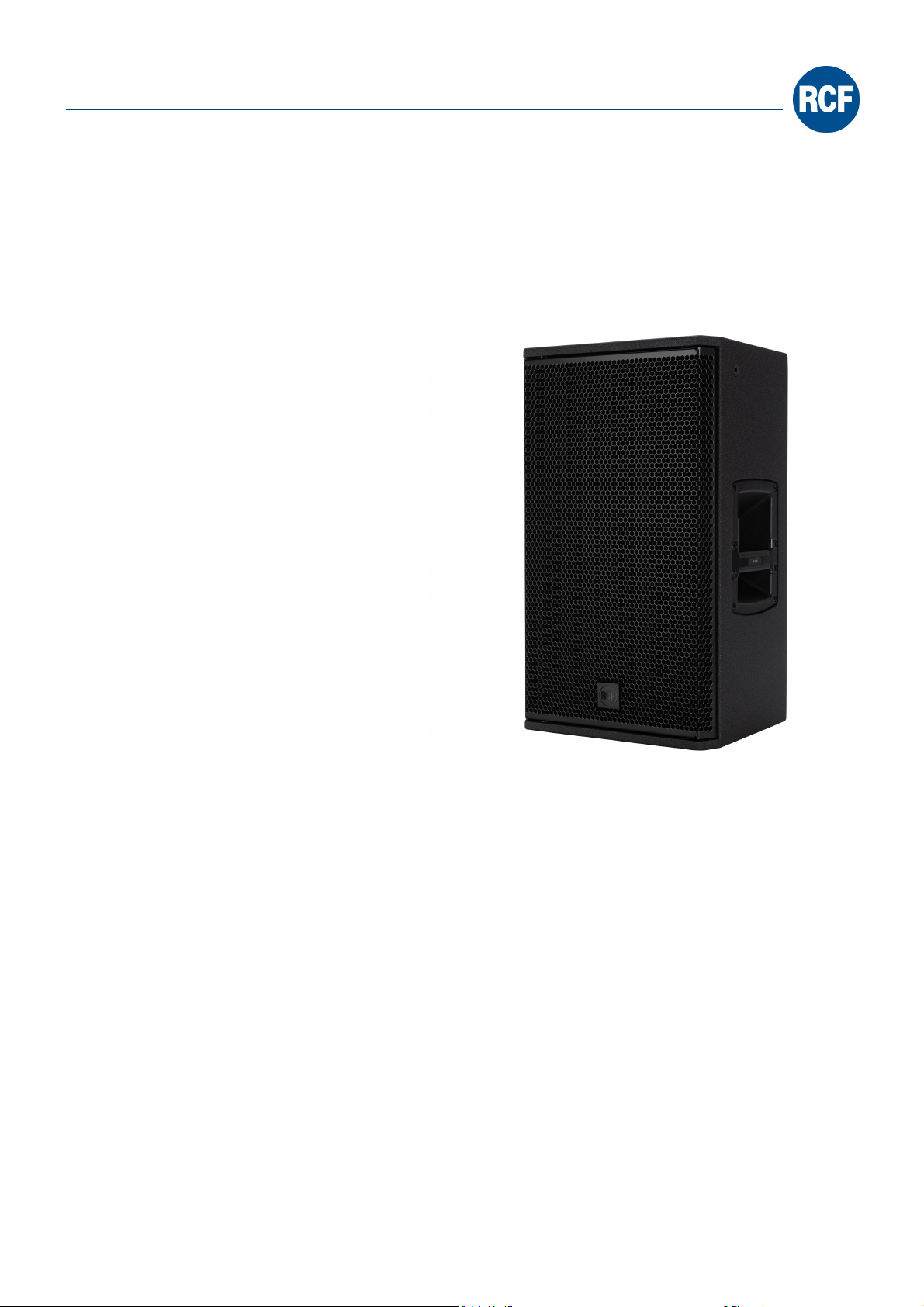

NX 912-A
PROFESSIONAL ACTIVE SPEAKER
DESCRIPTION
NX 912-A is masterfully engineered from the
ground up to deliver stellar audio
performance for solo musicians, bands, and
DJs. The combination of 1.75" compression
driver, 12" woofer, two-channel 2100W
amplifier, and a constant directivity
waveguide produces coherent 100° x 60°
coverage for the listening area with up to 130
dB SPL of distortion-free sound. Used standalone speaker for a FOH system, satellite
(with subwoofer), stage monitor, or flown
speaker, the NX 912-A blends highperformance and reliability in a compact
package. Built specifically for demanding live
sound applications, it also features multiple
rigging points for fixed installation. Blending
RCF proprietary FiRPHASE and Bass Motion
Control DSP processing, NX 9 Series speakers
are perfectly tuned for each model, delivering
absolute clarity and deep, powerful bass
response. The tour-ready, rugged all-wood
cabinet is easy to carry and secure to install
on a pole-, flown-, wall-, or truss-mounted
using the dedicated rigging points available.
FEATURES
• Up to 130 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• 50-20000 Hz linear frequency response
• 1.75" Compression Driver
DATASHEET
Rev. D Last update: 08/07/2021
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.0'', 1.75'' v.c
Woofer:
12'', 2.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover Frequencies:
1600 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Linear, Boost, Stage, Volume
Power section
Total Power:
2100 W Peak
High frequencies:
700 W Peak
Low frequencies:
1400 W Peak
Cooling:
Convection
Connections:
VDE
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
2 x M10 Top, 1 x M10 each side, 1 x M10
bottom, 1 x M10 rear
Handles:
1 x Side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
620 mm / 24.41 inches
Width:
362 mm / 14.25 inches
Depth:
405 mm / 15.94 inches
Weight:
20.8 kg / 45.86 lbs
Shipping informations
Package Height:
666 mm / 26.22 inches
Package Width:
461 mm / 18.15 inches
Package Depth:
416 mm / 16.38 inches
Package Weight:
22.8 kg / 50.27 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
PART NUMBER
• 13000689
NX 912-A
115V
EAN 8024530019044
• 13000673
NX 912-A
220-240V
EAN 8024530018962
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
VISTA 3D / 3D VIEW
404.5 [ 15.9 ]
361.4 [14.2 ]
180.2 [7.1 ]
62.2 [ 2.45 ]
203 [ 7.99 ]
300 [11.81]
3.5 [.14 ]
347.81 [ 13.7 ]
45 [1.77 ]
620 [24.41 ]
271.4 [10.7 ]
SPEAKER NX 912-A 220-240V
REV.
D
M10
M10
M10
M10
M10
M10
DATASHEET
ACCESSORIES
AC PMA - POLE MOUNT
PART NUMBER
13360034
EAN:
8024530007713
AC PM-M20
PART NUMBER
13360067
EAN:
8024530014599
AC PMX POLE MOUNT M20
PART NUMBER
13360232
EAN:
8024530010058
AC PRO-FS PROFESS. LOCKING FLOOR STAND
PART NUMBER
13360109
EAN:
8024530006471
AC PRO-PM PROFESS. LOCKING POLE MOUNT
PART NUMBER
13360110
EAN:
8024530006488
COVER CVR NX 912
PART NUMBER
13360496
EAN:
8024530019495
DATASHEET
