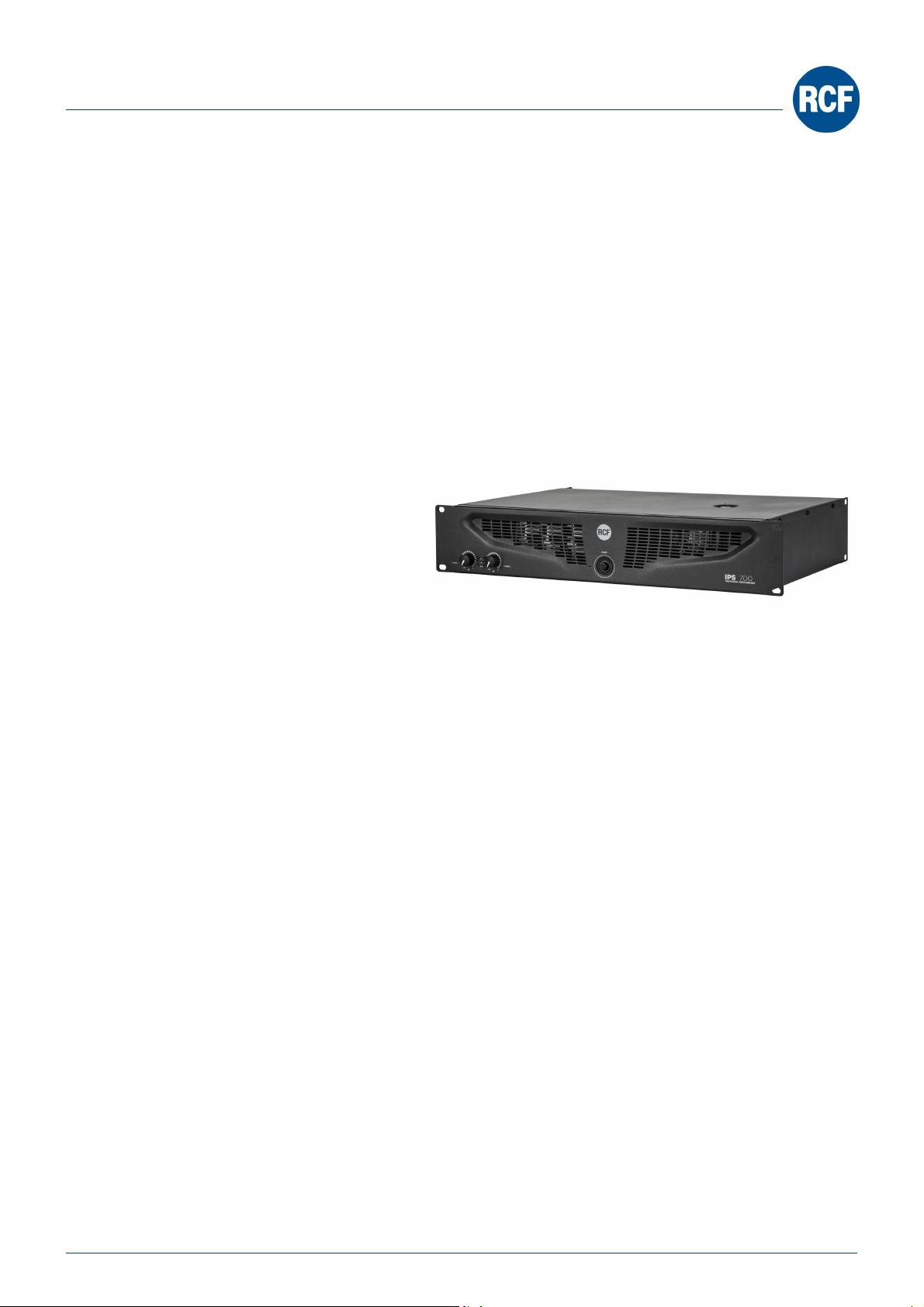

IPS 700
2 X 300 W CLASS AB PROFESSIONAL POWER AMPLIFIER
DESCRIPTION
IPS Series is a range of two-way professional
amplifiers that combines high quality
performance and reliability with the latest
power amplifications technologies. This high
value power-to-cost designs offer, in
compact lightweight 2 rack unit space, the
sound quality and the durability of traditional
class AB and class H designs with the
innovation of the latest power devices
available.
IPS 700 is a 2 channel power amplifier that
delivers up to 2 x 300 W RMS @ 4 O (600 W
RMS bridged @ 8 O), weighing just 10,1 kg. It
features independent gain dials, signal – clip
and fault LEDs, stereo XLR input and Output
link, 1.4 V to 0.775 V input sensitivity switch,
mono – stereo – bridge switch, powercon
outputs. Moreover, it is protected against
shorts and open circuits. Thanks to its high
efficiency heat sinks and high speed DC fans,
the IPS 700 can withstand the hardest heat
conditions ensuring great reliability.
FEATURES
• 2 unit 19" rack, easy transportation
• Fast response and low distortion
• Easy to configure in stereo / mono / bridge modes
• Extensive protective circuits ensure high reliability and operating safety.
• Front panel signal / clip / protect LED indicators
• XLR input connectors
• SPEAKON NL4 output connectors
DATASHEET
TECHNICAL SPECIFICATIONS
Amplifier specifications
Number of channels:
2
Power output per channel (@ 4 ohm):
300 W RMS
Power output per channel (@ 8 ohm):
150 W RMS
Power output (bridged @ 8 ohm):
600 W RMS
Frequency Response (-3dB):
20 Hz ÷ 20 kHz
Signal/noise rate (”A” weighted)
>100 dB
Crosstalk
<75 dB
Distortion (THD+N) @ 1 kHz nominal
power:
<0.5 %
Input section
Total number of inputs:
2
Balanced:
2
Mono:
2
Line inputs:
2
Line connectors:
XLR
Output section
Signal output number:
2
Signal output connectors:
XLR
Power output connectors:
Speakon
Controls
Configuration:
DIP switch, Front panel
Protections
Cooling:
Forced
Short circuit:
Yes
Thermal:
Yes
DC:
Yes
Fuses:
Yes
VHF (Very High Frequencies):
Yes
Power requirement
Operating voltage:
220-240/115 V~ 50/60Hz
Power consumption:
350 W
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Rack mounting:
19", 2U
Size
Height:
88 mm / 3.46 inches
Width:
482 mm / 18.98 inches
Depth:
255 mm / 10.04 inches
Weight:
9.4 kg / 20.72 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
