HDL 35-AS
Active Flyable Subwoofer Module
DESCRIPTION
The HDL 35-AS is the ideal flyable bass
complement for the HDL 26-A array system.
It features a baltic birch plywood cabinet
housing one 4.0” voice coil, 15” Neodymium
woofer to handle frequencies from 40 Hz to
140 Hz with the maximum linearity and lowest
distortion. The 2200 Watts class-D amplifier
onboard delivers excellent playback clarity
and up to 134 decibels SPL max. Due to its
compatibility with RDNet - remote monitoring
and control, the HDL 35-AS is part of the
professional HDL System.
FEATURES
• 134 dB Max SPL
• 2200W Class-D Amplifier
• 40-140 Hz frequency response
• RDNet Networked Management
• 1x15” Neodymium Woofer, 4.0” voice coil
DATASHEET
Rev. E
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
40 Hz ÷ 140 Hz
Max SPL @ 1m:
134 dB
Transducers
Woofer:
15'' neo, 4.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Processor section
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection, RDnet on board
RDNet:
Yes
Power section
Total Power:
2200 W Peak, 1100 W RMS
Low frequencies:
2200 W Peak, 1100 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
Handles:
2 Side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
444 mm / 17.48 inches
Width:
456 mm / 17.95 inches
Depth:
508 mm / 20 inches
Weight:
30 kg / 66.14 lbs
Shipping informations
Package Height:
530 mm / 20.87 inches
Package Width:
560 mm / 22.05 inches
Package Depth:
525 mm / 20.67 inches
Package Weight:
35 kg / 77.16 lbs
PART NUMBER
• 13000664
HDL 35-AS W
• 13000575
HDL 35-AS
EAN 8024530016883
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
VISTA 3D / 3D VIEW
478 18.82[ ]
469 18.46[ ]
33 1.30[ ]
217.5 8.56[ ]
4 .16[ ]
229 9.02[ ]
215.8 8.50[ ]
440 17.32[ ]
508 20.00[ ]
121 4.76[ ]
45.5 1.79[ ]
SUBWOOFER HDL 35-AS 90-240V
REV.
A
M20
DATASHEET
DATASHEET
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
210°
180°
130
Response -20dBu/1m
120
110
dB SPL
100
90
80
20
0°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
150°
100 1000 10000
60°
90°
120°
100
80
63
Frequency (Hz)
Horizontal 1/3 Octave Polars
270°
300°
240°
210°
330°
0°
180°
200
30°
60°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
120°
150°
160
125
90°
Vertical 1/3 Octave Polars
150°
180°
210°
300°
270°
240°
120°
240°
210°
330°
270°
180°
90°
0°
60°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
330°
300°
Horizontal One Octave Polars
30°
60°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
120°
150°
100
80
63
0°
90°
Vertical 1/3 Octave Polars
150°
180°
210°
150°
180°
210°
240°
120°
120°
240°
270°
270°
90°
90°
60°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
330°
300°
Vertical One Octave Polars
60°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
330°
300°
200
160
125
0°
0°
HDL 35-AS
ACCESSORIES
AC 2X AZIMUT PLATE
PART NUMBER
13360351
EAN:
8024530013516
AC PMA - POLE MOUNT
PART NUMBER
13360034
EAN:
8024530007713
AC PM-M20
PART NUMBER
13360067
EAN:
8024530014599
AC PMX POLE MOUNT M20
PART NUMBER
13360232
EAN:
8024530010058
AC POWER CABLE 6X TTL55
PART NUMBER
13360138
EAN:
AC TRUSS CLAMP HDL6
PART NUMBER
13360371
EAN:
8024530014360
AC TT PMA - POLE MOUNT TT+
PART NUMBER
13360068
EAN:
8024530005825
AC XLR-3M3F XLR CONN. 3MALE3FEMALEXCABLE
PART NUMBER
13360102
EAN:
8024530006402
CABLES KIT CBL ETHERCON 0.7M
PART NUMBER
12399016
EAN:
8024530013844
DATASHEET
CABLES KIT CBL ETHERCON 1.5M
PART NUMBER
12399017
EAN:
8024530013851
CABLES KIT CBL ETHERCON 3M
PART NUMBER
12399035
EAN:
8024530013868
CABLES KIT CBL ETHERCON 5M
PART NUMBER
12399018
EAN:
8024530013875
CABLES KIT CBL ETHERCON TO XLR F 0.2M
PART NUMBER
12399019
EAN:
8024530013882
CABLES KIT CBL ETHERCON TO XLR M 0.2M
PART NUMBER
12399020
EAN:
8024530013899
CABLES KIT CBL LK 25 MULTIPIN 10M
PART NUMBER
12399023
EAN:
8024530013837
CABLES KIT CBL LK 25 MULTIPIN 20M
PART NUMBER
12399022
EAN:
8024530013820
CABLES KIT CBL LKS 19 ARRAY FANOUT
PART NUMBER
12399024
EAN:
8024530013905
CABLES KIT CBL LKS 19 BREAKOUT
PART NUMBER
12399026
EAN:
8024530013929
CABLES KIT CBL LKS 19 POWER 10M
PART NUMBER
12399027
EAN:
8024530013936
DATASHEET
CABLES KIT CBL LKS 19 SUB FANOUT
PART NUMBER
12399025
EAN:
8024530013912
CABLES KIT CBL POWER BOX 6X
PART NUMBER
13360145
EAN:
8024530015534
CABLES KIT CBL POWERCON LINK 0.7M
PART NUMBER
12399031
EAN:
8024530013738
CABLES KIT CBL POWERCON LINK 1.5M
PART NUMBER
12399030
EAN:
8024530013721
CABLES KIT CBL POWERCON LINK 10M
PART NUMBER
12399028
EAN:
8024530013707
CABLES KIT CBL POWERCON LINK 5M
PART NUMBER
12399029
EAN:
8024530013714
CABLES KIT LK 25-2 FANOUT
PART NUMBER
12399021
EAN:
8024530013813
FLYBAR HDL6-A
PART NUMBER
13360360
EAN:
8024530014209
FLYBAR HDL6-A W
PART NUMBER
13360373
EAN:
8024530014377
FLYBAR PICKUP HDL6
PART NUMBER
13360372
EAN:
8024530014353
DATASHEET

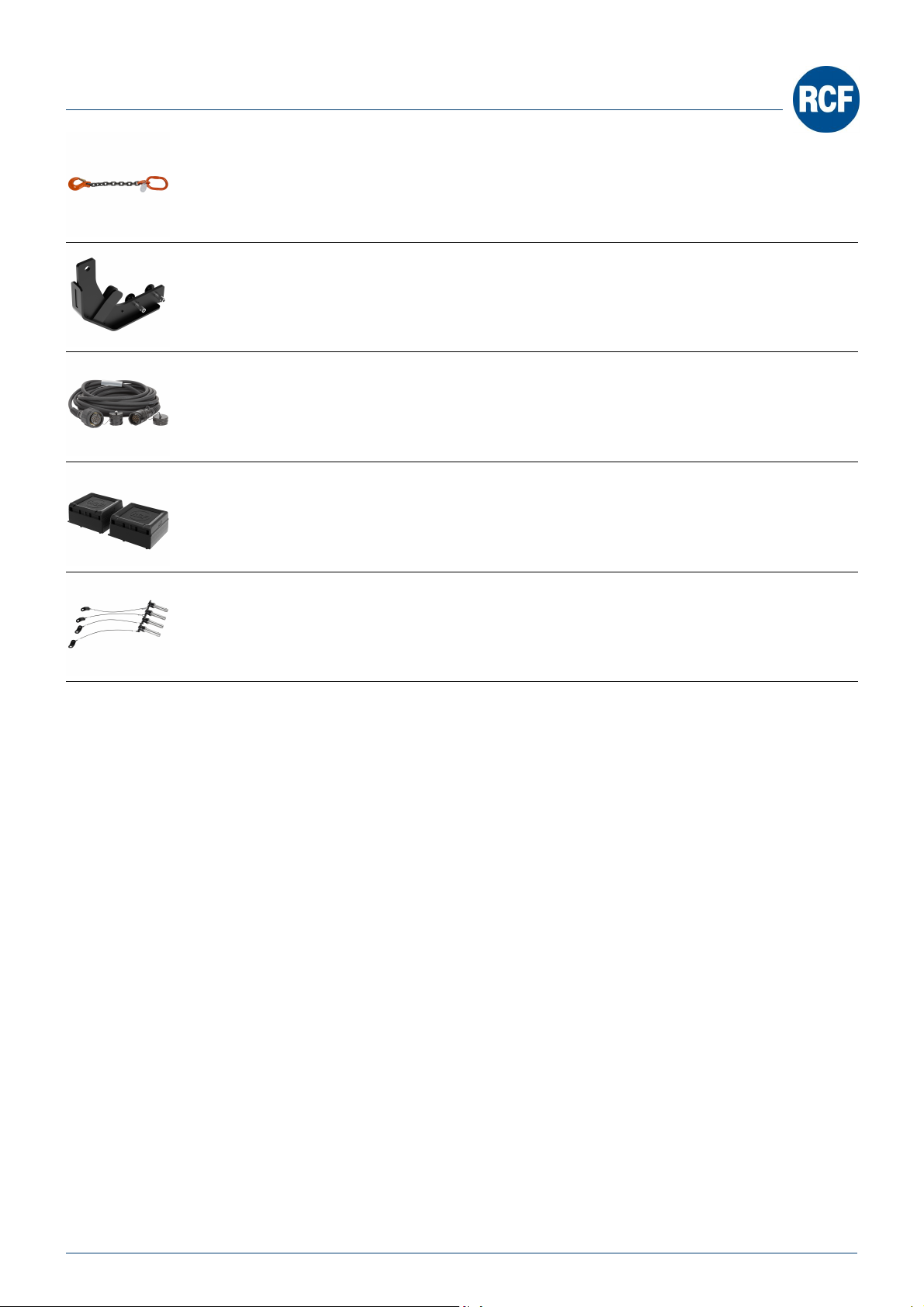

HOIST SPACING CHAIN TTL55
PART NUMBER
13360129
EAN:
LINKBAR HDL12 TO HDL6
PART NUMBER
13360375
EAN:
8024530014414
LKS 19-20 POWER CABLE
PART NUMBER
13360146
EAN:
8024530013943
RAIN PROTECTION RP 1X HDL 30
PART NUMBER
13360388
EAN:
8024530015138
SPARE PINS FRONT 4X HDL20- HDL18
PART NUMBER
13360219
EAN:
8024530015763
DATASHEET
