HDL 15-AS
ACTIVE FLYABLE HIGH POWER SUBWOOFER
DESCRIPTION
The HDL15-AS is a compact, flyable high
power subwoofer, designed to integrate
seemlessly into a HDL 10-A flown array. The
bass reflex design guarantees a deep, linear
power response while the 3.5” voice coil
vented design woofer offers the minimum of
power compression. The system provides
integrated mechanics compatible with the
HDL 10-A array module.
FEATURES
• 2000 Watt Peak power - 1000 Watt RMS
• 133 dB max SPL
• 40 Hz - 140 Hz frequency response
• 1 x 15" Woofer, 3.5" v.c.
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics, compatible with HDL 10-A
• Designed to compliment the HDL 10-A speaker system
• Baltic birch tour grade cabinet

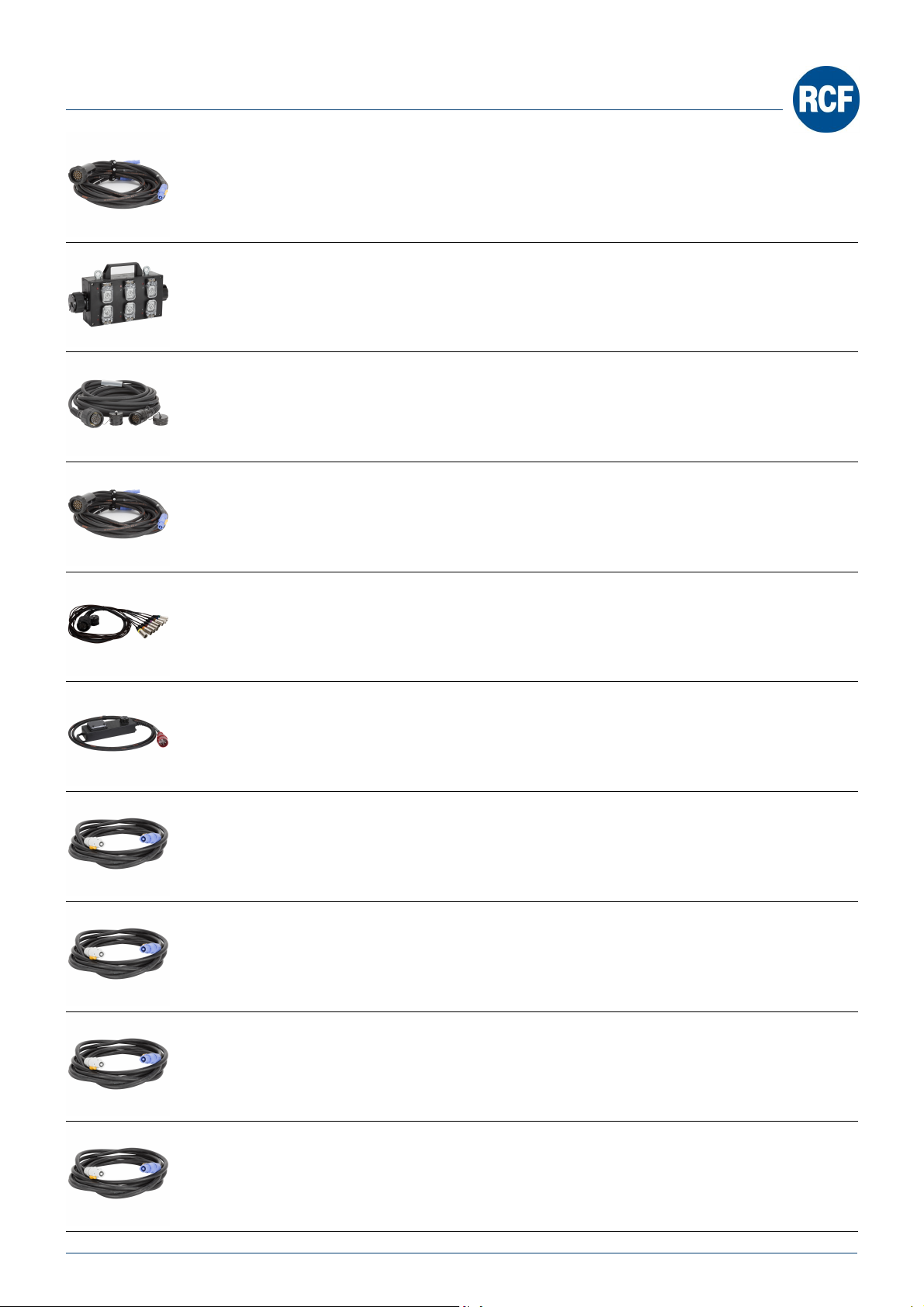

DATASHEET
Rev. D
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
40 Hz ÷ 140 Hz
Max SPL @ 1m:
133 dB
Transducers
Woofer:
15'', 3.5'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Hi-Pass Frequencies:
30Hz, 45Hz
Low-Pass Frequencies:
90Hz,140Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, EQ Shape, Xover
Power section
Total Power:
2000 W Peak, 1000 W RMS
Low frequencies:
2000 W Peak, 1000 W RMS
Cooling:
Convection/Forced
Connections:
Powercon IN/OUT
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Rigging flyware, M20 insert
Handles:
2 side
Grille:
Steel
Color:
Black
Size
Height:
458 mm / 18.03 inches
Width:
555 mm / 21.85 inches
Depth:
569 mm / 22.4 inches
Weight:
39 kg / 85.98 lbs
Shipping informations
Package Height:
610 mm / 24.02 inches
Package Width:
660 mm / 25.98 inches
Package Depth:
675 mm / 26.57 inches
Package Weight:
44 kg / 97 lbs
PART NUMBER
• 13040021
HDL 15-AS
115V
EAN 8024530012069
• 13040020
HDL 15-AS
220-240V
EAN 8024530011994
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
DATASHEET
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
210°
180°
120
Response -20dBu/1m Eq 30Hz-90Hz
110
100
dB SPL
90
80
70
20
0°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
150°
100 1000 10000
60°
90°
120°
100
80
63
Frequency (Hz)
Horizontal 1/3 Octave Polars
270°
300°
240°
210°
330°
0°
180°
200
30°
60°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
120°
150°
160
125
90°
Vertical 1/3 Octave Polars
150°
180°
210°
300°
270°
240°
120°
240°
210°
330°
270°
180°
90°
0°
60°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
330°
300°
Horizontal One Octave Polars
30°
60°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
120°
150°
100
80
63
0°
90°
Vertical 1/3 Octave Polars
150°
180°
210°
150°
180°
210°
240°
120°
120°
240°
270°
270°
90°
90°
60°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
330°
300°
Vertical One Octave Polars
60°
30°
-24-24 -21-21 -18-18 -15-15 -12-12 -9-9 -6-6 -3-3 00
330°
300°
200
160
125
0°
0°
HDL 15-AS

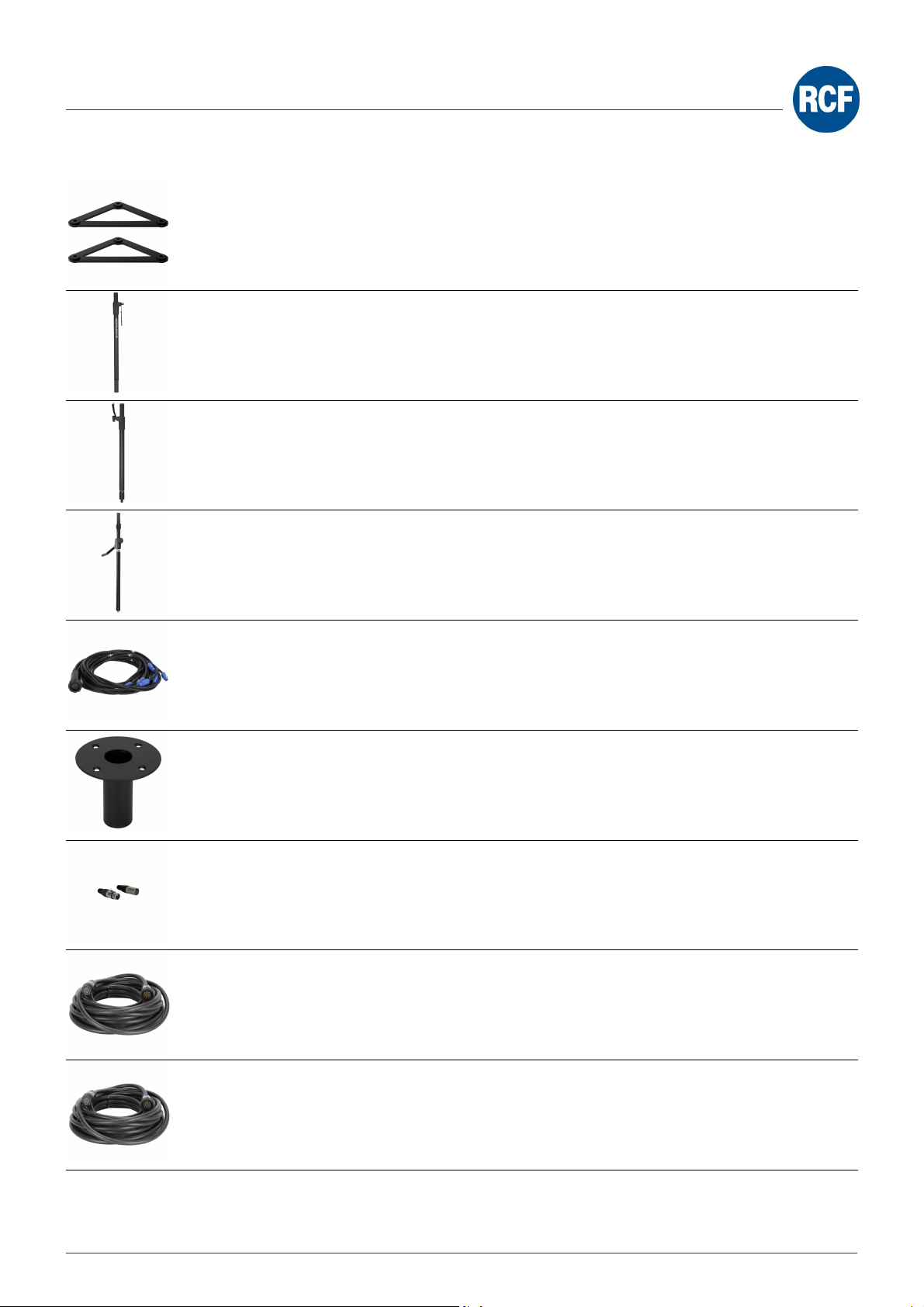

ACCESSORIES
AC 2X AZIMUT PLATE
PART NUMBER
13360351
EAN:
8024530013516
AC PMA - POLE MOUNT
PART NUMBER
13360034
EAN:
8024530007713
AC PM-M20
PART NUMBER
13360067
EAN:
8024530014599
AC PMX POLE MOUNT M20
PART NUMBER
13360232
EAN:
8024530010058
AC POWER CABLE 6X TTL55
PART NUMBER
13360138
EAN:
AC TT PMA - POLE MOUNT TT+
PART NUMBER
13360068
EAN:
8024530005825
AC XLR-3M3F XLR CONN. 3MALE3FEMALEXCABLE
PART NUMBER
13360102
EAN:
8024530006402
CABLES KIT CBL LK 25 MULTIPIN 10M
PART NUMBER
12399023
EAN:
8024530013837
CABLES KIT CBL LK 25 MULTIPIN 20M
PART NUMBER
12399022
EAN:
8024530013820
DATASHEET
