Page 1

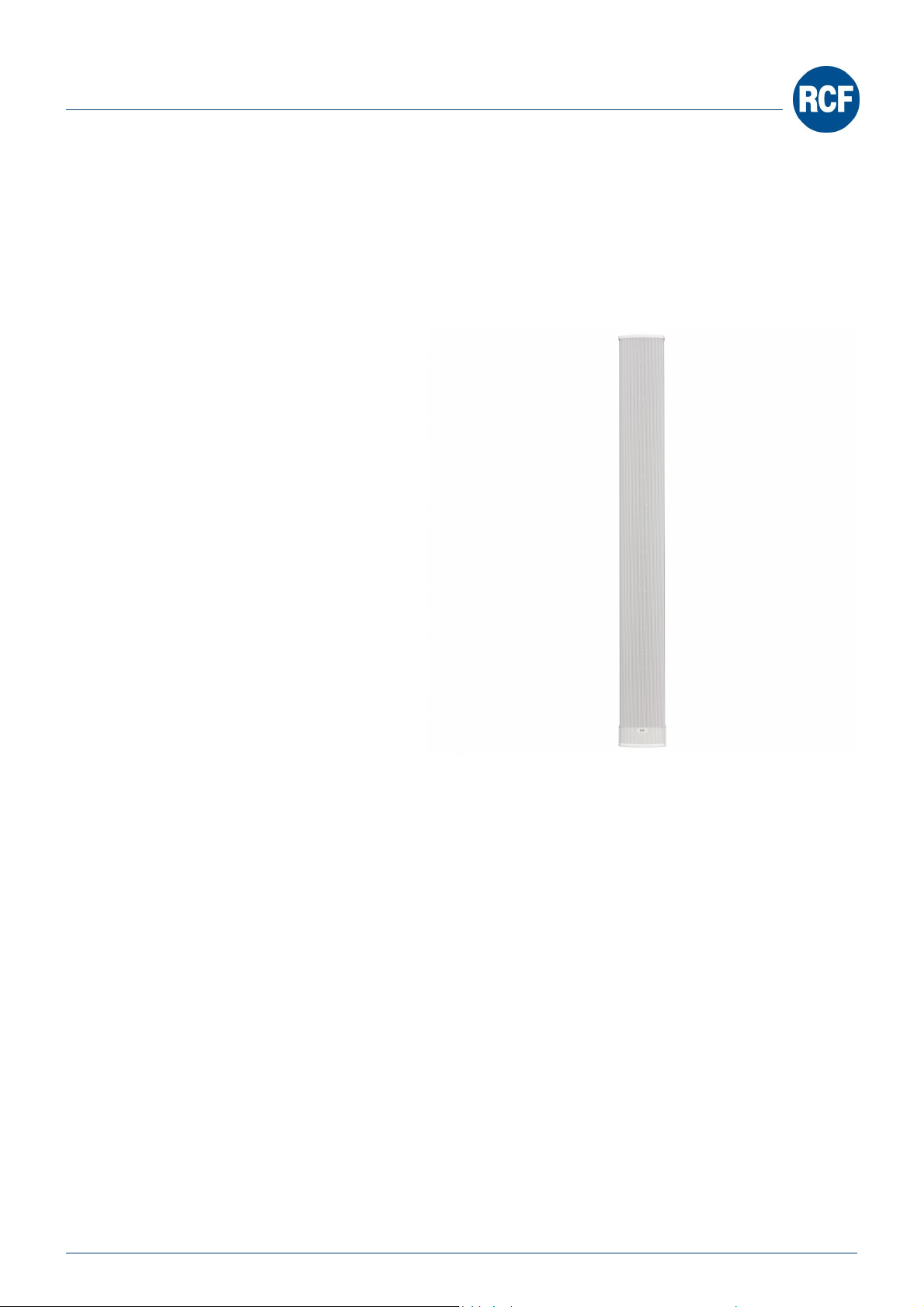

CS 6940EN
TWO-WAY COLUMN SPEAKER
DESCRIPTION
CS 6940EN is a compact and elegant twoway column speaker providing highly
intelligible voice reproduction, and suitable
for installation into places of worship,
stations, subways and many other
environments. The terminal connection
blocks, for input and output flameproof
cables, are made of ceramic material. A
thermal fuse protects the integrity of the line
in case of heat affecting the speaker. Ground
screw available (if needed). Thanks to its IP66
protection grade, it can be installed both
indoor and outdoor.
FEATURES
• 8 x 3" fullrange transducers with 0.75" dome tweeter.
• Power selectable (100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W.
• 95 dB sensitivity.
• Colour white RAL 9003.
• Aluminium body, grille and bracket.
• In/out ceramic terminal block.
• Thermal fuse protection.
• Protection grade IP66.
DATASHEET
Rev. L
Page 2
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response (-10dB):
140 Hz ÷ 20000 Hz
Max SPL @ 1m:
109 dB
Max SPL @ 4m:
97 dB
Horizontal coverage angle:
194°
Vertical coverage angle:
30°
System Sensitivity:
95 dB
System Sensitivity 1W @ 4m:
83 dB
Power section
Power Handling:
40 W RMS
Peak Power Handling:
160 W PEAK
Recommended Amplifier:
80 W
Protections:
Thermal fuse
Transducers
Dome Tweeter:
0.75''
Fullrange:
8 x 3.0''
Input/Output section
Input connectors:
Ceramic screw terminals
Output connectors:
Ceramic screw terminals
Constant Voltage Transformer:
70/100 V
Power selection 1 (100 V):
40 W - 250 ohm
Power selection 2 (100 V):
20 W - 500 ohm
Power selection 3 (100 V):
10 W - 1000 ohm
Power selection 4 (100 V):
5 W - 2000 ohm
Power selection 5 (100 V):
2.5 W - 4000 ohm
Standard compliance
IP protection grade:
IP 66
EN54-24 certified:
Yes
CE marking:
Yes
CPR number:
1488-CPR-0490/W
Physical specifications
Cabinet/Case Material:
Aluminium
Grille:
Aluminium
Color:
White - RAL 9003
Size
Height:
995 mm / 39.17 inches
Width:
114 mm / 4.49 inches
Depth:
96 mm / 3.78 inches
Weight:
7 kg / 15.43 lbs
Shipping informations
Package Height:
2000 mm / 78.74 inches
Package Width:
1090 mm / 42.91 inches
Package Depth:
1700 mm / 66.93 inches
Package Weight:
8.4 kg / 18.52 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
Page 3
PART NUMBER
• 13100005
CS 6940EN
EAN 8024530013684
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
Page 4
DRAWINGS
96 mm
119 mm55 mm
114 mm
995 mm
DATASHEET
Page 5
SCHEMATICS
SWITCH TRANSFORMER
FUSE
CERAMIC
SCREW
TERMINALS
IN / OUT
IN / OUT
SWITCH
POSITION
POWER
(70 V)
POWER
(100 V)
1 40 W Do not use!
2 20 W 40 W
3 10 W 20 W
4 5 W 10 W
5 2.5 W 5 W
8Ω
COM
TWEETER
+
_
4Ω
LS 1
+
_
4Ω
LS 2
+
_
4Ω
LS 3
+
_
4Ω
LS 4
+
_
4Ω
LS 5
+
_
4Ω
LS 6
+
_
4Ω
LS 7
+
_
4Ω
LS 8
+
_
4Ω
+ +
+ +
+
+
+ +
+ +
+ +
DATASHEET
Page 6
100 1000 10000
Frequency (Hz)
80
90
100
110
120
dB SPL
Response 1W/1m
100 1000 10000
Frequency (Hz)
1
10
100
Total Q
0
2
4
6
8
10
12
14
16
18
20
Directivity index Di, dB
Directivity Index and Q
100 1000 10000
Frequency (Hz)
-30
-25
-20
-15
-10
-5
0
5
Attenuation in dB
Vertical +10 degrees
Vertical +20 degrees
Vertical +30 degrees
Vertical +40 degrees
Vertical +50 degrees
Vertical +60 degrees
Normalized Vertical off-axis Response
100 1000 10000
Frequency (Hz)
0
30
60
90
120
150
180
210
240
270
300
330
360
Coverage Angle (Deg.)
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
Beamwidth vs. Frequency
100 1000 10000
Frequency (Hz)
-30
-25
-20
-15
-10
-5
0
5
Attenuation in dB
Horizontal ±10 degrees
Horizontal ±20 degrees
Horizontal ±30 degrees
Horizontal ±40 degrees
Horizontal ±50 degrees
Horizontal ±60 degrees
Normalized Horizontal off-axis Response
DATASHEET
Page 7
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
630
500
400
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-3 0 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
5000
4000
3150
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
630
500
400
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-3 0 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
5000
4000
3150
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-3 0 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
1250
1000
800
Horizontal 1/3 Octave Polars
-48-48 -42- 42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
10000
8000
6300
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-3 0 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
1250
1000
800
Vertical 1/3 Octave Polars
-48-48 -42- 42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
10000
8000
6300
Vertical 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-3 0 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
2500
2000
1600
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-3 0 -24-24 -18-18 -12-12 -6-6 00
150°
120°
180°
210°
240°
270°
300°
330°
0°
30°
60°
90°
2500
2000
1600
Vertical 1/3 Octave Polars
DATASHEET
Page 8
ACCESSORIES
CV210 CABLE SPEAKER 100V SEZ 2X1MMQ EVAC
PART NUMBER
14380030
EAN:
8024530012168
CV215 CABLE SPEAKER 100V SEZ 2X1.5MMQ EVAC
PART NUMBER
14380031
EAN:
8024530012175
CV225 CABLE SPEAKER 100V SEZ 2X2.5MMQ EVAC
PART NUMBER
14380032
EAN:
8024530012182
DATASHEET
Page 9
NOTES
NO CAUTION is NECESSARY in case of ALERTED PERSON for AUDIO voltages up to 120V, when warning symbols are present near the connection
terminals. In the case of AUDIO voltages up to 71V, it is not even necessary to put warning symbols.
No need of linking to earth metal parts of speakers equipped with transformers and connected to 70.7 V / 100 V outputs of power amplifiers that do
not have any reference to earth (ref. EN 62368-1 item 4.3.2.2 ), unless specific local requirements.
