C5212-96
TWO WAY PASSIVE SPEAKER SYSTEM
MAIN APPLICATIONS
• Permanent installations
• Main reinforcement in small and medium spaces
• High-level AV playback
• Live music reinforcement
• Large speech systems
MAIN FEATURES
• Very high efficiency design
• One 12” high-output RCF PRECISION woofer
• One 1.4” RCF PRECISION compression driver
• 90° x 60° CMD (‘Constant Matching Design’) constant directivity horn
• Rotatable horn for horizontal mounting
• Dual-function design: built in passive crossover or external bi-amp
• Trapezoidal enclosure made of 15 mm birch plywood
• HF driver with ‘Active Mosfet Compression Driver Protection’ (AMCDP)
• ‘Low Impedance Compensated Crossover’ (LICC)
• Rigging inserts: 2 x M10 (lateral)
• 2 (top and bottom) multiplates for mounting
DESCRIPTION
C5212-96 belongs to RCF ACUSTICA - NEW COMPACT SERIES and is a
full range extremely versatile wide-dispersion, two-way loudspeaker system
offering substantial power and efficiency for several professional applications
that include main sound systems for permanent installations, plus portable
systems and supplementary fill for larger systems.
RCF exclusive ‘Constant Matching Design’ technology helps guarantee an
optimal transition between the high frequency horn polar pattern and the low
frequency woofer directivity.
The horn can be rotated, allowing to install the loudspeaker either vertically or
horizontally.
The hi-frequency transducer is a 1.4” RCF PRECISION compression driver with
a 2.5” voice coil.
The low-frequency transducer is a 12” RCF PRECISION woofer with a 3” voice
coil.
The system includes a high-level crossover network that features markedly
lower (than conventional) induction values in series with the woofer. This
innovation is named LICC (‘Low Impedance Compensated Crossover’: its
benefits are delay reduction, reduced phase shift and superior transient
response.
Dynamic high-frequency driver protection is accomplished with a new RCF
exclusive - ‘Active Mosfet Compression Driver Protection System’ (AMCDP),
chosen to complement the driver power curve.
The internal crossover can be easily bypassed for bi-amplification.
The cabinet is made of Baltic birch (heavy duty painted) and allow different
installation options, as it is equipped with top and bottom ‘Multiplates’ for
either wall or suspended mounting with chains.
Installation points are available on its rear panel as well.
The steel front grille is protected with a double layer polyurethane fabric.
The front RCF logo is easily rotatable.
Connections are made through two Neutrik Speakon NL4 connectors (audio
input and parallel link
output).
SYSTEM
Model: C5212-96
Part number: 13000306
Frequency response (-10 dB): 54 Hz ÷ 20 kHz
Horizontal coverage angle (-6 dB): 90°
Vertical coverage angle (-6 dB): 60°
Directivity factor (Q): 13
Sensitivity (1 W, 1 m): 99 dB
Max. SPL (peak power, 1 m): 132 dB
Impedance: 8 Ω
Power: 500 W (RMS), 2000 W (peak)
Recommended amplifier: 1000 W
HF protection: dynamic
Crossover: 1.2 kHz
TRANSDUCERS
Low frequency range
Transducer: 12” woofer with 3” voice coil
Impedance: 8 Ω
Power: 400 W (AES), 800 W (peak)
Sensitivity (1 W, 1 m): 98 dB
High frequency range
Transducer: 1.4”driver with 2.5” voice coil
Impedance: 8 Ω
Power: 100 W (AES), 200 W (peak)
Sensitivity (1 W, 1 m): 111 dB
PHYSICAL
Enclosure:
Rigging inserts: 2 x M10 (lateral), multiplates (top and bottom)
Colour: black
Grille:
Input connectors: 2 x SPEAKON® NL4
Dimensions (w, h, d): 14.17”, 24.80”, 15.35” (360, 630, 390 mm)
Weight: 63.93 lbs (29 kg)
trapezoidal, 20° side angles, 15 mm birch plywood
construction
perforated powder-coated steel covered with
double layer polyurethane fabric
Frequency (Hz)
C5212-96
110
100
90
dB SPL
80
70
60
20
100
10
Total Q
1
100 1000 10000
100 1000 10000
Response 1W/1m
Frequency (Hz)
Directivity Index and Q
360
330
300
270
240
210
180
150
Coverage Angle (Deg.)
120
90
60
30
0
100 1000 10000
20
18
16
14
Directivity index Di, dB
12
10
8
6
4
2
0
5
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Horizontal ±10 degrees
Horizontal ±20 degrees
Horizontal ±30 degrees
Horizontal ±40 degrees
Horizontal ±50 degrees
Horizontal ±60 degrees
Beamwidth vs. Frequency
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
Normalized Horizontal off-axis Response
5
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Normalized Vertical off-axis Response. Above the box
Vertical +10 degrees
Vertical +20 degrees
Vertical +30 degrees
Vertical +40 degrees
Vertical +50 degrees
Vertical +60 degrees
5
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Normalized Vertical off-axis Response. Below the box
Vertical -10 degrees
Vertical -20 degrees
Vertical -30 degrees
Vertical -40 degrees
Vertical -50 degrees
Vertical -60 degrees
C5212-96

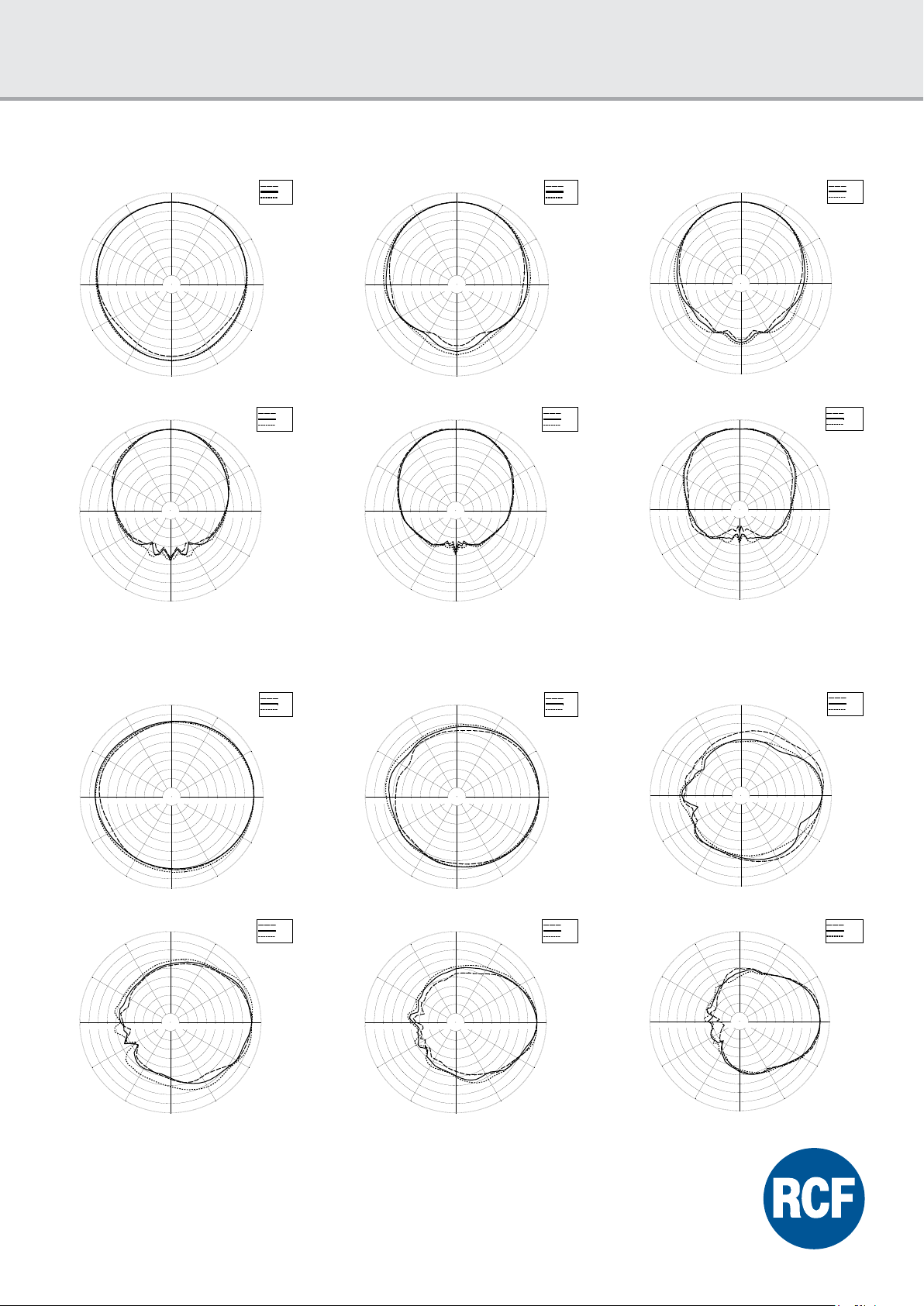

HORIZONTAL 1/3 POLAR PLOT
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
0°
30°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
180°
0°
30°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
180°
315
250
200
60°
90°
120°
2500
2000
1600
60°
90°
120°
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
0°
30°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
180°
0°
30°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
180°
630
500
400
60°
90°
120°
5000
4000
3150
60°
90°
120°
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
Horizontal 1/3 Octave Polars
330°
300°
270°
240°
210°
0°
30°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
180°
0°
30°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
150°
180°
1250
1000
800
60°
90°
120°
10000
8000
6300
60°
90°
120°
VERTICAL 1/3 POLAR PLOT
Vertical 1/3 Octave Polars
120°
150°
180°
210°
240°
Vertical 1/3 Octave Polars
120°
150°
180°
210°
240°
90°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
270°
90°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
270°
315
250
60°
300°
60°
300°
200
30°
0°
330°
2500
2000
1600
30°
0°
330°
Vertical 1/3 Octave Polars
120°
150°
180°
210°
240°
Vertical 1/3 Octave Polars
120°
150°
180°
210°
240°
90°
60°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
270°
90°
60°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
270°
630
500
400
30°
0°
330°
5000
4000
3150
30°
0°
330°
Vertical 1/3 Octave Polars
120°
150°
180°
210°
240°
Vertical 1/3 Octave Polars
120°
150°
180°
210°
240°
90°
60°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
270°
90°
60°
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
270°
1250
1000
800
30°
0°
330°
10000
8000
6300
30°
0°
330°
C5212-96
PART NUMBERS
13000306
DIMENSIONS (All data are in mm)
ACCESSORIES
AC NC12 H-BR U bracket for horizontal mounting
AC NC12 V-BR U bracket for vertical mounting
AC NC-FB2 Bracket for suspended mounting with chains
RCF products are continually improved. All specifications are therefore subject to change without notice.
