BD 5EN
BIDIRECTIONAL SOUND PROJECTOR
DESCRIPTION
BD 5EN is a weatherproof bidirectional sound
projector suitable for all those installations
where high intelligibility for alarm messages
broadcasting and great sound reproduction
quality are required. Thanks to its IP65
protection grade, it can be installed both
indoor and outdoor. Moreover, a modern and
endearing design makes it the perfect
product for environments where projectors
are intended also as architectural elements
and contribute to improve global aesthetics.
FEATURES
• 2 x 5" fullrange transducers.
• Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W.
• 86 dB sensitivity.
• Colour white RAL 9016.
• Flameproof ABS body, steel grille.
• In/out ceramic terminal block.
• Thermal fuse protection.
• Protection grade IP65.
DATASHEET
Rev. K
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response (-10dB):
150 Hz ÷ 18000 Hz
Max SPL @ 1m:
99 dB
Max SPL @ 4m:
87 dB
Coverage angle:
210°
System Sensitivity:
86 dB
System Sensitivity 1W @ 4m:
74 dB
Power section
Power Handling:
20 W RMS
Peak Power Handling:
80 W PEAK
Recommended Amplifier:
40 W
Protections:
Thermal fuse
Transducers
Fullrange:
2 x 5.0''
Input/Output section
Input connectors:
Ceramic screw terminals
Output connectors:
Ceramic screw terminals
Constant Voltage Transformer:
100 V
Power selection 1 (100 V):
20 W - 500 ohm
Power selection 2 (100 V):
10 W - 1000 ohm
Power selection 3 (100 V):
5 W - 2000 ohm
Power selection 4 (100 V):
2.5 W - 4000 ohm
Standard compliance
IP protection grade:
IP 65
EN54-24 certified:
Yes
CE marking:
Yes
CPR number:
0068-CPR-058/2014
Physical specifications
Cabinet/Case Material:
ABS
Hardware:
Wall mount metal plate
Grille:
Steel
Color:
White - RAL 9016
Size
Height:
183 mm / 7.2 inches
Width:
332 mm / 13.07 inches
Depth:
176 mm / 6.93 inches
Weight:
3.59 kg / 7.91 lbs
Shipping informations
Package Height:
230 mm / 9.06 inches
Package Width:
400 mm / 15.75 inches
Package Depth:
380 mm / 14.96 inches
Package Weight:
4.63 kg / 10.21 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
PART NUMBER
• 13133077
BD 5EN
EAN 8024530011130
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
176 mm
147 mm
183 mm 179 mm
332 mm
DRAWINGS
DATASHEET
SCHEMATICS
CERAMIC
SCREW TERMINAL
100 V
+
0
IN
WHITE (2.5 W)
YELLOW (5 W)
BLUE (10 W)
RED (20 W)
BLACK (COM)
4Ω
8Ω 8Ω
+
–
–
+
DATASHEET
BD 5EN
BIDIRECTIONAL SOUND PROJECTOR
DESCRIPTION
BD 5EN is a 20 W weatherproof sound projector in compliance with EN 54-24
regulations.
It is suitable for all those installations where high intelligibility for alarm
messages broadcasting and great sound reproduction quality are required;
moreover, thanks to its IP 65 protection grade, it can be installed both indoor
and outdoor.
A modern and endearing design makes it the perfect product for
environments where projectors are intended also as architectural elements
and contribute to improve global aesthetics.
SPECIFICATIONS
Type: unidirectional sound projector
Transducers: 2 x 5”
Sensitivity (1 W, 1 m): 86 dB
Max. sound pressure (20 W, 1 m): 99 dB
Max. sound pressure (20 W, 4 m): 87 dB
Frequency response (–10 dB): 150 Hz ÷ 18 kHz
Horizontal coverage: 130° (in both directions)
Power taps (100 V): 20 – 10 – 5 – 2.5W
Input impedance: 500 Ω – 1 kΩ – 2 kΩ – 4 kΩ
Enclosure material: ABS
Use: indoor – outdoor
IP grade: IP 65
Dimensions (without bracket): Ø 180 mm, 340 mm
Colour: white
Net weight: 3.5 kg
MAIN FEATURES
• 2 x 5’’ full range speakers for alarm voice messages broadcasting and
high quality background music
• ABS cabinet with steel mesh grille.
• It can be installed both indoors and outdoors (IP 65 protection grade).
• Equipped with transformer for 100 V (/ 70 V) constant voltage lines.
• Internal power setting.
• Ceramic screw terminal for connection.
• Internal thermal fuse.
• Color: white.
MAIN APPLICATIONS
• Voice evacuation system
• Schools
• Shopping malls
• Hospital
• Museums
• Hotels
• Office building
DATASHEET
100 1000 10000
Frequency (Hz)
60
70
80
90
100
110
dB SPL
20
Response
BD 5EN
100 1000 10000
Frequency (Hz)
1
10
100
Total Q
0
2
4
6
8
10
12
14
16
18
20
Directivity index Di, dB
Directivity Index and Q
100 1000 10000
Frequency (Hz)
0
30
60
90
120
150
180
210
240
270
300
330
360
Coverage Angle (Deg.)
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
Beamwidth vs. Frequency
100 1000 10000
Frequency (Hz)
-30
-25
-20
-15
-10
-5
0
5
Attenuation in dB
Horizontal ±10 degrees
Horizontal ±20 degrees
Horizontal ±30 degrees
Horizontal ±40 degrees
Horizontal ±50 degrees
Horizontal ±60 degrees
Normalized Horizontal off-axis Response
BD 5EN
DATASHEET
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
1250
1000
800
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -1 8-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
315
250
200
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
2500
2000
1600
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -1 8-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
630
500
400
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
5000
4000
3150
Horizontal 1/3 Octave Polars
-48-48 -42-42 -36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
300°
330°
270°
240°
210°
180°
150°
120°
90°
60°
30°
0°
10000
8000
6300
Horizontal 1/3 Octave Polars

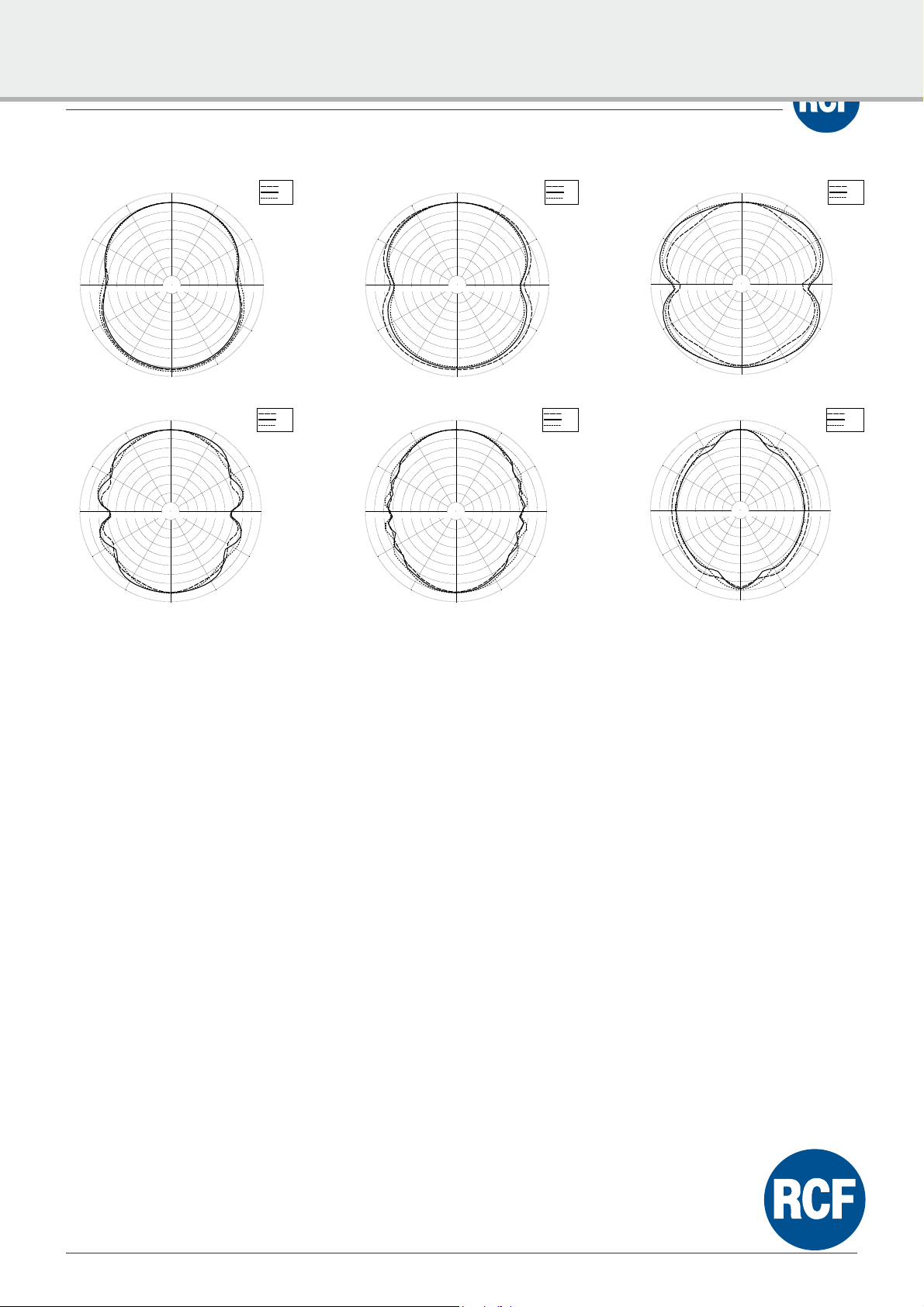

HORIZONTAL 1/3 POLAR PLOT
BD 5EN
DATASHEET
PART NUMBERS
131.33.077
POWER SELECTION
Select the power rate by connecting only one of the four wires (coming
out from the transformer primary winding) to the central screw of the
ceramic terminal strip:
-- 20 W, red wire
-- 10 W, blue wire
-- 5 W, yellow wire
-- 2.5 W, white wire
If connecting to a 70 V line, the power will be halved (red: 10 W, blue: 5 W,
yellow: 2.5 W, white: 1.25 W).
ENGLISH
CERAMIC
SCREW TERMINAL
100 V
+
0
IN
WHITE (2.5 W)
YELLOW (5 W)
BLUE (10 W)
RED (20 W)
BLACK (COM)
4Ω
8Ω 8Ω
+
–
–
+
INSTALLATION NOTES
The BD 5EN is designed for wall-mount installation, so ensure the wall has
the necessary mechanical characteristics to support the loudspeaker weight.
Before installing the loudspeaker, carefully check all components to be used
and make sure there is no damage, deformation, corrosion and/or missing or
damaged parts that could reduce the safety of the installation.
CERTIFICATIONS AND APPROVALS
• EN 54-24:2008 compliant.
BD 5EN
www.rcf.it
1.0-J-E
RCF products are continually improved. All specifications are therefore subject to change without notice.
DIMENSIONS (All data are in mm)
DATASHEET
ACCESSORIES

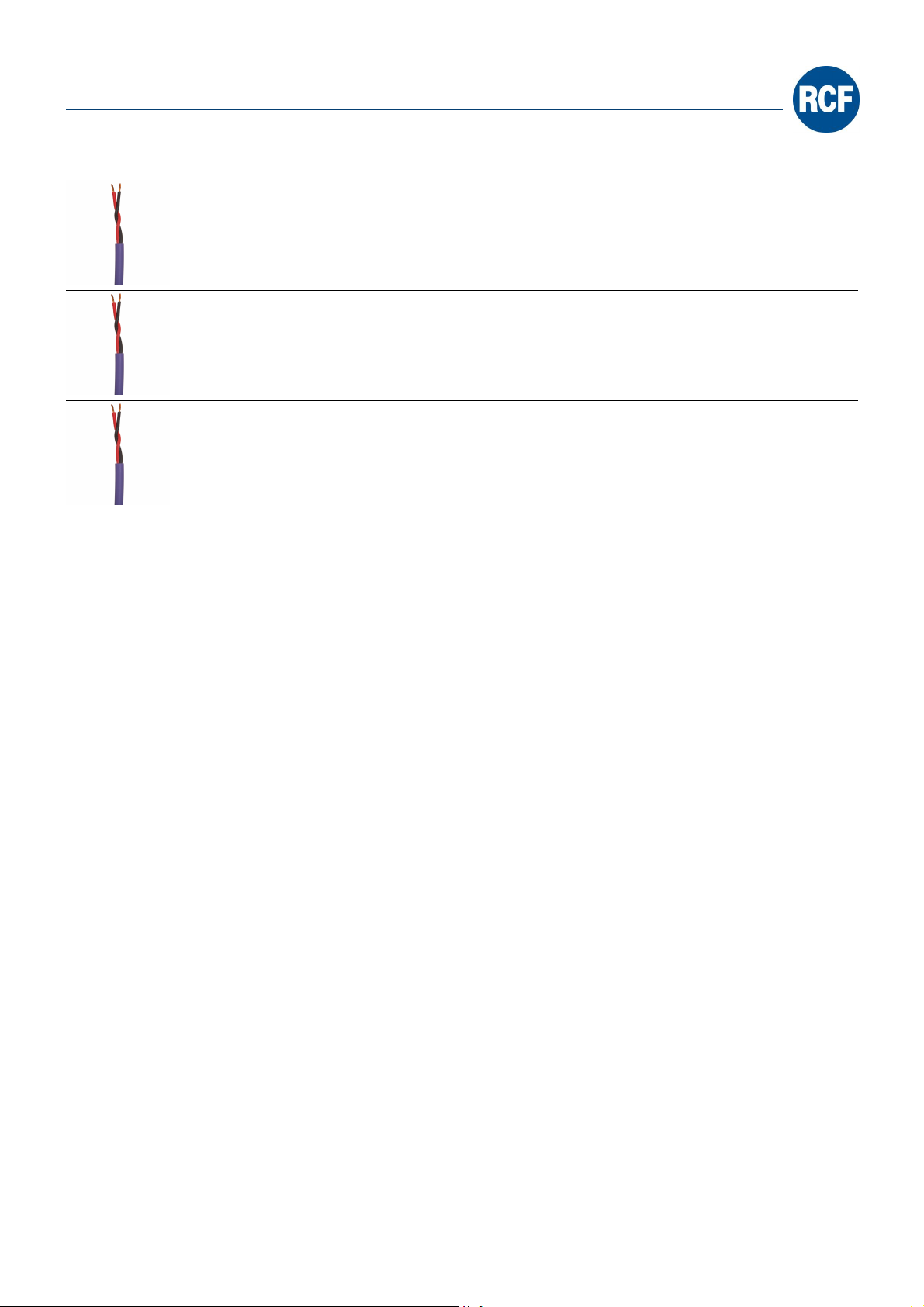

CV210 CABLE SPEAKER 100V SEZ 2X1MMQ EVAC
PART NUMBER
14380030
EAN:
8024530012168
CV215 CABLE SPEAKER 100V SEZ 2X1.5MMQ EVAC
PART NUMBER
14380031
EAN:
8024530012175
CV225 CABLE SPEAKER 100V SEZ 2X2.5MMQ EVAC
PART NUMBER
14380032
EAN:
8024530012182
DATASHEET
NOTES
NO CAUTION is NECESSARY in case of ALERTED PERSON for AUDIO voltages up to 120V, when warning symbols are present near the connection
terminals. In the case of AUDIO voltages up to 71V, it is not even necessary to put warning symbols.
No need of linking to earth metal parts of speakers equipped with transformers and connected to 70.7 V / 100 V outputs of power amplifiers that do
not have any reference to earth (ref. EN 62368-1 item 4.3.2.2 ), unless specific local requirements.
