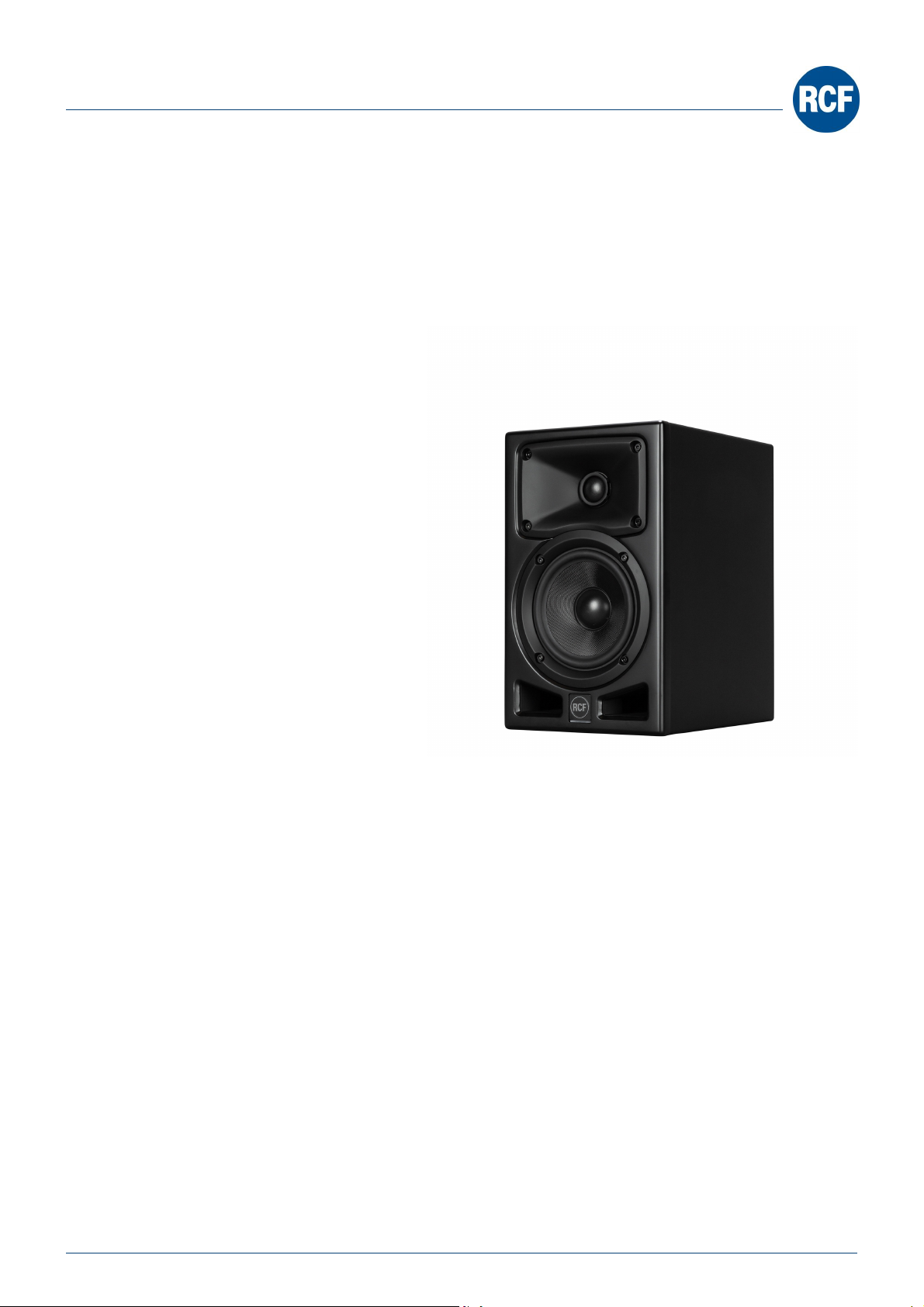

AYRA PRO5
PROFESSIONAL ACTIVE TWO-WAY STUDIO MONITORS
DESCRIPTION
AYRA PRO5 studio monitor works perfectly in
any listening environment, whether large or
small production facilities, with absolute
clarity. It delivers accurate monitoring and
provides the engineer or producer with a
neutral tool to analyze recordings and
optimize the mix; for this reason, we call it
PRO.
Featuring a dedicated powerful internal DSP
that optimizes frequency response and
dynamics together with the exclusive RCF
FiRPHASE processing and selected
components, the AYRA PRO is the first Studio
Monitor in its class to boast an outstanding 0°
phase response.
FEATURES
• 50 – 20 kHz Frequency Response
• 0° Phase Response
• 75W + 25W Class-D Amplifiers
• 5” Composite Fiberglass Woofer
• 1” ferrofluid cooled Soft Dome tweeter
• RCF Precision Waveguide
• DSP Processing with FiRPHASE
• Low distortion frontal Vented Ports
DATASHEET
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
107 dB
Horizontal coverage angle:
110°
Vertical coverage angle:
70°
Transducers
Dome Tweeter:
1.0'' neo, 1.0'' v.c
Woofer:
5.0''
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack, RCA
Input sensitivity:
-2 dBu
Processor section
Crossover Frequencies:
2000Hz
Limiter:
Soft Limiter
Power section
Total Power:
200 W Peak, 100 W RMS
High frequencies:
50 W Peak, 25 W RMS
Low frequencies:
150 W Peak, 75 W RMS
Connections:
XLR, Jack, RCA
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
MDF
Color:
Black - RAL 9005
Size
Height:
300 mm / 11.81 inches
Width:
185 mm / 7.28 inches
Depth:
243 mm / 9.57 inches
Weight:
4.3 kg / 9.48 lbs
Shipping informations
Package Height:
400 mm / 15.75 inches
Package Width:
339 mm / 13.35 inches
Package Depth:
261 mm / 10.28 inches
Package Weight:
6 kg / 13.23 lbs
PART NUMBER
• 13000646
AYRA PRO5
JP
EAN 8024530017347
• 13000645
AYRA PRO5
UK
EAN 8024530017330
• 13000644
AYRA PRO5
US
EAN 8024530017323
• 13000597
AYRA PRO5
EU
EAN 8024530016890
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
