Rcf ART 910-A, ART 915-A, ART 912-A, ART 935-A, ART 932-A OWNER MANUAL

...

OWNER’S MANUAL MANUALE UTENTE

ART 9 SERIES

PROFESSIONAL ACTIVE SPEAKERS

CONTENTS

ENGLISH

1 SAFETY PRECAUTIONS AND GENERAL INFORMATION �� 4

2 DESCRIPTION �� 6

3 REAR PANEL FEATURES AND CONTROLS �� 7

4 CONNECTION �� 8

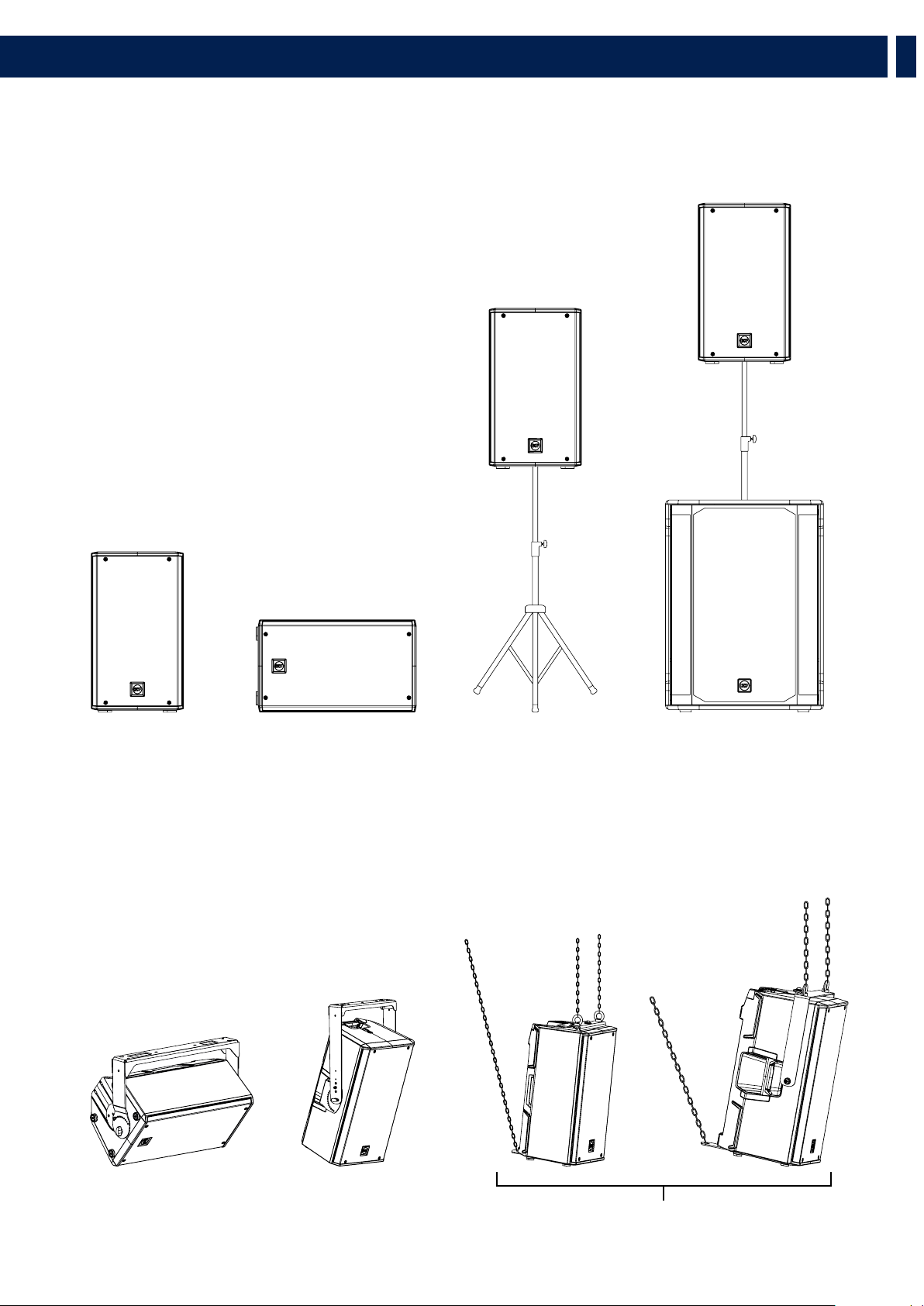

5 INSTALLATION ��9

6 TROUBLESHOOTING ��11

ITALIANO

1 AVVERTENZE PER LA SICUREZZA E INFORMAZIONI GENERALI �� 12

2 DESCRIZIONE �� 14

3 PANNELLO POSTERIORE - FUNZIONI E CONTROLLI �� 15

4 CONNESSIONI �� 16

5 INSTALLAZIONE ��17

6 RISOLUZIONE DEI PROBLEMI �� 19

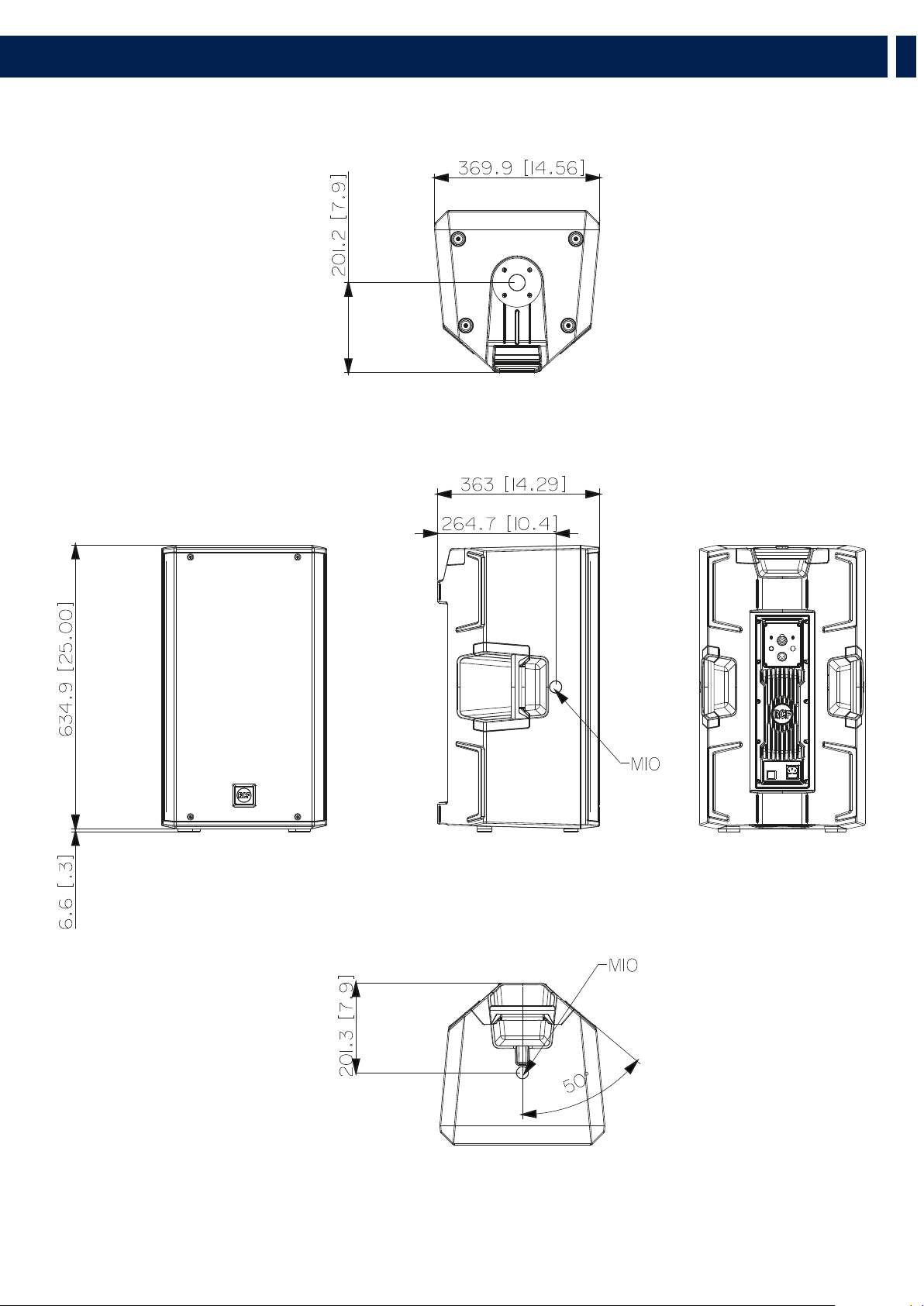

ART 910 DIMENSION ��20

ART 912/932 DIMENSION ��21

ART 915/935/945 DIMENSION ��22

SPECIFICATION/SPECIFICHE ��23

1. SAFETY PRECAUTIONS AND GENERAL INFORMATION

The symbols used in this document give notice of important operating instructions and warnings which must be strictly followed�

Important operating instructions:

CAUTION

WARNING

IMPORTANT NOTES

SUPPORTS, TROLLEYS

AND CARTS

WASTE DISPOSAL

IMPORTANT NOTES

This manual contains important information about the correct and safe use of the device� Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference� The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions� RCF S�p�A� will not assume any responsibility for the incorrect installation and / or use of this product�

explains hazards that could damage a

product, including data loss

Important advice concerning the use of

dangerous voltages and the potential

risk of electric shock, personal injury or

death�

Helpful and relevant information

about the topic

Information about the use of supports,

trolleys and carts� Reminds to move with

extreme caution and never tilt�

This symbol indicates that this product

should not be disposed with your

household waste, according to the

WEEE directive (2012/19/EU) and your

national law�

SAFETY PRECAUTIONS

1� All the precautions, in particular the safety ones, must be read with special

attention, as they provide important information�

2� Power supply from mains

a� The mains voltage is sufﬁciently high to involve a risk of electrocution; install

and connect this product before plugging it in�

b� Before powering up, make sure that all the connections have been made

correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please contact your RCF dealer�

c� The metallic parts of the unit are earthed through the power cable� An apparatus

with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection�

d� Protect the power cable from damage; make sure it is positioned in a way that

it cannot be stepped on or crushed by objects�

e� To prevent the risk of electric shock, never open this product: there are no parts

inside that the user needs to access�

f� Be careful: in the case of a product supplied by manufacturer only with

POWERCON connectors and without a power cord, jointly to POWERCON connectors type NAC3FCA (power-in) and NAC3FCB (power-out), the following power cords compliant to national standard shall be used:

- EU: cord type H05VV-F 3G 3x2�5 mm2 - Standard IEC 60227-1

- JP: cord type VCTF 3x2 mm2; 15Amp/120V~ - Standard JIS C3306

- US: cord type SJT/SJTO 3x14 AWG; 15Amp/125V~ - Standard ANSI/UL 62

3� Make sure that no objects or liquids can get into this product, as this may cause a short circuit� This apparatus shall not be exposed to dripping or splashing� No objects ﬁlled with liquid, such as vases, shall be placed on this apparatus� No naked sources (such as lighted candles) should be placed on this apparatus�

- Objects or liquids have got in the unit�

- The product has been subject to a heavy impact�

5� If this product is not used for a long period, disconnect the power cable�

6� If this product begins emitting any strange odours or smoke, switch it off

immediately and disconnect the power cable�

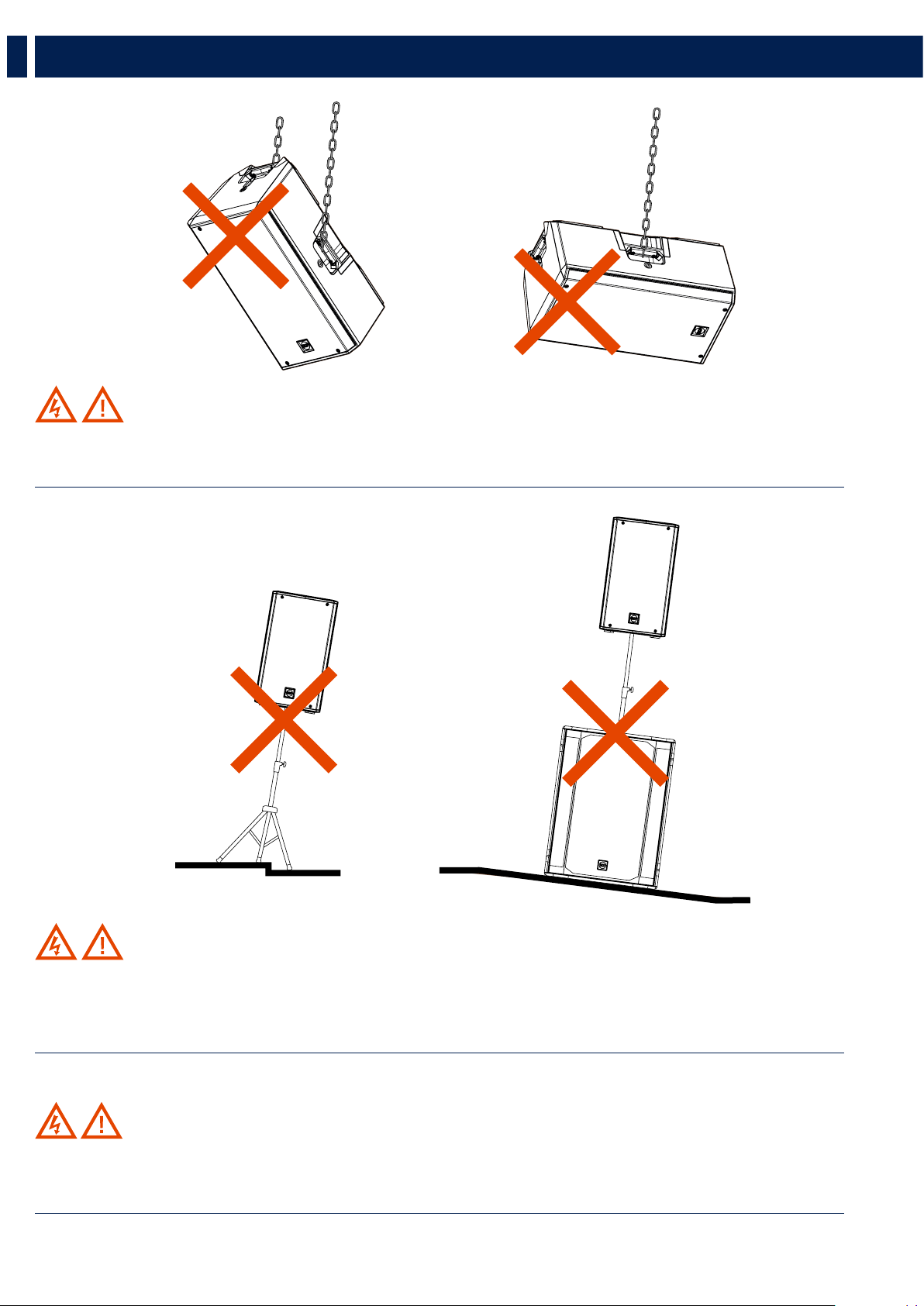

7� Do not connect this product to any equipment or accessories not foreseen� For suspended installation, only use the dedicated anchoring points and do not try to hang this product by using elements that are unsuitable or not speciﬁc for this purpose� Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc�), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc�), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers� To prevent the risk of falling equipment, do not stack multiple units of this product unless this possibility is speciﬁed in the user manual�

8� RCF S�p�A� strongly recommends this product is only installed by professional qualiﬁed installers (or specialised ﬁrms) who can ensure correct installation and certify it according to the regulations in force� The entire audio system must comply with the current standards and regulations regarding electrical systems�

9� Supports, trolleys and carts�

The equipment should be only used on supports, trolleys and carts, where necessary, that are recommended by the manufacturer� The equipment / support / trolley / cart assembly must be moved with extreme caution� Sudden stops, excessive pushing force and uneven ﬂoors may cause the assembly to overturn� Never tilt the assembly�

10� There are numerous mechanical and electrical factors to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc�)�

11� Hearing loss� Exposure to high sound levels can cause permanent hearing loss� The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure� To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices� When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones� See the manual technical speciﬁcations to know the maximum sound pressure level�

OPERATING PRECAUTIONS

- Place this product far from any heat sources and always ensure an adequate air

circulation around it�

- Do not overload this product for a long time�

- Never force the control elements (keys, knobs, etc�)�

- Do not use solvents, alcohol, benzene or other volatile substances for cleaning

the external parts of this product�

IMPORTANT NOTES

To prevent the occurrence of noise on line signal cables, use screened cables only and avoid putting them close to:

- Equipment that produces high-intensity electromagnetic ﬁelds

- Power cables

- Loudspeaker lines

4� Never attempt to carry out any operations, modiﬁcations or repairs that are not

expressly described in this manual� Contact your authorized service centre or qualiﬁed personnel should any of the following occur:

- The product does not function (or functions in an anomalous way)�

- The power cable has been damaged�

1. SAFETY PRECAUTIONS AND GENERAL INFORMATION

WARNING! CAUTION! To prevent the risk of ﬁre or electric

shock, never expose this product to rain or humidity�

WARNING! To prevent electric shock hazard, do not connect to

mains power supply while grille is removed

WARNING! to reduce the risk of electric shock, do not disassemble this product unless you are qualiﬁed� Refer servicing to qualiﬁed service personnel�

CORRECT DISPOSAL OF THIS PRODUCT

This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE)� Improper handling of this type of waste could have a possible

negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE� At the same time, your cooperation in the correct disposal of thisproduct will contribute to the effective usage of natural resources� For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁce, waste authority or your household waste disposal service�

CARE AND MAINTENANCE

To ensure a long-life service, this product should be used following these advices:

- If the product is intended to be set up outdoors, be sure it is under cover and

protected to rain and moisture�

- If the product needs to be used in a cold environment, slowly warm up the

voice coils by sending a low-level signal for about 15 minutes before sending high-power signals�

- Always use a dry cloth to clean the exterior surfaces of the speaker and always

do it when the power is turned off�

CAUTION: to avoid damaging the exterior ﬁnishes do not use

cleaning solvents or abrasives�

WARNING! CAUTION! For powered speakers, do cleaning

only when the power is turned off�

RCF S�p�A� reserves the right to make changes without prior notice to rectify any errors and / or omissions�

Always refer to the latest version of the manual on www�rcf�it�

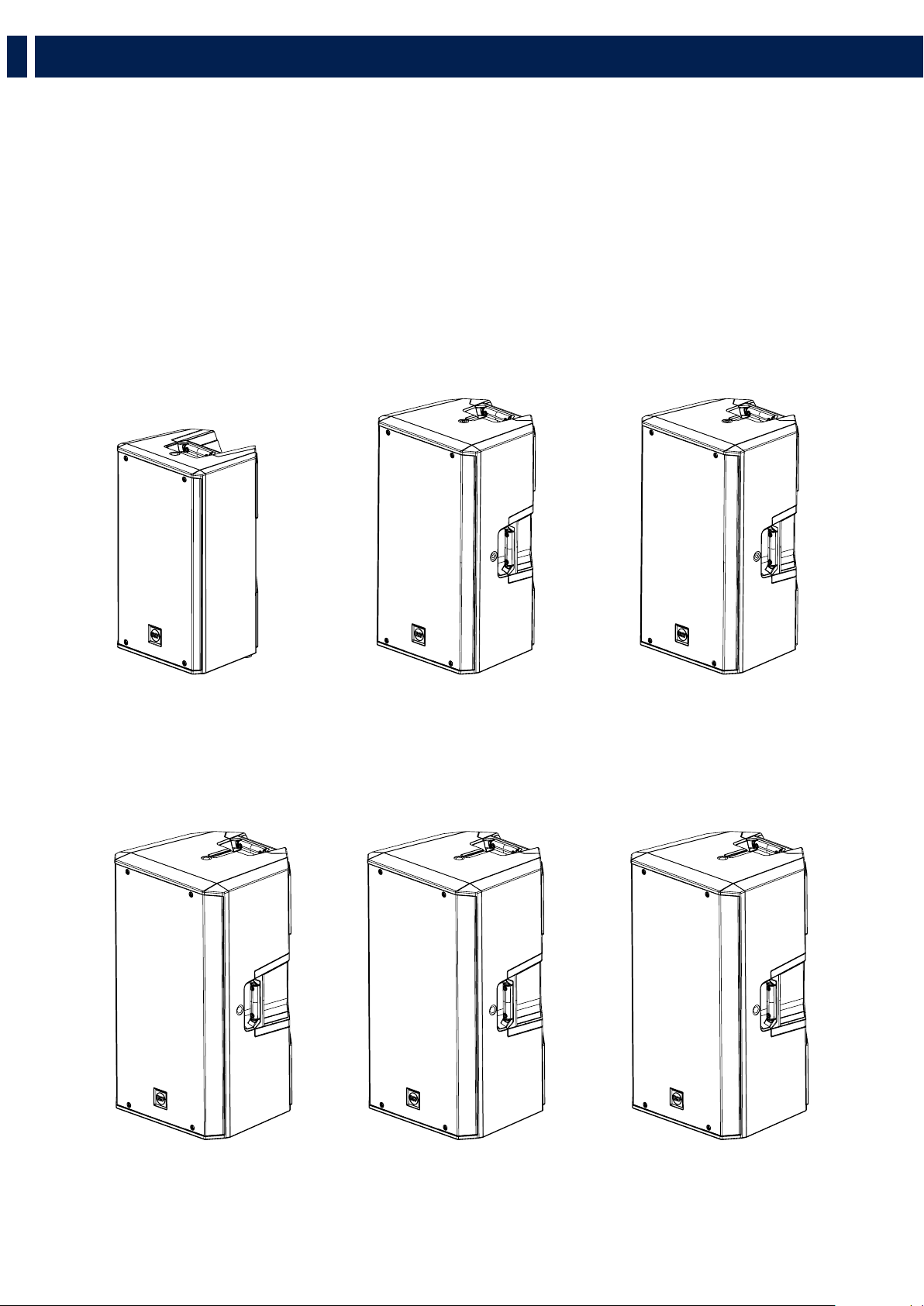

2. DESCRIPTION

THE ART 9 SERIES

ART 9 Series combines raw power and technological innovation to reliably deliver superior clarity with impressive sound pressure�

The ART 9 speaker is an evolution of the ART concept and a revolution in professional sound, created with music in mind� Packed with premium features, it’s the best ﬁt for professional applications on the road, also suitable for installation� The new bi-ampliﬁed 2100W electroacoustic design provides remarkable Sound Pressure Levels (SPL), even when used in open-air environments and at long distances, with impeccable quality�

The combination of purpose-designed transducers, advanced DSP processing, and the new True Resistive Waveguide delivers coherent coverage throughout the listening area with superb sound free of distortion, and legendary RCF reliability� Clarity and natural dynamic of vocal reproduction are also improved, with maximum intelligibility both at low and very high volume levels� We blended RCF proprietary FiRPHASE and Bass Motion Control algorithms, perfectly tuned for each model, so your audience will experience all nuances of your sound and very deep bass�

ART 910-A

2100 Watt

10” Woofer - 2,5” v�c�

1�75” Compression Driver

16 Kg (35�27 lbs)

ART 912-A

2100 Watt

12” Woofer - 2,5” v�c�

1�75” Compression Driver

19,2 Kg (42�32 lbs)

ART 932-A

2100 Watt

12” Woofer - 2,5” v�c�

3�0” Compression Driver

19 Kg (41�8 lbs)

ART 915-A

2100 Watt

15” Woofer - 2�5” v�c�

1�75” Compression Driver

22,2 Kg (48�9 lbs)

ART 935-A

2100 Watt

15” Woofer - 3” v�c�

3�0” Compression Driver

24,4 Kg (53�7 lbs)

ART 945-A

2100 Watt

15” Woofer - 3�5” v�c�

4�0” Compression Driver

22,3 Kg (49�1 lbs)

3. REAR PANEL FEATURES AND CONTROLS

PRESETS SELECTOR This selector allows to select 3 different presets� By

pressing the selector, the PRESET LEDS will indicate which preset is selected�

LINEAR - this preset is recommended for all regular applications of the

speaker�

BOOST - this preset creates a loudness equalization recommended for

background music applications when the system plays at a low level�

STAGE - this preset is recommended when the speaker is used as a stage

monitor�

PRESET LEDS These LEDs indicate the selected preset�

FEMALE XLR/JACK COMBO INPUT This balanced input accepts a standard

JACK or XLR male connector�

MALE XLR SIGNAL OUTPUT This XLR output connector provides a loop

trough for speakers daisy chaining�

OVERLOAD/SIGNAL LEDS These LEDs indicate

The SIGNAL LED lights green if there is a signal present on the main

COMBO input�

The OVERLOAD LED indicates an overload on the input signal� It is okay

if the OVERLOAD LED blinks occasionally� If the LED blinks frequently or lights continuously, turn down the signal level avoiding distorted sound� Anyway, the ampliﬁer has a built-in limiter circuit to prevent input clipping or overdriving the transducers�

VOLUME CONTROL Adjusts the master volume�

POWER MAIN SWITCH The power switch turns the AC power ON and OFF�

FUSE CARRIER Mains fuse housing�

STANDARD 3-PRONG IEC SOCKET Power connection�

POWERCON INPUT SOCKET Power connection (ART 945-A only)�

POWERCON OUTPUT SOCKET Sends the AC power to another speaker

(ART 945-A only)� Power link: 100-120V~ max 1600W l 200-240V~MAX 3300W

WARNING! CAUTION! Loudspeaker connections should be only made by qualiﬁed and experienced personnel having the technical know-how or enough speciﬁc instructions (to ensure that connections are made correctly) in order to prevent any electrical danger�

To prevent any risk of electric shock, do not connect loudspeakers when the ampliﬁer is switched on�

Before turning the system on, check all connections and make sure there are no accidental short circuits�

The entire sound system shall be designed and installed in compliance with the current local laws and regulations regarding electrical systems�

10 11

4. CONNECTIONS

The connectors must be wired according to the standards speciﬁed by the AES (Audio Engineering Society)�

MALE XLR CONNECTOR

Balanced wiring

TRS CONNECTOR

Unbalanced mono wiring

TIPTIP

SLEEVESLEEVE

FEMALE XLR CONNECTOR

Balanced wiring

TRS CONNECTOR

Balanced mono wiring

TIPTIP

RINGRING

SLEEVESLEEVE

PIN 1 = GROUND (SHIELD) PIN 2 = HOT (+) PIN 3 = COLD (-)

SLEEVE = GROUND (SHIELD) TIP = HOT (+) RING = COLD (-)

BEFORE CONNECTING THE SPEAKER

On the rear panel you will ﬁnd all the controls, signal and power inputs� At ﬁrst verify the voltage label applied to the rear panel (115 Volt or 230 Volt)� The label indicates the right voltage� If you read a wrong voltage on the label or if you can’t ﬁnd the label at all, please call your vendor or authorized RCF SERVICE CENTRE before connecting the speaker� This fast check will avoid any damage� In case of need of changing the voltage please call your vendor or authorized RCF SERVICE CENTRE� This operation requires the replacement of the fuse value and is reserved to an RCF SERVICE CENTRE�

BEFORE TURNING ON THE SPEAKER

You can now connect the power supply cable and the signal cable� Before turning on the speaker make sure the volume control is at the minimum level (even on the mixer output)� It is important that the mixer is already ON before turning on the speaker� This will avoid damages to the speaker and noisy “bumps” due to turning on parts on the audio chain� It is a good practice to always turn on the speakers at last and turning them off immediately after their use� You can now turn ON the speaker and adjust the volume control to a proper level�

PROTECTIONS

ART Series active speakers are equipped with a complete system of protection circuits� The circuit is acting very gently on audio signal, controlling level and maintaining distortion at acceptable level�

VOLTAGE SETUP (RESERVED TO THE RCF SERVICE CENTRE)

200-240 Volt, 50 Hz 100-120 Volt, 60 Hz

(FUSE VALUE T6�3 A L 250V)
