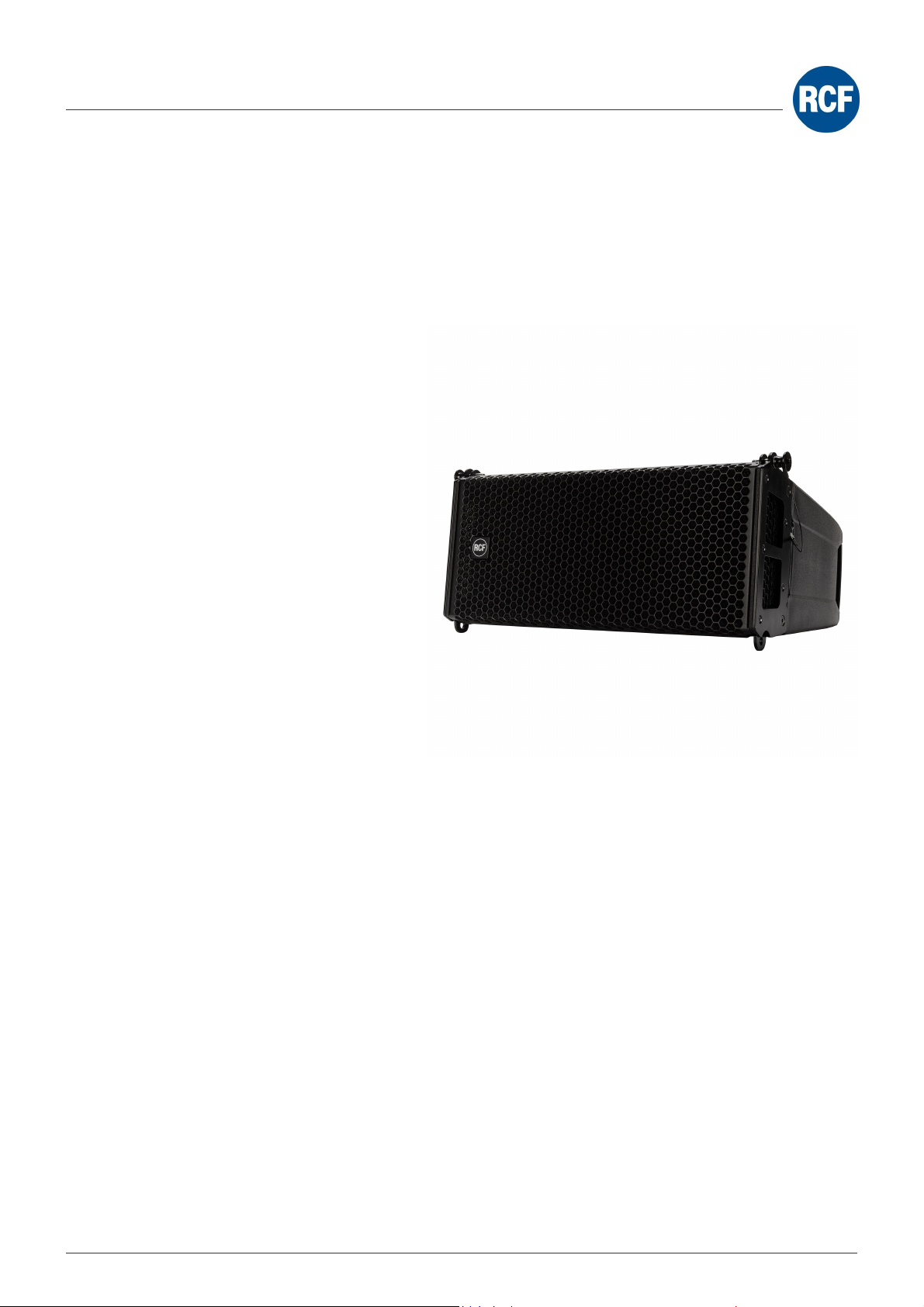

HDL 26-A
ACTIVE TWO WAY LINE ARRAY MODULE
DESCRIPTION
The RCF HDL26-A is an ultra-compact biamped two-way active touring system for
small and medium-sized events, both indoors
and outdoors. Due to the advanced
transducer design and the 2000W Class-D
amplifier, among the best in its class, it is
capable of an extended bottom-end and a
pristine sound for a wide range of
applications, alone or in RDNet managed linearray configurations.
The HDL 35-AS is the ideal flyable bass
complement for the HDL 26-A array system.
FEATURES
• 133 dB Max SPL
• 2000W Two-Way Amplifier
• Exclusive FiRPHASE technology on-board
• 750 Hz Crossover for best vocal reproduction
• RDNet Networked Management
• 1.5” Titanium Compression Driver
• 2 x 6” High-Powered Neodymium Woofers
• 4 PATH waveguide
DATASHEET
Rev. J
Page 2
TECHNICAL SPECIFICATIONS
Acoustical specifications
Frequency Response:
55 Hz ÷ 20000 Hz
Max SPL @ 1m:
133 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
10°
Transducers
Compression Driver:
1 x 1.5'' neo, 3.0'' v.c
Woofer:
2 x 6.0'' neo, 2.0'' v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
+4 dBu
Processor section
Crossover Frequencies:
750
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Preset, RDNet bypass
RDNet:
Yes
Power section
Total Power:
2000 W Peak, 1000 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
Array fittings
Handles:
2 Back
Grille:
Steel
Color:
Black
Size
Height:
237 mm / 9.33 inches
Width:
470 mm / 18.5 inches
Depth:
377 mm / 14.84 inches
Weight:
13.5 kg / 29.76 lbs
Shipping informations
Package Height:
260 mm / 10.24 inches
Package Width:
550 mm / 21.65 inches
Package Depth:
425 mm / 16.73 inches
Package Weight:
14.9 kg / 32.85 lbs
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
Page 3
PART NUMBER
• 13000606
HDL 26-A W
White
EAN 8024530017422
• 13000588
HDL 26-A
Black
EAN 8024530016845
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
Page 4
VISTA 3D / 3D VIEW
213.9 8[ ]
377 15[ ]
10$
470 19[ ]
510 20[ ]
425.5 17[ ]
237 9[ ]
446 17.56[ ]8 .32[ ]
LINE ARRAY MODULE HDL 26-A 90-240V
REV.
A
DATASHEET
Page 5
DATASHEET
110
Response -20dBu/2m
100
90
dB SPL
80
70
60
20
100
10
Total Q
1
100 1000 10000
100 1000 10000
Frequency (Hz)
Directivity Index and Q
Frequency (Hz)
360
330
300
Beamwidth vs. Frequency
Horizontal Beamwidth (1/3 Octave)
Vertical Beamwidth (1/3 Octave)
270
240
210
180
150
120
Coverage Angle (Deg.)
90
60
30
0
100 1000 10000
20
18
16
14
Directivity index Di, dB
12
10
8
6
4
2
0
5
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Horizontal ±10 degrees
Horizontal ±20 degrees
Horizontal ±30 degrees
Horizontal ±40 degrees
Horizontal ±50 degrees
Horizontal ±60 degrees
Frequency (Hz)
Normalized Horizontal off-axis Response
Frequency (Hz)
5
Normalized Vertical off-axis Response. Above the box
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Vertical +10 degrees
Vertical +20 degrees
Vertical +30 degrees
Vertical +40 degrees
Vertical +50 degrees
Vertical +60 degrees
Frequency (Hz)
5
Normalized Vertical off-axis Response. Below the box
0
-5
-10
-15
Attenuation in dB
-20
-25
-30
100 1000 10000
Vertical -10 degrees
Vertical -20 degrees
Vertical -30 degrees
Vertical -40 degrees
Vertical -50 degrees
Vertical -60 degrees
Frequency (Hz)
HDL26-A
Page 6
DATASHEET
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
330°
210°
210°
180°
180°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
160
125
100
90°
630
500
400
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
210°
330°
330°
210°
180°
180°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
315
250
200
90°
1250
1000
800
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
Horizontal 1/3 Octave Polars
300°
270°
240°
330°
210°
330°
210°
180°
180°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
2500
2000
1600
90°
10000
8000
6300
90°
Horizontal 1/3 Octave Polars
300°
270°
240°
300°
270°
240°
330°
210°
330°
210°
180°
180°
0°
0°
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
Horizontal One Octave Polars
30°
60°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
120°
150°
5000
4000
3150
90°
90°
HDL26-A
Page 7
DATASHEET
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
160
125
100
0°
630
500
400
0°
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
240°
120°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
315
250
200
0°
1250
1000
800
0°
Vertical 1/3 Octave Polars
150°
180°
210°
Vertical 1/3 Octave Polars
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
2500
2000
1600
0°
10000
8000
6300
0°
Vertical 1/3 Octave Polars
150°
180°
210°
150°
180°
210°
120°
240°
120°
240°
270°
270°
90°
90°
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
Vertical One Octave Polars
60°
30°
-36-36 -30-30 -24-24 -18-18 -12-12 -6-6 00
330°
300°
5000
4000
3150
0°
0°
HDL26-A
Page 8
ACCESSORIES
AC 2X AZIMUT PLATE
PART NUMBER
13360351
EAN:
8024530013516
AC POWER CABLE 6X TTL55
PART NUMBER
13360138
EAN:
AC TRUSS CLAMP HDL6
PART NUMBER
13360371
EAN:
8024530014360
AC XLR-3M3F XLR CONN. 3MALE3FEMALEXCABLE
PART NUMBER
13360102
EAN:
8024530006402
CABLES KIT CBL ETHERCON 0.7M
PART NUMBER
12399016
EAN:
8024530013844
CABLES KIT CBL ETHERCON 1.5M
PART NUMBER
12399017
EAN:
8024530013851
CABLES KIT CBL ETHERCON 3M
PART NUMBER
12399035
EAN:
8024530013868
CABLES KIT CBL ETHERCON 5M
PART NUMBER
12399018
EAN:
8024530013875
CABLES KIT CBL ETHERCON TO XLR F 0.2M
PART NUMBER
12399019
EAN:
8024530013882
DATASHEET
Page 9
CABLES KIT CBL ETHERCON TO XLR M 0.2M
PART NUMBER
12399020
EAN:
8024530013899
CABLES KIT CBL LK 25 MULTIPIN 10M
PART NUMBER
12399023
EAN:
8024530013837
CABLES KIT CBL LK 25 MULTIPIN 20M
PART NUMBER
12399022
EAN:
8024530013820
CABLES KIT CBL LKS 19 ARRAY FANOUT
PART NUMBER
12399024
EAN:
8024530013905
CABLES KIT CBL LKS 19 BREAKOUT
PART NUMBER
12399026
EAN:
8024530013929
CABLES KIT CBL LKS 19 POWER 10M
PART NUMBER
12399027
EAN:
8024530013936
CABLES KIT CBL LKS 19 SUB FANOUT
PART NUMBER
12399025
EAN:
8024530013912
CABLES KIT CBL POWER BOX 6X
PART NUMBER
13360145
EAN:
8024530015534
CABLES KIT CBL POWERCON LINK 0.7M
PART NUMBER
12399031
EAN:
8024530013738
CABLES KIT CBL POWERCON LINK 1.5M
PART NUMBER
12399030
EAN:
8024530013721
DATASHEET
Page 10
CABLES KIT CBL POWERCON LINK 10M
PART NUMBER
12399028
EAN:
8024530013707
CABLES KIT CBL POWERCON LINK 5M
PART NUMBER
12399029
EAN:
8024530013714
CABLES KIT LK 25-2 FANOUT
PART NUMBER
12399021
EAN:
8024530013813
FLYBAR HDL6-A
PART NUMBER
13360360
EAN:
8024530014209
FLYBAR HDL6-A W
PART NUMBER
13360373
EAN:
8024530014377
FLYBAR PICKUP HDL6
PART NUMBER
13360372
EAN:
8024530014353
HOIST SPACING CHAIN TTL55
PART NUMBER
13360129
EAN:
KART WITH WHEELS KRT-WH 6X HDL 6
PART NUMBER
13360366
EAN:
8024530014421
LINKBAR HDL12 TO HDL6
PART NUMBER
13360375
EAN:
8024530014414
LKS 19-20 POWER CABLE
PART NUMBER
13360146
EAN:
8024530013943
DATASHEET
Page 11
POLE MOUNT 3X HDL 6-A
PART NUMBER
13360377
EAN:
8024530014629
RAIN PROTECTION RP 1X HDL 6
PART NUMBER
13360381
EAN:
8024530015169
SPARE PINS FRONT 4X HDL20- HDL18
PART NUMBER
13360219
EAN:
8024530015763
