LCD FLAT PANEL HDTV

user’s guide

connections 7

remote 21

features 30

menus 36

FAQs 40

warranty 46

contents

Important Information

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

This symbol indicates that this product contains mercury. Special disposal of this product for environmental reasons may be required under the laws applicable to your jurisdiction. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Product Registration

Please fill out the product registration card (packed separately) and return it immediately. For US customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/television. Registering this product allows us to contact you if needed.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. These numbers are located on the product.

Model No. _____________________ Serial No.____________________ Purchase Date __________________ Dealer/Address/Phone _________________________________________________________________________

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

Important: This television is a table model and is designed to sit on a firm, flat, surface. Don't place the TV on soft carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked resulting in reduced lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top and sides of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.

Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury and/or damage the TV. Refer to the Important Safety Instructions on the next page.

The TV is unstable if it is not properly attached to the base or mounted to the wall. Please follow the base or wall mounting instructions provided in the User’s

Guide to ensure your safety.

WARNING

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

CAUTION

RISK OF EL ECTR IC SHOCK DO NOT OPEN

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

Important Safety Instructions

AN TE NN A LE AD IN WI RE

GR OU ND CL AM P

GR OU NDI NG CO ND UCT OR

(N EC SE CT ION 8 10- 21 )

GR OU ND CL AMP S

PO WE R S ER VIC E GRO UND ING EL EC TRO DE SY ST EM (N EC AR T 250 , PAR T H)

EL EC TRI C SER VI CE EQ UI PME N T

AN TE NN A DI SC HAR GE UN IT (N EC SE CT ION 8 10- 20 )

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the

third prong is provided for your safety. If the provided plug does not fit your outlet, consult an electrician for replace-

ment of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where it exits from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Service is required when the apparatus is damaged in any way,

such as power-supply cord or plug damage, liquid spilled on or objects falling onto apparatus, rain or moisture

exposure, abnormal operation, or if the apparatus has been dropped.

15. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is

grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the

National Electrical Code, ANSI/NFPA No. 70-1984 (Section 54 of Canadian Electrical Code, Part 1) provides infor-

mation with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an

antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding

electrodes, and requirements for the grounding electrode. See following example.

4 Table of Contens

Table of Contents

Important Safety Instructions .................................................................................................................... i

Chapter 1 I Connections & Setup

Things to Consider Before You Connect....................................................................................... 6

Protect Against Power Surges ...................................................................................................... 6

Instructions at the Beginning of User's Guide ................................................................................ 6

Position Cables Properly to Avoid Audio Interference .................................................................... 6

Use Indirect Light .......................................................................................................................... 6

Check Supplied Parts ................................................................................................................... 6

Attaching TV to Table Stand ........................................................................................................... 7

Mounting TV to Wall........................................................................................................................ 9

Get the Picture ...............................................................................................................................10

Getting Channels .........................................................................................................................10

Choose Your Connections ............................................................................................................ 11

Composite Video Connection ....................................................................................................... 12

Component Video Connection ..................................................................................................... 12

HDMI/DVI Connection .................................................................................................................. 13

PC Connection ............................................................................................................................ 14

Plug in TV ...................................................................................................................................... 16

Put Batteries in Remote ............................................................................................................... 16

Turn on TV ..................................................................................................................................... 16

How to Use Remote Control to Complete Initial Setup .............................................................. 16

Complete Initial Setup .................................................................................................................. 17

Set Menu Language ................................................................................................................... 17

Set TV Location Mode ................................................................................................................ 17

Complete Channel Setup ............................................................................................................ 17

What To Expect ............................................................................................................................. 18

Watching TV ............................................................................................................................... 18

Changing Channels .................................................................................................................... 18

Explanation of Jacks (in alphabetical order) ............................................................................... 19

Buttons and Other Jacks on Your TV ........................................................................................... 20

Side Input Jacks ......................................................................................................................... 20

Side Panel Buttons ..................................................................................................................... 20

Chapter 2 I Using the Remote Control

Remote Control Buttons ................................................................................................................ 21

Using the INPUT Button ...............................................................................................................

Table of Contens 5

Programming Remote to Operate Other Devices ........................................................................ 22

Find Out If You Need to Program Remote .................................................................................... 22

Programming Remote .................................................................................................................. 23

How to Use the Remote After You’ve Programmed It ................................................................. 24

Modes of Operation ..................................................................................................................... 24

Manual Reset of Remote Control .................................................................................................. 25

Remote Code List .......................................................................................................................... 26

Chapter 3 I Using TV Features

Channel Banner ............................................................................................................................. 30

Autotuning ...................................................................................................................................... 30

Parental Controls and V-Chip ....................................................................................................... 31

How V-Chip Works for USA and Canada ..................................................................................... 31

Lock/Unlock Parental Controls .................................................................................................... 32

US V-Chip TV Ratings .................................................................................................................. 32

US V-Chip Movie Rating Limit ...................................................................................................... 33

Blocking Canada V-Chip Ratings ................................................................................................. 34

Future Rating Region ................................................................................................................... 34

Reset Downloadable Data ........................................................................................................... 34

Blocking Unrated/Exempt Programs ............................................................................................ 34

Block Channel ............................................................................................................................. 34

Button Block ................................................................................................................................ 34

Change Password ....................................................................................................................... 35

Additional Features........................................................................................................................ 35

Screen Formats ........................................................................................................................... 35

Chapter 4 I Using TV Menu

Using Menu System....................................................................................................................... 36

Picture Menu .................................................................................................................................. 36

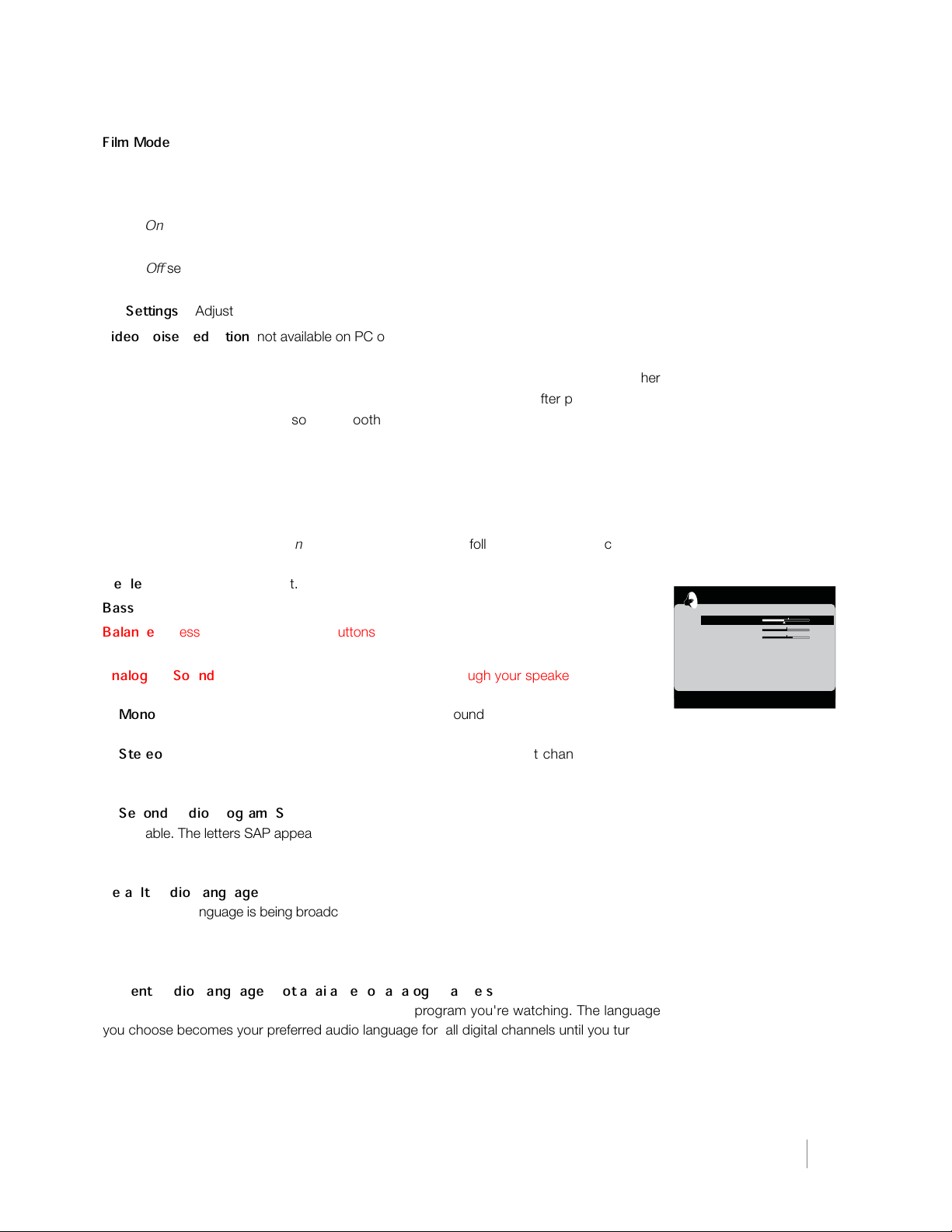

Sound Menu ................................................................................................................................... 37

Channel Menu ................................................................................................................................ 38

Parental Control Menu ................................................................................................................... 38

Setup Menu .................................................................................................................................... 38

Time Menu...................................................................................................................................... 39

Chapter 5 I Other Information

Frequently Asked Questions (FAQs) ............................................................................................. 40

Troubleshooting ............................................................................................................................. 41

V-Chip Rating Explanations .......................................................................................................... 44

US V-Chip Rating System ............................................................................................................ 44

Canadian English V-Chip Rating System ...................................................................................... 44

Canadian French V-Chip Rating System ...................................................................................... 45

Limited Warranty............................................................................................................................ 46

Care and Cleaning ......................................................................................................................... 47

6 Chapter 1 Connections and Setup

2 AA BATTERIES

POWER CORD

Connections and Setup

Things to Consider Before You Connect

Protect Against Power Surges

• Connect all devices before you plug any power cords into the wall outlet or power strip.

NEVER plug your TV into an outlet that is controlled by a wall switch.

• Turn off the TV and/or device(s) before you connect or disconnect any cables.

• Make sure all antennas and cables are properly grounded. Refer to the Important Safety

Instructions.

Instructions at the beginning of the User's Guide

• Protect devices from overheating.

• Don’t block ventilation holes on any of the devices. Arrange the devices so that air can

circulate freely.

• Don’t stack devices.

• If you place devices in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air

from it won’t flow around other devices.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

• If you place devices above the TV, route all cables down one side of the back of the TV

instead of straight down the middle.

• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin

lead cables away from audio/video cables.

Use Indirect Light

Don’t place the TV where sunlight or room lighting will be directed toward the screen. Use soft

or indirect lighting.

Check Supplied Parts

Check that the following parts were packed with your product.

REMOTE CONTROL

PART #

RC2254702/01

Go to Page 8 to see the parts list for the table

stand

Graphics contained within this publication are presentation only.

Note:

If you need to replace your remote, call 1-800-338-0376. A shipping and handling fee, and the appropriate sales tax, will be charged upon ordering. Have your Visa, MasterCard, or Discover Card ready.

Connections and Setup Chapter 1 7

Attaching TV to Table Stand

Parts List

1 Table Stand

Size M4 St-Screws

Step 2

Remove the Stand Cap from the TV

cabinet by taking off the size M3

St-screw with a screwdriver and pulling

out the cap.

Stand Cap

Size M3 St-Screw

Step 1

1. Take the TV bag and place it on a flat table.

2. Take the TV set and place it face down on

the TV bag.

Your TV comes without the table stand attached so that you can choose to mount your TV either to its table stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t attach the table stand, and instead, follow the Mounting Your TV to the Wall instructions on

Table Stand Assembly for models L22HD31

page 9.

8 Chapter 1 Connections and Setup

Step 3

Attach the table stand to the TV cabinet by inserting the stand into the stand

connector support, and aligning the three screw holes, from the bottom, tighten-

ing three M4 St-screws with a screwdriver.

3 size M4 St-screws

Stand Connector Support

Mounting TV to Wall

To mount your TV to the wall you need to purchase a VESA wall mount

Model L22HD31

The VESA number is the horizontal and vertical measurement of the mounting holes. For example,

100x100 means the mounting measurements are 100mm horizontally and 100mm vertically. Follow the directions included with the wall mount to mount the TV to the wall.

Purchase a VESA 100 x100, Size M4 screw

Caution:

must bear a minimum of five times the TV’s net weight without causing damage.

Your wall mount

Connections and Setup Chapter 1 9

Get the Picture

COAXIAL CABLE OUTDOOR OR INDOOR ANTENNA

The first part of connecting your TV is to get the picture, also known as the signal. The back

panel of your TV allows you to receive analog and/or digital channels by using the ANTENNA/

CABLE INPUT.

Getting Channels

What You Need

Antenna ("rabbit ears") or outdoor antenna with coaxial cable

Coaxial cable with cable service

A. Do you have an indoor or outdoor antenna? If not, go to step B. If so, plug the antenna or

coaxial cable from the wall outlet into the ANTENNA/CABLE INPUT to receive free off-air

local digital and analog channels.

B. Do you have cable? If so, plug the coaxial cable from the wall outlet into the ANTENNA/

CABLE INPUT to receive your cable channels.

C. Do you have a set-top box? If so, you may need to call your cable company or satellite

service provider. They may recommend special cables to allow you to view digital channels.

What You Need To Know

• Visit www.antennaweb.org for help deciding what type of antenna to use to receive the local

digital channels available to you. By entering where you live, this mapping program tells you

what local analog and digital stations are available using a certain antenna.

• When you are ready to watch channels, the channel banner displays the type of channel

you're viewing. Look for a

analog channels. Go to

at the bottom of the screen for digital channels; look for an Afor

page 30 for more information.

10 Chapter 1 Connections and Setup

Choose Your Connections

Audio R and L Video

Audio/Video

page 12

Audio R and L

Y Pr Pb

Component Video Audio

Audio L and R

HDMI/DVI

Jacks Used Cable Needed Go to...

VGAAudio

HDMI

+ HDMI/DVI Adapter +ORAudio

pages 12-13

pages 13-14

pages 14-15

HDMI

VGA

Audio

COMPONENT INPUT (CMPT)

PbY

AUDIO

PC INPUT

AUDIOVIDEO

Input Signal Compatability

Ant/Cable 480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)

Composite Video 480i

S-Video 480i

Component Video 480i, 480p, 720p/60Hz, 1080i/60Hz

PC VGA, SVGA, XGA

HDMI 480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Note for US customers:

If you prefer, we can provide you with the name of an Authorized Service Representative who will visit your home for a fee to install your electronic entertain- ment system and instruct you in its operation. For details about this service, call

1-888-206-3359

. For additional assistance while using your RCA product, please visit

www.rca.com/ customersupport

There are several ways to connect devices such as DVD players and set-up boxes to your

TV. Please use the following chart to determine which connection is best for you. Proceed to

the appropriate page to connect your TV.

Connections and Setup Chapter 1 11

Connecting a Device with Composite Video (Good)

This connection allows you to connect a device that has a Video Out jack, for example, a

DVD player.

Using the example of a DVD player:

1. If necessary, connect your cable and/or off-air antenna as described on page 10.

2. Connect your yellow video cable. Connect a video cable to the

(VID) VIDEO jack on the

back of the TV and to the VIDEO OUTPUT jack on the DVD player.

3. Connect your red and white AUDIO cables. Connect the AUDIO (red and white) cables to

the

(VID) right and left AUDIO jacks on the back of the TV and to the AUDIO OUTPUT

jacks on the DVD player.

Composite Video Connection

This is an example of a connection using the composite video jack.

Connecting a Device with Component Video (Better)

This connection allows you to connect a device that has Y Pb Pr jacks, for example, a DVD player.

Using the example of a DVD player:

1. If necessary, connect your cable and/or off-air antenna as described on page 10.

2. Connect your Y Pb Pr component VIDEO cables. Connect three VIDEO cables or special

Y Pb Pr cables to the COMPONENT INPUT (CMPT) Y Pb Pr jacks on the back of the TV

and to the Y Pb Pr outputs on the DVD player.

3. Connect your red and white AUDIO cables. Connect the AUDIO (red and white) cables to

the Component Input (CMPT) right and left AUDIO jacks on the back of the TV and to the

AUDIO OUTPUT jacks on the DVD player.

Don’t forget:

If necessary, connect

antenna or cable to get

a picture. Go to page

10 for instructions.

COMPOSITE VIDEO CABLES ARE COLOR CODED-YELLOW=VIDEO RED=RIGHT AUDIO; WHITE=LEFT AUDIO

Red

Yellow

White

12 Chapter 1 Connections and Setup

Component Video Connection

This is an example of a connection using the component video jacks. Go to page 12 for

specific instructions.

COMPONENT VIDEO CABLES (Y Pb Pr) ARE COLOR CODED- GREEN, BLUE AND RED

Blue

Red

Green

AUDIO CABLES ARE COLOR CODED - RED= RIGHT AUDIO, WHITE=LEFT AUDIO

Red

White

Connecting a Device with HDMI (Best)

High-Definition Multimedia Interface (HDMI) technology is an uncompressed digital connec-

tion that carries both video and audio data by way of an integrated mini-plug cable. Since

HDMI technology is based on Digital Visual Interface (DVI), the jack on the back of your TV is

also compatible with devices that have a DVI output jack.

Using the example of a set-top box:

If your set-top box has an HDMI jack, connect an HDMI cable. Connect an HDMI cable to

the

HDMI/DVI INPUT jack on the back of the TV and to the HDMI Out jack on the back of the

device.

-OR-

If your set-top box has a DVI jack, connect an HDMI cable and an HDMI/DVI adapter:

1. Connect an HDMI cable to the

HDMI/DVI INPUT jack on the back of the TV .

2. Attach an HDMI/DVI adapter to the end of the HDMI cable, then connect the adapter to

the DVI Out jack on the set-top box.

3. Since you’re using an HDMI/DVI adapter, you need to connect separate AUDIO cables to

the DVI AUDIO right and left jacks on the back of the TV and to the R and L AUDIO jacks

on the back of the device.

Don’t forget:

If necessary, connect antenna or cable to get a picture. Go to page

10 for instructions.

Connections and Setup Chapter 1 13

HDMI/DVI Connection (Best)

This is an example of a connection using the HDMI2/DVI jack. Go to page 13 for specific

instructions.

HDMI Cable

HDMI Cable + HDMI/DVI Adapter +

Red

White

Audio cables are color coded Red=right audio; white=left audio

Connecting a PC Device

This connection allows you to connect to a personal computer and use your TV as a monitor.

1. If necessary, connect your cable and/or off-air antenna as described on

page 10.

2. Connect your monitor cable. Connect one end of a 15-pin monitor cable to the PC VIDEO

jack on the TV and the other end to the PC's VIDEO OUTPUT jack. Note, if your PC's

VIDEO OUTPUT isn't 15-pin, you'll need an adapter that can connect to a 15-pin monitor

cable.

3. Connect your AUDIO cable. Connect a 3.5mm stereo mini pin cable (sometimes referred

to as 1/8" stereo mini pin) to the PC AUDIO jack on the back of the TV and the other end

to the AUDIO OUTPUT jack on the PC.

Don’t forget:

If necessary, connect

antenna or cable to get

a picture. Go to page

10 for instructions.

Note:

The maximum

resolution is 1024 x

768. Be sure to set your PC to the

correct monitor

output setting.

14 Chapter 1 Connections and Setup

PC Connection

This is an example of a connection using the PC VIDEO jack. Go page 14 for specific

instructions.

ViewingPicture from Connected Device

1. Plug in the TV (see page 16 for details) and the device, if they aren't already plugged in.

2. Turn on the TV and the device you want to view, for example a DVD player.

Repeatedly press the INPUT button on the remote control to select VID (if connected

to the VIDEO INPUT jacks), CMPT (if connected to the CMPT jacks) or HDMI (if

connected to the HDMI/DVI jack)

displayed at the top of the TV's screen. To go back to

viewing TV channels, use the number buttons to enter the channel you want to view.

Note:

If the picture from the DVD player appears black and white and your device is connected to the VIDEO INPUT, you might be tuned to the wrong input. Make sure you press INPUT until you select

VID, CMPT or HDMI displayed at the top of the TV's screen.

Note:

•

If you're done connecting devices to your TV, go to page 17 to complete the Initial Setup.

•

To continue connecting devices, go to the next page.

Viewing PC

1. Plug in the TV and the PC, if they aren't already plugged in.

2. Turn on the TV and the PC.

3. Repeatedly press the INPUT button on the remote control until you select PC displayed at

the top of the TV's screen. To go back to viewing TV channels, use the number buttons to

enter the channel or press CH+ or CH- buttons.

Note:

If you're done connecting devices to your TV, go to page 21 to complete the Initial Setup.

Don’t forget:

If necessary, connect antenna or cable to get a picture. Go to page

10 for instructions.

Connections and Setup Chapter 1 15

Plug in TV

) on the side of the TV or ON•OFF on the

remote.

How to Use Remote Control to Complete

Initial Setup

The technical term is “Navigation” - how you move through the on-screen menus. The theory

is the same throughout the menu screens: highlight your choice and select it.

To highlight a menu item, press the arrow buttons on the remote to highlight one of the items

listed on the screen. Use the up or down arrow button to move up or down. Use the right or

left arrow button to view other selections for a menu choice or to display a sub-menu.

Note:

Highlighted

means that the menu

item stands out from other menu items on

the list (appears

darker, brighter, or a

different color).

Plug the end of the power cord into the back of the TV. Plug the other end into an outlet. Insert

the plug completely into the outlet. Do not plug into an outlet controlled by a light switch.

Put Batteries in Remote

• Remove the battery compartment cover from the back of the remote by pushing the tab

and lifting off the cover.

• Insert two fresh batteries (included). Make sure the polarities (+ and -) are aligned correctly.

• Replace the cover.

Turn on TV

Turn on your TV by pressing the Power button (

16 Chapter 1 Connections and Setup

Complete Initial Setup

Auto Channel Search

Go Back Signal Type Cable

Auto Channel Search ...

To Search for available channels, press OK Running Auto Channel search will erase list & lables.

Auto Channel Search

Go Back Signal Type Cable

Auto Channel Search Running

Progress: 0% Analog channels found: 0 Digital channels found: 0

Channel Search in progress. Press CANCEL to cancel. Any channel already found will be stored.

Retail

Home

TV Location

This mode is Energy Star compliant.

The menu system in your TV allows the TV’s features to work properly. The first time you turn

on your TV, the language screen appears.

Set Menu Language

The first part of the setup allows you to select your preferred language for the menu system.

English

is your preferred language, press OK and go to set the TV Location Mode. To choose

another language, press the down arrow button until that language is highlighted, and press

the OK button.

Set TV Location Mode

After choosing the Language, a menu screen will ask you to set the TV Location. Choosing

“Home” for the TV Location assigns the optimal picture settings for most home environments.

This is also the most energy efficient setting. Press OK to display the Channel Setup menu.

Complete Channel Setup

Make sure you've connected the TV to cable or an off-air signal before you start the next part

of the setup.

Set the Signal Type

From the Channel menu, select

highlight

Signal Type

, if you connect the Cable to your ANTENNA/CABLE INPUT jack, the

option is chosen for you and you can press the down arrow button to continue. To choose

Antenna

, press the right arrow button and then press the down arrow button to continue.

Auto Channel Search

. Press the up or down arrow button to

Complete the Channel Search

With

Auto Channel Search

things to be aware of when the TV searches for channels. If you chose

type, the search takes a while because it's looking for analog and digital channels, and then

it's removing scrambled channels found. Here is what happens during the search:

1. The search first looks for analog channels and places the number of channels found next

Analog channels found

2. The search then looks for digital channels and places the number of channels found next

Digital channels found

3. When Auto Channel Search is in progress, you can press the CANCEL button to cancel

the search. Any channels already found will be stored.

4. When the search is complete, press CANCEL to exit the menu system.

You might find there are still some channels in your list that are unavailable to view. To get rid

of these channels, press MENU and choose

Note that removing channels from your channel list may be time consuming, so you might

want to do it later. Go to

If you are using a satellite or cable set-top box, you do not need to complete Channel

Note:

Search.

highlighted, press OK to begin the channel search. There are several

Cable

as your signal

Channel

. Highlight and select

List and Labels.

page 38 for details on editing your channel list.

English

Français Español

Auto Channel Search

Go Back

Signal Type Cable

Auto Channel Search ...

<L/R>: Select

Connections and Setup Chapter 1 17

What To Expect

Watching TV

•

Remember:

channel.

Analog video is sent in a 4/3 format, or your TV can display these channels in a16/9 format

by pressing the FORMAT button to view the different formats available. Go to

more explanation of screen formats.

•

Remember:

Most digital video is sent in a 16/9 format which does fill your screen, but it is sometimes sent

in 4/3 which does not fill your screen. It depends on how the station or source device is

formatting the video.

different format. This may eliminate the bars.

the way the format is sent by the broadcaster. Go to

formats.

Changing Channels

• Digital channels can have both primary channels (like the analog channel number) and

sub-channels. To tune to a digital channel with a sub-channel, such as 10.1, enter the

primary channel number (10), then press the right arrow button. Enter the sub-channel

number (1) and press OK.

• Depending upon the type of signals you have connected to your HDTV, you might notice

that the channels change slower than you’re used to. This is perfectly normal. Digital cable

channels sometimes take longer to tune.

Look for an A at the top of the screen to see if you're watching an analog

page 35 for

Look for a Dat the top of the screen to see if you're watching a digital channel.

If there are bars on-screen, press the FORMAT button to try a

Some bars can't be removed because of

page 35 for more explanation of screen

18 Chapter 1 Connections and Setup

Explanation of Jacks (in alphabetical order)

ANTENNA/CABLE

COMPONENT INPUT (CMPT)

Pb Pr

AUDIO/VIDEO INPUT (VID)

DIGITAL AUDIO

OUTPUT (Coaxial)

AUDIO

VIDEO RL

AUDIO

PC INPUT

VIDEO

HDMI/DVI INPUT

DVI AUDIO INPUT

This section describes the jacks on the back panel of your TV. There are several ways to connect devices.

ANTENNA/CABLE INPUT

Lets you connect a coaxial cable to receive the signal from your

antenna, cable, or cable box.

AUDIO/VIDEO INPUT (VID)

Lets you connect a device that has composite video jacks, such

as a VCR or DVD player.

•

L AUDIO

Provides left audio connection when using the VIDEO INPUT jack. The left audio

connectors are usually white. For mono audio sources be sure to use the Left AUDIO INPUT.

•

R AUDIO

Provides right audio connection when using the VIDEO INPUT jack. The right

audio connector is usually red.

COMPONENT INPUT

Lets you connect a device that has component VIDEO jacks, such as a

DVD player.

•

CMPT Y Pb Pr (Component Video)

Provides good picture quality because the video is separated into three signals. Use three video-grade or component VIDEO cables for the connection. When using CMPT Y Pb Pr, make sure you connect left and right AUDIO cables to the CMPT L and R AUDIO jacks.

•

CMPT L AUDIO

Provides left audio connection when using the CMPT VIDEO inputs. The left audio connector is usually white. For mono audio sources be sure to use the Left AUDIO INPUT.

•

CMPT R AUDIO

Provides right AUDIO connection when using the CMPT VIDEO INPUTS.

The right audio connector is usually red.

DIGITAL AUDIO OUTPUT (optical)

Use a digital optical cable to connect your TV to a

compatible audio receiver.

HDMI/DVI INPUT

Lets you connect a device, such as a digital cable box, with an HDMI or a

DVI output for the best picture quality.

•

HDMI/DVI INPUT

(High-Definition Multimedia Interface/Digital Visual Interface) Provides an uncompressed digital connection that carries both video and audio data by way of an integrated mini-plug cable. Since HDMI technology is based on Digital Visual Interface (DVI), the jack on the back of your TV is also compatible with DVI devices.

•

DVI AUDIO L (used for DVI only)

Provides left audio connection when using the HDMI jack for DVI. The left audio connector is usually white. For mono audio sources be sure to use the Left AUDIO INPUT.

•

DVI AUDIO R (used for DVI only)

Provides right audio connection when using the HDMI

jack for DVI. The right audio connector is usually red.

PC VIDEO INPUT

Connect your computer, or other device with a VGA OUTPUT, to this jack using a 15 pin D-sub cable. Connect your computer, or other device with a VGA output, to this jack using a 15 pin D-sub cable.

Note:

Remember to connect the left and right AUDIO cables because the DVI cable carries only the picture signal, not the sound.

PC AUDIO (Stereo mini jack)

Use to obtain sound when a PC is connected to the PC INPUT Use a 3.5mm stereo mini pin cable (sometimes referred to as 1/8” stereo mini pin) to connect a PC to your TV.

Connections and Setup Chapter 1 19

Buttons and Other Jacks On Your TV

Side Input Jacks

Headphones

Side Panel Buttons

If you cannot locate your remote, you can use the side panel buttons of your TV to operate

many of the TV’s features.

Allow you to connect headphones to listen to the sound coming from the TV.

(POWER)

MENU/(OK)

and selects highlighted items.

VOL

remote control and adjusts menu controls.

VOL

remote control and adjusts menu controls.

button on the remote control and adjusts menu controls.

arrow button on the remote control and adjusts menu controls.

Turns the TV on and off.

Brings up the TV Main menu. When in the menu system, it displays sub-menus

Increases the volume. In the TV menu system, it acts like the right arrow button on the

Decreases the volume. In the TV menu system, it acts like the left arrow button on the

Scans up through the channel list. In the TV menu system, it acts like the up arrow

Scans down through the channel list. In the TV menu system, it acts like the down

20 Chapter 1 Connections and Setup

Using the Remote Control Chapter 2 21

Using the Remote Control

Remote Control Buttons

Alphanumeric Buttons

Enter channel number; time setting; and

options with letters, using these buttons. To enter a channel, press the number buttons and press OK (or just let the entry timeout). To enter a digital channel with a sub-channel, enter the main channel, then press the right arrow button to enter the sub-channel and press OK.

Arrows( / / / )

Used to highlight different items in the TV menu and to adjust the menu controls. When viewing a channel, arrow functions are as follows:

•

Left arrow/FORMAT

Press to change the screen format:

Normal, Zoom,

Center,Stretch

. Go to page 39 for more information on screen formats.

•

Right arrow/GUIDE

Press this button first to display the electronic program

guide-EPG (when available), press again to view the program in the schedule.

•

UP arrow/INFO

Press the up arrow once to display the channel banner,

press again to remove the menu.

•

Down arrow/PRESETS

Press this button to enter the PRESET menu.

Display


and

Sound

preset;

CC Setting;Current Audio Track

Takes user directly into the Closed Caption submenu.

CH + or CH -

Scans up or down through the current channel list. Press once to change the channel up or down; press and hold to continue changing channels.

CH List

When you tune to a particular channel, press button to enter the List

and Labels menu directly to add/ remove the channel from channel list.

CANCEL

Removes any menu or display from the screen and returns you to

normal viewing.

DVD

Places the remote in DVD mode. If Autotuning is enabled, turns on the TV and tunes it to the DVD Channel. This button lights when you press a valid button in DVD mode (see Modes of Operation on page 28 for more details).

F1-F4

Favorite channel buttons. You can set one of the favorite channel buttons (F1/F2/F3/F4) to the current channel by holding the button for a couple of seconds. Each button can be set to a favorite channel at one time, but you can change the setting many times.

GO BACK

Returns you to the previous channel.

INPUT

Accesses the available video input channels (

WATCH TV, CMPT,

HDMI, VID and PC

). To resume TV viewing, press the number buttons to enter

the channel or press CH+ or CH- buttons.

Brings up the Main Menu.

MUTE

Reduces the TV’s volume to its minimum level. Press again to restore

the volume.

When in the menu system, selects highlighted items.

Remote control part number RC2254702/01

Note:

If you need to replace your

remote, call

1-800-338-0376

. A shipping and handling fee, and the appropriate sales tax, will be charged upon ordering. Have your Visa, MasterCard, or Discover Card ready.

PIC

Press to display the

•

OFF

programmed, will turn the device on or off.

REW, REPLAY, PLAY, NEXT, FWD, REC, STOP, PAUSE (buttons at TOP of the remote)

If programmed, provides transport control for some remote-controllable devices, for example,

VCRs or DVD players.

When in TV mode, turns the TV on or off. If in another mode (SAT/AUX or DVD) and


submenus.

ZZZ (SLEEP)

AUX

SAT

tunes it to the satellite or cable box Video Input Channel. This button lights when you press a

valid button in SAT/AUX mode (see Modes of Operation on page 28 for more details).

Turns on the TV and puts the remote in TV mode. Also displays current status.

V-CHIP

VOL - or VOL +

Press to display the Parental Control submenu directly.

Press to display the

Places the remote in SAT/AUX mode. If Autotuning is enabled, turns on the TV and

Decreases or increases the TV’s volume.

Time

menu and set

Sleep Timer

Using the INPUT Button

Use the INPUT button to scroll through the available video input channels and view devices

you have connected to the TV.

1. Make sure the device you want to view is turned ON.

2. Press INPUT to tune to an available video input source and view the device.

3. To return to the previous channel, press INPUT until you return to the channel.

Programming Remote to Operate Other

Devices

The universal remote can be programmed to operate many brands of remote-controllable VCRs,

audio devices, DVD players, cable boxes, satellite receivers and other devices. In addition to

being programmed to operate your television, it’s already programmed to operate some

RCA devices.

Notes:

•

The TV button can’t be programmed on this remote to control any device; it controls only this TV.

•

The remote may not be compatible with all models of all brands of devices. It also may not operate all functions of your device.

Find Out If You Need to Program Remote

To determine whether the universal remote needs to be programmed to operate one of the

devices connected to your TV, such as a DVD player, do the following:

1. Turn on the device (in this example, a DVD player).

2. Point the remote at the device.

3. Press the corresponding device button (in this example, DVD player).

4. Press ON•OFF to see if the DVD responds. If the DVD doesn’t respond, you need to

program the remote to operate it.

22 Chapter 2 Using the remote control

Programming Remote

The CANCEL button is used as visual feedback during the programming operation. During programming, the CANCEL button will light up when buttons are pressed and turn off when buttons are released. When programming is finished, the CANCEL button will long blink to indicate success and short blink to indicate fail.

Note:

All device buttons are off during programming mode.

There are 3 ways to program the remote control to operate other devices: Direct Entry, Manual Code Search, and Automatic Code Search. If you have recently purchased the device you want to control or if the device has many codes, you might want to try the manual code search first.

Using Direct Entry

1. Turn on the device you want to control.

2. On your remote control, simultaneously press and hold the ON

•

OFF and MUTE buttons

(approximately 3 seconds) until the CANCEL button lights up. Then release the buttons.

3. Press and release the device button (SAT/AUX or DVD) you want to program.

4. Enter a 4-digit code from the code list. The first digit indicates the database device type (0 for DVD, 1 for Satellite TV, 2 for Cable, 3 for DVR, 4 for VCR, 5 for Audio, 6 for CD), the other 3 digits indicate the brand. Look up the brand and code number(s) for the device in the code list at the end of this section.

5. The CANCEL button will long blink to indicate success. Repeat these steps until you’ve tested all codes for your device’s brand or try to run a manual code search.

Using Manual Code Search

Note:

Before using manual code search, you must use Direct Entry first. This lets the

remote know which type of device should begin searching codes.

following steps.

1. Turn on the device you want to control.

2. On your remote control, simultaneously press and hold the ON•OFF and MUTE buttons (approximately 3 seconds) until the CANCEL button lights up. Then release the buttons.

3. Press and release the device button (SAT/AUX or DVD) you want to program.

4. Repeatedly press and release the left arrow or right arrow button, watching for the device to respond. If it does turn off, press and release the OK button to save the code. The CANCEL button will long blink to indicate success.

5. When all codes have been searched, the CANCEL button will short blink to indicate fail, then the remote returns to normal operation.

Note:

Use right arrow to search ahead, use left arrow to search back. Or you can press the ON/

OFF button to switch to Auto Code Search mode.

Then proceed with the

Using Automatic Code Search

1. Turn on the device you want to control.

2. On your remote control, simultaneously press and hold the ON•OFF and MUTE (approximately 3 seconds) buttons until the CANCEL button lights up. Then release the buttons.

3. Press and release the device button you want to program.

4. Press and release the ON•OFF button once. The remote starts the code search.

5. Once the device turns off, quickly press the OK button to save the code. The CANCEL button will long blink to indicate success.

6. When all codes have been searched, the CANCEL button will short blink to indicate fail, then the remote returns to normal operation.

Note:

If you accidentally passed the code before saving it, press the left arrow button to backtrack through the codes; then use the right arrow button to go forward through the codes again. Once the left arrow or right arrow button has been pressed, the search mode changes to Manual Code Search.

Using the Remote Control Chapter 2 23

Note:

The remote control may not be compatible with all

brands and models

of devices.

How to Use Remote After Programming It

Once the remote has been programmed successfully, it is ready to operate your devices.

To operate a device:

1. Press the appropriate device button (SAT

device, for example, press DVD to control your DVD player.

2. Press ON

3. Use the remote buttons that apply to that device.

•

OFF to turn the device ON or OFF.

Modes of Operation

The button corresponding to the mode the remote is in lights up when you press any button

that works in that mode. For example, if you’re in TV mode and you press the VOL+ button,

the TV button lights up. This tells you that the command to increase the volume is being sent

to the TV (and not the satellite receiver, for example).

AUX or DVD) to set the remote to control the

24 Chapter 2 Using the remote control

Manual Reset of Remote

Manual Reset is used to reset the remote settings to default.

Note:

The reset can also be done by replacing the batteries, but replacing the batteries does not always cause a reset, so you can perform a manual reset if the remote doesn’t reset after battery replacement.

1. On your remote control, simultaneously press the V-Chip, ON•OFF and MUTE buttons.

2. The CANCEL button will long blink to indicate success, and the remote control returns to

normal operation.

Using the Remote Control Chapter 2 25

Remote Code List

Note:

The codes are programmable to any of the device buttons (SAT /AUX or DVD) on the remote. The remote code is a 4-digit code. The first digit indicates the database device type (0 for DVD, 1 for Satellite TV, 2 for Cable, 3 for DVR, 4 for VCR, 5 for Audio and 6 for CD), the following 3 digits indicate the brands as follows:

Accuphase ......................................................032

Audio Codes

Accurus ...........................................................033

ADC .................................................................074

Adcom ..............................................................056

Admiral .............................................................150

ADS .................................................................151

Aiwa 014 072 073 109 214 225 279 287 335 369

Akai .................................................................142

Alco ..................................................................093

Alpine ................................................................152

Altec Lansing ................................................140

Amphion Media Works ............................104 107

Amplifier Technologies ...................................118

AMW .........................................................104 107

Anam .........................................................080 148

Angstrom .......................................................034

Apex ...................................................403 407 095

Aragon ............................................................033

Arcam ..............................................................131

Atlantic technology .......................................120

Audio Research ................................................154

Audio Source ................................................035

AudioPhase ....................................................388

Audiotronic .......................................................061

Audiovox ............................................093 399 417

B & K ............................................................155

Bang & Olufsen ................................................353

Bel Canto Design .............................................036

Biamp ...........................................................037

BOSE ............................010 075 082 117 371 384

Boston Acoustics .............................................121

Brix ...............................................................146

California Auido Lab .........................................028

CambridgeSoundWorks....................................418

Cpetronic .......................................................074

Carver .......................................................061 073

Cary Audio Design ...........................................031

Casio ...........................................................125

CCE .............................................................177

Chase Technologies ........................................029

Cinema Sound ................................................038

Clarinette ......................................................125

Clarion ..........................................................156

Classe ...........................................................039

Classic ..........................................................411

Coby .............................................................018

Counterpoint ..................................................157

Creative .........................................................129

Criterion ........................................................136

Curtis ............................................................409

Cary Audio Design ...........................................031

Curtis ...........................................................409

Curtis Mathes ...............................................022

Daewoo .......................................................132

Dell ................................................................134

Delphi ............................................................158

Denon ..........................009 058 090 205 220 226

227 242 259 263 267 282 286 304 305 309 310 311 312 315 341 344 345 368 413

Digital Audio Control ......................................030

Durabrand ...........................................040 434

EAD ...............................................................159

Eclipse .........................................................209

Elan ................................................................041

ESA ...............................................................160

Fisher ...........................................................114

Fosgate ...........................................................042

Garrard ...........................................................128

Gateway .........................................................145

GE .................................................................020\

Glory Horse ......................................................133

Go Video .........................................................144

GPX .........................................................404 421

Gradiente ........................................................389

Halfer ...........................................................161

Harman/Kardon .....................................013 026

073 078 088 264 319 397

Hitachi ...........................................................114

Honyas ...........................................................162

iLive ................................................................429

Initial ..............................................................137

Inkel ..............................................................122

Insignia ...........................................337 338 416

Integra .........................................................055

Jamo ................................................................275

JBL .....................................................051 088 397

Jensen ...........................................................163

Jerrold ..............................................................391

JVC .........004 023 092 097 201231 249 261 272

273 300 303 307 318 355 359 360 366 373 376 377 408

Kenwood ........005 089 105 106 185 186 188

189 198 200 219 223 232 237 240 251 255 296 308 320 331 370 380

KLH ..........................................................093 094

Knoll System ...................................................043

Koss ........................................................091 394

Krell ................................................................326

Lasonic ...........................................................149

Left Coast ........................................................026

Lenoxx .............................................................138

Lexion .............................................................130

LG ..........................................................406 432

Linn ................................................................073

Liquid Video ....................................................141

Lloyds ..............................................................125

Logitech ...........................................................044

Luxman ............................................................045

LXI ................................................................124

Magnadyne .....................................................164

Magnavox ....................016 061 073 074 100 401

Marantz ............................026 061 073 329 340

Mark Levinson ..............................................046

McIntosh .........................................................047

MCS ................................................................126

Memorex ..........................................................165

Midland ...........................................................048

Mitsubishi ..............................................290 313

Modulaire ........................................................125

Motorola ...........................................................139

NAD ..............................................................066

Nakamichi .......................................065 067 070

NEC ..............................................................027

Neo ..............................................................158

Nexxtech .........................................................119

Niro ...............................................................166

Norcent ...........................................................135

Nova ..............................................................167

Omnifi ...........................................................147

Onkyo ....006 055 057 069 077 101 190 194 203

210 213 233 252 260 265 266 269 270 271 274 278 291 292 306 323 324 348 350 398

Optimus ..............................022 074 076 079 080

Oritron ...........................................................091

Panasonic ............002 087 102 108 112 113 153

229 289 301 316 354 357 364 375 385 386 390 395 396 422 423 424 425 426 427 433

Parasound ......................................................062

Penny ...........................................................125

Philco ...........................................................168

Philips ....................................012 026 061 073

085 349 362 379 412

philips Magnavox .........................................435

Pioneer ..............003 022 052 071 074 079 183

184 192 193 195 212 221 222 224 238 239 241 353 314 330 336 342 343 346 352 383

Polaroid ...........................................................436

Polk Audio .....................................026 073 328

Proscan ...........................................................083

Pyle ..............................................................169

Radio Shack .............................................133 434

RCA .....................................007 022 074 079 080

083 093 099 363 367 372 380 393 434

RCA & Dimensia ............................................437

Realistic ..........................................................125

Regent ...........................................................138

Rio ................................................................116

Rotel ..............................................................334

Saba ...............................................................143

Samsung ...................011 068 098 332 428 431

Sansui ...........................................................073

Sanyo ..............................................096 114 414

Schneider ......................................................170

Scientific Atlanta...............................................127

Scott .............................................................123

Sharp ..........................................015 361 378 419

Sharp Image .....................................................133

Sherwood ........................................297 339 420

Shinsonic ........................................................171

shure ............................................................027

Skyfi .............................................................158

Sonic Blue ......................................................116

Sony .....................000 025 050 084 103 110 111

115 178 179 180 181 182 187 197 207 215 216 217 218 230 235 276 277 293 294 295 325 356 358 365 374 382 387 392 400 430

Soundesign ..............................................020 076

Soundmatters ..................................................063

SoundStream ..................................................049

Starcom ...........................................................391

Stereophonics ..............................................079

STS ..............................................................172

Sunfire ...........................................................089

Sylvania ...........................................................327

Symphonic ......................................................150

TAG McLaren ..................................................173

Tao ...............................................................158

Teac .......................................................080 093

Technics .........................008 204 208 211 228

280 281 283 299

Techwood ......................................................174

Thomson ......................................................175

Thorens ...........................................................061

Toshiba ...........................................................410

Vector Research ............................................176

Venturer ...................................................093 415

Victor ............................................................023

Wards .........................................020 071 073 346

XM Radio ......................................................158

Yamaha ...................001 021 024 053 054 055

059 060 064 081 086 191 196 199 206 234 236 243 244 245 246 247 262 268 284 285 288 302 317 321 347 351 402 405

Yorx ...............................................................125

Zenith ...............................................019 333 406

Cable Codes

ABC .............................008 009 022 026 032 034

040 041 042 081 085

Adelphia ................................................005 025

Americast .....................................................092

Antronix .................................................045 046

Archer ....................................................046 047

AT & T ..........................................................002

Bell South ......................................................092

Cable Vision ...............................................004 102

Cabletenna ....................................................045

Cableview .....................................................044

Citizen ............................................................051

Clearmaster .....................................................091

ClearMax ......................................................091

Colour Voice ............................................049 050

Comcast .........................................000 001 039

Comtronics ............................................035 051

Contec .............................................026 031 053

Coolmax ..........................................................091

COX ..............................................................001

Director ...................................................001 089

Eastern ..........................................................054

Everquest ..............................................035 086

Focus ...........................................................088

GC Electronics ..........................................046 051

GE .........................................................040 041

Gemini ...............................................055 056 086

General Instrument ......000 001 041 083 089 101

Goldstar ....................................................035 036

Hamlin ...057 058 059 065 071 074 082 095 096

Hitachi ............................................................041

illico ..............................................................102

Jasco ............................................................086

Jerrold ..........001 041 055 060 061 075 081 083

086 087 089 101

Magnavox ......................................................062

Memorex ..................................................063 085

Monarch ..........................................................051

Motorola .001 002 018 039 087 089 094 101 103

Movie Time ..............................................051 064

Multi Canal .....................................................051

Multitech .........................................................091

NEC ..............................................................043

26 Chapter 2 Using the remote control

NET Brazil ....................................................006

Novavision ....................................................027

NSC ..............................................................064

Oak .........................................................053 066

Pace ...................007 008 009 010 011 012 013

014 015 016 017 022 024 025

Panasonic .......................................077 080 085

Paragon ..........................................................085

Philips ................................048 049 050 052 056

062 067 068 069 098 099

Philips Magnavox ..................................056 098

Pioneer ..............007 019 024 025 036 037 070

084 090 102

Popular Mechanics ........................................088

Proscan ..................................................040 041

Pulsa .....................................................051 085

Quasar ..........................................................085

Radio Shack ..........................................086 091

RCA ..................................044 076 078 080 083

Realistic ..........................................................046

Recoton ..........................................................088

Regal .................................059 071 082 096 097

Regency ..........................................................054

Rembrandt ....................................................041

Rogers ..........................................................102

Runco ..........................................................085

Samsung ...........................035 036 037 038 051

Scientific Atlanta ........002 005 007 008 009 019

020 022 023 024 025 026 027 028 029 030 031 032 033 034 102

Signal .......................................035 051 055 086

Signature ..........................................................041

SL Marx ..........................................................035

Sony .......................................................004 093

Sprucer ..........................................................080

Standard Component ..............................072 073

Starcom ..........................................055 081 086

Stargate ...................................035 051 055 086

Starquest ...............................................055 086

Supercable ..............................................087 104

Supermax .....................................................091

TeleView ...................................................035 051

TIME WARNER .......................................003 102

Timeless ..........................................................035

Tocom ....................................................042 060

Toshiba ..........................................................085

Tristar ............................................................091

Tusa .....................................................055 086

TV86 ............................................................064

U.S.Electronics ................................................026

Unika ......................................................045 046

United Cable ...................................................081

Universal ..........................................045 046 047

V2 .................................................................091

Verizon ..........................................................105

Videotron ......................................................102

View Star ..........................................053 062 064

Vision ............................................................091

Vortex View .....................................................091

Zenith ......................................079 085 092 100

Zentek ..........................................................088

CD Codes

Aiwa ..............................................................009

BOSE ..............................................................011

Denon ......................................................007 019

Harman/Kardon ..............................................004

JVC ...........................................001 013 025 026

Kenwood ..................................................010 014

Marantz .........................................................015

Onkyo ........................................................006 016

Panasonic .................................000 017 023 029

Philips .......................................................003 032

Pioneer..............................................................005

RCA ..............................................................028

Sanyo ..............................................................022

Sharp ..............................................................002

Sherwood .........................................................020

Sony .....................................012 024 027 030 031

Teac ..............................................................021

Technics.........................................................008

Yamaha .........................................................018

DVD

Accele Vision ................................................177

Accurian ...........................................................353

Advent ..............................................................029

Aiwa .......................................................017 232

Akai ..........................................................022 236

Alco ..................................................................027

Allegro ..............................................................059

Alpine ................................................................220

Amphion MediaWorks ............................014 033

AMW .........................................................014 033

Anaba ............................................................067

Anam ............................................................068

Apex ..............005 045 046 126 136 164 166 176

188 242 243 244 324 390 457 461

Apple .............................................................426

Arrgo ............................................................050

Aspire ..............................................................032

Astar ..............................................................351

Audiologic ....................................................069

Audiovox ..............004 011 027 224 454 471 475

Axion ..............................................................070

B & K ............................................................071

Bang & Olufsen ................................................048

Bel Canto Design .............................................072

Blaupunkt ...............................................046 153

Blue Parade .................................................043

BOSE ..............................................245 430 441

Boss Audio System ..............................073 444

Broksonic ...................................022 233 372 406

California Auido Labs .......................................024

CambridgeSoundWorks ...................................474

CAVS ...........................................................074

CineVision ........................................049 113 414

Clarion .........................................................246

Classic ............................................216 247 463

Coby .....................012 030 031 157 192 206 451

Criterion ........................................................075

Curtis ............................................................451

Curtis Mathes ...............................................060

CyberHome ............................................006 050

Cytron ...........................................................491

Daewoo ....................................141 234 271 419

Denon ...........004 024 116 165 175 195 296 467

DiamondVison ................................................289

Disney ...................................................010 140

Dual .............................................................076

Duarabrand ........................027 051 054 113 259

DVD2000 ........................................................040

Eclipse ..........................................................301

Elta ................................................................084

Eltax ................................................................064

Emerson ...............010 023 052 248 391 395 465

Enterprise .........................................................056

ESA .......................................................052 235

Farenheit ...........................................................077

Fisher .......................................................249 280

Flex Vision .......................................................078

Fun TV ..........................................................079

Funai ....................................010 052 340 379 391

Gateway .........................................................323

GE ..............................041 046 125 167 205 250

Go Video .....................003 187 226 227 323 402

404 413 418 420 421

Goldstar .......................................................425

GPX ............................................251 278 451 458

Gradiente .................................................024 274

Greenhill .......................................................046

Grundig .......................................................042

Harman/Kardon .....................................199 210

Hitachi ..................003 144 200 217 299 376 417

Hiteker ..........................................................045

Honda ...........................................................080

Honyas ...........................................................081

iLive ................................................................484

iLo ................................................................053

Ingelen ...........................................................105

Initial ..............................................................046

Insignia ...............................013 052 113 375 470

Integra .....................................025 043 057 062

Irradio ............................................................346

Jamo ................................................................082

Jaton ................................................................083

JBL ................................................................452

Jenken ...........................................................106

Jensen ...........................................................031

JMB ..............................................................107

JVC .........007 04 4 142 143 207 212 219 269

281 317 3 18 319 321 364 3 65 366 367 397 398399 400 403 409

Jwin...............................................................084

Karcher ...........................................................108

Kawasaki ......................................................027

Kendo ...........................................................109

Kenwood ........004 024 116 198 204 214 230

231 252

KLH ....................................................027 046 147

Konka ......................................................018 019

Koss ..........................................015 026 035 448

Lasonic ...........................................................253

Landel .............................................................222

Lenoxx ..............................................034 051 054

Lexia .............................................................110

Lexicon ............................................................085

LG ..............................013 284 331 333 352 369

370 373 460 486 488

Lifetec ............................................................111

Limit .............................................................110

Liquid Video ....................................................035

Liteon ........................................323 332 348 353

Loewe .............................................................086

Logiclab ........................................................104

Logix .............................................................112

Luxman ............................................................113

Luxor ................................................................109

Magnavox ...............010 023 039 042 052 150

156 185 326 356 380 388 437 456

Malata .............................................................087

Marantz ..........................................042 156 275

Memorex ..................................010 022 140 254

Microsoft .......................................................041

Mintek .......................................................046 255

Mitsubishi ............................016 038 040 161 194

Momitsu .......................................................088

Mustek ..........................................................458

NAD .........................................................248 256

Nakamichi ....................................................257

Nesa ..............................................................046

Next Base .......................................................058

Nexxtech ...................................................055 276

Niro ...............................................................089

Nissoho Iwai ..................................................079

Norcent .............................030 222 237 258 279

Onkyo ........................025 039 159 190 225 453

Oppo .............................................................047

Optiview .........................................................067

Oritron ..............................................026 035 260

Orion .............................................................022

Panasonic ...........004 024 039 116 117 127 149

152 172 173 178 208 265 266 267 290 291 292 299 300 312 336 341 371 383 385 386 387 407 431 432 434 436 438 443 449 450 476 477 478 479 480 489 490

Philco ...........................................................065

Philips .......... ...002 010 039 042 150 156 162

196 209 294 305 334 337 342 391 437 448

philips Magnavox ...........................162 209 337

Pioneer ...009 036 043 134 146 160 170 181 193 201 203 238 282 295 313 314 315 339 377 429

Polaroid ...........................................014 390 423

Polk Audio ...................................................042

Portland ...........................................................090

Presidian .................................................010 391

Prima .............................................................091

Princeton ......................................................092

Proceed ...........................................................045

Proscan ...........................................041 125 184

Provision .......................................................093

Pye ...............................................................356

Qwestar ..........................................026 239 260

RCA .......000 008 027 041 043 046 125 130 179

184 191 197 228 288 338 389 401 411 422 447

regent ...........................................................034

Rio ................................................................066

Rotel ..............................................................044

Rowa ..............................................................028

Saba ..............................................................094

Sampo ..........................................................261

Samsung .....003 024 120 124 139 145 148 183

189 285 293 322 325 330 336 355 357 368 384 396 405 412 415 439 445 472 481 485 487

Sansui .............................................022 233 378

Sanyo ...................................022 280 347 424 468

Sensory Science ...........................................323

SEG ..............................................................014

Sharp .................010 128 137 320 343 344 374

379 410 473

Sharper Image ..................................................095

Sherwood ...............................................262 474

Shinco ....................................................166 240

Shinsonic ........................................................037

Sigma Designs ..............................................092

Using the Remote Control Chapter 2 27

Sonic Blue ...................................059 061 063 066

Sony ..........001 020 037 115 118 121 122 123

131 133 135 154 155 158 163 168 223 229 268 283 306 307 308 335 354 358 360 362 381 392 394 427 428 433 435 440 442 446 455 464 466 482 483

Sungale ........................................................270

Superscan ........................................................023

SVA ..............................................................096

Sylvania ................010 023 052 340 391 395 416

Symphonic ..............................................010 391

Teac .......................................................027 224

Technics ................................................004 024

Technosonic .................................................097

Techwood ...............................................241 263

Terapin ..........................................................098

Theta Digital .....................................................043

Tivo ..............................................................099

Toshiba ...............002 021 022 039 119 129 132

138 171 180 182 286 297 302 303 304 309 310 311 316 327 328 329 359 363 382 393 408 462

Tredex ...........................................................100

Trutech ...........................................................273

TView .............................................................067

Urban Concepts ............................................039

US Logic ........................................................224

Venturer ..................................................027 469

Vizio ...............................................................101

Vocopro............................................................102

Westinghouse ..................................................492

Xbox ...............................................................041

Xwave ...............................................................103

Yamaha ....................024 042 116 150 169 174

196 202 211 215 218 277 345 459

Zenith .............013 039 113 151 186 213 227 264

298 349 350 369 425 460

WHITE WESTINGHOUSE ................................492

DVD/VCR Combo Codes

Where the code is listed as [### ###] the first is for the DVD and the second is for the VCR. Otherwise just the one code operates both the DVD and the VCR. Remember to add the code for the database device type 0 for DVD, 4 for VCR, [0### 4###].

Broksonic ..............[372 062] [022 072] [406 088]

Hitachi ..................................[376 013] [417 103]

Insignia .................[375 016] [013 047] [113 117]

JVC ....................[364 052] [365 053] [366 054]

[367 055] [317 056] [318 058] [319 059] [403 094] [397 079] [398 080] [399 081] [400 082] [403 085] [409 095] [317 056] [318 058] [319 059]

LG ......................[369 016] [373 060] [013 047]

[331 060] [370 060]

Pioneer ................................................[377 064]

Sansui .....................................[378 065] [022 072]

Sharp ....................[374 124] [379 125] [410 111]

Toshiba ....................[363 051] [382 067] [119 091]

[119 096] [393 076] [408 092] [393 115]

Zenith ....................[369 016] [151 116] [227 099]

Apex ....................................................[390 074]

CineVision .............................[113 101] [414 117]

Daewoo ...............................................[419 107]

Durabrand ...............................................[113 117]

Emerson ..............................[395 010] [395 103]

Funai ....................................................[379 125]

Go Video .................[227 100] [402 084] [404 086]

[413 087] [418 106] [420 108] [421 109]

Goldstar ................................................[425 114]

Magnavox .............[156 009] [380 126] [156 104]

[388 071]

Memorex ................................................[022 072]

Panasonic .............[383 061] [385 068] [386 069]

[407 089] [407 105] [371 061]

Philips ...................................[156 009] [391 075]

Polaroid ...................................[390 074] [423 112]

Presidian ..............................................[391 075]

RCA .........[389 073] [401 083] [411 097] [422 110]

Samsung ..............[368 005] [384 070] [396 078]

[405 087] [412 098] [415 087]

Sanyo ....................................................[424 113]

Sony .....................[360 048] [361 049] [362 050]

[381 066] [392 093] [394 093] [394 077] [392 090]

Sylvania ...................[391 075] [395 102] [416 103]

Symphonic .............................................[391 075]

Diamond Vision ......................................[289 126]

AKAI .....................................................[236 127]

Superscan .............................................[023 128]

DVR Codes

ABS ..............................................................020

Alienware..........................................................020

AT&T ...........................................................030

Bang & Olufsen ................................................023

Cyberpower ..................................................020

Dell ...............................................................020

DIRECTV ..............002 007 008 010 011 012 015

019 021 024 026 027

Dish Network ..........................................017 018

Dishpro .............................................................017

Echostar ...................................................017 018

Expressvu .........................................................017

Gateway.........................................................020

GOI.................................................................017

Hewlett Packard .............................................020

HNS ..............................................................009

Howard Computers .........................................020

HP ................................................................020

HTS ...............................................................017

Hughes...............................001 010 011 012 015

Hughes Network System .................001 010011

012 015 024 026 027

Humax............................................................015

Hush...............................................................020

iBUYPOWER....................................................020

JVC ....................................................001 017 018

Linksys ...........................................................020

Media Center PC..............................................020

Microsoft.........................................................020

Mind ..............................................................020

Niveus Media ...................................................020

Northgate..........................................................020

Panasonic...........................................005 022 030

Philips............................001 009 012 015 024 025

Pioneer............................................................031

Proscan...........................................................019

RCA ..............................001 002 009 016 019 021

ReplayTV ..........................................004 022 030

Samsung..................................................009 024

Sonic Blue.........................................004 022 030

Sony............................................000 013 014 020

Stack 9 .............................................................020

Systemax .........................................................020

Tagar Systems ..................................................020

Tivo ..............................000 001 002 003 010 013

014 015 025 026 027 028

Toshiba ......................................................006 020

Touch ..............................................................020

UltimateTV ........................................................021

Viewsonic ........................................................020

Voodoo ............................................................020

ZT Group ..........................................................020

Home Theatre in a Box

Where the code is listed as [### ###] the first is for the DVD and the second is for the AUDIO. Otherwise just the one code operates both the DVD and the AUDIO. Remember to add the code for the database device Type, 0 for DVD, 5 for Audio [0### 5###].

Apex ....................................[457 403] [461 407]

Audiovox .................[471 417] [475 399] [454 399]

BOSE ......................................[430 384] [441 010]

CambridgeSoundWorks ..........................[474 418]

Classic .................................................[463 411]

Coby ....................................................[451 018]

Curtis ....................................................[451 409]

Denon ....................................................[467 413]

Emerson ...............................................[465 017]

GPX ......................................[451 421] [458 404]

iLive .....................................................[484 429]

Insignia ....................................................[470 416]

Jamo ....................................................[082 275]

JBL ......................................................[452 397]

Koss ....................................................[448 394]

LG .......................[284 432] [460 406] [486 406]

[488 406]

Magnavox ................................[437 016] [456 401]

Onkyo ....................................................[453 398]

Panasonic ................[431 385] [432 390] [434 386]

[436 385] [438 385] [449 395] [450 396] [476 422] [477 423] [478 425] [479 426] [480 427] [489 433] [490 434] [438 424]

Philips .....................................[437 016] [448 412]

Pioneer ....................................................[429 383]

RCA .....................................................[447 393]

Samsung ................[439 011] [445 011] [481 332]

[485 431] [487 431] [481 428]

Sanyo ..................................................[468 414]

Sharp ...................................................[473 419]

Sherwood ............................................[474 420]

Sony .......................[427 382] [433 430] [435 387]

[440 430] [442 387] [446 430] [455 400] [464 387] [466 430] [482 430] [483 430] [433 392]

Toshiba ....................................................[462 410]

Venturer ................................................[469 415]

Yamaha ..................................................[459 405]

Zenith .....................[460 406] [425 019] [425 333]

Durabrand ..............................................[259 434]

JVC ........................................................[143 408]

Satellite TV Codes

Alphastar ..........................................................051

Amstrad..........................................................100

Chaparral ........................................................045

DIRECTV ..................001 006 007 008 009 010

013 014 015 031 032 034 036 039 043 044 054 055 057 058 059 062 063 064 066 067 068 069 074 078 079 080 081 084 086 087

Dish Network ................002 004 017 018 019 020

021 022 023 024 025 026 027 028 029 030 033 035 037 041 061 083

Dishpro ...........................................035 037 061

Drake ............................................................046

Echostar ........002 004 033 035 037 061 071 083

Expressvu ........................................037 061 07

BELL EXPRESSVU ..........................................071

FORTEC STAR ..............................................101

GE ..........................................................063 087

General Instrument ...........................047 048 056

GOI ...............................................................061

Grundig ..........................................................100

Hisense ..........................................................060

Hitachi ..........................................................009

HTS ..............................................................061

Hughes Network Systems..........................003 006

008 015 031 043 057 064 073

Humax ..........................................................090

iLo ................................................................060

Jerrold ..........................................................056

JVC .............................002 004 033 052 061 083

LG ..........................................................011 059

Magnavox ........................................................014

Memorex ..........................................................014

Mitsubishi ................................006 008 064 093

Motorola ............................................038 056 065

Next Level ........................................................056

Pace ............................................................100

Panasonic .....................010 062 086 092 096 100

Pansat ..........................................................088

Paysat ..........................................................014

Philips ..........................001 003 009 014 015 031

054 055 057 064 081

Philips Magnavox ............................009 054 055

Pioneer ..........................................................015

Primestar ......................................................050

Proscan ......................................013 036 063 095

Proton ..........................................................060

Radio Shack .....................................................056

RCA ........................000 003 013 034 040 044

058 063 075 076 077 078 080 082 091 094 095 097

Realistic ..........................................................049

Samsung ............003 007 015 057 070 085 098

Sharp ............................................................016

SKY NETWORK ..............................................100

Sony .....................005 032 042 066 074 079 084

Star Choice ....................................038 056 072

STS ..............................................................053

Sylvania ..........................................................099

Tivo .................................................003 015 057

Toshiba ......................................006 008 009 064

UltimateTV .......................................................058

Uniden ..........................................................014

US Digital .....................................................060

USDTV ..........................................................060

Viewsat ..........................................................089

Voom ............................................................056

Zenith .....................................................012 067

VCR Codes

ABS ...............................................................038

Adventura ...........................................010 028 125

ADMIRAL ..........................................................097

Aiwa..............................................010 028 035 125

Aiko ...............................................................107

28 Chapter 2 Using the remote control

Akai .............................................017 018 033 127

Alienware...........................................................038

American High .................................................025

Apex ...............................................................074

Asha ...............................................................021

Audio Dynamics ...............................................019

Audiovox ..........................................022 035 121

Bang & Olufsen ................................................037

Beaumark .........................................................021

Bell & Howell ....................................................020

Broksonic...................................027 062 072 088

Calix .........................................................022 035

Candle ......................................021 022 023 024

Canon .......................................................015 025

CARVER.........................................................104

CCE ..............................................................107

CineVision .................................................101 117

Citizen .................................021 022 023 024 035

Colortyme .......................................................019

COLT .............................................................046

Craig .........................................021 022 026 035

Curtis Mathes .............................012 015 019 021

024 025

Cybernex .......................................................021

CyberPower...................................................038

Cyperpower...................................................038

Daewoo ...............................011 023 027 028 107

Davidson.................................................010 125

DBX ...............................................................019

Dell..................................................................038

Denon ...............................................................030

DiamondVision .................................................126

Dimensia ........................................................012

Durabrand ...............................................017 117

Dynatech .........................................010 028 125

Electrohome .............................................022 035

Electrophonic.............................................022 035

Emerson ................................010 017 022 023

025 027 028 035 075 103 125

Emerex ...........................................................001

ESA ...............................................................047

Fisher ..............................................020 026 045

Fuji .........................................................018 025

Funai ...................................010 028 036 075 125

Garrard ...........................................010 028 125

Gateway ........................................................038

GE .............................................012 015 021 025

Go Video ...............084 086 087 100 106 108 109

Goldstar ............................019 022 024 035 114

Gradiente .........................................010 028 125

Harley Davidson .............................................028

Harman/Kardon .............................................019

HARWOOD ...................................................046

Headquater ...................................................020

Hewlett Packard ..............................................038

Hi-Q ...............................................................026

Hitachi ........................010 013 030 033 103 125

Howard Computers .......................................038

HP .................................................................038

Hush .................................................................038

Hughes Network Systems ...............................030

iBUYPOWER ...................................................038

Insignia ..............................................016 047 117

Instant Replay ................................................025

JC Penney .............015 019 020 021 022 025 0230

JCL .................................................................025

Jesen .......................................................030 033

JVC ............................004 019 020 024 033 041

052 053 054 055 056 057 058 059 079 080 081 082 085 094 095

KEC .................................................................035

Kenwood ...................................019 020 024 033

Kodak ...............................................022 025 035

KLH .................................................................046

LG .............................................016 022 047 060

Linksys ............................................................038

Lloyd’s ............................................010 028 125

LOGIK .............................................................046

LXI ..........................................................022 035

magnavox 006 007 010 015 025 032 071 104 125

Magnin ..............................................................022

magnasonic .....................................................010

Marantz .....................................019 020 024 025

Marta .....................................................022 035

Matsushita ......................................................025

Media Center PC ............................................038

MEI .................................................................025

Memorex ...................007 010 014 020 021 022

025 026 028 032 035 046 072 125

MGN Technology .............................................021

MGA .................................................................008

Microsoft ..........................................................038

Midland ............................................................029

Mind .................................................................038

Minolta ............................................................030

Mitsubishi ..................................................008 030

Motorola ..........................................................025

MONTGOMERY WARD ..................................097

MTC ................................................010 021 125

Multitech ..............................010 021 028 029 125

NEC .........................................019 020 024 033

Nikko ......................................................022 035

Niveus Media .................................................038

Noblex .............................................................021

Northgate .........................................................038

Olympus ..........................................................025

Orion .................................................................014

Panasonic ............000 015 025 039 061 068 069

089 105 118 119

Penney ............................................................035

Pentax ............................................................030

Pentex Research ..............................................024

Philco ......................................................015 025

Philips .........................................009 025 075 104

Philips Magnavox ...........................................104

Pilot ..........................................................022 035

Pioneer .....................................................030 064

Polaroid .....................................................074 112

Polk Audio .......................................................104

Presidian .........................................................075

Proscan ............................................012 043 044

PROTEC ........................................................046

PROFITRONIC ..................................................021

Pulsar .....................................................007 032

Quarter ..........................................................020

Quartz ............................................................020

Quasar ......................................................015 025

Radio Shack ....................................010 022 125

Radio Shack/Realistic ................015 020 021 022

025 026 028

Radix ......................................................022 035

Randex ...................................................022 035

RCA ....................003 012 017 021 025 030 042

073 083 097 110

Realistic .............010 015 020 021 022 023 025

026 028 035 125

Ricavision ......................................................038

Ricoh .............................................................034

Runco ......................................................007 032

Samsung .........005 021 023 029 070 078 087 098

Sanky ......................................................007 032

Sunsui ........................010 014 033 065 072 125

Sanyo ................................020 021 026 045 113

Scott.........................................................023 027

Sears .............010 020 022 025 026 030 035 125

Sharp ..................................010 063 111 124 125

Shintom ..........................................................018

Shogun ..........................................................021

Singer .....................................................025 034

SIGNATURE ..................................................110

Sony ................001 010 018 031 038 040 048 049

050 066 077 090 093 123 125

Stack .............................................................038

Stack 9 .............................................................038

STS ................................................................025

Superscan ........................................................128

Sylvania ...........010 015 025 028 075 102 103 125

Symphonic .........................010 028 036 075 125

Systemax ........................................................038

Tagar Systems .................................................038

Tandy .............................................................020

Tashiko .............................................................022

Tatung .............................................................033

Teac .........................................010 028 033 125

Technics .........................................................025

Teknika ..........................010 022 025 028 035 125

Thomas ..................................................010 125

TMK .............................................................021

Toshiba ...........002 023 030 038 051 067 076 091

092 096 115

Totevision .........................................021 022 035

Touch .............................................................038

Unitech .............................................................021

Vector Research ........................................019 023

Vector .............................................................002

Video Concepts ........................................019 023

Videomagic ......................................................035

Videosonic ......................................................021

Viewsonic .......................................................038

Villain .........................................................010 125

Voodoo .............................................................038

Wards .................................010 021 022 023 025

026 028 030 125

White Westinghouse .......................................036

Westinghouse ................................................046

XR-100 .....................................010 025 028 125

Yamaha ....................................019 020 024 033

Zenith ..............007 010 016 018 032 034 099 116

117 120 122 125

ZT Group ........................................................038

Using the Remote Control Chapter 2 29

10 CBS

Stretch

00:25 06:05 PM

English 720p CC

Parental Control TV-G

Note:

This feature

only works with

other RCA devices.

Setup

Go Back

Closed Caption ...

< OK >: Enter Sub-menu

Menu Language English Light Sensor OFF

Autotuning ...

Using TV Features

Channel Banner

There are several indicators that might appear when you press the INFO button on the remote. This display is called the Channel Banner. The following list describes the items on the Channel Banner screen (left to right and top to bottom).

Parent Control

TV-G Stereo

SAP

HDTV 720p CC

D 10 CBS

Stretch

ZZZ 00:25

06:05 PM

Autotuning

The Parent Control state (locked or unlocked) of the current program.

Rating information of the current program

If the current channel is analog, Stereo appears when broadcasting in

stereo and Mono appears when the current channel is broadcasting in

mono. If the current channel is digital, this space will be blank.

If the current channel is analog, this will show it’s broadcasting SAP

(Second Audio Program) information. If the current channel is digital,

this will show language.

Broadcast signal resolution

Closed Captioning is available on the current channel.

The

means it's a digital channel. If it's an analog channel,

A is

displayed. The channel, sub-channel (if available for digital channels) and program (only for digital channels) you're currently viewing are displayed.

Current screen format. If there are bars on the screen, you might be able

to get rid of them by pressing the FORMAT button on the remote. Go

page 35 for more information on screen formats.

Current time left on sleep timer, if the sleep timer is set.

Current time

30 Chapter 3 Using TV Features

The Autotuning feature automatically tunes the TV to the correct video input channel for

different devices you have connected to your TV. When you set up Autotuning in the menu

system you don’t have to remember to change your TV to the VID1 input, for example, when

you want to watch a tape on the VCR. To set up the Autotuning feature:

1. Press MENU (the

2. Highlight

3. Highlight

Setup Autotuning

Main Menu

appears).

and press OK on your remote.

and press OK.

4. Choose which device button you would like to set:

Set DVD Channel

Lets you set up the channel the TV tunes to when you press the DVD

button.

Set SAT

AUX button.

SAT

AUX Channel

Lets you set up the channel the TV tunes to when you press the

5. Press the right arrow button to select the choice that matches the way you have the device

connected to this TV.

You can select from the following inputs or channels:

Disabled

Choose this if you don’t have a device connected to the TV or if you don’t want

the TV to automatically tune to the correct channel/input when you’re using this device.

Channel 3 or 4

Device is connected to the ANTENNA/CABLE jack on the back of the TV,

and you want the TV to tune to channel 3 when you press the corresponding button on the

remote. Reminder: make sure the device’s Channel 3/4 switch is set to channel 3.

VID (Video Input)

Device is connected to the VIDEO INPUT jack on the back of the TV and

you want the TV to tune to the VIDEO INPUT channel when you press the corresponding

device button.

CMPT (Component Video Input)

Compatible component VIDEO source, such as an

HDTV tuner, satellite receiver, or DVD player, is connected to the three Component VIDEO

INPUT jacks (Y Pb Pr) on the back of the TV and you want the TV to tune to the component

VIDEO INPUT channel (CMPT) when you press the corresponding device button.

Device is connected to the PC INPUT jack on the back of the TV and you want the TV

to tune to the PC input when you press the corresponding device button

HDMI

Device is connected to the HDMI/DVI INPUT on the back of the TV, and you want

the TV to tune to the HDMI INPUT channel when you press the corresponding device button.

Parental Controls and V-Chip

Autotuning

Go Back

Set DVD Channel Disabled

Set SAT-AUX Channel Disabled

press <L/R> to select input for DVD key

The choices in the

US V-Chip

and

Canada V-Chip

menus involve software inside your TV

referred to as V-Chip) which allows you to block TV programs and movies. TV programs can

be blocked by age-based ratings, such as

available, TV programs can also be blocked by content, such as adult language (

explained on

page 33. Movies can only be blocked by age-based ratings. This is explained

TV-MA

, which is explained on page 32. If

). This is

on page 37. Once you block programs, you can unblock programs by entering a password.

By default, the software inside your TV is turned off or unlocked. For instructions to lock

V-Chip, see

page 32.

How V-Chip Works for USA and Canada

V-Chip reads the program’s age-based rating (

(

), Adult Language (L), etc.)]. If you have blocked the rating and/or content themes that the

program contains, you will receive the message This channel is blocked. Change channel or

press OK to enter your password and temporarily deactivate the parental controls.

Broadcasters are not required to provide content themes, so programs received with no con-

tent themes will only be blocked if you block their age-based rating. You can also block out

programs that have been given an Exempt rating, and programs that are considered unrated.

page 44 for the US and Canada ratings explanations.

Go to

TV-MA, TV-14

, etc.) and content themes [(Violence

Note:

Parental control settings are not available for

CMPT or PC INPUTS.

These settings must be set in the connected device's parental controls.

HDMI,

Using TV Features Chapter 3 31

Parental Control

Go Back

Lock Parental Control

Select Channel 51 MTV Block Channel

Button Block

V-Chip ... Change Password ...

To lock parental controls, enter 4 digit password using the digit keys.

Note:

If you do

not lock parental

controls, none of

the settings for V-Chip, Button

Block or Block

Channel will take

effect.

Lock/Unlock Parental Controls

•

When the Parental Control menu is accessed from the Main menu and the parental controls

are permanently unlocked, the following message is displayed:

“Parental controls are UNLOCKED. Rating limits and channel block will NOT require a pass-

word to view the picture. Use “Lock parental controls” to lock. Press OK key to continue.”

•

Pressing OK displays the Parental Control menu and highlight

•

To lock/unlock parental controls, press OK, then enter a 4 digit password using the digit keys.

Note:

When you enter the correct password, the Password menu is cleared and you will enter the

Lock Parental Control

Parental Control menu. If an invalid password is entered, you must enter again. If you forget your password, you can enter the factory default code: 4116. If you want to change the password, go to

page

35 for more information.

V-Chip Rating Screen

The following is an example of where items are located within the TV Ratings option with the

US V-Chip menu.

Rating Status Field

Lets you select whether the status of the age- based rating to the left limit is view or block.

Rating Field

Lets you select from a list of age-based

Content Themes

Lists the content them es yo u can block or view.

ratings you can block or view.

Content Status Fields

Lets you select which content themes to view for the selected rating, and whether the status of the content theme is currently unlocked ( ) or locked ( ).

US V-Chip TV Ratings

Blocking Age-Based Ratings

You can automatically block all program ratings above a specified age-based rating level.

1. Choose

Parental Control

locked, you must enter your password.

2. Highlight and select

3. Highlight and select

4. Press the up or down arrow button to scroll to the rating corresponding with the lowest rating you do not want the child to watch.

5. Press the OK button to toggle between higher ratings automatically changes to

from the Main menu. If parental controls have previously been

V-Chip

. Then highlight and select

TV Ratings

View

Block

and

US V-Chip

Block

. The status for the rating and all

32 Chapter 3 Using TV Features

6. Use the MENU button repeatedly to get back to the Parental Control menu.

7. Select

Lock Parental Control

from the Parental Control menu for rating limits to take effect,

you must press OK and enter a 4-digit password.

To view age-based ratings after you've locked them, follow the same steps as above to unlock.

Blocking Specific Content Themes

You can block programs based on their content. (Content is represented by the

on your screen.) When you block a content theme for a particular rating, you automatically

block that content theme for higher rated programs as well. To block program content:

1. Determine the content themes you want to block.

2. Press the down arrow button to scroll to the rating whose content theme you want to change.

3. Press the right arrow button to move the highlight to a particular content theme.

4. Press the OK button to change its status to block. (For example, you block the language (L)

corresponding with TV-14. The language for TV-MA is blocked as well.)

To view content theme after you've locked them, follow the same steps as above to unlock.

Note:

If you unlock the language corresponding with TV-14, the language for TV-MA doesn't

unlock. You have to unlock the content theme status for each rating separately.

Hierarchy of Age-Based Ratings

TV-MA

TV-14

TV-PG

Mature Audience Only

Parents Strongly Cautioned

Parents Guidance Suggested

Content Themes

Sexually Explicit Dialogue

Adult Language

Sexual Situations

D, L, S, V

and

Note:

Broadcasters are not required to provide content themes or age-based ratings. You must remember to lock Parental Controls for rating limits to take effect.

TV-G

TV-Y7

TV-Y

General Audience

Directed to Children 7 Years and Older

All Children

Violence

Fantasy Violence

US V-Chip Movie Rating Limit

Set movie rating limits by blocking movies rated above a specified level.

To access the Movie Rating Limit menu:

1. Press MENU on the remote control (the TV's Main Menu appears).

2. Select

3. Highlight and select

4. Highlight and select

5. Press the down arrow button to scroll to the rating you want to change.

6. Press the OK button to change its status to block (all ratings above the one you selected

Parental Control

change to block).

V-Chip

. Then highlight and select

Movie Ratings

US V-Chip

Movie Ratings

Go Back

NR X NC-17 R PG-13 PG G

Press OK to view/block.

Using TV Features Chapter 3 33

English Ratings

Go Back

CE-18+ CE-14+ CE-PG CE-G CE-C8+ CE-C

Press OK to view/block.

Note:

These ratings

are available only if

the broadcaster is

sending them.

Note:

You must

remember to lock

parental controls for

rating limits to take

effect.

Blocking Canada V-Chip Ratings

If you receive Canadian programs you can block Canadian English and French V-Chip by

ratings only. When you block a particular rating, you automatically block the higher rated pro-

grams as well. To block Canadian English and French program ratings:

1. Press MENU on the remote control (the TV's Main Menu appears).

2. Select

3. Select

4. Select

5. Highlight

Parental Control V-Chip

Canada V-Chip

English Ratings

French Ratings

and press OK.

6. Press the down arrow button to scroll to the rating you want to change.

7. Press the OK button to change its status to block (all ratings above the one you selected

change to block).

Future Rating Region

You might notice an option in your Parental Control menu that wasn't there before. This is

because broadcasters have the capability to add a new rating system for TV programs.

These

ratings let you define additional parameters for parental controls. This option and its name are

dependent on the content acquired from the broadcaster.

Reset Downloadable Data

Select this option to reset the downloadable V-Chip data.

Blocking Unrated/Exempt Programs

The

Unrated/Exempt Ratings

option lets you decide if programs that the V-Chip recognizes as

unrated or exempt can be viewed. Unrated TV programs may include news, sports, political,

religious, local and weather programs, emergency bulletins, public announcements, and pro-

grams without ratings. The Exempt option applies to both USA and Canadian unrated pro-

grams and Canadian programs rated E.

Press the down arrow button to highlight

View

and

Block

View

All unrated programs are available

Block

All unrated programs are not available.

Unrated/Exempt

. Then press OK to toggle between

Block Channel

Turn this option on to block the channel you see in the

Use the left/right arrow buttons to find the channel you want to block, then press the down arrow button to select

Block Channel

. Press OK to place a check mark in the

box to block the channel. When you tune to that channel you'll need to enter a password to

view the channel if parental control is locked.

Select Channel

option.

Block Channel

Parental Control

Go Back

Lock Parental Control Select Channel 51 MTV Block Channel

Button Block

V-Chip ... Change Password ...

<OK>: Select

Button Block

Select this option to block (disable) or unblock (enable) the TV’s side panel buttons so that they

can't be used by someone, like a young child. The remote still tunes to any channel. If you're

using this to keep children from changing channels, remove access to any remote that is

capable of operating the television while you have the side panel blocked. Don’t forget to lock

parental controls after you change the status. If you don’t, the

effect.

34 Chapter 3 Using TV Features

Button Block

action will not take

Change Password

Normal Zoom

Stretch Center

This option let you set a new V-chip password.

1. Press MENU on the remote control (the TV's Main Menu appears).

2. Select

3. Select

Parental Control Change Password

and press OK to display the password resetting menu.

4. Using number buttons to enter the new password, press OK. Enter the new password again and press OK to confirm.

Additional Features

There are additional features available unrelated to parental controls. These features can be

found in other menus.

Screen Formats

Screen format is the way the picture is displayed on your TV. Press the FORMAT buttons on

your remote to see if a different format is available for the video you are viewing. The format

changes as you press the FORMAT button and the format type is displayed at the bottom of

the screen.

Analog video is sent in a 4/3 format, which your TV displays in a 16/9 format. Most digital

video is sent in a 16/9 format which does fill your screen, but sometimes it is sent in 4/3 which

does not fill your screen. It depends on how the station or device connected to your TV is

formatting the video. If there are bars on the screen, press the FORMAT buttons to try a

different format that may eliminate the bars. Some bars can't be removed because of the way

the format is sent by the broadcaster.

Change Password

Password - - - -

Create Password - - - Confirm Password - - - -

Press OK when finished.

The different formats available and what they look like follow. Each format is available for

analog video, but it might not be available for digital video.

Using TV Features Chapter 3 35

Picture Sound

Channel

Parental Control Setup Time

Picture Settings

Go Back

Preset Natural

Brightness

Contrast

<L/R>: Select

Sharpness Color Tint Color Warmth Normal


Using Menu System

This section explores the menus of your TV. Each menu is outlined and detailed to help you

get the most from your TV. The Parental Control menu is discussed in Chapter 3. To access the

menu system:

1. Press the MENU button.

2. Use the up and down arrow buttons to highlight an option and press OK to display it.

The name of the menu is displayed at the top of the menu screen.

3. Press the up and down arrow buttons to move to a different option within the menu. If

necessary, press the OK button to display the choices of the option you’ve highlighted.

If available, use the text at the bottom of each screen for help.

4. To return to the Main Menu, press the MENU button until it's displayed.

Descriptions of each menu are discussed in the order they appear.

There are two ways to exit a menu:

•

Press the CANCEL button. The menus are cleared from the screen, and you return to TV

viewing.

•

Press the MENU button repeatedly until the menus disappear.

Picture Menu

The Picture menu contains menus and controls to configure how the picture looks. The Picture

menu options apply to the video for the main TV and VIDEO INPUT selections. All picture

options can be applied to each input -

VID1, VID2, CMPT, HDMI1 orHDM2

, and PC.

Picture Settings:

Preset

Displays a choice list that lets you select one of the preset picture settings: V

ibrant,

Gaming

Natural

, or

Personal

. Choose the setting that is best for your viewing environment.

Brightness

Use the left or right arrow buttons to adjust the brightness of the picture.

Contrast

Use the left or right arrow buttons to adjust the difference between the light

and dark areas of the picture.

Sharpness (not available on PC)

Use the right or left arrow buttons to adjust the

crispness of the edges in the picture.

Color

Use the right or left arrow buttons to adjust the richness of the color.

Tint (not available on PC)

Adjusts the balance between the red and green levels.

Color Warmth

Displays a choice list that lets you set one of three automatic color

adjustments:

Cool

for a more blue palette of picture colors;

Normal

; or

Warm

for a more red

palette of picture colors. The warm setting corresponds to the NTSC standard of 6500 K.

When you change any of these picture settings, the Picture Preset changes to

Personal

. Use

the left or right arrow button to make adjustments.

Screen Format

Change the screen format among

Normal, Center, Zoom

and

Stretch

. For

more information on screen format, go to

page 35.

Using TV Menu

Main Menu

Exit


Go Back

Picrure Settings ...

Screen Format Normal

Film Mode

PC Settings Video Noise Reduction Low

<OK>: Enter Sub-mneu


36 Chapter 4 Using TV Menu

Film Mode

(3:2 Pulldown) Automatically detects video sources that were originally recorded

on film (like most movies) and subsequently converted to a different format (for TV broadcast,

for example). Film mode processes the converted signal so that it looks as close as possible to

the original. Another name for this process is reverse 3:2 pulldown.

The

setting (recommended): place a check in the box, enables the feature only when the

TV detects that movie playback quality could be improved.

Off

The

setting (uncheck the box) turns off film mode upconversion. Try using this setting if

you think the reverse 3:2 Pulldown is causing distortions in your picture.

PC Settings Video Noise Reduction

Adjust the PC settings when in PC mode.

(not available on PC or digital channels) Reduces picture “static” or

any type of interference. This feature is especially useful for providing a clearer picture in weak

Low

analog signal conditions. Press the right arrow to choose between:

picture that retains picture sharpness and detail;

Low

setting;

High

for an even softer, smoother picture than the other settings (the picture

Normal

for a slightly softer picture than the

for a softer, smoother

detail is somewhat decreased).

Sound Menu

The Sound menu lets you adjust audio output. To access the Sound menu, press MENU on

the remote, and then select adjusted:

Treble

Improves treble output.

Bass

Improves bass output.

Balance

Press the right or left arrow buttons to adjust how much audio is sent to the left and

right speakers.

Analog TV Sound

Controls the way the sound comes through your speakers. The options

available vary according to the input selected.

Mono

(available for regular TV viewing only) Plays the sound in mono only. Use this setting

when receiving broadcasts with weak stereo signals.

Stereo

Splits the incoming stereo audio signal into left and right channels. Most TV programs and recorded materials have stereo audio. The word Stereo appears in the channel banner when you tune to a program that is broadcast in stereo.

Second Audio Program (SAP)

available. The letters SAP appear in the channel banner when you tune to a program that is broadcast with SAP information. SAP audio is broadcast in mono. SAP is also used to broadcast a program’s audio with descriptions of the video for the visually impaired.

Default Audio Language

your preferred language is being broadcast with a program, then the TV plays it. If not, then the TV plays the default audio for the program (usually English in the U.S.). The default digital channel audio language options are

Chinese, Korean.

Current Audio Language (Not available for analog channels)

choose from the audio languages available for the program you're watching. The language you choose becomes your preferred audio language for all digital channels until you turn the TV off. If the language you choose here is not being broadcast with a program, then the TV plays the default audio for the program (usually English in the U.S.).

Note:

This menu will gray-out when current channel selected is analog.

Sound

from the Main Menu. The following sound items can be

Plays the program’s audio in a second language, if one is

Choose the language you prefer for dialog on digital channels. If

English, French, Spanish, German, Italian, Japanese,

Press the right arrow to

Note:

Video noise reduction is available for the CMPT inputs only if the signal is 480i.

Sound

Go Back

Treble

Bass Balance Analog TV Sound Mono Default Audio Language English Current Audio Language English

<L/R>: Adjust

Using TV Menu Chapter 4 37

Channel Menu

Channel

Go Back

Channel List ...

Auto Channel Search ...

List and Lables ...

<OK>: Enter Sub-menu

List and Labels

Go Back

Channel Number 10

In Channel List

Channel Label

The Channel Setup menu lets you configure the TV to fit its surroundings and your preferences.

Press MENU on the remote, and then select

Channel List

The Channel List menu allows you to view all the channels available in your

Channel

from the Main Menu.

channel list. Press the up or down arrow button to highlight a channel then press OK to tune to

the channel. Press left and right arrow buttons to scroll to the next page.

Auto Channel Search

Select

Auto Channel Search,

then press OK to access the Auto

Channel Search menu.

Signal Type

Choose the type of signal you have connected to the ANTENNA/CABLE

INPUT.

Auto Channel Search

Searches for channels the TV is receiving. Go to

page 17 for more

information.

List and Labels

and Labels

Channel Number

Edit the channels in the list or choose labels for your video inputs. Select

, then press OK to display the submenu of List and Labels.

Press OK to select, then use the left and right arrow buttons to select

List

the channel number, or press the INPUT button, then use right/left arrow buttons to select

a video input channel among

In Channel List (only available for TV channels)

add to the channel list, highlight

VID, HDMI, CMPT, PC,

In Channel List

and press the OK button to place a check

finally press OK to confirm the selection.

If you've entered a channel you want to

in the check box. If you've entered a channel you want to delete from the channel list, press

the OK button to uncheck the box. When an AV INPUT is displayed in the Channel number

field, the line

Channel Label

“In channel list”

is grayed out.

Display the channel label, this line is always grayed out for the label can’t be

modified by user.

Parental Control Menu

The Parental Control menu is explained in Chapter 3. Go to page 35 for more information.

Setup Menu

Closed Caption

Many programs are encoded with closed-captioning information, which lets you display the

audio portion of a program as text on the TV screen.

Note:

settings must be set in the connected device's menu. Closed captioning is not available on all channels at all times. Only specific programs are encoded with closed-captioning information.

Closed Caption

Go Back

CC Setting On Always

Analog CC Type CC1 Digital CC Type CS1 Digital CC Preset Default Digital CC Color White Dig.CC Back. color Black Digital CC Style ...

<L/R>: Select

38 Chapter 4 Using TV Menu

When a program is closed captioned, CC is displayed in the channel banner. See Chapter 3 for more information about the channel banner. The closed caption options are:

CC Setting

Closed caption settings are not available for HDMI1, HDMI2, CMPT INPUTS. These

Lets you choose the way closed captioning information appears on the screen.

Off

No captioning information displayed.

On Always On When Muted

Captioning information shown always, when available.

Captioning information shown when TV is muted, and when

available.

Analog CC Type

If available, lets you select the captioning mode used for displaying captioning information. If you are unsure of the differences among the modes, you may prefer to leave the closed captioned mode set to CC1, which displays complete text of the program in the primary language in your area.

Digital CC Type

If available, lets you select a closed caption service mode (1.6) for digital

channels.

Digital CC Preset

Custom

changes according to what you set for the options below.

Digital CC Color

Green, Blue, Yellow, Magenta, Cyan

Dig. CC Back. Color

digital closed-caption text:

Digital CC Style

Digital CC Opacity

olid, Transparent, Translucent, or Flashing.

Digital CC Back. Opacity

closed-caption text :

Digital CC Edge Color

Black, White, Red, Green, Blue, Yellow, Magenta, orCyan.

text:

Digital CC Edge Type

text:

None, Raised, Depressed, Outline, Left shadow, Right shadow

Digital CC Size

Standard, Large, orSmall

Digital CC Font

If available, lets you select between

Lets you choose the color of the digital closed-caption text:

Black.

Default

and

Custom

White, Red,

Lets you choose the color of the area of the screen behind the

White, Red, Green, Blue, Yellow, Magenta, Cyan or Black

If available, lets you customize the following display options:

Lets you set the appearance of the digital closed-caption text:

Lets you set the area of the screen behind the digital

Solid, Transparent, Translucent, orFlashing.

Lets you choose the edge color of the digital closed-caption

Lets you choose the edge type of the digital closed-caption

Lets you set the size of the digital closed-caption text. You can choose

Lets you select a character design for the digital closed-caption text.

options.

A font is a complete assortment of letters, numbers, punctuation marks, etc. in a given design. You can choose from a variety of fonts (

Menu Language

Francais

Light Sensor

Lets you select your preferred language for the menus:

If you choose On, this feature is activated.

Style 1-7

English, Espanol

• When activated, this feature monitors the ambient light conditions in the room and adjusts

the TV’s backlight for optimum viewing. It also serves as an energy saving feature by lowering the backlight power level when appropriate (typically in darker room conditions).

• The TV has a multi-colored LED that adjusts based on the backlight power level with “green”

representing the highest level of energy savings. Please refer to the table at the left for the various conditions of the backlight power level and LED colors when the light sensor is active.

Note:

When TV is On and the light sensor is Off, the LED color will be blue.

Autotuning

The Auto Tuning menu was explained in Chapter 3. Go to page 30 for more

information.

Digital CC Style

Go Back

Digital CC opacity Solid

Digital CC Back. opacity Flashing Digital CC Edge Color Black Digital CC Edge Type None Digital CC Size Standard Digital CC font Semi Serif

<L/R>: Select

Note:

These captioning style options only have an effect on true digital closed captions. Not all captioning on digital channels is digital captioning—it depends on what the broadcaster is sending. If the closed captioning for a program is not digital, the Digital CC style settings will not have an effect.

TV mode

Standby

Backlight

Power Level

Off

Full Power Level

Mid Power Level

Low Power Level

LED Color

Off

Blue

Cyan

Green

Time Menu

Enter Time

Press OK to start input, press left and right arrow buttons to select the input space, then use up and down arrow buttons to set hours, minutes and AM/PM. Press OK to finish input.

Auto Time Channel

minute for the time to be set.

Sleep Timer Time Zone

Hawaii, Alaska, Pacific, Central and Mountain.

Daylight Saving

If you didn't set the time reference channel, enter the current time manually.

Choose a station to have the TV set the time for you. Wait about one

Use the left and right arrow keys to set the TV to turn off after a given amount of time.

Select the current local time among

Choose between

Off

and

Eastern,Atlantic, Newfoundland, Samoa,

Automatic

modes.

Using TV Menu Chapter 4 39

Time

Go Back

Entry Time --:--

Auto Time Channel A2 Sleep Timer OFF Z Time Zone Samoa Daylight Saving Automatic

<OK>: Start/Finish Edit

Other Information

Frequently Asked Questions (FAQs)

What’s the quickest way to view High Definition (HD) video?

Connect an off-air antenna to the ANTENNA/CABLE Input to view free local digital channels.

You might need to purchase an antenna. Go to page 14 for more information.

Visit www.antennaweb.org for help deciding what type of antenna to use to receive the local

digital channels available to you. By entering where you live, this mapping program tells you

which local analog and digital stations are available using a certain antenna.

Are there other ways to view High Definition (HD) video?

Besides using an off-air antenna as mentioned above, you can also use a set-top box to receive

digital video. Contact your cable company or satellite provider to purchase digital programming

and have them connect the box for you to ensure you're viewing channels the best way.

How do I tell an analog channel from a digital channel?

Press the INFO button to display the channel banner. Look at the bottom left corner of the

screen. An

is displayed for an analog channel. A Dis displayed for a digital channel.

Why are there bars on my screen and can I get rid of them?

Most digital video is sent in a 16/9 format which does fill your screen, but is sometimes sent in

4/3 which does not fill your screen. It depends on how the station or device connected to your

TV is formatting the video. If there are bars on the screen, press the FORMAT button to try a

different format that may eliminate the bars. Some bars can't be removed because of the way the

format is sent by the broadcaster. The format changes as you press the FORMAT button and the

format type is displayed at the bottom of the screen. For more information on screen formats, go

page 35.

Why does channel search find a lot of channels, but when I try to tune to them there’s nothing there?

Some channels enabled by the cable company don’t carry programming, such as video on

demand. When channels are unavailable, your TV’s screen is blank or appears like snow. You

probably want to remove these channels from your channel list. Remove these in the Channel

List menu. Go to page 38 for more information.

Why does the first channel search take a long time?

If you have both analog and digital channels, the TV is looking for all available channels in the

channel list. If you do have digital channels, the TV is also searching for scrambled channels,

non-scrambled channels, and each sub-channel of that digital channel.

40 Chapter 5 Other Information

Troubleshooting

Most problems you encounter with your TV can be corrected by consulting the following troubleshooting list.

TV Problems

TV won’t turn on

•

Make sure the TV is plugged in.

•

Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in something else.

•

The side panel controls may be locked (disabled). Use the remote control to unlock the side panel controls

by selecting the

Button Block

No picture and no sound but TV is on

• You might be tuned to an input with no device connected to it to view. If you're trying to view a connected

device, press INPUT until the picture from that device appears.

• The S

• The channel might be blank--change channels.

• If you’re watching your VCR and it’s connected with coaxial cable to the ANTENNA/CABLE jack, tune the

ignal Type

TV to channel 3 or 4 (whichever channel is selected on the 3/4 switch on the back of your VCR). Also make

sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR).

option may be set incorrectly. Go to page 17 for detailed instructions.

Sound okay, picture poor

• If you're getting a black and white picture from a device you've connected to your TV, you might have your

video cables connected to the wrong jacks. A yellow Video cable connects to the yellow VIDEO INPUT jack

on the side or back of your TV; three video cables or bundled component video cables (red, blue, and

green) connect to the corresponding COMPONENT INPUT jacks on the back of your TV.

• If you're getting no picture from a device you've connected to your TV, you might have your video cable

connected to the VIDEO OUTPUT jack on the back of your TV. These jacks are used to connect recording

devices. A yellow Video cable connects to the yellow VIDEO INPUT jack on the side or back of your TV.

• Check antenna connections. Make sure all of the cables are firmly connected to the jacks.

• Try adjusting the sharpness function to improve weak signals. Go to page 36 for more instructions.

feature on the Parental Control menu and press OK to uncheck the box.

No sound, picture okay

• The sound might be muted. Try pressing the volume up button to restore sound.

• If using

jacks to the TV’s L and R AUDIO INPUT jacks.

• The sound settings may not be set correctly.

• If your audio source has only one jack or is a (mono) audio source, make sure you have plugged the

connection into the Left AUDIO INPUT jack on the TV.

DVI, or Y, PB, PR, remember to also connect the device’s left and right AUDIO OUTPUT

Go to page 37 for more information.

Blank screen

• Check your connections. If you used yellow, red, and white cables to connect, make sure they're

connected to the yellow, red, and white VIDEO INPUT jacks on the side or back of the TV, not to the

VIDEO OUTPUT jacks on the back of the TV.

• If you're trying to watch something that's playing on a device connected to the TV (like a DVD), press

INPUT until you get to the correct video input channel.

• Make sure the device connected to the TV is turned on.

• Try another channel.

Other Information Chapter 5 41

Buttons don’t work

•

The side panel controls may be locked (disabled). Use the remote control to unlock the side panel controls by

selecting the

•

Unplug the TV for ten minutes and then plug it back in. Turn the TV on and try again.

Button Block

feature in the Parental Control menu and press OK to uncheck the box.

TV turns off unexpectedly

•

Sleep timer may have been activated. Go to page 39 for instructions.

•

Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then

turn on again. If this happens frequently, the voltage in your house may be abnormally high or low.

•

Unplug. Wait ten minutes. Plug in again.

Can’t select certain channel

•

Channel may be blocked or not approved in the Parental Control menu.

•

If using a VCR, check to make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR

button on your VCR).

•

Press the TV button and then try to change channels.

Noisy stereo reception

May be a weak station. Use the Sound menu and Analog TV Sound to choose

mono

Black box appears on screen

Closed-captioning might be on. Check

Closed Caption

in the Setup menu. Go to page 42 for more instructions.

Problems with HDMI Connection

•

Make sure the HDMI or DVI device is turned on and the cables are firmly connected. If problems still occur,

turn off your device. Re-connect your device. Reset the power by unplugging the power cord and plugging

it back in.

•

If you are tuned to the HDMI INPUT and you’re receiving

button on the remote. If

responding. Contact the manufacturer of the HDMI or DVI device for further assistance.

•

If you tune to the HDMI INPUT and you see snow, the video goes in and out, or the video takes a long time to

appear, your HDMI or DVI device is having trouble sending video information to the TV. Re-connect your

device. Reset the power by unplugging the power cord and plugging it back in. If problems persist, try

connecting the Y Pb Pr jacks if they are available or contact the manufacturer of the HDMI or DVI device for

further assistance.

•

If you have black bars on each side of your picture, the device you connected might have a switch or a

menu option allowing you to change the picture quality output that will fix this. Choose either

1080i

•

480i signals aren’t supported by the HDMI INPUT.

Acquiring Channel

appears in the channel banner, the HDMI or DVI device isn’t

Unusable Signal

message onscreen, press the INFO

720p

Remote Doesn’t Work

•

Something might be between the remote and the remote light sensor on the front of the TV. Make sure

there is a clear path.

•

The remote may not be aimed directly at the TV.

•

The batteries in the remote may be weak, dead, or installed incorrectly. Put new batteries in the remote. (Note, if you remove the batteries, you may have to reprogram the remote to operate other devices.)

42 Chapter 5 Other Information

Problems with V-Chip/Parental Controls

Rating limits don’t work

You must lock the settings. Go to the Main Menu (press MENU on your remote), select

Lock Parental Control

select

Parental Control

I don’t remember my password and I want to unlock TV

If you forget your password, you can enter the factory default code: 4116.

V-Chip won’t let me watch a program even though it’s not rated as violent.

Maybe the movie was given an NR (Not Rated) status. After you block movie ratings, you must set NR to

View Separately

in order to view movies with an NR rating.

What Else Can I Do?

If you’ve been through the Troubleshooting section and nothing has fixed your problem, try rebooting your

TV. Note that after a reboot you may need to run your TV through the setup process again. To do a reboot,

unplug the power cord from the wall outlet, power strip, etc. Keep your TV unplugged for about 5 minutes.

Then plug in the TV, turn on the TV, and see if the problem is fixed. If the problem remains, then please click

on the Customer Support Menu at www.rca.com/television for updated FAQs or contact RCA Customer

Support at the support number provided in your Warranty under

How To Get Service.

Other Information Chapter 5 43

V-Chip Rating Explanations

US V-Chip Rating System

TV-MA (Mature Audience Only)

children under 17. It contains one or more of the following content themes: crude indecent language (L),

explicit sexual activity (S), or graphic violence (V).

TV-14 (Parents Strongly Cautioned)

children under 14. Parents are strongly urged to exercise greater care in monitoring this program and are

cautioned against letting children under the age of 14 watch unattended. This program contains one or more

of the following content themes: intensely suggestive dialogue (D), strong coarse language (L), intense sexual

situations (S), or intense violence (V).

TV-PG (Parental Guidance Suggested)

Many parents may want to watch it with their younger children. The program contains one or more of the

following content themes: some suggestive dialogue (D), infrequent coarse language (L), some sexual situa-

tions (S), or moderate violence (V).

TV-G (Parental Audience)

sexual dialogue (D) or situations (S), no strong language (L), and little or no violence (V).

TV-Y7 (Directed to Children 7 years and older)

appropriate for children who have acquired the developmental skills needed to distinguish between make be-

lieve and reality. Themes and elements in this program may include mild fantasy violence (FV) or comedic violence,

or may frighten children under the age of 7.

TV-Y (All Children)

ages 2-6. It is not expected to frighten younger children.

Themes and elements in this program are designed for a young audience, including children

Specifically designed to be viewed by adults and may be unsuitable for

Contains some material that many parents would find unsuitable for

Contains material that parents may find unsuitable for younger children.

Most parents would find this program suitable for all ages. It contains little or no

Designed for children ages 7 and above. It may be more

Canadian English V-Chip Rating System

18+ (Adult)

sexual content which could make it unsuitable for viewers under 18. Violence Guidelines: May contain violence

integral to the development of the plot, character or theme, intended for adult audiences. Other Content

Guidelines: May contain graphic language and explicit portrayals of nudity and/or sex.

14+ (Viewer 14 and over)

under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens

and early teens. Violence Guidelines: May contain intense scenes of violence. Could deal with mature

themes and societal issues in a realistic fashion. Other Content Guidelines: May contain scenes of nudity

and/or sexual activity. There could be frequent use of profanity.

PG (Parental Guidance)

younger children (under the age of 8). Parents may consider some content inappropriate for unsupervised

viewing by children aged 8-13. Violence Guidelines: Depictions of conflict and/or aggression will be limited and

moderate; may include physical, fantasy, or supernatural violence. Other Content Guidelines: May contain

infrequent mild profanity, or mildly suggestive language. Could also contain brief scenes of nudity.

Programming intended for adults 18 and older. It may contain elements of violence, language, and

Programming contains themes or content which may not be suitable for viewers

Programming intended for a general audience but which may not be suitable for

44 Chapter 5 Other Information

G (General Audience)

cally for children, it is understood younger viewers may be part of the audience. Violence Guidelines: Will

contain very little violence, either physical or verbal or emotional. Will be sensitive to themes which could

frighten a younger child, will not depict realistic scenes of violence which minimize or gloss over the effects of

violent acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and no nudity.

C8+ (Children 8 and older)

watch on their own. Violence Guidelines: Violence will not be portrayed as the preferred, acceptable, or only way

to resolve conflict or encourage children to imitate dangerous acts which they may see on television. Any realistic

depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts.

Other Content Guidelines: There will be no profanity, nudity or sexual content.

C (Children)

themes which could threaten children’s sense of security and well being. There will be no realistic scenes of

violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary,

comedic or unrealistic in nature. Other Content Guidelines: There will be no offensive language, nudity or sexual

content.

Programming intended for children under age 8. Violence Guidelines: Careful attention is paid to

Programming considered acceptable for all ages groups. While not designed specifi-

Programming generally considered acceptable for children 8 years and over to

Canadian French V-Chip Rating System

18+ (Adult)

scenes.

16+ (Viewer 16 and over)

scenes of violence or intensely violent scenes.

13+ (Viewer 13 and over)

either contains several violent scenes or one or more scenes that are violent enough to affect them. Viewing in

the company of an adult is therefore strongly recommended for children under the age of 13.

8+ (Viewer 8 and over)

but it contains mild or occasional violence that could upset young children. Viewing in the company of an adult

is therefore recommended for young children (under the age of 8) who do not distinguish between reality and

imagination.

G (General Audience)

violence that it does contain is either minimal or is presented in a humorous manner, as a caricature, or in an

unrealistic way.

Programming is for adults only. This program contains sustained violence or extremely violent

Programming is not suitable for those under age 16. This program contains frequent

Programming may not be suitable for children under the age of 13. This program

Not recommended for young children. This program is suitable for most audiences,

This program is suitable for audiences of all ages. It contains no violence, or any

Other Information Chapter 5 45

TTE Technology, Inc. (“TTE”) Limited Warranty

All LCD Models

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND AS DESCRIBED BELOW TTE EXPRESSLY DISCLAIMS, ALL ACTUAL AND IMPLIED WARRANTIES WITH RESPECT TO ANY PRODUCT USED FOR INSTITUTIONAL OR OTHER COMMERCIAL PURPOSES (INCLUDING BUT NOT LIMITED TO RENTAL PURPOSES).

What your warranty covers:

Defects in materials or workmanship to the original owner

New LCD Televisions - Screen Sizes 32” and smaller:

For how long after your purchase:

•

Ninety (90) days from date of purchase for labor charges. After ninety (90) days, labor charges will be at owner expense.

•

One (1) year from date of purchase for parts.

What we will do:

•

At TTE’s discretion, pay an Authorized RCA Service Center for both labor charges and parts to repair your television, or replace your television with a new or refurbished/remanufactured unit. See

get service”

“How to

New LCD Televisions - screen sizes 33” through 47”:

For how long after your purchase:

•

One (1) year from the date of purchase for labor charges.

•

One (1) year from the date of purchase for parts.

What we will do:

•

At TTE’s discretion, pay an Authorized RCA Service Center for labor charges and parts to repair your television, or replace your television with a new or refurbished/remanufactured unit. See

get service”

“How to

All Remanufactured/Refurbished LCD Televisions:

For how long after your purchase:

• Ninety (90) days from date of purchase for labor charges.

• Ninety (90) days from date of purchase for parts. What we will do:

• At TTE’s discretion, pay an Authorized RCA Service Center for both labor charges and parts to repair your television, or replace your television with a refurbished/remanufactured unit. See “How to get service”

How to get service:

• Call 1-800-951-9582. Please have your unit’s date of purchase and model/serial number ready. The model/serial number information can be found on the back of your unit.

• A representative will troubleshoot your problem over the phone.

• If it is determined that your unit requires service, the service location will be at the sole discretion of TTE based upon the TTE Limited Warranty statement.

• At the sole discretion of TTE, television screen sizes 32” and smaller is either consumer carry-in to an Authorized RCA Service Center or directly exchanged for a new or refurbished/remanufactured unit.

• At the sole discretion of TTE, television screen sizes 33” through 47” is either consumer carry-in to an Authorized RCA Service Center or directly exchanged for a new or refurbished/remanufacture unit.

• Proof of purchase in the form of a bill of sale or receipted invoice from an Authorized Dealer which is evidence that the product is within the warranty period must be presented to obtain warranty service.

What your warranty does not cover:

• Customer instruction. (Your Owner’s Manual describes how to install, adjust, and operate your unit. Any additional information should be obtained from your dealer.)

• Installation and related adjustments.

46 Chapter 5 Other Information

•

Damage resulting from non-approved installation methods.

•

Signal reception problems not caused by your unit.

•

Damage from misuse or neglect.

•

Batteries.

•

A television that has been modified or incorporated into other products or is used for institutional or other commercial purposes (including but not limited to rental purposes).

•

A unit purchased or serviced outside the U.S.A.

•

Acts of nature, such as but not limited to lightning damage.

•

Special, incidental or consequential damages.

Product Registration:

Please complete and mail the Product Registration Card packed with your unit or register on-line at www.rca.com/television. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage.

Limitation of Warranty:

•

THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. NO VERBAL OR WRITTEN INFORMATION GIVEN BY TTE TECHNOLOGY, INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY.

•

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. TTE TECHNOLOGY, INC. SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY AND WARRANTY PERIOD SET FORTH ABOVE.

How State Law relates to this warranty:

•

Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

•

This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

If you purchased your unit outside the United States or seek warranty coverage outside the United States:

This warranty does not apply. Contact your dealer for warranty information.

Service calls which do not involve defective materials or workmanship are not covered by this warranty. Costs of such service calls are the sole responsibility of the purchaser.

Care and Cleaning

Caution:

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots

in the cabinet to help assure adequate ventilation.

IMPORTANT: Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of cleaners will damage the TV. The TV’s screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If necessary, you may use a cloth dampened with warm water. While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV. Also, never place drinks or vases with water on top of the TV.

the risk of fire, shock hazard or damage to the TV.

Turn OFF your TV before cleaning.

This could increase

Other Information Chapter 5 47

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are registered trademarks of Dolby Laboratories.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Visit the RCA website at www.rca.com/television

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only

add delays in service for your product.

TTE Technology, Inc. 101 West 103rd Street Indianapolis, IN 46290

@2008 TTE Technology Inc. RCA and associated marks are trademarks of THOMSON S.A. used under license to TTE Corporation. Printed in USA

Part No.:

72-L22HD31-E001A

RCA TK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
