It is important to read this instruction book prior to using your new product for the first time.
Es importante leer este manual antes de usar por vez primera su euipo.
1/2
RS2610-EN rev.1 7/23/02 3:11 PM Page 3
FCC Information
EN
FCC Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause undesired operation.
In accordance with FCC requirements, changes or
modifications not expressly approved by Thomson
multimedia Inc. could void the user’s authority to
operate this product.
This device generates and uses radio frequency (RF)
energy, and if not installed and used properly, this
equipment may cause interference to radio and television reception.
If this equipment does cause interference to radio or
television reception (which you can determine by
unplugging the unit), try to correct the interference
by one or more of the following measures:
• Re-orient the receiving antenna (that is, the antenna for the radio or television that is "receiving" the
interference).
• Move the unit away from the equipment that is
receiving interference.
• Plug the unit into a different wall outlet so that the
unit and the equipment receiving interference are on
different branch circuits.
If these measures do not eliminate the interference,
please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the
Federal Communications Commission has prepared a
helpful booklet, "How To Identify and Resolve Radio
TV Interference Problems." This booklet is available
from the U.S. Government Printing Office,
Washington, DC 20402. Please specify stock number
004-000-00345-4 when ordering copies.
This product complies with DHHS Rules 21 CFR
Subchapter J. Applicable at the date of manufacture.
Technical specification
Product: 5CD Audio System
Brand: RCA
Model: RS2610
Electrical Consumption:
Power Supply: 120V / 240V
60 Hz / 50Hz
Power consumption: 500 Watts
IMPORTER
Comercializadora Thomson de México, S.A. de C.V.
Miguel de Cervantes Saavedra 57
Col. Ampliación Granada
C.P. 11529 Mexico D.F.
Telefono: (55)25 81 53 20
RFC: CTM-980723-KS5
For Your Safety
The AC power plug is polarized
(one blade is wider than the other)
and only fits into AC power outlets
one way. If the plug won’t go into
the outlet completely, turn the
plug over and try to insert it the
other way. If it still won’t fit, contact a qualified electrician to change the outlet, or use a different one. Do
not attempt to bypass this safety feature.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
Have a Blast- Just Not in Your
Eardrums
Make sure you turn down
the volume on the unit
before you put on headphones. Increase the volume
to the desired level only after
headphones are in place.
RS2610-EN rev.1 7/23/02 3:11 PM Page 4
THE LIGHTNING
FLASH AND ARROWHEAD WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
"DANGEROUS
VOLTAGE" INSIDE
THE PRODUCT.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
WARNING: TO PREVENT FIRE
SHOCK HAZARD,
TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
OR ELECTRICAL
DO NOT EXPOSE THIS PRODUCT
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
Safety Information
FCC Information
Safety Information
Getting Started
Unpacking the System . . . . .2
Back View . . . . . . . . . . . . . . .2
Using the FM and AM
Antennas . . . . . . . . . . . . . . . .2
Connecting the Speakers . . .2
Installation . . . . . . . . . . . . . . .2
Controls & Indicators
Main Unit . . . . . . . . . . . . . . .3

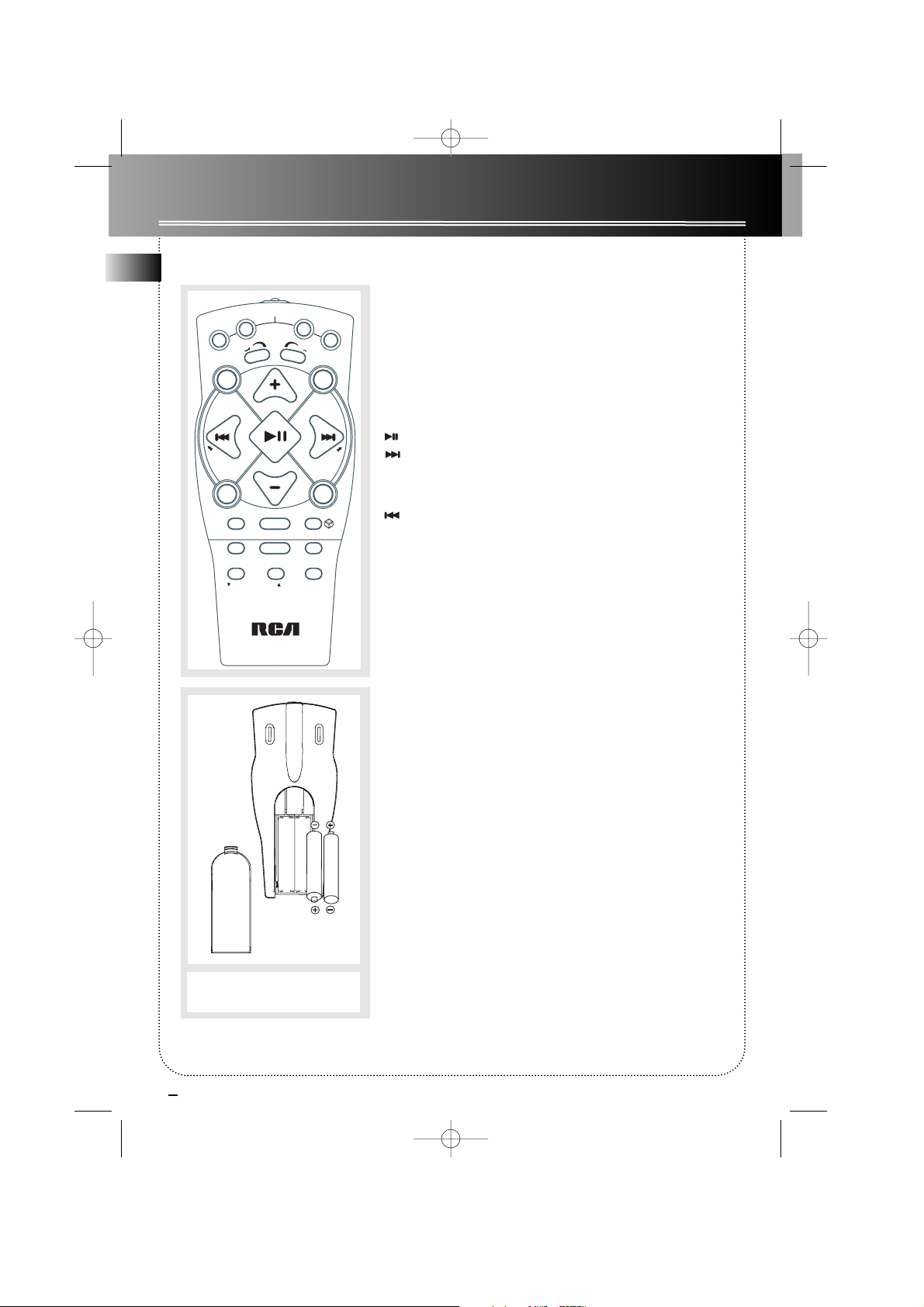

Remote Control . . . . . . . . . .4
Installing Batteries . . . . . . . .4
Display Settings
Showing the Demonstration
. . . . . . . . . . . . . . . . . . . . . . . .5
Display Clock/Timer . . . . . . .5
Setting the Clock . . . . . . . .5
Setting the Timer . . . . . . .5
Activating the Timer . . . . .5
Adjusting the Display
Brightness . . . . . . . . . . . . . . .5
Sleep Mode . . . . . . . . . . . . . .5
Sound Features
Using Preset Equalizer Curves
. . . . . . . . . . . . . . . . . . . . . . . .6
Creating a Custom Curve .6
Bass Boost . . . . . . . . . . . . .6
Muting Audio . . . . . . . . . .6
X- Surround . . . . . . . . . . . .6
CD Player
Notes on CD-R/CD-RW Disc .6
Loading Discs . . . . . . . . . . . .6
Playing Discs . . . . . . . . . . . . .6
Skipping a Disc . . . . . . . . .7
Searching through a CD . .7
Shuffling the Play Order . .7
Sampling Tracks . . . . . . . . .7
Repeat . . . . . . . . . . . . . . . .7
Setting Up a CD program . .7
Playing a Program List . . . .7
Displaying the Program list
. . . . . . . . . . . . . . . . . . . . . . . .7
Deleting a Program List . .7
Tuner
Selecting Tuner . . . . . . . . . . .8
Tuning to a Station . . . . . . .8
Using Presets . . . . . . . . . . . .8
Auto Preset Program
(for FM only) . . . . . . . . . . . .8
Setting Presets . . . . . . . . . .8
Suppressing Stereo Signal . .8
Tape Player
Playing a Tape . . . . . . . . . . .9
Continuous Play . . . . . . . . . .9
Recording . . . . . . . . . . . . . . .9
From Tuner . . . . . . . . . . . . .9
From CD . . . . . . . . . . . . . . .9
Tape to Tape . . . . . . . . . . .9
From an Auxiliary Input . .9
Troubleshooting Tips
. . . . . . . . . . . . . . . . . . .10
Maintenance
Cleaning . . . . . . . . . . . . . . .11
CD Player . . . . . . . . . . . . . . .11
Tape Player . . . . . . . . . . . . .11
Handling CDs . . . . . . . . . . .11
Cleaning CDs . . . . . . . . . . . .11
CD Lens Care . . . . . . . . . . . .11
More Information . . . .12
Safety Precautions . . . . . . .12
Important Battery
Information . . . . . . . . . . . . .12
Headset Safety . . . . . . . . . .12
Don’t Infringe . . . . . . . . . . .12
Technical Specification . . . .12
Limited Warranty
(U.S.) . . . . . . . . . . . . . .13
Limited Warranty
(Canada) . . . . . . . . . . .15
EN
1
Contents
For Your Records
In the event that service should be required, you may
need both the model number and the serial number.
In the space below, record the date and place of purchase, and the serial number:
Model No.
Remote Control No.
Date of Purchase
Place of Purchase
Serial No.
Service Information
This product should be serviced only by those specially trained in appropriate servicing techniques. For
instructions on how to obtain service, refer to the
warranty included in this Guide.
RS2610-EN rev.1 7/23/02 3:11 PM Page 5
Getting Started
EN
2
Unpacking the system:
You should have the following:
• one main unit (with 2 main speakers);
• one remote control;
• one FM antenna wire;
• one AM loop antenna;
• one user’s guide;
• one safety leaflet;
• Owner and registration Card
Back View
1. FM Antenna
2. AM Loop Antenna Jack
3. AUX IN Connector
4. Surround Speaker Jacks
5. Main Speaker Jacks
6. Voltage Selector
Using the FM and AM Antennas
Before you use your audio system, you’ll want
to make sure the FM antenna is positioned
properly. Connect the FM antenna to the FM
connector on the back of the unit. Uncoil it,
making sure it is fully extended (you may even
want to tape it to the wall behind the unit, if
possible. The higher, the better.)
You’ll also need to connect the AM antenna
loop to the back of the unit if you listen to
AM stations. Rotate the AM loop antenna for
better reception.
Connecting the Speakers
Match the red wire (on the left speaker) to red
terminal for the left speaker (L) on the back of
the unit and the black wire (on the left speaker) to the black terminal for left speaker (L).
Follow the same procedure to connect the
right (R) speaker.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
4 inches
4 inches4 inches
4 inches
2 inches
Front View
Side View
1
2
3
4
5
6
RS2610-EN rev.1 7/23/02 3:11 PM Page 6
~
Antenna and Speaker
Wire Connection
AM LOOP
AUX IN
RL
_ _
R
L
+
+
L
_
+
_
+
R
Push terminal tab down to
insert wire.
NOTE: Make sure the insulation
ends of the Antenna and
points.
1/2
Release tab to lock wire in
the terminal.
is completely removed from the
speaker wires at all connection
3
Controls and Indicators
EN
Main Unit
STANDBY / POWER —Turns power on or off
(Standby mode).
Tip: In STANDBY mode (press
STANDBY/POWER off), the system displays the
time. Press STANDBY/POWER to turn the system on in the previously used mode. Press CD,
TAPE, TUNER, or AUX (Remote only) to select the
corresponding mode. Look at the display icons to
identify the current mode.
PHONES —Jack for connecting headphones.
SOURCE— Selects the CD player/ tuner/ tape player/
external source.
DIMMER / DEMO —Turns the feature demonstration on or off; adjusts display contrast.
TIMER — Enters timer setting mode; turns timer
on/off.
CLOCK —Shows clock time and enters clock setting
mode.
PROG./SET - Enters program or setting mode for CD & tuner mode.
DISC SKIP — Skips to the next CD
in the tray.
RECORD - Starts tape recording.
BAND / DECK 1/2 /AUTO PROG. —
Changes among tuner bands;
enters auto-preset program in FM
mode; switches between deck 1
and 2 on cassette player.
DISC 1 - DISC 5 —Selects disc 1, 2,
3, 4, or 5 and start playback automatically.
OPEN/CLOSE — Opens or closes
the disc tray.
STOP/TUNE/PRESET — Stops
CD track and tape operations;
selects tune or presets mode.
SKIP FORWARD —
Increments radio frequency,
preset up, CD tracks or fast
forward tape.
SKIP BACKWARD —
Decrements radio frequency, preset down, CD tracks or rewind
tape.
PLAY/PAUSE — Plays or pauses CD and tape.
BASS BOOST —Turns bass boost on or off.
EQ CONTROLS (ROCK / CLASSIC, CUSTOM/FLAT,
POP / JAZZ) - selects among the different preset EQ
options.
X-SURROUND —Turns X-Surround on or off .
VOLUME — Increases/ decreases volume.
RS2610-EN rev.1 7/23/02 3:11 PM Page 7
1/2
