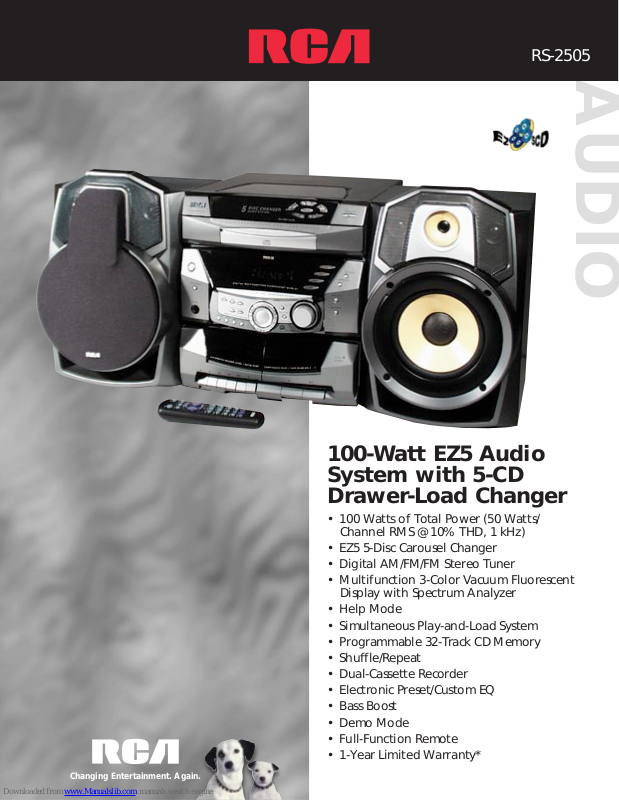

Page 1
AUDIO
RS-2505
100-Watt EZ5 Audio
System with 5-CD
Drawer-Load Changer
• 100 Watts of Total Power (50 Watts/
Channel RMS @ 10% THD, 1 kHz)
• EZ5 5-Disc Carousel Changer
• Digital AM/FM/FM Stereo Tuner
• Multifunction 3-Color Vacuum Fluorescent
Display with Spectrum Analyzer
• Help Mode
• Simultaneous Play-and-Load System
• Programmable 32-Track CD Memory
• Shuffle/Repeat
• Dual-Cassette Recorder
• Electronic Preset/Custom EQ
• Bass Boost
• Demo Mode
• Full-Function Remote
• 1-Year Limited Warranty*
Changing Entertainment. Again.
Page 2
General
• Dimensions: 13" H, 142⁄5" W, 12" D
• Smart Jog
Jog shuttle mechanism allows easy operation
of multiple system functions.
• Video in 1 (L & R Audio, RCA-Type)
• Main Speakers
• FM Antenna
• AM Antenna
• 1/4" Stereo Headphone Jack
• Help Mode
Utilize the Help Mode feature to easily access
operation instructions (i.e., clock set, CD
programmability)
• Demo Mode
Powers up with unit, disabled with one touch.
Tuner
• Digital AM/FM/FM Stereo Tuner
• Multifunction 3-Color Vacuum
Fluorescent Display with Spectrum
Analyzer and Dimmer Feature
• 32 Station Presets
• Seek Up/Down Tuning
• AM Loop Antenna
• FM Wire Antenna
Cassette Deck
• Dual-Cassette Operation
• Continuous Play
• Automatic End-of-Tape Shutoff
• Automatic Level Control (ALC)
• 6-Pushbutton Operation on Record
Deck
–Stop/Eject
–Pause
–Fast Forward
–Rewind
–Play
–Record
• 2-Pushbutton Operation on Play Deck
–Stop/Eject
–Play
• Record from Tuner, Tape, CD
• Tape-to-Tape Dubbing with
Synchro Start
Compact Disc
• 5-Disc Drawer-Load CD Changer in
3-Disc Size
• Simultaneous Play-and-Load System
Allows you to change four discs while the fifth
is still playing.
• Programmable 32-Track CD Memory
• 32-Track ATS (Auto/Track/Skip)
Allows for Programmable Track Skipping.
• Repeat One Track, Disc
• CD Shuffle Play
Plays CDs/tracks in random order. Will not
repeat any track until all tracks have played.
• CD Pushbutton Controls
–Play
–Pause
–Stop
–Track Forward/Reverse
–Scan Forward/Reverse
–Disc Skip
–Shuffle
–Repeat
Sound
• 100 Watts of Total Power
50 Watts/Channel RMS @ 10% THD, 1 kHz.
• 4-Way Speaker System with KEVLAR
1
Woofers
Second generation of KEVLAR, the most rigid,
durable material used in speaker manufacture
today, ensures clear, crisp sound while
minimizing distortion.
• 4 Electronic Preset Equalization
–Jazz
–Pop
–Rock
–Flat
• Custom EQ
Allows for manual adjustment of bass, treble
and mid-range according to personal
preference.
• Bass Boost
Enhances bass frequencies at low volume
settings.
Remote Control
• Full-Function Remote
• Amplifier Functions
–Power On/Off
–Volume Up/Down
–Function Select: Tuner, Tape, CD, Video
–Mute
–EQ Preset
• Tuner Functions
–Tune Up/Down
–Preset Up/Down
• CD Functions
–Play
–Pause
–Stop
–Track Forward
–Track Reverse
–Disc Skip
–Shuffle
–Repeat
Plus
• 1-Year Limited Warranty
*See RCA dealer for complete details.
1 KEVLAR is a registered trademark of E.I. DuPont de Nemours and Company.
©1999 Thomson Consumer Electronics, Inc.
Form RS-2505
Trademark(s) ® Registered
Marca(s) Registrada(s)
Photos and features subject to change without
notice. Illustration of product finish may vary
from actual color.
PC12893
RS-2505
Changing Entertainment. Again.
