RCA RS2050, RS2054 User Manual

RS2050 RS2054

user

manual

EXPORTER Thomson Inc. P. O. Box 1976 Indianapolis, IN 46206-1976 © 2006 Thomson Inc. Trademark(s) ® Registered Marca(s) ® Registrada(s) Marque(s) ® Deposée(s) www.rca.com Printed In China / Impreso en China

56160680

IMPORTADOR Comercializadora Thomson de México, S.A. de C.V. Álvaro Obregón No. 151. Piso 13. Col. Roma. Delegación Cuauhtémoc C.P. 06700. México, D.F. Telefono: 52-55-11-020360 RFC: CTM-980723-KS5

It is important to read this instruction book prior to using your new product for the first time. Es importante leer este manual antes de usar por vez primera su euipo.

2050_fr_CS196 final_EN 16/1/06 5:35 PM Page 2

RS2050

Sleep

CDCDCD

N A T

B S

F N I /

O H P

TAL

IGI

L B I T

P M O

W R /

D C

P E L

R P /

FCC InformationFCC Information

The descriptions and characteristics given in this document are given as a general indication and not as a guarantee. In order to provide the highest quality product possible, we reserve the right to make any improvement or modification without prior notice. The English version serves as the final reference on all products and operational details should any discrepancies arise in other languages.

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In accordance with FCC requirements, changes or modifications not expressly approved by Thomson Inc. could void the user’s authority to operate this product. This device generates and uses radio frequency (RF) energy, and if not installed and used properly, this equipment may cause interference to radio and television reception. If this equipment does cause interference to radio or television reception (which you can determine by unplugging the unit), try to correct the interference by one or more of the following measures:

• Re-orient the receiving antenna (that is, the antenna for the radio or television that is " receiving" the interference).

• Move the unit away from the equipment that is receiving interference.

• Plug the unit into a different wall outlet so that the unit and the equipment receiving interference are on different branch circuits. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, "How To Identify and Resolve Radio TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, DC 20402. Please specify stock number 004-000-00345-4 when ordering copies. This product complies with DHHS Rules 21 CFR Subchapter J. Applicable at the date of manufacture.

For Your Safety

The AC power plug is polarized (one blade is wider than the other) and only fits into AC power outlets one way. If the plug won’t go into the outlet completely, turn the plug over and try to insert it the other way. If it still won’t fit, contact a qualified electrician to change the outlet, or use a different one. Do not attempt to bypass this safety feature.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Main plug is used as the disconnect device,it shall remain operable and should not be obstructed during intended used.To be completely disconnected the apparatus from supply mains,the main plug of the apparatus shall be disconnected from the mains socket outlet completely.

Have a Blast- Just Not in Your Eardrums Make sure you turn down the volume on the unit before you put on headphones. Increase the volume to the desired level only after headphones are in place.

Technical specification

Product: Audio System with mp3 Player Brand: RCA Model: RS2050/RS2054

Electrical Consumption:

Power Supply: 120V~60Hz Power consumption: 110 Watts

IMPORTER Comercializadora Thomson de México, S.A. de C.V. Álvaro Obregón No. 151. Piso 13. Col. Roma. Delegación Cuauhtémoc C.P. 06700. México, D.F. Telefono: 52-55-11-020360 RFC: CTM-980723-KS5

For Your Records

In the event that service should be required, you may need both the model number and the serial number. In the space below, record the date and place of purchase, and the serial number: Model No. Remote Control No. Date of Purchase Place of Purchase Serial No.

Service Information

This product should be serviced only by those specially trained in appropriate servicing techniques. For instructions on how to obtain service, refer to the warranty included in this Guide.

WARNING: TO PREVENT FIRE

OR ELECTRICAL

SHOCK HAZARD,

DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

SEE MARKING ON BOTTOM / BACK OF PRODUCT

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT.

THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF "DANGEROUS VOLTAGE" INSIDE THE PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Portions based upon Microsoft Windows Media Technologies. Copyright © 1999 Microsoft Corporation. All Rights Reserved. Microsoft, Windows Media, and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la class B est conforme à la norme du NMB-003 du Canada

RCA

RS2050

Equipment tested for

compliance as a

complete unit

For mp3 player only

RCA

RS2054

Equipment tested for

compliance as a

complete unit

2050_fr_CS196 final_EN 16/1/06 5:35 PM Page 4

Important InformationImportant Information

Safety Precautions

• Never open the cabinet under any circumstances. Any repairs or internal adjustments should be made only by a trained technician.

• Never operate this product with the cabinet removed.

• Do not use your System immediately after transporting it from a cold place to a warm place, as condensation may cause the system to malfunction.

• Keep your unit away from humid areas and abnormally hot places.

• Do not touch the player with wet hands. If any liquid enters the player cabinet, take the player to a trained technician for inspection.

• This compact disc player uses a laser to read the music on the disc. The laser mechanism corresponds to the cartridge and stylus of a record player. Although this product incorporates a laser pick-up lens, it is completely safe when operated according to directions.

• Discs rotate at high speed inside the player. Do not use damaged, warped, or cracked discs.

• Do not touch the pick-up lens which is located inside the disc compartment. To keep dust from collecting on the pick-up lens, do not leave the compartment door open for an extended period of time. If the lens becomes dirty, clean it with a soft brush, or use an air blower brush designed for camera lenses.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

•Minimum distances around the apparatus for sufficient ventilation .

• The ventilation should not be impeded by covering the ventilation opening with items, such as newspaper,table-cloths,curtains,etc.

• No naked flame sources,such as lighted candles,should be placed on the apparatus.

•Attention should be drawn to the environmental aspects of battery disposal .

Precautions for the mp3 Player

• Do not use the unit immediately after transportation from a cold place to a warm place; condensation problem may result.

• Do not store the unit near fire, places with high temperature or in direct sunlight.

• Do not operate or store unit in places with frequent static electricity or electrical noise (e.g. speaker, TV set).

• Clean the unit with a soft cloth or a damp chamois leather. Never use solvents.

• The unit must only be opened by qualified personnel.

Note:

This unit may temporarily cease to function if subjected to electrostatic disturbance. To resume normal operation, it may be necessary to cycle the power off and back on or to remove and reinstall the batteries.

Important Battery Information

• Remove the batteries to avoid leakage if you do not use your remote control for more than one month.

• Discard leaky batteries immediately as leaking batteries may cause skin burns or other personal injuries. Dispose of batteries in the proper manner, according to provincial and local regulations.

• Any battery may leak electrolyte under the following circumstances:

- if mixed with a different battery type,

- if inserted incorrectly,

- if all batteries are not replaced at the same

time,

- if disposed of in fire, or

- if an attempt is made to charge a battery not

intended to be recharged.

Headset Safety

• Do not play your headset at high volume. Hearing experts warn against extended highvolume play.

• If you experience ringing in your ears, reduce volume or discontinue use.

• You should use with extreme caution or temporarily discontinue use in potentially hazardous situations. Even if your headset is an open-air designed to let you to hear outside sounds, do not turn up the volume so high that you are unable to hear what is around you.

Caution While Driving

Use of headphones while operating an automobile or moving vehicle is not recommended and is unlawful in some states and areas. Be careful and attentive on the road. Stop operation of the unit if you find it disruptive or distracting while driving.

Don’t Infringe

This product should only be used for the purposes for which it is sold, that is, entertainment, violating no copyright law. Any attempts to use this product for which it is not intended is unlawful and therefore not condoned by Thomson.

2050_fr_CS196 final_EN 16/1/06 5:35 PM Page 6

Getting Started

Content of Box

•one main unit (with 2 main speakers);

• one remote control;

• one AM loop antennas;

• one mp3 Player;

• one user manual;

• one safety leaflet;

• Owner registration Card.

Connections of Antennas and Speakers

1. AUX IN.

2. Main Speaker terminal tabs.

3. AM Loop antenna Jacks.

4. FM Pigtail Antenna.

Note:

Make sure the tracks are encoded in mp3 or Windows Media formats and supported bitrates. Bitrates supported by the player:

mp3 – 32 to 320kbps

wma - 48 to 160kpbs

Warning:

Use of this product is for your personal use only. Unauthorized recording or duplication of copyrighted material may infringe upon the rights of third parties and may be contrary to copyright laws.

Table of Contents

FCC Information

Important Information

Table of Contents . . . . . . . . . . . . . . .1

Getting Started . . . . . . . . . . . . . . . .2

Content of Box . . . . . . . . . . . . . . . . . . . . . . . . . .2

Connections of Antennas and Speakers . . . . .2

General Controls . . . . . . . . . . . . . . .4

Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . .5

Display . . . . . . . . . . . . . . . . . . . . . . .7

Settings . . . . . . . . . . . . . . . . . . . . . .8

Setting the Clock / Timer . . . . . . . . . . . . . . . . . .8

Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Sound Features . . . . . . . . . . . . . . . .9

Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . .9

Bass Boost and Equalizer . . . . . . . . . . . . . . . . . .9

CD and mp3 Disc Playback . . . . . . .10

Play / Pause Discs . . . . . . . . . . . . . . . . . . . . . . . .11

Stop and Searching Through a CD . . . . . . . . .12

USB and mp3 player . . . . . . . . . . . .13

Connecting USB device to the Main Unit . . .13 Connecting / Disconnecting mp3 Player to the

Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Selecting USB or mp3 player Mode . . . . . . . .14

Memory Usage . . . . . . . . . . . . . . . . . . . . . . . . .14

Radio . . . . . . . . . . . . . . . . . . . . . . .15

Selecting Tuner Band . . . . . . . . . . . . . . . . . . . .15

Tuning to a Station . . . . . . . . . . . . . . . . . . . . . .15

Using Presets . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Auto Preset Programming . . . . . . . . . . . . . . . .15

Manually Setting Presets . . . . . . . . . . . . . . . . .15

Recording . . . . . . . . . . . . . . . . . . . .16

Recording CD to mp3 player . . . . . . . . . . . . . .16

Recording Standby . . . . . . . . . . . . . . . . . . . .16

Instant Recording . . . . . . . . . . . . . . . . . . . . .16

Recording Tuner / AUX to mp3 player . . . . . .16

Instant Recording . . . . . . . . . . . . . . . . . . . . .16

Program Recording . . . . . . . . . . . . . . . . . . .17

Recording to USB device . . . . . . . . . . . . . . . . .17

Deleting Files from mp3 player / USB Device 17

Advanced Playback Controls . . . . .18

Intro/ Repeat/Random . . . . . . . . . . . . . . . . . . .18

Setting Up a Program List . . . . . . . . . . . . . . . .18

Rename Tracks . . . . . . . . . . . . . . . . . . . . . . . . .19

Advanced Navigation Controls . . .20

File Navigation . . . . . . . . . . . . . . . . . . . . . . . . .20

Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Remote Control . . . . . . . . . . . . . . . . . . . . . .20

Tips on Playback Sequence of Disc . . . . . . . . .21

mp3 Player . . . . . . . . . . . . . . . . . . .22

Turn On/Off the Player . . . . . . . . . . . . . . . . . . .23

Playback Controls . . . . . . . . . . . . . . . . . . . . . . .23

Adjusting the Volume . . . . . . . . . . . . . . . . . . .24

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

DSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Play modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Frequently Asked Questions . . . . . . . . . . . . . .24

Troubleshooting Tips . . . . . . . . . . .25

Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

mp3 Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Maintenance . . . . . . . . . . . . . . . . .27

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Handling CDs . . . . . . . . . . . . . . . . . . . . . . . . . . .27

CD Lens Care . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Technical Specification . . . . . . . . . . . . . . . . . . .27

Warranty . . . . . . . . . . . . . . . . . . . .28

2050_fr_CS196 final_EN 16/1/06 5:35 PM Page 8

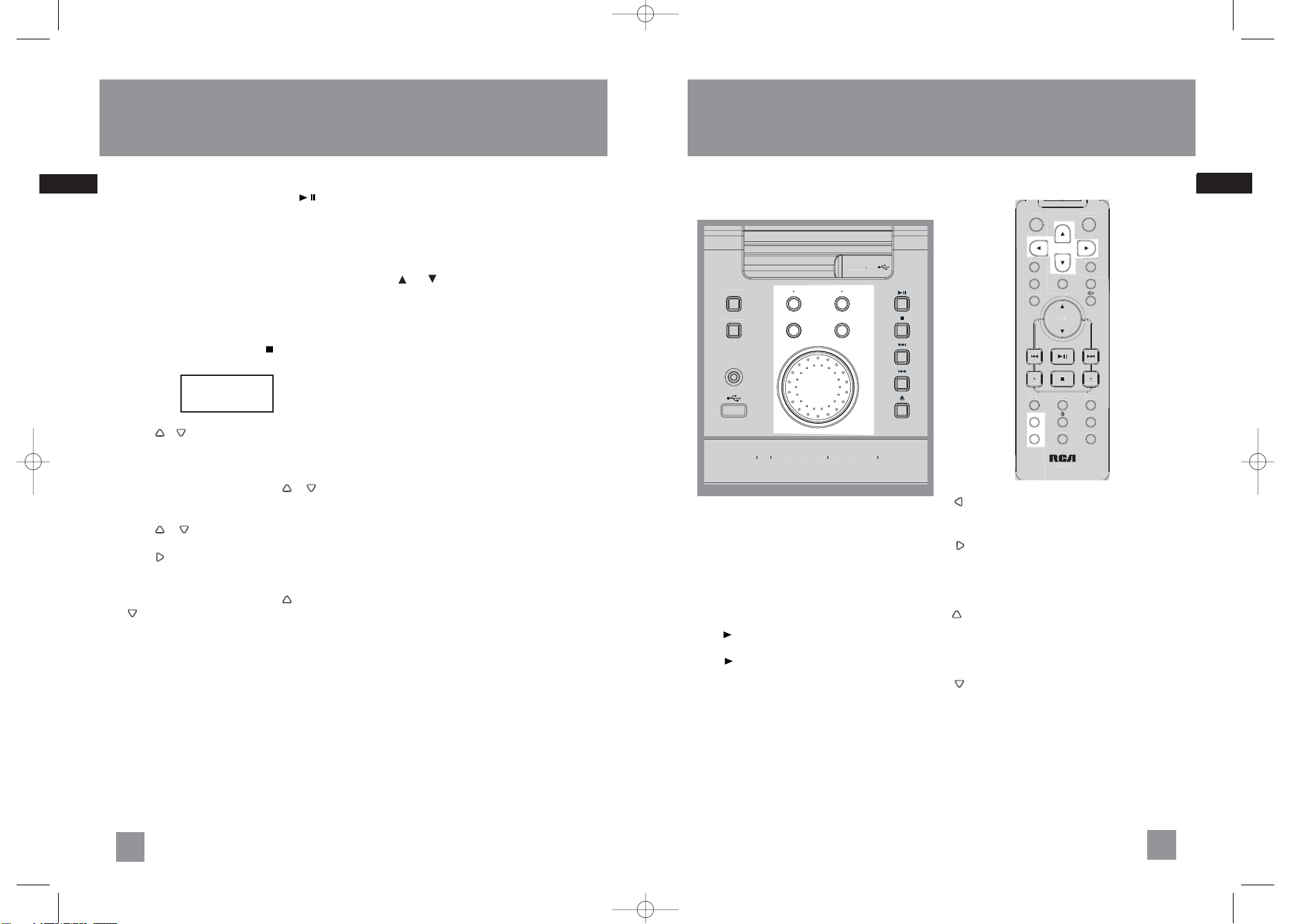

General Controls

Main Unit - Front View

ON/STANDBY - Press briefly to turn on and off

the unit. DEMO/DIMMER - Activates and deactivates demonstration.

SOURCE - Selects among CD player, tuner, USB, mp3 player and AUX. BAND/INFO - In CD mode - Selects display options to show track elapse time, track remain time or disc remain time.

In mp3 / WMA mode - Shows ID3 tag. In USB / mp3 player mode - Shows memory usage. In Tuner mode - selects radio band.

REC USB - Starts and stops record to USB device. REC PORTABLE PLAYER - Starts and stops record to mp3 player. BACK - In navigation mode - navigates backwards. In rename mode - edits previous alphabet SELECT - In mp3 / WMA / USB stop mode - Enters navigation mode.

In navigation mode - navigates forward. In rename mode - confirms the editing alphabet

(PLAY/PAUSE) - Starts and pauses playback

for CD, USB and mp3 player.

TUNE/PRESET - Stops CD, USB and mp3 player

In record mode - stops recording. In Tuner mode - selects tune or preset mode.

(SKIP FORWARD) - In CD mode - Goes to the next CD track and setting options; searches forward through CD; In USB and mp3 player mode - Skips to the next file; In Tuner mode - Tunes up radio frequency.

(SKIP BACKWARD) - In CD mode - Goes to the previous CD track and setting options; searches backward through CD; In USB and mp3 player mode - Skips to the previous file; In Tuner mode - Tunes down radio frequency.

Tips:

In STANDBY mode, press ON/STANDBY to turn the system on in the previously used mode. Press SOURCE to select the corresponding mode. Look at the display icons to identify the current mode.

Getting Started

Using the FM and AM Antennas

Before you use your audio system, you’ll want to make sure both the FM and AM antennas are positioned properly. Uncoil the FM antenna at the back of the unit, making sure it is fully extended (you may even want to tape it to the wall behind the unit if possible. The higher the better.) You’ll also need to connect the AM antenna loop to the back of the unit if you listen to AM stations. Rotate the AM loop antenna for better reception.

Connecting the Speakers

Speaker terminal tabs marked L are for left while R are for right. Each speaker has a black (negative) and a red (positive) wire. When connecting the speakers, match the red wires to the red jacks and the black wires to the black jacks.

Installation

To ensure sufficient ventilation, keep the spacings shown below free from other surfaces:

10 cm

Front View

10 cm

5 cm

Side View

2050_fr_CS196 final_EN 16/1/06 5:35 PM Page 10

Speaker

NOTE: Make sure the insulation

Wire Connection

Push Speaker terminal tab down to insert wire.

speaker wires at all connection

ends of the

Release tab to lock wire in the terminal.

is completely removed from the

RS2050

points.

Sleep

ON/

STANDBY

CDCD

SOURCE

BAND/INFO BACK SELECT

PHONES

DIGITAL MUSIC STUDIO

CD-R / RW COMPATIBLE

USB

REC

mp3 player

PORTABLE PLAYER

REC

RS2050

Sleep

ON/

STANDBY

CDCD

DEMO/DIMMER

TUNE/PRESET

USB

REC

SOURCE

BAND/INFO BACK SELECT

mp3

PHONES

REC

DIGITAL MUSIC STUDIO

CD-R / RW COMPATIBLE

DEMO/DIMMER

mp3 player

PORTABLE PLAYER

mp3

TUNE/PRESET

(LEFT/BACK) - In navigation mode - Navigates

backwards.

(RIGHT /ENTER) - Enters navigation mode form mp3 / WMA / USB stop mode. In navigation mode - Navigates forward.

BAND - In Tuner mode - selects radio band. B. BOOST - Turns on or off Bass Boost. FM ST - Selects between stereo and mono sound

in FM tuner mode.

EQ - Selects equalizer presets. DEMO/DIMMER - Activates and deactivates

demonstration. Adjusts the brightness of display. CD INFO - In CD mode - Selects display options to show track elapse time, track remain time or disc remain time.

In mp3 / WMA mode - Shows ID3 tag. In USB / memory card mode - Shows memory

usage.

- Mutes audio output. VOL or - Decreases or Increases volume level.

(SKIP BACKWARD) - In clock and timer setting mode - Goes to the previous setting option. In CD / USB / mp3 player mode - Goes to the previous track; searches backward through CD; In Tuner mode - Tunes down radio frequency.

(PLAY/PAUSE) - In CD / USB / mp3 player

mode - Starts and pauses playback.

(SKIP FORWARD) - In clock and timer

setting mode - Goes to the next setting option. In CD / USB / mp3 player mode - Goes to the next

track; searches forward through CD; In Tuner mode - Tunes up radio frequency. REC USB - Starts and stops record to USB device. REC PLAYER - Starts and stops record to mp3 player.

TUNE/PRESET (STOP) - In TUNER mode -

Selects tune or preset mode.

In CD / USB / mp3 player mode - Stops playback; In record mode - stops recording.

PROG - In CD, USB, mp3 player and Tuner mode Enters program mode. In navigation mode - enters rename mode and store new file names

INTRO - In CD / USB and mp3 player mode - Turns intro mode on or off to play the first 10 seconds of each track / file. CLOCK - Displays clock time. Press and hold to enter clock setting mode. ADD - In CD / USB / mp3 player mode - Adds track / file to Program List.

- In CD / USB / mp3 player mode - Turns on/off random playback. TIMER - Enters timer setting mode. Activates and deactivates timer. DEL - When reviewing program, removes track / file from Program List. In USB / mp3 player mode - Removes file from the connected mp3 player. In rename mode - deletes current alphabet

REPEAT - In CD mode - Repeats a track or CD. In USB / mp3 player mode - Repeats one file or

repeats all files. SLEEP - Selects the time interval in minutes before the unit turns off.

General Controls

- Opens or closes the disc tray. VOLUME CONTROL - Adjusts volume (except in navigation mode). In mp3 / WMA / USB navigation mode - Rotate clockwise to navigate downwards and rotate counter-clockwise to navigate upwards.

PHONES - Jack for connecting headphones

USB socket - connects USB devices

mp3 player - connects mp3 player

Remote Control

ON/STANDBY - Press briefly to turn on and off

the unit. SOURCE - Selects among CD player, tuner, USB, mp3 player, and AUX.

(UP)- In navigation mode - Navigates

upwards and move up a list.

In tuner mode - selects the next preset number. In rename mode - selects alphabets

(DOWN)- In navigation mode - Navigates downwards and move down a list. In tuner mode - Selects the previous preset number. In rename mode - selects alphabets

General Controls

Note:

Refer to “mp3 Player” section on page 2224 for mp3 player operation details.

2050_fr_CS196 final_EN 16/1/06 5:35 PM Page 12

STANDBY

BAND

FM ST

CD INFO

REC

USB

PROG INTRO CLOCK

ADD TIMER

DEL REPEAT

DEMO/DIMMER

VOL

RS2050

SOURCE

B.BOOST

REC

PLAYER

SLEEP

+ 13 hidden pages

RCA RS2050, RS2054 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
