RCA P46920BL User Manual

Download

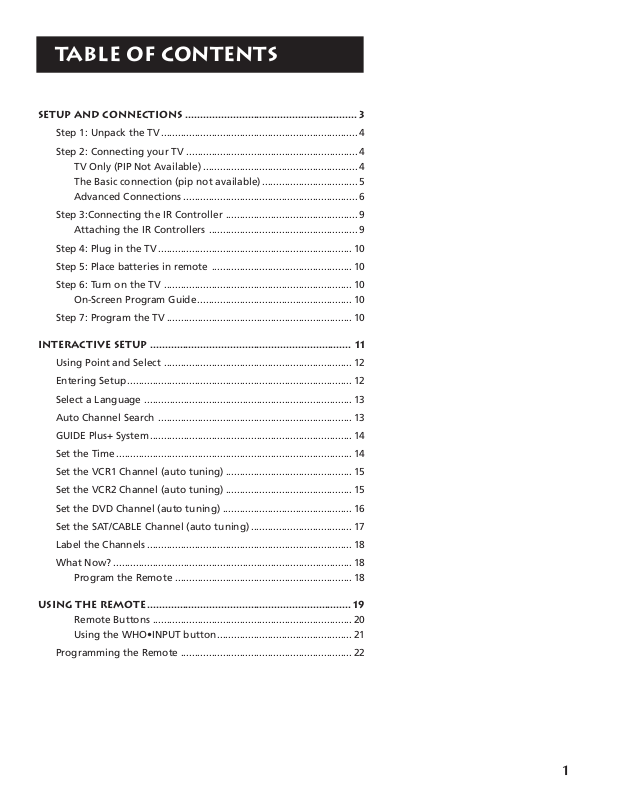

Table of Contents

Setup and connections .......................................................... 3

Step 1: Unpack the TV ......................................................................4

Step 2: Connecting your TV ............................................................. 4

TV Only (PIP Not Available) ....................................................... 4

The Basic connection (pip not available).................................. 5

Advanced Connections ..............................................................6

Step 3:Connecting the IR Controller ............................................... 9

Attaching the IR Controllers ..................................................... 9

Step 4: Plug in the TV ..................................................................... 10

Step 5: Place batteries in remote .................................................. 10

Step 6: Turn on the TV ................................................................... 10

On-Screen Program Guide....................................................... 10

Step 7: Program the TV .................................................................. 10

Interactive Setup .................................................................... 11

Using Point and Select ................................................................... 12

Entering Setup ................................................................................ 12

Select a Language .......................................................................... 13

Auto Channel Search ..................................................................... 13

GUIDE Plus+ System........................................................................ 14

Set the Time .................................................................................... 14

Set the VCR1 Channel (auto tuning) ............................................. 15

Set the VCR2 Channel (auto tuning) ............................................. 15

Set the DVD Channel (auto tuning) .............................................. 16

Set the SAT/CABLE Channel (auto tuning) ....................................17

Label the Channels ......................................................................... 18

What Now? ..................................................................................... 18

Program the Remote ............................................................... 18

Using the Remote..................................................................... 19

Remote Buttons ....................................................................... 20

Using the WHO•INPUT button................................................ 21

Programming the Remote ............................................................. 22

Table of Contents

Testing the remote .................................................................. 22

Programming the remote ....................................................... 22

Using the remote to control a device ..................................... 23

Modes of Operation ................................................................ 23

Front Panel ..................................................................................... 23

Features and Menus ............................................................... 25

Menus and Control Panels ............................................................. 26

Menus .......................................................................................26

Control Panels ..........................................................................27

Audio Menu .................................................................................... 28

Using the remote to select an audio processor ............................ 29

Picture Quality Menu ..................................................................... 30

Screen Menu ................................................................................... 31

Using Closed Captioning ......................................................... 32

Channel Menu ................................................................................ 33

Time Menu ...................................................................................... 34

Parental Controls Menu ................................................................. 35

GUIDE Plus++ Menu ....................................................................... 36

Setup Menu .................................................................................... 36

PIP (Picture-in-Picture) Operation ................................................. 37

Channel Marker .............................................................................. 38

Troubleshooting .................................................................... 39

Care and Cleaning ................................................................. 40

RCA PROJECTION TV LIMITED WARRANTY ............................ 41

Accessory Information ...................................................... 42

Setup and Connections

Getting started

This manu al is designed t o get y ou st arted quickl y . The first four sections of the manual show you how to get your TV Setup and Connected, run the Interactive Setup, Program the Remote, and use all of the Fea tures and Menus o f y our T V.

T he Reference section in the back of the book contains troubleshooting tips, care and cleaning instructions, accessory ordering information and your warranty.

Well… if y our T V ’s out o f the bo x, let ’s get st arted.

Setup and connections

➣

Interactive setup

➣➣

Using the remote

Features and Menus

➣

Reference

Check out the notes that have been added throughout the manual in these Tip Boxes. There are some important tips that will help you get the most from your TV.

Setup and Connections

Step 1: Unpack the TV

Make sure to locate the remote control and your GUIDE Plus+ Booklet.

Step 2: Connecting your TV

There are three types of connections outlined in this section:

TV Only: If you’re only going to connect the

TV to your home antenna or cable system.

The Basic Connection: If you’re going to connect the TV to a

VCR or satellite receiver.

Advanced Connections: If you’re going to make multiple

connections, hooking up the TV to one or two VCRs, DVD player, and a satellite receiver.

Cable information and illustrations are given for each type of connection. Once you have completed your desired connection you may skip forward to Step 3.

TV Only (PIP Not Available)

Before You Connect

Protect against power surges:

• Connect all components before plugging any power cords into the wall outlet.

• Turn off the TV and/or component before connecting or disconnecting any cables.

• Make sure all antennas and cables are properly grounded. Refer to your Safety Tips sheet packed with your TV.

This is a basic connection from an antenna or cable system to your TV. Connect the cable into the Cable/Antenna jack as shown.

Cables

You will use the following cable to make your connection:

Coaxial Cable: These cables carry audio and video signal to the TV from an antenna, cable, or cablebox.

CABLE, CABLE BOX, OR ANTENNA

SPEAKER

SELECTION

EXTERNAL INTERNAL

SPEAKERS

INPUT 2

VIDEO

AUDIO

AUDIO OUTPUT

L—AUDIO—R

INPUT 1

S-VIDEO

VIDEO

AUDIO

Once you have completed this connection you may skip to Step 3.

RIGHT

LEFT

S-VIDEO

CONTROL

ANTENNA

VCR

CABLE/

INPUT

This Connection Will Not Allow You to Use Your PIP

Your TV is equipped with a single tuner which means you must connect with a second video source using Audio/Video Cables. This TV Only connection will not enable you to use your PIP, but will get your TV up and running quickly.

Refer to Advanced Connections for connecting Audio/Video cables to your VCR or other video component.

Setup and Connections

The Basic connection (pip not available)

The basic connection below (TV and VCR) is the most common connection and is therefore used to illustrate a single component connection with your TV. For better sound and picture quality and multiple component connection information refer to the next section, Advanced Connections.

Cables

You will use the following cable to make your connection:

Coaxial Cables: These cables carry both the audio and video signal to the TV from an antenna, cable, or cablebox. In this connection, a second Coaxial Cable carries the signal through the VCR to the TV.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

VIDEO

IN FROM ANT

OUT

OUT TO TV

AUDIO

CH3 CH4

This Connection Will Not Allow You to Use PIP

Your TV is equipped with a single tuner which means you must connect with a second video source using Audio/Video Cables. This Basic Connection will not enable you to use your PIP, but will get your TV up and running quickly.

Refer to Advanced Connections for connecting Audio/Video cables to your VCR or other video component.

INPUT 1

S-VIDEO

VIDEO

AUDIO

SPEAKER

SELECTION

EXTERNAL INTERNAL

SPEAKERS

INPUT 2

VIDEO

AUDIO

AUDIO OUTPUT

RIGHT

L—AUDIO—R

LEFT

S-VIDEO

VCR

CONTROL

CABLE/

ANTENNA

INPUT

Once you have completed this connection you may skip to Step 3, “Connecting the IR Controller.”

How to View the VCR

To watch the VCR in this connection tune TV to Channel 3 or 4.

Later, in the Interactive Setup section you will program the TV to automatically tune to Channel 3 or 4 when you turn on the VCR.

Setup and Connections

Advanced Connections

Advanced connections give you better sound and video by separating the audio and video signals and enable you to connect multiple components.

This section describes the types of inputs available on the back of your TV and suggests ways you can use them for optimum performance.

Back of the TV

The diagram below describes each of the back panel jacks. When connecting A/V cables, be sure to connect corresponding OUTPUTS and INPUTS (Video to Video, Right Audio to Right Audio, etc.).

Input 1

Connect any of the following components:

• VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to Input 1: Use the WHO•INPUT button on the remote.

Connect any of the following components:

• VCR • Internet Access Device

• Laserdisc Player • DVD Player

• Satellite Receiver

To view the component connected to Input 2: Use the WHO•INPUT button on the remote.

Once you have made your connections you will need to program the TV to tune to the correct Video INPUT channel in order to see and hear audio and video from the component. You will program this later in the Interactive Setup.

Input 2

S-Video

This optional connection can be used for better video quality picture.

INPUT 1

S-VIDEO

Audio Outputs

Connect to an audio receiver or amplifier for variable controlled or fixed level stereo output.

VIDEO

AUDIO

SPEAKER

SELECTION

EXTERNAL INTERNAL

SPEAKERS

INPUT 2

VIDEO

AUDIO

AUDIO OUTPUT

RIGHT

L—AUDIO—R

S-VIDEO

LEFT

CONTROL

CABLE/

ANTENNA

VCR

INPUT

Cable/Antenna

Takes the signal input from a cable, cable box, or an off-air antenna. Can also be used for basic component connections.

Speaker Jacks

Use to connect external speakers for surround sound.

Make sure the Speaker Selection is set to EXTERNAL

S-Video

This optional connection can be used for better video quality picture.

VCR Control

Connect Guide Plus+ controller for one-button recording and channel tuning from the Guide.

Setup and Connections

Sample Connections

The following are sample connection scenarios which you may encounter when connecting components to your TV. Note: those components which offer an S-Video connection, such as DVD, VCR or Satellite Receivers, must match their S-Video connection with their audio INPUT connection.

Cables

You will use the following cable to make your connection:

Coaxial Cables: Carries the signal from the antenna or cable directly to the television or through a cablebox, as needed by your cable system.

Audio/Video Cables: Carries sound and video from the component to the TV.

S-Video Cable: Carries video from an S-Video capable component which provides best picture quality.

TV and Stereo VCR

CABLE, CABLE BOX, OR ANTENNA

Cautions:

Position cables to Avoid Audio Hum or Interference

• Insert all cables firmly into jacks.

• Place the audio/video cables to the sides of the TV’s back panel instead of straight down the middle.

• Try not to coil any twin-lead cables and keep them away from the audio/video cables.

Protect your components from Overheating

• Do not block ventilation holes in any of the components. Arrange the components so that air can circulate freely.

• Do not stack components.

• Allow adequate ventilation when placing your components in a stand.

• Place an amplifier on the top shelf of the stand so heated air rising from it will not flow around other components.

VCR

OUT

VIDEO

AUDIO

IN FROM ANT

OUT TO TV

CH3 CH4

How to View Your VCR

To watch the VCR in this connection, press TV to put the

INPUT 1

S-VIDEO

AUDIO

VIDEO

SPEAKER

SELECTION

EXTERNAL INTERNAL

SPEAKERS

INPUT 2

VIDEO

AUDIO

AUDIO OUTPUT

RIGHT

L—AUDIO—R

LEFT

S-VIDEO

VCR

CONTROL

CABLE/

ANTENNA

INPUT

remote control into TV mode, then press WHO•INPUT to scroll through the video input channels until you tune to VID1 input.

In the Interactive Setup section you can program the TV to automatically tune to the VID1 input channel when you turn on the VCR.

Compared to the Basic Connection, using audio, video and S-Video (if available) cables will enhance the sound and picture quality from a component.

Most Audio/Video cables are combined into one cable with three heads on each end.

We show individual cables in these sample connections. Either may be used,

Video (yellow)

Right Audio (red)

Left Audio (white)

but you must be sure to connect Video to Video, Right to Right and Left to Left.

Setup and Connections

TV, VCR and Satellite Receiver

CABLE, CABLE BOX, OR ANTENNA

SATELLITE SIGNAL

SATELLITE RECEIVER

IN FROM ANT

OUT TO TV

SATELLITE

S-VIDEO

VIDEO

OUT

VCR

IN FROM ANT

AUDIO

OUT TO TV

CH3 CH4

OUT

VIDEO

INPUT 1

S-VIDEO

SPEAKER

SELECTION

EXTERNAL INTERNAL

SPEAKERS

INPUT 2

VIDEO

AUDIO

AUDIO OUTPUT

L—AUDIO—R

RIGHT

LEFT

S-VIDEO

VCR

CONTROL

CABLE/

ANTENNA

INPUT

TV, VCR, Satellite Receiver and DVD

CABLE, CABLE BOX, OR ANTENNA

SATELLITE SIGNAL

How to View Your Components

To watch the Satellite Receiver in this connection, press TV to put the remote control into TV mode, then press WHO•INPUT to scroll through the video input channels until you tune to VID1 ( or S-VID 1) input.

To watch the VCR in this connection, press TV to put the remote control into TV mode, then press WHO•INPUT to scroll through the video input channels until you tune to VID2 ( or S-VID 2) input.

In the Interactive Setup you can program the TV to automatically tune to correct input channel when you turn on your component.

SATELLITE RECEIVER

S-VIDEO

VCR

DVD PLAYER

INPUT 1

S-VIDEO

VIDEO

AUDIO

OUT

IN FROM ANT

OUT TO TV

SATELLITE

How to View Your Components

OUT

VIDEO

IN FROM ANT

CH3

AUDIO

OUT TO TV

CH4

To watch the VCR in this connection tune to Channel 3 or 4.

OUT

S-VIDEO

VIDEO

To watch the DVD player in this connection, press TV to put the remote control into TV mode, then press WHO•INPUT to scroll through the video input channels until you tune to VID2 ( or S-VID 2) input.

SPEAKER

SELECTION

EXTERNAL INTERNAL

SPEAKERS

INPUT 2

VIDEO

L—AUDIO—R

AUDIO

AUDIO OUTPUT

RIGHT

LEFT

S-VIDEO

VCR

CONTROL

CABLE/

ANTENNA

INPUT

In the Interactive Setup you can program the TV to automatically tune to the correct input channel when you turn on your component.

Setup and Connections

Step 3: Connecting the IR Controller

The IR (Infrared) Controller enables GUIDE Plus+ Gold* to control your VCR and cable box (if necessary) so that you can tune to television channels and even start recording a program from the program guide.

After you have affixed the ends of the controller to the necessary devices (VCR, or Cable box), you will use the on-screen interactive setup routine for GUIDE Plus+ to test the connected devices.

Attaching the IR Controllers

Some components label the infrared remote sensor, and others do not. If your component is labeled, affix the IR controller directly over the sensor. For components that do not label the remote sensor, you need to use to use the component’s remote control to locate the sensor.

1. Hold the component’s remote control (not the remote that came with your TV) so that it is touching the front of the component.

2. Slowly move the remote over the front of the component while pressing the remote power button on and off. (Be sure to press and release the power button each time you move the remote. Holding the button may not work.)

Cable Box

CHANNEL

VCR

The IR Controller is used to send commands to your VCR and/or cable box.

3. When the component turns off or on, you’ve located the sensor.

4. Affix the controller’s node directly to the remote sensor.

Tip

You may want to use a piece of clear plastic tape to temporarily affix the controller’s node until you have completed

SENSOR

Attach to VCR

VCR

SENSOR

CHANNEL

the interactive setup. That way you easily move it if you have not placed it exactly over the sensor.

Attach to the Cable Box (if you have one)

otherwise, just leave it unattached

Connected to the TV

GUIDE Plus+ Gold is a trademark of Index System Inc. The GUIDE plus+ Gold system is manufactured under license from index Systems Inc.

Setup and Connections

ON OFF

AUX

DVD

SAT

CABLE

SOUND

GO BACK

SKIPMUTE

INFOGUIDE

VCR1

VCR2

Step 4: Plug in the TV

Plug the end into the wall outlet, matching the wide blade of the plug with the wide slot in the outlet. Be sure to insert the plug completely.

Step 5: Place batteries in remote

• Remove the battery compartment cover from the back of the remote.

• Insert fresh batteries. Make sure that the polarities (+ and -) are aligned correctly.

• Replace the cover.

Step 6: Turn on the TV

Press TV on the remote, or press POWER on the TV itself.

Pressing the TV button not only turns on the TV, but puts the remote into TV mode, so that the buttons on the remote will control TV functions.

On-Screen Program Guide

The TV is designed to bring up the GUIDE Plus+ on-screen program guide when you use the TV button on the remote to turn on the TV (after you have set up the GUIDE Plus+ system). For more information, see the GUIDE Plus+ Features & Setup booklet.

To get out of the Guide:

• Press OK to tune to the highlighted channel.

• Press GUIDE to tune to the channel displayed in the View window.

• Press CLEAR to remove the guide from the screen and go to the last channel you were watching.

Step 7: Program the TV

Proceed to the next section, Interactive Setup. The interactive setup routine walks you through the steps needed to fully configure the TV. The first steps ask you to select your preferred language for the menu system and to begin the auto channel search, which puts available cable TV or antenna signals into the TV’s memory.

Projection TV Convergence

If the picture appears to have a double or triple image or if you notice rings or halos around objects, you may have to adjust the color convergence. Details can be found under the Screen menu heading in the Features and Menus section of this manual.

Interactive Setup

There’s an on-screen setup routine

The interactive setup routine takes you through the steps needed to configure the TV:

• Select a menu language

• Search for available channels

• Set up the GUIDE Plus+ system

• Set the time

• Set the VCR1 channel

• Set the VCR2 channel

• Set the DVD channel

• Set the SAT/CABLE channel

• Make the channel list and labels

Setup and connections

➣

Interactive Setup

➣➣

Using the remote

Features and Menus

➣

Reference

Interactive Setup

CLEAR

Using Point and Select

You only need to know one rule when using the remote to access onscreen menus and control panels: point and select. The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the remote.

To point up or down, press the up or down arrows. To point left or right, press the left or right arrows.

2. Select a menu item by pressing MENU or OK.

Selecting an item tells the TV’s menu system to go ahead and make the change or go to a place you have indicated.

Entering Setup

The first screen of the Interactive Setup appears automatically when you turn on your TV for the first time or after a power outage.

1. Press MENU to begin setup or CLEAR to exit.

Point and Select

buttons

SETUP

When first used or after a power outage, your television needs to be set up. Would you like to begin now?

Press MENU to begin setup or Press CLEAR to exit.

You can also access the Interactive Setup through the Main menu:

1. Press MENU to bring up the Main menu.

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen 4 Channel 5 Time 6 Parental Control 7 GUIDE Plus+ Menu

8 Setup

0 Exit

2. Point to Setup and press MENU or OK. The first Setup screen comes up, asking you to confirm that you want to begin.

You can also select a menu item by entering the item number with the number buttons on the remote.

Press CLEAR at any time to remove all displays from the screen and return to TV viewing.

Many VCR user manuals refer to a PROGRAM button. The MENU button on this remote works as a PROGRAM button in VCR mode. Other manuals may refer to a SELECT button. The OK button on this remote works as a SELECT button.

Interactive Setup

SETUP

Would you like to begin Setup now?

1 Begin setup now

2 Cancel setup

3. Point to Begin setup now and press MENU or OK.

Select a Language

The first part of the setup routine asks you to select your preferred language for the menu system.

SETUP

Select the language to be used in these menus.

1 English

2 Español

3 Français

1. Point to your preferred language for the menu system.

2. Press MENU or OK to select that language.

Auto Channel Search

The next part of the setup routine asks you if you want the TV to search automatically for all channels available through your antenna or cable TV system. This is sometimes called “autoprogramming.”

SETUP

Would you like the TV to search for all available channels?

1 Search for channels

2 Skip this step

1. Press MENU or OK to tell the TV to begin searching for channels. The display gives you a progress report and tells you when it has finished.

2. Press MENU or OK to continue.

If you skip Auto Channel Search now, you can access it later through the Channel menu. You can also put channels in memory manually using List & Labels. See Features and Menus for more details.

Interactive Setup

GUIDE Plus+ System

The next step lets you set up the GUIDE Plus+ system to display your local program listings, and control your cable box and VCR.

For More GUIDE Plus+ Information

You can either press MENU or OK to bring up the GUIDE Plus+ initial menu or point to Skip this Step to move to the next step in the Interactive Setup.

SETUP

This TV has GUIDE Plus+, the new on-screen program guide with one-button VCR recording.

1 Set up GUIDE Plus+

2 Skip this step

See the GUIDE Plus+ Features & Setup Booklet for detailed setup instructions.

Set the Time

The next step in the Interactive Setup lets you set the time of day. If your GUIDE Plus+ system has not completed its first download you need to set the time. Once the Guide system has completed its first download, it sets the time for you automatically.

SETUP

Would you like to set the time on the TV?

1 Set time

2 Skip this step

Specific information about the GUIDE Plus+ System is contained in a separate booklet that accompanied this product.

1. Press MENU or OK to bring up the Set Time control panel.

SET TIME

: AM

Enter

01 to 12

Press MENU to exit.

2. Use the left and right arrows to point to the hour and minutes spaces. Use the up and down arrows to scroll through the numbers and change from AM to PM.

3. Press MENU or OK to continue.

for the hour.

Interactive Setup

Set the VCR1 Channel (auto tuning)

The next step lets you set the VCR1 channel. When you set the VCR1 channel, you’re telling the TV what channel to tune to when you press the VCR1 button on the remote. This is Auto Tuning.

Indicate which input you used to connect the VCR. If you don’t have a VCR1 component connected to the TV, skip this step or select Not Connected from the VCR1 Channel choice list. (For more, see Auto Tuning in the Features and Menus section.)

SETUP

Would you like to use a VCR with your TV?

1 Use TV with a VCR

2 Skip this step

1. Press MENU or OK to bring up the VCR1 choice list.

SET VCR1 CHANNEL

1 Not connected

2 Channel 3 3 Channel 4 4 Video 1 Input 5 Video 2 Input

2. Point to the choice that matches the way you have your VCR connected to the TV.

3. Press MENU or OK to continue.

Set the VCR2 Channel (auto tuning)

The next step lets you set the VCR2 channel. When you set the VCR2 channel, you’re telling the TV what channel to tune to when you press the VCR2 button on the remote.

Indicate which input you used to connect a second VCR. If you don’t have a second VCR component connected to the TV, skip this step or select Not Connected from the VCR2 Channel choice list. (For more, see Auto Tuning in the Features and Menus section.)

Interactive Setup

SETUP

Would you like to use a second VCR with your TV?

1 Use TV with VCR 2

2 Skip this step

1. Press MENU or OK to bring up the VCR2 choice list.

SET VCR2 CHANNEL

1 Not connected

2 Channel 3 3 Channel 4 4 Video 1 Input 5 Video 2 Input

2. Point to the choice that matches the way you have your second VCR connected to the TV.

3. Press MENU or OK to continue.

Set the DVD Channel (auto tuning)

The next step lets you set the DVD channel. When you set the DVD channel, you’re telling the TV what channel to tune to when you press the DVD button on the remote.

Indicate which input you used to connect a DVD player. If you don’t have a DVD player connected to the TV, skip this step or select Not Connected from the DVD Channel choice list. (For more, see Auto Tuning in the Features and Menus section.)

SETUP

Would you like to use a DVD with your TV?

1 Use TV with DVD

2 Skip this step

1. Press MENU or OK to bring up the DVD choice list.

Interactive Setup

SET DVD CHANNEL

1 Not connected

2 Channel 3 3 Channel 4 4 Video 1 Input 5 Video 2 Input

2. Point to the choice that matches the way you have your DVD player connected to the TV.

3. Press MENU or OK to continue.

Set the SAT/CABLE Channel (auto tuning)

The next step lets you set the SAT/CABLE channel. When you set the SAT/ CABLE channel, you’re telling the TV what channel to tune to when you press the SAT•CABLE button on the remote.

Indicate which input you used to connect a satellite receiver or a cable box. If you don’t have a satellite receiver or cable box connected to the TV, skip this step or select Not Connected from the SAT/CABLE Channel choice list. (For more, see Auto Tuning in the Features and Menus section.)

SETUP

Would you like to use a cable box or satellite unit with your TV?

1 Use with cable or satellite

2 Skip this step

1. Press MENU or OK to bring up the SAT/CABLE choice list.

SET SAT/CABLE CHANNEL

1 Not connected

2 Channel 2 3 Channel 3 4 Channel 4 5 Video 1 Input 6 Video 2 Input

2. Point to the choice that matches the way you have your satellite receiver or cable box connected to the TV.

3. Press MENU or OK to continue.

If You Have Both a Satellite Receiver and a Cable Box Connected to the TV

The remote cannot control both a cable box and the satellite receiver. If you choose to have the remote control the satellite receiver, you must then use your cable box remote to control the cable box. You may, however, prefer to use the satellite receiver remote for satellite programming, and set your SAT•CABLE button to control your cable box. It’s your choice.

Interactive Setup

Label the Channels

This last step in the Interactive Setup lets you create your channel list and label your channels. (For more, see List and Labels in the Features and Menus section.)

SETUP

Would you like to name each channel?

1 Name channels

2 Skip this step

1. Press MENU or OK to bring up the List and Labels control panel.

LIST AND LABELS

Chan Normal Chan # List Label

59 Yes ------

Use ^ or v, buttonpad, or CHAN ^/v to set channel, MENU to exit.

Use the CH␣ ^ (channel up) or CH␣ v (channel down) buttons to change channels in the Chan # field. This works even if you’re not in the Chan # field. Or, enter the channel number directly using the number buttons on the universal remote. To enter a number greater than 99, press and hold “1” to enter the hundreds digit, then press the two remaining numbers.

The list and labels feature can also be accessed from the Channel menu. Because this procedure can be time consuming, feel free to skip this step and come back to it later.

2. Use the left and right arrows to point to the three different areas of the control panel (called “fields”).

3. Use the up and down arrows to scroll through the numbers and letters and select Yes or No in the Normal List field. You may wish to refer to the call letters listed in your newspaper’s TV section for ideas on labelling the channels.

4. Repeat this process for each of your channels. Then press MENU or OK to continue. The TV can store up to 27 labels in memory.

What Now?

Now that you’ve finished the interactive setup, you can sit back, relax, and enjoy the TV. Or...

Program the Remote

Since you’ve gone this far, you can take a few minutes to program the remote to control your VCR, DVD player, Satellite receiver, or other components. To find out how to program the remote, go to the next section.

Using the Remote

How to use your Universal Remote

This section defines the buttons of the remote and how to program it to control other components.

The universal remote can be programmed to control most brands of remote controllable VCRs, satellite receivers, and cable boxes. If you have an RCA, GE, or ProScan component, you probably don’t need to program it at all.

Setup and connections

➣

Interactive setup

➣➣

Using the remote

Features and Menus

➣

Reference

Modes of Operation

Because this universal remote can control several different components (DVD player, VCR, Cable Box, etc.) it uses operational modes triggered by the component buttons. For example if you want the remote to control the TV, you would press the TV button to put the remote into TV mode before you could control the TV.

Using the Remote

Remote Buttons

ON•OFF When in TV mode, turns TV on and off. If in another device mode (VCR, DVD, Satellite, etc.) and programmed, will turn the device on and off. When pressed twice within two seconds all devices that are on will be turned off (this feature only works with most RCA, ProScan and GE products).

VCR1 Puts the remote in VCR mode and if autotuning is enabled, it will turn on the TV and tune to the correct channel.

TV Turns on the TV and puts the remote in TV mode. Also displays channel information.

DVD Puts the remote in DVD mode and if autotuning is enabled, it will turn on the TV and tune to the correct channel.

VCR2 Puts the remote in VCR2 mode and if autotuning is enabled, it will turn on the TV and tune to the correct channel.

LED Red light which indicates programming mode when programming the remote.

AUX Puts the remote in AUX mode. Also, turns on the TV.

SAT•CABLE Puts the remote in SAT•CABLE mode and if autotuning is

enabled, it will turn on the TV and tune to the correct channel.

MUTE Reduces the TV’s volume to its minimum level. Press again to restore the volume.

VCR1

DVD

SOUND

GUIDE

LED

ON OFF

VCR2

AUX

SAT

GO BACK

CLEAR

SKIPMUTE

INFO

CABLE

SKIP Press once before changing channels and the TV will wait 30 seconds before returning you to the original channel. Press repeatedly to add more time.

CH ^ or CH v Scans up or down through the current channel list. Press once to change the channel up or down; press and hold to continue changing channels.

VOL – or VOL + Decreases or increases the TV’s volume.

SOUND Press once to display the audio processor choice list. Point and

select to choose a different processor or press CLEAR to exit.

GO BACK Returns you to the previous channel.

GUIDE Brings up GUIDE Plus+ system and exits the Guide. In SAT•CABLE

mode brings up available on-screen guides.

INFO Brings up channel information.

MOVE (Arrows) Used to point to different items in the menu system.

Also used to adjust the menu controls. Also move the PIP window when no menus are on the screen.

OK When in the menu system, selects highlighted items or returns you to the previous menu.

MENU Brings up the Main menu and selects highlighted items. When in VCR mode, it functions as a PROGRAM button.

WHO INPUT

RECORD

PIP

PLAY FORWARDREVERSE

STOP PAUSE

SWAP

ANTENNA

RESETCH CTRL

Using the Remote

CLEAR Removes any menu or display from the screen and returns you to TV viewing. Will also exit the Guide system.

(0-9) Number Buttons Enters channel numbers and time settings directly though the remote control. To enter a two-digit channel, press the two digits. To enter a three-digit channel, press and hold the first digit until #-- appears, then add the second two. Example: to tune to channel 123, press and hold 1 until 1-- appears, release the 1 button and then press 2, and 3.

WHO•INPUT In TV mode, press to toggle through the available input sources (VID1/SVID1, VID2/SVID2, previous channel). In SAT mode, press to select available channel lists.

ANTENNA Functions as TV/VCR button in VCR mode and TV/receiver button in SAT•CABLE mode.

REVERSE, PLAY, FORWARD, RECORD, STOP, PAUSE If programmed, provides transport control for some remote-controllable VCRs, DVD players, laserdisc players, tape decks, and CD players. Pressing RECORD when using the GUIDE Plus+ system sets the VCR to record a program.

PIP Brings up the small picture-in-picture window. Press again to remove the PIP window. When PIP Caption Display - Alternate with PIP has been selected, will display captioning in the PIP window.

SWAP Swaps the main picture with the PIP window.

CH CTRL Selects the picture window, (that is, the main or PIP window)

to be changed by the CH␣ ^ (channel up) or CH␣ v (channel down) buttons.

RESET Resets picture quality controls to the Bright Lighting Picture Control Preset. Point and select to choose a different Picture Control Preset.

Using the WHO•INPUT button

Use the WHO•INPUT button to scroll through the available input channels and view components you have connected to the TV.

1. Press TV to place the remote in TV mode. Make sure that the component you want to view is turned ON.

2. Press WHO•INPUT to tune to an available input channel.

3. Continue to press the WHO•INPUT button to scroll through the channels.

Modes of Operation

Using the Remote

Programming the Remote

The universal remote can be programmed to control most brands of remote controllable VCRs, satellite receivers and cable boxes. The remote is already programmed to control most RCA, GE and ProScan TVs, VCRs, DVD players, laserdisc players and satellite receivers.

Testing the remote

To determine whether the universal remote needs to be programmed, turn a device ON, such as a VCR, point the remote at the VCR, and press the VCR1 button. Then press POWER or CH␣ ^ (channel up) or CH␣ v (channel down) to see if the VCR responds to the remote commands. If not, the remote needs to be programmed.

Programming the remote

Using Automatic Code Search

The following instructions can be used to program the remote to control each of the devices connected to your TV. If you want to exit the automatic code search without programming any of your devices, press CLEAR until the LED turns off.

1. Turn on the device you want to control (VCR, SAT, etc.)

2. Press and hold the button you want to program (VCR1, VCR2, etc.). While holding the device button, press and hold ON•OFF until the red light on the remote turns on, then release both buttons.

VCR1

ON OFF

CABLE

SAT

AUX

VCR2

DVD

3. Press and release PLAY, then wait 5 seconds or until the LED stops flashing.

At this point the remote is searching for the correct code to program. If, after 5 seconds, the device you want to control does not turn off, press PLAY again to tell the remote to search the next set of codes.

Continue pressing PLAY until the device turns off or you have searched through all of the codes. There are 20 total sets of codes. If the device does not turn off after pressing PLAY 20 times, then the remote cannot control that particular device.

If the device you want to control does turn off:

1. Press and release REVERSE, then wait 2 seconds. Repeat this step until the device turns back ON.

2. To finish, press and hold STOP until the red light on the remote turns off.

Using Direct Entry

1. Turn on the component to be programmed.

PLAYREVERSE

STOP

You’ll use these buttons when you program the remote to control any device.

The remote may not operate all models of all brands.

Using the Remote

2. Look up the brand and code number(s) for the component on the code list on the last page of this section, Using the Remote.

3. Press and hold the button on the remote you want to program.

4. Enter the code from the code list.

5. Release button, and then press ON•OFF to see if the component responds to the remote commands. If it doesn’t, try pressing the component button and then ON•OFF again.

6. If you get no response, repeat these steps using the next code listed for your brand, until the component responds to the remote commands.

Using the remote to control a device

Once the remote has been programmed successfully, you are ready to use it to control your devices.

To operate the device:

1. Press the device button (TV, VCR1, VCR2, DVD, AUX, or SAT•CABLE) to set the remote to control the device.

2. Press ON•OFF to turn the device ON or OFF.

3. Use the remote buttons that apply to that device.

Modes of Operation

Front Panel

If you cannot locate your remote you can use the front panel of your TV to operate many of the TV’s features.

MENU Brings up the Main menu. When in the menu system, it selects highlighted items. Also returns you to the previous menu.

CH v Scans down through the current channel list. In the menu system, it points down to items and adjusts menu controls.

CH ^ Scans up through the channel list. In the menu system, it points up to items and adjusts menu controls.

VOL – Decreases the volume. When in the menu system, VOL – is used to point left to items and adjust menu controls.

VOL + Increases the volume. When in the menu system, VOL + is used to point right to items and adjust menu controls.

POWER Turns the TV on and off.

MENU POWER

The front panel above shows a typical button layout. The exact look of the buttons may be different from those on the front of your TV.

If you use the Channel Block feature, the front panel no longer provides access to the menus. The Front Panel Lockout feature disables all front panel buttons. For more information, see Parental Control, in the Features and Menus section.

VOL

–

Using the Remote

VCR

Admiral ......................................................................... 2131

Adventura ..................................................................... 2026

Aiko ............................................................................... 2027

Aiwa .................................................................... 2002, 2026

Akai .... 2003, 2004, 2005, 2007, 2008, 2111,2112, 2113

American High ............................................................ 2021

Asha ............................................................................... 2013

Audio Dynamics .............................................. 2009, 2010

Audiovox ...................................................................... 2014

Bell & Howell............................................................... 2011

Beaumark ..................................................................... 2013

Broksonic .......................................................... 2012, 2025

Calix .............................................................................. 2014

Candle ......... 2013, 2014, 2015, 2016, 2017, 2018, 2019

Canon ...................................................... 2021, 2022, 2114

Capehart ............................................................ 2020, 2110

Carver ........................................................................... 2062

CCE .................................................................... 2027, 2061

Citizen 2013, 2014, 2015, 2016, 2017, 2018,2019,2027

Colortyme ................................................................... 2009

Colt ................................................................................ 2061

Craig ............................................. 2013, 2014, 2023, 2061

Curtis-Mathes ........................... 2000, 2002, 2009, 2013,

................................. 2016, 2018, 2021, 2022, 2024, 2115

Cybernex ...................................................................... 2013

Daewoo ...... 2015, 2017, 2019,2025, 2026, 2027, 2028,

Daytron......................................................................... 2110

Dbx ..................................................................... 2009, 2010

Dimensia ....................................................................... 2000

Dynatech ........................................................... 2002, 2026

Electrohome ..................................................... 2014, 2029

Electrophonic .............................................................. 2014

Emerson ................................................. 2002, 2012,2014,

............ 2015, 2021, 2024, 2025,2026,2029, 2030, 2032,

2033, 2034, 2035, 2036, 2037, 2038, 2039, 2040, 2041,

2042, 2044, 2045, 2047, 2065, 2105, 2113, 2116, 2117,

Fisher . 2011, 2023, 2048, 2049, 2050, 2051, 2052,2118

Fuji ...................................................................... 2021, 2119

Funai ................................................................... 2002, 2026

Garrard ......................................................................... 2026

GE ..... 2000, 2001, 2013, 2021, 2022, 2053, 2115, 2120

Goldstar ............................ 2009, 2014, 2018, 2054, 2121

Gradiente ..................................................................... 2026

Harley Davidson ......................................................... 2026

Harman Kardon .......................................................... 2009

Harwood ...................................................................... 2061

Headquarter ................................................................ 2011

Hitachi2002, 2055, 2056, 2057, 2107, 2111, 2120, 2122

HI-Q .............................................................................. 2023

Instant Replay .............................................................. 2021

JCL ................................................................................. 2021

JC Penney ............. 2009, 2010, 2011, 2013, 2014, 2021,

.......... 2022, 2055, 2056, 2058, 2059, 2060, 2107, 2118

Jensen ...................................................... 2055, 2056, 2111

JVC ............... 2009, 2010, 2011, 2018, 2058, 2111, 2123

Kenwood .............. 2009, 2010, 2011, 2016, 2018, 2058,

KLH ............................................................................... 2061

Kodak ................................................................. 2014, 2021

Lloyd ................................................................... 2002, 2026

Logik .............................................................................. 2061

LXI ................................................................................. 2014

Magnavox .... 2021, 2022, 2062, 2063, 2104, 2108, 2124

Magnin ........................................................................... 2013

Marantz .................................................. 2009, 2010, 2011,

.................................. 2016, 2018, 2021, 2058, 2062,2064

Marta ............................................................................. 2014

Masushita ...................................................................... 2021

MEI ................................................................................. 2021

Memorex .......................................................... 2002, 2011,

..................... 2013, 2014, 2021, 2023, 2026, 2104, 2131

MGA ........................................................ 2029, 2065, 2113

MGN Technology ........................................................ 2013

Midland ......................................................................... 2053

Minolta .................................................... 2055, 2056, 2107

Mitsubishi .. 2029, 2055, 2056, 2065, 2066, 2067, 2069,

.......... 2070, 2071, 2072, 2073, 2074, 2106, 2113, 2123

Montgomery Ward .......................................... 2075, 2131

Motorola ........................................................... 2021,2131

MTC ........................................................ 2002, 2013, 2026

2110

2130

2111,2123

Multitech ................. 2002, 2013, 2016, 2026, 2053, 2061

NEC .................................... 2009, 2010, 2011, 2016, 2018,

....................... 2058, 2064, 2076, 2078, 2079, 2111, 2123

Nikko ............................................................................... 2014

Noblex ............................................................................ 2013

Olympus ......................................................................... 2021

Optimus ............................................................... 2014, 2131

Optonica ......................................................................... 2096

Orion .............................................................................. 2035

Panasonic ................. 2021, 2022, 2109, 2125, 2126, 2127

Pentax ................................. 2016, 2055, 2056, 2107, 2120

Pentex Research ........................................................... 2018

Philco .............................................. 2021, 2022, 2062, 2063

Philips ............................................. 2021, 2062, 2096, 2124

Pilot ................................................................................. 2014

Pioneer ................................ 2010, 2055, 2080, 2081, 2123

Portland ......................................... 2016, 2017, 2019, 2110

Proscan ................................................................ 2000, 2001

Protec .............................................................................. 2061

Pulsar ............................................................................... 2104

Quarter .......................................................................... 2011

Quartz ............................................................................. 2011

Quasar ...................................................... 2021, 2022, 2125

RCA .................................... 2000, 2001, 2003, 2013, 2021,

.............. 2055, 2056, 2082, 2083, 2084,2085, 2086,2087,

.............. 2088, 2089, 2090, 2091, 2107, 2115, 2120, 2125

Radioshack/Realistic .................... 2002, 2011, 2013, 2014

. 2021, 2022, 2023, 2026, 2029, 2049, 2050, 2096, 2131

Radix ................................................................................ 2014

Randex ............................................................................ 2014

Ricoh ............................................................................... 2128

Runco .............................................................................. 2104

Samsung ................... 2005, 2013, 2015, 2033, 2053, 2112

Sanky .................................................................... 2132, 2104

Sansui ............................................. 2010, 2092, 2111, 2123

Sanyo ......................................................... 2011, 2013, 2023

Scott ... 2012, 2015, 2025, 2032, 2035, 2038, 2065, 2093,

Sears .................................... 2011, 2014, 2021, 2023, 2048,

......................... 2049, 2050, 2051, 2055, 2056, 2107, 2118

Sharp .............. 2002, 2017, 2029, 2094, 2095, 2096, 2131

Shintom .......................................... 2004, 2056, 2061, 2098

Shogun ............................................................................ 2013

Signature ............................................................. 2002, 2131

Singer ......................................................... 2021, 2061, 2128

Sony .......................... 2002, 2004, 2098, 2099, 2119, 2128

STS ........................................................................ 2021, 2107

Sylvania 2002, 2021, 2022, 2026, 2062, 2063, 2065, 2124

Symphonic ........................................................... 2002, 2026

Tandy .................................................................... 2002, 2011

Tashiko ............................................................................ 2014

Tatung ................................................................... 2058, 2111

TEAC ................................... 2002, 2026, 2058, 2085, 2111

Technics ............................................................... 2021, 2109

Teknika ..................... 2002, 2014, 2021, 2026, 2100, 2129

Tmk ........................................................... 2013, 2024, 2047

Toshiba ........... 2015, 2049, 2051, 2055, 2065, 2093, 2116

ToteVision ........................................................... 2013, 2014

Unitech ........................................................................... 2013

Vector Research .......................... 2009, 2010, 2015, 2016

Victor .............................................................................. 2010

Video Concepts ................ 2009, 2010, 2015, 2016, 2113

Videosonic ..................................................................... 2013

Wards .......... , 2002, 2013, 2014, 2015, 2021, 2023, 2026,

.. 2029, 2055, 2056, 2061, 2096, 2101, 2102, 2103, 2107,

XR-1000 ................................................... 2021, 2026, 2061

Yamaha ..................... 2009, 2010, 2011, 2018, 2058, 2111

Zenith .................................. 2004, 2098, 2104, 2119, 2128

2116

2116, 2131

Cable Boxes

ABC ................ 5002, 5003, 5004, 5005, 5006, 5007, 5053

Antronix .............................................................. 5008, 5009

Archer ............................................ 5008, 5009, 5010, 5011

Cabletenna ..................................................................... 5008

Cableview ....................................................................... 5008

Century .......................................................................... 5011

Citizen ............................................................................. 5011

Colour Voice ....................................................... 5012, 5013

Comtronics ......................................................... 5014, 5015

Contec ............................................................................ 5016

Eastern ............................................................................ 5017

Garrard .................................................................................. 5011

GC Electronics ..................................................................... 5009

Gemini ............................................................. 5018, 5019, 5049

General Instrument ............................................................ 5003

Hamlin ........................................ 5020, 5021, 5022, 5035, 5045

Hitachi .................................................................................... 5003

Hytex ...................................................................................... 5002

Jasco ....................................................................................... 5011

Jerrold ........ 5003, 5005, 5007,5018, 5023, 5024, 5046, 5053

Magnavox ............................................................................... 5025

Memorex ............................................................................... 5026

Movie Time ..................................................... 5002, 5027, 5028

NSC .................................................................. 5002, 5027, 5028

Oak .................................................................... 5002,5016, 5029

Panasonic .................................................................... 5048, 5052

Paragon .................................................................................. 5026

Philips ........ 5011, 5012, 5013, 5019, 5025, 5030, 5031, 5032

Pioneer ........................................................................ 5033, 5034

Pulsar ...................................................................................... 5026

RCA .................................................................. 5047, 5049, 5052

Realistic ....................................................................... 5009, 5049

Regal ............................................................................ 5022, 5035

Regency ................................................................................. 5017

Rembrandt ............................................................................ 5003

Runco ..................................................................................... 5026

Samsung ...................................................................... 5014, 5034

Scientific Atlanta .................................. 5006, 5036, 5037, 5038

Signal ............................................................................ 5014, 5018

Signature ................................................................................ 5003

SL Marx .................................................................................. 5014

Sprucer .................................................................................. 5052

Starcom ............................................................ 5007, 5018, 5053

Stargate ....................................................................... 5014, 5018

Starquest ................................................................................ 5018

Tandy ...................................................................................... 5040

Teleview ................................................................................. 5014

Tocom .............................................................. 5004, 5023, 5041

Toshiba ................................................................................... 5026

Tusa ......................................................................................... 5018

TV86 ....................................................................................... 5027

Unika ................................................................ 5008, 5009, 5011

United Artists ....................................................................... 5002

United Cable ........................................................................ 5053

Universal ............................................... 5008, 5009, 5010, 5011

Videoway ............................................................................... 5044

Viewstar ................................................ 5015, 5025, 5027, 5040

Zenith ............................................................... 5026, 5050, 5051

Satellite Receivers

Chapparal ................................................................... 5056, 5057

Drake .......................................................................... 5058, 5059

GE DSS ....................................................................... 5000, 5001

General Instuments ....................................... 5060, 5061, 5062

Panasonic DSS ...................................................................... 5075

Primestar DBS ...................................................................... 5076

Proscan DSS .............................................................. 5000, 5001

RCA DSS .................................................................... 5000, 5001

Realistic .................................................................................. 5063

Sony DSS ............................................................................... 5072

STS1 ........................................................................................ 5064

STS2 ........................................................................................ 5065

STS3 ........................................................................................ 5066

STS4 ........................................................................................ 5067

Toshiba ................................................................................... 5068

Toshiba DSS .......................................................................... 5073

Uniden DSS ........................................................................... 5069

Audio

(For RCA and Dimensia brands only)

AM/FM ................................................................................... 4003

Aux ......................................................................................... 4004

Phono ..................................................................................... 4005

CD .......................................................................................... 4007

Tape ........................................................................................ 4006

DVD Players

RCA ........................................................................................ 2001

ProScan .................................................................................. 2001

GE .......................................................................................... 2001

Features and menus

Using the TV

This section explores the features and menus of your TV beginning with some information on using menus and control panels.

Each menu is then outlined and special features are detailed in order to help you get the most from your TV.

Information on using your GUIDE Plus+ system can be found in a separate booklet for easier access and so it can be placed near you while you become with the feature.

Setup and connections

➣

Interactive setup

➣➣

Using the remote

Features and Menus

➣

Reference

Features and menus

Menus and Control Panels

Using the buttons on both the remote and front panel enable you to access and make changes to the Menus and Control Panels.

Menus use the point and select rule to navigate, but control panels use a variety of methods to adjust features on your TV. The following pages detail how to use these controls in order to customize the functions of your TV.

Menus

The first menu is called the Main menu. Press MENU on the remote or on the front panel to bring up the Main menu:

TV MAIN MENU

1 Audio

2 Picture Quality 3 Screen 4 Channel 5 Time 6 Parental Controls 7 GUIDE Plus+ Menu 8 Setup 0 Exit

Menus take you to another menu or a control panel. There are two ways to select a choice in a menu:

• Point with the MOVE arrows and then select with MENU or OK.

• Press a number button on the remote. For example, in the Main menu press 3 to go straight to the Screen menu.

Exiting a menu

There are three ways to exit a menu:

• Point to Exit and press MENU or OK.

• Press 0 on the remote.

• Press CLEAR. The on-screen displays are cleared from the screen and you are returned to TV viewing.

Feel free to explore the menu system. If you’re ever unsure where you are in the menu system, or you’re just plain tired of exploring, press CLEAR to remove the menus from the screen and start over again.

Features and menus

Control Panels

Control Panels allow you to adjust the default settings on many features of your TV. You can choose a setting, enter a number, or adjust a level such as tint or brightness. There are three types of control panels: sliders, choice lists, and numeric entry.

Sliders

Sliders are used to make adjustments to a particular control.

To use a Slider in a menu:

1. Press the up or down arrow to select the slider control for the feature you want to adjust.

2. Press the right or left arrow to adjust the indicator line on the slider.

Arrows

VCR1

DVD

SOUND

GUIDE

ON OFF

VCR2

CABLE

SAT

AUX

SKIPMUTE

GO BACK

INFO

PICTURE CONTROLS

Contrast

Color Tint Black Level Sharpness Press MENU to exit.

Numeric Entry

A numeric entry control panel is used to enter numbers or letters.

A pointer appears underneath the column you are changing.

SET TIME

: AM

Enter

01 to 12

Press MENU to exit.

for the hour.

Pointer

WHO INPUT

RECORD

PIP

PLAY FORWARDREVERSE

STOP PAUSE

SWAP

CLEAR

ANTENNA

RESETCH CTRL

1. Press the up arrow to enter a number in the column above the pointer.

2. Press the right arrow to move to the next column, then press the up or down arrow to enter a number.

3. When you have finished entering information, press MENU or OK.

If the control panel is not set at the current time, use the left arrow to go back over the columns and the up arrow to make changes.

You can also enter numbers directly by using the number buttons.

Features and menus

Choice Lists

Choice lists are used to choose a particular setting from a list of settings.

1. Point to a choice from the list and press MENU or OK to select that choice.

CLOSED-CAPTION MODE

1 CC1

2 CC2 3 CC3 4 CC4 5 Text1 6 Text2 7 Text3 8 Text4

Now that you know how to access the menus and adjust the control panels the following pages provide a brief explanation of all the menu features. The features are organized in order of their location on the Main Menu.

Audio Menu

Mute Press OK to reduce the TV’s volume to its minimum level. Press OK again to restore the volume.

Tone Controls Displays the slider controls for adjusting the TV’s treble, bass and balance.

Audio Processor Displays a choice list of available audio modes, which control the way the sound comes through your speakers.

Mono Plays the sound in mono only. Use this setting when receiving broadcasts with weak stereo signals.

Stereo Splits the incoming stereo audio signal into left and right channels. Most TV programs and recorded materials have stereo audio. The TV displays the word STEREO when you tune to a program that is broadcast in stereo.

Second Audio Program (SAP) Plays the program’s audio in a second language, if one is available. The TV displays the word SAP when you tune to a program that is broadcast with SAP information. SAP audio is broadcast in mono. SAP is also used to broadcast a program’s audio with descriptions of the video for the visually impaired.

TV MAIN MENU

1 Audio

2 Picture Quality 3 Screen 4 Channel 5 Time

1 Mute

6 Parental Controls

2 Tone Controls

7 GUIDE Plus+ Menu

3 Audio Processor

8 Setup

4 Audio Output & Speakers

0 Exit

AUDIO

Features and menus

Audio Output & Speakers Displays a choice list that lets you turn the TV’s internal speakers on or off and set the audio outputs to fixed-level or variable control level.

Variable Output, Speakers On This setting turns the TV’s speakers on and allows variable output from the TV’s audio output jacks.

Variable Output, Speakers Off This setting turns the TV’s speakers off and allows variable output from the TV’s audio output jacks.

Fixed Output, Speakers Off This setting turns the TV’s speakers off and allows fixed output from the TV’s audio output jacks to an external device such as a surround sound amplifier. With Fixed Output On, the TV’s volume control, tone controls and mute are disabled.

VCR1

DVD

VCR2

ON OFF

CABLE

SAT

AUX

Using the remote to select an audio processor

You can change the audio processor from the Audio menu, as illustrated above, or by pressing the SOUND button on the remote. To make a selection using the remote:

1. Press SOUND to display the audio processor choice list.

2. Point to and select a different audio processor or press CLEAR to exit.

Sound button

SOUND

GUIDE

WHO INPUT

RECORD

PIP

SWAP

GO BACK

CLEAR

ANTENNA

PLAY FORWARDREVERSE

STOP PAUSE

SKIPMUTE

INFO

RESETCH CTRL

Features and menus

PICTURE QUALITY

1 Basic Picture Controls

2 Picture Presets 3 Auto Color 4 Color Warmth 5 Video Noise Reduction 0 Exit

Picture Quality Menu

Basic Picture Controls Displays the five slider controls for adjusting the way the picture looks.

Contrast Adjusts the difference between the light and dark areas of the picture.

Color Adjusts the richness of the color.

Tint Adjusts the balance between the red and green levels.

Black Level Adjusts the brightness of the picture.

Sharpness Adjusts the crispness of edges in the picture.

When exiting this menu the Save Personal Picture Preset Choice List will appear. You can choose either Yes or No.

Picture Presets Displays a choice list that lets you select one of three preset picture settings: Bright Lighting, Normal Lighting, Soft Lighting or Personal Picture Presets. Choose the setting that is best for your viewing environment and edit your Personal Picture Preset.

Auto Color Displays a choice list that lets you turn on the feature that automatically corrects the color of the picture. (This is especially useful for tracking realistic flesh tone colors as you switch from channel to channel.) Choose On or Off, depending on your preference. It’s your choice.

TV MAIN MENU

1 Audio

2 Picture Quality

3 Screen 4 Channel 5 Time 6 Parental Control 7 GUIDE Plus+ Menu 8 Setup 0 Exit

Color Warmth Displays a choice list that lets you set one of three automatic color adjustments: Cool for a more blue palette of picture colors; Normal; and Warm for a more red palette of picture colors. The warm setting corresponds to the NTSC standard of 6500ºK.

Video Noise Reduction Displays a choice list that lets you turn on the feature that automatically reduces noise from the picture.

Press the RESET button on the remote to bring up the Picture Control Presets choice list. Point to the desired setting; press MENU or OK to select it.

Features and menus

SCREEN

1 Closed-Caption Display

2 Closed-Caption Mode 3 PIP Closed-Caption Display 4 PIP Closed-Caption Mode 5 Menu Language 6 Adjust Projection TV 0 Exit

Screen Menu

Closed-Caption Display Displays a choice list that lets you choose the way closed captioning information is shown on the screen.

Off No captioning information displayed.

On Captioning information shown always, when available.

On When Sound is Muted Displays captioning information, when

available, whenever the TV’s sound is muted by pressing the MUTE button. The captioning information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which captioning mode is used for displaying captioning information.

PIP Closed-Caption Display Displays a choice list that lets you choose the way closed captioning information is shown in the PIP window.

Off No captioning information displayed.

On Captioning information shown always, when available.

Alternate with PIP button Displays captioning information,

when available, by pressing the PIP button while the PIP window is displayed.

PIP Closed-Caption Mode Displays a choice list that lets you choose which captioning mode is used for displaying captioning information within the PIP window.

TV MAIN MENU

1 Audio 2 Picture Quality

3 Screen

4 Channel 5 Time 6 Parental Control 7 GUIDE Plus+ Menu 8 Setup 0 Exit

Menu Language Displays a choice list that lets you select your preferred language for the menus: English, Spanish or French.

Adjust Projection TV (Projection TV only) Lets you adjust the TV’s three colors. Selecting Green Centering brings up a control panel that lets you center the green projection tube on the screen. Selecting Red convergence or Blue convergence lets you align the red and blue projection tubes.

Center the green projection tube first. Then, adjust the red and blue projection tubes until the test patterns on the TV screen appear white.

Your projection TV has three color projection tubes - one for red, one for green, and one for blue. When the tubes are precisely aligned they create the color images you see on the TV screen. Over time, the picture can drift out of alignment due to normal bumps and vibrations or moving the TV. If you notice rings or halos around objects in the picture, you may want to readjust the picture tubes.

Features and menus

Using Closed Captioning

Many programs are encoded with closed captioning information, which lets you display the audio portion of a program as text on the TV screen.

Closed captioning is not available on all channels at all times. Only specific programs encoded with closed captioning information are applicable. When a program is closed captioned, the letters CC are displayed in the channel marker.

Closed Captioning Modes

The TV offers eight closed-captioned modes, including four text modes.

To Set the Closed-Captioning Mode:

1. Select Screen from the Main menu.

2. Point to Closed-Caption Mode and press OK. A choice list displays:

CLOSED-CAPTION MODE

1 CC1

2 CC2 3 CC3 4 CC4 5 Text1 6 Text2 7 Text3 8 Text4

3. Point to your choice and press OK to select it and return to the Screen menu.

Turning off Closed Captioning

1. Select Screen from the Main menu.

2. Press OK to select Closed-Caption Display

3. Point to Off Always and press OK. The closed captioning is turned off and you are returned to the Screen menu.

If you are unsure of the differences among the modes, you may prefer to leave the closed captioned mode set to CC1, which displays complete text of the program in the primary language in your area.

Features and menus

Channel Menu

Signal Type Displays a choice list that lets you select the current antenna type. This option does not appear when the TV GUIDE Plus+ system is set up.

UHF/VHF Antenna Choose this if you are currently using an off-air antenna for TV signals.

Cable TV Choose this if you are currently using cable or a cable box for TV signals.

Auto Channel Search Tells the TV to search automatically for all the channels available through the antenna input. When the TV finds an active channel, it places it in the channel list; inactive channels (weak stations or channels with no signal at all) will be removed from the channel list. If you are using a cable box and have setup your GUIDE Plus+ system, this option does not appear.

List and Labels Displays a control panel that lets you custom-build your Normal channel list and choose a six-character label for each channel. Follow the on-screen directions to enter your channels and other information.

Chan # Use the up and down arrows to scroll up and down through the channel scan list. You can enter the channel number directly using the number buttons.

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen

4 Channel

5 Time 6 Parental Controls 7 GUIDE Plus+ Menu 8 Setup

1 Signal Type

0 Exit

2 3 List and Labels 4 Auto Tuning 0 Exit

CHANNEL

Auto Channel Search

Normal List Only the channels included in the Normal list are available when you scan up and down using the CHAN buttons. Use the up and down arrows to indicate whether the channel number indicated is included (Yes ) or is not included (No) in the Normal channel list.

Chan Labels Use the up and down arrows to enter a six-character label for each channel. Hold the button down to scroll quickly through the characters. Press RESET to clear a label. The TV can

store up to 27 labels in memory.

Auto Tuning Displays a choice list that lets you set up the TV to

automatically tune to the correct input channel when you press a component button (VCR1, DVD, VCR2, AUX or SAT•CABLE) on the remote.

Set VCR 1 Channel Displays a choice list that lets you select the channel that the TV tunes to when you press the VCR1 button.

Set VCR2 Channel Displays a choice list that lets you select the channel that the TV tunes to when you press the VCR2 button.

Set DVD Channel Displays a choice list that lets you select the channel that the TV tunes to when you press the DVD button.

Set SAT/Cable Channel Displays a choice list that lets you select the channel that the TV tunes to when you press the SAT•CABLE button.

Features and menus

The choices for each screen are: Not Connected Choose this if you do not have a component connected to an antenna or video input on the back of the TV, or if you don’t want the TV to tune to a channel when the particular component button is pressed.

Channel 2 (SAT/Cable only) Choose this if your component is connected to the antenna jack on the back of the TV, and you want the TV to tune to channel 2 when you press the specified component button. Reminder: Make sure the component’s Ch 2/3/4 switch is set to channel 2.

Channel 3 Choose this if your component is connected to the antenna jack on the back of the TV, and you want the TV to tune to channel 3 when you press the specified component button. Reminder: Make sure the component’s Ch 3/4 switch is set to channel 3.

Channel 4 Choose this if your component is connected to the antenna jack on the back of the TV, and you want the TV to tune to channel 4 when you press the specified component button. Reminder: Make sure the component’s Ch 3/4 switch is set to channel 4.

Video 1 Input Choose this if your component is connected to the INPUT1 jacks on the back of the TV and you want the TV to tune to VID1(SVID1 if you used an S-Video cable) input channel when you press the specified component button.

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen

4 Channel

5 Time 6 Parental Controls 7 GUIDE Plus+ Menu 8 Setup

1 Signal Type

0 Exit

Auto Channel Search 3 List and Labels 4 Auto Tuning 0 Exit

CHANNEL

Video 2 Input Choose this if your component is connected to the INPUT2 jacks on the back of the TV and you want the TV to tune to VID2 (SVID2 if you used an S-Video cable) input channel when you press the specified component button.

Time Menu

Sleep Timer Displays a control panel that lets you select the amount of time you want to give the TV before it shuts itself off.

Schedule Displays a control panel that lets you set up a schedule for turning the TV on and off automatically. Make sure to turn the schedule On. The on-screen directions guide you through the steps needed to set the schedule.

Set Time Displays a control panel that lets you enter the current time. The on-screen directions guide you through the steps needed to set the time. If your TV Guide Plus+ system is setup and running then it will automatically update your time and this option will not be available.

View Warranty Clock Displays the number of hours the TV has been in operation (up to 5 years) and the date the TV was first turned on.

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen 4 Channel

5 Time

6 Parental Controls 7 GUIDE Plus+ Menu 8 Setup 0 Exit

1 Sleep Timer

2 Schedule 3 Set Time 4 View Warranty Clock 0 Exit

TIME

Features and menus

PARENTAL CONTROLS

1 Parent Approved Channels

2 Channel Block 3 Front Panel Lockout 0 Exit

Parental Controls Menu

Parent Approved Channels Displays a control panel that lets you decide what channels can be viewed or selected using the TV’s front panel controls.

Chan # Use the up and down arrows to scroll up and down through the channel scan list. You can enter the channel number directly using the number buttons.

Parent Approved Use the up and down arrows to choose whether the channel indicated should be shown when the Channel Block feature is turned on. Select Yes to indicate that the channel can be shown at any time, regardless of whether Channel Block is turned on. Select No to indicate that the front panel cannot tune to that channel when Channel Block is turned on. Important: You must turn the Channel Block feature on. (See Channel Block, below.)

Channel Block Displays a control panel that lets you decide when a channel can be viewed. With Channel Block On, the Menu button on the front panel of the TV will be locked so that settings cannot be altered. In order for this to be used as a parental control, the remote must be hidden or placed out of reach of children.

Off All channels are available.

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen 4 Channel 5 Time

6 Parental Control

7 GUIDE Plus+ Menu 8 Setup 0 Exit

On Always The front panel CH (channel) buttons will tune only to channels that you have marked as “Parent Approved.” The remote will still tune to any channel.

Scheduled Selected channels will be blocked out between start and stop times you enter in the control panel. The front panel CH (channel) buttons will tune only to channels that you have marked as “Parent Approved.” The remote will still tune to any channel.

Front Panel Lockout Displays a control panel that lets you lock (disable) the TV’s front control panel, or unlock (enable) the TV’s front control panel. The remote will still tune to any channel.

Front Panel lockout can be used to:

• Keep children from watching TV when the parent is not present.

• Keep small children from playing with the buttons.

(When using this as a Parental Control method you must remove access to the remote while you have the Front Panel locked.)

If you can’t access a channel or use the TV’s front panel buttons, maybe you’ve forgotten to turn off a parental control. Check the Channel Block and Front Panel Lockout control panels.

Features and menus

GUIDE Plus++ Menu

GUIDE Plus+ Setup Displays the GUIDE Plus+ setup screen.

Setup Setting up the GUIDE Plus+ system is detailed in the GUIDE

Plus+ booklet.

View Demo Runs the GUIDE Plus+ demonstration.

GUIDE Plus+ Label Displays the GUIDE Plus+ Label menu.

On Displays the station name when you change channels.

Off Disables the Label feature.

GUIDE Plus+ Auto Display Displays the GUIDE Plus+ display options.

On Automatically displays the Guide when you use the TV button

on the remote to turn on the TV.

Off Disables the Guide from being displayed when you use the TV button on the remote to turn on the TV.

Continuous Demo Runs the GUIDE Plus+ demonstration until it is turned off.

For additional information on using the GUIDE Plus+ system see the GUIDE Plus+ Setup & Features booklet included in your literature pack.

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen 4 Channel 5 Time 6 Parental Controls

7 GUIDE Plus+ Menu

8 Setup 0 Exit

1 GUIDE Plus+ Setup

2 GUIDE Plus+ Label 3 GUIDE Plus+ Auto Display 4 GUIDE Plus+ Continuous Demo 0 Exit

GUIDE MENU

Setup Menu

The setup routine is detailed earlier in the manual in the Interactive Setup section.

The first screen of the Interactive Setup appears automatically when you turn on your TV for the first time or after a power outage.

You can also access the Interactive Setup from the Main Menu.

SETUP

When first used or after a power outage, your television needs to be set up. Would you like to begin now?

Press MENU to begin setup or Press CLEAR to exit.

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen 4 Channel 5 Time 6 Parental Control 7 GUIDE Plus+ Menu

8 Setup

0 Exit

SETUP

Would you like to begin Setup now?

1 Begin setup now

2 Cancel setup

Features and menus

STOP PAUSE

ON OFF

AUX

DVD

SAT

CABLE

PIP

SWAP

RECORD

RESETCH CTRL

PLAY FORWARDREVERSE

SOUND

GO BACK

SKIPMUTE

INFO

CLEAR

GUIDE

ANTENNA

WHO INPUT

VCR1

VCR2

PIP (Picture-in-Picture) Operation

The PIP (picture-in-picture) feature lets you display a second, smaller picture on top of the main picture.

Your TV is equipped with a single tuner that tunes to cable or off-air television signals. The PIP feature on your TV requires a second video source, like a VCR or satellite receiver to supply the second picture to the screen. The PIP feature also requires connecting the second video source to the TV with audio/video cables.

PIP Buttons

There are four remote buttons that control the way the PIP window works:

PIP Brings up the PIP window. Press PIP again to remove the window. When PIP Caption Display – Alternate with PIP – has been selected, will display captioning in the PIP window.

MOVE buttons Let you move the PIP window to different areas of the screen.

Move buttons

SWAP Switches, or “swaps,” the video from the PIP window with the main picture.

CH CTRL (Channel Control) Lets you switch channel control between the PIP window and the main picture.

Using the PIP Feature

While you may use PIP in different ways, this basic PIP scenario should get you started. While watching the TV, follow these steps to use your VCR to supply the picture for PIP.

1. Press the PIP button on the remote. The PIP window appears on the screen.

2. Turn on the VCR.

3. Press the TV button, then press WHO•INPUT until you see the VCR signal displayed in the PIP window. The PIP window should display the channel that you have the VCR tuned to.

4. At this point, in order to change the program in the PIP window, you need to change the channel on the VCR because that is the signal source for the PIP picture.

5. Use the channel up and down buttons and the other PIP buttons, MOVE, SWAP and CH CTRL to adjust the two pictures.

PIP buttons

A typical use of SWAP is to scan through channels in the PIP window, and when you find a channel you like, press SWAP to display that channel in the main picture, sending the current channel to the PIP window.

You must change the mode between the TV and VCR after every SWAP.

Features and menus

PIP Problems?

• Make sure the remote is in the right mode. For example, once you turn on the VCR with the VCR1 button, you can’t SWAP the pictures until you put the remote in TV mode. Just press the TV button.

• No signal or bad reception? Most VCRs and satellite receivers have an antenna or TV button. If your cable or off-air antenna goes into your VCR or satellite receiver, then into your TV, try pressing the antenna or TV button on the front of the component.

Tip: If programmed to control your VCR, the ANTENNA button on the remote acts as a TV/VCR button.

• Check the connections. PIP requires a second video source, like a VCR or satellite receiver, connected to your TV with audio/video cables. If you use a cable box, you may need extra equipment. Contact your cable company for more information.

Channel Marker

There are several indicators that come up when you press the TV, INFO, PIP or SWAP button. This display is called the Channel Marker.

CABLE, CABLE BOX, OR ANTENNA

VCR

OUT

VIDEO

AUDIO

SPEAKER

RIGHT

SELECTION

EXTERNAL INTERNAL

SPEAKERS

INPUT 2

VIDEO

INPUT 1

S-VIDEO

VIDEO

AUDIO

L—AUDIO—R

AUDIO

AUDIO OUTPUT

IN FROM ANT

CH3 CH4

OUT TO TV

LEFT

S-VIDEO

VCR

CONTROL

CABLE/

ANTENNA

INPUT

To see a different picture in the PIP window, you must connect another video source, like a VCR. This connection requires audio/video cables.

You can program the TV to tune to a specific channel when you press the VCR1, SAT•CABLE, DVD and VCR2 buttons. This is an easy way to tune the PIP window to the correct video input channel.

Check out the Autotuning feature in the Interactive Setup and Features and Menus sections.

12:01 Displays the current time.

CC Displayed when Closed Captioning is available on the current

channel.

VCR1 Displays the label assigned to the current channel.

VID1 Displays the current channel or input channel.

Mute (or Stereo) Mute is displayed when you mute the audio. Stereo

is displayed when the current channel is broadcasting in Stereo.

SAP Displayed when the current channel is broadcasting SAP (Second Audio Program) information.

PIP 59 (PIP Chan) Displays the current PIP channel.

Sleep Displayed when the Sleep Timer has been set.

00:00 Displayed to count down time left on the commercial skip (SKIP)

timer.

12:01 CC VCR1 VID1

Mute SAP PIP 59

Sleep 00:00

Sample displays on a Channel Marker

Reference

Troubleshooting

Troubles sometimes are caused by simple “faults” that you can correct without the help of a service technician. If you experience any difficulty with your TV, check a few basic remedies before calling your service technician.

TV will not turn on

• Check to make sure it is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in something else.

• Maybe batteries in remote control are “dead.”

• Maybe remote control is not aimed at remote sensor.

• The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front Panel Lockout in the Parental Controls menu and choosing Unlock.

Controls don’t work

• If using remote control, make sure remote is in TV mode by first pressing TV button.

• The front panel MENU button may be disabled. Use the remote control to turn off channel blocking. Select Channel Block in the Parental Controls menu and choose Off.

• Try unplugging set for two minutes and then plug it back in and turn it on again.

Problems with Remote

• Maybe something is between the remote and the remote sensor.

• Maybe the remote is not aimed directly at the component (TV or VCR) you are trying to control.

• Maybe remote is not in TV Mode. Press the TV button so remote will control TV.

• Maybe batteries in remote are weak, dead or installed incorrectly. Try replacing batteries. (Note, if you remove the batteries, you may have reprogram the remote to control other components.)

• Remove batteries and hold number 1 for at least 60 seconds to drain the microprocessor inside the remote. Release number 1, replace the batteries, and (if necessary) reprogram the remote.

• Remove all batteries for approximately 12 hours. Then replace batteries and (if necessary) reprogram the remote.

Guide Comes On When I Turn on TV

• The Guide automatically comes up when you use the TV button on the remote to turn on the TV. You can turn off this feature by selecting GUIDE Plus+ Auto Display from the GUIDE Plus+ Menu, and setting it to off.

Turns off while playing

• Schedule off function may have been activated.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on again. If this happens frequently, the voltage in your house may be abnormally high or low.

TV Turns on unexpectedly

• Scheduled On or Watch from the Guide may have been activated.

Blank screen

• Maybe the component connected to the input jacks is not turned on.

• Try another channel.

• Press RESET, in case the picture controls are set too low.

No sound, picture okay

• Maybe sound is muted. Try pressing volume up button to restore sound.

• Maybe speakers are turned off. Check the Audio Output and Speakers control panel in the Audio menu.

• If using an S-VHS component, remember to also connect the component’s L and R AUDIO OUT jacks to the TV’s L and R INPUT jacks.

Reference

Can’t select certain channel

• Channel may be blocked or not approved in the Parental Controls menu.

• If using a VCR, check to make sure the TV/VCR switch on the VCR is in the correct position.

Noisy stereo reception

• May be a weak station. Use SOUND button to change to mono mode instead of stereo.

No picture, no sound but TV is on

• Maybe the cable/air function is set to the wrong position.

• Maybe a vacant channel is tuned.

• If watching VCR (connected only through antenna input), make sure TV is tuned to channel 3 or 4 – same as CH3/4

switch on VCR. Also check to make sure TV/VCR switch on VCR is in correct position.

Sound okay, picture poor

• Check antenna connections.

• Try adjusting sharpness function to improve weak signals.

Black Box appears on the screen

• Captioning may be turned on. Check the Closed-Caption Display control panel in the Channel menu.

GUIDE Plus+ IR Controllers not working

• Check to make sure the controllers are positioned correctly over the IR remote sensors.

• Your remote may be interfering with the IR controller. Place a piece of dark tape over the IR controller.

• GUIDE Plus+ control of cable box is slower than direct control of the box itself. Keep this in mind when changing

channels.

Care and Cleaning

CAUTION: Turn OFF your TV before cleaning.

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet to help assure adequate ventilation.

The TV’s screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If necessary, you may use a cloth dampened with warm water.

Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of cleaners will damage the TV.

While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV. Also, avoid placing drinks or vases with water on top of the TV. This could increase the risk of fire or shock hazard or damage to the TV.

Caution: If fixed (non-moving) images are left on the screen for long periods, they may be permanently imprinted on the

screen. Such images include network logos, phone numbers, and video games. This damage is not covered by your warranty. Extended viewing of channels displaying these images should be avoided.

Reference

RCA PROJECTION TV LIMITED WARRANTY

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• One year for labor charges.

• One year for parts.

• Two years for picture tubes. The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm,

whichever comes first.

What we will do:

• Pay any Authorized RCA Television Service Center the labor charges to repair your television.

• Pay any Authorized RCA Television Service Center for the new or, at our option, refurbished replacement parts and picture tubes required to repair your television.

How you get service:

• Request home service from any Authorized RCA Television Service Center, provided that your television

is located within the geographic territory covered by an Authorized RCA Television Service Center. If not, you must take your television to the Service Center location at your own expense, or pay for the cost the Service Center may charge to transport your television to and from your home. To identify your nearest Authorized RCA Television Service Center, ask your dealer, look in the Yellow Pages, or call 1-800-336-1900.

• Show the Authorized Service Center Representative your evidence of purchase date or first rental.

What your warranty does not cover:

• Customer instruction. (Your Owner’s Manual clearly describes how to install, adjust, and operate your television. Any additional information should be obtained from your dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Batteries.

• Images burnt onto the screen.

• A television that has been modified or incorporated into other products or is used for institutional or other commercial purposes.

• A television purchased or serviced outside the U.S.A.

• Acts of God, such as but not limited to lightning damage.

Product Registration:

• Please complete and mail the Product Registration Card packed with your product. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage.

How State Law relates to this warranty:

• This warranty gives you specific legal rights and you also may have other rights that vary from state to state.

If you purchased your television outside the United States:

• This warranty does not apply. Contact your dealer for warranty information.

Reference

Accessory Information

Antenna (or cable-TV) connections are made with either coaxial antenna cable or twin-lead cable. Coaxial cables are shielded so they are less susceptible to hum or interference from adjacent cables.

Most audio/video connections between components can

Push-on Connector

Screw-on Coaxial

Round 75-ohm coaxial cable

Flat 300-ohm twin-lead cable

Connector

The following accessories are available from most dealers and electronics supply stores in case you want to position your components farther apart or need additional cables.

Antenna Cables

Screw-on Cable attaches to the round antenna connectors (called 75-ohm F-type) on the back of your VCR or TV. The ends screw onto the

connectors for a secure connection. VH81 (3-ft) VH82 (6-ft)

Push-on Cable attaches to the

round antenna connectors (called

75-ohm F-type) on the back of your

VCR or TV. Ends push on for a quick

connection.

be made with shielded audio and video cables that have RCA-type phono connectors.

Standard Audio/Video cable with RCA-type phono plugs (such as No. VH83)

Color-Coded Jacks

The jacks on the TV’s monitor panel are color-coded for ease of use. The video jacks are yellow, the right audio jacks are red, and the left audio jacks are white. When connecting components to each other, be sure that you always connect left outputs to left inputs and right outputs to right inputs. If a component has only one output (mono), connect it to the r/mono input jack.

To connect S-VHS (Super-VHS) components, an S-VHS video cable is required.

S-Video cable (such as No. VH913)

Gold-Plated Jacks and Gold-Tipped Cables

Gold plating helps prevent oxidation of contacts which provides much less loss than conventional contacts. A complete line of gold-tipped cables is available to help you obtain optimum performance from your equipment.

Audio/Video Cables

VH89 (6-ft)

Gold-Tipped cable VH83 (6-ft)

Gold-Tipped cable AH84 (6-ft)

VH976 (6-ft) VH913 (12-ft)

Monaural VCR Dubbing Cable

Double cable that lets you connect

the video and audio jacks of two

VHS VCRs to duplicate tapes. Can

also be used to connect a VCR to

your TV. Cable is color-coded and

shielded. Has RCA-type phono

plugs on each end.

Stereo VCR Dubbing Cable

Triple cable that lets you connect the

VIDEO and AUDIO jacks of stereo

components.

S-Video Cable has multi-pin connectors on each end for connecting S-Video components to your TV.

Reference

STOP PAUSE

ON OFF

AUX

DVD

SAT

CABLE

PIP

SWAP

RECORD

RESETCH CTRL

PLAY FORWARDREVERSE

SOUND

GO BACK

SKIPMUTE

INFO

CLEAR

GUIDE

ANTENNA

WHO INPUT

VCR1

VCR2

CRK76TA1

Splitter VH47

Remote Control This is the remote control that came packed with your TV. Replacements or spares can be ordered as needed.

2-way Signal Splitter helps you connect to a second TV or VCR.

Amplified VHF/UHF/FM Antenna allows you to easily

switch from the antenna signal to cable or satellite easily without disconnecting antenna.

Accessory Order Form

Description

Part No.

Screw-on antenna cable (3-ft) VH81 $4.95

Screw-on antenna cable (6-ft) VH82 $6.95

Push-on antenna cable (6-ft) VH89 $5.95

Monaural VCR Dubbing Cable (6-ft) VH83 $5.95

Stereo VCR Dubbing Cable (6-ft) VH84 $9.95

S-Video Cable (6-ft) VH976 $7.95

S-Video Cable (12-ft) VH913 $8.95

2-way Signal Splitter VH47 $3.95

Amplified Antenna ANT200 $49.95

Antenna Mixer 193984 $10.95

Remote Control (CRK76TA1) 240895 $39.95

Audio•Video Adapter 228449 $4.35

Price

Qty

ANT200

Prices are subject to change without notice.

Total Merchandise ............................................

Sales Tax .............................................................

We are required by law to collect the appropriate sales tax for each individual state, country, and locality to which the merchandise is being sent.

Shipping and Handling ....................................

Total Amount Enclosed ....................................

$ 5.00

Use VISA, MasterCard, or Discover Card preferably.

Money order or check must be in U.S. currency only.

No COD or CASH.

✂

All accessories are subject to availability. Where applicable, we will ship a superseding model.

Please complete other side also

Detach Here

Reference

Charge your order on your VISA,

MasterCard, or Discover Card by

filling in below

USE YOUR CREDIT CARD

IMPORTANT: Copy complete account number

Copy Number

above your

name on

MasterCard

IMPORTANT: Copy complete account number

from your VISA card

My card expires:

from your MasterCard

My card expires:

from your Discover Card

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard

or Discover Card ready and call the toll-free number listed below between 8AM and 8PM (EST) Monday through Friday or between 9AM and 5PM (EST) Saturday.

Use this number only to place on order for accessory items listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed order form with credit card information, money order or check in US currency (made payable to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories PO Box 8419 Ronks, PA 17573

My card expires:

AUTHORIZED SIGNATURE

(Credit card order will not be processed without signature)

Prices are subject to change without notice.

Print or type your name and address clearly. This will be your mailing label.

A complete and correct order will save you days of waiting.

Name:

Street:

Apt:

City:

State:

Zip:

Please make sure that both sides of this form have been filled out completely.

• Allow 4 weeks for delivery.

• All accessories are subject to availability.



• Prices are subject to change

Reference

Index

Accessories 42 Advanced Connections 4, 6 Audio menu 28 Audio Output Volume & Speakers

29 Audio Processor 28 Audio remote codes 24 Audio/Video Cable 7 Auto Channel Search 13, 33 Auto Color 30 Auto Tuning 18

DVD Channel 16, 33 SAT/Cable Channel 17, 33 VCR1 Channel 15, 33 VCR2 Channel 15, 33

Back of the TV 6 Basic Connection 4, 5 Basic Picture Controls 30 Batteries 10, 38 Black Level 30 Buttons

Front panel 23 Remote 20

Cable box remote codes 24 Care and Cleaning 40 CC 38 Chan # 33 Chan Labels 33 Channel 3 34 Channel 4 34 Channel Block 35 Channel Marker 38 Channel menu 33 Closed Caption

Display 31 Mode 31, 32 PIP Display 31

PIP Mode 31 Coaxial Cable 4, 5, 7 Color 30 Color Warmth 30 Connections

Advanced 4, 6

Basic 4, 5

TV and Stereo VCR 7

TV Only 4

TV, VCR and Satellite Receiver 8

TV, VCR, Satellite Receiver and

DVD 8 Contrast 30 Control Panels 27

DVD Channel 16, 33 DVD player remote codes 24

Fixed images 40 Fixed Output, Speakers Off 29 Front panel buttons 23 Front Panel Lockout 35

GUIDE Plus+

Getting in and out 10 Interactive setup 14 Menu 36

INPUT1 34 INPUT2 34 IR Controller

attaching to other components

locating IR sensors on your

components 9

Labels 18, 33 Language 13, 31 Locating IR sensors 9

Memory 33 Menu Language 13, 31 Menus 26 Mono 28 Mute 28

Normal List 33

Parent Approved 35 Parental Controls

Channel Block 35

Front Panel Lockout 35 Parental Controls menu 35 Picture Presets 30 Picture Quality menu 30 Picture Tilt 31 PIP (Picture in Picture)

Buttons 37

Closed caption display 31

Closed caption mode 31

PIP Chan 38

Problems 38

Using 37

Point and Select 12

Remote Control

Installing the batteries 10 Programming 22 Remote batteries are low 38

Remote control

Buttons 20

S-Video Cable 7 SAP 38 SAT/Cable Channel 17, 33 Satellite Receiver remote codes 24 Schedule 34 Screen menu 31 Second Audio Program (SAP) 28 Set

DVD Channel 16, 33 DVD/VCR2 Channel 18 SAT/CABLE Channel 17, 33 VCR1 Channel 15, 33

VCR2 Channel 15, 33 Set Time 34 Setup 12 Setup menu 36 Sharpness 30 Signal Type

Cable TV 33

UHF/VHF Antenna 33 Sleep 38 Sleep Timer 34, 38 Stereo 28, 38

Time

Current 38

Set Time 14 Time menu 34 Tint 30 Tone Controls 28 Troubleshooting 39 TV Only Connection 4

Variable Output, Speakers Off 29 Variable Output, Speakers On 29 VCR remote codes 24 VCR1 Channel 15, 33 VCR2 Channel 15, 33 Video Noise Reduction 30

Warranty 41

CREATING A GREENER FUTURE

At Thomson Consumer Electronics we are dedicated to the preservation of our natural heritage and to a healthy and safe way of life for current and future generations. This is a global effort which encompasses every THOMSON facility throughout the world.

We believe that clean air, clean water, a protected earth, and healthy people are not only practical and desirable goals, but achievable ones as well. Our Corporate Environmental, Health and Safety Charter acknowledges our commitment to protect these precious assets and provides a challenging vision and guideline for conducting our business.

Below are a few examples of Thomson’s achievements in our efforts to preserve our natural resources.

The EartH

Thomson reclaims millions of pounds of hazardous waste annually, diverting it from landfills.

Thomson treats millions of pounds of waste water sludge annually and renders it non-hazardous.

Thomson recycles over 50 million pounds of non-hazardous material annually that otherwise would have been treated as trash, an overall recovery rate of 50%.

Thomson globally recycles millions of pounds of broken television picture tube glass annually through both internal and external reclaim processes.

Thomson has also increased its usage of recycled materials for packaging of our products. For example, in the U.S. and Mexico our television plants use recycled content in our television cartons and instruction booklets. The inks used for the print on cartons and instruction booklets are soy based. For a free brochure regarding Thomson’s Environmental Health and Safety Programs, write to Thomson Consumer Electronics’ address below, attention Environmental Programs: INH340.

The Air

Thomson has replaced solvent-based paints at many locations resulting in an 80% reduction in toxic air emissions for equivelant material used.

Thomson has eliminated the use of ozone-depleting substances at television manufacturing facilities around the world.

Thomson collects and returns over 1.5 million pounds of glass and furnace dust to the glass making process annually.

Thomson has launched worldwide energy savings programs which contribute to efforts to reduce air emissions from electrical generating facilities.

the water

Thomson recovers over 2 million pounds of fine glass particles from process water each year and recycles them back into its glass furnaces.

Thomson’s state-of-the-art waste water treatment plants filter out over 26 million pounds of solids from process water each year.

Thomson’s U.S. glass factory recycles 2,500 gallons of water per minute and cleans 2.6 million gallons of water per day.

Thomson is researching new processes and is developing new manufacturing equipment and technologies to further reduce large volume water use.

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.

The following materials were used in printing this publication:

85%

10330 North Meridian Street Indianapolis, IN 46290

THIS PAPER CONTAINS 85% RECYCLED MATERIAL.

THIS PAPER IS WHITENED BY A

Printed in USA

TOCOM 15292370

TOTALLY CHLORINE-FREE PROCESS.

USER'S GUIDE

COLOR TV

Important Information

WARNING

To reduce the risk of fire or shock hazard, do not expose this TV to rain or moisture.

WARNING

RISK OF ELECTRIC

SHOCK DO NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates important instructions accompanying the product.

Caution: To reduce the risk of electric shock, match wide blade of plug to wide slot, fully insert.

Attention: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqú au fond.

If fixed (non-moving) images are left on the screen for long periods, they may be permanently imprinted on the screen. Such images include network logos, phone numbers, and video games. This damage is not covered by your warranty. Extended viewing of channels displaying these images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.

RCA P46920BL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
