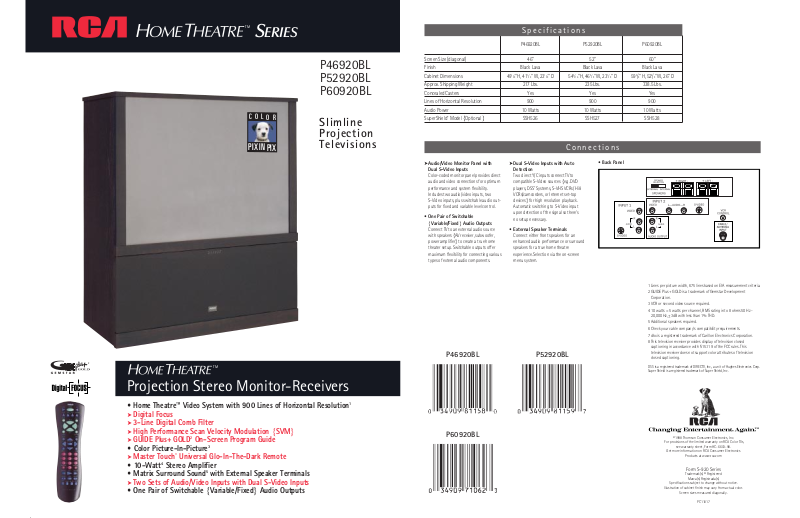

RCA P46920BL, P60920BL User Manual

TM

PIX IN PIX

COLOR

SERIES

P46920BL
P52920BL
P60920BL

Slimline
Projection
Televisions

2

TM

Projection Stereo Monitor-Receivers

• Home Theatre™ Video System with 900 Lines of Horizontal Resolution

➤Digital Focus
➤3-Line Digital Comb Filter
➤High Performance Scan Velocity Modulation {SVM}
➤GUIDE Plus+ GOLD

• Color Picture-In-Picture

➤Master Touch

2

On-Screen Program Guide

3

®

Universal Glo-In-The-Dark Remote

• 10-Watt4Stereo Amplifier

• Matrix Surround Sound5with External Speaker Terminals

➤Two Sets of Audio/Video Inputs with Dual S-Video Inputs

• One Pair of Switchable {Variable/Fixed} Audio Outputs

1

• Adjustable Picture Control

Custom picture settings are just a button
press away. Adjust and store Contrast,
Color, Tint, Black Level, and Sharpness
settings for personal picture performance
depending on your own individual tastes.

• Custom Convergence Adjustment

When the Earth’s magnetic field interferes
with the Projection TV alignment,
adjustable convergence provides fine
tuning for red, blue, and green Projection
TV tubes. The 8-bit DA {digital-to-analog}
converter allows much finer alignment for
restoring picture performance to its
original setting.

• High Resolution, High Gain Screen

Utilizes double lenticular and fresnel
lenses to deliver bright images over a wide
viewing area.

• High Output, Liquid Cooled-and­Coupled Picture Tubes

High output picture tubes are liquid
coupled to a precision optical system to
deliver bright, clear images.

• High Transmittance Lens System

Hybrid glass/acrylic lens system optimizes
focus while providing maximum
brightness.

• First Surface Reflective Mirror

Provides maximum picture brightness and
sharpness by reflecting more light from
the front surface of the mirror.

• Preferred Picture Presets

Optimize the picture by selecting the
correct setting depending on the lighting
conditions of the room. Choose between
four settings for bright lighting, normal
lighting, dim {soft} lighting, and a
customer-selectable and savable
“personal” setting.

• Deluxe Shielded Tuner with
181-Channel Tuning Capability

6

Special shielding dramatically reduces
ghosting caused from off-air pick-up
when watching cable channels. Digitally­controlled frequency synthesis tuning
system “locks on” to cable and standard
signals with unsurpassed accuracy.
181-channel tuning capability.

• 10-Watt4Stereo Amplifier

Built-in 10-watt amplifier enhances stereo
performance and can power optional
left/right or surround speakers.

• Broadcast Stereo with dbx7Noise
Reduction

Improves the clarity and fidelity of stereo
broadcasts by restoring dynamic range
and suppressing unwanted noise.

• Low-Noise Audio System

Delivers a 60dB signal-to-noise ratio for
spectacular quality sound.

• Matrix Surround Sound

5

Synthesizes rear-channel information to
create theatre-like surround sound.

• Front-Fired Speaker System

Front-fired full-range frequency drivers
provide excellent imaging while localizing
voices at the screen.

• Second Audio Program {SAP}

Decodes the second audio program
available on some broadcasts.


Remote

Sound

➤

Master Touch®Universal Glo-In­The-Dark Remote, CRK76TA1

New ergonomic design with glo-in-the­dark buttons

provide complete Home

Theatre™ TV operation plus control of the

primary functions of virtually every brand
of remote-controllable VCRs, DSS

®

Systems, and cable boxes. Also controls
most functions of RCA DVD Players and
select functions of some brands of audio
components. Frequently used buttons
glow in the dark, making it easy to find
the correct functions even at night.

DSS is a registered trademark of DIRECTV, Inc., a unit of Hughes Electronics Corp.

Home Theatre™ Video System

Advanced digital circuitry delivers outstanding picture performance with 900 lines of horizontal resolution

1

.

➤

Computer-aligned 10-bit digital circuitry
provides precise and consistent picture
performance from the moment the TV is
turned on. Combined with Dynamic Focus,
it maximizes picture brightness with
sharper corner focus ensuring a beautifully
detailed picture across the entire screen.

➤

3-Line Digital Comb Filter

New digital separation technology for
color and edge detail dramatically enhances
picture resolution by eliminating blurred
edges between colors and reducing dot
crawl, producing a new level of picture
sharpness and detail.

➤

High Performance Scan Velocity
Modulation {SVM}

Improved SVM circuitry automatically
varies the scanning speed of the picture
tube’s electron beam to improve sharpness
and detail especially in high contrast areas.

• Dynamic Focus

Improves corner and edge focus for an
overall sharper picture.

• Adaptive Video Noise Reduction

Video noise filter greatly reduces noisy
picture interference by automatically
adjusting to the incoming signal level,
providing a cleaner and more consistent
overall picture.

• Auto Color Balance {also called Auto
Kine Bias — AKB}

Resets individual picture tube guns {Red,
Green, Blue} to maintain consistent overall
picture quality for the life of the tube.

• Wide Band Video Amplifier

Delivers high resolution and clarity by
extending the video frequency response.
Optimizes performance from high­resolution sources such as the RCA brand
DSS

®

System, DVD players, and S-Video
signals {S-VHS and Hi8 VCRs and
Camcorders}.

• Dynamic BlackStretch Circuitry

Extends black levels in bright scenes to
enhance contrast and detail.

•

Automatically maintains natural flesh
tones and color fidelity from channel to
channel and scene to scene.

• Adjustable Color Warmth

Customer-selectable color temperature
system allows for background color
balance adjustment of the picture to
personal preference. Setting choices are
Cool, Warm, or Normal.

• Contrast/Color Tracking System

Synchronizes contrast and color settings
to maintain vibrant images.

CC

:30

®

®

®

®

®

®
