USER'S

GUIDE

9_z-- 3i

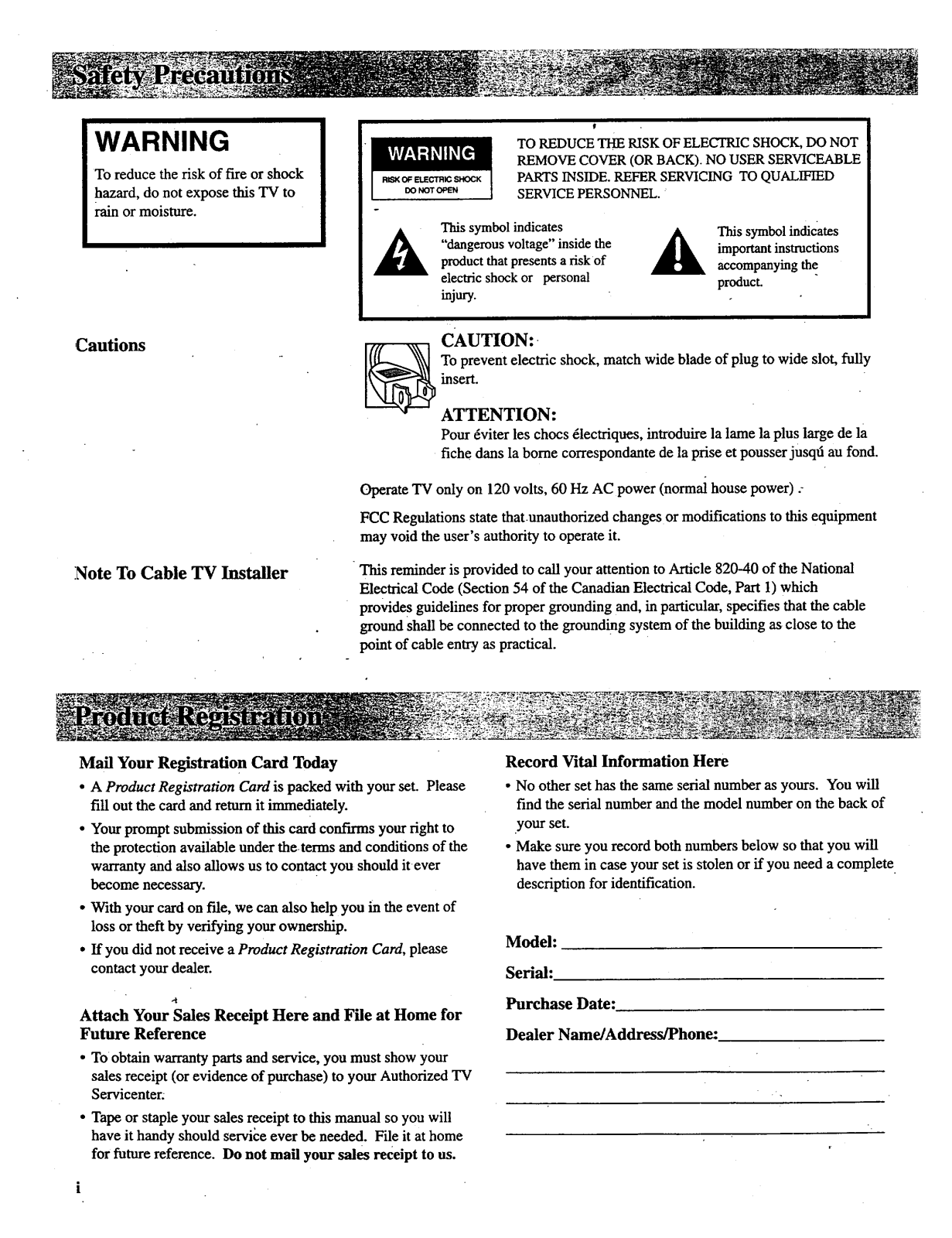

WARNING

To reduce the risk of fire or shock hazard, do not expose this TV to

rain or moisture.

RI_(OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates

"dangerous voltage"inside the

product that presents a riskof

electricshock or personal injury.

TOREDUCE THERISK OFELECTRICSHOCK,DO NOT REMOVECOVER (ORBACK). NO USER SERVICEABLE PARTSINSIDE.REFER SERVICING TO QUALIFIED

SERVICEPERSONNEL.

A his symbol indicates

important instructions accompanyingthe product.

,Cautions

Operate TV only on 120 volts, 60 Hz AC power (normal house power) .- FCC Regulations state thatunauthorized changes or modifications to this equipment

may void the user's authority to operate it.

Note To Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1)which

provide s guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Mail Your Registration Card Today

• A Product Registration Card is packed with your set. Please

fill out the card and return it immediately.

• Your prompt submission of this card confirms your right to

the protection available under the terms and conditions of the

warranty and also allows us to contact you should it ever

become necessary.

• With your card on file, we can also help you in the event of loss or theft by verifying your ownership.

• If you did not receive a Product Registration Card, please contact your dealer.

CAUTION:- Toprevent electric shock, match wide blade of plug to wide slot, fully

insert.

ATTENTION: Pour 6viter les chocs 61ectriques, introduire la lame la plus large de la

fiche dans la borne correspondante de la prise et pousser jusqd au fond.

Record Vital Information Here

• No other set has the same serial number as yours. You will find the serial number and the model number on the back of

.your set.

• Make sure you record both numbers below so that you will have them in case your set is stolen or if you need a complete•

description for identification.

Model:

Serial:

Attach Your Sales Receipt Here and File at Home for

Future Reference

• To obtain warranty parts and service, you must show your sales receipt (or evidence of purchase) to your Authorized TV

Servicenter.

• Tape or staple your sales receipt to this manual so you will have it handy should service ever be needed. File it at home

for future reference. Do not mail your sales receipt to us.

Purchase Date: Dealer Name/Address/Phone:

Thank you for choosing RCA Congratulations on your purchase of an RCA TV. You have selected a

high-quality, precision-engineered instrument designed to give you

years of enjoyment.

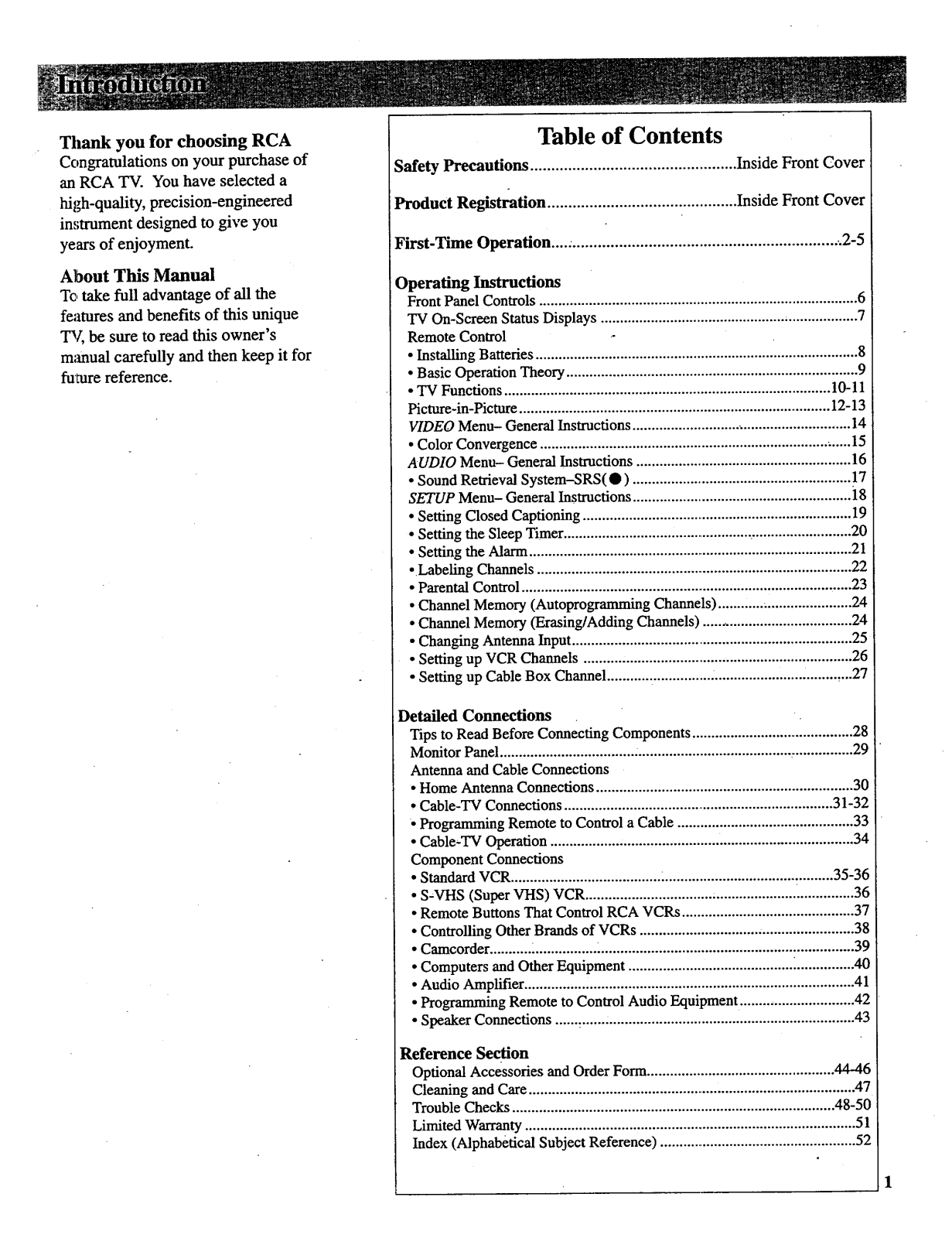

Table of Contents

Safety Precautions ................................................. Inside Front Cover

Product Registration ............................................. Inside Front Cover

First-Time Operation....: .................................................................. 2-5

About This Manual

T¢, take full advantage of all the features and benefits of this unique TV, be sure to read this owner's manual carefully and then keep it for

furore reference.

Operating Instructions

Front Panel Controls ................................................................................... 6

TV On-Screen Status Displays ................................................................... 7

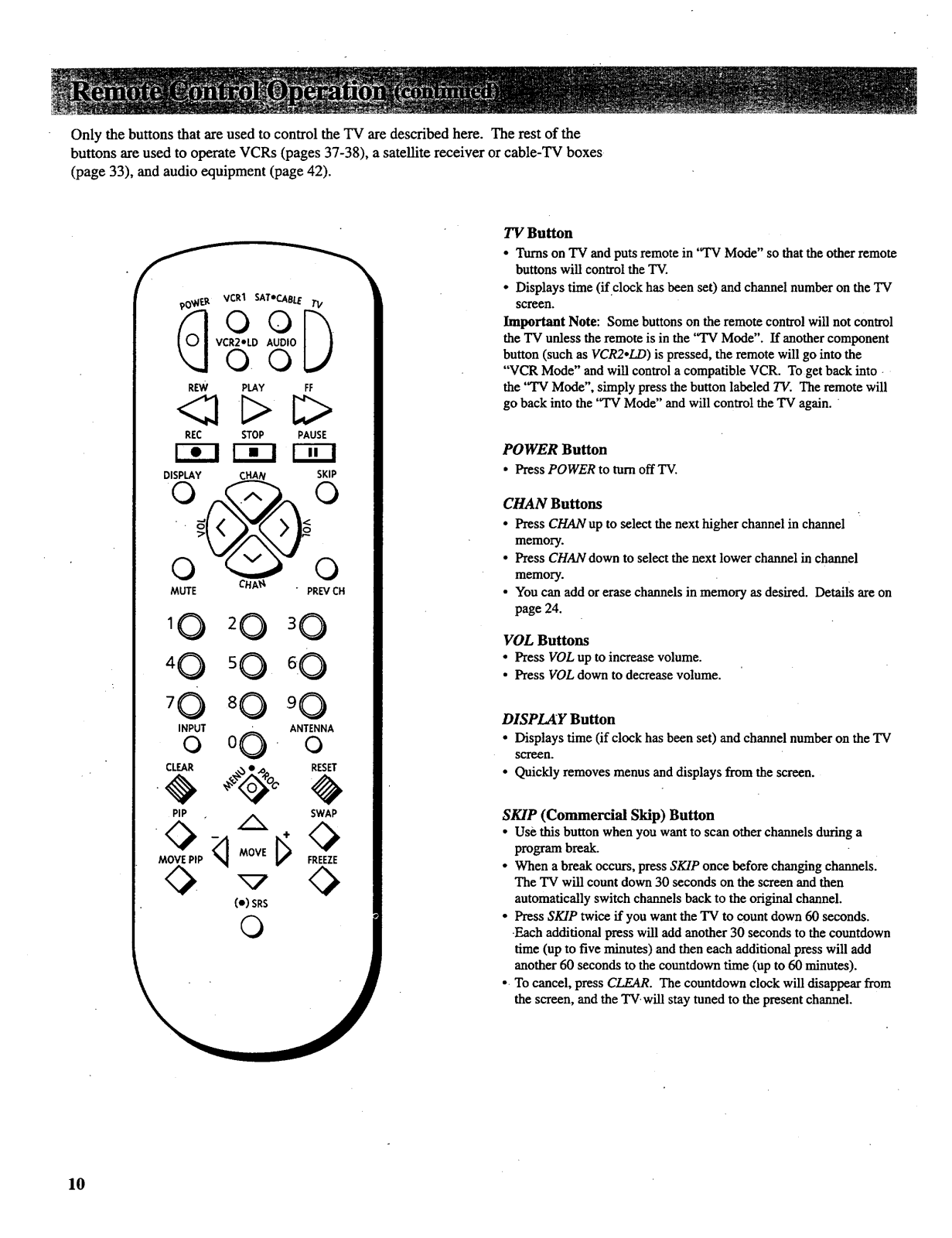

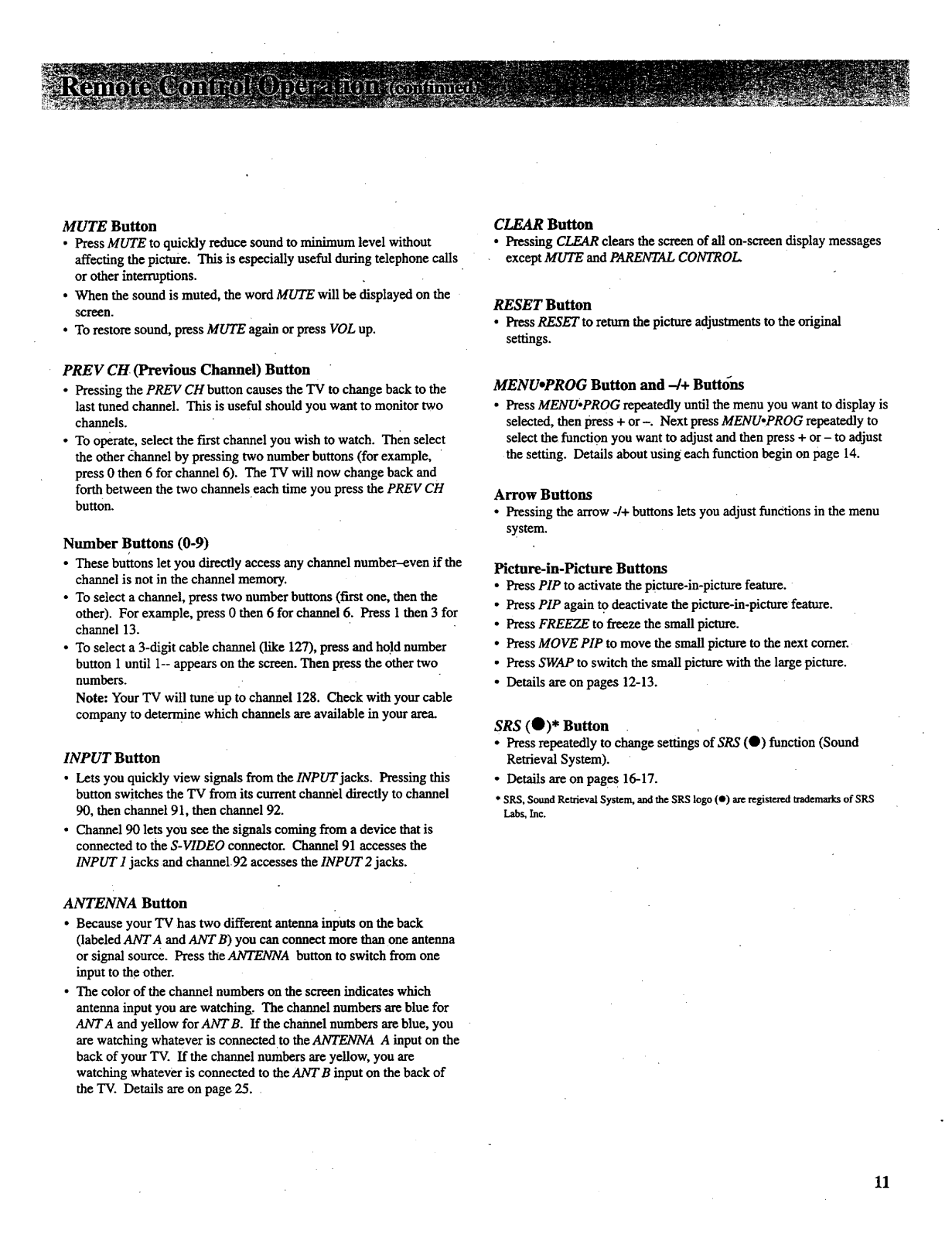

Remote Control

• Installing Batteries .................................................................................... 8

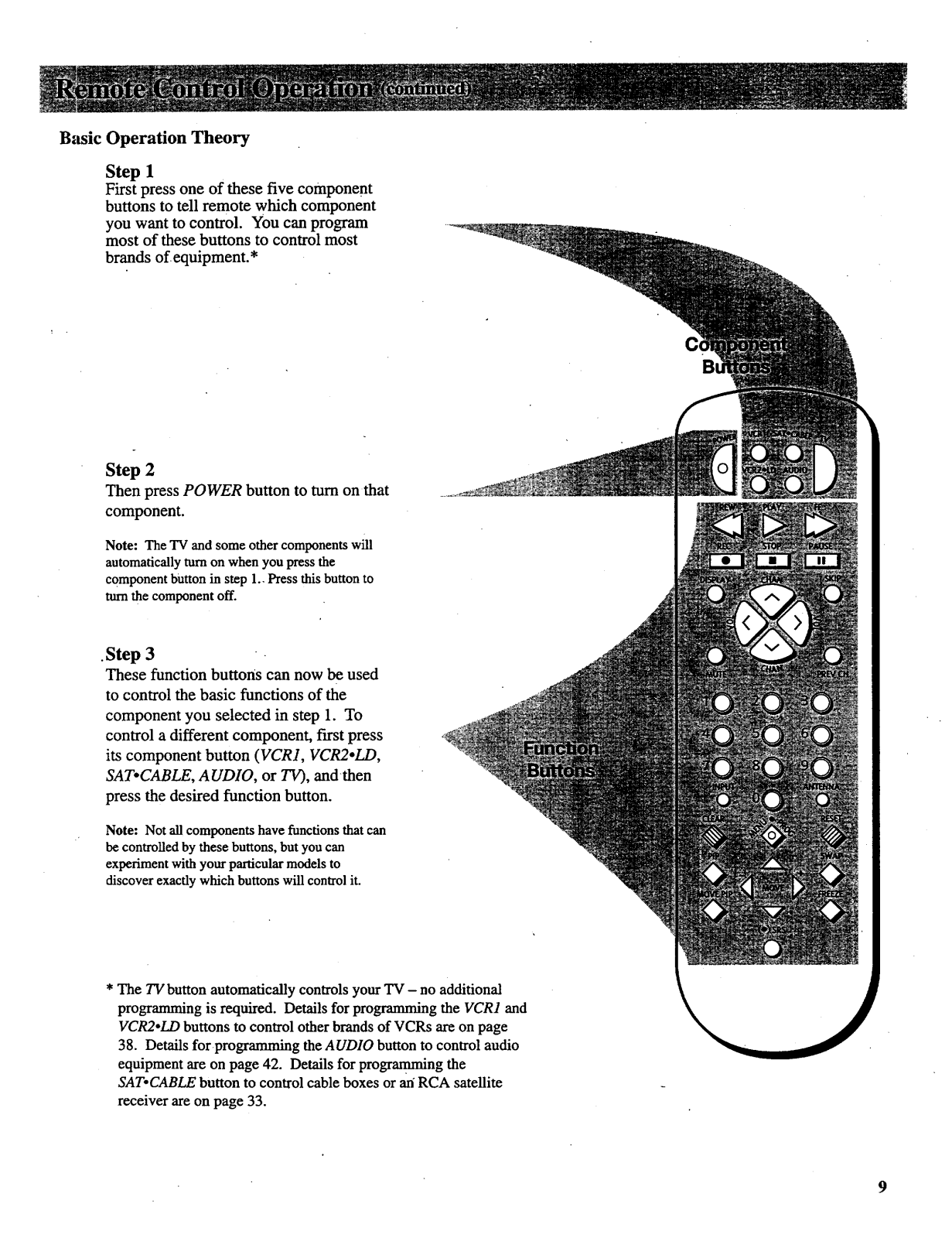

• Basic Operation Theory ............................................................................ 9

• "IV Functions ...................................................................................... 10-11

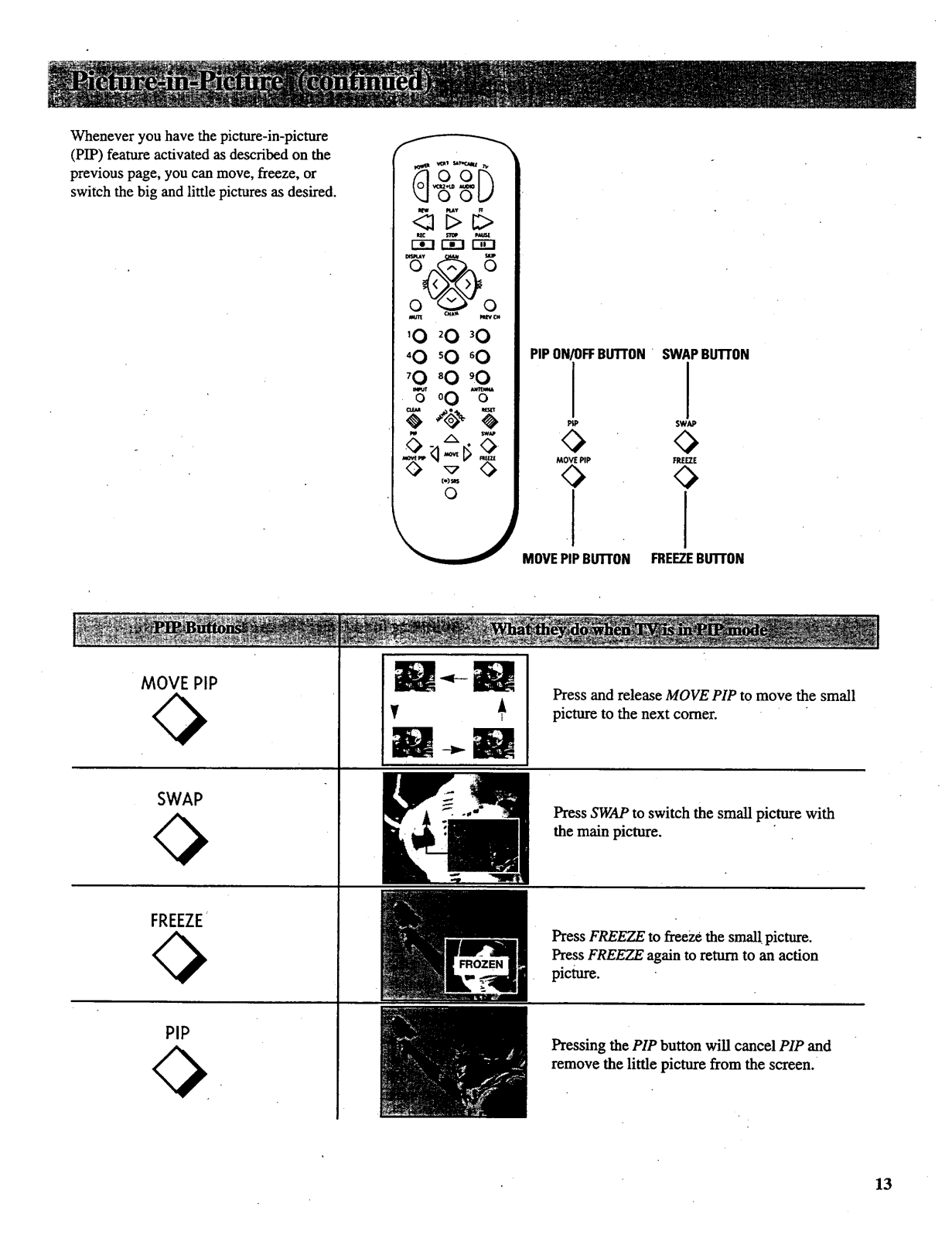

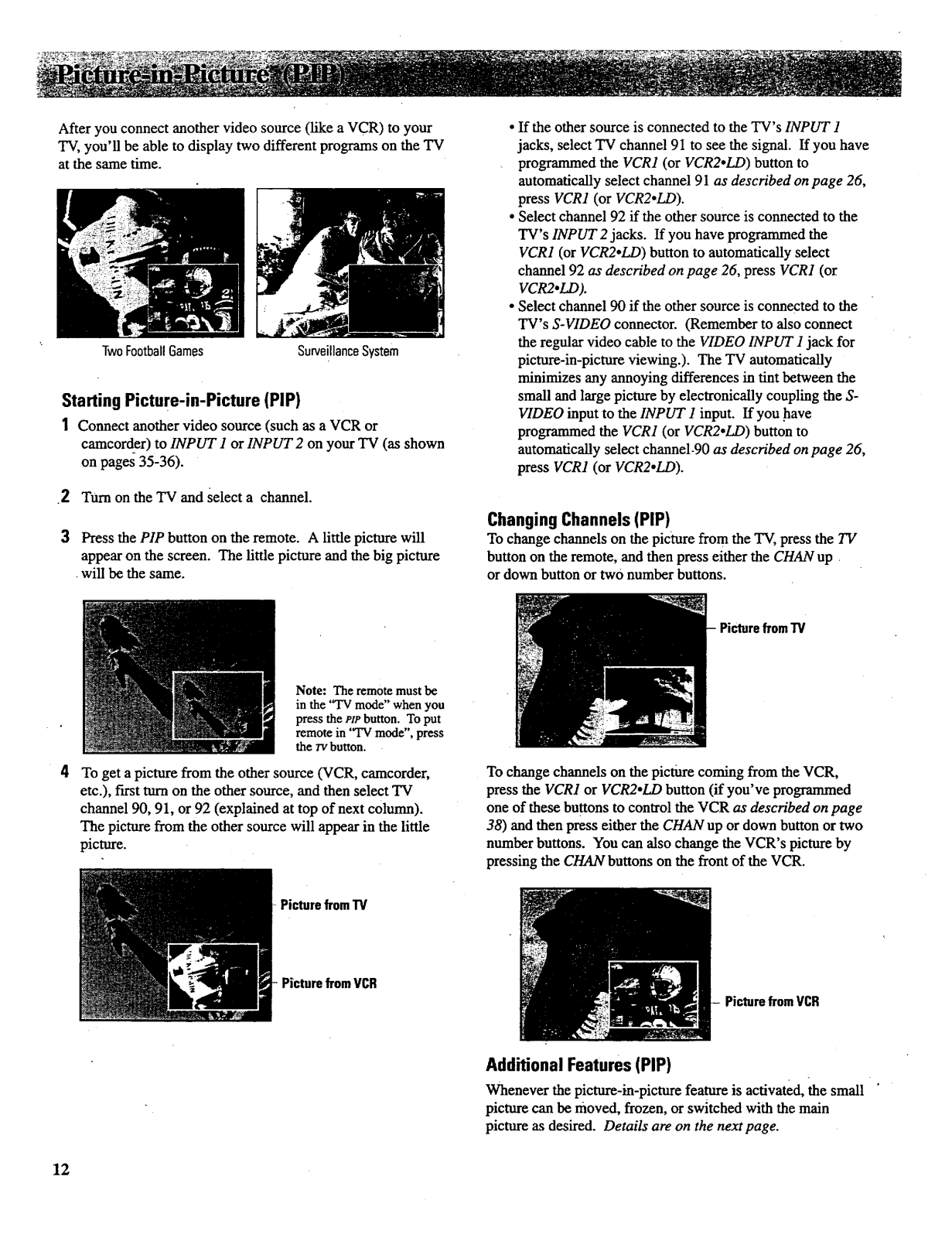

Picture-in-Picture ................................................................................. 12-13

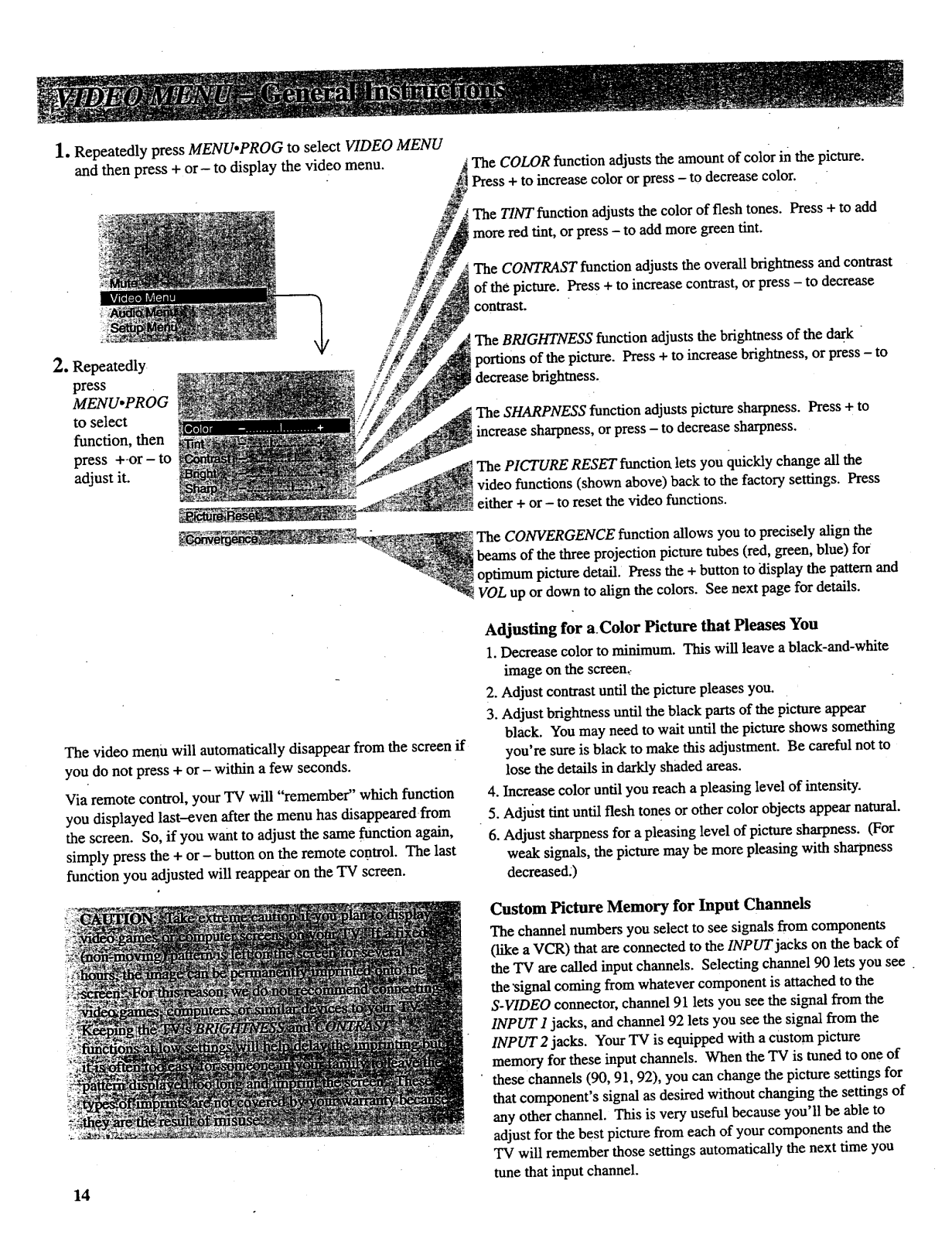

VIDEO Menu- General Instructions ......................................................... 14

• Color Convergence ................................................................................. 15

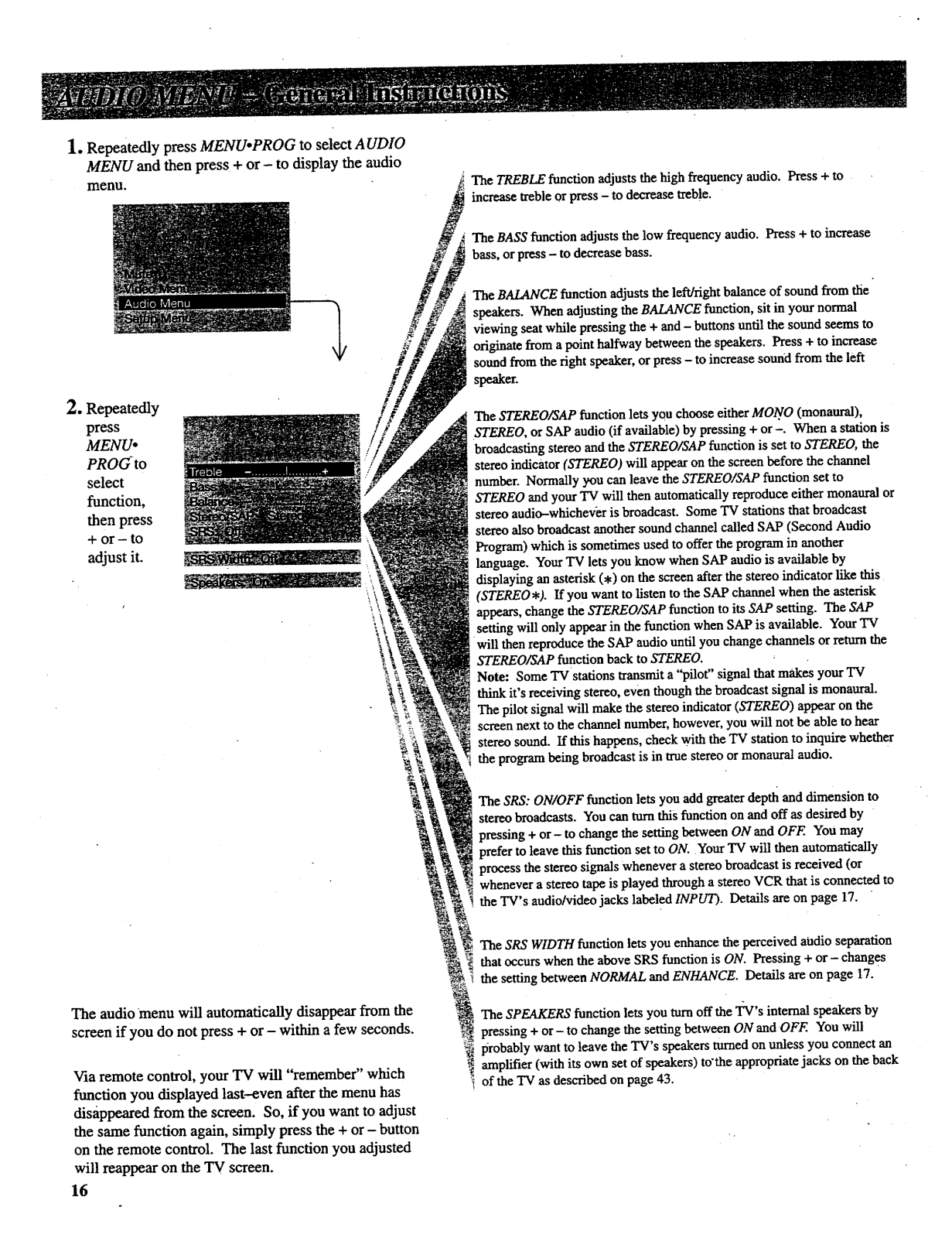

AUDIO Menu- General Instructions ........................................................ 16

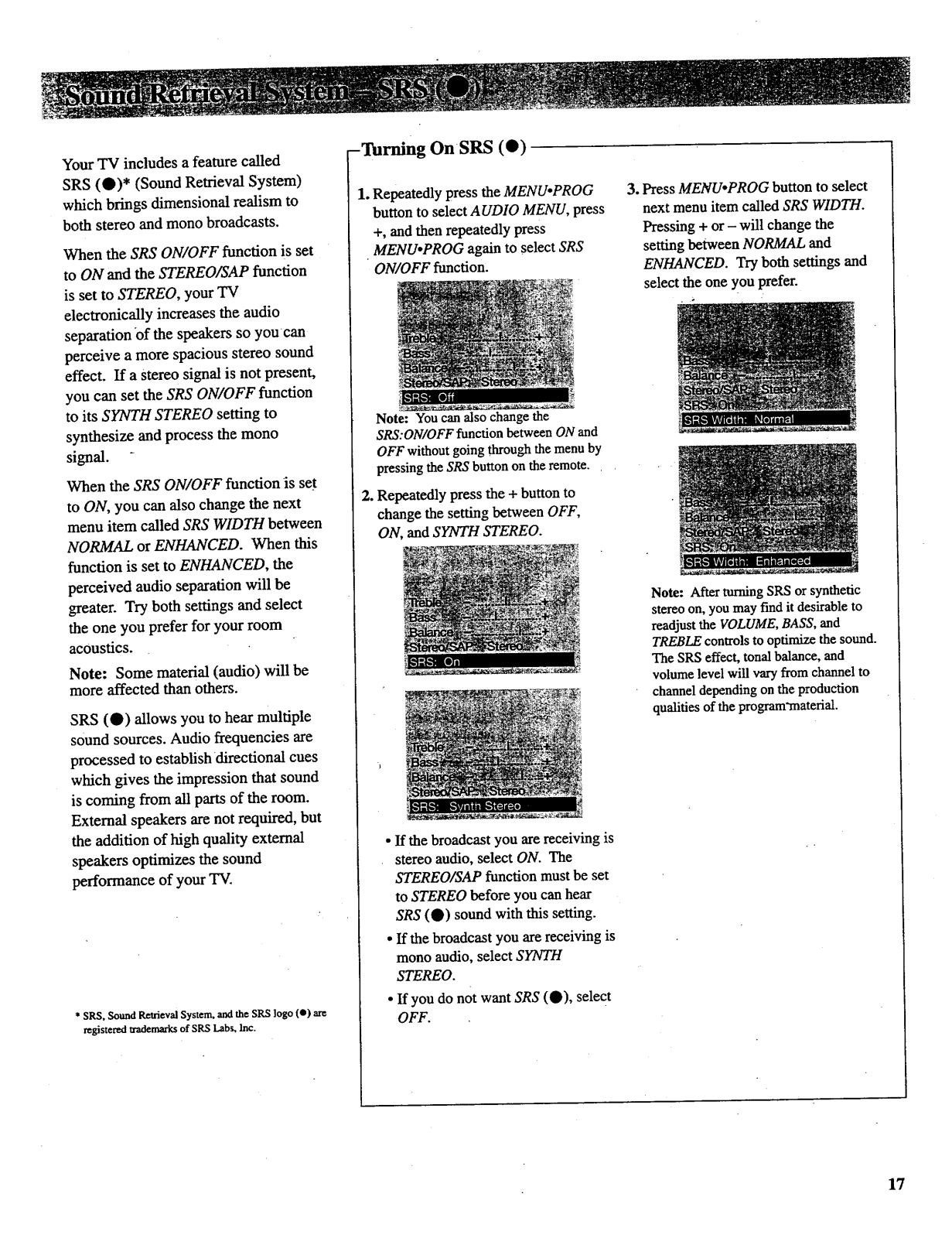

• Sound Retrieval System-SRS(• ) ......................................................... 17

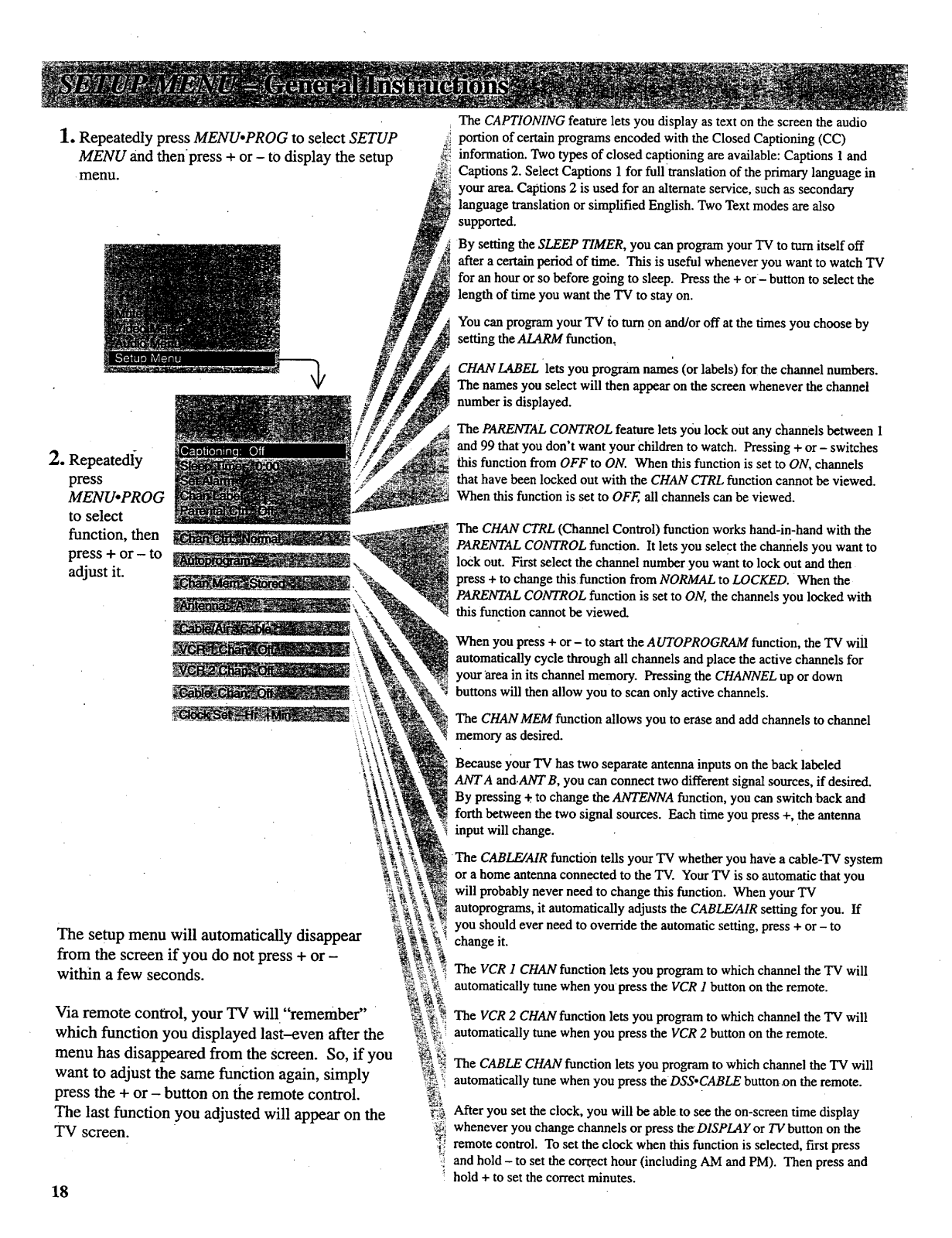

SETUP Menu- General Instructions ......................................................... 18

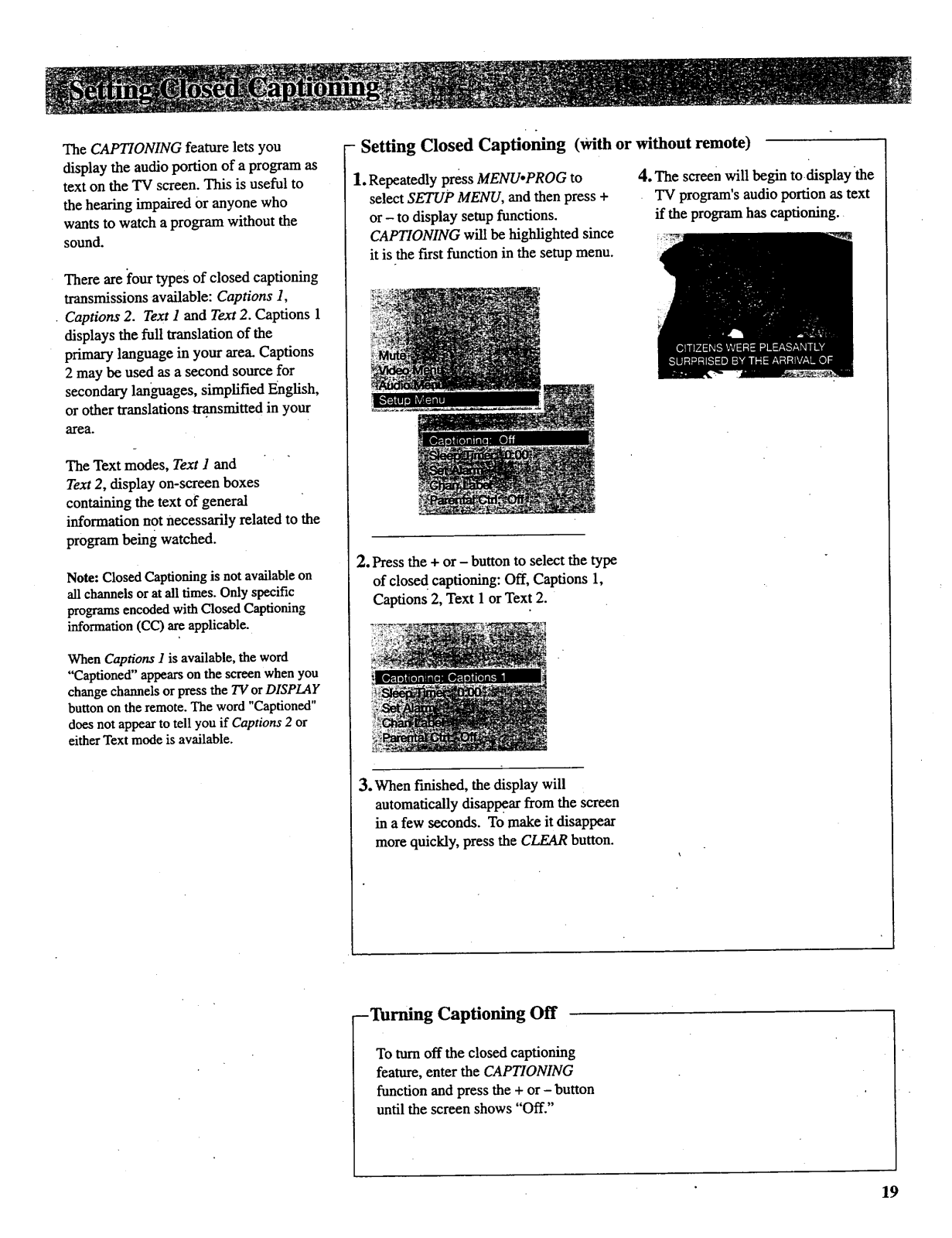

• Setting Closed Captioning ...................................................................... 19

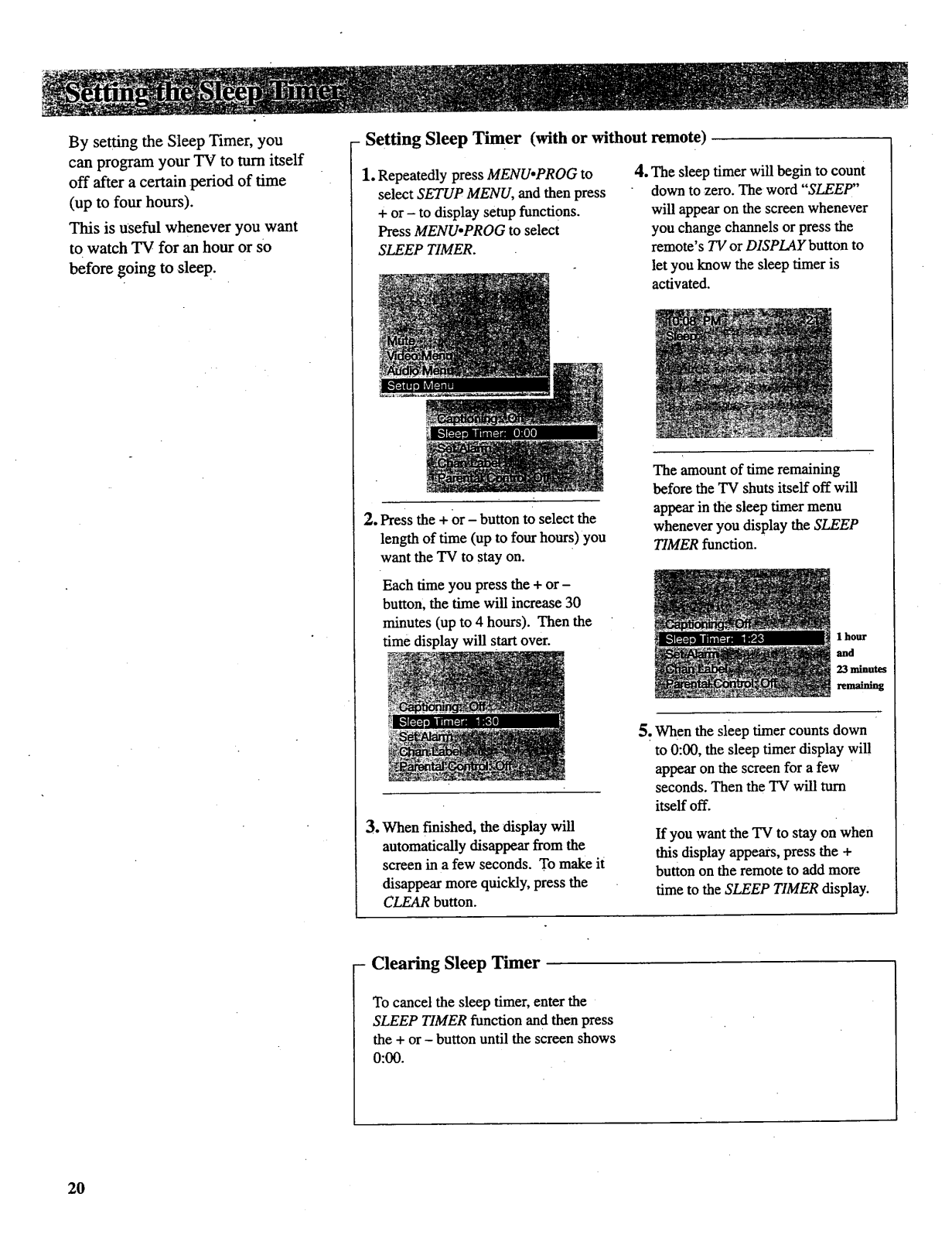

• Setting the Sleep Timer ............................................................................. 20

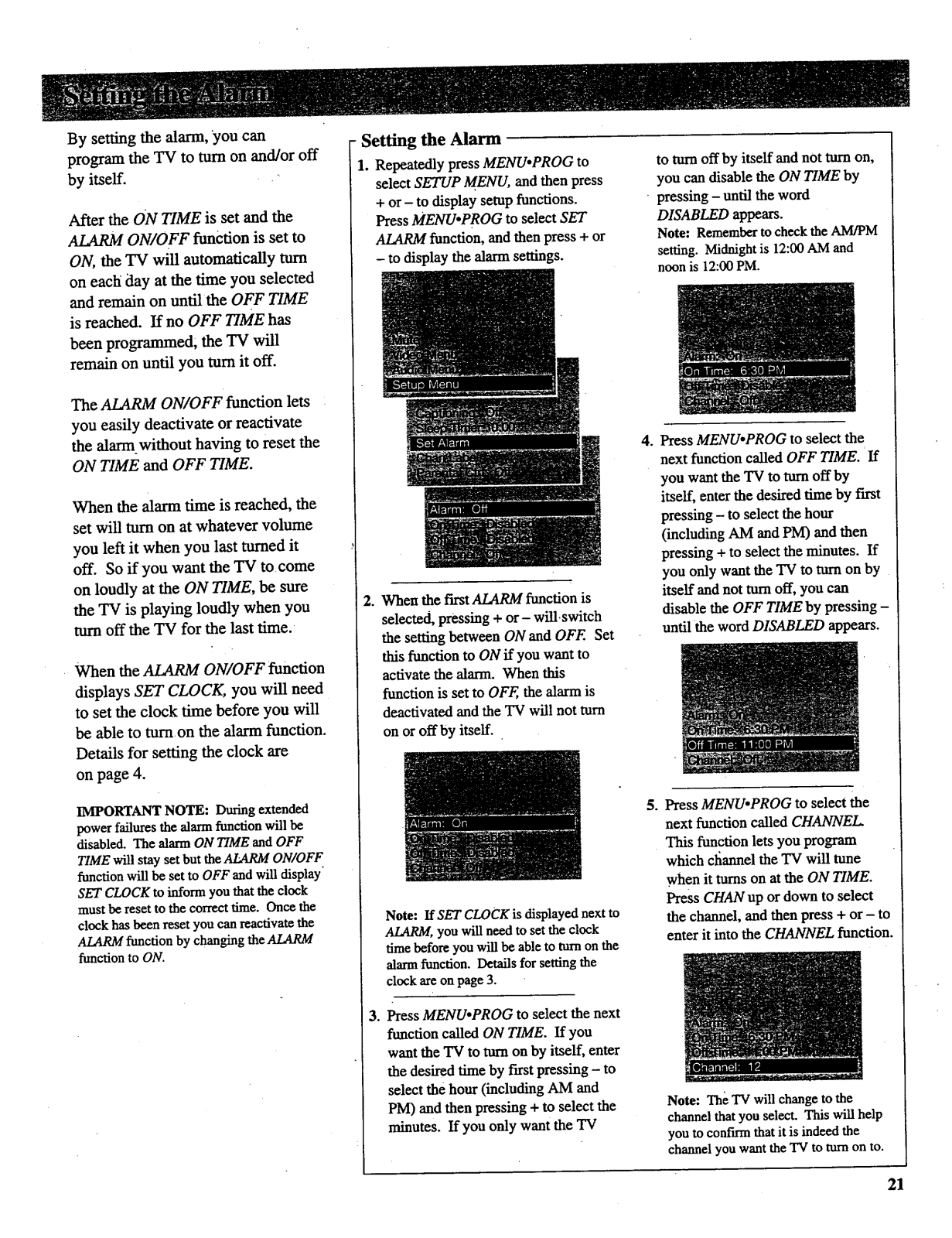

• Setting the Alarm .................................................................................... 21

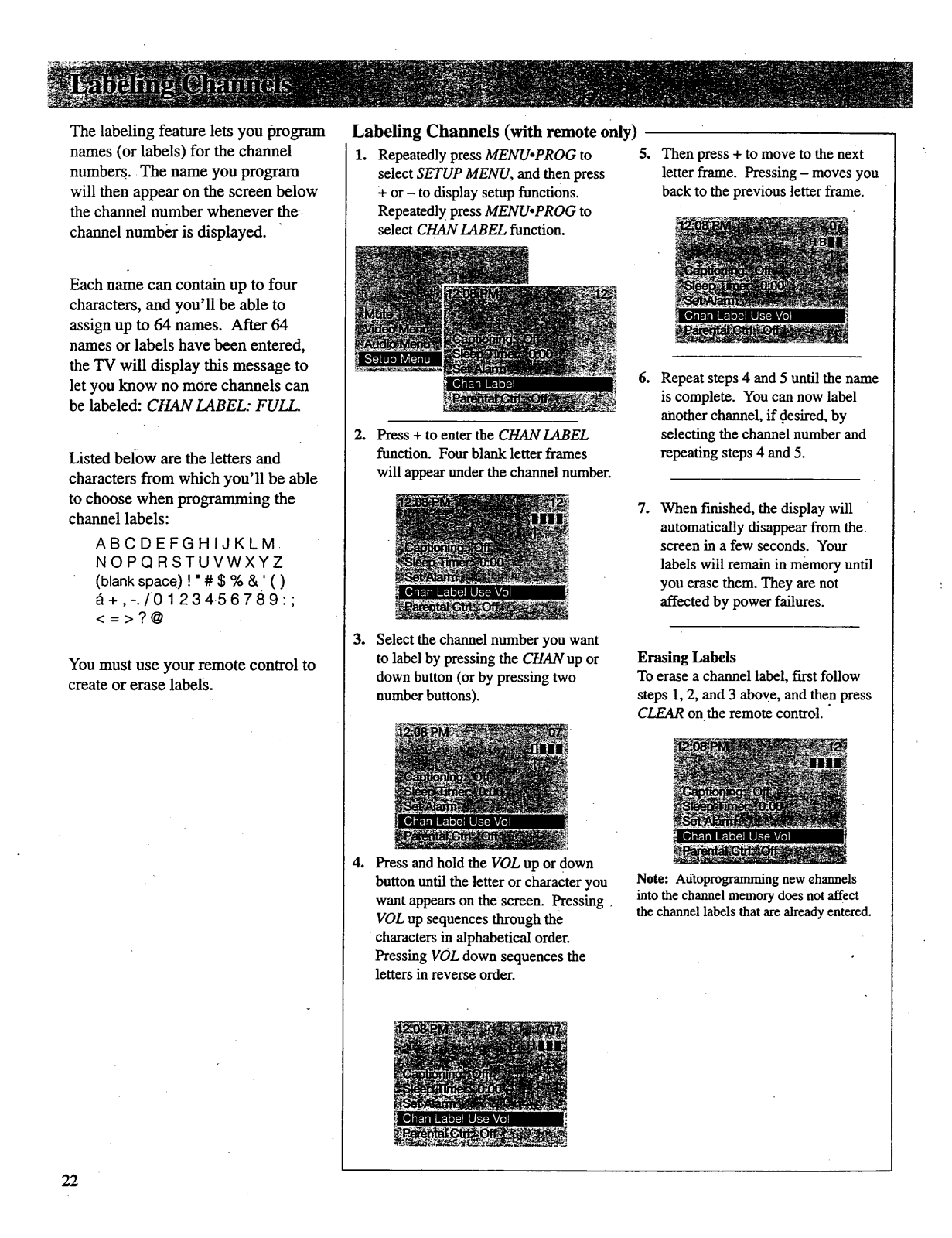

• Labeling Channels .................................................................................. 22

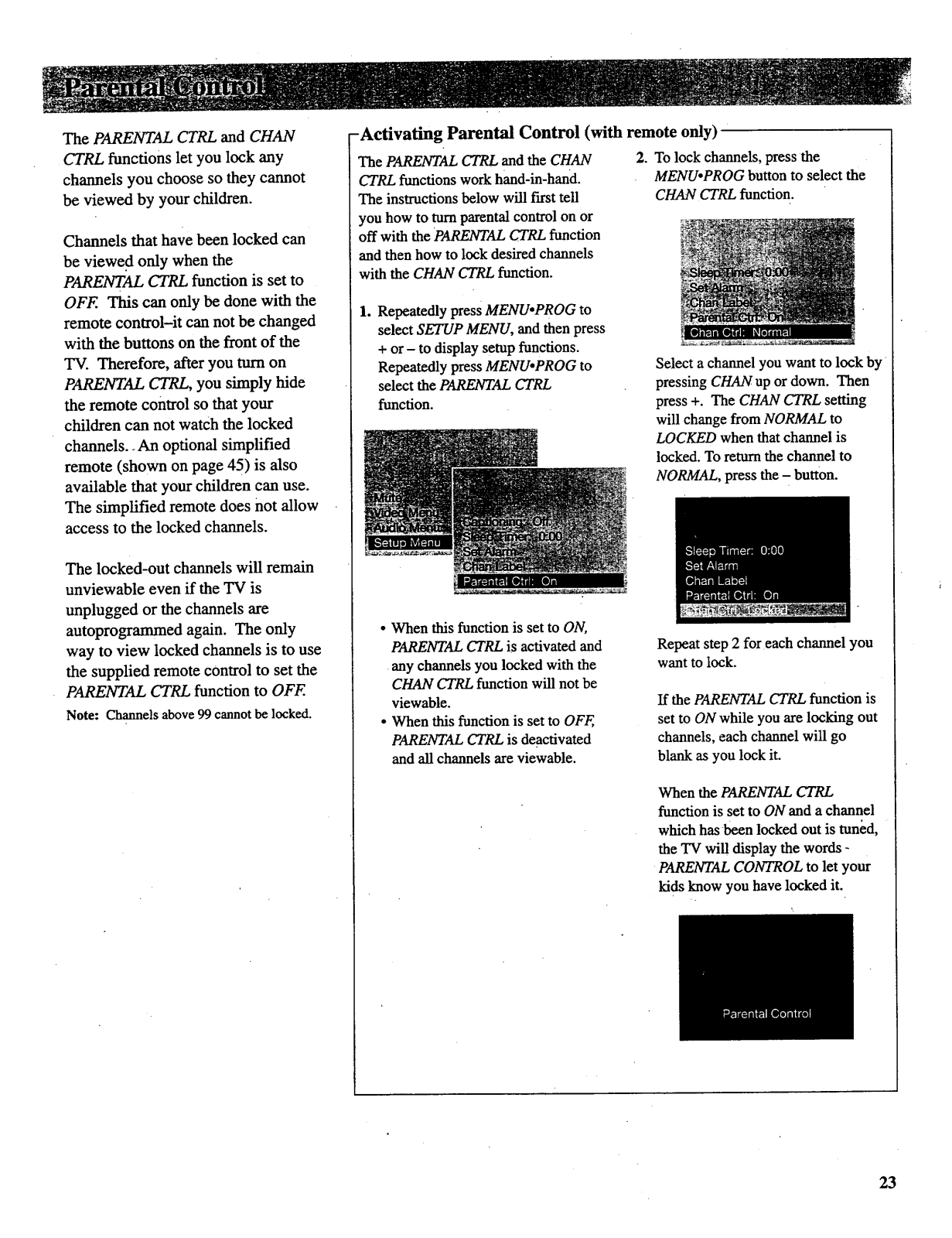

• Parental Control ...................................................................................... 23

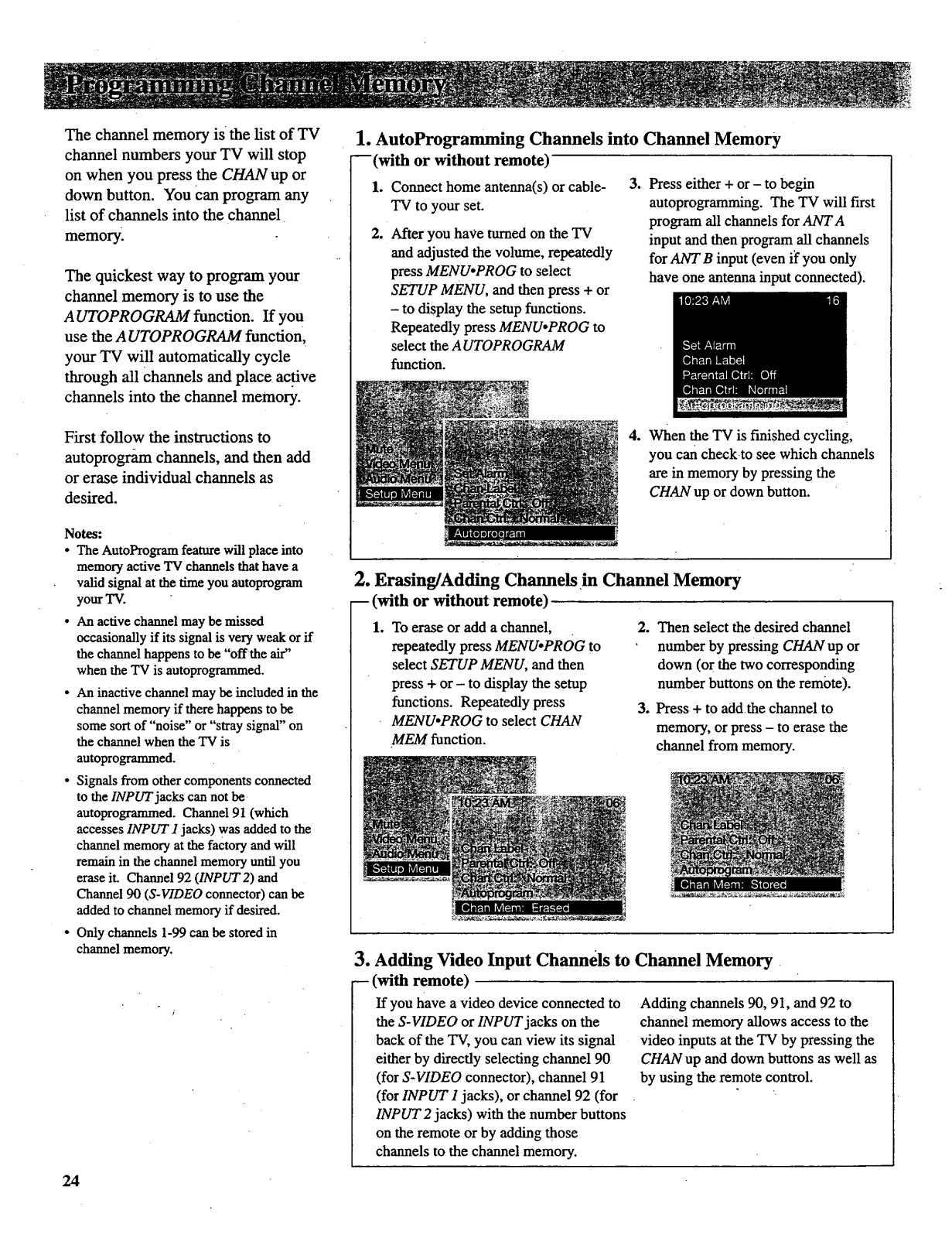

• Channel Memory (Autoprogramming Channels) ................................... 24

• Channel Memory (Erasing/Adding Channels) ....................................... 24

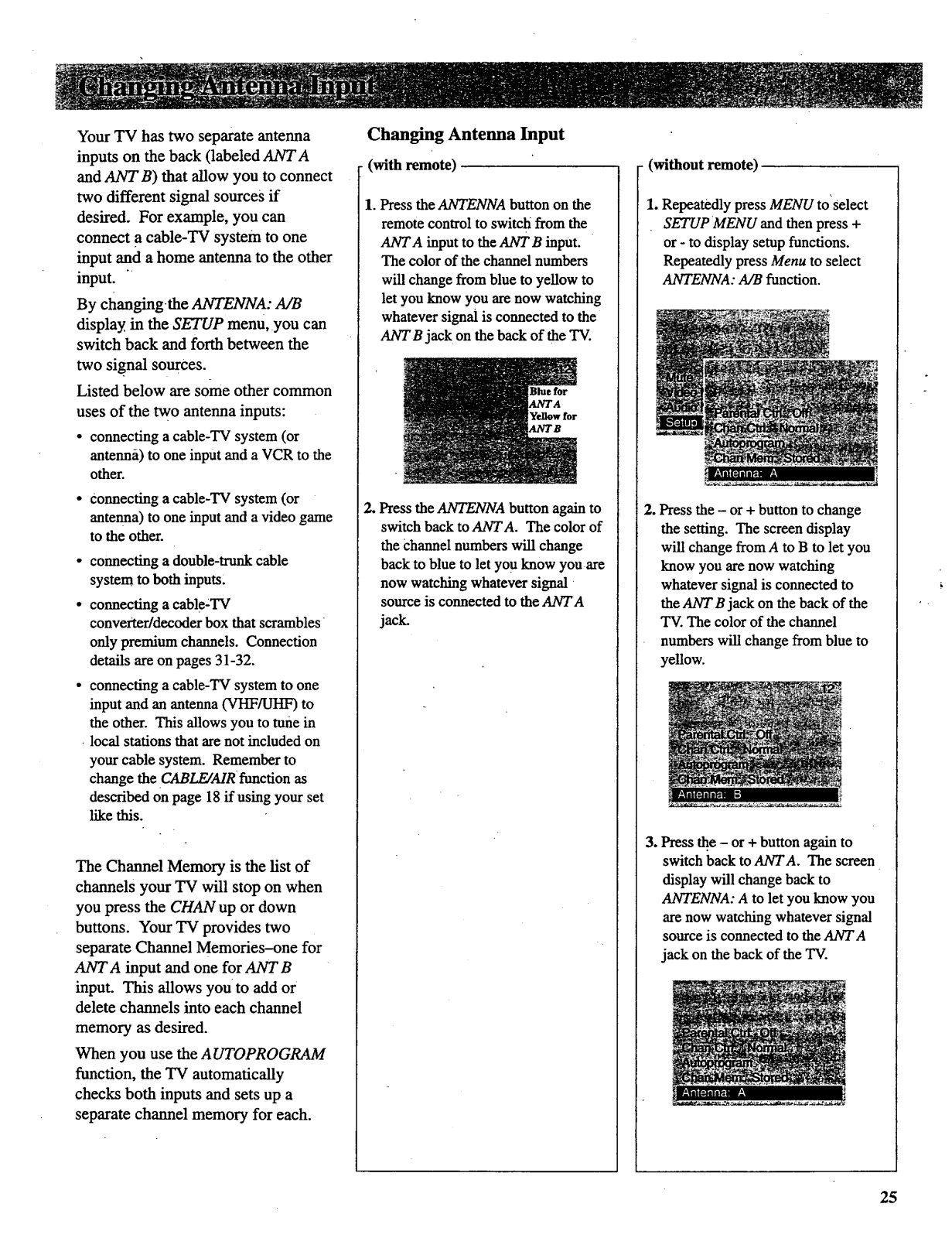

• Changing Antenna Input ......................................................................... 25

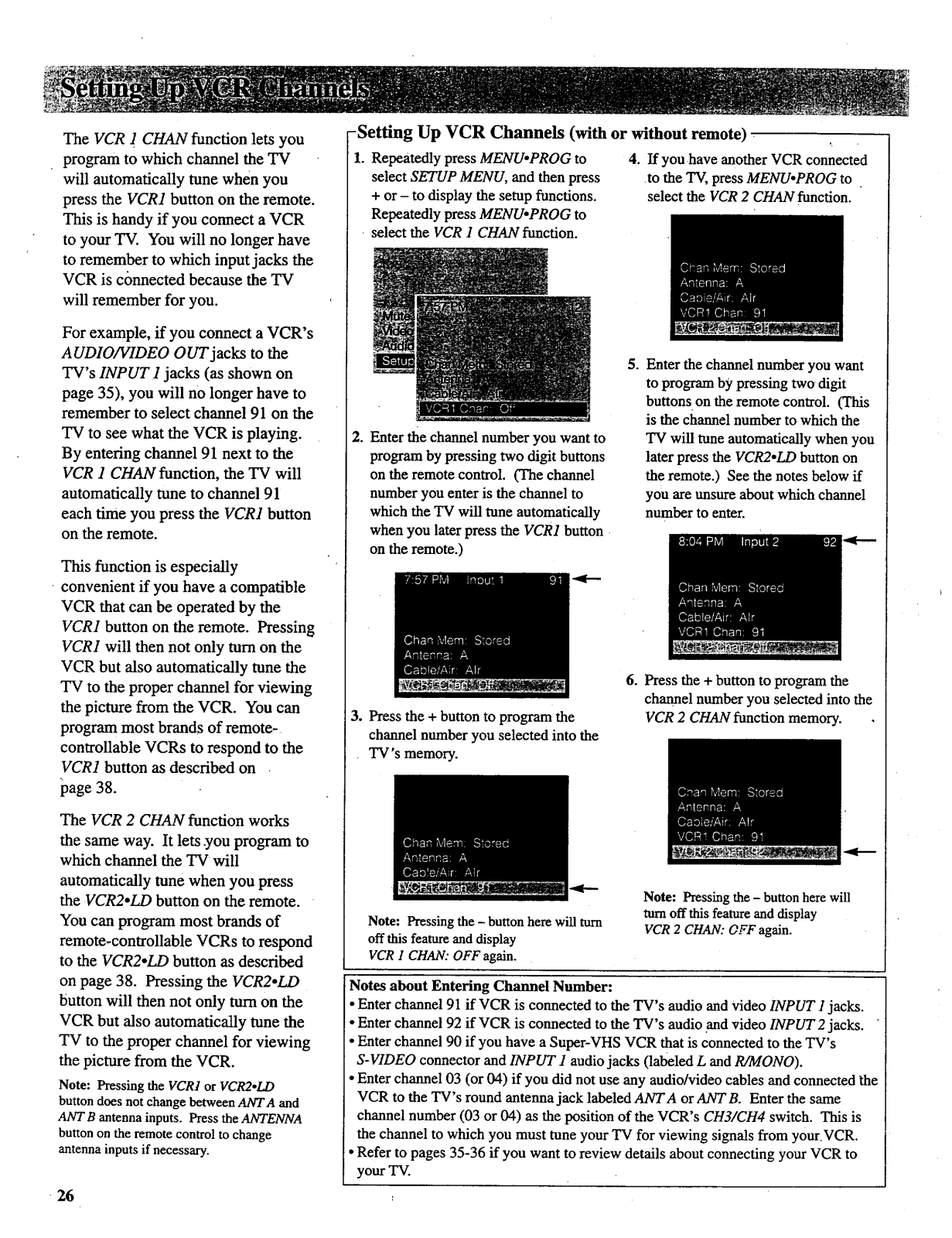

• Setting up VCR Channels ...................................................................... 26

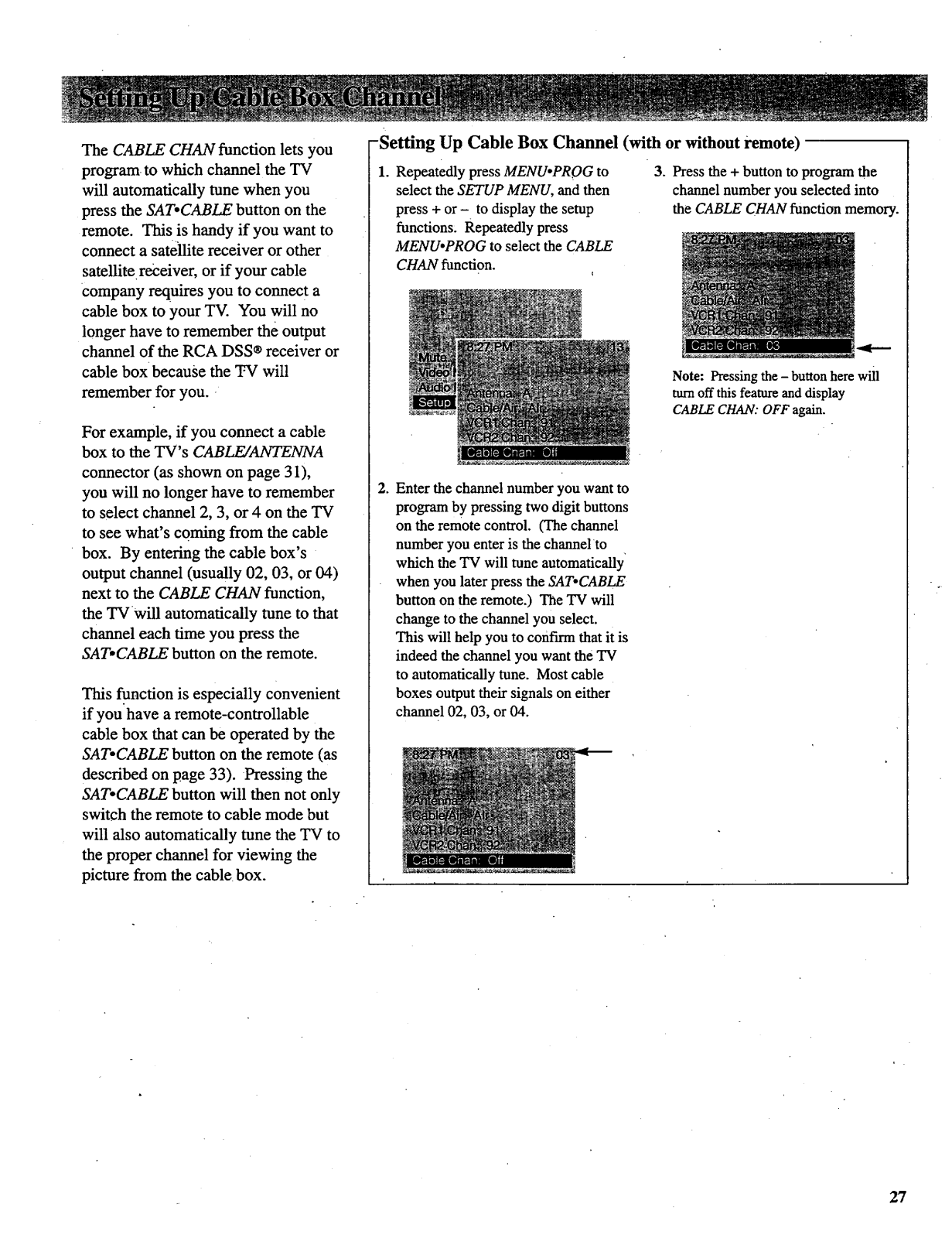

• Setting up Cable Box Channel ................................................................. 27

Detailed Connections

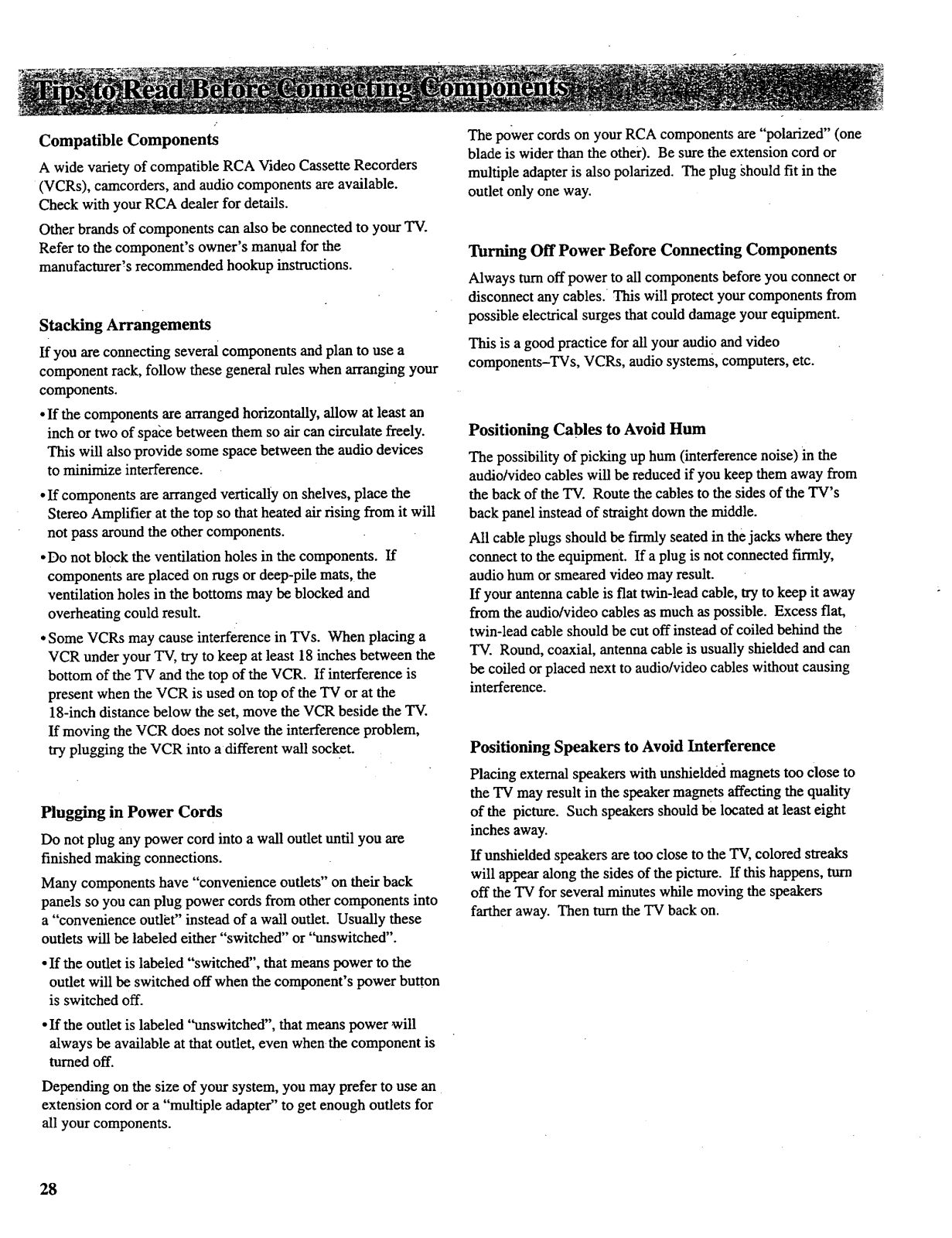

Tips to Read Before Connecting Components .......................................... 28

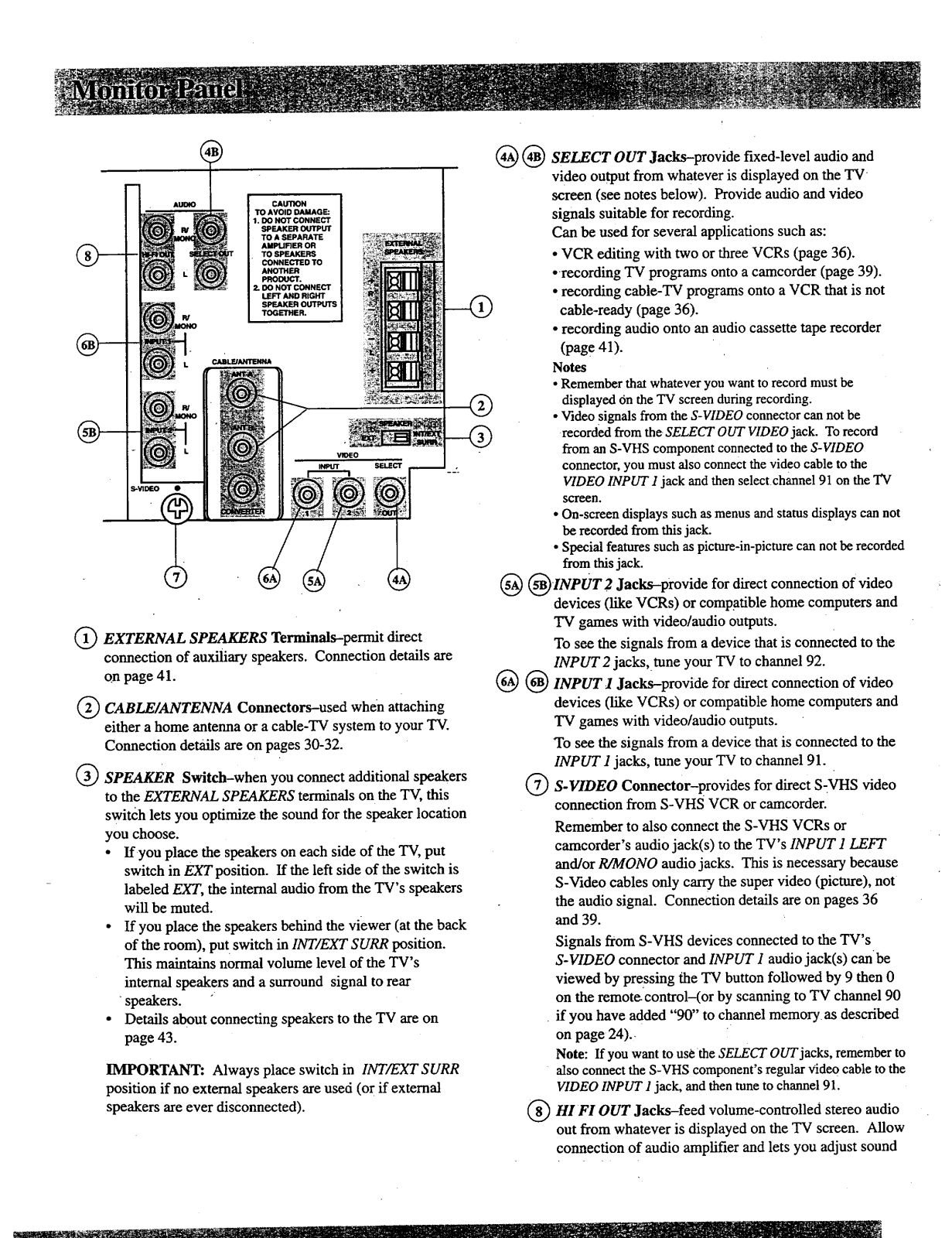

Monitor Panel ................................... ......................................... ,............... 29

Antenna and Cable Connections

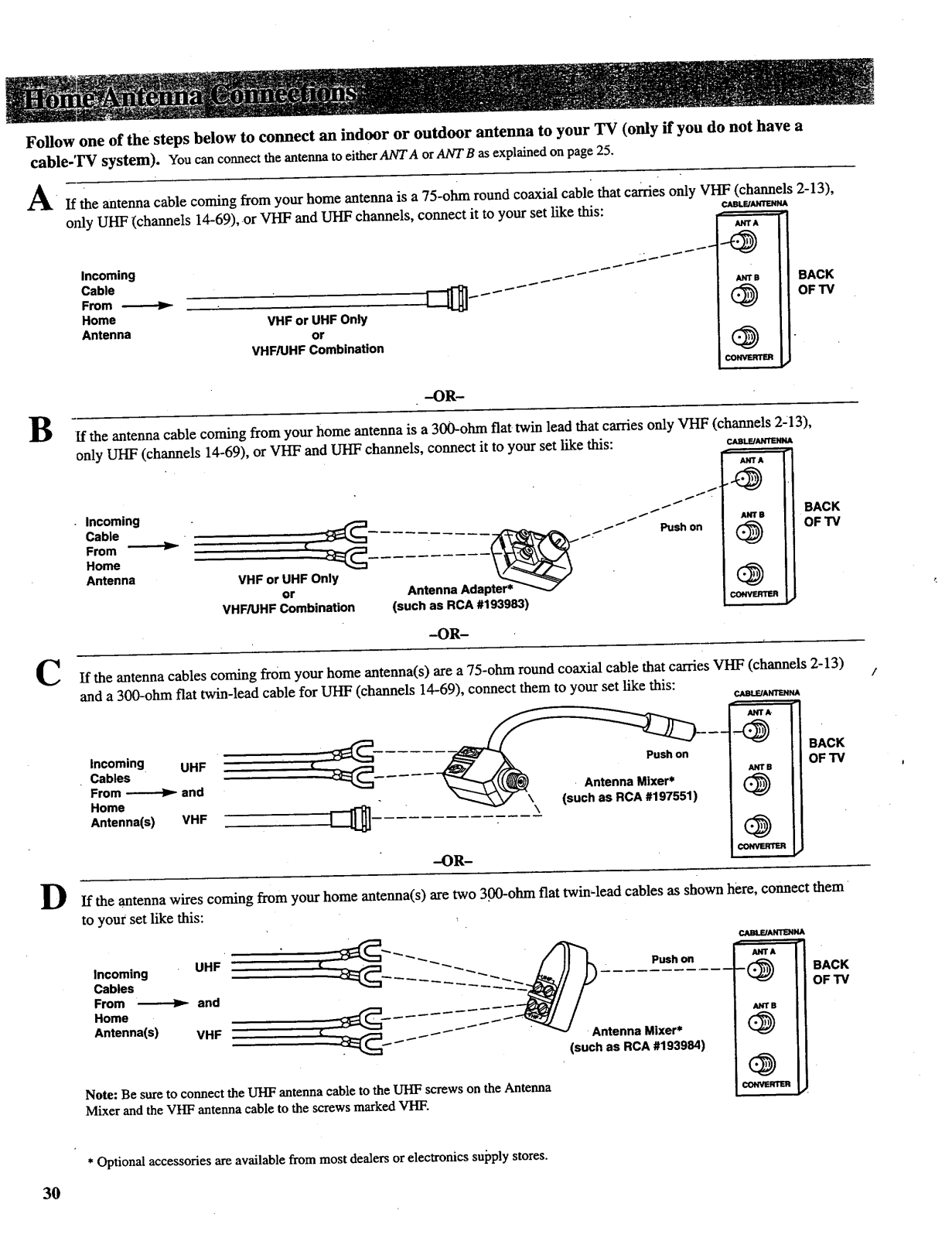

• Home Antenna Connections ................................................................... 30

• Cable-TV Connections ....................................................................... 31-32

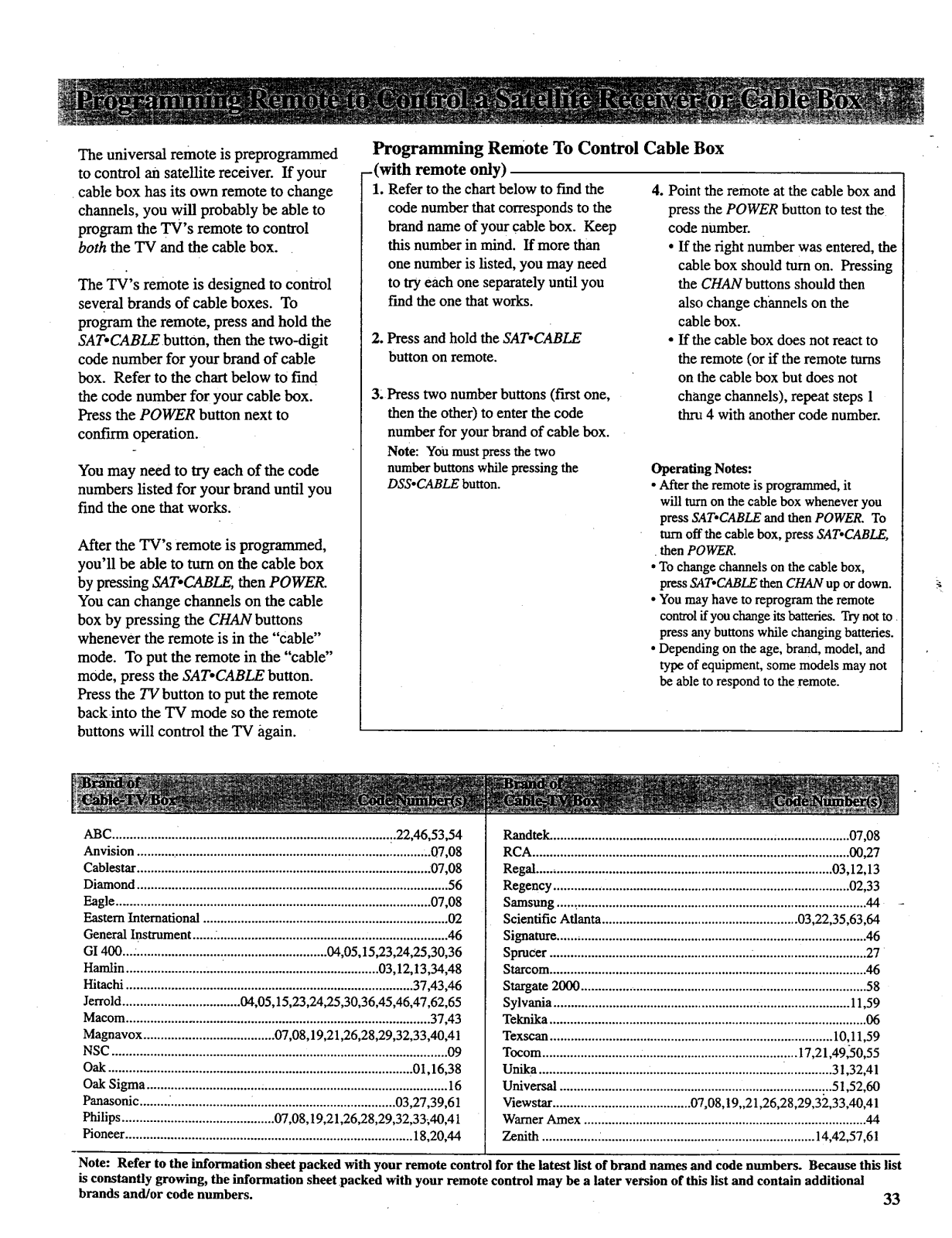

• Programming Remote to Control a Cable .............................................. 33

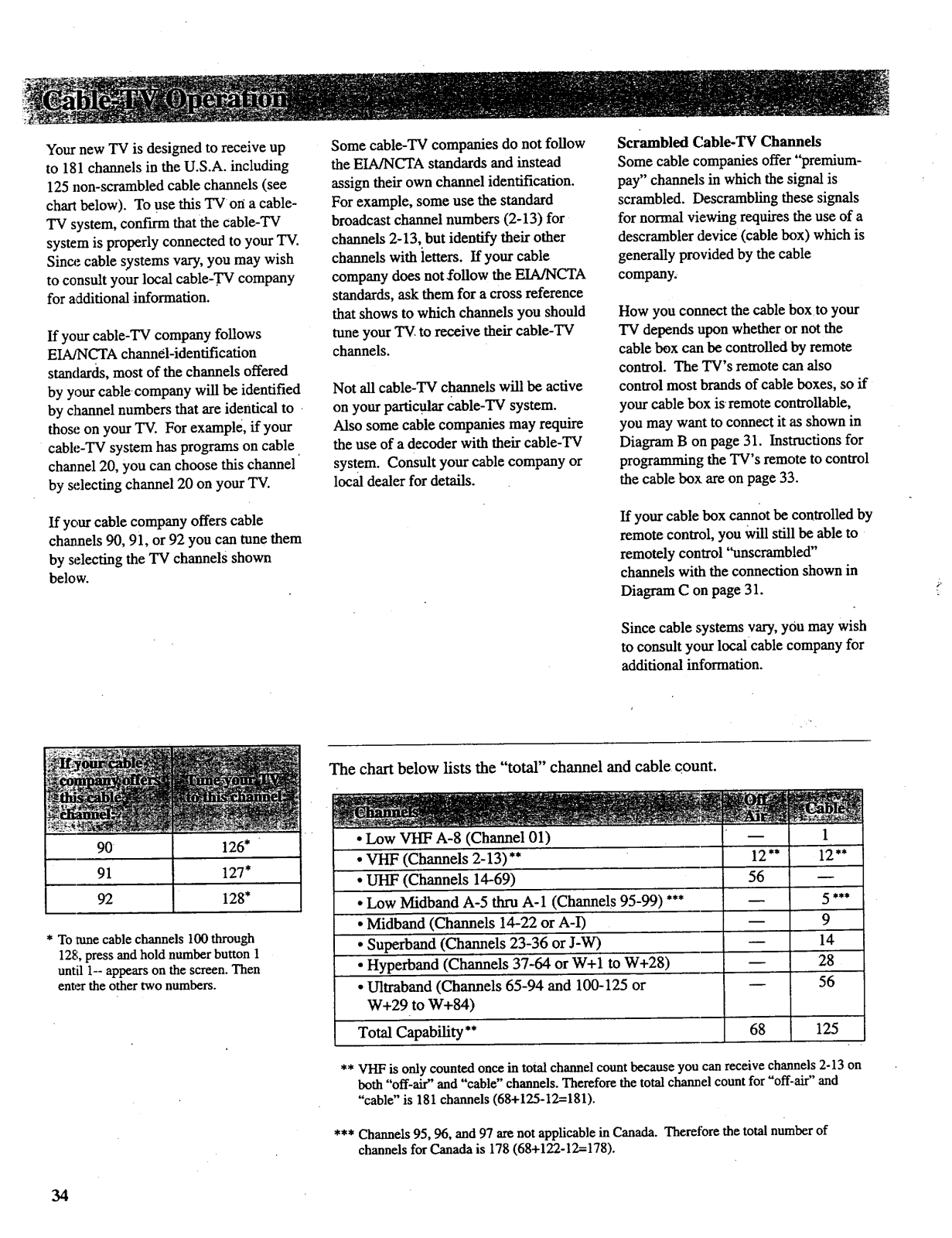

• Cable-TV Operation ............................................................................... 34

Component Connections

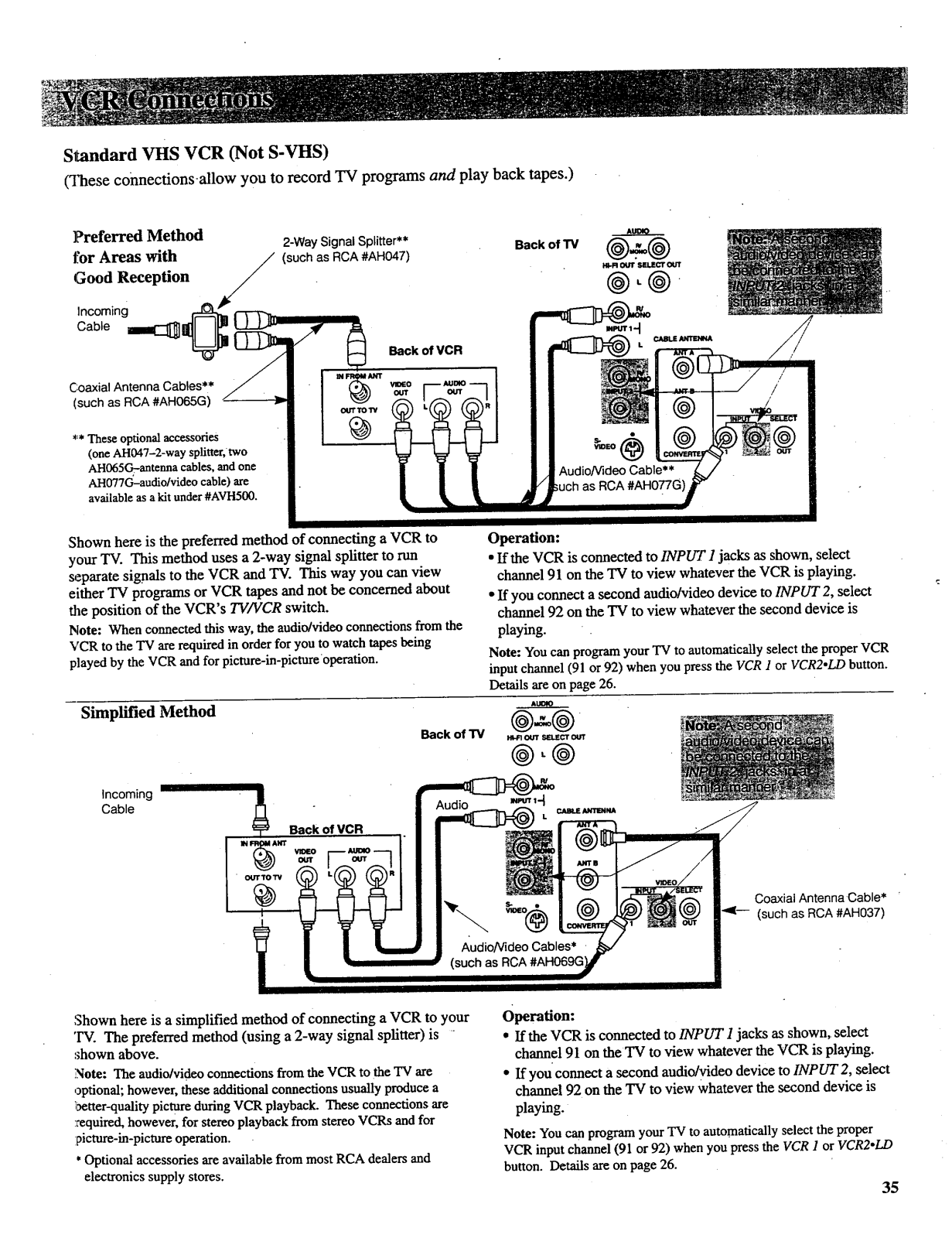

• Standard VCR ....................................... _............................................ 35-36

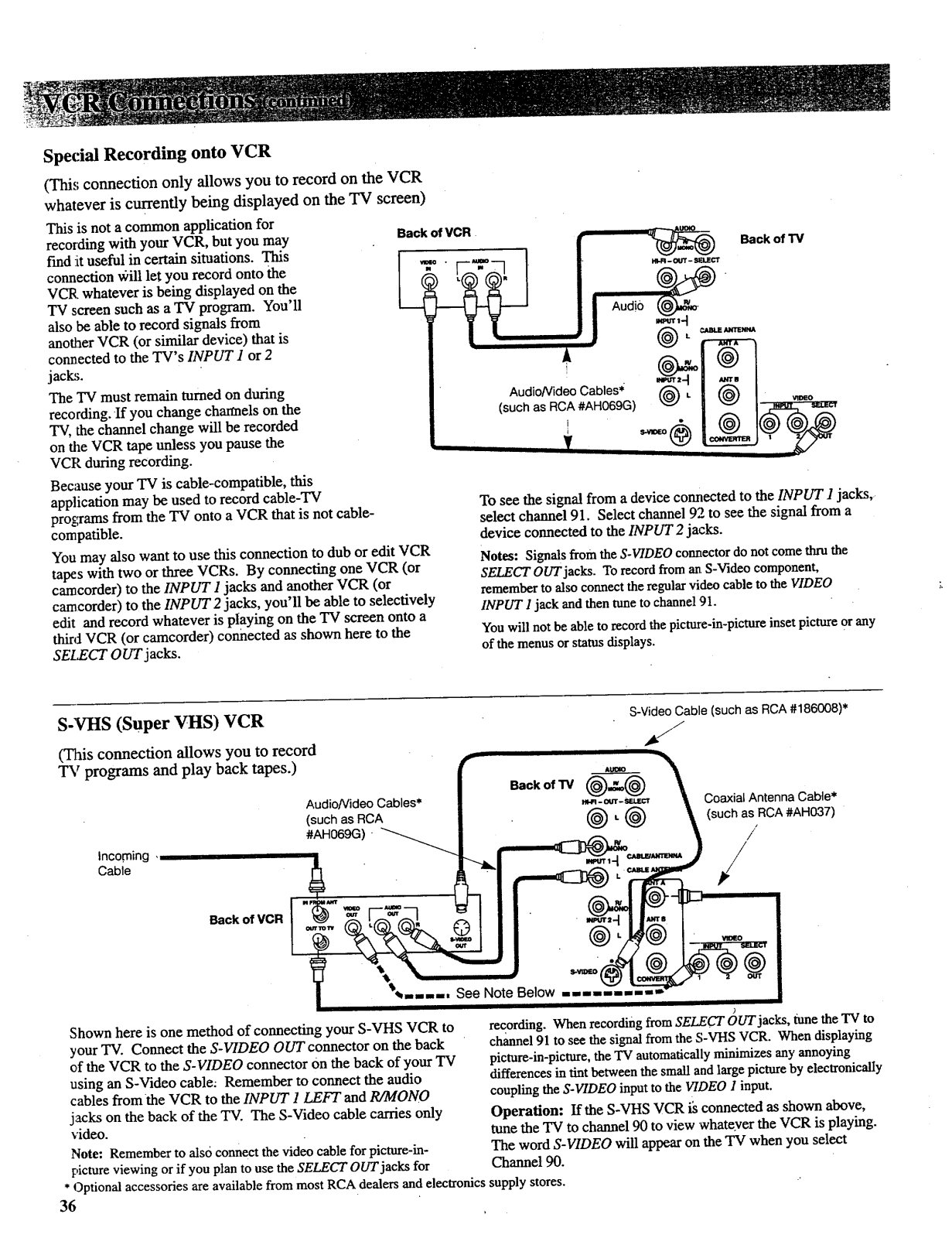

• S-VI-IS (Super VHS) VCR ................................. . ..................... ............... 36

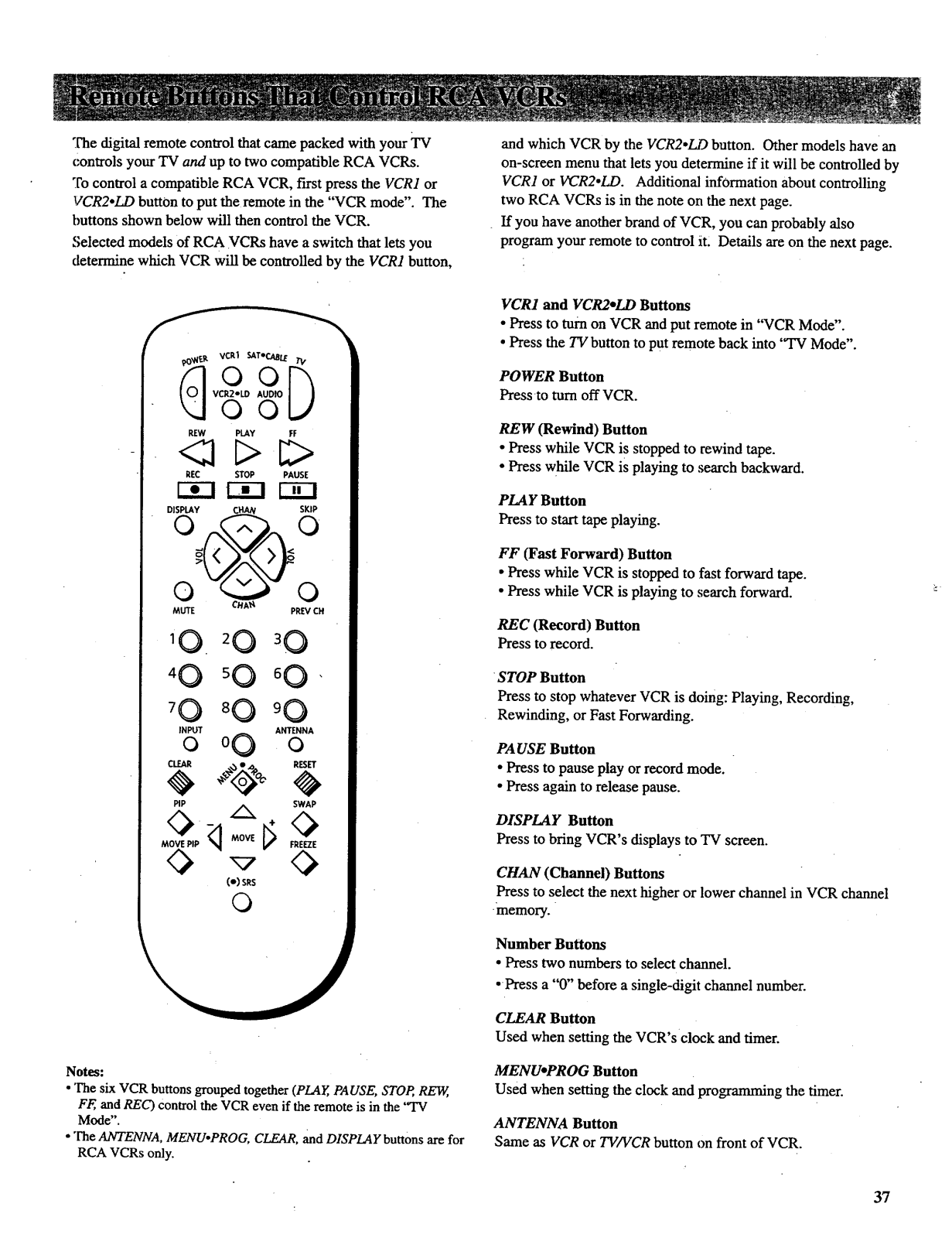

• Remote Buttons That Control RCA VCRs ............................................. 37

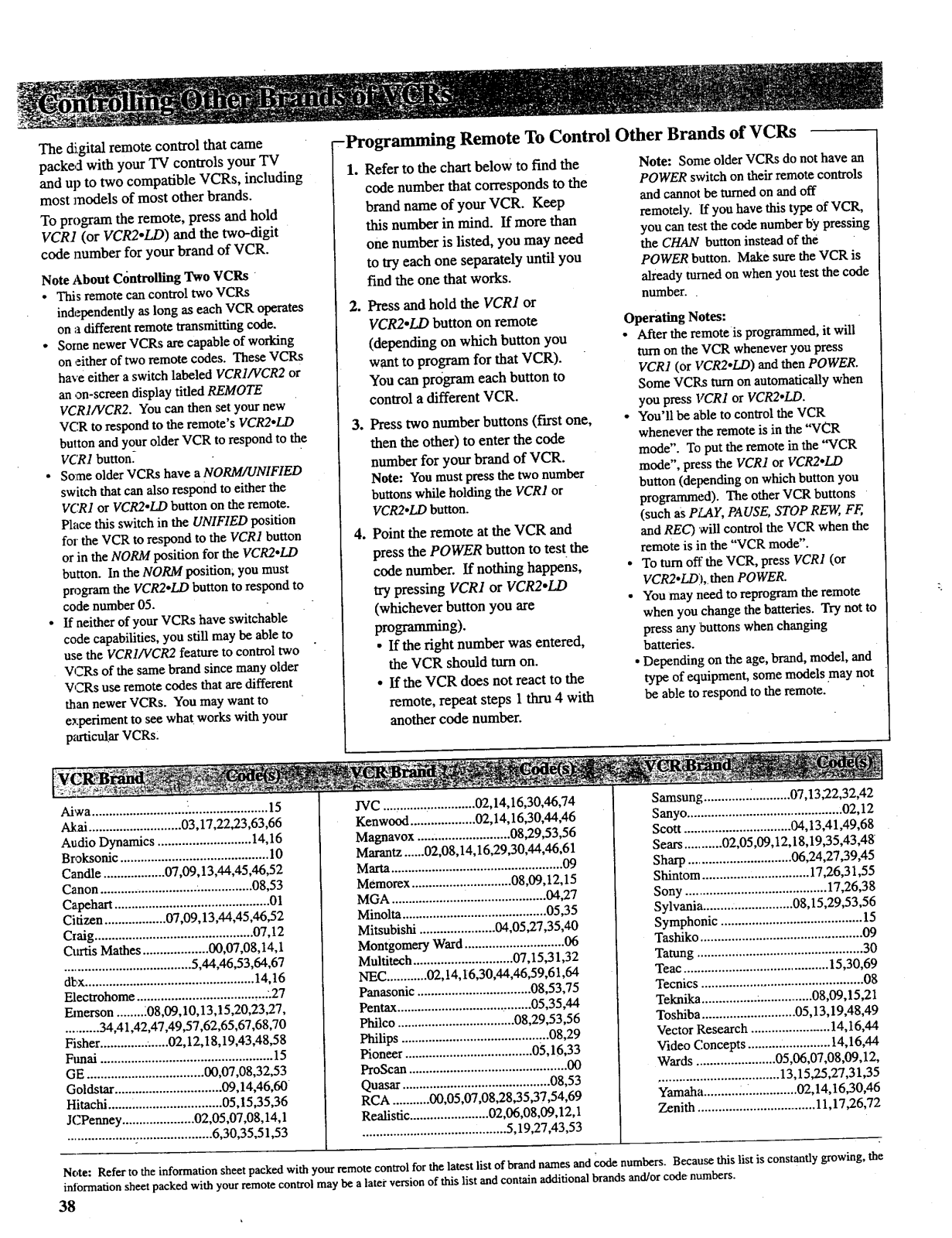

• Controlling Other Brands of VCRs ........................................................ 38

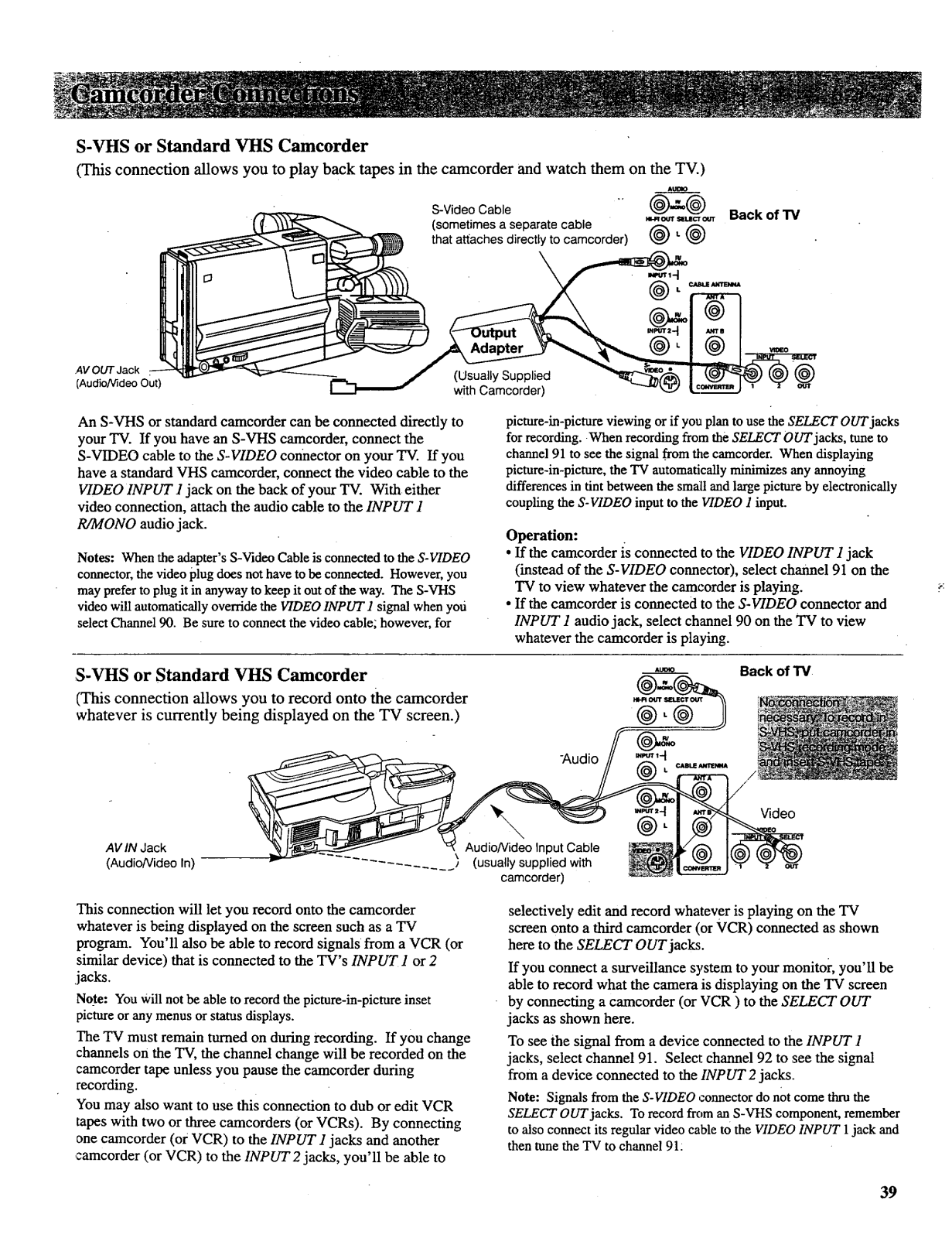

• Camcorder ........... _................ _.................................................................. 39

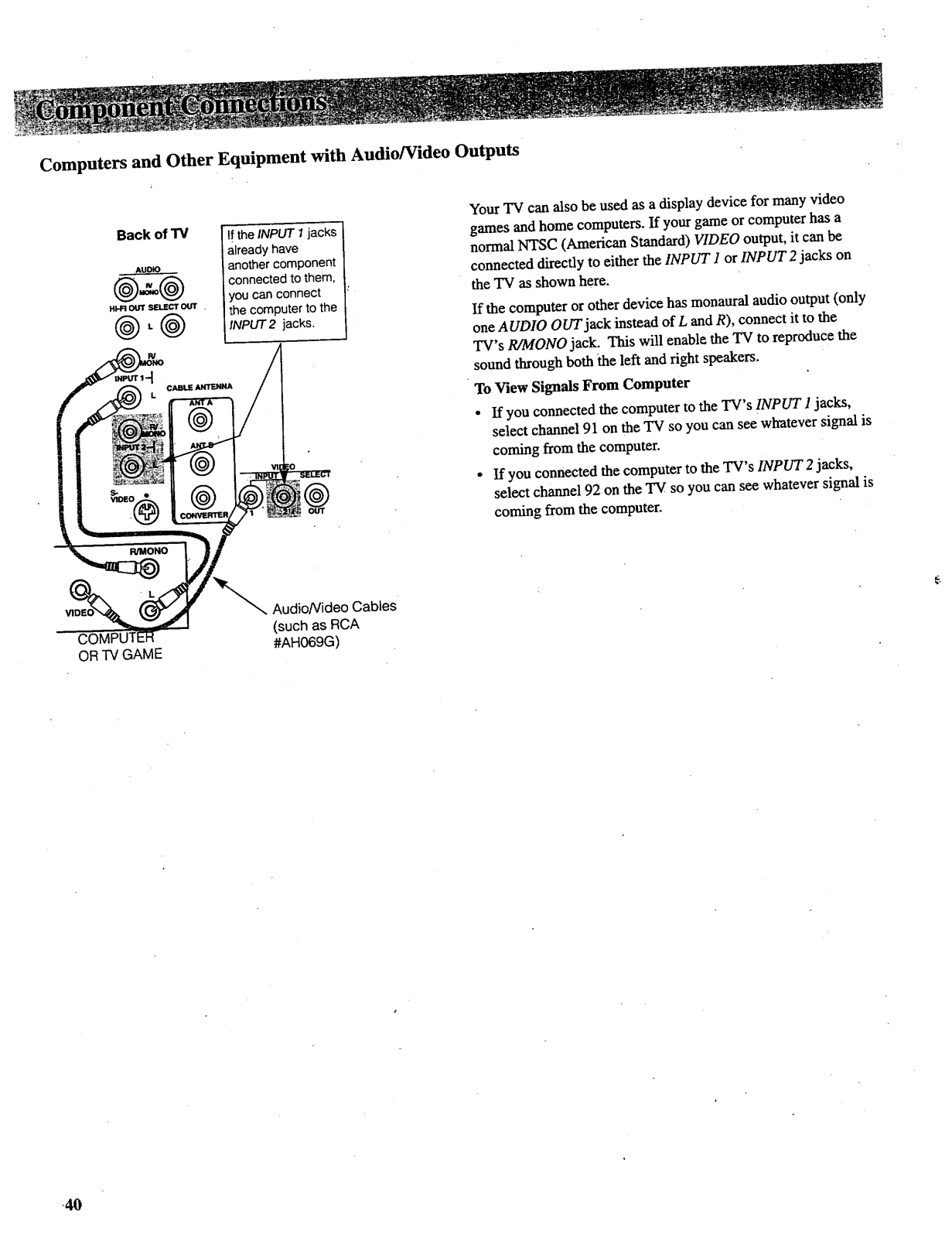

• Computers and Other Equipment ........................................... _............... 40

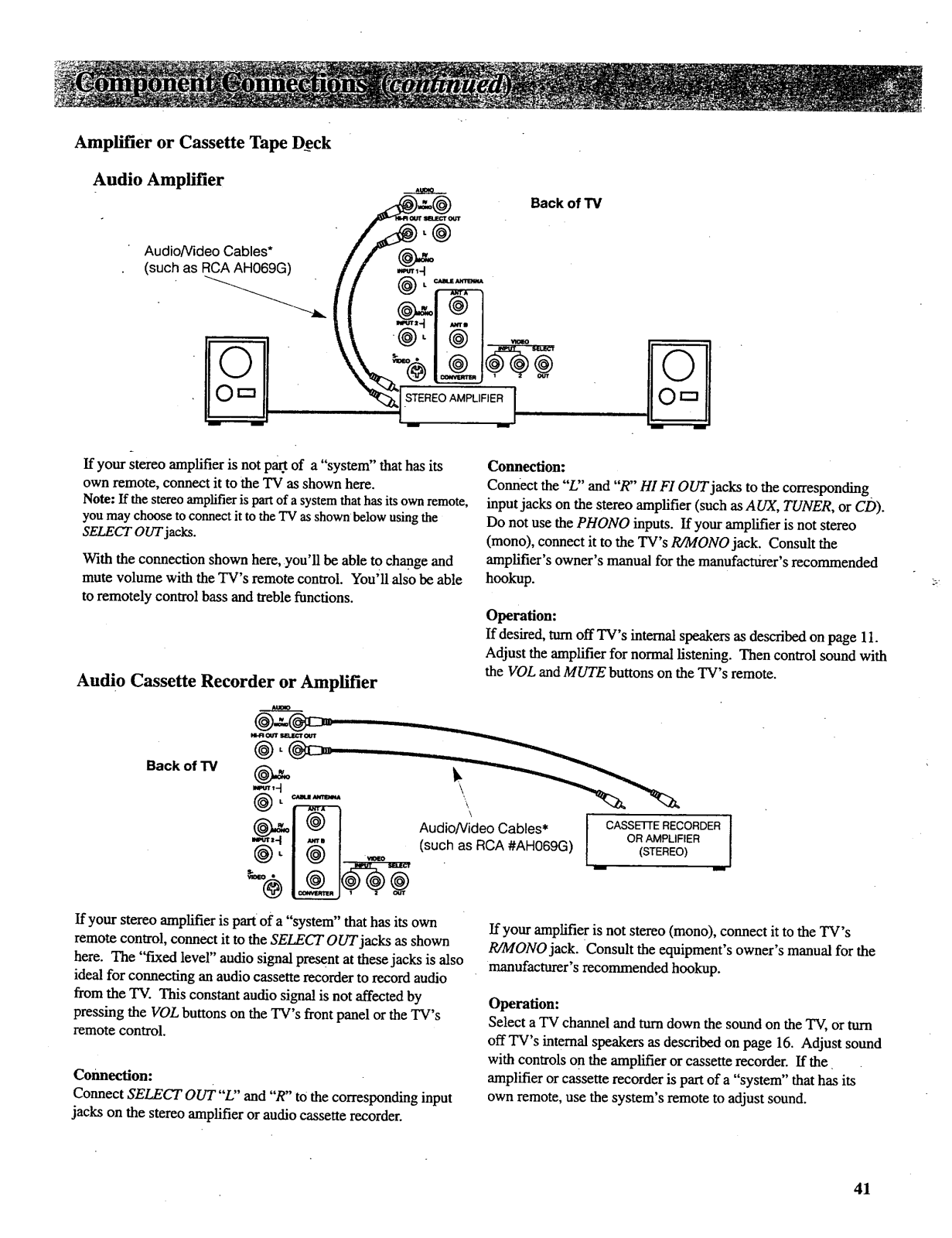

• Audio Amplifier ...................................................................................... 41

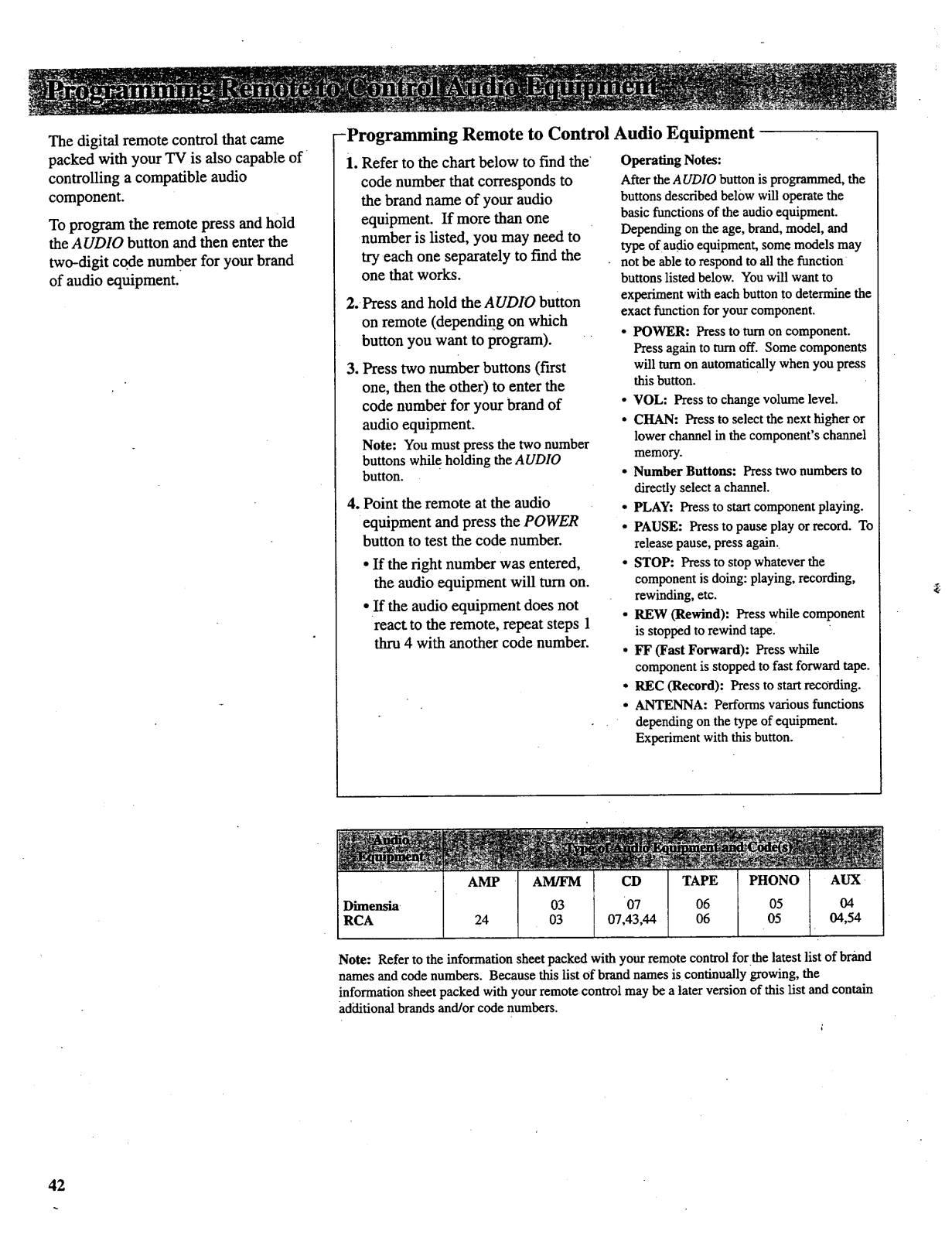

• Programming Remote to Control Audio Equipment .............................. 42

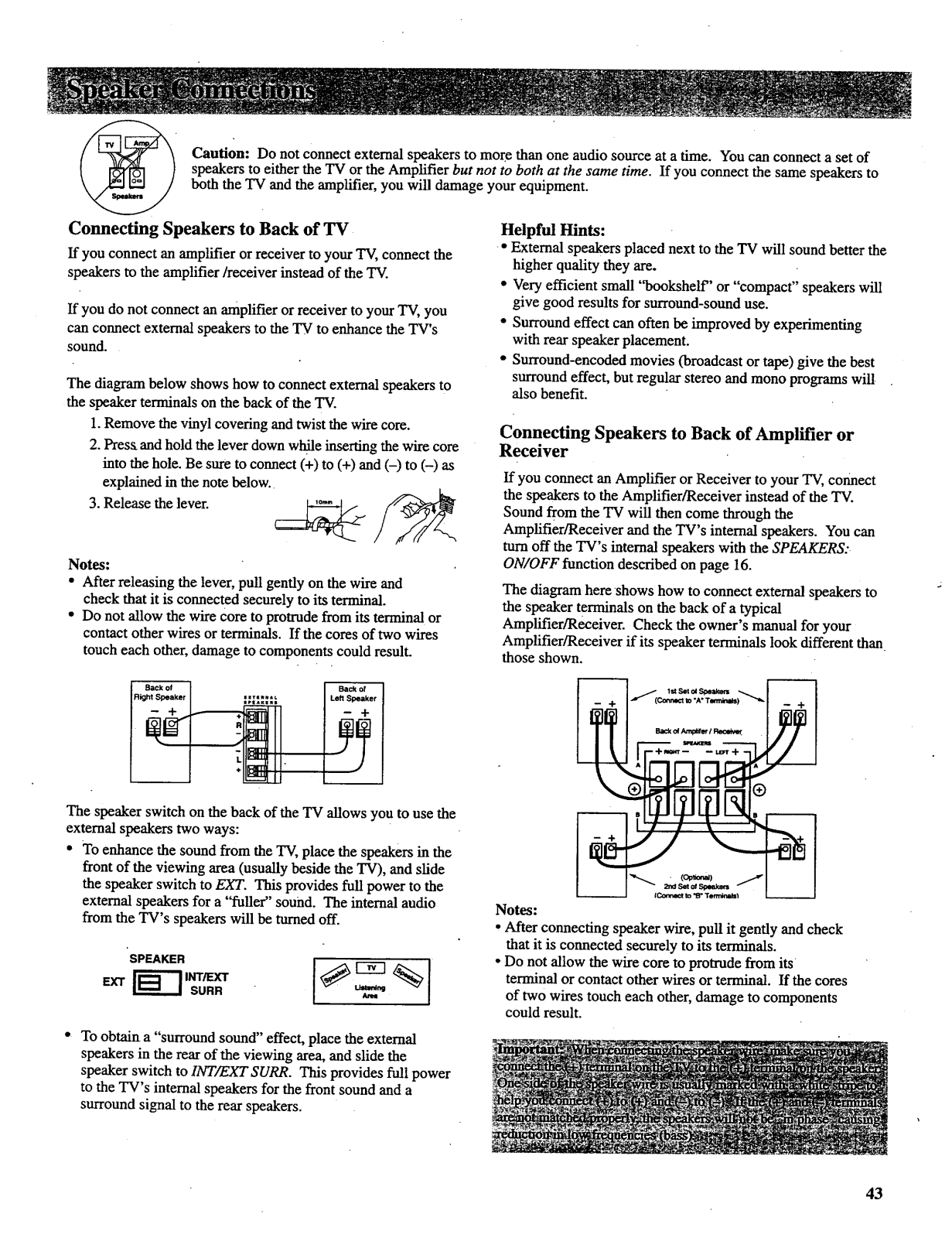

• Speaker Connections ...... :....................................................................... 43

Reference Section

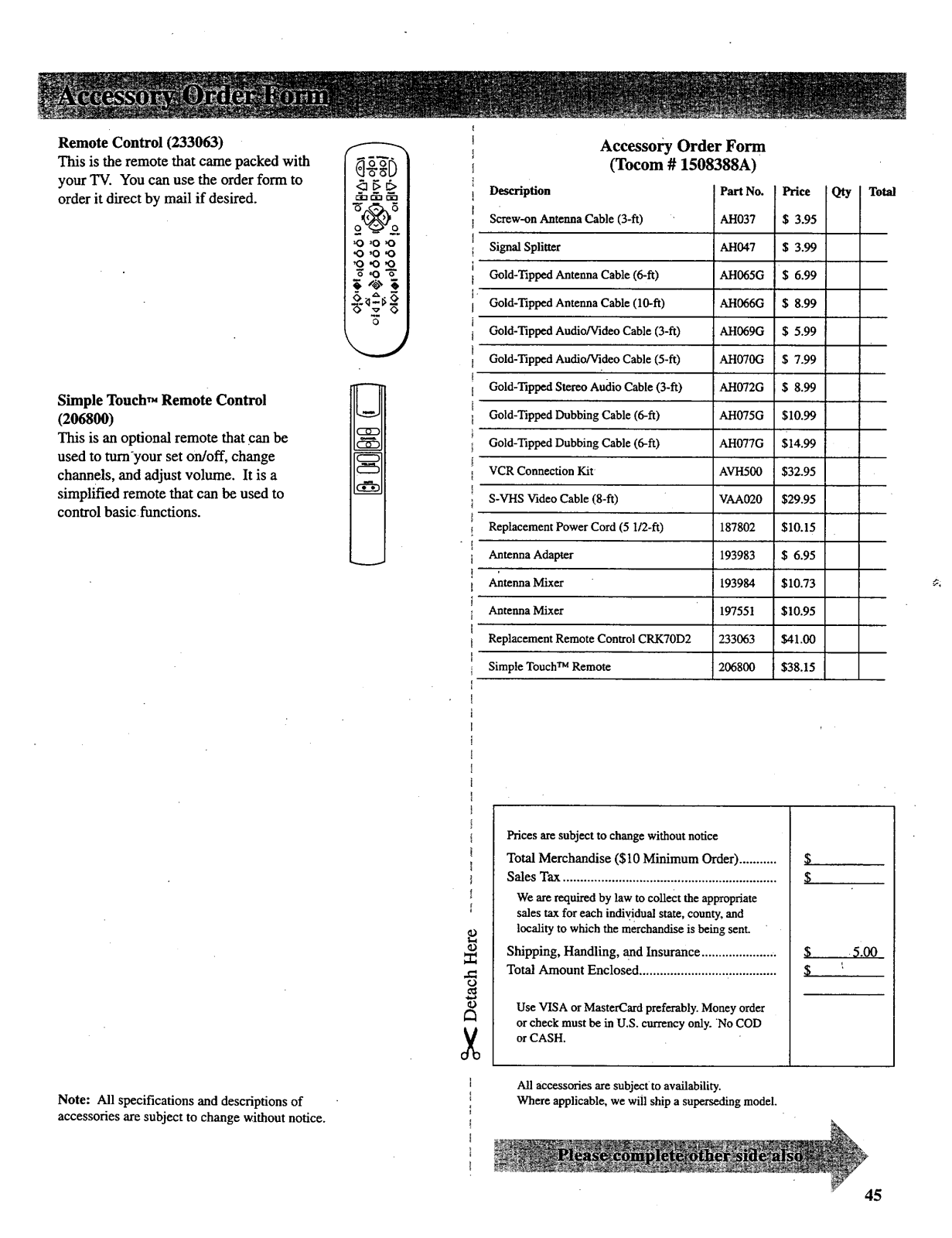

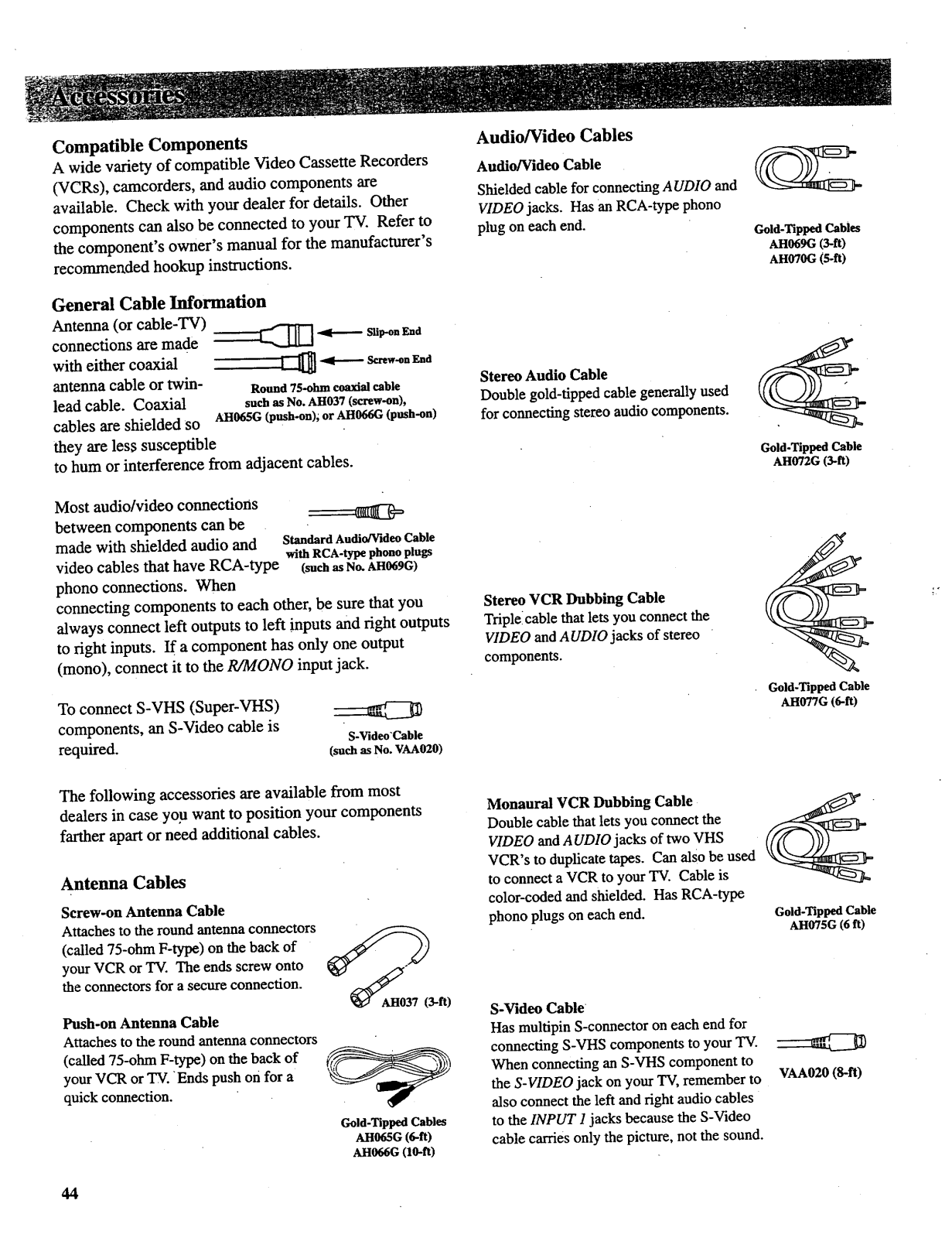

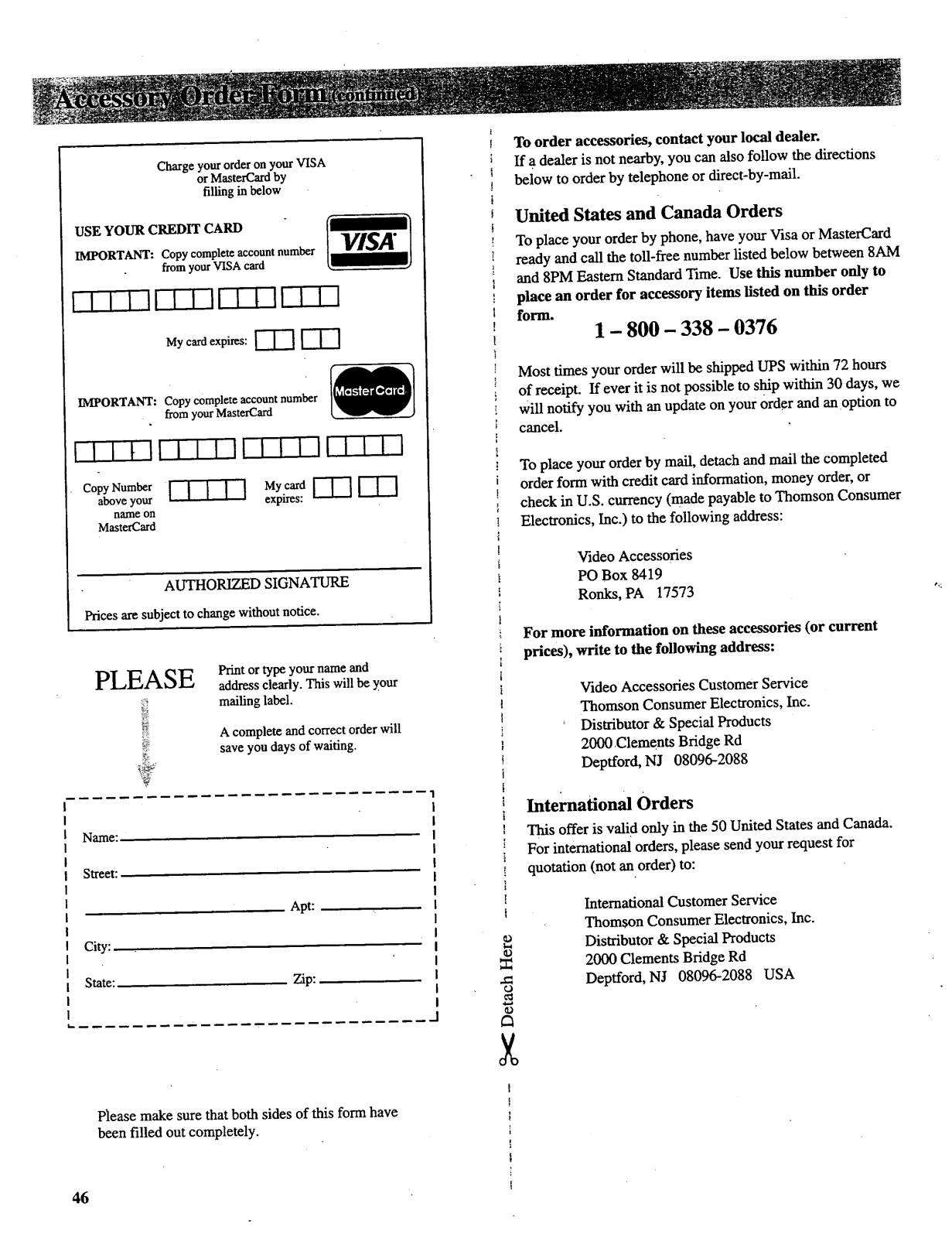

Optional Accessories and Order Form ................................................. 44-46

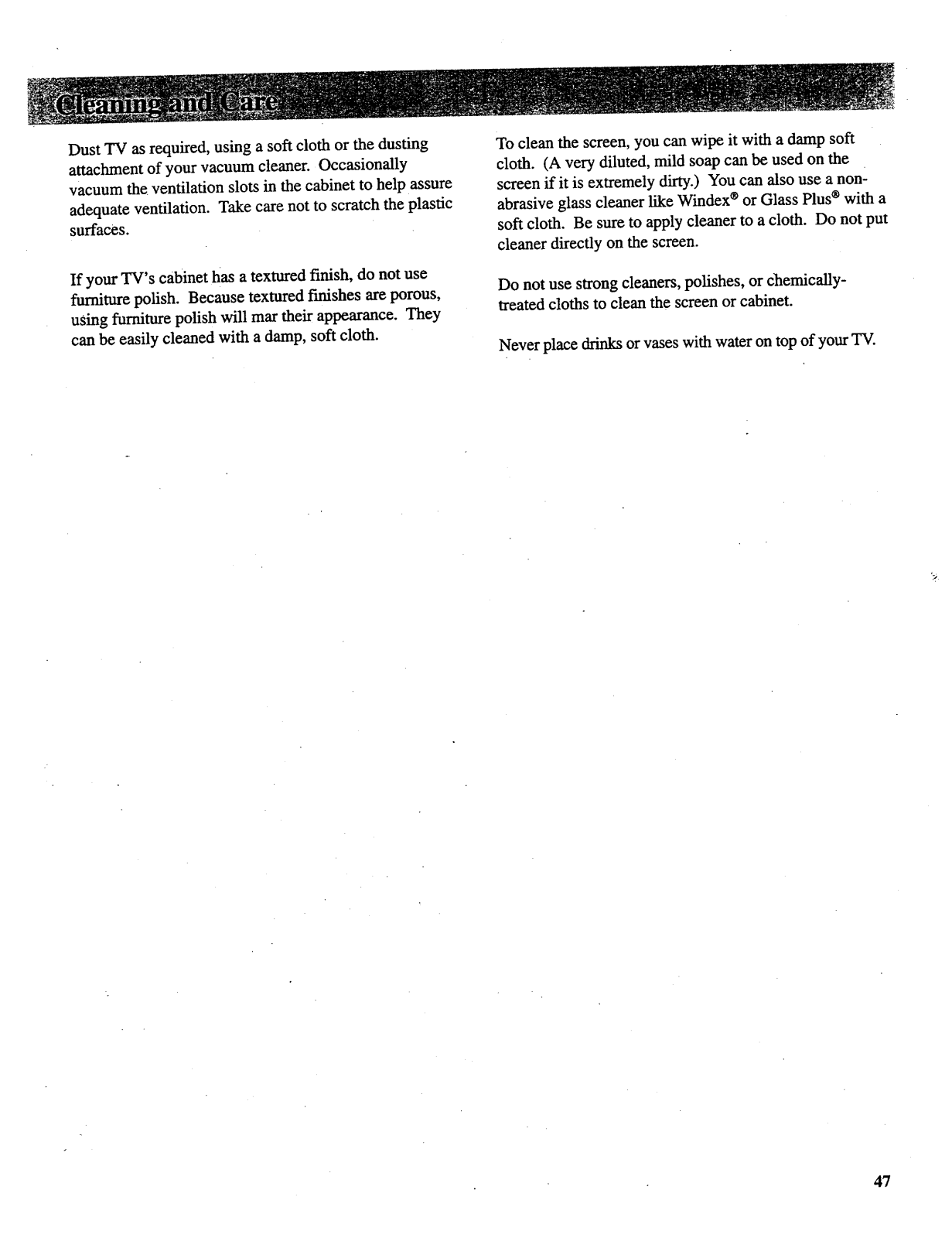

Cleaning and Care .................................................................................... .47

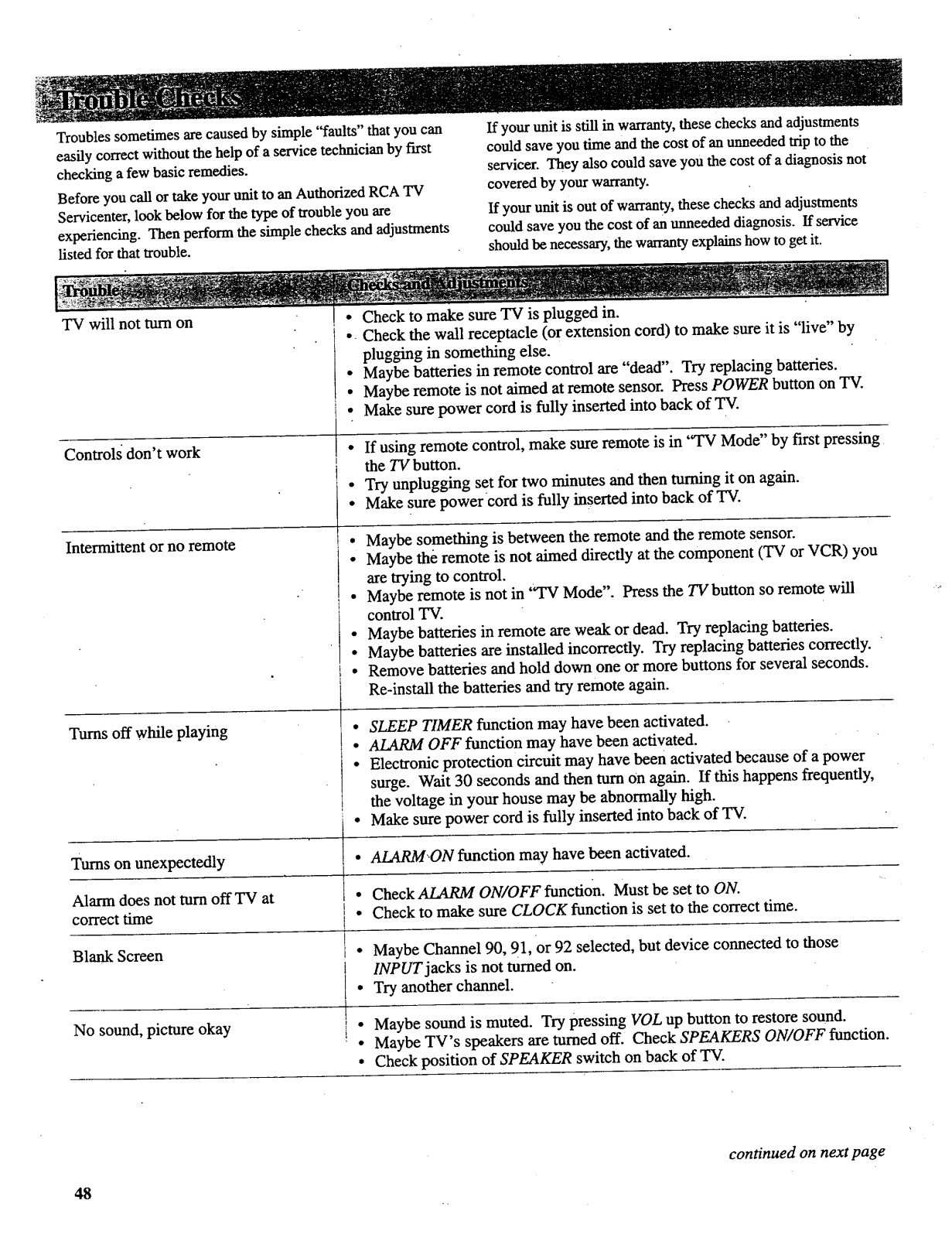

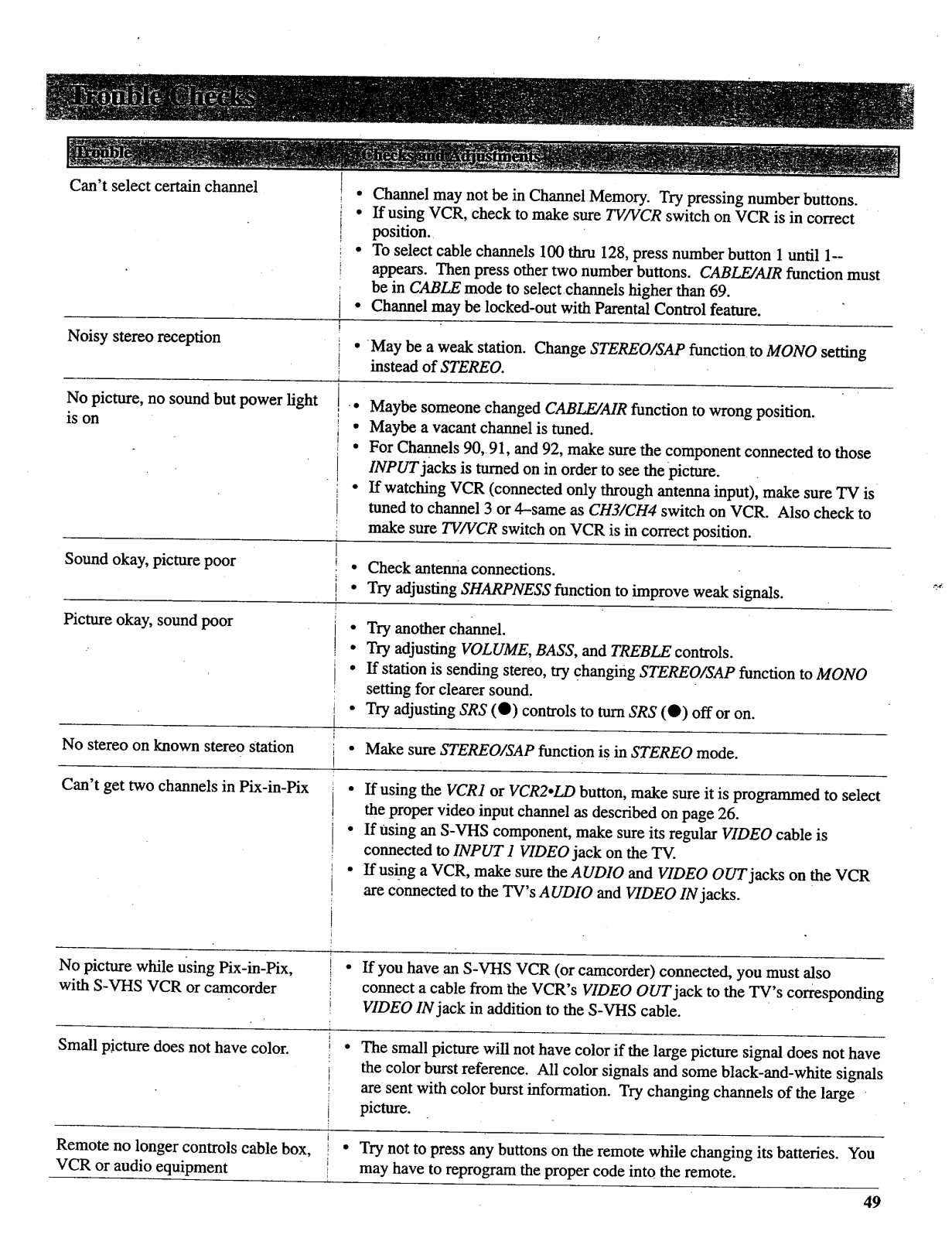

Trouble Checks .................................................................................... 48-50

Limited Warranty ...................................................................................... 51

Index (Alphabetical Subject Reference) .................................................... 52

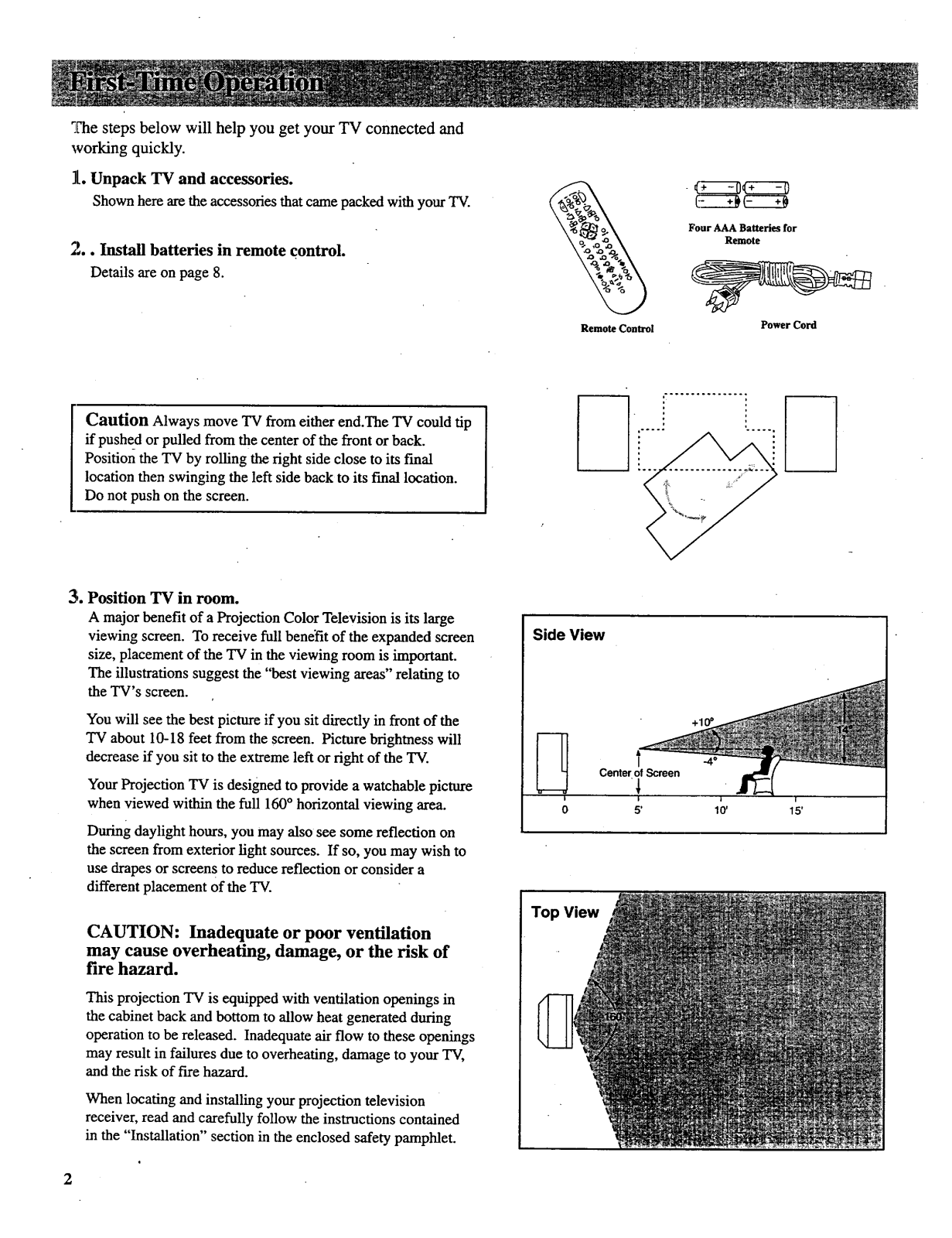

The steps below will help you get your TV connected and working quickly.

1. Unpack TV and accessories. Shown here are the accessories that came packed with your TV.

2,.. Install batteries in remote control.

Detailsare onpage 8.

Four AAA Batteries for

Remote

Caution Always move TV from either end.The TV could tip

if pushed or pulled from the center of the front or back. Position the TV by rolling the right side close to its final

location then swinging the left side back to its fmal location. Do not push on the screen.

3. Position TV in room.

A major benefit of a Projection Color Television is its large viewing screen. To receive full benefit of the expanded screen size, placement of the TV in the viewing room is important.

The illustrations suggest the "best viewing areas" relating to the TV's screen.

You will see the best picture if you sit directly in front of the

TV about 10-18 feet from the screen. Picture brightness will decrease if you sit to the extreme left or right of the TV.

Your Projection TV is designed to provide a watchable picture

when viewed within the full 160° horizontal viewing area. During daylight hours, you may also see some reflection on

the screen from exterior light sources. If so, you may wish to use drapes or screens to reduce reflection or consider a

different placement of the TV.

CAUTION: Inadequate or poor ventilation

may cause overheating, damage, or the risk of fire hazard.

RemoteControl

Side View

Top View

Center of Screen

5' 10'

.4 °

Power Cord

15'

This projection TV is equipped with ventilation openings in

the cabinet back and bottom to allow heat generated during

operation to be released. Inadequate air flow to these openings may result in failures due to overheating, damage to your TV,

and the risk of fire hazard.

When locating and installing your projection television receiver, read and carefully follow the instructions contained

in the "Installation" section in the enclosed safety pamphlet.

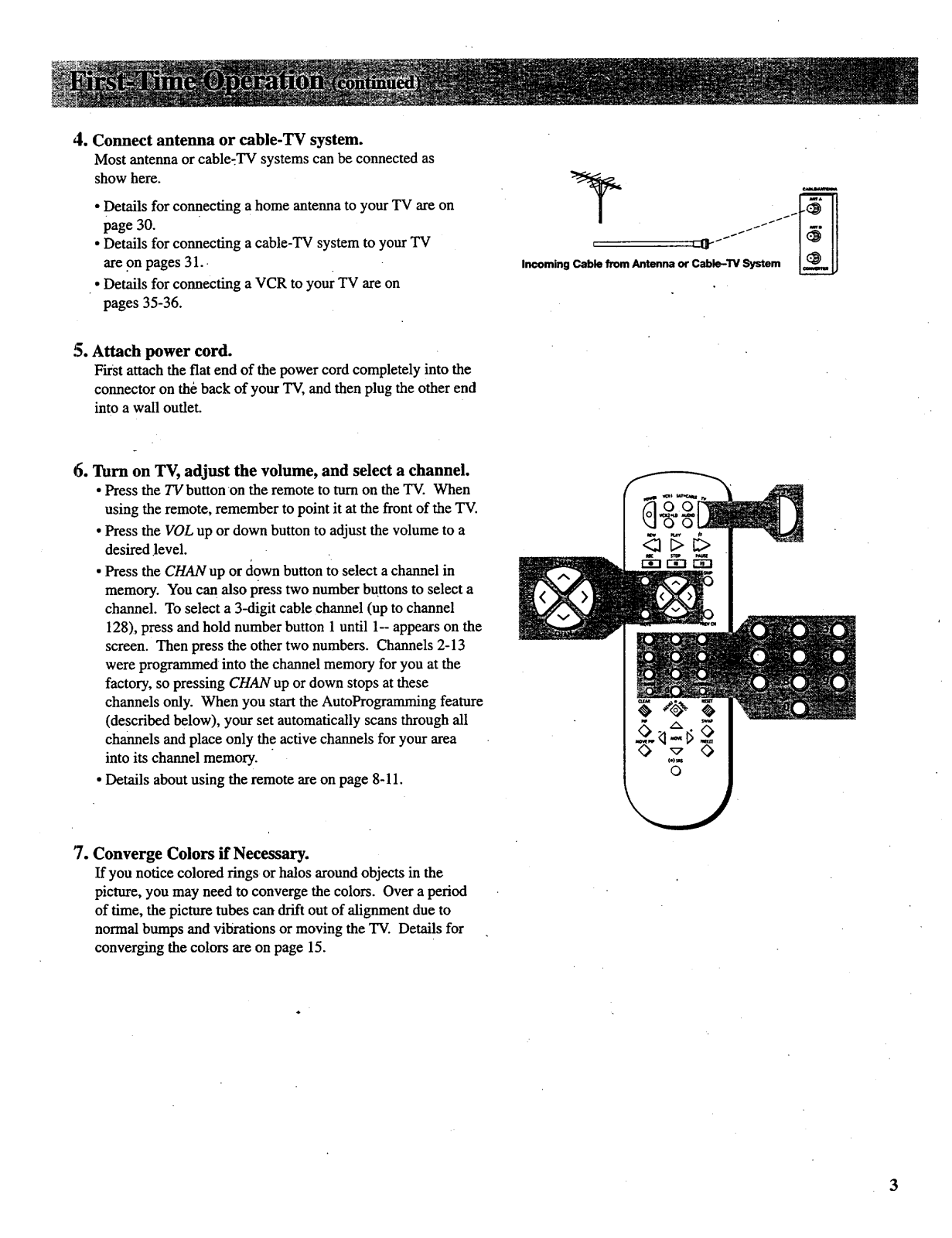

4. Connect antenna or cable-TV system.

Most antennaor cable-TV systems can be connected as show here.

• Details for connecting a home antenna to your TV are on

page 30.

• Details for connecting a cable-TV system to your TV are on pages 31.

• Details for connecting a VCR to your TV are on pages 35-36.

!3. Attach power cord.

First attach the fiat end of the power cord completely into the connector on the back of your TV, and then plug the other end into a wall outlet.

6. Turn on TV, adjust the volume, and select a channel.

• Press the TVbutton on the remote to turn on the TV. When using the remote, remember to point it at the front of the TV.

• Press the VOL up ordown button to adjust the volume to a desired .level.

• Press the CHAN up or down button to select a channel in memory. You can also press two number buttons to select a

channel. To select a 3-digit cable channel (up to channel

128), press and hold number button 1 until 1-- appears on the screen• Then press the other two numbers. Channels 2-13 were programmed into the channel memory for you at the factory, so pressing CHAN up or down stops at these channels only. When you start the AutoProgramming feature (described below), your set automatically scans through all channels and place only the active channels for your area into its channel memory.

• Details about using the remote are on page 8-11.

i L_ -_SS

Incoming Cable from Antenna or Cable-TV System

7. Converge Colors if Necessary. If you notice colored rings or halos aroundobjects in the picture, you may need to converge the colors. Over a period of time, the picture tubes can drift out of alignment due to normal bumps and vibrations ormoving the TV. Details for

converging the colors are on page 15.

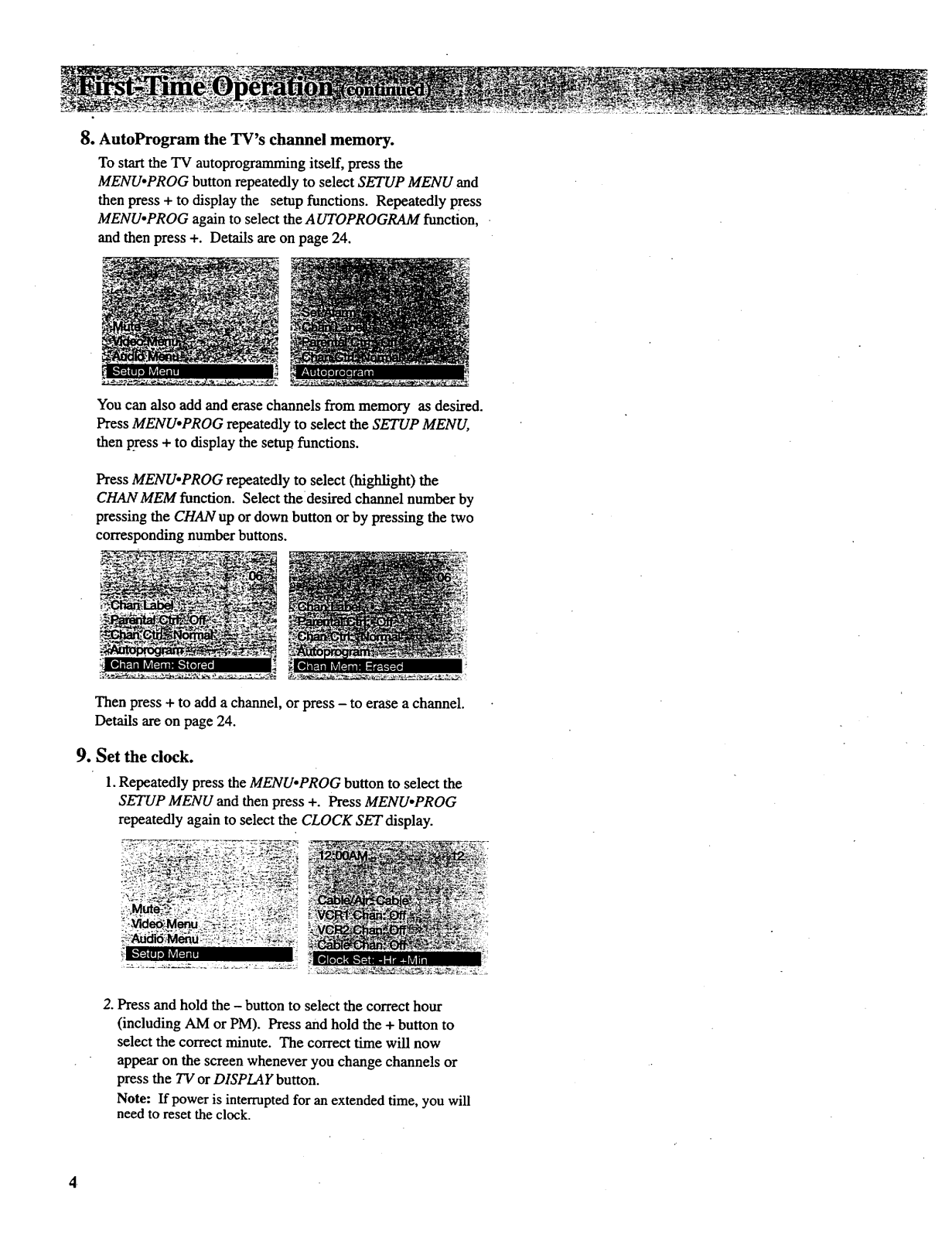

8. AutoProgram the TV's channel memory. To start the TV autoprogrammingitself, press the

MENU.PROG button repeatedly to select SETUP MENU and then press + to display the setup functions. Repeatedly press

MENU.PROG again to select the A UTOPROGRAM function,

and then press +. Details areon page 24.

You can also add and erase channels from memory as desired. Press MENUopROG repeatedly to select the SETUP MENU, then press + to display the setup functions.

Press MENU.PROG repeatedly to select (highlight) the CHANMEM function. Select thedesired channel number by

pressing the CHAN up or down button or by pressing the two corresponding number buttons.

Then press + to add a channel, or press - to erase a channel. Details are on page 24.

9. Set the clock.

1.Repeatedly press the MENUopROG button to select the

SETUP MENU and then press +. Press MENUopROG repeatedly again to select the CLOCK SET display.

2. Press and hold the - button to select the correct hour (including AM or PM). Press and hold the + button to

select the correct minute. The correct time will now appear on the screen whenever you change channels or

press the TV or DISPLAY button. Note: If power is interrupted for an extended time, you will

need to reset the clock.

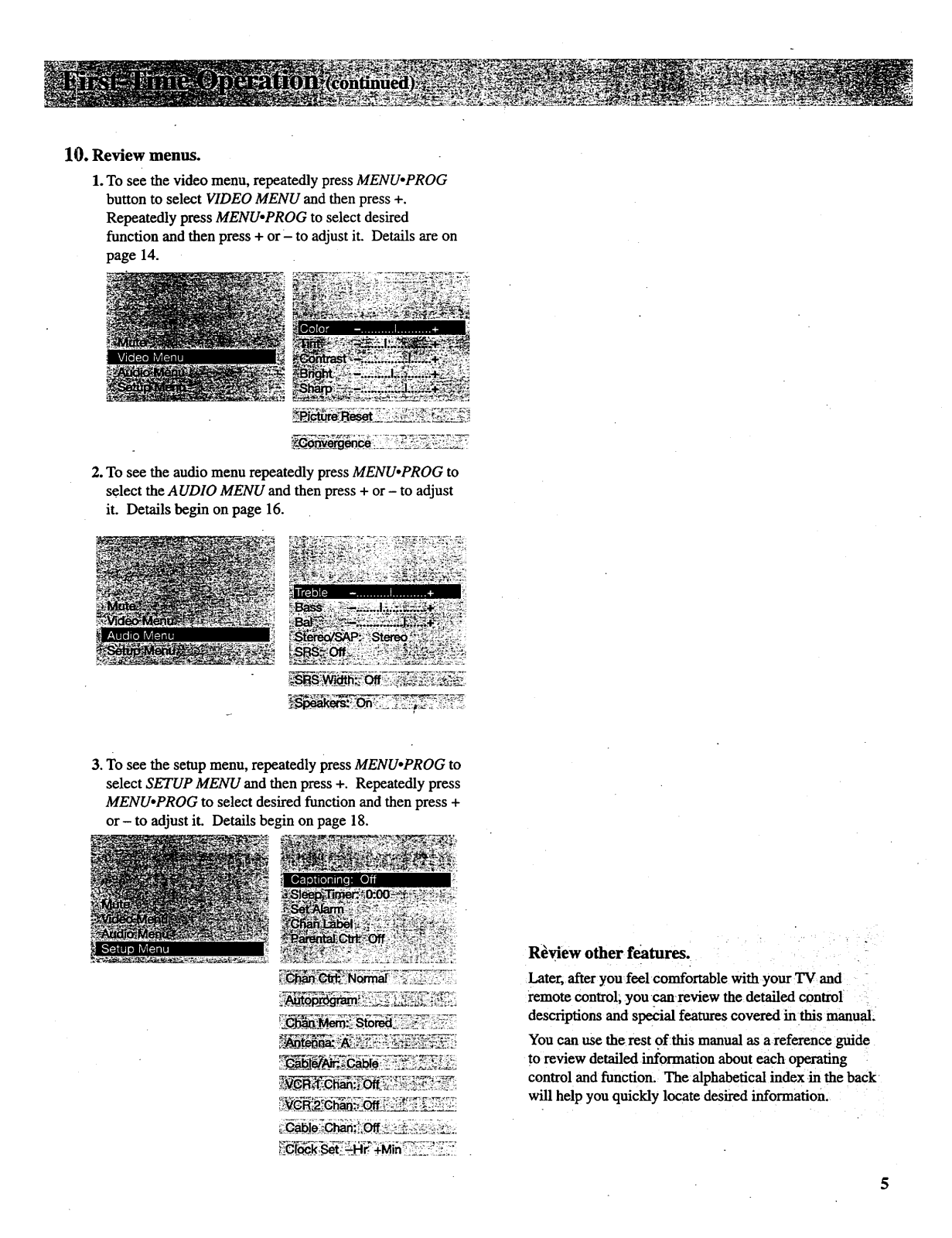

10. Review menus.

1.To see the video menu, repeatedly press MENUopROG button to select VIDEO MENU and then press +. Repeatedly press MENU°PROG to select desired

function and then press + or- to adjust it. Details are on page 14.

2. To see the audio menu repeatedly press MENUopROG to

select the AUDIO MENU and then press + or - to adjust it. Details begin on page 16.

3. To see the setup menu, repeatedly press MENUopROG to

select SETUP MENU and then press +. Repeatedly press MENUopROG to select desired function and then press + or- to adjust it. Details begin on page 18.

LC_k_Set_._Hr; +M n ?:_:iL.".i._._;_

Review other features.

Later, after you feel comfortable with your TV and remote control, you can-review the detailed control

descriptions and special features covered in this manual_ You canusethe rest of this manual as a reference guide

to review detailed information about each operating

control and function. The alphabetical index in the back will help you quickly locate desired information.

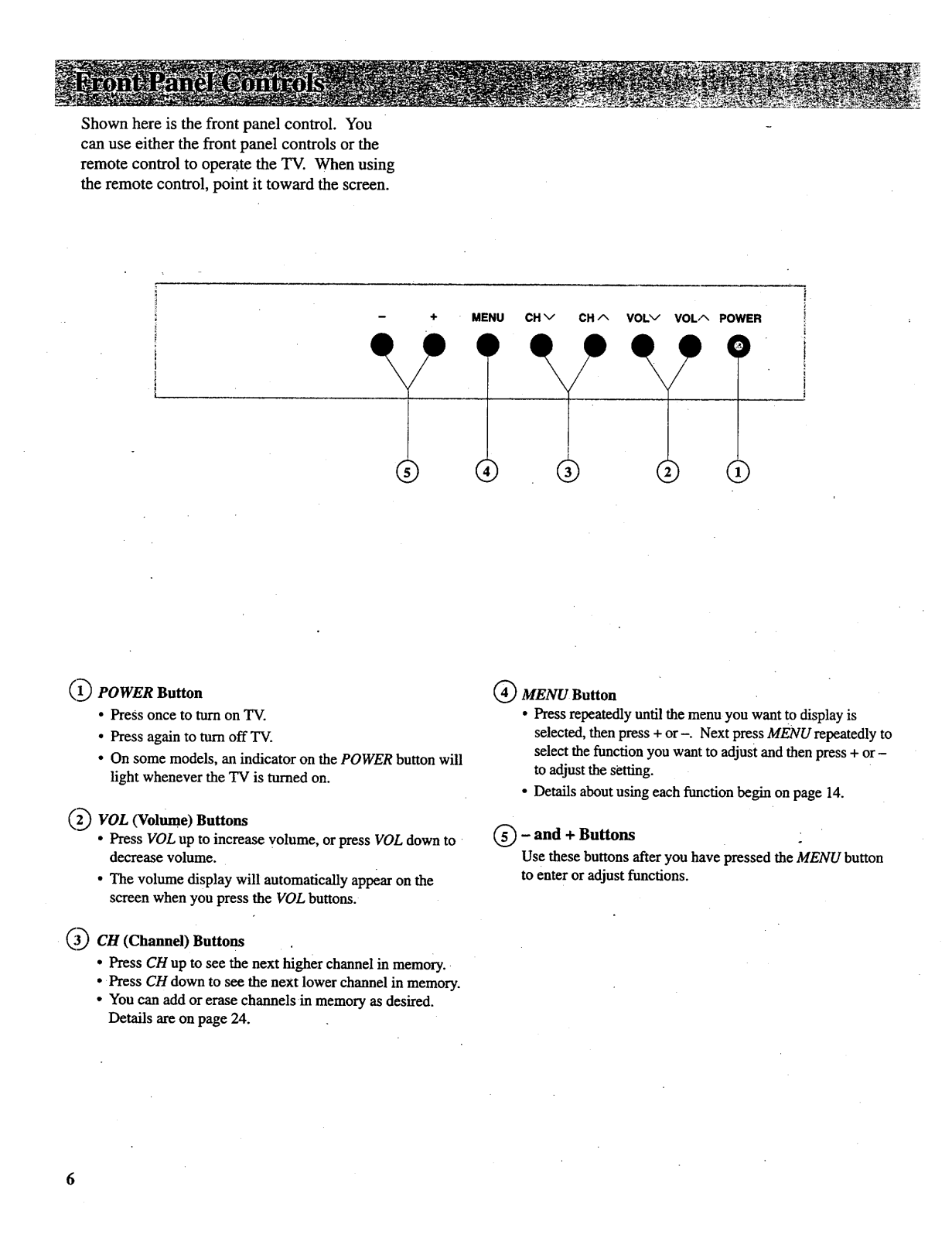

Shownhereisthefrontpanelcontrol.You canuseeitherthefrontpanelcontrolsorthe remotecontroltooperatetheTV. Whenusing theremotecontrol,pointittowardthescreen.

MENU11CH v CH A VOLv VOLA POWER

® (D

(1_ POWER Button

• PreSs once to turn on TV.

• Press again to turn off TV.

• On some models, an indicator on the POWER button will

light whenever the TV is turned on.

"_'(2.)VOL (Volume) Buttons

• Press VOL up to increase volume, or press VOL down to

decrease volume.

• The volume display will automatically appear on the

screen when you press the VOL buttons.

_._ CH (Channel) Buttons

• Press CH up to see the next higher channel in memory.

• Press CH down to see the next lower channel in memory.

• You can add or erase channels in memory as desired. Details are on page 24.

(_ MENU Button

• Press repeatedly until the menu you want to display is selected, then press + or-. Next press MENU repeatedly to select the function you want to adjust and then press + or-

to adjust the setting.

• Details about using each function begin on page 14.

(_ - and + Buttons

Use these buttons after you have pressed the MENU button to enter or adjust functions.

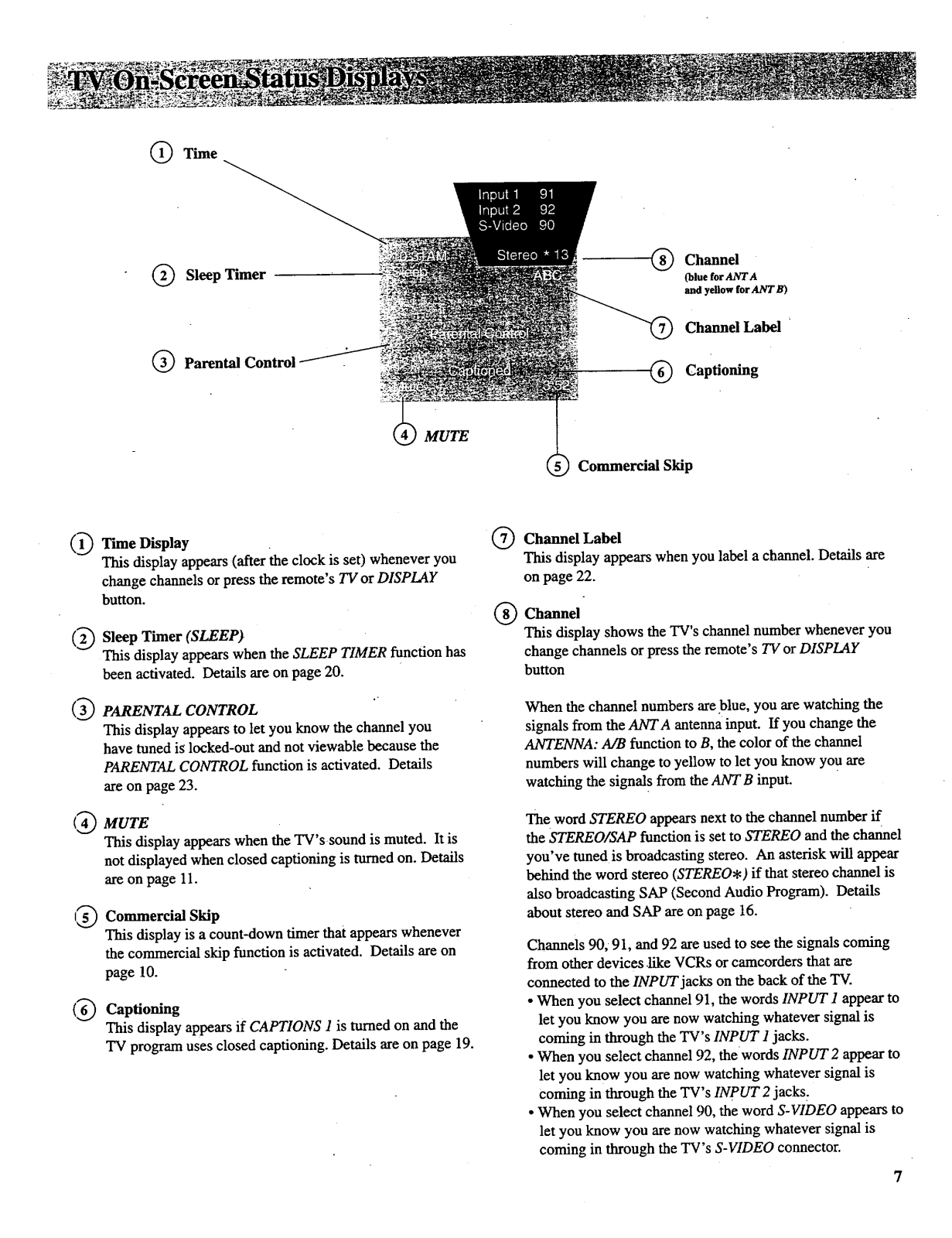

Time

SleepTimer

Channel

(blue for ANTA and yellow for ANTB)

Channel Label

Parental Contro

(1_ Time Display

This display appears (after the clock is set) whenever you change channels or press the remote's TV or DISPLAY

button.

(2_ Sleep Timer (SLEEP)

This display appears when the SLEEP TIMER function has been activated. Details are on page 20.

( 3_ PARENTAL CONTROL

This display appears to let you know the channel you have tuned is locked-out and not viewable because the

PARENTAL CONTROL function is activated. Details are on page 23.

MUTE

Captioning

Commercial Skip

Channel Label

This display appears when you label a channel. Details are on page 22.

Channel

This display shows the TV's channel number whenever you change channels or press the remote's TV or DISPLAY

button

When the channel numbers areblue, you are watching the

signals from the ANTA antenna input. If you change the

ANTENNA: A/B function to B, the color of the channel numbers will change to yellow to let you know you are

watching the signals from the ANT B input.

(4_ MUTE

This display appears when the TV's sound is muted. It is not displayed when closed captioning is turned on. Details

are on page 11.

15_ Commercial Skip

This display is a count-down timer that appears whenever the commercial skip function is activated. Details are on page 10.

(6_ Captioning

This display appears if CAPTIONS 1 is turned on and the TV program uses closed captioning. Details are on page 19.

The word STEREO appears next to the channel number if the STEREO/SAP function is set to STEREO and the channel

you've tuned is broadcasting stereo. An asterisk will appear behind the word stereo (STEREO.) if that stereo channel is

also broadcasting SAP (Second Audio Program). Details about stereo and SAP are on page 16.

Channels 90, 91, and 92 are used to see the signals coming from other devices.like VCRs or camcorders that are

connected to the INPUT jacks on the back of the TV.

• When you select channel 91, the words INPUT1 appear to let you know you are now watching whatever signal is coming in through the TV's INPUT 1 jacks.

• when you select channel 92, the words INPUT2 appear to let you know you are now watching whatever signal is

coming in through the TV's INpUT 2 jacks:

• when you select channel 90, the word S-VIDEO appears to let you know you are now watching whatever signal is coming in through the TV's S-VIDEO connector.

Before attempting to operate your remote control, install the batteries

as shown here.

The remote control produces an invisible (infrared) beam that travels in a straight line much as the beam of a flashlight. For this reason, when operating the remote control, you must point it directly at the front

of the TV without objects between that can block the infrared light

beam.

Your remote control is designed to be very rugged and will withstand a

,considerable drop. If it receives an

extreme blow, the case is designed to slightly separate at the seam :rather than fracture. If this happens,

:simply squeeze the case where it

:separated until it snaps back together. The operation of the

:remote will probably not be affected.

--Installing/Replacing Batteries

1. Turnthe remote control face

down.

2. Press down on the ridged area of

the battery cover and slide it off.

3. Install four "AAA" batteries in the

battery compartment as shown. Make sure you insert the negative (-) end of each battery first.

4. Replace the cover and turn remote

over-face up.

Notes:

• Never place anything heavy on top of

the remote control or lay it upside- down. This may accidentally depress the buttons for a long time and

discharge the batteries.

• Replace the batteries when the TV fails to respond to the remote control.

• If you programmed your remote to control other components, you may

have to reprogram the code numbers when you change the batteries. Try not

to press any buttons while changing batteries.

Basic Operation Theory

Step 1

First press one of these five component buttons to tell remote which component you want to control. You can program

most of these buttons to control most brands ofequipment.*

Step 2

Then press POWER button to turn on that

component.

Note: The TV and some other components will automatically aLrn on when you press the component button in step 1.. Press this button to turn the component off.

•Step 3 These function buttons can now be used to control the basic functions of the

component you selected in step 1. To control a different component, f'n-st press its component button (VCR1, VCR2.LD,

SAT.CABLE, AUDIO, or TV), and then press the desired function button.

Note: Not all components have functions that can

be controlled by these buttons, but you can experiment with your particularmodels to discover exactly which buttons will control it.

* The TVbutton automatically controls your TV- no additional

programming is required. Details for programming the VCR1 and VCR2.LD buttons to control other brands of VCRs are on page

38. Details forprogramming the AUDIO button to control audio equipment are on page 42. Details for programming the

SAT.CABLE button to control cable boxes or an"RCA satellite receiver are on page 33.

Only the buttons that are used to control the TV are described here. The rest of the buttons are used to operate VCRs (pages 37-38), a satellite receiver or cable-TV boxes

(page 33), and audio equipment (page 42).

TV Button

• Tams on TV aridputs remote in 'ff'V Mode" so that the other remote

buttons will control the TV.

• Displays time (if clock has been se0 and channel number on the "IV screen.

VCR2"LD AUDIO

_, VCRI SATeCABLE[_.

REW PLAY FF

REC STOP PAUSE

DISPLAY CHAN SKIP

MUTE PREVCH

CHA1"_

Important Note: Some buttons on the remote control will not control the TV unless the remote is in the "TV Mode". If another component

button (such as VCR2oLD) is pressed, the remote will go into the "VCR Mode" and will control a compatible VCR. Toget back into the "TV Mode", simply press the button labeled TV. The remote will

go back into the "TV Mode" and will control the TV again.

POWER Button

• Press POWER to turn off TV.

CHAN Buttons

• Press CHAN up to select the next higher channel in channel

memory.

• Press CHAN down to select the next lower channel in channel

memory.

• You can add or erase channels in memory as desired. Details are on

page 24.

'0 90

INPUTo 0 O " ANTENNAo

"_ IFCLEAR _._1, pOC' _RESET

. _ , SWAP

(e)SRS

VOL Buttons

• Press VOL up to increase volume.

• Press VOL down to decrease volume.

DISPL,,IY Button

• Displays time (if clock has been set) and channel number on the TV

screen.

• Quickly removes menus and displays from the screen.

SKIP (Commercial Skip) Button

• Use this button when you want to scan other channels during a

program break.

• When abreak occurs, press SKIP once before changing channels.

The TV will count down 30 seconds on the screen and then automatically switch channels back to the original channel.

• Press SKIP twice if you want the TV to count down 60 seconds. Each additional press will add another 30 seconds to the countdown

time (up to five minutes) and then each additional press will add another 60 seconds to the countdown time (up to 60 minutes).

• To cancel, press CLEAR. The countdown clock will disappear from

the screen, and the TV. will stay tuned to the present channel.

MUTE Button

• Press MUTE to quickly reduce sound to minimum level without

affecting the picture. This is especially useful during telephone calls or other interruptions.

• When the sound is muted, the word MUTE will be displayed on the

screen.

• To restore sound, press MUTE again orpress VOL up.

CLEAR Button

• Pressing CLEAR clears the screen of all on-screen display messages except MUTE and PARENTAL CONTROL.

RESET Button

• Press RESET to return the picture adjustments to the original

settings.

PREV CH (Previous Channel) Button

• Pressing the PREV CH button causes the TV to change hack to the last tuned channel. This is useful should you want to monitor two channels.

• To operate, select the first channel you wish to watch. Then select the other _hannel by pressing two number buttons (for example,

press 0 then 6 for channel 6). The TV will now change back and forth between the two channels each time you press the PREV CH

button.

Number Buttons (0-9)

* These buttons let you directly access any channel number-even if the

channel is not in the channel memory.

• To select a channel, press two number buttons (first one, then the other). For example, press 0 then 6 for channel 6. Press 1then 3 for channel 13.

• To select a 3-digit cable channel (like 127), press and hold number button 1 until 1-- appears on the screen. Then press the other two numbers.

Note: Your TV will tune up to channel 128. Check with your cable company to determine which channels are available in your area.

INPUT Button

• Lets you quickly view signals from the INPUT jacks. Pressing this

button switches the TV from its current ehaunel directly to channel 90, then channel 91, then channel 92.

• Channel 90 lets you see the signals coming from a device thatis

connected to the S-VIDEO connector. Channel 91 accesses the INPUT1 jacks and channel 92 accesses the INPUT 2 jacks.

MENU*PROG Button and --/+ Buttons

• Press MENU.PROG repeatedly until the menu you want to display is selected, then press + or-. Next press MENU.PROG repeatedly to select the function you want to adjust and then press + or - to adjust

the setting. Details about using each function begin on page 14.

Arrow Buttons

• Pressing the arrow -/+ buttons lets you adjust functions in the menu system.

Picture-in-Picture Buttons

• Press PIP to activate the picture-in-picture feature.

• Press PIP again to deactivate the picture-in-picture feature.

• Press FREEZE to freeze the small picture.

• Press MOVEPIP to move the small picture to the next comer.

• Press SWAP to switch the small picture with the large picture.

• Details are on pages 12-13.

SRS (0)* Button

• Press repeatedly to change settings ofSRS (O) function (Sound Retrieval System).

• Details are on pages 16-17.

* SRS, Sound Retrieval System, and the SRS logo (e) are registered trademarks of SRS

Labs, Inc.

ANTENNA Button

• Because your TV has two different antenna inputs on the back (labeled ANT A and ANTB) you can connect more than one antenna

or signal source. Press the ANTENNA button to switch from one input to the other.

• The color of the channel numbers on the screen indicates which antenna input you are watching, The channel numbers are blue for ANTA and yellow for ANTB. If the channel numbers are blue, you

are watching whatever is connected to the ANTENNA A input on the back of your TV. If the channel numbers are yellow, you are

watching whatever is connected to the ANTB input on the back of the TV. Details are on page 25.

After you connect another video source (like a VCR) to your

TV, you'll be able to display two different programs on the TV

at the same time.

TwoFootballGames

SurveillanceSystem

Starting Picture-in-Picture (PIP)

1 Connect another video source (such as a VCR or

camcorder) to INPUT 1 or INPUT 2 on your TV (as shown on pages 35-36).

•2 Turn on the TV and select a channel.

3 Press the PIP button on the remote. A little picture will

appear on the screen. The little picture and the big picture

•will be the same.

• If the othersource is connected to the TV's INPUT 1 jacks, select TV channel 91 to see the signal. If you have

programmed the VCR1 (or VCR2.LD) button to automatically select channel 91 as described on page 26,

press VCR1 (or VCR2.LD).

• Select channel 92 if the other source is connected to the

TV's INPUT 2 jacks. If you have programmed the

VCR1 (or VCR2°LD) button to automatically select

channel 92 as described on page 26, press VCR1 (or

VCR2.LD).

• Select channel 90 if the other source is connected to the TV's S-VIDEO connector. (Remember to also connect the regular video cable to the VIDEO INPUT 1 jack for

picture-in-picture viewing.). The TV automatically minimizes any annoying differences in tint between the

small and large picture by electronically coupling the S- VIDEO input to the INPUT 1 input. If you have

programmed the VCR1 (or VCR2.LD) button to automatically select channel-90 as described on page 26,

press VCR1 (or VCR2.LD).

ChangingChannels(PIP)

To change channels on the picture from the TV, press the TV button on the remote, and then press either the CHAN up

or down button or two number buttons.

Note: The remote must be in the "TV mode" when you

press the PtP button. To put

remote in '_FV mode", press the rv button.

To get a picture from the other source (VCR, camcorder,

etc.), f'wstturn on the other source, and then select TV channel 90, 91, or 92 (explained at top of next column).

The picture from the other source will appear in the little picture.

PicturefromTV

PicturefromVCR

Picturefrom"IV

To change channels on the picture coming from the VCR, press the VCR1 or VCR2.LD button (if you've programmed

one of these buttons to control the VCR as described on page

38) and then press either the CHAN up or down button or two

number buttons. You can also change the VCR's picture by pressing the CHAN buttons on the front of the VCR.

Picturefrom VCR

Additional Features(PIP)

Whenever the picture-in-picture feature is activated, the small " picture can be moved, frozen, or switched with the main

picture as desired. Details are on the next page.

Wheneveryouhavethepicture-in-picture

(PIP)featureactivatedasdescribedonthe

previouspage,youcanmove,freeze,or

switchthebigandlittlepicturesasdesired.

r--_l r-rrl

0 0

'0 20 30 '0 sO 60 70 80 ,0

'B'°0 %"

{I)_

PIPON/OFFBUTFON"

PiP

SWAPBUTTON

SWAP

MOVE PIP

MOVEPIPBu'n'ON FREEZEBUTrON

FREEZE

MOVE PiP

SWAP

FREEZE

PIP

J----m

Press and release MOVE PIP to move the small picture to the next comer.

Press SWAP to switch the small picture with the main picture.

Press FREEZE to freeze the small picture. Press FREEZE again to return to an action

picture.

Pressing the PIP button will cancel PIP and remove the little picture from the screen.

1.RepeatedlypressMENUopROG to select VIDEO MENU

and then press + or- to display the video menu. The COLOR function adjusts the amount of color in the picture.

Press + to increase color or press - to decrease color.

The TINT function adjusts the color of flesh tones. Press + to add more red tint, or press - to add more green tint.

The CONTRAST function adjusts the overall brightness and contrast

of the picture. Press + to increase contrast, or press - to decrease

contrast.

The BRIGHTNESS function adjusts the brightness of the dark

2. Repeatedly

press

MENU,PROG

to select

function, then press +-or - to

adjust it.

• "_ VOL up or down to align the colors. See next page for details.

portions of the picture. Press + to increase brightness, or press - to decrease brightness.

The SHARPNESS function adjusts picture sharpness. Press + to increase sharpness, or press - to decrease sharpness.

The PICTURE RESET function lets you quickly change all the video functions (shown above) back to the factory settings. Press

either + or - to reset the video functions.

The CONVERGENCE function allows you to precisely align the beams of the three projection picture tubes (red, green, blue) for

optimum picture detail. Press the + button to display the pattern and

The video menu will automatically disappear from the screen if you do not press + or- within a few seconds.

Via remote control, your TV will "remember" which function you displayed last-even after the menu has disappeared from

the screen. So, if you want to adjust the same function again, simply press the + or- button on the remote co.ntroI. The last

function you adjusted will reappear on the TV screen.

Adjusting for a.Color Picture that Pleases You

1. Decrease color to minimum. This will leave a black-and-white image on the screen..

2. Adjust contrast until the picture pleases you.

3. Adjust brightuess until the black parts of the picture appear black. You may need to wait until the picture shows something

you're sure is black to make this adjustment. Be careful not to lose the details in darkly shaded areas.

4. Increase color until you reach a pleasing level of intensity.

5. Adjust tint until flesh tones or other color objects appear natural.

6. Adjust sharpness for a pleasing level of picture sharpness. (For weak signals, the picture may be more pleasing with sharpness

decreased)

Custom Picture Memory for Input Channels The channel numbers you select to see signals from components

(like a VCR) that are connected to the INPUT jacks on the back of the TV are called input channels. Selecting channel 90 lets you see

the _ignal coming from whatever component is attached to the

S-VIDEO connector, channel 91 lets you see the signal from the 1NPUT 1 jacks, and channel 92 lets you see the signal from the INPUT 2jacks. Your TV is equipped with a custom picture

memory for these input channels. When the TV is tuned to one of these channels (90, 91, 92), you can change the picture settings for that component's signal as desired without changing the settings of any other channel. This is very useful because you'll be able to adjust for the best picture from each of your components and the

TV will remember those settings automatically the next time you tune that input channel.

Your projection TV has three color

projection tubes-one for red, one for

green, and one for blue. When mixed together in the proper proportion, the output of these three color tubes can produce many colors. To produce

these colors, however, the beams must be precisely aligned over each

other so that the colors can be mixed. The process of aligning these picture

beams is called setting the "convergence".

Over a period of time, the picture tubes can drift out of alignment due

to normal bumps and vibrations or moving the TV. If you move your

TV or if, after a time, you notice

colored rings or halos around objects

in the picture, you may wanr to converge (align) the colors.

To simplify convergence, an on- screen menu is provided that allows you to display a test pattern of four lines on the screen. Properly converged, the lines appear white-which is actually a combination of the outputs of the

three color tubes. The position of the green lines is stationary. The

positions of the red and blue lines are adjustable. When properly adjusted,

the red and blue lines should lie directly over the green lines to

produce single white lines.

Converging (Aligning) the Colors

--(with remote only)

1. Turn on the TV and select a channel

that is active in your area. Allow the

TV to operate at least ten minutes before converging.

2. Repeatedly press the VIDEO button

• until the CONVERGENCE function is

selected.

3. Then press the + button to display the

pattern.

i-q

_USE VOL

TV TO EXIT

4. When properly converged, all three colors in the pattern (red, bide, and

green) should align to form white lines. If you see any red or blue lines

in the pattern, you can move them to alignwith the green lines by pressing the VOL up or down button.

5. Press the + button to select the arrow

color and direction, then press the

VOL up or down button to move the

lines.

Press+ to

select arrow

color and direction.

Pressing VOL up or

down when

these blue .,_ ill _

arrows

.appear, USEVOL

moves the

blue lines TVTOEXIT

left or right, i

VOLupor

Pressing I

down when

appear, I USEVO, moves the

arrowstheseblue _ _

blue linesup TV TO EXIT

or down. 1" Pressing

VOL up or

down when these red ._

arrows

appear,

moves the

red lines left or right.

Pressing VOL up or down when

these red "-_

arrows

appear,

moves the red lines up

or down.

•B USE VOL

TV TO EXIT

ill

USE VOL

TV TO EXIT

Note: You can also press the - button to rettma toa previous screen. Pressing - displays the arrows in reverse order than

shown above.

6. When finished, press the TV button to remove the pattern from the

screen.

1. Repeatedly press MENU.PROG to select AUDIO

MENU and then press + or- to display the audio menu.

2. Repeatedly

press

MENU.

PROG to

select

function, then press

+ or- to

adjust it.

The TREBLEfunction adjuststhehighfrequency audio. Press + to increasetreble or press - to decreasetreble.

The BASS function adjusts the low frequency audio. Press + to increase bass, or press - to decrease bass.

The B_CE function adjusts the left/right balance of sound from the speakers. When adjusting the BALANCE function, sit in your normal viewing seat while pressing the ÷ and - buttons until the sound seems to

originate from a point halfway between the speakers. Press + to increase sound from the right speaker, or press - to increase sound from the left

speaker.

The STEREO/SAP function lets you choose either MON.O (monaural),

STEREO, or SAP audio (if available) by pressing + or-. When a station is

broadcasting stereo and the STEREO/SAP function is set to STEREO, the stereo indicator (STEREO) will appear on the screen before the channel

number. Normally you can leave the STEREO/SAP function set to STEREO and your TV will then automatically reproduce either monaural or

stereo audio--whichever is broadcast. Some TV stations that broadcast stereo also broadcast another sound channel called SAP (Second Audio

Program) which is sometimes used to offer the program in another language. Your TV lets you know when SAP audio is available by displaying an asterisk (,) on the screen after the stereo indicator like this (STEREO*). If you want to listen to the SAP channel when the asterisk

appears, change the STEREO/SAP function to its SAP setting. The SAP

setting will only appear in the function when SAP is available. Your TV

will then reproduce the SAP audio until you change channels or return the

STEREO/SAP function back to STEREO. Note: Some TV stations transmit a "pilot" signal that makes your TV think it's receiving stereo, even though the broadcast signal is monaural.

The pilot signal will make the stereo indicator (STEREO) appear on the screen next to the channel number, however, you will not be able to hear

stereo sound. If this happens, check with the TV station to inquire whether the program being broadcast is in true stereo or monaural audio.

The audio menu will automatically disappear from the

screen if you do not press + or - within a few seconds.

Via remote control, your TV will "remember" which function you displayed last-even after the menu has disappeared from the screen. So, if you want to adjust the same function again, simply press the + or- button on the remote control. The last function you adjusted

will reappear on the TV screen.

The SRS: ON/OFF function lets you add greater depth and dimension to stereo broadcasts. You can turn this function on and off as desired by pressing + or- to change the setting between ON and OFF. You may

prefer to leave this function set to ON. Your TV will then automatically process the stereo signals whenever a stereo broadcast is received (or whenever a stereo tape is played through a stereo VCR that is connected to

the TV's andio/video jacks labeled INPUT). Details are on page 17.

The SRS WIDTH function lets you enhance the perceived audio separation that occurs when the above SRS function is ON. Pressing + or- changes

the setting between NORMAL and ENHANCE. Details are on page t7.

The SPEAKERS function lets you turn off the "IV's internal speakers by pressing + or- to change the setting between ON and OFF. You will probably want to leave the TV's speakers turned on unless you connect an

amplifier (with its own set of speakers) to'the appropriate jacks on the back of the TV as described on page 43.

Your TV includes a feature called SRS (O)* (Sound Retrieval System)

which brings dimensional realism to both stereo and mono broadcasts.

When the SRS ON/OFF function is set to ON and the STEREO/SAP function

is set to STEREO, your TV electronically increases the audio separation of the speakers so you can perceive a more spacious stereo sound

effect. If a Stereo signal is not present, you can set the SRS ON/OFF function

to its SYNTH STEREO setting to

synthesize and process the mono signal.

When the SRS ON/OFF function is set to ON, you can also change the next

menu item called SRS WIDTH between

NORMAL or ENHANCED. When this function is set to ENHANCED, the perceived audio separation will be

greater. Try both settings and select the one you prefer for your room

acoustics. Note: Some material (audio) will be

more affected than others. SRS (0) allows you to hear multiple

sound sources. Audio frequencies are processed to establish directional cues

which gives the impression that sound is coming from all parts of the room. External speakers are not required, but the addition of high quality external speakers optimizes the sound performance of your 'IV.

*SRS, Sound Retrieval System, and the SRS logo (e,) are

registered wademazks of SRS Labs, Inc.

-Turning OnSRS (0)

1. Repeatedly press the MENUopROG

button to select AUDIO MENU, press +, and then repeatedly press MENU°PROG again to select SRS

•ON/OFF function.

Note: You can also change the

SRS:ON/OFF function between ON and

OFF without going through the menu by

pressing the SRS button on the remote.

2. Repeatedly press the + button to

change the setting between OFF,

ON, and SYNTH STEREO.

• If the broadcast you are receiving is stereo audio, select ON. The

STEREO/SAP function must be set to STEREO before you can hear

SRS (0) sound with this setting.

° If the broadcast you are receiving is

mono audio, select SYNTH

STEREO.

• If you do not want SRS (O), select OFF.

3. Press MENUopROG button to select

next menu item called SRS WIDTH. Pressing + or - will change the

setting between NORMAL and ENHANCED. Try both settings and

select the one you prefer.

Note: After turning SRS or synthetic

stereo on, you may find it desirable to

readjust the VOLUME, BASS, and

TREBLE controls to optimize the sound.

The SRS effect, tonal balance, and

volume level will waryfrom channel to

channel depending on the production qualities of the program'material.

1° Repeatedly press MENUopROG to select SETUP

MENU and thenpress + or - to display the setup menu.

2. Repeatedly press

MENUopROG

to select

function, then

press + or - to

adjust it.

The CAPTIONING feature lets you display as text on the screen the audio portion of certain programs encoded with the Closed Captioning (CC) information. Two types of closed captioning are available: Captions 1 and

Captions 2. Select Captions 1 for full translation of the primary language in your area. Captions 2 is used for an alternate service, such as secondary language translation or simplified English. Two Text modes are also

supportS.

By setting the SLEEP TIMER, you can program your TV to turn itself off

after a certain period of time. This is useful whenever you want to watch TV for an hour or so before going to sleep. Press the + or- button to select the

length of time you want the TV to stay on. You can program your TV io turn on and/or off at the times you choose by

setting the MARk/function:

CHANLABEL lets you program nam£s (or labels) for the channel numbers. The names you select will then appear on the screen whenever the channel number is displayed.

The PARENTAL CONTROL feature lets you lock out any channels between I and 99 that you don't want your children to watch. Pressing + or - switches

this function from OFF to ON. When this function is set to ON, channels that have been locked out with the CHAN CTRL function cannot be viewed.

When this function is set to OFF, all channels can be viewed.

The CHAN CTRL (Channel Control) function works hand-in-hand with the PARENTAL CONTROL function. It lets you select the chanfiels you want to

lock out. First select the channel number you want to lock out and then press + to change this function from NORMAL to LOCKED. When the PARENTAL CONTROL function is set to ON, the channels you locked with

this function cannot be viewed.

The setup menu will automatically disappear from the screen if you do not press + or -

within a few seconds.

Via remote control, your TV will "remember" which function you displayed last--even after the menu has disappeared from the screen. So, if you

want to adjust the same function again, simply

press the + or - button on the remote control. The last function you adjusted will appear on the

TV screen.

When you press + or- to start the AUTOPROGRAM function, the TV wil!

automatically cycle through all channels and place the active channels for your area in its channel memory. Pressing the CHANNEL up or down

buttons will then allow you to scan only active channels. The CHANMEM function allows you to erase and add channels to channel

memory as desired.

Because your TV has two separate antenna inputs on the back labeled

ANTA and.ANTB, you can connect two different signal sources, if desired.

By pressing +.to change the ANTENNA function, you can switch back and

forth between the two signal sources. Each time you press +, the antenna input will change.

The CABLE/MR function tells your TV whether you have a cable-TV system

or a home antenna connected to the TV. Your TV is so automatic that you will probably never need to change this function. When your TV autoprograms, it automatically adjusts the CABLE/AIR setting for you. If

you should ever need to override the automatic setting, press + or - to change it.

The VCR 1 CHAN function lets you program to which channel the TV will

automatically tune when you press the VCR 1 button on the remote.

The VCR 2 CHAN function lets you program to which channel the TV will automatically tune when you press the VCR 2 button on the remote.

The CABLE CHAN function lets you program to which channel the TV will automatically tune when you press the DSS.CABLE button.on the remote.

_), After you set the clock, you will be able to see the on-screen time display

:_i whenever you change channels or press the DISPLAY or TVbutton on the

;_ remote control. To set the clock when this function is selected, first press

,_ and hold - to set the correct hour (including AM and PM). Then press and

! hold + to set the correct minutes.

The CAPTIONING feature lets you

display the audio portion of a program as text on the TV screen. This is useful to

the heating impaired Or anyone who wants to watch a program without the

sound.

There are Four types of closed captioning transmissions available: Captions 1,

• Captions 2. Text I and Text 2. Captions 1 displays the full translation of the

primary language in your area. Captions

2 may be used as a second source for secondary languages, simplified English,

or other translations transmitted in your

area.

The Text modes, Text I and

Text 2, display on-screen boxes

containing the text of general information not necessarily related to the

program being watched.

Note: Closed Captioning is not available on all channels or at all times. Only specific

programs encoded with Closed Captioning

information (CC) are applicable.

. °

- Setting Closed Captioning (with or without remote)

1. Repeatedly press MENUopROG to

select SETUP MENU, and then press + or - to display setup functions.

CAPTIONING will be highlighted since it is the first function in the setup menu.

4. The screen will begin to,displaythe

TV program's audio portion as text if the program has captioning.

2. Press the + or - button to select the type

of close d captioning: Off, Captions 1,

Captions 2, Text 1or Text 2.

When Captions 1 is available, the word "Captioned" appears on the screen when you

change channels orpress the TV or DISPLAY button on the remote. The word "Captioned" does not appear to tell you if Captions 2 or

either Text mode is available.

3. When fmisbed, the display will

automatically disappear from the screen in a few seconds. To make it disappear more quickly, press the CLEAR button.

--Turning Captioning Off

To turn off the closed captioning feature, enter the CAPTIONING

function and press the + or - button until the screen shows "Off."

BysettingtheSleepTimer,you

canprogramyourTVtoturnitself offafteracertainperiodoftime (uptofourhours).

Thisisusefulwheneveryouwant towatchTV foranhourorso

beforegoingtosleep.

- Setting Sleep Timer (with or without remote)

1. Repeatedly press MENU, PROG to

select SETUP MENU, and then press + or- to display setup functions.

Press MENUopROG to select

SLEEP TIMER.

2. Press the + or- button to select the

length of time (up to four hours) you want the TV to stay on.

Each time you press the + or- button; the time will increase 30 minutes (up to 4 hours). Then the time display will start over.

4. The sleep timer will begin to count down to zero. The word "SLEEP"

will appear on the screen whenever you change channels or press the

remote's TV or DISPLAY button to let you know the sleep timer is

activated.

The amountof time remaining before the TV shuts itself off will

appear in the sleep timer menu

whenever you display the SLEEP

TIMER function.

1 hour and

23 minutes

remaining

3. When finished, the display will automatically disappear from the

screen in a few seconds. To make it disappear more quickly, press the

CLEAR button.

- Clearing Sleep Timer

To cancel the sleep timer, enter the SLEEP TIMER function and then press

the + or - button until the screen shows 0:00.

5. When the sleep timer counts down

to 0:00, the sleep timer display will

appear on the screen for a few seconds. Then the TV will turn

itself off. If you want the TV to stay on when

this display appears, press the + button on the remote to add more

time to the SLEEP TIMER display.

By setting the alarm, you can program the TV to turn on and/or off by itself.

After the ON TIME is set and the

ALARM ON/OFF function is set to

ON, the "IV will automatically turn

on each day at the time you selected and remain on until the OFF TIME is reached. If no OFF TIME has

been programmed, the TV will remain on until you turn it off.

The ALARM ON/OFF function lets you easily deactivate or reactivate

the alarm without having to reset the

ON TIME and OFF TIME.

When the alarm time is reached, the

set will turn on at whatever volume

you left it when you last turned it off. So if you want the TV to come

on loudly at the ON TIME, be sure

the TV is playing loudly when you turn off the TV for the last time.

When the A/ARM ON/OFF function

displays SET CLOCK, you will need to set the clock time before you will

be able to turn on the alarm function.

Details for setting the clock are on page 4.

Setting the Alarm .

1. Repeatedly press MENU PROG to select SETUP MENU, and then press

+ or- to display setup functions. Press MENU*PROG to select SET

ALARM function, and then press + or

- to display the alarm settings.

. When the firstALARM function is

selected, pressing + or- will.switch

the setting between ON and OFF. Set

this function to ON if you want to activate the alarm. When this

function is set to OFF, the alarm is

deactivated and the "IV will not turn

on or off by itself.

to turn off by itself and not turn on, you can disable the ON TIME by

• pressing - until the word

DISABLED appears. Note: Remember to check the AM/PM

setting. Midnight is 12:00 AM and noon is 12:00 PM.

Press MENU.PROG to select the next function called OFF TIME. If

you want the TV to turn off by itself, enter the desired time by fast

pressing - to select the hour (including AM and PM) and then

pressing + to select the minutes. If you only want the TV to turn on by itself and not turn off, you can disable the OFF TIME by pressing - until the word DISABLED appears.

IMPORTANT NOTE: During extended power failures the alarm function will be

disabled. The alarm ON TIME and OFF

TIME will stay set but the ALARM ON/OFF

function will be set to OFF and will display'

SET CLOCK to inform you that the clock must be reset to the correct time. Once the

clock has been reset you can reactivate the ALARM function by changing the A/ARM

function to ON.

Note: If SET CLOCK is displayed next to

ALARM, you will need to set the clock

time before you will be able to turn on the alarm function. Details for setting the

clock are on page 3.

Press MENU.PROG to select the next function called ON TIME. If you

want the TV to turn on by itself, enter the desired time by first pressing - to select the hour (including AM and PM) and then pressing + to select the minutes. If you only want the TV

Press MENU.PROG to select the

next function called CHANNEL. This function lets you program

which channel the "IV will tune when it turns on at the ON TIME.

Press CHAN up or down to select the channel, and then press + or - to

enter it into the CHANNEL function.

Note: The TV will change to the channel that you select. This will help you to confirm that it is indeed the

channel you want the "IV to turn on to.

Thelabelingfeatureletsyouprogram

names(orlabels)forthechannel

numbers.Thenameyouprogram

willthenappearonthescreenbelow

thechannelnumberwheneverthe channelnumberisdisplayed.

Eachnamecancontainuptofour characters,andyou'llbeableto assignupto64names.After64

namesorlabelshavebeenentered, theTV will display this message to

let you know no more channels can be labeled: CHAN LABEL: FULL.

Listed below are the letters and characters from which you'll be able

to choose when programming the channel labels:

ABCDEFGHIJKLM. NOPQRSTUVWXYZ

(blank space) ! "# $ % &' ( ) _+ ,-./01234.56789:; <=>?@

You must use your remote control to create or erase labels.

Labeling Channels (with remote only)

1. Repeatedly pressMENU.PROG to 5. select SETUP MENU, and then press

÷ or- to display setup functions. Repeatedly press MENU.PROG to

select CHANLABEL function.

Press + to enter the CHAN LABEL function. Four blank letter frames

will appear under the channel number.

Select the channel number you want to label by pressing the CHAN up or down button (or by pressing two number buttons),

Then press + to move to the next letter frame. Pressing - moves you back to the previous letter frame.

Repeat steps 4 and 5 until the name is complete. You can now label another channel, if desired, by selecting the channel number and

repeating steps 4 and 5.

When finished, the display will automatically disappear from the

screen in a few seconds. Your labels will remain in memory until

you erase them. They are not affected by power failures.

Erasing Labels

To erase a channel label, first follow steps 1, 2, and 3 above, and then press

CLEAR on the remote control. "

Press and hold the VOL up or down button until the letter or character you want appears on the screen. Pressing

VOL up sequences through the characters in alphabetical order. Pressing VOL down sequences the

letters in reverse order.

Note: Atitoprogramming new channels into the channel memory does not affect

the channel labels that are already entered.

ThePARENTAL CTRL and CHAN

CTRL functions let you lock any

channels you choose so they cannot be viewed by your children.

Channels that have been locked can be viewe.d only when the

PARENTAL CTRL function is set to

OFF. This can only be done with the

remote control-it can not be changed

with the buttons on the front of the TV. Therefore, after you turn on

PARENTAL CTRL, you simply hide the remote control so that your

children can not watch the locked channels.. An optional simplified

remote (shown on page 45) is also

available that your children can use.

The simplified remote does not allow

access to the locked channels.

The locked-out channels will remain

unviewable even if the TV is unplugged or the channels are

autoprogrammed again. The only way to view locked channels is to use the supplied remote control to set the

PARENTAL CTRL function to OFF. Note: Channels above 99 cannotbe locked.

-Activating Parental Control (with remote only)

The PARENTALCTRL andthe CHAN

CTRL functions work hand-in-hand.

The instructions below will first tell you how to turnparentalcontrol on or

off with the PARENTALCTRL function

and then how to lock desired channels with the CHAN CTRL function.

1. Repeatedly press MENUopROG to

select SETUP MENU, and then press + or- to display setup functions.

Repeatedly press MENUopROG to select the PARENTAL CTRL

function.

• When this function is set to ON, PARENTALCTRL is activated and

any channels you locked with the CHAN CTRL function will not be

viewable.

• When this function is set to OFF,

PARENTAL CTRL is deactivated

and all channels are viewable.

2. To lock channels, press the MENUopROG button to select the

CHAN CTRL function.

Select a channel you want to lock by _ pressing CHAN up or down. Then

press +. The CHAN CTRL setting will change from NORMAL to LOCKED when that channel is locked. To return the channel to

NORMAL, press the - button.

Repeat step 2 for each channel you want to lock.

If the PARENTAL CTRL function is

set to ON while you are locking out channels, each channel will go

blank as you lock it.

When the PARENTAL CTRL function is set to ON and a channel which has been locked out is tuned,

the TV wil! display the words - PARENTAL CONTROL to let your

kids know you have locked it.

ThechannelmemoryisthelistofTV channelnumbersyourTVwill stop onwhenyoupresstheCHAN up or

down button. You can program any list of channels into the channel

memory.

The quickest way to program your channel memory is to use the

A UTOPROGRAM function. If you

use the A UTOPROGRAM function, your TV will automatically cycle

through all Channels and place ac.tive channels into the channel memory.

1. AutoProgramming Channels into Channel Memory

--(with or without remote)

Connect home antenna(s) or cable- TV to your set.

After you have turned on the TV and adjusted the volume, repeatedly

press MENU.PROG to select SETUP MENU, and then press + or

- to display the setup functions. Repeatedly press MENUopROG to

select the A UTOPROGRAM function.

3. Press either + or- to begin autoprogramming. The TV will first program all channels for ANTA input and then program all channels

for ANT B input (even iFyou only have one antenna input connected).

First follow the instructions to autoprogmm channels, and then add

or erase individual channels as desired.

Notes:

• The AutoProgram feature will place into

memory active TV channels that have a valid signal at the time you autopmgram your "IV.

• An active channel may be missed occasionally if its signal is very weak orif

the channel happens to be "off the air"

when the TV is autoprogrammed.

• An inactive channel may be included in the channel memory if there happens to be

some sort of "noise" or "stray signal" on the channel when the "IV is

autoprogrammed.

• Signals from other components connected to the INPUT jacks can not be

autoprogrammed. Channel 91 (which accesses INPUT 1 jacks) was added to the channel memory at the factory and will

remain in the channel memory until you

erase it. Channel 92 (INPUT2) and Channel 90 (S-VIDEO connector) can be added to channel memory if desired.

• Only channels 1-99 can be stored in channel memory.

4. When the TV is finished cycling, you can checkto see which channels are in memory by pressing the CHAN up or down button.

2. Erasing/Adding Channels in Channel Memory

-- (with or without remote)

1. To erase or add a channel,

repeatedly press MENU.PROG to select SETUP MENU, and then

press + or - to display the setup functions. Repeatedly press MENU.PROG to select CHAN

MEM function.

2. Then select the desired channel number by pressing CHAN up or

down (or the two corresponding number buttons on the remote).

3. Press+ to addthe channel to

memory, or press - to erase the channel from memory.

3. Adding Video Input Channels to Channel Memory

-- (with remote) Ifyou have a video device connected to

the S-VIDEO or INPUT jacks on the back of the TV, you can view its signal

either by directly selecting channel 90 (for S-VIDEO connector), channel 91 (for INPUT 1 jacks), or channel 92 (for

INPUT2 jacks) with the number buttons

on the remote or by adding those channels to the channel memory.

Adding channels 90, 91, and 92 to channel memory allows access to the video inputs at the TV by pressing the

CHAN up and down buttons as well as

by using the remote control.

Your TV has two separate antenna inputs on the back (labeled ANTA and ANT B) that allow you to connect two different signal sources if

desired. For example, you can connect a cable-TV system to one

input and a home antenna to the other input.

By changingthe ANTENNA: A/B display, in the SETUP menu, you can

switch back and forth between the two signal sources.

Listed below are some other common uses of the two antenna inputs:

• connecting a cable-TV system (or antenn_i) to one input and a VCR to the

other.

Changing Antenna Input (with remote)

1. Press the ANTENNA button on the

remote control to switch from the

ANTA input to the ANTB input.

The color of the channel numbers will change from blue to yellow to

let you know you arenow watching whatever signal is connected to the

ANTB jack on the back of the TV.

Blue for

Yellow for

(without remote)

1. Repeatedly press MENU to'Select

SETUPMENU and then press + or - to display setup functions.

Repeatedly press Menu to select

ANTENNA: A/B function.

• Connecting a cable-TV system (or antenna) to one input and a video game

to the other.

• connecting a double-think cable system to both inputs.

• connecting a eable-TV converter/decoder box that scrambles

only premium channels. Connection details are on pages 31-32.

• connecting a cable-TV system to one input and an antenna (VHF/UHF) to

the other. This allows you to tone in

• local stations that are not included on your cable system. Remember to

change the CABLE./A!R function as described on page 18 i.fusing your set

like this.

The Channel Memory is the list of channels your TV will stop on when you press the CHAN up or down buttons. Your TV provides two separate Channel Memories-one for

ANTA input and one for ANT B

input. This allows you to add or delete channels into each channel

memory as desired. When you use the AUTOPROGRAM

function, the TV automatically checks both inputs and sets up a separate channel memory for each.

2. Press the ANTENNA button again to switch back to ANTA. The color of

the Channel numbers will change

back to blue to let you know you are now watching whatever signal '

source is connected to the ANTA

jack.

Press the - or + button to change

the setting. The screen display will change from A to B to let you know you are now watching

whatever signal is connected to the ANTB jack on the back of the

TV. The color of the channel numbers will change from blue to

yellow.

3. Press the - or + button again to

switch back to ANTA. The screen display will change back to

ANTENNA: A to let you know you are now watching whatever signal

source is connected to the ANTA

jack on the back of the TV.

The VCR 1 CHAN function lets you program to which channel the TV

will automatically tune when you press the VCR1 button on the remote. This is handy if you connect a VCR to your TV. You will no longer have to remember to which input jacks the

VCR is connected because the TV will remember for you.

For example, if you connect a VCR's AUDIO/VIDEO OUT jacks to the TV's INPUT 1 jacks (as shown on page 35), you will no longer have to

remember to select channel 91 on the TV to see what the VCR is playing.

By entering channel 91 next to the

VCR 1 CHAN function, the TV will

automatically tune to channel 91 each time you press the VCR1 button

on the remote.

This function is especially convenient if you have a compatible VCR that can be operated by the

VCR1 button on the remote. Pressing VCR1 will then not only turn on the

VCR but also automatically tune the TV to the proper channel for viewing the picture from the VCR. You can program most brands of remote- controllable VCRs to respond to the

VCR1 button as described on

igage 38.

-Setting Up VCR Channels (with or without remote)

1. Repeatedly press MENU.PROG to 4. If you have another VCR connected select SETUP MENU, and then press to the TV, press MENUopROG to + or - to display the setup functions, select the VCR 2 CHAN function. Repeatedly press MENU.PROG to

select the VCR 1 CHAN function.

Enter the channel number you want to program by pressing two digit

buttons on the remote control. (This is the channel number to which the

2. Enter the channel number you want to program by pressing two digit buttons

on the remote control. (The channel number you enter is the channel to which the TV will tune automatically

TV will tune automatically when you later press the VCR2oLD button on

the remote.) See the notes below if you are unsure about which channel

number to enter.

when you later press the VCR1 button on the remote.)

6. Press the + button to program the

channel number you selected into the

3. Press the + button to program the

VCR 2 CHAN function memory.

channel numberyou selected into the TV's memory.

The VCR 2 CHAN function works the same way. It lets .you program to

which channel the TV will automatically tune when you press

the VCR2oLD button on the remote. You can program most brands of

remote-controllable VCRs to respond to the VCR2°LD button as described

on page 38. Pressing the VCR2oLD

button will then not only turn on the

VCR but also automatically tune the

TV to the proper channel for viewing the picture from the VCR.

Note: Pressingthe VCR1 or VCR2oLD button doesnot change betweenANTA and

ANT B antennainputs. Press theANTENNA

buttonon the remote controlto change antennainputs ifnecessary.

Note: Pressing the - button here will

Note: Pressing the - button here wiU turn off this feature and display

VCR 1 CHAN: OFF again.

turn off this feature and display

VCR 2 CHAN: OFF again.

Notes about Entering Channel Number:

• Enter channel 91 if VCR is connected to the TV's audio and Video INPUT 1jacks.

• Enter channel 92 if VCR is connected to the TV's audio and video INPUT 2 jacks.

• Enter channel 90 if you have a Super-VHS VCR that is connected to the TV's

S-VIDEO connector and INPUT 1 audio jacks (labeled L and R/MONO).

• Enter channel 03 (or 04) if you did not use any audio/video cables and connected the

VCR to the TV's round antenna jack labeled ANTA or ANT B. Enter the same channel number (03 or 04) as the position of the VCR's CH3/CH4 switch. This is

the channel to which you must tune your TV for viewing signals from your.VCR.

• Refer to pages 35-36 if you want to review details about connecting your VCR to

your TV.

TheCABLE CHAN function lets you

program to which channel the TV will automatically tune when you

press the SAT.CABLE button on the remote. This !s handy if you want to

connect a satellite receiver or other satellite receiver, or if your cable

company requires you to connect a cable box to your TV. You will no

longer have to remember the output channel of the RCA DSS® receiver or cable box because the TV will

remember for you.

For example, if you connect a cable box to the TV's CABLE/ANTENNA

connector (as shown on page 31), you will no longer have to remember

to select channel 2, 3, or 4 on the TV to see what's coming from the cable

• box. By entering the cable box's output channel (usually 02, 03, or 04)

next to the CABLE CHAN function, the TVwill automatically tune to that

channel each time you press the SAT, CABLE button on the remote.

This function is especially convenient if yonhave a remote-controllable cable box that can be operated by the

SAT.CABLE button on the remote (as described on page 33). Pressing the

SAT,CABLE button will then not only switch the remote to cable mode but

will also automatically tune the TV to the proper channel for viewing the

picture from the cable box.

-Setting Up Cable Box Channel (with or without remote)

1. Repeatedly press MENUopROG to

select the SETUP MENU, and then

press + or - to display the setup functions, Repeatedly press

MENUopROG to select the CABLE

CHAN function.

Enter the channel number you want to

program by pressing two digit buttons on the remote control. (The channel

number you enter is the channel to which the TV will tune automatically

when you later press the SAT.CABLE button on the remote.) The TV will

change to the channel you select. This will help you to confirm that it is indeed the channel you want the TV to automatically tune. Most cable boxes output their signals on either

channel 02, 03, or 04.

3. Press the + button to program the

channel number you selected into the CABLE CHAN function memory.

Note: Pressing the - button here will turn off this feature and display CABLE CHAN: OFF again.

Compatible Components

A wide variety of compatible RCA Video Cassette Recorders

(VCRs), camcorders, and audio components areavailable.

Check with your RCA dealer for details.

Otherbrands of components can also be connected to your TV.

Refer to the component's owner's manual for the

manufacturer's recommended hookup instructions.

Stacking Arrangements

If you are connecting several components and plan to use a component rack, follow these general rules when arranging your

components.

• If the components are arranged horizontally, allow at least an

inch or two of space between them so air can circulate freely. This will alsoprovide some space between the audio devices

to minimize interference.

• If components are arranged vertically on shelves, place the Stereo Amplifier at the top so that heated air rising from it will not pass around the other components.

•Do not block the ventilation holes in the components. If components are placed on rugs or deep-pile mats, the

ventilation holes in the bottoms may be blocked and overheating could result.

•Some VCRs may cause interference in TVs. When placing a VCR under your TV, try to keep at least 18 inches between the bottom of the TV and the top of the VCR. If interference is present when the VCR is used on top of the TV or at the

18-inch distance below the set, move the VCR beside the TV.

If moving the VCR does not solve the interference problem,

try plugging the VCR into a different wall socket.

Plugging in Power Cords

Do not plug any power cord into a wall outlet until you are finished making connections.

Many components have "convenience outlets" on their back panels so you can plug power cords from other components into

a "convenience outlet" instead of a wall outlet. Usually these outlets will be labeled either "switched" or "unswitched".

• If the outlet is labeled "switched", that means power to the

outlet will be switched off when the component's power button is switched off.

•If the outlet is labeled "unswitched", that means power ,will

aiways be available at that outlet, even when the component is turned off.

Depending on the size of your system, you may prefer to use an extension cord or a "multiple adapter" to get enough outlets for

all your components.

The power cords on your RCA components are "polarized" (one blade is wider than the other). Be sure the extension cord or

multiple adapter is also polarized. The plug should fit in the outlet only one way.

Turning Off Power Before Connecting Components

Always turn off power to all components before you connect or disconnect any cables. This will protect your components from possible electrical surges that could damage your equipment.

This is a good practice for all your audio and video components-TVs, VCRs, audio systems, computers, etc.

Positioning Cables to Avoid Hum

The possibility of picking up hum (interference noise) in the audio/video cables will be reduced if you keep them away from the back of the TV. Route the cables to the sides of the TV's

back panel instead of straight down the middle. All cable plugs should be fLrmly seated in the jacks where they

connect to the equipment. If a plug is not connected firmly, audio hum or smeared video may result. If your antenna cable is flat twin-lead cable, try to keep it away

from the audio/video cables as much as possible. Excess flat, twin-lead cable should be cut off instead of coiled behind the TV. Round, coaxial, antenna cable is usually shielded and can

be coiled or placed next to audio/video cables without causing

interference.

Positioning Speakers to Avoid Interference Placing extemai speakers with unshielded magnets too close to

the TV may result in the speaker magnets affecting the quality of the picture. Such speakers should be located at least eight inches away.

If unshielded speakers axetoo close to the TV, colored streaks will appear along the sides of the picture. If this happens, turn

off the TV for several minutes while moving the speakers farther away. Then turn the TV back on.

CAU1X)N

TO AVOID DAMAGE:

1, DO NOT CONNECT

SPEAKER OUTPUT TO A SEPARATE

AMPLIFIER OR TO SPEAKERS

CONNECTED TO ANOTHER

PRODt_T.

2. DO NOT CONNECT

LEFT AND RIGHT SPEAKER OUTPUTS TOGETHER.

INPUT

V_EO

(_ EXTERNAL SPEAKERS Terminals-permit direct

connection of auxiliary speakers. Connection details are on page 41.

Q CABLE/ANTENNA Connectors-used when

attaching

either a home antenna or a cable-TV system to your TV.

Connection details are on pages 30-32.

Q SPEAKER Switch-when you connect additional speakers

to the EXTERNAL SPEAKERS terminals on the "IV, this switch lets you optimize the sound for the speaker location

you choose.

• If you place the speakers on each side of the TV, put switch in EXT position. If the left side of the switch is

labeled EXT, the internal audio from the TV's speakers will be muted.

• If you place the speakers behind the viewer (at the back of the room), put switch in INT/EXT SURR position.

This maintains normal volume level of the TV's internal speakers and a surround signal to rear

•speakers.

• Details about connecting speakers to the TV are on page 43.

IMPORTANT: Always place switch in INT/EXT SURR position if no external speakers are used (or if external

speakers are ever disconnected).

@ SELECT OUT Jacks-provide

fixed-level audio and

video output from whatever is displayed on the TV screen (see notes below). Provide audio and video signals suitable for recording. Can be used for several applications such as:

• VCR editing with two or three VCRs (page 36).

•-recording TV programs onto a camcorder (page 39).

• recording cable-TV programs onto a VCR that is not cable-ready (page 36).

• recording audio onto an audio cassette tape recorder (pag e 41).

Notes

• Rememberthat whatever youwant to record mustbe

displayed on theTV screenduring recording.

• Videosignals fromthe S-VIDEO connectorcan notbe

recorded from the SELECTOUT VIDEOjack. Torecord

from an S-VHScomponent connectedto the S-VIDEO connector,you mustalso connectthe videocable to the

VIDEOINPUT1 jack andthen selectchannel 91 on the TV

scween.

• On-screendisplayssuchas menusandstatus displayscan not

be recorded from thisjack.

• Specialfeatures suchas picture-in-picturecannot be recorded fromthisjack.

( )INPVT2Jacks-provide for direct connection of video

devices (like VCRs) or compatible home computers and "IV games with video/audio outputs.

To see the signals from a device that is connected to the INPUT2 jacks, tune your TV to channel 92.

@ @ INPUT 1 Jacks-provide for directconnection of video

devices (like VCRs) orcompatible home computersand TV games with video/audio outputs.

To see the signals from a device that is connected to the

INPUT I jacks, tune your TV to channel 91.

Q S-VIDEO Connector-provides fordirect S-VHS video

connection from S-VHS VCR orcamcorder. Remember to also connect the S-VHS VCRs or

camcorder's audio jack(s) to the TV's INPUT 1LEFT and/or R/MONO audio jacks. This is necessary because S-Video cables only carrythe super video (picture), not the audio signal. Connection details areon pages 36

and 39. Signals from S-VHS devices connected to the TV's

S-VIDEO connector and INPUT I audiojack(s) canbe viewed by pressing the TV button followed by 9 then 0

on the remote- control(or by scanning to TV channel 90 if you have added "90" to channel memory as described on page 24).. Note: Ifyouwantto usethe SELECT OUTjacks,rememberto

also connect the S-VHScomponent'sregularVideocable tothe

VIDEOINPUT1jack, andthen tunetochannel 91.

(_)HI FI OUT Jacks-feed volume-controlled stereo audio

out from whatever is displayed on the TV screen. Allow connection of audio amplifier and lets you adjust sound

Follow one of the steps below to connect an indoor or outdoor antenna to your "IT (only if you do not have a

cable-TV system). You can connect the antennato either ANTA orANT B as explained onpage25.

If the antenna cable coming from your home antenna is a 75-ohm round coaxial cable that carries only VHF (channels 2-13), only UHF (chaunels 14-69), or VHF and UHF channels, connect it to your set like this:

CABLE/AN'rEI/NA

I ANTA

Incoming -- _ _ _ _ "__ _ -- _ _-

Cable _ _ _

From Home VHF or UHF Only

Antenna or

VHFKIHF Combination

! Am'. BACK

i@)

, | • ..i

--OR-

If the antenna cable coming from your home antenna is a 300-ohm fiat•twin lead that carries only VHF (channels 2:13), only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:

Incoming Cable

From Home

Antenna

VHF or UHF Only _._

or Antenna Adapter*

VHF/UHF Combination (such as RCA #193983)

sl ,_"

CABLE/N_ITENNA

-OR-

If the antenna cables coming from your home antenna(s) are a 75-ohm round coaxial cable that carries VHF (channels 2-13)

and a 300-ohm flat twin-lead cable for UHF (channels 14-69), connect them to your set like this:

CAI_LE/ANTENNA

/_ITA

ANT B

BACK

(_ OFTV

Incoming UHF Cables

From _ and Home

Antenna(s) VHF

[_]- . _ \\ (such as RCA #197551)

-OR-

If the antenna wires coming from your home antenna(s) are two 3.00-ohm fiat twinqead cables as shown to your set like this:

Incoming • UHF " t : Push.on

Cab,. --- From_ and

Home

Antenna(s) VHF _ _ ...... SS_'_

Note: Be sure to connect the _ antenna cable to the UHF screws on the Antenna Mixer and the VHF antenna cable to the screws marked VHF.

* Optional accessories are available from most dealers or electronics sui_ply stores.

•

Antenna Mixer*__ _--_

(such as RCA #193984)

__A BACK

(_ OFTV

here, connect them

; ANTA

_-(:_7_ BACK

"'"J OFTV

I ANTE

Follow one of these Steps to connect a cable-TV system to your TV instead of a home antenna. Since cable-TV systems vary, you may wish to consult your local cable-TV company for additional information.

You can connect the cable-TV system to either ANTA or ANTB as explained on page 25.

Follow this diagram if your cable company does not require a converter/decoder box

Incoming Cable

Follow this diagram if your cable company requires a converter/decoder box that can be controlled by remote control.

no scrambled channels):

_BI.E/ANT_NA

AI¢I"A

BACK

ltJm" B

OFTV

Most brands of remote-controllable boxes can be controlled by the remote that came packed with your TV. D_tails for programming your TV's remote to also control the converter/decoder box are on page 33. See diagram D if you want to connect a VCR.

¢_AlCrEI_A

Incoming _l_- Cable

Remember to tune your TV to the outputchannel of the converter box

(usually 2, 3, or 4) when selecting channels via the converter box.

COI_/im'I'Lq

BACK OF TV

Follow this diagram if your cable company requires a converter/decoder box that cannot be controlled by remote control.

Scrambled Cable-TV Channels

Some cable-TV decoders require that you manually switch from regular to scrambled channels on the decoder whenever you wish to view the premium pay channels. By connecting the decoder to the ANTA input and

CONVERTER output on the TV as shown here, you can

switch between the scrambled and unscrambled channels using the remote control.

To change the incoming signal from ANTA to ANT B,

simply press the ANTENNA button on the remote. Each time you press the ANTENNA button, the channel numbers

will change color on the screen to show which antenna signal you are watching.

*Optional accessories are available from most RCA dealers and

electronics supply stores.

Incoming Cable

Nonscrambled cable channels will come thru the ANTB input

whenever the channel numbersare yellow. The scrambled channel from the decoder box will come thru the ANTA input

whenever the channel numbers are blue. Be sure to leave the decoder box set to the scrambled channel, and remember to

tune your TV to the output channel of the converter box (usually 2, 3, or 4).

BACK

OFTV

Coaxial Antenna Cables*

(Converter/Decoder)

D Follow this diagram if your cable company requires a converter/decoder box for premium channels and you also want to

connect a VCR.

Incoming

Cable. I._LI_ _

2-way Signal Splitter*

(such as AH047)

Remember totune the VCR to the output channel

of the converter box (usually 2, 3, or 4).

Coaxial Antenna •Cables*

(such as AH037 or AH065G)

Most cable companies that require use of a converter/decoder b_x

only require the box for scrambled premium channels like HBO or Showtime. All the other eable-TV channels can usually be viewed

without the converter box. Therefore, by using a signal splitter, you can s,md the incoming cable-TV signals directly to the TV and also

thru the converter/decoder box and VCR as shown above.

You can easily switch between the signals coming into the ANTA

jack and the ANTB jack by pressing the ANTENNA button on the

remote control. The channel numbers will change color to let you kno_ which antenna signal you are watching. When the numbers

are bltue, you are seeing the ANTA signals. When the numbers are yellow, you are seeing the ANTB signals.

CABLE/ANTENNA

ANTA

---

--_)

I_ITB

BACK OFTV

--(_

BACK OFVCR

Note: If you have a stereo VCR, be sure to also connect the

A UDIO and VIDEO OUT jacks on the VCR to the AUDIO and

VIDEO IN jacks on the TV as shown on page 35. These additional

audio/video connections are required for picture-in-picture operation and for Stereo playback from the VC1L To see the

signals from the VCR that are going into the INPUT jacks, select TV channel 91 if you connected the VCR to the INPUT 1jacks or select channel 92 if you connected the VCR to the INPUT 2 jacks.

Select TV channel 90 if you have an S-VHS VCR connected to the TV's S-VIDEO connector.

Remember to tune the TV to

the output channel of the VCR

(usually 3 or 4)--the same" channel as the positionof the VCR's CH3/CH4 switch•

The cable-TV channels that are not scrambled can then be seen whenever the TV is receiving the ANTA signals. The cable-TV

channels that are scrambled can then be seen thru the converter box

and then thru the VCR whenever the TV is receiving the ANTB

Sigmds. Most VCRs will feed the signal thru their antenna jacks even when the VCR is turned off. This allows you to watch

scrambled channels from the converter box without having to turn

on _te VCR.

This connection can be useful because it will let you record a

scrambled channel on the VCR at the same time you are watching a

non-scrambled channel thru the ANTA jack on the TV.

For picture-in-picture viewing, be sure to also connect the audio and video cables from the VCR to the TV as shown on pages 35-36.

The VCR must be turned on and tuned to the output channel of the cable box (usually 2, 3, or 4) for picture-in-picture viewing:

*Optional accessories are available from most RCA dealers and

electronics supply stores.

"_'7 •

The universal remote is preprogrammed to control an satellite receiver. If your

cable box has its own remote to change channels, you will probably be able to

program the TV's remote to control

both the TV and the cable box.

The TV's remote is designed to control

several brands of cable boxes. To

program the remote, press and hold the SAT.CABLEbutton, then the two-digit

code number for your brand of cable

box. Refer to the chart below to find the code number for your cable box.

Press the POWER button next to confu-rn operation.

You may need to try each of the code numbers listed for your brand until you

find the one that works.

After the TV's remote is programmed, you'll be able to turn on the cable box by pressing SAT.CABLE, then POWER. You can change channels on the cable box by pressing the CHAN buttons

whenever the remote is in the "cable" mode. To put the remote in the "cable"

mode, press the SAT.CABLE button. Press the TV button to put the remote backinto the TV mode so the remote

buttons will control the TV again.

Programming Remote To Control Cable Box

_(with remote only)

1. Refer to the chart below to find the 4. Point the remote at the cable box and

code number that corresponds to the brand name of your cable box. Keep this number in mind. If more than

one number is listed, you may need to try each one separately until you

find the one that works.

2. Press and hold the SAT.CABLE

button on remote.

3. Press two numberbuttons (first one,

then the other) to enter the code

press the POWER button to test the code number.

• If the right number was entered, the cable box should turn on. Pressing

the CHAN buttons should then also change channels on the

cable box.

• If the cable box does not react to the remote (or if the remote turns

on the cable box but does not change channels), repeat steps 1

thru 4 with another code number.

numberfor your brand of cable box. Note: Youmust pressthe two

numberbuttons while pressing the DSSoCABLEbutton.

Operating Notes:

• After the remote is programmed, it will turn on the cable box whenever you

press SAToCABLE and then POWER. To turn off the cable box, press SAToCABLE,

then POWER.

• To change channels on the cable box,

press SAToCABLE then CHAN up or down.

• You may have to reprogram the remote control if you change itsbatteries. Try not to

press any buttons while changing batteries.

• Depending on the age, brand, model, and

type of equipment, some models may not be able to respond to the remote.

ABC .................. .............................................................. :.22,46,53,54

Anvision ...................................................................................... 07,08

Cablestar .................................................................................... .07,08

Diamond .......................................................................................... 56

Eagle ........................................................................................... 07,08

Eastern International ....................................................................... 02

General Instrument .................................................. ,....................... 46

GI 400.... ........................ _.............................. 04,05,15,23,24,25,30,36

Hamlin ......................................................................... 03,12,13,34,48

Hitachi ................................................................................... 37,43,46

Jerrold .................................. 04,05,15,23,24,25,30,36,45,46,47,62,65

Macom ........................................................................................ 37,43

Magnavox ...................................... 07,08,19,21,26,28,29,32,33,40,41

NSC ................................................................................................. 09

Oak ........................................................................................ 01,16,38

Oak Sigma ................................. ;..................................................... 16

Panasonic ........ ........................ _......................................... 03,27,39,61

Philips ............................................ 07,08,19,21,26,28,29,32,33_40,41

Pioneer ................................................................................... 18,20,44

Note: Refer to the information sheet packed with your remote control for the latest list of brand names and code numbers. Because this list is constantly growing, the information sheet packed with your remote control may be a later version of this list and contain additional

brands and/or code numbers. 33

Randtek. ...................................................................................... 07,08

RCA ............................................................................................ 00,27

Regal ...................................................................................... 03,12,13

Regency ...................................................................................... 02,33

Samsang ....._.................................................................................... 44

Scientific Atlanta ......................................................... 03,22,35,63,64

Signature .......................................................................................... 46

Sprucer .......................................................... .................................. 27

Starcom ............................................................................................ 46

Stargate 2000 ................................................................................... 58

Sylvania ...................................................................................... 11,59

Teknika ............................................................................................ 06

Texscan .................................................................................. 10,11,59

Tocom .......................................................................... 17,21,49_0,55

Unika ....................................................................... .............. 31,32,41

Universal ............................................................................ :..51,52,60

Viewstar ........................................ 07,08,19,21,26,28,29,32,33,40,41

Warner Amex .................................................................................. 44

Zenith ................ ............................................................... 14,42,57,61

Your new TV is designed to receive up to 181 channels in the U.S.A. including

125 non-scrambled cable channels (see chart below). To use this TV ori a cable- TV system, confirm that the cable-TV system is properly connected to your TV. Since cable systems vary, you may wish to consult your local cable-TV company

for additional information.

If your cable-TV company follows EIA/NCTA channel-identification

standards, most of the channels offered by your cable company will be identified

by channel numbers that are identical to those on your TV. For example, if your

cable-TV system has programs on cable channel 20, you can choose this channel' by selecting channel 20 on your TV.

Some cable-TV companies do not follow the EIA/NCTA standards and instead

assign their own channel identification. For example, some use the standard broadcast channel numbers (2-13) for channels 2-13, but identify their other channels with letters. If your cable company does not $ollow the EIA/NCTA

standards, ask them for a cross reference that shows to which channels you should

tune your "IV.to receive their cable-TV channels.

Not all cable-TV channels will be active on your particular cable-TV system.

Also some cable companies may require the use of a decoder with their cable-TV

system. Consult your cable company or local dealer for details.

Scrambled Cable-TV Channels

Some cable companies offer "premium- pay" channels in which the signal is

scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device (cable box) which is generally provided by the cable

company,

How you connect the cable boxto your TV depends upon whether ornot the

cable box can be controlled by remote control. The TV's remote can also

control most brands of cable boxes, so ff

your cable box is remote controllable, you may want to connect it as shown in

Diagram B on page 31. Instructions for programming the TV's remote to control the cable box are on page 33.

If your cable company offers cable channels 90, 91, or 92 you can tune them by selecting the TV channels shown

below.

90 126" 91 127"

92 128"

* To tune cable channels 100 through

128, press and hold number button 1

until 1-- appears on the screen. Then enter the other two numbers.

If your cable box cannot be controlled by remote control, you Willstill be able to remotely control "unscrambled"

channels with the connection shown in Diagram C on page 31.

Since cable systems vary, you may wish to consult your local cable company for

additional information.

The chart below lists the "total" channel and cable Count.

• Low VI-IF A-8 (Channel 01)

• VHF (Channels 2-13)**

• UHF (channels 14-69)

• Low Midband A-5 thru A-1 (Channels 95-99) ***

• Midband (Channels 14-22 or A-I)

• Superband (Channels 23-36 or J-W)

• Hyperband (Channels 37-64 or W+I to W+28)

• Ultraband (Channels 65-94 and 100-125 or

W+29 to W+84)

Total Capability**

12 **

12"*

9 14 28 56

68 125

VI-/F is only counted once in total channel count because you can receive channels 2-13 on both "off-air" and "cable" channels. Therefore the total channel count for "off-air"and

"cable" is 181 channels (68+125-12=181).

Charmels 95, 96, and 97 are not applicable in Canada. Therefore the total number of channels for Canada is 178 (68+122-12=178).

Standard VHS VCR (Not S-VHS) (qlaese connections-allow you to record TV programs and play back tapes.)

Preferred Method

2-Way Signal Splitter**

(such as RCA #AH047)

tG!°roARreaeSeptithn ///

Back of VCR

Coaxial Antenna Cables**

(such as RCA #AHO65G)

** These optional accessories

(one AHIM7-2-way splitter, two AH065G?-antenna cables, and one

AH077G-audio/video cable) are

available as a kit under #AVH500.

Shown here is the preferred method of connecting a VCR to your TV. This method uses a 2-way signal splitter to run

separate signals to the VCR and TV. This way you can view

either TV programs or VCR tapes and not be concerned about the position of the VCR's TV/VCR switch.

Note: When connectedthis way, the audio/videoconnectionsfrom the VCR to the TV are requiredin order for youto watch tapesbeing

played by the VCRand for picture-in-pictureoperation.

Simplified Method

oko, @--'@

Back of TV

Atn_

@=@

OUT $111,1c'r Offl"

@L@.

Operation:

• If the VCR is connected to INPUT 1jacks as shown, select

channel 91 on the TV to view whatever the VCR is playing.

• If you connect a second audio/video device to INPUT 2, select channel 92 on the TV to view whatever the second device is

playing.

Note: Youcan programyour TV to automaticallyselectthe proper VCR inputchannel (91 or 92) when you pressthe VCR 1 or VCR2.LD button.

Detailsare on page 26.

AUOtO

Incoming

Cable

Shown here is a simplified method of connecting a VCR to your 'IV. The preferred method (using a 2-way signal splitter) is

shown above. Note: The audio/video connections from the VCR to the TV are

optional; however, these additional connections usually produce a better-quality picture during VCR playback. These connections are

:required, however, for stereo playback from stereo VCRs and for

picture-in-picture operation.

*Optional accessories are available from most RCA dealers and

electronics supply stores.

Coaxial Antenna Cable*

(such as RCA #AH037)

Operation:

• If the VCR is connected to/NPUT 1jacks as shown, select

channel 91 on the TV toview whatever the VCR is playing.

• If you connect a second audio/video device to INPUT 2, select

channel 92 on the TV to view whatever thesecond device is

playing.

Note: Youcan programyourTVto automaticallyselectthe proper

VCR inputchannel (91 or92) whenyoupress the VCR1or VCR2oLD button. Details areonpage26.

Special Recording onto VCR

(This connection only allows you to record on the VCR

whatever is currently being displayed on the TV screen)

This is not a common application for recording with your VCR, but you may fred !ituseful in certain situations. This

connection _,ill let you record onto the VCR whatever is being displayed on the

TV screen such as a TV program. You'll

also be able to record signals from another VCR (or similar device) that is

connected to the TV's INPUT 1 or 2 jack.,;.

The TV must remain turned on during recording. If you change charmels on the

"IV, the channel change will be recorded on the VCR tape unless you pause the

VCR during recording. Because your TV is cable-compatible, this

application may be used to record cable-TV pro[,xams from the "IV onto a VCR that is not cable- compatible.

You may also want to use this connection to dub or edit VCR tapes with two or three VCRs. By connecting one VCR (or camcorder) to the INPUT 1 jacks and another VCR (or

cameorder) to the INPUT 2 jacks, you'll be able to selectively edit and record whatever is playing on the TV screen onto a third VCR (or camcorder) connected as shown here to the

SELECT OUT jacks.

Back of VCR

Back of "iV

I[ I i "_'-t

l" . ,! @

• AudioNideoCables _ t | (_ I (Such as RCA #AH069G) _ } __ } _a_°_CT

L P.kBLE J_ffEN_A

:,_ ®

To see the signal from a device connected to the INPUT I jacks, select channel 91. Select channel 92 to see the signal from a

device connected to the INPUT 2 jacks. Notes: Signals from the S-VIDEO connector do not come thruthe

SELECT OUT jacks. To record from an,S-Video component,

remember to also connect the regular video cable to the VIDEO INPUT I jack and then tune to channel 91.

You will not be able to record the picture-in-picture inset picture or any of the menus or status displays.

S-'VI-IS (Super VHS) VCR (This connection allows you to record

TV programs and play back tapes.)

Audio/Video Cables*

(such as RCA

#AH069G) -

Incoming Cable

Back of VCR

Shown here is one method of connecting your S-VHS VCR to your TV. Connect the S-VIDEO OUT connector on the back

of the VCR to the S-VIDEO connector on the back of your TV using an S-Video cable: Remember to connect the audio cables from the VCR to the INPUT 1 LEFT and R/MONO

jacks on the back of the "IV. The S-Video cable carries only

video. Note: Rememberto also connect the videocable forpicture-in-

pictureviewing or if you plan to use the SELECT OUTjacks for

recording. When recordingfromSELECT OUTjacks, runethe "IV to channel 91 to see thesignal fromthe S-V/IS VCR. When displaying

picture-in-picture,the TV automaticallyminimizesany annoying differencesin tint between the smalland largepictureby electronically

couplingthe S-VIDEO inputto the VIDEO I input. Operation: If the S-VHS VCR is connected as shown above,

tune the TV to channel 90 to view whatever the VCR is playing. The word S-VIDEO will appear on the TV when you select

Channel 90.

*Optional accessoriesare availablefrommost RCAdealersand electronicssupply stores.

S-Video Cable (such as RCA #186008)*

Coaxial Antenna Cable*

(such as RCA #AH037)

)

The digital remote control that came packed with your Tv controls your TV and up to two compatible RCA VCRs.

To control a compatible RCA VCR, first press the VCR1 or

VCR2*LD button to put the remote in the "VCR mode". The

buttons shown below will then control the VCR. Selected models of RCA VCRs have a switch that lets you

determine which VCR will be controlled by the VCR1 button,

and which VCR by the VCR2oLD button. Other models have an on-screen menu that lets you determine if it will be controlled by

VCR1 or VCR2oLD. Additional infOrmation about controlling

two RCA VCRs is in the note on the next page. If you have another brand of VCR, you can probably also

program your remote to control it. Details are on the next page.

VCR1 and VCR2*LD Buttons

• Press to turn on VCR and put remote in "VCR Mode".

• Press the TV button to put remote back into 'q'V Mode".

VCR2•LD AUDIO

_p. VCRI SAToC,ABLE_

O©

REW PLAY FF

REC STOP PAUSE

r- -i Fn-I

DISPLAY SKIP

0 0

MUTE CHA_ PREVCN

40 50 60 "

INPUT ANTENNA

O O

CLEAR RESET

PIP SWAP

p _ MOVE [_

(e) SRS

POWER Button Press to turn off VCR.

REW (Rewind) Button

• Press while VCR is stopped to rewind tape.

• Press while VCR is playing to search backward.

PLAY Button

Press to start tape playing.

FF (Fast Forward) Button

• Press while VCR is stopped to fast forward tape.

• Press while VCR is playing to search forward.

REC (Record) Button Press to record.

STOP Button

Press to stop whatever VCR is doing: Playing, Recording, Rewinding, or Fast Forwarding.

PA USE Button

• Press to pause play or record mode.

• Press again to release pause.

DISPLAY Button

Press to bring VCR's displays to TV screen.

CHAN (Channel) Buttons

Press to select the next higher or lower channel in VCR channel

memory.

Notes:

• The six VCR buttons grouped together (PLAY, PAUSE, STOP,

FF, and REC) control the VCR even if the remote is in the 'TV Mode".

• The ANTENNA, MENU•PROG, CLEAR, and D1SPLAYbuttons are for RCA VCRs only.

Number Buttons

• Press two numbers to select channel.

• Press a "0" before a single-digit channel number. CLEAR Button

Used when setting the VCR's clock and timer.

MENU*PROG Button Used when setting the clock and programming the timer.

ANTENNA Button

Same as VCR or TV/VCR button on front of VCR.

The digital remote control that came packed with your TV controls your TV

and up to two compatible VCRs, including most models of most other brands.

To program the remote, press and hold

VCR1 (or VCR2oLD) and the two-digit

code number for your brand of VCR. Note About Controlling Two VCRs •

• This remote can control two VCRs

independently as long as each VCR operates on a different remote transmitting code.

• Some newer VCRs are capable of working

on either of two remote codes. These VCRs have either a switch labeled VCR1/VCR2 or

an on-screen display tiffed REMOTE

VCR1/VCR2. You can then set your new VC.R to respond to the remote's VCR2*LD button and your older VCR to respond to the

VCR1 button.

• Some older VCRs have a NORM/UNIFIED switch that can also respond to either the

VCR1 or VCR2.LD button on the remote. Place this switch in the UNIFIED position

foxthe VCR to respond to the VCR1 button or in the NORM position for the VCR2.LD

button. In the NORM position; you must program the VCR2*LD button to respond to

code number 05.

• If neither of your VCRs have switchable code capabilities, you still may be able to

use the VCR1/VCR2 feature to control two VCRs of the same brand since many older

VCRs use remote codes that are different

than newer VCRs. You may want to

experiment to see what works with your

p_u'ticularVCRs:

-Programming Remote To Control Other Brands of VCRs

Refer to the chart below to find the

code number that corresponds to the

brand name of your VCR. Keep this numberin mind. If more than

one number is listed, you may need to try each one separately until you

find the one that works.

Press and hold the VCR1 or

VCR2.LD button on remote

(depending on which buttonyou want to program for that VCR).

You can program each button to control a different VCR.

Press two number buttons (fin'stone, then the other) to enter the code number for your brand of VCR.

Note: Youmust press the two number buttonswhileholding the VCR1or

VCR2.LDbutton.

Point the remote atthe VCR and press the POWER button to test the

code number. If nothing happens, try pressing VCR1 or VCR2.LD (whichever button you are programming).

• If the right number was entered, the VCR should turn on.

• If the VCR does not react to the

remote, repeat steps 1thru 4 with

another code number.

Note: Some older VCRs do not have an POWER switch on their remote controls

and cannot be turned on and off

remotely, iffyou have this type of VCR, you can test the code number b'y pressing

the CHAN button instead of the POWER button. Make sure the VCR is

already turned on when you test the code number.

Operating Notes:

• After the remote is programmed, it will

turn on the VCR whenever you press VCR1 (or VCR2.LD) and then POWER,

Some VCRs turn on automatically when you press VCR1 or VCR2.LD.

• You'll be able to control the VCR whenever the remote is in the "VCR

mode". To put the remote in the "VCR mode", press the VCR1 or VCR2.LD

button (depending on which button you programmed). The other VCR buttons (such as PLAY, PAUSE, STOP REI_, FE

and REC) 'will control the VCR when the remote is in the "VCR mode".

• To turn off the VCR, press VCR1 (or

VCR2.LD), then POWER.

• You may need to reprogram the remote

when you change the batteries. Try not to

press any buttons when changing batteries.

* Depending on the age, brand, model, and

type of equipment, some models .may not

be able to respond to the remote.

Aiwa ........................... !....................... 15

Akai ........................... 03,17,22,23,63,66

Audio Dynamics ........................... 14,16

Broksonic ........................................... 10

Candle .................. 07,09,13,44,45,46,52

Canon ............................ ................ 08,53

Capehart ............................................. 01

Citizen .................. 07,09,13,44,45,46,52

Craig .............................................. 07,12

Curtis Mathes ................... 00,07,08,14, I

..................................... 5,44,46,53,64,67

dbx................................................. 14,16

Electrohome ...................................... :27

Emerson ........ 208,09,10,13,15,20,23,27,

.......... 34,41,42,47,49,57,62,65,67,68,70

Fisher.............. =....02,12,18,19,43,48,58

Ftmai .................................................. 15

GE .................................. 00,07,08,32,53

Goldstar ............................... 09,14,46,60

Hitachi ................................. 05,15,35,36

JCPenney ..................... 02,05,07,08,14,1

................... -...................... 6,30,35,51,53

Note: Refer to the information sheet packed with your remote control for the latest list of brand names and Code numbers. Because this list is constandy growing, the

JVC ....,...................... 02,14,16,30,46,74

Kenwood ................... 02,14,16,30,44,46

Magnavox ........................... 08,29,53,56

Marantz ......02,08,14,16,29,30,44,46,61

Malta .................................................. 09

Memorex ............................. 08,09,12,15

MGA ............................................. 04,27

Minolta .......................................... 05,35

Mitsubishi ...................... 04,05,27,35,40

Montgomery Ward ............................. 06

Multitech ............................. 07,15,31,32

NEC ............02,14, I6,30,44,46,59,61,64

Panasonic ................................. 08,53,75

Pentax ....................................... 05,35,44

Philco .................................. 08,29,53,56

Philips ........................................ :..08,29

Pioneer ..................................... 05,16,33

ProScan .............................................. 00

Quasar ........................................... 08,53

RCA ........... 00,05,07,08,28,35,37,54,69

Realistic ....................... 02,06,08,09,12,1

.......................................... 5,19,27,43,53

Samsung ............. 2........... 07,13,22,32,42

Sanyo ............................................ .02,12

Scott ............................... 04,13,41,49,68

Sears ........... 02,05,09,12,18,19,35,43,4g

Sharp .............................. 06,24,27,39,45

Shintom ............................... 17,26,31,55

Sony ......................................... 17,26,38

Sylvania ......... ................. 08,15,29,53,56

Symphonic ......................................... 15

Tashiko ............................................... 09

Tatung ................................................ 30

Teac .......................................... 15,30,69

Tecnics ............................................... 08

Teknika ................ :............... 08,09,15,21

Toshiba ........................... 05,13,19,48,49

Vector Research ....................... 14,16,44

Video Concepts .......... . ............. 14,16,44

Wards ....................... 05,06,07,08,09,12,

................................... 13,15,25,27,31,35

Yamaha .......... i................ 02,14,16,30,46

Zenith .................................. 11,17,26,72

intormationsheet packed with yourremotecontrol may be alatei-versionof this list andcontain additionalbrands and/or code numbers.

S-VHS or Standard VHS Camcorder

(This connection allows you to play back tapes in the camcorder and watch them on the TV.)

AtlDIO

@@S-VideoCable "g%

.,-.o=r_J=o= Back of TV

[Audio/Video Out)

(sometimesa separate cable thatattaches directly to camcorder) @_ @

An S-VHS or standard camcorder can be connected directly to your TV. If you have an S-VHS camcorder, connect the

S-VIDEO cable to the S-VIDEO connector on your TV. If you have a standard VHS camcorder, connect the video cable to the

VIDEO INPUT 1 jack on the back of your TV. With either

video connection, attach the audio cable to the INPUT 1 R/MONO audio jack.

Notes: When the adapter's S-Video Cable is connected to the S- VIDEO connector, the video plug does not have to be connected. However, you

may prefer to plug it in anyway to keep it out of the way. The S-VHS video will automatically override the VIDEO INPUT 1 signal when you select Channel 90. Be sure to connect the video cable; however, for

S-VHS or Standard VHS Camcorder (This connection allows you to record onto the camcorder

whatever is currently being displayed on the TV screen.)

AVIN Jack

(Audio/Video In) ......... J

picture-in-picture viewing or if you plan to use the SELECT OUT jacks

for recording. When recording from the SELECT OUT jacks, tune to channel 91 to see the signal from the camcorder. When displaying

picture-in-picture, the TV automatically minimizes any annoying differences in tint between the small and large picture by electronically

coupling the S-VIDEO input to the VIDEO 1 input.

Operation:

• I[ the camcorder is connected to the VIDEO INPUT 1jack

(instead of the S-VIDEO connector), select channel 91 on the TV to view whatever the camcorder is playing.

• If the camcorder is connected to the S-VIDEO connector and

INPUT 1 andio jack, select channel 90 on the TV to view

whatever the camcorder is playing.

Back of "IV

-Audio

Video

Audio/Video InputCable

(usuallysupplied with

camcorder)

This connection will let you record onto the camcorder

whatever is being displayed on the screen such as a TV

program. You'll also be able to record signals from a VCR (or similar device) that is connected to the TV's INPUT 1 or 2

,jacks.

Note: You Willnot be able to record the picture-in-picture inset picture or any menus or status displays.

The TV must remain turned on during recording. If you change channels on the TV, the channel change will be recorded on the camcorder tape unless you pause the camcorder during recording.

You may also want to use this connection to dub or edit VCR tapes with two or three camcorders (or VCRs). By connecting

one camcorder (or VCR) to the INPUT 1 jacks and another camcorder (or VCR) to the INPUT2 jacks, you'll be able to

selectively edit and record whatever is playing on the TV screen onto a third camcorder (or VCR) connected as shown

here to the SELECT OUT jacks. If you connect a surveillance system to your monitor, you'll be

able to record what the camera is displaying on the TV screen by connecting a camcorder (or VCR ) to the SELECT OUT

jacks as shown here.

To see the signal from a device connected to the INPUT I

jacks, select channel 91. Select channel 92 to see the signal

from a device connected to the INPUT2 jacks. Note: Signals from the S-VIDEOconnector do notcome thruthe

SELECTOUTjacks. Torecord froman S-VHScomponent, remember to alsoconnect its regular video cableto the VIDEOINPUT 1jack and thentune the TV to channel 91:

Computers and Other Equipment with Audio/Video Outputs

Back of "iV

HI-FI OUT SELECT OUT .

@,@

OR TV GAME

AUDIO

[ If the INPUT 1 jacks

Jalready have

another component connected to them,

you can connect the computer to the

INPUT2 jacks.

Audio/Video Cables (such as RCA

#AH069G)

Your TV can also be used as a display device for many video games and home computers. If your game or computer has a normal NTSC (American Standard) VIDEO output, it can be connected directly to either the INPUT] orlNPUT2jacks on

the TV as shown here. If the computer or other device has monaural audio output (only

one AUDIO OUT jack instead of L and R), connect it to the TV's R/MONOjack. This will enable the TV to reproduce the sound through both the left and right speakers.

To View Signals From Computer

• If you connected the computer to the TV's INPUT 1jacks,

select channel 91 on the TV so you can see whatever signal is coming from the computer.

• If you connected the computer to the TV's INPUT 2 jacks,

select channel 92 on the "IV so you can see whatever signal is coming from the computer.

.40

Amplifier or Cassette Tape Deck

Audio Amplifier

(such as RCAAH069G)

• " _--_........_._

Audio/VideoCables* i

,_o_7_o_ r Back of "IV

[

If your stereo amplifier is not par_t,of a "system" that has its own remote, connect it to the TV as shown here. Note: If the stereo amplifieris part of a system that has its own remote,

you may choose to connect it to the TV as shown below using the SELECT OUT jacks.

With the connection shown here, you'll be able to change and mute volume with the TV's remote control. You'll also be able

to remotely control bass and treble functions.

Audio Cassette Recorder or Amplifier

_mo

Audio/VideoCables* CASSEn'ERECORDER (such as RCA#AH069G) ORAMPLIFIER

tmu_'r _

If your stereo amplifier is partof a "system" that has its own

remote control, connect it to the SELF.CT OUT jacks as shown here. The "fixed level" audio signal present at these jacks is also

ideal for connecting an audio cassette recorder to record audio from the TV. This constant audio signal is not affected by

pressing the VOL buttons on the TV's front panel or the TV's remote control.

Connection:

Connect SELECT OUT "L" and "R" to the corresponding input

jacks on the stereo amplifier or audio cassette recorder.

Connection:

Connect the "L" and "R" HI FI OUT jacks to the corresponding

input jacks on the stereo amplifier (such asAUX, TUNER, or cD). Do not use the PHONO inputs. If your amplifier is not stereo (mono), connect it to the TV's R/MONOjack. Consult the

amplifier's owner's manual for the manufacturer's recommended

hookup.

Operation:

If desired, turn off TV's internal speakers as describedon page 11. Adjust the amplifier for normal listening. Then control sound with

the VOL and MUTE buttons on the TV's remote.

If your amplifier is not stereo (mono), connect it to the TV's

R/MONOjack. Consult the equipment's owner's manual for the manufacturer's recommended hookup.

Operation:

Select aTV channel and turn down the sound on the TV, or turn offTV's internal speakers as described on page 16. Adjust sound with controls on the amplifier or cassette recorder. If the

amplifier or cassette recorder is part of a "system" that has its own remote, use the system's remote to adjust sound.

The digital remote control that came packed with your TV is also capable of

controlling a compatible audio component.

To program the remote press and hold the AUDIO button and then enter the

two-digit c.ode number for your brand of audio equipment.

-Programming Remote to Control Audio Equipment

1. Refer to the chart below to find the

code number that corresponds to the brand name of your audio

equipment. If more than one

number is listed, you may need to

try each one separately to find the one that works.

2.Press and hold the AUDIO button on remote (depending on which

button you want to program).

1 Press two number buttons (first

one, then the other) to enter the code number for your brand of

audio equipment. Note: You must press the two number

buttons while holding the AUDIO button.

4. Point the remote at the audio equipment and press the POWER

button to test the code number.

• If the right number was entered,

the audio equipment will turn on.

• If the audio equipment does not

react to the remote, repeat steps 1

thru 4 with another code number.

Operating Notes: After the AUDIO button is programmed, the

buttons described below will operate the basic functions of the audio equipment.

Depending on the age, brand, model, and type of audio equipment, some models may not be able to respond to all the function

buttons listed below. You will want to experiment with each button to determine the

exact function for your component.

• POWER: Press to turn on component. Press again to turn off. Some components

will turn on automatically when you press this button.

• VOL: Press to change volume level.

• CHAN: Press to select the next higher or lower channel in the component's channel

memory.

• Number Buttons: Press two numbers to directly select a channel.

• PLAY: Press to start component playing.

• PAUSE: Press to pause play or record. To release pause, press again.

• STOP: Press to stop whatever the

component is doing: playing, recording, rewinding, etc.

• REW (Rewind): Press while component is stopped to rewind tape.

• FF (Fast Forward): Press while component is stopped to fast forward tape.

• REC (Record): Press to startrecording.

• ANTENNA: Performs various functions

depending on the type of equipment. Experiment with this button.

Note: Refer tothe information sheet packed with your remote control for the latest list of brand names and code numbers. Because this list of brand names is continually growing, the

information sheet packed with your remote control may be a later version of this list and contain additional brands and/or code numbers.

Caution: Do not connect external speakers to more than one audio source at a time. You can connect a set of

speakers to either the TV or the Amplifier but not to both at the same time. If you connect the same speakers to

both the TV and the amplifier, you will damage your equipment.

Connecting Speakers to Back of TV

If you connect an amplifier or receiver to your TV, connect the speakers to the amplifier/receiver instead of the TV.

If you do not connect an amplifier or receiver to your TV, you can connect external speakers to the "IV to enhance the TV's

sound.

The diagram below shows how to connect external speakers to the speaker terminals on the back of the TV.

1.Remove the vinyl covering and twist the wire core.

2. Press and hold the lever down while inserting the wire core into the hole. Be sure to connect (+) to (+) and (-) to (-) as

explained in the note below.

3. Release the lever. _

Notes:

• After releasing the lever, pull gently on the wire and check that it is connected securely to its terminal.

• Do not allow the wire core to protrude from its terminal or contact other wires or terminals. If the cores of two wires

touch each other, damage to components could result.

Helpful Hints:

• External speakers placed next to the TV will sound better the higher quality they are.

• Very efficient small "bookshelf" or "compact" speakers will give good results for surround-sound use.

• Surround effect can often be improved by experimenting with rear speaker placement.

• Surround-encoded movies (broadcast or tape) give the best surround effect, but regular stereo and mono programs will

also benefit.

Connecting Speakers to Back of Amplifier or

Receiver

If you connect an Amplifier or Receiver to your TV, connect the speakers to the Amplifier/Receiver instead of the TV. Sound from the TV will then come through the Amplifier/Receiver and the TV's internal speakers. You can

turn off the TV's internal speakers with the SPEAKERS:

ON/OFF function described on page 16.

The diagram here shows how to connect external speakers to the speaker terminals on the back of a typical

Amplifier/Receiver. Check the owner's manual for your Amplifier/Receiver if its speaker terminals look different than

those shown.

The speaker switch on the back of the TV allows you to use the external speakers two ways:

• To enhance the sound from the TV, place the speakers in the front of the viewing area (usually beside the TV), and slide the speaker switch to EXT. This provides full power to the

external speakers for a "fuller" sound. The internal audio from the TV's speakers will be turned off.

'SPEAKER

EXT I'_l INT/ExT

SURR r

• To obtain a "surround sound" effect, place the external

speakers in the rear of the viewing area, and slide the

speaker switch to INT/EXTSURR. This provides full power to the TV's internal speakers for the front sound and a

surround signal to the rear speakers.

Notes:

• After connecting speaker wire, pull it gently and check

that it is connected securely to its terminals.

• Do not allow the wire core to protrude from its terminal or contact other wires or terminal. If the cores

of two wires touch each other, damage to components could result.

Compatible Components

A wide variety of compatible Video Cassette Recorders (VCRs), camcorders, and audio components are available. Check with your dealer for details. Other components can also be connected to your TV. Refer to the component's owner's manual for the manufacturer's recommended hookup instructions.

General Cable Information

Antenna (or cable-TV) connections are made

with either coaxial antenna cable or twin-

lead cable. Coaxial cables are shielded so

they are less susceptible to hum or interference from adjacent cables.

Most audio/video connections between components can be __[_=

made with shielded audio and Standard Audio/Video Cable

video cables that have RCA-type (suchas No.An069G)

phono connections. When

connecting components to each other, be sure that you always connect left outputs to left inputs and right outputs

to right inputs. If a component has only one output (mono), connect it to the R/MONO input jack.

_---_ UL_] _ Slip-on End

]] "q I----- Screw-on End

Round 75-ohm coaxial cable

such as No. AH037 (screw-on),

AH065G (push-on); or AH066G (push-on)

with RCA-type phono plugs

Audio/Video Cables

Audio/Video Cable

Shielded cable for connecting AUDIO and VIDEO jacks. Has an RCA-type phono

plug on each end.

Stereo Audio Cable

Double gold-tipped cable generally used for connecting stereo audio components.

Stereo VCR Dubbing Cable Triplelcable that lets you connect the

VIDEO and AUDIO jacks of stereo

components.

Gold-Tipped Cables

AH069G (3-ft)

AH070G(S-_t)

Gold-Tipped Cable

AH072G (3-ft)

To connect S-VHS (Super-VHS) components, an S-Video cable is

required.

S-Video'Cable

(such as No. VAA020)

The following accessories are available from most dealers in case you want to position your components farther apart or need additional cables.

Antenna Cables

Screw-on Antenna Cable Attaches to the round antenna connectors

(called 75-ohm F-type) on the back of your VCR or TV. The ends screw onto the connectors for a secure connection.

Push-on Antenna Cable Attaches to the roundantenna connectors

(called 75-ohm F-type) on the back of

your VCR or TV.'Ends push on for a

quick connection.

_037 (3-ft)

Gold-Tipped Cables

AH065G (64t)

AH066G (t0-ft)

Gold-Tipped Cable

AH077G (640

Monaural VCR Dubbing Cable _' Double cable that lets you connect the

VIDEO and AUDIO jacks of two VHS VCR's to duplicate tapes. Can also be used

to connect a VCR to your TV. Cable is color-coded and shielded. Has RCA-type

phono plugs on each end. Gold-TippedCable

AH075G (6 ft)

S-Video Cable Has multipin S-connector on each end for

connecting S-VHS components to your TV. When connecting an S-VHS component to the S-VIDEO jack on your TV, remember to

VAA020(8-ft)

also connect the left and fight audio cables to the INPUT 1jacks because the S-Video cable carries only the picture, not the sound.

RemoteControl (233063)

This is the remote that came packed with

your TV. You can use the order form to order it direct by mail if desired.

^ 5

AccessoIv Order Form

(Tocom # 1508388A)

Description

Screw-on Antenna Cable (3-ft)

Signal Splitter AH047 $ 3.99

Gold-Tipped Antenna Cable (640 AH065G $ 6.99

Gold-Tipped Antenna Cable (10-ft) AH066G $ 8.99

Gold-Tipped Audio/Video Cable (3-ft) AH069G $ 5.99

Gold-Tipped Audio/Video Cable (5-ft) AH070G $ 7.99

Total

Simple Touch,,, Remote Control

(206800)

This is an optional remote that Can be used to turnyour set on/off, change channels, and adjust volume. It is a

simplified remote that can be used to control basic functions.

ciz3

C_E3 c223

c_5

Gold-Tipped Stereo Audio Cable (3-ft) AH072G $ 8.99

Gold-Tipped Dubbing Cable (6-ft) AH075G $10.99

Gold-Tipped Dubbing Cable (6-ft) AH077G $14.99

VCR Connection Kit AVH500 $32.95

S-VHS Video Cable (8-ft) VAA020 $29.95

Replacement Power Cord (5 l/2-ft) 187802 $10.15

Antenna Adapter 193983 $ 6.95

A_tenna Mixer 193984 $10.73

Antenna Mixer 197551 $10.95

Replacement Remote Control CRK70D2 233063 $41.00

Simple Touch TM Remote 206800 $38,15

Prices are subject to change without notice

Total Merchandise ($10 Minimum Order) ...........

Sales Tax ..............................................................

We are required by law to collect the appropriate

sales tax for each individual state, county, and

locality to which the merchandise is being sent.

Shipping, Handling, and Insurance ......................

Total Amount Enclosed ........................................

$ $

Note: All specifications and descriptions of accessories are subject to change without notice.

Use VISA or MasterCard preferably. Money order or check must be in U.S. currency only. No COD

or CASH.

All accessories are subject to availability.

Where applicable, we will ship a superseding model.

Charge your order on your VISA

or Mastea'Card by

filling in below

To order accessories, contact your local dealer. If a dealer is not nearby, you can also follow the directions

below to orderby telephone ordirect-by-mail.

USEYOUR CREDITCARD

IMPORTANT: Copy complete account number

from your VISA card

rr-T- N--n rT-N VVn

IMPORTANT: Copycompleteaccountnumber

•. fromyourMasterCard

V-T-TTGVVTT VVVTq VT-VT-1

co,y,_._be,I i i i I Myca,dI I II I I

above your expires:

name on

MasterCard

AUTHORIZED SIGNATURE

Prices are subject to change without notice.

PLEASE

Print or type your name and address clearly. This will be your

mailing label.

A complete and correct order will save you days of waiting.

United States and Canada Orders To place your order by phone, have your Visa or MasterCard

ready and call the toll-free number listed below between 8AM

and 8PM Eastern Standard Tmae. Use this number only to place an order for accessory items listed on this order

form.

1 - 800 - 338 - 0376

Most times your order will be shipped UPS within 72 hours of receipt. If ever it is not possible to ship within 30 days, we

Will notify you with an update on your order and an option to cancel.

To place your order by mail, detach and mail the completed order form with credit card information, money order, or

cheek in U.S. currency (made payable to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories

For more information on these accessories (or current prices), write to the following address:

PO Box 8419 Ronks, PA 17573

Video Accessories Customer Service Thomson Consumer Electronics, Inc.

Distributor & Special Products 2000 Clements Bridge Rd Deptford, NJ 08096-2088

Name,"

Street:

Apt:

City:

State:

Zip:

Please make sure that both sides of this form have been filled out completely.

International Orders

This offer is valid only in the 50 United States and Canada.

i For international orders, please send your request for

i ._ quotation (not an order)to:

International Customer Service Thomson Consumer Electronics, Inc.

Distributor & Special Products 2000 Clements Bridge Rd Depfford, NJ 08096-2088 USA

Dust TV as required, using a soft cloth or the dusting attachment of your vacuum cleaner. Occasionally

vacuum the ventilation slots in the cabinet to help assure adequate ventilation. Take care not to scratch the plastic

surfaces.

To clean the screen, you can wipe it with a damp soft cloth. (A very diluted, mild soap can be used on the screen if it is extremely dirty.) You can also use a non- abrasive glass cleaner like Windex ®or Glass Plus ®with a soft cloth. Be sure to apply cleaner to a cloth. Do not put cleaner directly on the screen.

If your TV's cabinet has a textured finish, do not use furniture polish. Because textured finishes are porous,

using furniture polish will mar their appearance. They can be easily cleaned with a damp, soft cloth.

Do not use strong cleaners, polishes, or chemicaUy- treated cloths to clean the screen or cabinet.

Never place drinks or vases with water on top of your TV.

Troubles sometimes arecaused by simple "faults" that you can easily correct without the help of a service technician by first

checking a few basic remedies. Before you call ortake your unit to an Authorized RCA 'IV

Servicenter, look below for the type of trouble you are

experiencing. Then perform the simple checks and adjustments listed for that trouble.

If your unit is still in warranty, these checks and adjustments could save you time and the cost of an unneeded trip to the servicer. They also could save you the cost of a diagnosis not

covered by your warranty. If your unit is out of warranty, these checks and adjustments

could save you the cost of an unneeded diagnosis. If service should be necessary, the warranty explains how to get it.

TV will not turn on

Controls don't work

Intermittent or no remote

Turns off while playing

• Check to make sure TV is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is "live" by

plugging in something else.

• Maybe batteries in remote control are "dead". Try replacing batteries.

• Maybe remote is not aimed at remote sensor. Press POWER button on TV.

• Make sure power cord is fully inserted into back of TV.

• If using remote control, make sure remote is in "°!'V Mode" by first pressing

the TV button.

• Try unplugging set for two minutes and then turning it on again.

• Make sure power cord is fully inserted into back of TV.

• Maybe something is between the remote and the remote sensor.

• Maybe the remote is not aimed directly at the component (TV or VCR) you are trying to control.

• Maybe remote is not in "TV Mode". Press the TV button so remote will control TV.

• Maybe batteries in remote are weak or dead. Try replacing batteries.

• Maybe batteries are installed incorrectly. Try replacing batteries correctly.

• Remove batteries and hold down one or more buttons for several seconds. Re-install the batteries and try remote again.

SLEEP TIMER function may have been activated.

OFF function may have been activated.

Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on again. If this happens frequently, the voltage in your house may be abnormally high.

Make sure power cord is fully inserted into back of TV.

Turns on unexpectedly

Alarm does not turn off TV at correct time

Blank Screen

No sound, picture okay

ALARM ON function may have been activated.

Check ALARM ON/OFF function. Must be set to ON. Check to make sure CLOCK function is set to the correct time.

Maybe Channel 90, 91, or 92 selected, but device connected to those

INPUT jacks is not turned on.

I•

Try another channel.

i ° Maybe sound is muted. Try pressing VOL up button to restore sound.

• Maybe TV's speakers are turned off. Check SPEAKERS ON/OFF function.

• Check position of SPEAKER switch on back of TV.

continued on next page

Can'tselectcertainchannel

• Channel may not be in Channel Memory. Try pressing number buttons.

• If using VCR, check to make sure TV/VCR switch on VCR is in correct position.

• To select cable channels 100 thru 128, press number button 1 until 1--

appears. Then press other two number buttons. CABLE/AIR function must

be in CABLE mode to select channels higher than 69.

• Channel may be locked-out with Parental Control feature,

Noisystereoreception

No picture, no sound but power light is on

• May be a weak station. Change STEREO/SAP function to MONO setting instead of STEREO.

• Maybe someone changed CABLE/AIR function to wrong position.

• Maybe a vacant channel is tuned.

• For Channels 90,91, and 92, make sure the component connected to those INPUT jacks is turned on in order to see the picture.

• If watching VCR (connected only through antenna input), make sure TV is tuned to channel 3 or 4--same as CH3/CH4 switch on VCR. Also check to

make sure TV/VCR switch on VCR is in correct position.

Sound okay, picture poor

Picture okay, sound poor

No stereo on known stereo Station • Make sure STEREO/SAP function is in STEREO mode.

Can't get two channels in Pix-in-Pix •

! •

Check antenna connections.

I •

Try adjusting SHARPNESS function to improve weak signals.

* Try another channel.

• Try adjusting VOLUME, BASS, and TREBLE controls.

• If station is sending stereo, try changing STEREO/SAP function to MONO setting for clearer sound.

Try adjusting SRS (O) controls to turn SRS (O) off or on.

If using the VCR1 or VCR2*LD button, make sure it is programmed to select the proper video input channel as described on page 26. If Using an S-VHS component, make sure its regular VIDEO cable is connected to INPUT 1 VIDEO jack on the TV.

If usrag a VCR, make sure the AUDIO and VIDEO OUT jacks on the VCR are connected to the TV's AUDIO and VIDEO IN jacks.

No picture while Using Pix-in-Pix, with S-VHS VCR or camcorder

Small picture does not have color.

Remote no longer controls cable box, • Try not to press any buttons on the remote while changing its batteries. You VCR or audio equipment may have to reprogram the proper code into the remote.

If you have an S-VHS VCR (or camcorder) connected, you must also connect a cable from the VCR's VIDEO OUT jack to the TV's corresponding

VIDEO IN jack in addition to the S-VHS cable.

The small picture will not have color if the large picture signal does not have the color burst reference. All color signals and some black-and-white signals

are sent with color burst information. Try changing channels of the large

picture.

Noclosedcaptioning

• TurnontheCAPTIONING function.

• TV program does not have closed captioning.

Blackbarsappearonthescreen

• Turn off the CAPTIONING function.

Limited Warranty

What your warranty covers:

• Any defect in material or workmanship.

For how long after your purchase:

• One year for labor charges.

• One year for parts.

• Two years for picture tube.

The warrantyperiod for rental units begins with the first rental.

What we will do:

• Pay any Authorized RCA Television Servicenter the labor charges to repair

your television.

• Pay any Authorized RCA Television Servicenter for the new or, at our option, rebuilt replacement parts and picture tube required to repair your

television.

How you get service:

• Request home service from any Authorized RCA Television Servicenter. To identify your nearest Authorized RCA Television Servicenter, ask your

Dealer, look in the Yellow Pages, or call 1-800-336-1900.

• Show tile service technician your evidence of purchase date.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, andoperate your television. Any additional information

should be obtained from your Dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Remote control batteries.

• A television that has been modified orincorporated into other products oris

used for institutional or othercommercial purposes.

• A television purchased or serviced outside the USA.

• Acts of God, such as butnot limited tolightning damage.

Product Registration:

• Please complete and mall the Product Registration Card packed with your set. It will make it easier to contact you should itever be necessary. The

returnof the card is not required for warrantycoverage.

How state law relates to this warranty:

• This warranty gives you specific legal rights, andyou also may have other rightsthat vary from stateto state.

If you purchased your television in outside the United States:

• This warranty does not apply. See your dealer for warranty information.

'\*

+ and - Buttons ................. 4,5,6,11,20-27

Accessories ................................ 44,45,46

Adding Channels to Memory .............. 24

ALARM Function ........................... 18,21

Amplifier ............................................. 41

Antenna Adaptor .................................. 30

ANT Button .............. ...................... 11,25

Antenna Connections ........................... 30

Antenna Function ................................ 25

AUDIO Button ................................. 9,42

AUDIO MENU ............................ 5,16,17

AUTOPROGRAM Function ....... 4,18,24

BALANCE Function ........................... 16

BASS Function .................................... 16

Batteries (Remote) ................................. 8

Best Picture .......................................... 14

Brand Lists ................................. 33,38,42

BRIGHTNESS Adjustment ................. 14

Buttons, Remote ........................ 10,11,37

Buttons, VCR ....................................... 37

CABLE CHAN Function ................ 18,27

Cable Box Setup .................................. 33

Cable-TV ................................... 31,33,34

CABLE/AIR Function .................... 18,26

CABLE/ANTENNA Connector ..... 29,30

Camcorder ........................................... 39

Care ...................................................... 47

Cassette Tape Deck .............................. 41

CHAN CTRL Function .................. 18,23

CHAN LABEL Function ..................... 22

CHAN MEM Function ................ 4,18,24

Channel Labeling ................................. 22

Channel Memory ....................... 18,24,26

Channels 90,91,92...7,11,14,24,26,29,34

Channels above 99 ............................ 3,11

Chart (Cable Channels) ....................... 32

CLEAR Button ................ 11,19,20,22,35

Closed Captioning ........ :...................... 19

CLOCK SET Function ..................... 4,21

COLOR Adjustment ............................ 14

Color Convergence .............................. 13

Commercial Skip ................................. 10

Commercial Skip Display ...................... 7

Computers .............. :............. ........ _....... 40

CONTRAST Adjustment .................... 14

Controls (Front Panel) ........................... 6

Controls (Remote) ............................ 8- I I

CONVERTER Jack ...... :...................... 33

Custom Picture Memory ...................... 14

Decoder Box ........................................ 31

Deleting Channels from Memory ........ 24

DISPLAY Button .............................. 7,11

Erasing Channels from Memory .......... 24

Erasing Labels ..................................... 22

EXTERNAL SPEAKERS Terminals ..43

FF (Fast Forward) Button .................... 37

FREEZE Button ................................... 11

Front Panel Controls .............................. 6

Function Buttons .................................... 9

HI FI OUT Jacks ............................. 29,41

Home Antenna ..................................... 30

INPUT Button ...................................... 11

Installing Batteries ................................. 8

Interference .......................................... 28

Labeling Channels ............................... 22

Last Function Memory ................... 16,18

Locking Out Channels ......................... 23

Memory (Channel) .................... 18,24,26

MENU-PROG Button ................. 4,5,6,11

Mode, TV ........................................ 10,12

Monitor Panel ...................................... 29

MONO Position ................................... 16

MOVE PIP Button ............................... 13

MUTE Button ...................................... 11

NORM/UNIFIED Switch .................... 38

OFF TIME Function. ........................... 21

ON TIME Function ............................. 21

On-Screen Displays ............................... 7

Optional Accessories ................. 45,46,47

Order Form (Accessories) ............. .45,46

PARENTAL CONTROL Display.....7,23

PARENTAL CTRL Function .......... 18,23

PAUSE Button ................................ 37,42

PICTURE RESET Function ........ _....... 14

Picture Adjustments ........... i................. 14

Picture Memory ................................... 14

Picture-in-Picture ............................ 12,13

Picture-in-Picture Buttons ......... 11,12,13

PIP Button .................................. 11,12,13

PLAY Button ....................................... 37

POWER Button ............... ............ 6,10,37

Power Cord .......................................... 28

Power Failures ............................. 1....4,21

Power Indicator ...................................... 6

Precautions (Safety) ..Inside Front Cover

PREV CH Button ................................. 11

Product Registration ..Inside Front Cover

Programming Remote..., ............ 33,38,42

REC (Record) Button .......................... 37

Registration Card ....... Inside Front Cover

Remote Control ........................... 8- i 1,37

Remote Sensor ....................................... 8

Repair ................................................... 51

REW (Rewind) Button ........................ 37

Safety Precautions ..... Inside Front Cover

SAP ................................................. ,...16

SAT-CABLE Button ......................... 9,33

Scrambled Channels ....................... 31,34

SELECT OUT Jacks .................. 29,39,41

Service ......................................... :....... 51

SET CLOCK Display ....................... 4,21

Setting Sleep Timer ............................. 20

SETUP MENU .................... 4,5,18,20-27

SHARPNESS Adjustment ................... 14

SKIP Button ......................................... 10

SLEEP Display ................................. 7,20

SLEEP TIMER Function ................ 18,20

Sleep Timer Display ............................ 20

Sleep Timer, Clearing .......................... 20

Sound Retrieval System (,) ............. 11,17

SPEAKER Switch .......................... 29,43

Speaker Connections ........................... 43

SPEAKERS Function ..................... 16,43

SRS (-) Button ..................................... 11

SRS (*) Function ............................. 16,17

SRS WIDTH Function ................. ...16,17

SRS: ON/OFF Fun orion ................ _..16,17

STEREO Indicator ........ ,................... 7,17

STEREO/SAP Function ................. 16,17

STOP Button ........................................ 37

SWAP Button .................................. 11,13

Theory, Remote Control ........................ 8

Time Display ......................................... 7

TINT Adjustment ................................ 14

TREBLE Function ............................... 16

Trouble Checks ............................... 48-50

TV Button ......................... 3,6,7,10,12,18

TV Mode ......................................... 10,12

VCR 1 CHAN Function ................. 18,26

VCR 2 CHAN Function ................. 18,26

VCR Channel Setup ............................. 26

VCR Connections ........................... 35,36

VCR Mode ............................. :............. 37

VCR1 Button ............................... 9,26,37

VCR2*LD Button ........................ 9,26,37

VIDEO MENU ................................. 5,14

Video Game Caution ............................. 1

Video Input Channels ...... 23,30,35,36,37

VOL (Volume) Buttons .............. ......3,10

Warranty ........................................ ......51

Warranty Registration

Card ...................... _Inside Front Cover

CRF TING A GREENER FUTURE

At Thomson Consumer Electronics we are dedicated to the preservation of our natural heritage and to a healthy and safe way of life for current and future

generations. This is a global effort which encompasses every THOMSON facility throughout the world.

We believe that clean air, clean water, a protected earth, and healthy people are not only practical and desirable goals, but achievable ones as well. Our Corporate

Environmental, Health and Safety Charter acknowledges our commitment to

protect these precious assets and provides a challenging vision and guideline for

conducting our business.

_ THOMSONCONSUMERELECTRONICS

Below are a few examples of Thomson'sachievementsin our effortsto preserve our naturalresources.

AIR THE WATER

Thomson reclaims millions of pounds of hazardous waste annually, diverting

it from landfills. Thomson treats millions of pounds of

'waste water sludge annually and

renders it non-hazardous.

Thomson recycles over 50 million pounds of non-hazardous material

annually that otherwise would have been treated as trash, an overall

recovery rate of 50%. Thomson globally recycles millions of

pounds of broken television picture tube glass annually through both

internal and external reclaim processes,

Thomson has also increased its usage of recycled materials for packaging of our products. For example, in the U.S. and Mexico our television plants use recycled content in our television cartons and instruction booklets. The inks used for the print

on cartons and instruction booklets are soy based. For a free brochure regarding Thomson's Environmental Health and Safety Programs, write to Thomson Consumer Electronics' address below, attention Environmental Programs: INH340.

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.

Thomson has replaced solvent-based paints at many locations resulting in an 80% reduction in toxic air emissions for

equivalent material used. Thomson has eliminated the use of

ozone-depleting substances at television manufacturing facilities

around the world. Thomson collects and returns over 1.5

million pounds of glass and furnace dust to the glass making process

annually. Thomson has launched worldwide

energy savings programs which contribute to efforts to reduce air

emissions from electrical generating facilities.

Thomson recovers over 2 million

pounds of fine glass particles from process water each year and recycles

them back into its glass furnaces. Thomson's state-of-the-art waste water

treatment plants filter out over 26

million pounds of solids from process

water each year.

Thomson's U.S. glass factory recycles 2,500 gallons of water per minute and cleans 2.6 million gallons of water per

day. Thomson is researching new processes

and is developing new manufacturing equipment and technologies to further

reduce large volume water use.

q_ 1HOMSON CONSUMER ELECTRONICS

10330 NOrth Meridian Street Indianapolis, IN 46290

Marca(s) Registrada(s) Printed in USA

TOCOM 1508388A

The following materials were used in

printing this publication:

100%IlillEll SI%L_STtRIIIB

RCA P46731, P46738, P46732, P52730, P52731 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
