RCA P46728, P46730 Owner's Manual

Download

nGm'/

/"n In r '-/-'17

ILJL Jtlq

Owner's Manual

Product Registration

Please fill out the product registration card and return it immediately. Returning this card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and

service and lot proof of purchase. Attach it here and

record the serial and model numbers in case you every need them. The numbers are located on the bottom Of your camcorder.

Model No. Pro808 Serial No.

Purchase Date: Purchased From:

AC Adapter/Charger

Before using the AC adapter/charger, read all instructions and cautionary markings on (1) AC adapter/charger, (2) battery, and (3) product using

battery. Caution: To reduce risk of injury, charge only

rechargeable batteries type AV608 or AV8MM. Other types of batteries may burst causing personal injury and damage.

Do not expose the adapter/charger tO moisture of any kind.

Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk

of.fire, electric shock, or injury to persons.. To reduce risk of damage to electric plug and cord,

pull out the cord with the plug rather than the cord when disconnecting the adapter/charger from the wall outlet.

Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to

damage or stress.

Use of an improper extension cord could result in a

risk of fire and electric shock. If an extension cord

must be used, make sure that:

1. Pins on the plug of the extension cord are the same number, size, and shape as those of the plug

on the adapter/charger.

2. Extension cord is properly wired and in good electrical condition, and

3. Wire size below is met:

Minimum Length of Extension

AWG Size Cord (Feet)

18 Equal to or less

than 100

16 Equal to or less

than 150

Do not operate adapter/charger with a damaged cord or plug. Replace it immediately.

Do not operate adapter/charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an Authorized RCA Compact

Camcorder Servicenter.

Do not disassemble the adapter/charger. Take it to an Authorized RCA Compact Camcorder Servicenter when service or repair is required. Incorrect reassembly may result in a risk of electric

shock.

To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning.

Be sure to save these operating instructions for future reference.

SAFETY PRECAUTIONS

Your video camcorder's AC adapter/charger will operate on 120-240 volts AC, 50/60 Hz, and has a polarized plug. Because one blade of the plug is wider than the other, the plug fits in thc wall socket only one way. Do not defeat the safety feature of this plug. If you need an extension cord, use a polarized

extension cord.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

MISE EN GARDE: POUR PR_VENIR LES CHOCS _LECTRIQUES,

INTRODU1RE LA LAME IrA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR

BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. IF YOU SPILL LIQUID ON THE CAMCORDER OR ADAPTER/CHARGER, DISCONNECT THE AC ADAPTER/CHARGER'S POWER CORD TO PREVENT POSSIBLE FIRE OR SHOCK HAZARD AND CONSULT AUTHORIZED SERVICE PERSONNEL. MOISTURE

CAN DAMAGE INTERNAL PARTS. REFER ALL SERVICE TO AUTHORIZED RCA COMPACT CAMCORDER SERVICENTER PERSONNEL ONLY.

CAUTION: READ "IMPORTANT SAFETY INSTRUCTIONS FOR AC ADAPTER/CHARGER" ON THE

PREVIOUS PAGE BEFORE USING THE AC ADAPTER/CHARGER.

CAUTION: MAINTAIN ELECTRICAL SAFETY. POWERLINE-OPERATED EQUIPMENT OR

ACCESSORIES CONNECTED TO THIS UNIT SHOULD BEAR THE UL LISTING MARK OR, IF

PURCHASED IN CANADA, THE CSA CERTIFICATION MARK ON THE ACCESSORIES THEMSELVES AND SHOULD NOT HAVE BEEN MODIFIED SO AS TO DEFEAT THE SAFETY FEATURES. THIS WILL

HELP AVOID ANY POTENTIAL HAZARD FROM ELECTRIC SHOCK OR FIRE. IF IN DOUBT, CONTACT QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAMCORDER OR

AC ADAPTER/CHARGER TO RAIN OR MOISTURE.

:CAUTION:-- AVOID oPeRATING !_C)OR CAMCORDER i_DIATELY _ MOVING IT FROM

A COLD LOCATION TO A WARM LOCATION, GIVE THE CAMCORDER I-I/2 TO2 HOURS TO .........

REACH A STABLE TEMPERATURE BEFORE INSERTING A VIDEO CASSETTE, WHEN MOVED

CAUTION

DO NOT OPEN

MISE EN GARDE

!:::i._;i.... NE PAS OUVRIR

The symbol of a lightning flash within

a triangle is intended to alert the user

to the presence of uninsulated

"dangerous voltage" within the product's enclosure and which may be of sufficient magnitude to constitute a risk of electric shock.

An exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (service) instructions in the literature accompanying the product.

CAUTION: FCC REGULATIONS STATE THAT ANY UNAUTHORIZED CHANGES OR MODIFICATIONS

TO THIS EQUIPMENT MAY VOID THE USER'S AUTHORITY TO OPERATE IT.

IMPORTANT SAFEGUARDS

In addition to the careful attention devoted to quality standards in the manufacture of your video product, safety is a major factor in the design of every instru-

ment. However, safety is your responsibility too. Thesepages list important information that wil! help

to assure your enjoyment and proper use of a camcorder, adapter/charger, and accessory equipment. Please read them carefully before operating your video products.

Installation

1. Read and Follow InstructionsmAll the safety and operating instructions should be read before

the video product is operated. Follow all operating instructions.

2. Retain Instructions--,-. The safety and operating

instructions should be retained for future reference.

3. Heed Warnings--Comply with all warnings on the video product and in the operating

instructions.

4. Polarization--This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician tO replace your obsolete outlet. To

prevent electric shock, do not use this polarized plug with an extension cord, receptacle, or other

outlet unless the blades can be fully inserted

without blade exposure. If you need an extension cord, use one with a polarized plug.

5. Power SourcesmThis video product should be

operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your video dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions.

6. Overloading--Do not overload wall outlets or

extension cords as this can result in a risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or

cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire

hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service

technician.

7. Power-Cord Protection_Power-supply cords

should be routed so that they are not likely to be

walked on or pinched by items placed upon or

against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the video product.

Ventilation--Slots and openings in the video

products are provided for ventilation to ensure reliable operation of the video product and to

protect them from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video

product on a bed, sofa, rug, or other similar surface. This video product should never be

placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack

unless proper ventilation is provided or the video product manufacturer's instructions have

been followed. Attachments--Do not use attachments unless recommended by the video product

manufacturer as they may cause hazards.

Caution: Maintain elec_cal Safety Powerline operated equipment or accessories

connected to this unit should bear the UL listing mark or CSA certification mark on the

accessory itsel.f and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shoekor fire. If in doubt, contact qualified

service personnel ...........

10. Water and Moisture---Do not use this video

product near water--for example, near a bath • tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

11. Accessories--Do not plac e this video product

On an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult as well as serious damage to the video product. Use this video product only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the video product. Any mounting of the product should follow the manufacturer's instructions and use a mounting accessory recommended by the manufacturer.

llA A video product and cart

combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the video product and cart combination to overturn.

IMPORTANT SAFEGUARDS

12.

Outdoor Antenna Grounding--If an outside antenna or cable system is connected to the video product, be sure the antenna or cable

system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984 (Section 54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna- discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See example below.

Example of Antenna Grounding

WIRE

ROUND CLAMP

ANTENNA

DISCHARGE UNIT (NEC.SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION R10-21)

ELECTRIC S POWER SERVICE GROUNDING EQUIPMENT . ELECTRODE SYSTEM

(NEC ART 250, PART H)

13.

Power Lines--An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching or approaching such power lines or circuits as contact with them might be fatal. Installing an outdoor antenna can be hazardous and should be left to a professional antenna installer.

Use

14.

15.

Cleaning--Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Object and Liquid Entry--Never push objects of any kind into this video product through openings as they may touch dangerous voltage

points or "short-out" parts that could result in a fire or electric shock. Never spill liquid of any

kind on the video product.

16. Lightning--For added protection for this video

product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power line surges.

Service

17.

18.

Servicing--Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Conditions Requiring ServiceMUnplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions.

A. When the power-supply cord or plug is

damaged.

B. If liquid has been spilled, or objects have

fallen into the video product.

C. If the video product has been exposed to rain

or water.

D. If the video product does not operate

normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

E. If the video product has been dropped or the

case has been damaged.

F. When the video product exhibits a distinct

change in performance--this indicates a need for service.

19.

Replacement PartsEWhen replacement parts are required, have the service technician verify that the replacements he uses have the same safety characteristics as the original parts. Use of replacements specified by the video product manufacturer can prevent fire, electric shock, or

other hazards.

20.

Safety Check--Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the video product is in safe operating

condition.

Opti Accessories i: ...... :

onal .........." ..........................................:...........................................................

To order accessories, contact your local dealer, call toll-free, or use the order form on the next page.

AC025A Soft Carrying Case

Custom compact soft case designed especially to provide protection and utility for your RCA 8ram

camcorder and most

accessories. Rugged

fabric lined with soft

non-abrasive material and generous padding. Has three outside pockets with storage for lens filters, adapters, batteries, and tapes.

Rechargeable Batteries

AV608

AV8MM

These rechargeable nickel-cadmium batteries are

specifically designed for long life. The AV608 can power your camcorder up to one hour, and the

AVSMM up to two hours (depending on how much

you use zoom and pause). Both can be recharged

with the AC adapter/charger that came with your

camcorder.

DCC05 Car Cord Adapter/Charger

This car cord

adapter/charger enables you to operate your

camcorder from your car, truck, or RV .by plugging the car cord directly into

the vehicle's cigarette lighter socket. It will also

charge the AV608 battery supplied with the

camcorder or the AV8MM long play battery. The

DCC05 is specially designed to convert power from

a 24-volt or 12-volt battery to a 6-volt output.

Caution: Do not use any other car cord with this camcorder. It may damage the camcorder.

VDC88 Color Enhancement Light

This uRra compact 15-watt video light is cordless, light in weight, and includes a rechargeable battery. It

inounts on the top of the camcorder and fits on a standard accessory shoe. The VDC88 provides excellent soft, lush fill light.

It uses one 15-wat((VDC090) replacement bulb.

The rechargeable battery BP 1000 can be charged

with the VDC085 battery charger. VCC1000 Video Color Control Center

The VCC1000 is actually two

...._-_>'" _" accessories in one. The color

""-_'__ '_g_--_--£_-control center allows you to

__ adjust the color intensity, tint,

white balance, and sharpness of tapes being dubbed.

This is especially helpful when the original tape was

produced in poor lighting conditions or poor color settings. The second feature, the character generator, lets you create titles that can be recorded on your tapes. This lets you add a professional and/or personal touch to your home videos.

CRF800 RF Output Adapter

._ This adapter is used with coaxial RF

cable (AH065G or AH066G) to

connect your camcorder to a standard

TV (one without audio/video input

jacks) for playback. If your antenna cable is the flat

twin-lead type attached by two screws, you will also need a 300-75 ohm transformer such as 193983. If

your TV has 300 ohm VHS screw terminals, you will need an optional 75-300 ohm transformer such

as AH011.

Coaxial RF Cables

'_-_-_ :_ AH065G (6-ft)

":- AH066G (10-ft)

These RF cables are used with the CRF800 RF

output adapter to connect your camcorder to a

standard TV (one without audio/video input jacks) for playback.

If your antenna cable is the fiat twin-lead type

attached by two screws, you will also need a 300-75 ohm transformer such as 193983.

If your TV has 300 ohm VHS screw terminals, you will need an optional 75-300 ohm transformer such as AH011.

193983 Cable Transformer

This 300-to-75 ohm

transfoimer is used to connect a standard

300-ohm antenna twin-lead to a standard round 75- ohm connector.

AH011 Cable Transformer

This 75-to-300

ohm trans-

former is used to connect a standard 75-ohm antenna cable, such as AH065G or AH066G, to the 300-ohm screw terminals on a TV.

Audio/Video Cables

AH069G (3-ft)

AH070G (5-ft)

These cables are shielded for connecting A UDIO and VIDEO

jacks. They have RCA-type phono

plugs on each end.

Monaural VCR Dubbing Cable

AH075G (6-ft)

This is a double cable that lets you

connect the AUDIO and VIDEO

jacks of monaural components. It

can be used to connect your camcorder to a TV monitor

(or VCR). The cable is color coded and shielded with RCA-type phono plugs on each end.

All specifications and descriptions of accessories are

subject to change without notice.

Order Form for Pro808

Description • Part No. Price Qty. Total

Soft Camcorder Case AC025A $ 59.95 Super Lightweight Tripod AC035 $ 69.95

Monopod AC036 $ 39.95 Cable Transformer AH011 $ 1.90

RF Coaxial Cable (6-ft.) AH065G $ 6.99 RF Coaxial Cable (10-ft.) AH066G $ 8.99

Audio/Video Cable (3-ft.) AH069G $ 5.99

Audio/Video Cable (5-ft.) AH070G $ 7.99 Dubbing.Cable(6-ft.) AH075G $ 10.99

Rechargeable Battery AV608 $ 49.95

Rechargeable Battery AV8MM $ 59.95 AC Adapter/Charger CPS08 $189.95

RF Output Adapter CRF800 $ 49.95

Car Cord Adapter/Charger DCC05 $169.95 DC Cable for Adapter/Charger DCC100 $ 14.95

Video Control Center VCC100C $349.90 Color Enhancement Light VDC88 $ 79.95

Replacement Bulb (15 watt)

for VDC88 VDC090 $ 12.95

Extra Battery for VDC88 BP1000 $ 29.95 Charger for BP1000 VDC085 $ 18.95 Cable Transformer 193983 $ 6.95 Replacement Remote Control 217495 $ 49.95 Shoulder Strap 213004 $ 13.95 Audio/Video Cable 217496 $ 7.99

Prices are subject to change without notice.

Total Merchandise ($10 Minimum Order) .......... $

Sales Tax .................................... $

We _ire required by law to collect the appropriate sales tax for each ihdividual state, county, and locality to which the merchandise is being sent.

Shipping, Handling, and Insurance ................ $

Total Amount Enclosed ....................... $

Use VISA or MasterCard preferably. Money order or check must be in U.S. currency only. No COD

or CASH.

5.00

• Allow eight weeks for delivery.

• All accessories are subject to availability.

• Where applicable, we will ship a superseding model.

al ! i!i! ii!i!!i!i!iiiiiiiii!iiiiiiiiiiiii!iiiiiiiiiiii iiiii

• __':_"'_ii ...._'_':"_'_'_'_'*:_':'_':_'_:_ii!_iii:'i_i_!!i_!_ii!ii_iiii!iii!iii!i!i?'_!_,_i!ii,!i!!_;_i!,%,i;_i_/,,_!il',,ii!,'i_,,_i,,i_ii_:iii?ili_ii!_iiiiiiii_i!ii_'_,__ii,_!ii!i_!!i!i_!!iiiiiiiiiiii_ili_i!i!i!iiii'_!ii!iii!i,ii!ili!iiiiil,iii!,!i_iiiiil;!!,i.i,_i!i!i_)i2!ilili?_i!!iii!il!!i_iil;_i_ii!iiii_il_i_,_!_

Accessory Order Form : .......

Charge your order on your VISA

or MasterCard by

filling in below

USE YOUR CREDIT CARD

IMI'ORTANT: Copy complctc account ntnnber

from your VISA card

I lll j7r--I-q7-r--V-1r--T--T'q

My card expires: f-T'-]

IMPORTANT: Copy complete account number

from your MasterCard

IIII Il--l--l-q--q[---I---1---_VT--[---_

My card I--T--1 I--T- ]

C°P'N°mb" [ I I II_bo,,eyour expires:

i_alne oll

MasterCard

AUTHORIZED SIGNATURE

Prices arc subject to change without notice.

PLEASE

Print or type your name and address clearly. This will be your mailing label.

A complete and correct order will save you days of waiting.

Nallle:

Street:

City:

State:

Apt:

Zip:

Please make surc that both sides of this form have been filled out completely.

¢..)

To order accessories, contact your local Dealer.

If a dealer is not nearby, you can also follow the directions below to order by

telephone or direct-by-mail.

United States and Canada Orders

To place your order by phone, have your Visa or MasterCard ready and call the toll-free number listed below between 8AM and 8PM Eastern Standard Time.

Use this number only to place an

order for accessory items listed on this order form.

1 - 800 - 338 •- 0376

Most times your order will be shipped UPS within 72 hours of receipt. If ever it is not possible to ship within 30 days, we will notify you with an update on your order and an option to cancel.

To place your order by mail, detach and mail the completed order form with credit card information, money order, or check in U.S. currency (made payable to Thomson Consumer Electronics, Inc.) to the following address:

RCA Video Accessories PO Box 8419

Ronks, PA 17573

For more information on these accessories (or current prices), write

to the following address:

Video Accessories Customer Service Thomson Consumer Electronics, Inc. Distributor & Special Products 2000 Clements Bridge Rd

Deptford, NJ 08096-2088 International Orders This offer is valid only in the 50 United States. For international orders, please send your request for a price quotation (not an order) to:

International Customer Service

Thomson Consumer Electronics, Inc.

Distributor & Special Products

2000 Ciements Bridge Rd

Deptford, NJ USA 08096-2088

AC035 Super I,ightweight Tripod This tripod's fluid-effect head provides smooth

camera pan and tilt. The quick-release mount makes

it easy to attach or remove the camcorder. The grooved, tubular 3-section leg design folds down to 23-1/2" when not in use and weighs only 3-1/2 lbs. Rubber feet allow for sure footing.

AC036 Monopod This monopod gives a flexible alternative to using a

traditional tripod. It is ideal for all camcorders and photo cameras. It has a quick release shoe, three-

section leg, handstrap, foot step, and weighs only 35 ounces.

Cautions: Before using a tripod, make sure it is stable enough to hold the camcorder without falling over. When attaching your camcorder to a tripod or monopod, be careful not to force their screw into the

camcorder's mounting hole. The tripod or monopod screw should not protrude into the e_eorder more than approximately three-eighth

(318) inch. Forcing the screw could damage the mounting hole on the bottom of the camcorder.

......... : :

1. Unpack the camcorder and accessories.

• Save the packing materials and box in case you ever need to ship or store your camcorder.

• The items shown below are packed with your camcorder. If any are missing or appear damaged, contact your RCA dealer immediately.

Camcorder

Model Pro808

1£,% :" l'/

• 1

Remote Control Part No. 217495

Remote Control Batteries

(Two "AA" 1.5 Volt)

Shoulder Strap

Part No. 213004

Rechargeable Battery

Part No. AV608

WARNING: NICKEl,

CADMIUM BATTERY MUST BE DISPOSED OF PROPERLY.

AC Adapter/Charger

Part No. CPS081

Caution:

Do not use this

adapter/charger _

for any other purpose other than charging the

AV608 or AV8MM battery

pack or supplying

power to the l)C Connecting Cord Audio/Video Output Cable

camcorder. Part No. DCCI00 Part No. 217496

Clock Battery: 3-Volt Micro Lithium Cell Battery. Replace only with - Maxell No. CR2025 available from most local drug stores. Use of another cell may present a risk of fire or explosion.

Cautions. Lithium cell batte_. Must be disposed of properly. Never handle

punctured or leaking cells. May cause burns or personal mjt_ry, Keep out of the hands of children. Can cause death or injury if swaiio_ed. If

swallowed, consult a physician immediately for emergency treatment. The lithium cell used in this device may explode resulting in a fire or chemical burn

if mistreated. Do not recharge, disassemble, heat above 212°F (100 ° C), or incinerate.

Never use metallic tweezers to hold the cell, and never short circuit the + and - sides of the battery.

2. Attach a Power Supply: Adapter/Charger or Charged Battery.

A. Adapter/Charger

DC Power Cord

OUT

Jack

jack

Connect one end of the DC power cord to the DC OUT jack on the adapter/ charger and the other end to the DC IN

6.5V jack on the camcorder. Plug in the adapter/charger. The

adapter/charger's POWER indicator will light.

Details are on page 16.

To AC 100-240V, 50160 Hz

POWER

Indicator

B. Charged Battery*

Match lanes

Slide Battery

1. Make sure the camcorder's POWER switch is OFF'.

2. Match the lines on the battery and camcorder.

3. Hold the battery flush against the camcorder, and slide it in the direction

of the arrow until it locks into place.

* The battery ,nust be charged before it can be used.

Details are on page 17.

3. Attach the shoulder strap.

A. Unfasten one end of the shoulder strap from

the buckle. Leave the buckle on the strap.

B. Thread one end of the shoulder strap through

one of the shoulder strap rings.

Shoulder Strap Rings

C. Thread the strap back into the buckle. Pull on

the strap and make sure it is securely fastened before using it to support the camcorder.

D. Repeat steps A-C for the other end of the

shoulder strap.

(continued on next page)

4. Attach lens cap to the lens cap holder.

A. Pull tab on side of the lens cap to remove it

from lens on camcorder.

Tab on

Lens Cap

B. Pull tab end of the lens cap straight out and

rotate it down.

C. Attach it to the lens cap holder on the side of

the camcorder.

Lens Cap

on Holder

5. Adjust the hand strap.

A. Unsnap the flap and open the adjustment strap. B. Put your hand in the hand strap. C. Pull the adjustment strap to tighten. D. Snap the flap closed.

6. Insert a cassette in the camcorder.

OPEN Button

Cassette

_ Compartment

Cover

Cassette

A. Slide the OPEN button, and completely open

the cassette compartment cover.

B. Press the EJECT button to open the cassette

compartment.

C. Insert a cassette with the safety tab facing up

and the tape window facing out.

D. Gently press on the compartment where it is

labeled PUSH until it locks into place.

E. After the cassette compartment is fully

retracted, close the compartment cover.

7. Turn on the camcorder and place the ON/POWER SAVE lever ON*.

POWER (CAM/OFbTPLA Y) Switch

ON/POWER SAVE Lever

A. Press and hold the small button on the POWER switch

while placing it in CAM (camera). The position of the POWER switch tells the camcorder

whether you want to record (CAM), play back tapes (PLAY), or turn off the camcorder's power (OFF).

B.Place the ON/POWER SAVE lever ON. This lever must

be ON for the camcorder to record. Place the ON/POWER SAVE lever in the POWER SAVE position during recording breaks to conserve battery

power. The camcorder will enter record-pause.

* If the dew indicator _ appears in the viewfinder, there is excessive moisture in the camcorder.

Remove the cassette from the camcorder, and let it dry naturally.

Viewfinder in Operating

Position (PULL out here.)

Eyepiece Focus Control

Earphone Jack C)

Tally Light

A UTO LOCK Switch

ON/POWER SAVE Lever

REC START/STOP

Button (Thumb Trigger)

Set A UTO LOCK switch to A UTO

LOCK.

Adjust viewfinder and eyepiece focus control.

A. Pull the viewfinder into operating position.

B. If the viewfinder picture is blurry, adjust the

eyepiece focus control for your vision.

Details are on page 23.

10. Start and stop recording.

A. Press and release the REC START/STOP

button (thumb trigger) to start and stop recording. REC appears in the viewfinder during recording.

B. To monitor the audio being recorded, attach

an optional earphone to the earphone jack. If you do not record within five minutes, the

camcorder will automatically turn off.

The tally light flashes during record-pause and turns off when the camcorder is

recording or the ON/POWER SAVE lever is in POWER SAVE.

11. Play back what you have recorded.

A. Press the thumb trigger to stop recording. B. Place the POWER switch in PLAY.

C. Press the REW button to rewind the tape. D. Press the PLAY button to play back the tape in the viewfinder. E. Press the STOP button when you are finished playing back the tape.

Details on viewfinder playback are on page 31.

12. Review the camcorder controls.

Power Zoom Buttons (W and T)

Eyepiece Focus Control

POWER (CAM (camera)/OFF/PLA Y) Switch

Accessory Shoe

Remote Control Sensor

Micro[

Tally

Electronic Viewfinder (PULL here to extend)

ect Lever

Lens

FOCUS ON/OFF Button Also Still (ll) Button

MANUAL FOCUS + and - Button

STOP Button Also MODE SEL. (Select) Button

F.FWD. (Fast Forward) Button

REW (Rewind) Button

Clock Cell Compartment

Output Jacks (Yellow Video, DC, and White Audio) (Located behind cover)

PLAY Button

AUTO LOCK Switch

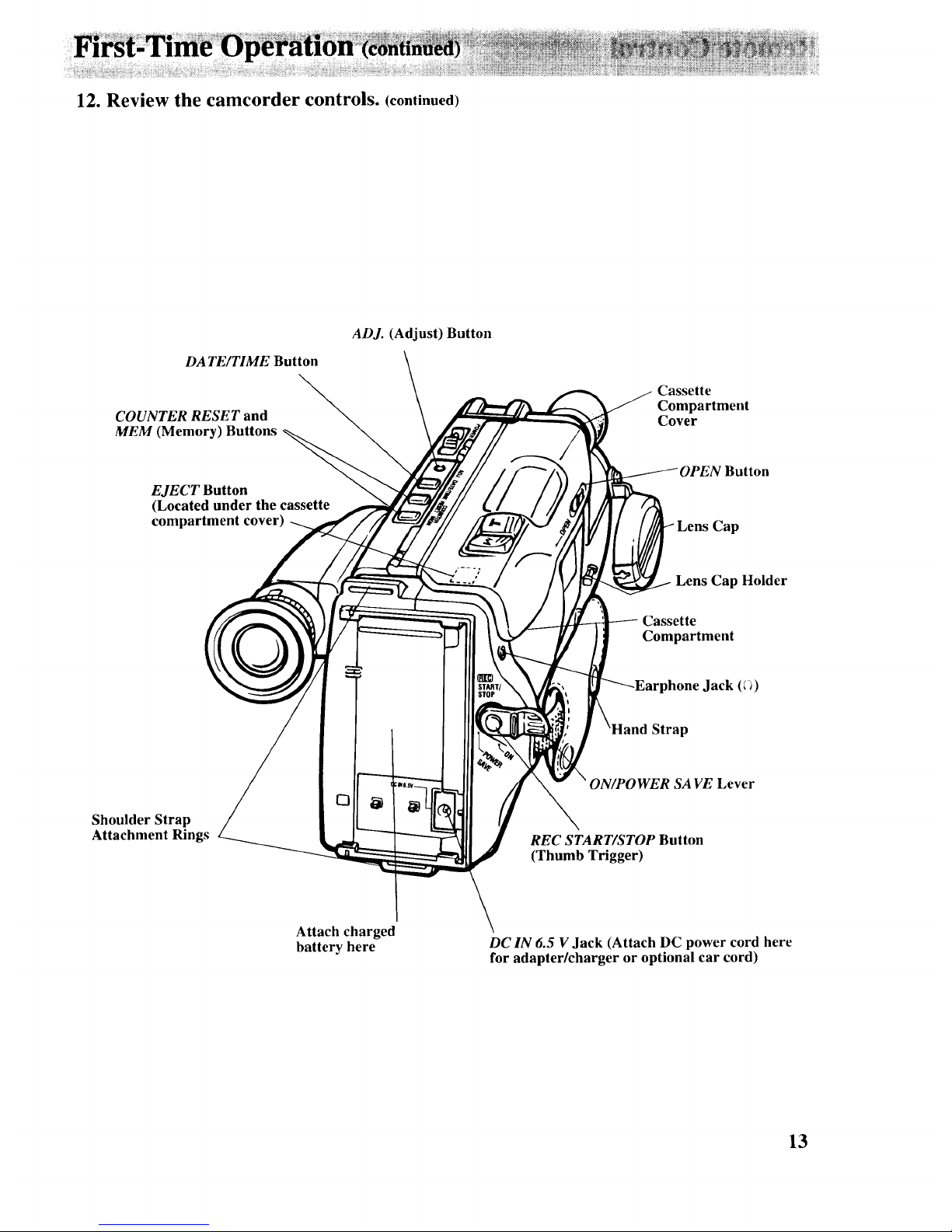

12. Review the camcorder controls. (continued)

DA TE/TIME Button

COUNTER RESET and MEM (Memory) Buttons

EJECT Button

(Located under the cassette compartment cover)

ADJ. (Adjust) Button

Cassette Compartment

Cover

Button

Lens Cap

Lens Cap Holder

Shoulder Strap Attachment Rings

Cassette Compartment

(_)

Strap

ON/POWER SAVE Lever

REC START/STOP Button

(Thumb Trigger)

Attach charged battery here

DC IN 6.5 V Jack (Attach DC power cord here for adapter/charger or optional car cord)

Install Remote Batteries

1. Turn the remote over and slide the battery compartment cover off.

2. Insert the batteries so their positive (+) ends contact the positive terminals in the battery compartment.

3. Replace the cover.

Notes: Never place anything heavy on top of the remote control or lay it upside-down.

Replace the batteries when the camcorder fails to respond to the remote control.

Remove the batteries from the remote control if it will not be used for a month or more. This will prevent possible damage from battery leakage. If leakage occurs, wipe up the liquid inside the compartment, and replace the

batteries with new ones.

Do not use new and used batteries together. Different brands and types of batteries have different voltages and should not be used together.

Remote Control Sensor

Remote Control

The remote control operates the camcorder by

infrared light, so it is protected from electrical and sound interference. Aim the remote directly at the

camcorder's remote control sensor. There cannot be

any obstructions between them.

The remote should operate the camcorder up to

approximately 16 feet away. Replace the remote batteries if the operation distance decreases.

Note: The camcorder may not respond to the remote if the camcorder's remote sensor is exposed to direct sunlight or strong artificial light.

Remote Buttons

Most of the remote control buttons perform the same function as the corresponding controls on the camcorder. You can use whichever are more convenient at the time.

(i)

@ ®

® ®

K,..._ j

Note: An RCA VCR that responds to thc VCR 2 button on the VCR's remote may respond to this remote control.

(continued on the next page)

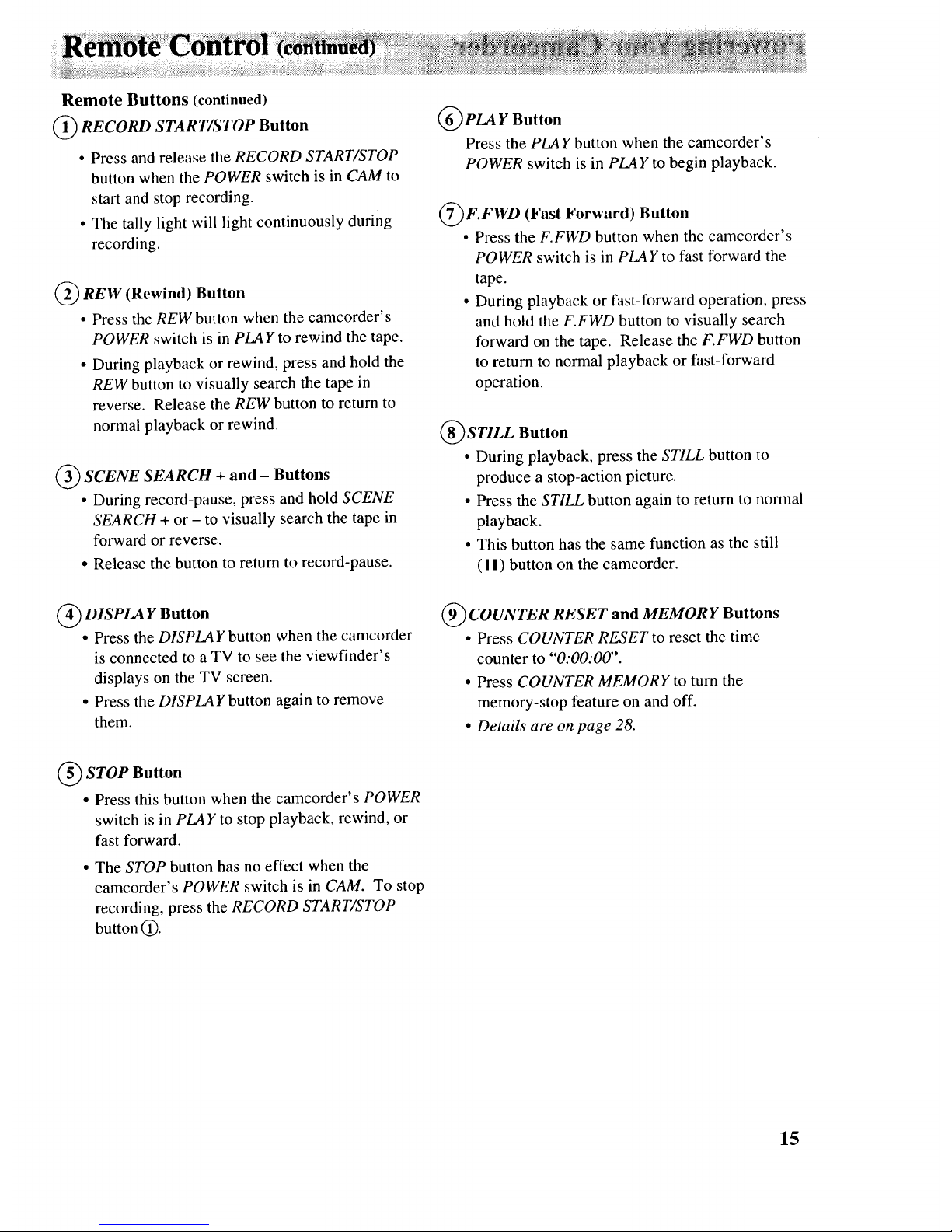

Remote Buttons (continued)

(_ RECORD START/STOP Button

• Press and release the RECORD START/STOP button when the POWER switch is in CAM to

start and stop recording.

• The tally light will light continuously during

recording.

(_REW (Rewind) Button

• Press the REW button when the camcorder's POWER switch is in PLAY to rewind the tape.

• During playback or rewind, press and hold the REW button to visually search the tape in

reverse. Release the REW button to return to normal playback or rewind.

(_ SCENE SEARCH + and - Buttons

• During record-pause, press and hold SCENE

SEARCH + or - to visually search the tape in forward or reverse.

• Release the button to return to record-pause.

_PLA Y Button

Press the PLAY button when the camcorder's POWER switch is in PLAY to begin playback.

7(7(7_F.FWD Forward) Button

(Fast

• Press the F.FWD button when the camcorder's

POWER switch is in PLAY to fast forward the tape.

• During playback or fast-forward operation, press and hold the F.FWD button to visually search forward on the tape. Release the F.FWD button to return to normal playback or fast-forward operation.

(_STILL Button

• During playback, press the STILL button to produce a stop-action picture.

• Press the STILL button again to return to normal playback.

• This button has the same function as the still ( ! ! ) button on the camcorder.

_ DISPLA Y Button

• Press the DISPLAY button when the camcorder is connected to a TV to see the viewfinder's displays on the TV screen.

• Press the DISPLAY button again to remove them.

9(9(9(_COUNTERRESET and MEMORY Buttons

• Press COUNTER RESET to reset the time

counter to "'0:00:00".

• Press COUNTER MEMORY to turn the memory-stop feature on and off.

• Details are on page 28.

(_ STOP Button

• Press this button when the camcorder's POWER

switch is in PLAY to stop playback, rewind, or fast forward.

• The STOP button has no effect when the camcorder's POWER switch is in CAM. To stop recording, press the RECORD START/STOP button 0.

PoWering

Adapter/Charger

The adapter/charger lets you power your camcorder directly from standard household power.

It operates on 100-240 volts, 50/60 Hz, so it can be used virtually anywhere in the world to power the camcorder or recharge the battery. You may need a plug adapter in some countries. Consult your RCA dealer.

DC OUT Jack

Jack

_DC Power Cord

To AC 100-240V, 50/60 Hz

POWER Indicator

Use the Adapter/Charger

1. Plug one end of the DC power cord into the

DC OUT jack on the adapter/charger and the other end to the DC IN6.5Vjack on the back of

the camcorder.

2. Plug the adapter/charger's plug into the nearest

AC outlet ( 100-240V, 50/60Hz). The POWER indicator will light.

Remove the Adapter/Charger

I. Unplug the adapter/charger from the wall outlet.

2. Disconnect the DC power cord from the camcorder and adapter/charger.

Using an Optional Plug Adapter

An optional plug adapter may be required in some countries.

Optional AC /" AC 100-240V

Plug Adapter

1. Plug the adapter/charger's plug into the AC plug

adapter.

2. Plug the AC plug adapter into an AC outlet.

Powering Your Camcorder(continued)

_:i_!:i!_i:zii!_i!i_!iiii_:_:_i:¸:

Rechargeable Battery

The battery must be charged before it can be used the first time. Initial charging will take approximately one hour. When fully charged, the battery should supply about 45-60 minutes of operating time (depending

on how much you use zoom and pause, auto focus, and record-pause). Place the ON/POWER SAVE lever in POWER SAVE during recording breaks to conserve power. Place it

back in ON when you are ready to resume recording.

Refresh and Charge the Battery

The nickel cadmium battery will provide longer operation time if it is refreshed (completely discharged) before every charging. Refreshing a battery will take approximately 3-1/2 hours.

Use the small marker switch on the top of the battery to help you remember to recharge the battery. It has no other function.

REFRESH Button

Marker Switch

CHARGE

Indicator

To AC 100-240V, 50/60 Hz

POWER Indicator

Caution: When a battery:is attach_ to the adapter/charger;"do not t_ them: upside down: The battery

1. If the DC power cord's plug is connected to the adapter/charger, remove it.

2. Plug the adapter/charger into the nearest AC outlet (100-240V, 50/60Hz). The POWER indicator will light.

3. Align the reference marks on the battery and

adapter/charger.

4. Hold the battery flush against the adapter/charger, and slide it in the direction of the arrow until it

locks into place. The CHARGE indicator will light.

5. Press the REFRESH button to discharge the battery. After a few seconds, the CHARGE

indicator will flash slowly. It will stop flashing when the battery has been discharged. The

CHARGE indicator will light and the battery will automatically recharge. Note: If the CHARGE indicator starts flashing rapidly,

remove the battery from the adapter/charger and try attaching it again.

Slide the charged battery off the adapter/charger to remove it. Unplug the AC power cord.

Important Note:

Spent nickel-cadmium rechargeable battery must ] be recycled or disposed of properly in compliance /

with all applicable laws. [ For detailed information, contact your local county /

solid waste authority. [

Rechargeable Battery (continued)

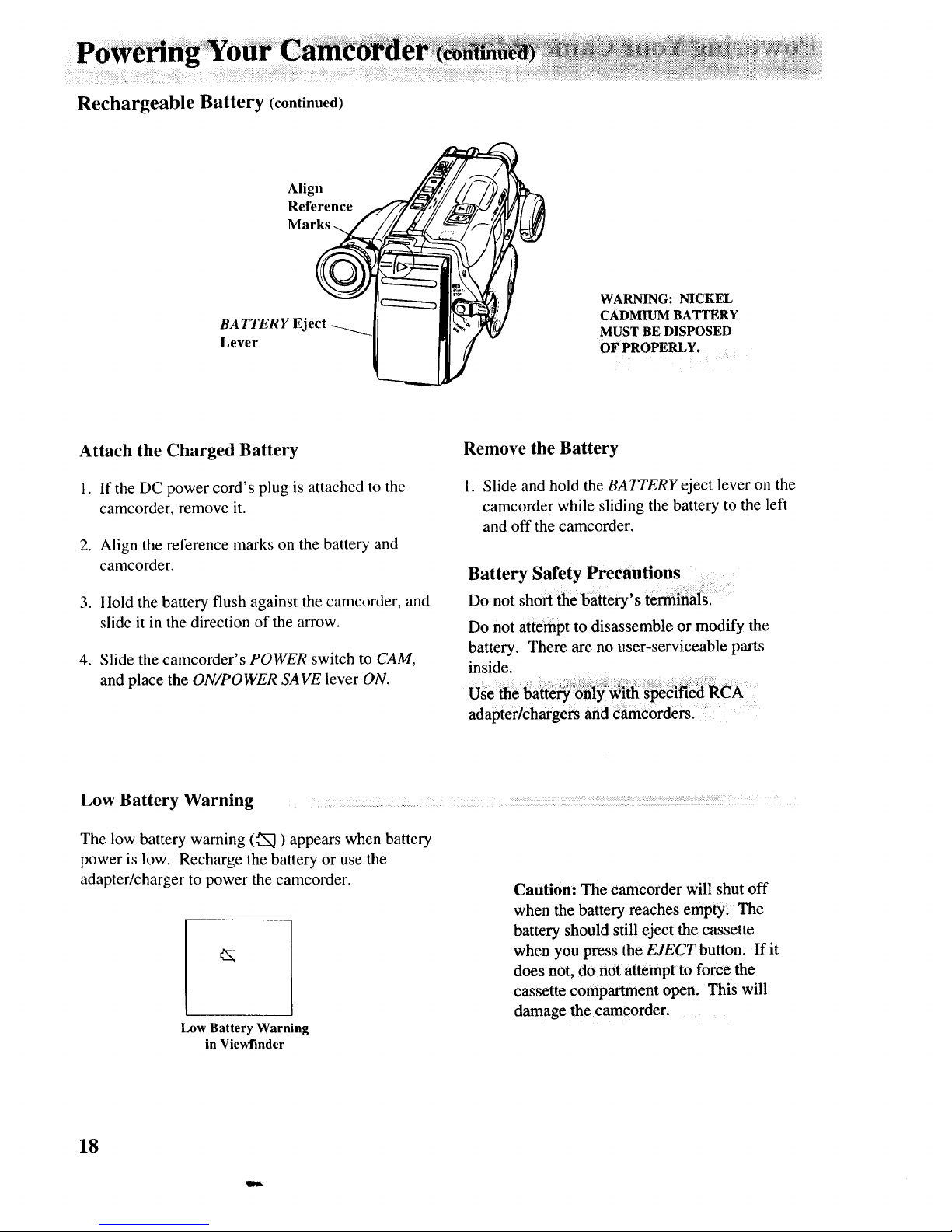

Align Reference

BATTERY Eject Lever

WARNING:NICKEL CADMIUM BATTERY MUST BE DISPOSED

OFPROPERLY. ....

Attach the Charged Battery

1. If the DC power cord's plug is attached to the camcorder, remove it.

2. Align the reference marks on the battery and

camcorder.

3. Hold the battery flush against the camcorder, and slide it in the direction of the arrow.

4. Slide the camcorder's POWER switch to CAM, and place the ON/POWER SAVE lever ON.

Remove the Battery

1. Slide and hold the BATTERYeject lever on the

camcorder while sliding the battery to the left and off the camcorder.

Battery Safety Precautions ....

Do not short _ebattery's te_in_s! :' Do not attempt to disassemble or modify the

battery. There are no user-serviceable parts inside.

adapterlchargers and €_mc6rders. :

Low Battery Warning _ :, :: ::

The low battery warning (_1) appears when battery power is low. Recharge the battery or use the adapter/charger to power the camcorder.

Low Battery Warning

in Viewfinder

Caution: The eamcorder will shut off

when the battery reaches empty_ The battery should still eject the cassette when you press the EJECT button. If it does not, do not attempt to force the cassette compartment open. This will

damage the camcorder.

Optional RCA DCC05 Car Cord Adapter/Charger

This adapter/charger allows you to power your camcorder from the cigarette lighter socket of a car, truck, or RV. It converts 24- and 12-volts to a 6-volt output. It can also charge the battery that came with your camcorder and the AV8MM (long play) battery.

Consult the instructions enclosed with the DCC05 for complete operation information.

Using the RCA DCC05 Car Cord Adapter/Charger to Power the Camcorder

Lighter Socket

IN 6.5 V Jack

I. Remove battery if it is attached to the camcorder

or car cord adapter/charger.

2. Plug one end of the DC power cord into the DC

OUT jack on the car cord adapter/charger and the other end into the DC IN 6.5 V jack on the back of the camcorder.

3. Insert the DCC05's plug into the vehicle's cigarette lighter socket. The POWER indicator on the DCC05 will light.

Cautions: The DCC05 is designed to be used only with vehicles having negative ground electrical

systems .........................................................................................................................

Do not use any other car cord with this camcorder. Other car cords may damage your camcorder.

Using the RCA DCC05 Car Cord Adapter/Charger to Charge the Battery

Cigarette Lighter So__

I. Remove DC power cord if it is attached.

2. Attach the battery as shown.

3. Insert the DCC05's plug into the cigarette lighter socket. The POWER indicator on the DCC05 will light.

We recommend RCA cassettes be used with your camcorder. Use of poor quality or damaged tapes can contaminate the video heads, resulting in snow or no picture during playback. Head cleaning is not covered under warranty. It is considered normal maintenance. Playing a new RCA tape for approximately 30

minutes will often satisfactorily clean the heads and improve your picture.

Insert and Remove Cassettes

OPEN Button --

Tab

Window

Press Here to Close

1. Attach a power supply to the camcorder.

2. Slide the OPEN button and completely open the cassette compartment cover.

3. Press the EJECT button to open the cassette compartment. Insert or remove the cassette.

Caution: Insert the cassette with the safety

tab facing up and the tape Window facing out. The cassette should slide easily in the compartment. DO n0t:force the cassette.

4. Gently press on the area labeled PUSH to close the cassette compartment door.

5. After the cassette compartment is fully retracted, close the cassette compartment cover.

Erase Protection-Safety Tab ......................:_,_: : :::: : ::: : :: ::::::::: : : ::

You can use your video cassettes over and over again. To erase a previous recording, just record over it.

Safety Ta

To Prevent Erasure -

Close Safety Tab

(Expose Red)

To Record Again - Open Safety Tab

(Red Disappears)

Recording and Playback Speeds and Times

The camcorder records in standard speed (SP). The chart shows the maximum SP recording times for

some popular 8mm cassettes.

The camcorder can play back tapes in standard

speed (SP) or long play (LP) speed. The playback speed is automatically selected by the camcorder.

The LP indicator appears in the electronic

viewfinder when the camcorder is playing back a tape recorded in LP.

Cassette Recording Time

•, ii_

P6-15 15 Minutes P6-20 20 Minutes P6-45 45 Minutes P6-60 60 Minutes

P6-90 90 Minutes

P6-120 2 Hours

P6-150 2 1/2 Hours

Earphone Jack (] (Located on the side

POWER Switch

Microphone

Tally Light

(Rewind) Button

WD. (Fast Forward) Button

AUTO LOCK Switch

Camera Edit

This feature lets you position the tape while the

camcorder is in record-pause.

• Press and hold the REW button on the camcorder (or the SCENE SEARCH - button on the remote control) to visually search the recorded tape in

reverse.

• Press and hold the F.FWD. (fast forward) button on the camcorder (or the SCENE SEARCH + button on the remote control) to visually search forward on the recorded tape.

Release the button to have the camcorder return to the record-pause mode at that point on the tape.

Quick Review

When the camcorder is in the record-pause mode, press and release the REW button to review the last few seconds of recorded material. The camcorder

will return to the record-pause mode. Note: Do not hold the REW button, or the camcorder will go into camera edit.

Flying Erase Head

A separate erase head is mounted on the spinning headwheel (hence the term "flying"). This allows you to make clean edits without the "glitches" or "rainbow noise" that may occur at the beginning and end of each recording.

Earphone Jack ()

Plug an optional earphone into this jack to privately

listen while recording or playing back a tape.

AUTO LOCK Switch

Place the AUTO LOCK switch in AUTO LOCK to have the camcorder control focus and the preset

program modes. When you begin recording, the REC and PA USE indicators will appear briefly in the viewfinder twice

their normal size.

Tape Positioning

Place the POWER switch in PLAY, and make sure the camcorder is stopped.

• Press the F.FWD. button to fast-forward the tape.

• Press the REW button to rewind the tape. Press the STOP button to stop fast-forward or

rewind.

Microphone

The microphone picks up the sound during a recording. It is more sensitive to sounds coming

from the direction the lens is pointed.

Tally Light

The tally light flashes when the camcorder is in record-pause.

• The tally light will turn off if you start recording with the thumb trigger on the camcorder or place

the ON/POWER SAVE lever in POWER SA VE.

• The tally light will light continuously if you start recording with the RECORD START/STOP button

on the remote control.

Date and

ADJ. (Adjust)

Button

DA TE/TIME

Button

Cell Compartment

Cell Holder

Display in Viewfinder

AM 12:00:00

\1/

1 . I .1993

MDei__- _ l

Hours and

AM or PM

Minutes

--Seconds

Install the Lithium Cell for Time and Date Display

l. Pull out the cell holder.

2. Insert the cell with the "+" terminal up.

3. Replace the cell holder. Note: The lithium cell should last about one

year. When it expires, the date display shows "'88:88". Reset the date and time after

replacing the cell.

Cautions: Lithium cell battery. Must be disposed of properly.

Never handle punctured or leaking cells. May cause hui'_ or pe_s0n_l

injury. _:_ _!,:!:,__._.%:_:: _:_ _. _ii_ _,_ _:._ _,,

Keep out of the hafids of Children. Can cause death or mju_"it € swallowed, If swallowed, consult a physician immediately for : ::_'_:.!_ emergency treatment. ::./_.,._:._.i.:i:_:.__,:,_:..:: ._,___,_:_._:::__ ::i _:_:::::_i:.:_,:,:_ii_

The lithium cell used in this d_vice _a_t :expl_ r_:ulting:]n a :fi_ _r :chemical burn if mistreated. Do not re_hal:ge,disassemble, heat above 212°F (100° C), or incineratel Never use metallic tweezers to hold the cell, aiid neversfiort ci_i_':_the

+ and - sides of the battery..::: :,:.::i _::_:_i

Set and Record the Time and Date ...............

Record the Time and Date

Whenever time and date or date appear in the viewfinder, it will be recorded on the tape. Press the DATE,'TIME button to display and

remove the time and date.

Press ........... To Display in Viewfinder :i

DATE/TIME : and Record on the Tape .....

Button

.............. i

Press Once Date Only Press Again Date and Time Press Again Neither Date nor Time

Set the Time and Date

1. Install the lithium cell as described above.

2. Attach a power supply to the camcorder. Press

and hold the small button on the POWER switch while you slide it to CAM. Place the ON/POWER SAVE lever in ON.

3. Use a straightened paper clip or pen to press and hold the ADJ. (adjust) button for about one second.

The reset date (1.1. 1993) and time (AM

12:00:00) will appear in the viewfinder.

4. The month will flash. Repeatedly press DATE/ TIME button until the correct month appears.

5. Then, press the ADJ. button. The flashing cursor will move to the next part of the display.

6. Repeat steps 4 and 5 until you have entered the correct month, day, year, hour including AM or PM, and minute.

After setting the minutes, press the ADJ. button to

start the seconds. The seconds counter will start with "00".

To correct the date or time after the clock has been

started, repeat steps 3-7.

The camcorder's viewfinder is a miniature black-and-white monitor that displays the picture seen by the camcorder. The viewfinder can also be used for viewing the tape during playback.

Caution: When carrying the camcorder with the shoulder strap, rotate the viewfinder down. This helps prevent possible damage to the viewfinder from bumping against your body as you move.

Viewfinder in Operating Position (PULL here to extend viewfinder.)

Eyepiece

Focus Control

Eyepiece Focus Control

The eyepiece focus control lets you set the focus of

the viewfinder for your personal vision. If you wear eyeglasses, you can probably operate the camcorder without them. The eyepiece focus control does not affect the focus of the picture actually recorded by the camcorder.

To adjust the focus, follow the steps below.

1. Pull the viewfinder out into operating position.

2. Turn the eyepiece focus control until you clearly focus on one of the viewfinder displays (such as date).

Tilt Adjustment ............................................ ...........................................................................................,..... _.......................................•..................................................................... ...................................................................................................................

For convenient viewing, the viewfinder can be raised approximately 90°.

c-"

Caution: Do not force the viewfinder to rOtat_

:completely _u_fid! _i_ Will d_age _e_hd_r

and/or the eamcorder, .....: _ :_

CieaningtheViewfinder _:::' ................... ...........

To clean the viewfinder, follow the steps below.

....

1 2 3

1. Fully extend the viewfinder, and then push it back slightly.

2. Rotate the eyecup counterclockwise to

remove it.

3. Use an optional air blower,

available from most camera

stores, to clean the viewFmder.

• 'ii_i_iiiiiiiiii_i!:¸ O L_ii_iiii;i_?!!i!¸¸¸¸: !!%!_ii_!i!_i_i_!_ii_i_ii_i_i_ii:iii_i!_;_i_i_i_iiii_!;ii_i_iii_i_iii_iii;i_i;i_;i_i_i;i_)_ii!ii_i_i_iiii_i_iiiiii_ii!!i_i_iiiiii;i_i;_i_iiiiii_i_ii_i_ii_iiii_i_;_i_i_iL_i!i_i_i_iii_ii_ii_ii_i_2!_i¸i_,!iiii_;i!:ii:ii_i_;: _:!_;_i_i_ii_!i_i_iii_i_i_!_;_;_!ii_ii_i_iii_i_:i_i_i_i_;_i_ii_i_ii_i!_,i_ii_i_i_i_iii_ii_ii_i_!_i_i_i_:_!__iiiii

, ...................,,,,:_,,..................._::,,,_ _ _:_:_;:_:_,:_i,_;_;_!;_i_i__i_i_i_i @i_i_,/i_i_:ii_i_i_ii_iii!ii_iiiil_ :_i_i_i_'i_i_i_!'_)_

(_ LP Display

(_) Status Displays

(_) Preset Program

Mode Indicators

(_) Low Battery

Warning

(_) Dew, TAPE, and

TAPE END

Indicators

-RE C LP M 1 :O0 :O0 /

MF-

L _J

AMI0: 0"15

1 I 1993

/(_) Time Counter with

Memory Stop

q_) Manual Focus

(MF, +, and-) Indicators

(_) Cassette

Indicator

- _t,._)Time and Date Display

Displays in Viewfinder

LP Indicator LP appears when you play back a tape recorded

in LP speed.

Status Displays

• REC appears when the camcorder is recording.

• PAUSE flashes when the camcorder is in

record-pause.

• FF appears when the tape is fast forwarding, and REW appears when the tape is rewinding.

• STOP appears when the camcorder is stopped during playback.

• PLAY appears when the camcorder is playing back a tape.

• A larger REC or PAUSE briefly flashes below the status display area when you start or stop recording to let you know that the AUTO

LOCK switch is in AUTO LOCK.

• These displays are not recorded on the tape.

Preset Program Mode Indicators

• Repeatedly press the MODE SEL. button to

select one of the camcorder's preset program modes. The AUTO LOCK switch must be out

of AUTO LOCK.

• The indicator for the mode selected will appear

in the viewfinder. No indicator appears when auto mode is selected.

• The indicator is not recorded on the tape.

• Details are on page 27.

Low Battery Warning

• The low battery warning appears when it is time to recharge the battery pack.

• This indicator is not recorded on the tape.

Dew _], TAPE and TAPE END Indicators

• The dew indicator appears when excessive moisture is in the camcorder or cassette. The

camcorder's buttons will not operate except to eject the cassette. Press the EJECT button and

remove the cassette from the camcorder. Place the camcorder in a warm, dry area until the indicator disappears (approximately one hour). When it disappears, the camcorder will operate.

• TAPE appears when approximately five

minutes of recording time is left on the tape.

• TAPE END appears when the end of the tape is

reached during recording.

(continued on next page)

P Y g

(_ Time Counter with Memory Stop

The time counter appears here during recording and playback.

• Press the COUNTER RESET button to reset the counter to "0:00:00" when you start recording

or playing back a tape.

• Press the COUNTER MEM (memory) button to turn memory stop on or off. An M appears in front of the time counter when memory stop is

on.

• These displays are not recorded when they appear.

• Details are on page 28.

Manual Focus Indicators

• Press the FOCUS ON/OFF button to turn off

auto focus and focus manually. The AUTO LOCK switch must be out of AUTO LOCK.

The MF indicator will appear in the viewfinder during manual focus.

• MF+ or MF- will appear when using the MANUAL FOCUS - or + button.

• This display is not recorded when it appears.

• Press the FOCUS ON/OFF button again to return to auto focus. No indicator appears when using auto focus.

Cassette Indicator

• [_ appears if there is no cassette in the camcorder or if you try to record on a cassette that has its safety tab closed.

• [_ appears if there is moisture in the cassette.

_Time and Date Display

• Press the DATE/TIME button to display or remove the time and date (or date) from the viewfinder after they are set. The POWER

switch must be in CAM.

• This display will be recorded on the tape

whenever it appears.

• "88:88" appears if the time and date have not

been set or when the clock battery is not installed correctly or needs replacing.

• Details are on page 22.

!!!:i!i:iii_:i!r_.

i!:ii:?i:'_i

_iiiiiii_:ili:ilil

iii_:,_iiiii_:2iiil

ili:iii!iiii_i!i_

_ii:!:i:i:i:i2i_i,;:

_iiiiiiiiii!'_i_iil

_iiiiiii_ii!i_ii!ii

_!i_,.i:'iiiii_ii!iil

ii_iii_!_i_iiiiiiii!

_iiiii_ii_iiiii?

i!i!ii_iliiii_ili:il

ii!iiiii_iii!i_!_ii

_i!i!ii_iiii:i!!!i!!

!_!:;:ii)ii;:2i[ii_i

iiiiiii:i_ii:il}il_

iiiiiii_!i :iiii?iiii:ii![!iii

;;:iiiiii_;!i_ili!

i_i:.i!iiji_iii_

!ii_!i!:ii:ii'il

iiii,_ii_ili:?ii_i

iiiii:ii_i_iii_i :iiiii2ri!ii_i/4!21i!

s:::::::::,.....

2i!2igi!2[iff_)2i2

_ii!i2!212=ili!2! ii_iiii!:i:!:2:;:?ii:i

_!_i;;iil;iiiiiii!

_i_iiii:ijiiii::i

:iiii:ii_2iiiiiii

iiiii_iiiiiiiiiii_iii

iii:ii_!ii!iii_i_ilil

.....:::::::::s:::

Power Zoom Buttons ,

T=Telephoto

W=Wide Angle

The 8:1 motorized zoom lens allows you to zoom in and out for close-ups or wide-angle

shots by pressing one of the power zoom

buttons.

• Press the button labeled "T" to move the lens in the telephoto (close-up) direction.

• Press the button labeled "W" to move the lens in the wide-angle direction.

Notes: Image vibration is more noticeable when zooming in to film close-up shots. If possible use a tripod or make sure the camcorder is kept steady.

When the camcorder's POWER switch is placed in OFF, the zoom ratio will automatically return to full wide-angle.

When you place the ON/POWER SAVE lever in

POWER SAVE and then back in ON, the zoom ratio will remain the same as before you put it in

POWER SA VE.

Power Zoom

FOCUS ON/OFF

Button

AUTO LOCK

Switch

MANUAL FOCUS + and - Button

Auto Focus

If you want the camcorder to focus for you automatically, set the AUTO LOCK switch to

A UTO LOCK.

The camcorder will automatically focus on any

subject three feet or more from the lens. For a

subject closer than three feet, press "W" to change to wide-angle where the subject will be in focus.

Manual Focus

Certain conditions require manual focusing.

• When taping two subjects - one near and one distant.

• When taping subjects in very low light.

• When taping a horizontally striped subject.

• When taping subjects with little or no contrast.

To focus manually.

1. Slide the AUTO LOCK switch to AUTO LOCK.

2. Press power zoom button "T" and zoom in on the subject.

3. Press the FOCUS ON/OFF button to select manual focus. MF will appear in the viewfinder.

4. Press the + or - side of the MANUAL FOCUS +/- button to adjust the focus.

• MF+ will appear in the viewfinder when

focusing in the + direction.

• MF- will appear in the viewfinder when

focusing in the - direction.

5. Use the power zoom buttons to select desired zooming range.

Note: When the POWER switch is OFF, focus will reset to auto when power is restored. Manual focus will remain selected when you place the ON/POWER SAVE lever in POWER SAVE and then restore power by placing it ON.

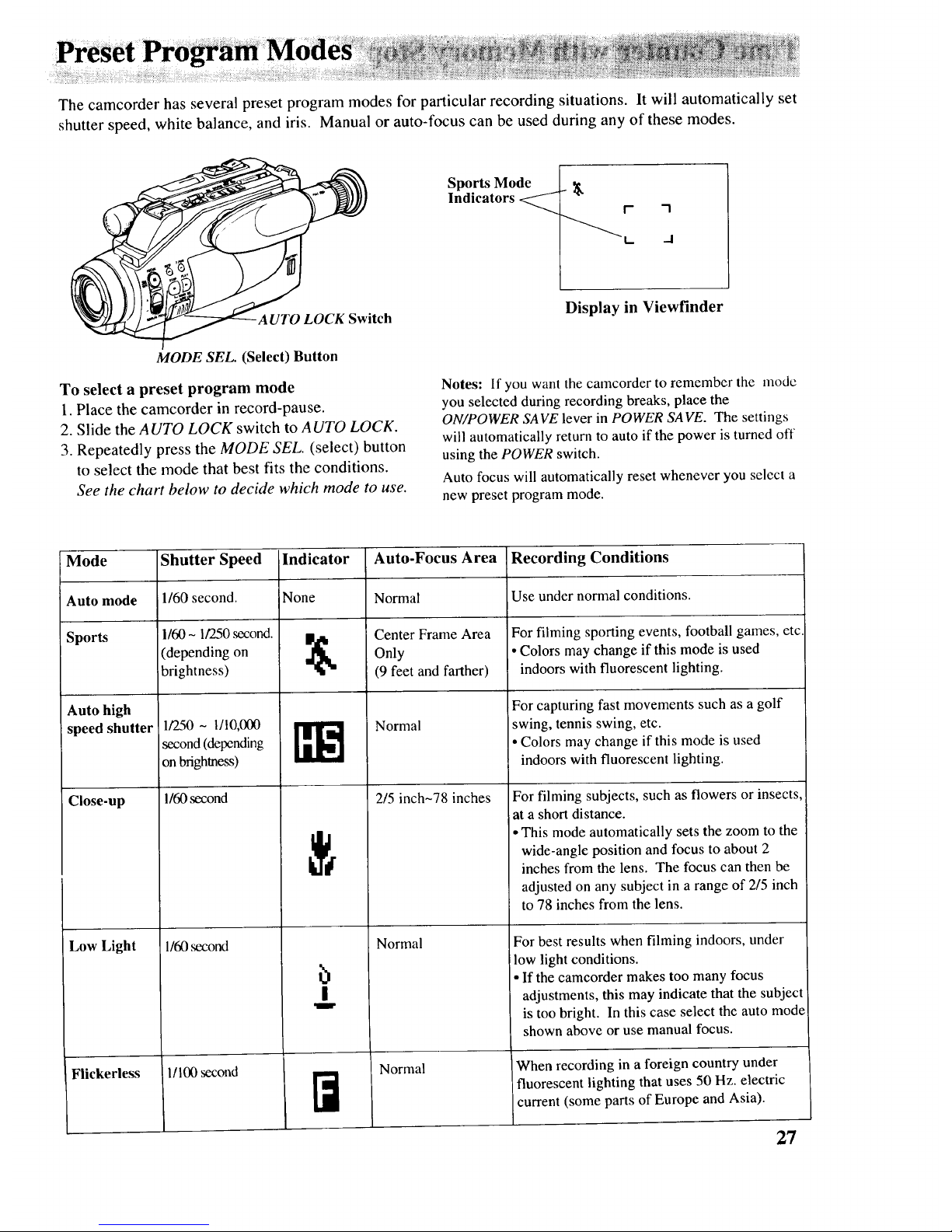

The camcorder has several preset program modes for particular recording situations. It will automatically set shutter speed, white balance, and iris. Manual or auto-focus can be used during any of these modes.

Sports Mode Indicators

Display in Viewfinder

MODE SEL. (Select) Button

To select a preset program mode

1. Place the camcorder in record-pause.

2. Slide the AUTO LOCK switch to AUTO LOCK.

3. Repeatedly press the MODE SEL. (select) button to select the mode that best fits the conditions.

See the chart below to decide which mode to use.

Notes: If you want the camcorder to remember the mode you selected during recording breaks, place the ON/POWER SAVE lever in POWER SA VE. The settings will automatically return to auto if the power is turned off

using the POWER switch. Auto focus will automatically reset whenever you select a

new preset program mode.

Mode

Auto mode

Sports

Auto high speed shutter

Close-up

Low Light

Flickerless

Shutter Speed

1/60 second.

1/60 - 1/250 second. (depending on

brightness)

1/250 ~ 1/10,000 second (depending on brighlness)

!/60 second

1/60 second

1/100 second

Indicator

None

Auto-Focus Area

Normal

Center Frame Area Only (9 feet and farther)

Normal

2/5 inch~78 inches

Normal

Recording Conditions

Use under normal conditions.

For filming sporting events, football games, etc

• Colors may change if this mode is used indoors with fluorescent lighting.

For capturing fast movements such as a golf

swing, tennis swing, etc,

• Colors may change if this mode is used indoors with fluorescent lighting.

For filming subjects, such as flowers or insects, at a short distance.

• This mode automatically sets the zoom to the wide-angle position and focus to about 2

inches from the lens. The focus can then be adjusted on any subject in a range of 2/5 inch

to 78 inches from the lens.

For best results when filming indoors, under low light conditions.

• If the camcorder makes too many focus adjustments, this may indicate that the subject

When recording in a foreign country under fluorescent lighting that uses 50 Hz. electric

current (some parts of Europe and Asia).

Normal

is too bright. In this case select the auto mode shown above or use manual focus.

Thetimecounterdisplayshowstheactualtimeelapsedwhenrecordingorplayingbackatape.Thetime counterquicklylocatestheendofrecordedsegments.Notethereadingwhenyouarefinishedrecordingor playingbackatape.Beforeyoustarttorecordorplaybackatape,presstheCOUNTER RESET button to set

the counter to "0:00:00".

For example, you recorded a 10-minute segment. Later, you want to locate the end of your recording. Insert the cassette and fast-forward the tape until the time counter reads "0:10:00".

COUNTER RESET Button

COUNTER MEM (Memory) Button

COUNTER MEMORY

Button

c._ {=:] t=_

[=]{::l{=l

COUNTER

RESET

Button

Memory-Stop Feature

The memory-stop feature helps you locate a certain point on the tape. When memory stop is turned on,

the tape will stop automatically during rewind or fast forward when the time counter reaches "M 0:00:00".

1. Press the COUNTER MEM (memory) button to turn on the memory-stop feature. An "M" appears in front of the time counter.

Time Counter

with Memory- Stop Feature

Turned on

._rM

0:00:00

Seconds Minutes Hours

4. Make sure the POWER switch is in the PLAY position, and then press the REW (rewind) button.

The tape will rewind to the time counter reading of "M O:00: 00".

Notes: The corresponding buttons on the remote control

can be used to operate the camcorder.

If you rewind the tape farther back than a counter reading of "0:00:00", a minus will appear in front of the counter.

Display in Viewfinder

2. Locate the place on the tape you want to return to

and press the COUNTER RESET button to set the time counter to "M 0:00:00".

3. Continue to record or play the tape. When you want to return to the place you marked, press the thumb trigger to stop recording or the STOP button to stop playing back the tape.

• Make a video recording of your home and contents to store in a safe place in case of fire or theft.

• Practice recording under a variety of lighting conditions. This will help you respond quickly.

• Do not move the camcorder rapidly from side-to- side while recording. A steady, gradual "pan" avoids blurring and "jitter".

• Use the viewfinder to make sure the camcorder is level while recording or the scenes will appear

"tilted".

• Do not bump or tap the camcorder's microphone while recording because this sound will be recorded.

• Be aware of video and audio backgrounds. Background details barely noticed while you are

taping may show up as visual "clutter". Background noises (especially TV sets, radios, household appliances, traffic sounds, etc.) can detract from the sound you want to record.

Check the focus before you start recording. Use

your camcorder's zoom to help you focus manually. Zoom in on your subject and adjust the focus until you see a clear image in the viewfinder. Then zoom back to where you want to record. If the subject-to-camcorder distance does not change, the subject will remain in sharp focus over the entire zoom range.

Avoid long "still" shots of landmarks and scenic attractions. Recordings are more interesting if they

include people and details. "Local color" gives travel videos lasting appeal. Consider recording a

familiar or landmark scene from an unfamiliar vantage point for added interest. Check the

lighting before starting to record.

Try to make sure indoor scenes are well-lit. This

improves picture quality and color reproduction. Include close-up shots of individuals when taping

family outings or group functions.

Holding The Camcorder

• To film at different angles, raise the viewfinder

90 °.

• Hold the camcorder horizontally. Keep your feet slightly apart and upper arms close to your body.

• Standing against a wall may give your recordings more stability.

• When possible, rest your elbows on a table or other stable surface to help keep the camcorder steady.

• Use an optional tripod or monopod for stable images.

Traveling Tips

• Write down your camcorder's serial number and keep it separate from the camcorder when traveling. If your camcorder is lost or stolen, you will be able to identify it.

• Use extra care to avoid damage to your camcorder and accessories when operating them at a beach or pool. Spray, sand, and dust should be avoided. If your lens has been exposed to the elements, clean it only with proper lens cleaning supplies.

Carry your camcorder in a carrying case when traveling. See page 4 for a case especially designed for this camcorder. An ordinary suitcase or carry bag does not offer the protection your camcorder needs. Treat your camcorder as carry- on luggage to protect it from rough handling.

Make sure you have any plug adapters you may need before taking your camcorder to other countries. Consult your RCA dealer for advice.

Camcorder Care and Storage

Keep dust and grit from entering the camcorder's

cassette door. They are abrasive and cause

excessive wear both to the camcorder's recording/playback heads and cassettes.

• Always replace the lens cap on the lens when the camcorder is not in use.

• When the camcorder is not in use, always remove the cassette andAC adapter/charger or battery.

• The camcorder can be damaged by improper storage or handling. Do not subject the camcorder to swinging, shaking, or dropping.

• Do not touch the lens with your fingers. The oil from your skin can damage the lens. Always use lens-cleaning tissue and commercially prepared

cleaning solution designed for use on camera lens.

Improper cleaning may scratch the lens.

Before handling your camcorder, make sure your hands and face are free from any chemical products such as suntan lotion, as it may damage

the finish.

Do not operate the camcorder for extended periods

in temperatures below 40°F (4°C) or above 95°F (35°C). Do not store the camcorder in

temperatures below -22°F (-30°C) or above 149°F (65°C).

Do not operate the camcorder in extremely humid environments.

Do not aim your camcorder at the sun or other bright objects.

Do not leave your camcorder in direct sunlight. Doing so could permanently damage the camcorder's internal parts.

Rechargeable Battery Care and Storage .......................................................................................................................................................................................................................................................................................

Do not operate the battery at temperatures below

14°F (-10°C) or above 95°F (35°C). The battery

may be damaged if operated at temperatures above

122°F (50°C). Operation time will decrease at

extremely low temperatures.

• Store the battery at normal room temperature.

• The battery should be charged at a temperature of

41 °F-95°F (5°C-35°C) to prevent damage.

• After repeated chargings and use, the operation time will gradually decrease. When operation time becomes too short to be useful, it is time to replace the battery.

Cassette Care and Storage

• When you are finished with a cassette, rewind it, remove it from the camcorder, and label it.

• Keep the cassette away from strong magnetic fields such as electric motors and other devices.

• Do not touch or cover the small holes in the cas- sette or use cassettes with damaged or spliced tape.

• Do not use a cassette if it has been damaged or exposed to moisture.

• Store cassettes vertically in their protective boxes at normal room temperatures. Excessive heat or cold may damage your cassettes.

• Close the safety tab to prevent accidental erasure.

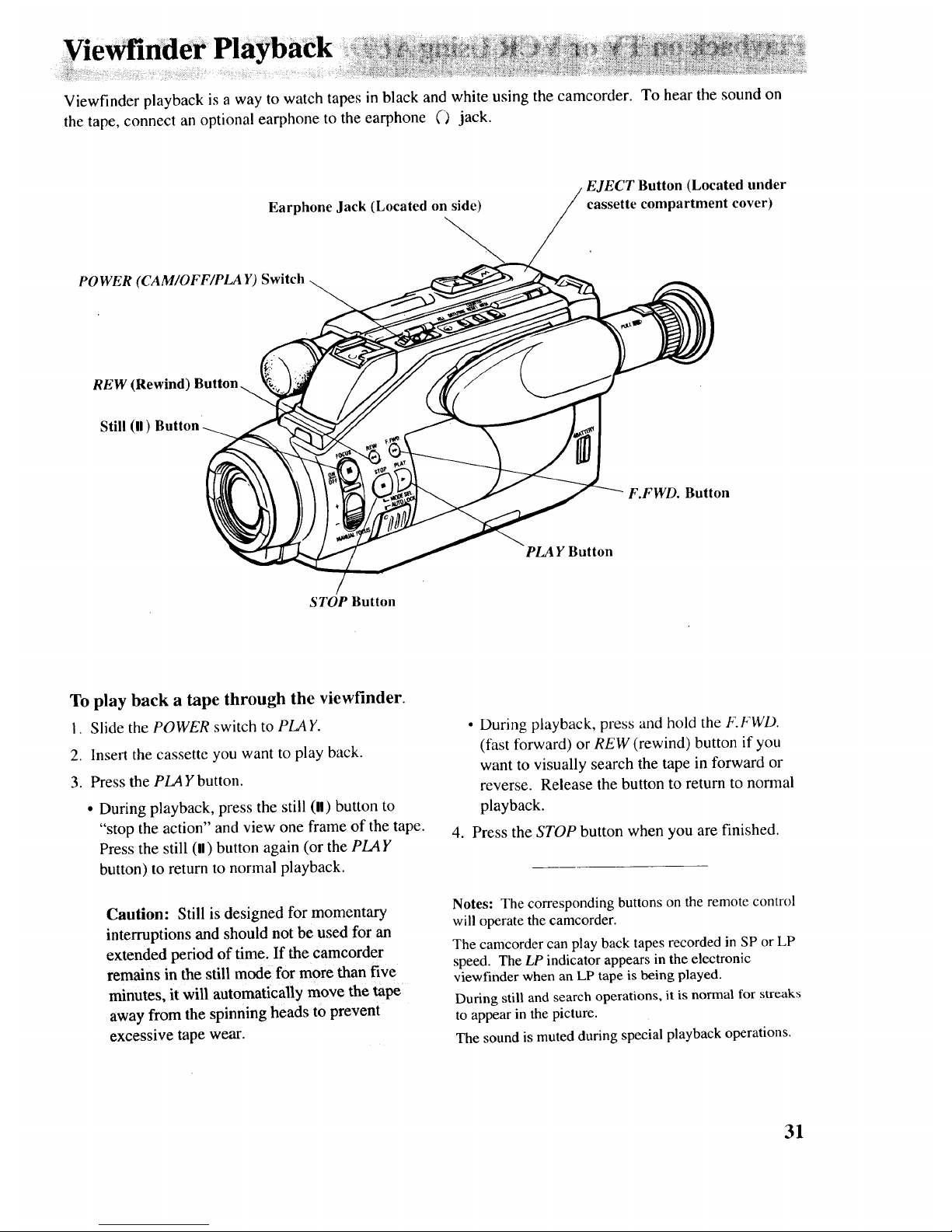

Viewfinder playback is a way to watch tapes in black and white using the camcorder. To hear the sound on the tape, connect an optional earphone to the earphone O jack.

Earphone Jack (Located on side)

EJECT Button (Located under cassette compartment cover)

POWER (CAM/OFF/PLA Y)

REW (Rewind)

Still (ll) Button

F.FWD. Button

PLAY Button

STOP Button

To play back a tape through the viewfinder.

1. Slide the POWER switch to PLAY.

2. Insert the cassette you want to play back.

3. Press the PLAY button.

• During playback, press the still (ll) button to "stop the action" and view one frame of the tape. Press the still (ll) button again (or the PLAY button) to return to normal playback.

Caution: Still is designed for momentary interruptions and should not be used for an extended period of time. If the camcorder

remains in the still mode for more than five

minutes, it will automatically move the tape away from the spinning heads to prevent excessive tape wear.

• During playback, press and hold the F.FWD. (fast forward) or REW (rewind) button if you want to visually search the tape in forward or reverse. Release the button to return to normal playback.

4. Press the STOP button when you are finished.

Notes: The corresponding buttons on the remote control will operate the camcorder.

The camcorder can play back tapes recorded in SP or LP speed. The LP indicator appears in the electronic viewfinder when an LP tape is being played.

During still and search operations, it is normal for streaks to appear in the picture.

The sound is muted during special playback operations.

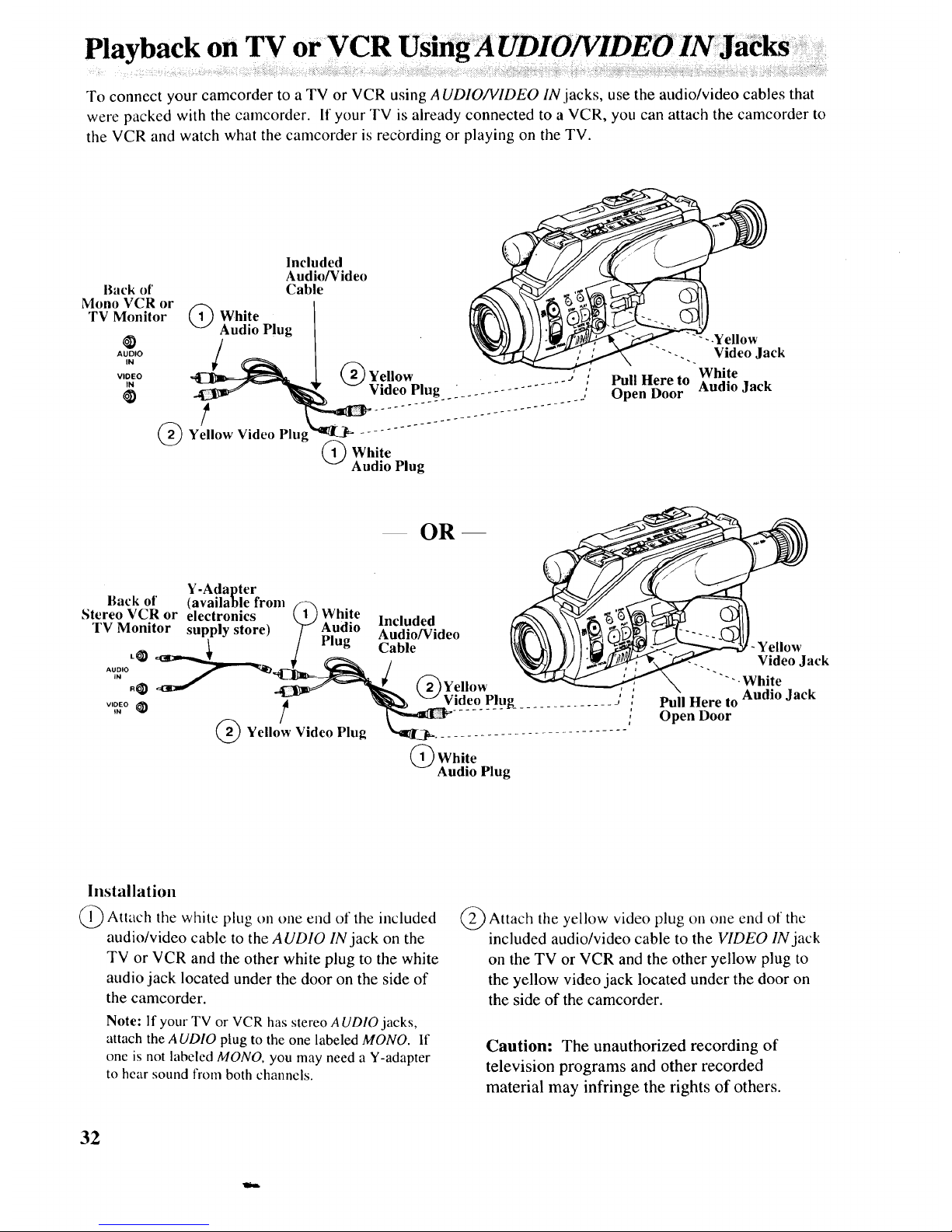

To connect your camcorder to a TV or VCR using AUDIO/VIDEO IN jacks, use the audio/video cables that were packed with the camcorder. If your TV is already connected to a VCR, you can attach the camcorder to the VCR mad watch what the camcorder is recording or playing on the TV.

Included Audio/Video

Back ot' Cable

Mono VCR or

TV Monitor (1)

White Audio Plug

AUDIO

VIDEO

Yellow Video Plu

Yellow .... ;

Video Plug .............. ,

White

Audio Plug

.Yellow

"'--.. Video Jack

White

Pull Here to Audio Jack Open Door

OR -m

Y-Adapter

Back ot' (available from

Stereo VCR or electronics ( 1 ) White l.oh a.a

TV Monitor supply store) "_ pAUudiO_lu'_lioU/_C/deo

L_ _ ¢ g Cable

R@ __ (2)Yellow

Y !1 'w VI

eow Video Plug _ ............................. '

(_) White

Audio Plug

-Yellow

Video Jack

"'-White

Audio Jack

Pull Here to Open Door

Installation

(_ Attach tile white plug on one cud of the included

audio/video cable to the AUDIO IN jack on the TV or VCR and the other white plug to the white audio jack located under the door on the side of the camcorder.

Note: If your TV or VCR has stereo AUDIO jacks, attach the AUDIO plug to the one labeled MONO. If one is not labeled MONO, you may need a Y-adapter

to hear sound from both channels.

Attach the yellow plug on one

video end of the included audio/video cable to the VIDEO IN jack on the TV or VCR and the other yellow plug to

the yellow video jack located under the door on

the side of the camcorder.

Caution: The unauthorized recording of television programs and other recorded material may infringe the rights of others.

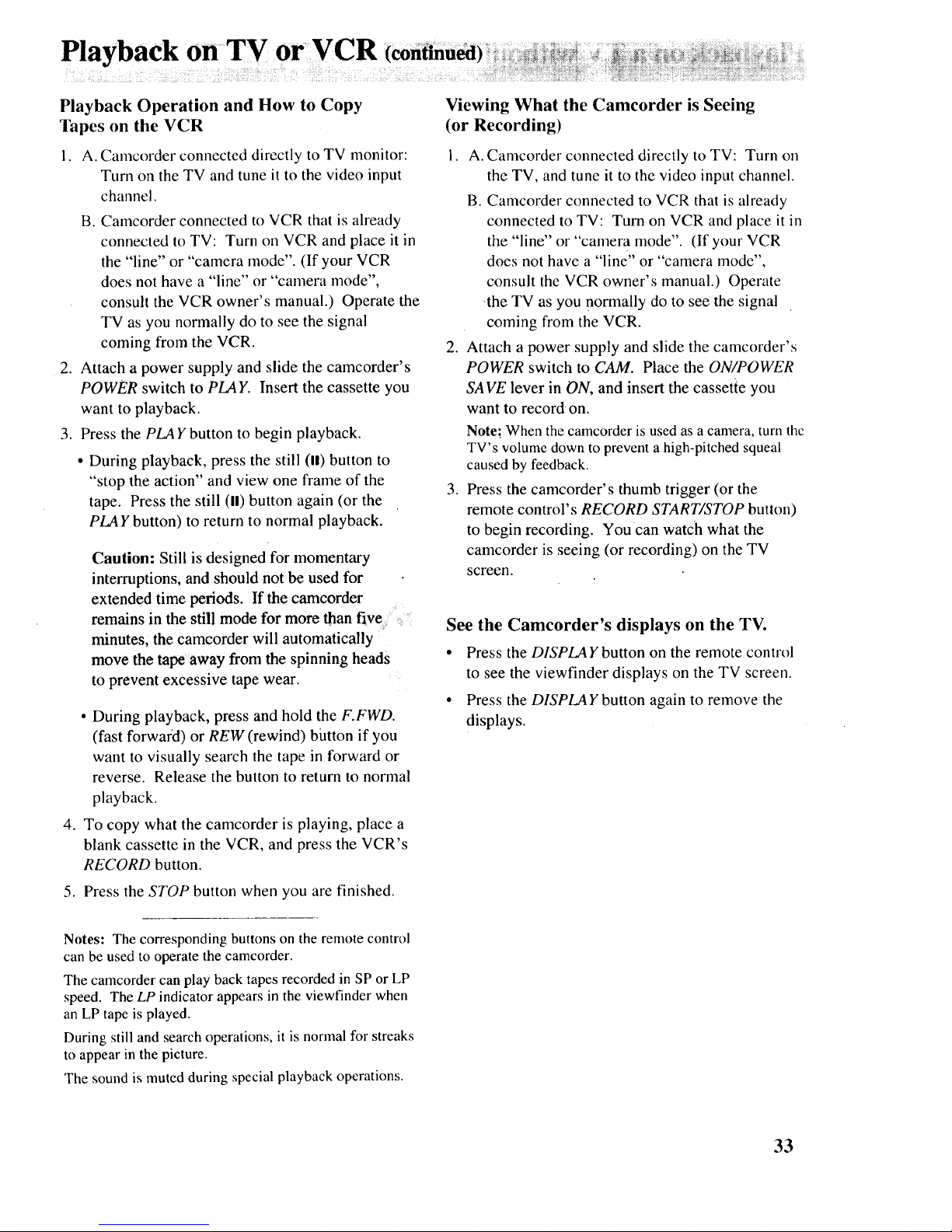

Playback Operation and How to Copy Tapes on the VCR

I. A. Camcorder connected directly to TV monitor:

Turn on the TV and tune it to the video input channel.

B. Camcorder connected to VCR that is already

connected to TV: Turn on VCR and place it in

the "line" or "camera mode". (If your VCR

does not have a "line" or "camera mode", consult the VCR owner's manual.) Operate the TV as you normally do to see the signal coming from the VCR.

2. Attach a power supply and slide the camcorder's POWER switch to PLAY. Insert the cassette you want to playback.

3. Press the PLAY button to begin playback.

• During playback, press the still (11)button to

"stop the action" and view one frame of the tape. Press the still (11)button again (or the PLAY button) to return to normal playback.

Caution: Still is designed for momentary

interruptions, and should not be used for extended time periods. If the camcorder

remains in the still mode for more than five _ minutes, the camcorder will automatically

move the tape away from the spinning heads to prevent excessive tape wear.

• During playback, press and hold the F.FWD.

(fast forward) or REW (rewind) bfltton if you want to visually search the tape in forward or

reverse. Release the button to return to normal playback.

4. To copy what the camcorder is playing, place a blank cassette in the VCR, and press the VCR's RECORD button.

5. Press the STOP button when you are finished.

Viewing What the Camcorder is Seeing (or Recording)

i. A. Camcorder connected directly to TV: Turn on

the TV, and tune it to the video input channel.

B. Camcorder connected to VCR that is already

connected to TV: Turn on VCR and place it in the "line" or "camera mode". (If your VCR

does not have a "line" or "camera mode", consult the VCR owner's manual.) Operate

the TV as you normally do to see the signal

coming from the VCR.

2. Attach a power supply and slide the camcorder's

POWER switch to CAM. Place the ON/POWER SAVE lever in ON, and insert the cassette you

want to record on. Note; When the camcorder is used as a camera, turn thc

TV's volume down to prevent a high-pitched squeal caused by feedback.

3. Press the camcorder's thumb trigger (or the remote control's RECORD START/STOP button)

to begin recording. You can watch what the camcorder is seeing (or recording) on the TV

screen.

See the Camcorder's displays on the TV.

• Press the DISPLAY button on the remote control

to see the viewfinder displays on the TV screen.

• Press the DISPLAY button again to remove the

displays.

Notes: The corresponding buttons on the remote control can be used to operate the camcorder.

The camcorder can play back tapes recorded in SP or LP speed. The LP indicator appears in the viewfinder when an LP tape is played.

During still and search operations, it is normal for streaks to appear in the picture.

The sound is muted during special playback operations.

To connect your camcorder to a TV without audio and video inputs, you need an optional CRF800 RF output adapter and coaxial RF cable as shown.

Output Jacks (Located behind door)

Optional Coaxial RF Cable*

(such as AH065G _

or AH066G)

CHANNEL

75-7 '_x300 _--_ Back ofrl'V

Optional Ohm Transformer* '_'_

(such as AH011) "_\ "

Back of TV

VHF Antenna

(_ Optional CRF800

J RF Output Adapter*

VHF Antenna

Optional 300-75 Ohm Transformer*

(such as 193983)

Installation

(_ Disconnect the VHF antenna from your TV.

Connect the antenna to the VHF IN connector on the optional CRF800 RF output adapter if you

leave the adapter connected to the TV. Note: If your VHF antenna is the fiat twin-lead type

attached by two screws, you will need an optional 300-75 ohm transformer, such as 193983.

Attach one end of the coaxial RF cable to the

VHF OUT connector on the RF output adapter

and the other end to the VHF input on your TV. Note: If your TV has screw terminals, you may need

an optional 75-300 ohm transformer, such as AH011. Attach output adapter's plug to

the RF the

output jacks located behind the door on the side of the camcorder.

*Optional accessories are available from your dealer or elecmmics supply store. Mail order form is on page 5.

PlaybaCkona TV withoutAu$o/Videohpu ( ontinuea),

Playback Operation

1. Set the CHANNEL 4CH/3CH switch on the RF output adapter to 4CH or 3CH.

2. Turn on the TV, and tune it to channel 3 or 4.

3. Attach a power supply, and slide the camcorder's

POWER switch to PLA Y. Insert the cassette you want to play back.

4. Press the PLAY button to begin playback.

• During playback, press the still (!l) button to "stop the action" and view one frame of the

tape. Press the still (11) button again (or the PLAY button) to return to normal playback.

Caution: Still is designed for momentary interruptions, and should not be used for

extended time periods. If the camcorder remains in the still mode for more than five

minutes, the camcorder will automatically move the tape away from the spinning heads to prevent excessive tape wear.

• During playback, press and hold the F.FWD.

(fast forward) or REW (rewind) button if you want to visually search the tape in forward or

reverse. Release the button to return to normal playback.

Press the STOP button when you are finished.

Viewing What the Camcorder Is Recording

1. Turn on the TV and tune it to channel 3 or 4. Note: When the camcorder is used as a camera, turn

the TV' s volume down to prevent a high-pitched

squeal caused by feedback.

2. Set the CHANNEL switch on the RF output adapter to the same channel you selected on

the TV.

Attach a power supply and slide the camcorder's POWER switch to CAM. Insert the cassette you

want to record on. Make sure the ON/POWER SAVE lever is ON. Press the thumb trigger on the

camcorder (or the RECORD START/STOP button on the remote control) to start recording. You can watch what you are recording on the TV screen.

See the Camcorder's displays on the TV.

• Press the DISPLAY button on the remotecontrol to see the viewfinder displays on the TV screen.

• Press the DISPLAY button again to remove the displays.

Normal TV Viewing You can leave the RF output adapter hooked up to

the TV. Disconnect the adapter's plug from the camcorder or turn off the camcorder's power.

Notes: The corresponding buttons on the remote control

can be used to operate the camcorder. The camcorder can play back tapes recorded in SP or LP

speed. The LP indicator appears in the viewfinder when an LP tape is played.

During still and search operations, it is normal for streaks to appear in the picture.

The sound is muted during special playback operations.

Note to Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

Trouble C1

Troubles sometimes are caused by simple "faults" that you can easily correct without the help of a service technician by first checking a few basic remedies.

Before you call or take your camcorder to an Authorized RCA Compact Camcorder Servicenter, look below for the type of trouble you are experiencing. Then perform the simple checks and adjustments listed for that

trouble.

Trouble

No power

Won't record or playback

Checks and Adjustments .... : :

• ON/POWER SAVE lever in pOWER SAVE position. Place lever in ON

position.

• If using battery, it may need to be recharged.

• If using AC adapter/charger, make sure it is plugged into a working outlet.

t ! •

If using AC adapter/charger, make sure it is plugged into a working outlet.

• If dew indicator (_) appears in the viewfinder, there is moisture in the camcorder. Remove the cassette from the camcorder and let it dry

naturally.

• There may be no cassette in the camcorder.

• Try ejecting and re-inserting the cassette.

• The cassette tape may be broken, try another cassette.

• You may have reached the end of the cassette, try rewinding it.

Won't playback • POWER switch must be in PLA Y position.

Won't record

Safety tab has been closed. (See page 20.)

POWER switch must be in CAM (camera) position.

ON/POWER SAVE lever must be in ON position.

No picture in vicwfmder

Tape stops during rewind or

fast forward

• Remove lens cap.

• ON/POWER SAVE lever must be in ON position when POWER switch is in CAM (camera). position.

• Time-counter memory may be on. Whenever an "M" appears with the time-counter display, the camcorder will stop rewinding (or fast forwarding) when counter reads "M 0:00.'00". Press the REW or F.FWD. button again to continue rewinding or fast Jorwarding, or press COUNTER MEM (memory) bntton to turn off memory-stop feature.

Camcordcr remains in "stop action" (play-pause) mode

• Press the still (11) (or PLA Y) button to return to normal playback.

TroUble i i_ec_ hnd Adj ustments

I ,_%_ _,_,_,_,_,_,...... .... ,i_ii_!_ii!_i_iiii!i_!i_i_!ii,_i_iii_i!_,!_!_i_!_!IIiiii!!_!i!ii_iiliii_i_iii_,i_?,_i,i_i_,i_i_iii_,_i_!!ill,_,_iiiiiiiii!_ilii!i!iiiili

Poor auto-focus operation • Make sure AUTO LOCK switch is in the AUTO LOCK position.

• Scene is dark. Auto-focus may not work under this condition. Seepage26

for details on manual focus.

• Lens is smudged, and image appears unfocused.

• Viewfinder eyepiece focus is misadjusted. (See page 23.)

Picture is too dark or • Select the best preset program mode for the recording situation. subject too dark. See page 27.

Viewfinder displays are out of focus

Date and/time (or date)

were recorded on tape

Date and/or time are

incorrect

Remote control

will not operate

camcorder

• Try adjusting eyepiece focus control. See page 23.

• Pull electronic viewfinder out to the extended operating position.

• Date and time or date will be recorded on tape whenever they appear in the viewfinder.

• Press DATE/TIME btitton to remove them from viewfinder when recording.

• Clock cell may need replacing. See page 22.

• Date and/or time may need to be set. See page 22.

• Aim remote control at remote control sensor on camcorder.

• Remote control batteries may need replacing.

• If POWER switch is in CAM position, the ON/POWER SAVE lever must be

in ON position for camcorder to operate.

• POWER switch must be in CAM or PLAY position for camcorder to operate. ..

• Camcorder's remote control sensor is exposed to direct sunlight or strong artificial light. This may interfere with operation of camcorder by remote

control.

General

Power requirement: 6VDC Power consumption: 5.2 W Weight: 1.7 lbs. (780g) Dimensions: 4-3/5"(W) x 4-3/5"(H) x

_117 x 120 x 259mm)

IO-I/5"(L)

apparatus set out in the Radio Interference

Regulations' of the Canadian Department of _:__::_I:_I!I:!_

Video Recorder Section

Format: 8ram Record/Playback System:

Two video record/playback heads

One flying erase head Headwheel Cylinder Diameter: 40 mm Video Signal: EIA Standard NTSC Color

Camera Section

Scanning: 525 Lines/60 Fields/30 Frames Image Sensor: 1/3" high-resoltition,

solid-state CCD Imager

Tripod Mount: One 1/4" threaded hole Lens: f1.8

8:1 (6-48mm)

Diameteri 37 mm

Earphone Jack: Monaural 8 ohm mini jack

All features _d spedfications _e

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant

to Part 15 of the FCCRules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

eqtfipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: ( 1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by Thomson Consumer Electronics, Inc. may void the user's authority to operate this camcorder.

What your warranty covers:

• Any defect in material or workmanship.

• 90 days for labor charges.

• One year for parts. The warranty period for rental units bcgins with the

first rental. What we will do:

• Pay any Authorized RCA Compact Camcorder

Servicenter the labor charges to repair your camcorder.

• Pay any Authorized RCA Compact Camcorder Servicenter for the new or, at our option, rebuilt

replacement parts required to repair your " camcorder.

How you get service:

• Check with your RCA Dealer or call

1-800-336-1900 for the Authorized RCA Compact Camcorder Servicenter nearest you. State that you have an RCA 8 millimeter camcorder.

If an Authorized RCA Compai:t Camcorder Servicenter is conveniently near you:

• Take your camcorder to the Authorized RCA Compact Camcorder Servicenter of your choice.

• Show the Servicenter Representative your sales receipt or other evidence of purchase date.

• Pick up your camcorder when repairs are completed.

If an Authorized RCA Compact Cameorder Servicenter is not located conveniently near you:

• Pack the camcorder so that it will not be damaged during shipping. (We recommend using the

original carton and packing materials.) Include

any cables and other accessories originally furnished with the camcorder.

• Include in the camcorder carton (1) a copy of your sales receipt or other evidence of purchase date, (2) your name and address, and (3) a brief description of the problem.

• Ship the camcorder to an Authorized RCA

Compact Camcorder Servicenter.

• Pay any charges billed to you by the Servicenter

for service not covered by the warranty.

What your warranty does not cover:

• Customer instruction. (Your owner's manual clearly describes how to install, adjust, and operate your camcorder. Any additional information

should be obtained fiom your Dealer.)

• Installation and related adjustments.

• Cleaning of video/audio heads.

• Damage from misuse or neglect.

• Batteries for clock or other features.

• A camcorder that has been modified or incorporated into other products or is used for

institutional or other commercial purposes.

• A camcorder purchased or serviced outside

the USA.

How state law relates to this warranty:

• This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

Product registration:

• Please complete and mail the product registration card packed with your camcorder. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage.

If you purchased your camcorder in Canada:

• The Canadian warranty applies in place of this

warranty.

Accessories, Included ............................................. 8

Accessories, Optional ........................................ :.4-7

Accessory Shoe ..................................................... 12

Accessory, Order Form ........................................ 5-6

Adapter/Charger, Safety

Instructions ............................... Inside Front Cover

Adapter/Charger, Using ........................................ 16

ADJ. (Adjust) Button ....................................... 13,22

Attaching the Shoulder Strap .................................. 9

AUTO LOCK Switch ......................... 11,.12,21,26,27

Auto Focus ................................... ;........................ 26

Auto High-Speed Shutter Mode ............................ 27

Auto Mode .............................................. ,............. 27

Batteries, Remote Control ..................................... 14

BA TIER Y Eject Lever ...................................... 12,18

Battery Safety Precautions ................. ................... 18

Battery Warning ............................................... 18,24

Battery, Care and Storage ..................................... 30

Battery, Using Rechargeable ........................... 17-18

CAM/OFF/PLA Y POWER Switch ................... 11-12

Camcorder, Powering ...................................... 16-19

Camcorder, Turning On ........................................ 11

Camcorder, Unpacking ........................................... 8

Car Cord, Optional ................... :............................ 19

Care and Maintenance ........................................... 30

Care and Storage of the Battery ............................ 30

Cassette Care and Storage ..................................... 30

Cassette Compartment ................................ 10,13,20

cassettes, Inserting and Removing ................ 1.10,20

Charging the Battery ............................................. 17

Cleaning the Viewfinder ....................................... 23

Clock Cell Compartment ................................. 12,22

Close-Up Mode ..................................................... 27

Compact Camcorder Limited Warranty ................ 39

Connection, TV with AUDIO/VIDEO

Jacks ............................................................... 32-33

Connection, TV without Audio/Video

Inputs ............................................................. 34-35

Contents ................................................. Front Cover

Copying Tapes ................................................. 32-33

COUNTER MEM (Memory) Button ...... 13,24-25,28

COUNTER MEMORY Button .......... 14-15,24-25,28

COUNTER RESET Button .......... 13,14-15,24-25,28

Date and Time Display ............................... 22,24-25

Date and Time, Recording .................................... 22

Date and Time, Setting ......................................... 22

DA TE/TIME Butt.on .................................... 13,22,25

DC IN 6.5V Jaek ._....................................... 13,16,19

DC Power Cord .................................................. 8,16

Design Specifications ............................................ 38

Dew Indicator ................................................... 11,24

DISPLA Y Button .................................... 14-15,33,35

Displays in Viewfinder .................................... 24-25

Earphone Jack ........................................ l 1,13,21,31

EJECT Button ............................................. 10,13,20

Electronic Viewfinder, Adjusting ......................... 23

Erase Protection .................................................. ..20

Eyepiece Focus Control .............................. 11,12,23

F.FWD. (Fast Forward)

Button ................................... 12,14-15,21,31,33,35

FF Display ......................... ........... :......... :............. 24

First-Time Operation ......................................... 8-13

Flickerless Mode ........................................... _....... 27

Flying Erase Head ................................................. 21

FOCUS ON/OFF Button ............................ 12,25,26

Focusing Your Camcorder .................................... 26

Hand Strap ........................................................ 10,13

Important Safeguards ........................................... 2-3

Important Safety Instructions ..... Inside Front Cover

Inserting and Removing Cassettes ........................ 20

Lens .................................................................. 12,30

Lens Cap .......................................................... 10,13

Limited Warranty.... ............................................ ..39

Low Level Battery Warning ............................. .'...18

Low Light Mode ................................................... 27

LP Tape Speed Display ......................................... 24

Maintenance and Care ............................ .." ........... 30

Making Better Videos ........................................... 29

MANUAL FOCUS + and - Button ........ 12,24-25,26

Manual Focus (MF, MF+, and MF-)

Indicators .................................................. 24-25,26

Memory Stop Indicator ............................... 24-25,28

Memory-Stop Feature ........................................... 28

Microphone ...................................................... 12,21

MODE SEL. Button .................................... 12,24,27

ON/POWER SAVE Lever ............................ 11,13,17

OPEN Button .............................................. 10,13,20

Operation, First-Time ........................................ 8- | 3

Optional Accessories ........................................... 4-7

Optional Car Cord ................................................. 19

Index (continued)

Order Form, Accessory ........................................ 5-6

Output Jacks (Yellow Video, DC, and

White Audio) ............................................ 12,32,34

PA USE Display ..................................................... 24

PLAY Button ........................... 12,14-15,24,31,33,35

PLAY Display ........................................................ 24

Playback ........................................................... 31-35

Playback on a TV with AUDIO/VIDEO IN

Jacks ............................................................... 32-33

Playback on a TV without Audio/Video

lnputs ................................. :........................... 34-35

Playback, First ....................................................... 12

.Playback, Viewfinder ............................................ 31

Positioning the Tape ............................................. 21

POWER CAM/OFF/PLA Y Switch ................... 11,12

POWER SA VE/ON Lever .... i.......................... 13,17

Power Zooming ............................ . ........................ 25

Powering the Camcorder ................................. 16-19

Preset Program Indicators ................................ 24,27

Preset Program Modes ..................................... 24,27

Problem Solving .............................................. 36-37

Product Registration ................... Inside Front Cover

Program Preset Modes ..................................... 24,27

Quick Review ................................................ ........ 21

RCA Video Cassettes ....................................... 20,30

REC Display .......................................................... 24

REC START/STOP Button (Thumb Trigger)... 11,13

RECORD START/STOP Button ..................... ,. 14-15

Recording Speed and Times ................................. 20

Recording Steps, First-Time .............................. 8-13

Recording Tips ...................................................... 29

Recording, First ..................................................... 11

Refreshing the Battery .......................................... 17

Registration Card ........................ Inside Front Cover

Remote Control ................................................ 14-15

Review, Quick ....................................................... 21

REW (Rewind) Button ............ 12,14-15,21,31,33,35

REW Display ......................................................... 24

Safeguards, Important .......................................... 2-3

Safety Tab ............................................................. 20

Safety Instructions for AC

Adapter/Charger ....................... Inside Front Cover

Safety Instructions ...................... Inside Front Cover

Safety Precautions ................................................... 1

SCENE SEARCH + and - Buttons .............. 14-15,2 !

;!!_iiiiii:i!i%:.........._i_ i _iiiiiiiiiiii!ii!iiii_:iiii_iii:i_.....

;!!i!iiiii::iiiii:;_i,:_!;,i_i:ili!ii:i:,i,;iii:_i!:.,i:::ii:'.:!ili__..!ii,:ii.i

Setting the Timc and l)atc ..................................... 22

Shoulder Strap Rings ........................................... 9,13

Shoulder Strap, Attaching ....................................... 9

Solving Problems ............................................. 36-37

SP Speed ............................................................... 20

Special Features .................................................... 21

Specifications ........................................................ 38

Sports Mode .......................................................... 27

Status Displays ....................................................... 24

Still (11) Button ....................................... 12,31,33,35

STILL Button ............................. ...... 14-15,31,33,35

STOP Button ........................... 12,14-15,21,31,33,35

STOP Display ........................................................ 24

Storage ........................................................ i......... 30

T (Telephoto) Zoom Button .................................. 25

Table of Contents .................................. Front Cover

Tally Light ......................... .................... 11,12,15,21

TAPE END Indicator ............... ............. i................ 24

TAPE Indicator ........................... ........................... 24

Tape Copying .................................................. 32-33

Tape Positioning ................................................... 21

Things to Avoid ............................................... 29-30

Thumb Trigger ................................................. 11,13

Tilt Adjustment, Viewfinder ................................. 23

Time and Date Display ......................................... 22

Time and Date, Recording .................................... 22

Time and Date, Setting ......................................... 22

Time Counter Display ........... ..................... 24-25,28

Time Counter with Memory Stop Feature ............ 28

Tips, Recording ..................................................... 29

Tips, Traveling ........................................... _.......... 29

Tripod, Using .......................................................... 7

Trouble Checks ................................................ 36-37

Turning On the Camcorder ................................... 10

Unpacking the Camcorder .................................... 11

Video Cassettes ................................................ 20,30

Viewfinder ................................... 11,12,23,24-25,31

Viewfinder Displays ........................................ 24-25

Viewfinder Playback ............................................. 31

"qiewfinder, Cleaning ............................................ 23

W (Wide Angle) Zoom Button .............................. 25

Warranty ............................................................... 39

Zooming, Power .................................................... 25

ncH

Fol your nea['est Home

Entertainment Dealer or Authorized Servicenter

call toll-free in the U.S.A.

1-800-336-1900

Thomson Consumer Electronics 600 N Sherman Dr, PO Box 1976 Indianapolis, IN 46206

Trademark(s) ® Registered Marca(s) Registrada(s) Printed in Japan

Part Number 93-Pro808-1

1AG61:::'1P0046 - -

RCA P46728, P46730 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
