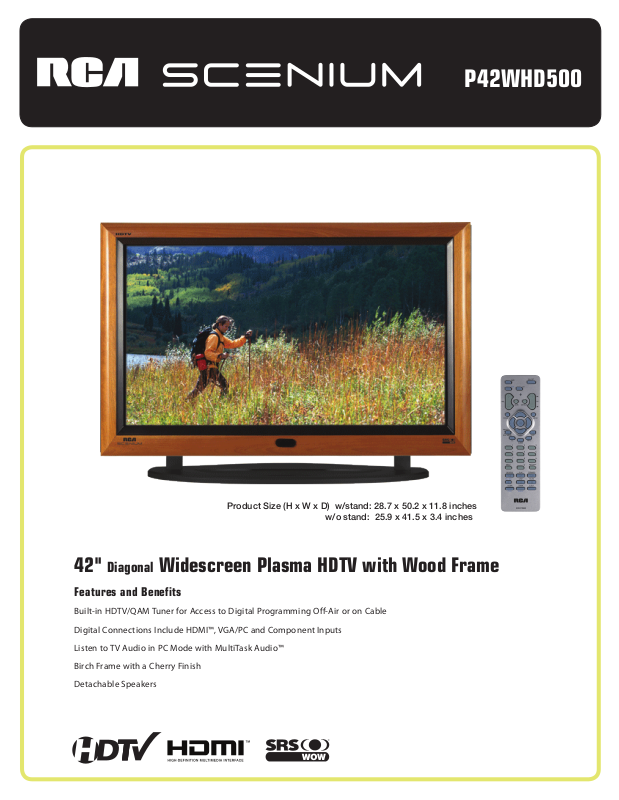

P42WHD500

Product Size (H x W x D) w/stand: 28.7 x 50.2 x 11.8 inches w/o stand: 25.9 x 41.5 x 3.4 inches

42" Diagonal Widescreen Plasma HDTV with Wood Frame

Features and Benefits

Built-in HDTV/QAM Tuner for Access to Digital Programming Off-Air or on Cable

Digital Connections Include HDMI™, VGA/PC and Component Inputs

Listen to TV Audio in PC Mode with MultiTask Audio™

Birch Frame with a Cherry Finish

Detachable Speakers

P42WHD500

42" Diagonal Widescreen Plasma HDTV with Wood Frame Specifications

BRAND RCA SCENIUM

TECHNOLOGY

SDTV / EDTV / HDTV Capability HDTV Category Plasma RF Tuning Capability ATSC/NTSC/QAM Analog Video Formats (NTSC/480i) AV / S-Vid / Component Digital Video Formats (480p, 720p, 1080i) Component, HDMI


Display Type PDP Screen Size 42" Display Aspect Ratio 16:9 Display Resolution 1024x768 Brightness (cd/m2) 1200 Contrast Ratio 10000:1 Adjustable Color Temperature Yes Adjustable Picture Control bright, cont, sharp, color, tint Format Control 4:3, 14:9 Zoom, 16:9 Zoom,

Cinerama, 16:9 Widescreen Gamma Correction Yes Comb Filter 3D/YC Reverse 3:2 Pull Down (Film Mode) Yes Noise Reduction Yes - 1H only

SOUND

Audio Power (Watts) Front Speakers 8 W/CH x 2 Treble, Bass, Balance, Volume, Mute Control Yes Broadcast Stereo MTS Stereo Second Audio Program (SAP) Yes Headphone Adjustments Yes Premium Sound SRS WOW*

CONVENIENCE

Front Panel Controls Power, CH +/–, Vol +/–, Menu PC Compatibility (via 15 pin d-sub) Yes Audio in PC mode (Multitask Audio™) Yes Auto Tune (one-button launch) Yes Auto Channel Search Yes Multilingual On–Screen–Display English, Spanish, French Channel Labeling Yes Closed Caption Capability Yes Parental control (V–Chip) USA & Canada Picture Reset Yes Picture Memory Presets Yes Commercial Skip Yes Clock Yes Sleep Timer Yes Text Input (via USB/Card Reader) - Timed Messages Yes

CONNECTIONS — REAR/SIDE INPUTS

RF Input (ATSC/NTSC) 2 Composite Video input 1 S-Video input 1

Audio input for Composite 1 set Phono L/R VGA (PC input) 1 Audio input for VGA 1 - 3.5mm PC Audio Component Video Input (YCrCb/YPrPb) 2 set Audio input for Component Video 2 set Phono L/R DVI – HDCP or HDMI 1 HDMI ** Audio input for DVI – HDCP or HDMI 1 L/R for DVI

CONNECTIONS — OUTPUTS

Headphone Jack Yes Video Output 1 Audio Output 1 set Phono L/R

REMOTE CONTROL

Model Number RCR311TBM2S Type 3-Device Universal

ACCESSORIES SUPPLIED

Users Guide English, French Power Cord Yes

GENERAL

Finish Birch Frame w/Cherry Finish / Black Trim Detachable base Yes Wall Mounting Requires a “Universal Bracket” Power Supply Built-in Packaging Size (HxWxD) inches 39.7 x 46.1 x 16.1 Weight (lbs) (Product/Packaging) 93.2 /

105.2

* SRS WOW is a registered trademark of SRS Labs, Inc. ** HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Product features, deﬁnitions and physical speciﬁcations are subject to change without notice.

RCA and associated marks are trademarks of THOMSON S.A. used under license to TTE CORPORATION.

TTE Technology, Inc. Indianapolis, IN USA 46290
