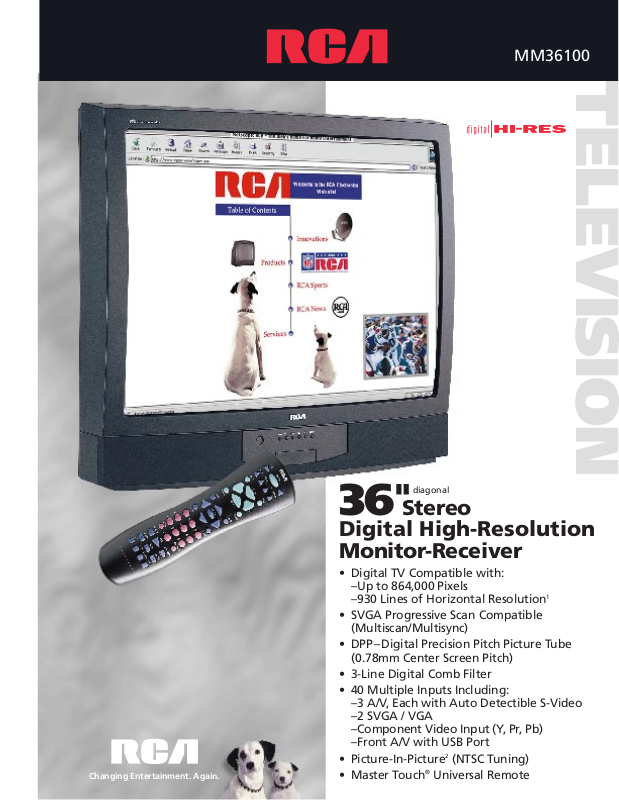

TELEVISION
MM36100
36
"
Stereo
Digital High-Resolution
Monitor-Receiver
• Digital TV Compatible with:
–Up to 864,000 Pixels
–930 Lines of Horizontal Resolution
1
• SVGA Progressive Scan Compatible
(Multiscan/Multisync)
• DPP–Digital Precision Pitch Picture Tube
(0.78mm Center Screen Pitch)
• 3-Line Digital Comb Filter
• 40 Multiple Inputs Including:
–3 A/V, Each with Auto Detectible S-Video
–2 SVGA / VGA
–Component Video Input (Y, Pr, Pb)
–Front A/V with USB Port
• Picture-In-Picture
2
(NTSC Tuning)
• Master Touch
®
Universal Remote
diagonal
Changing Entertainment. Again.
The RCA brand has always offered innovative technologies to enhance your home entertainment experience. The RCA Digital High-Resolution
Digital Monitor lives up to this commitment by offering outstanding picture performance and multiple connectivity options. This is the
perfect vehicle to help you make the transition into the world of HDTV. The RCA Digital High-Resolution Monitor can display 1080 i (interlaced)
television signals when you combine this television with an RCA HD/Digital Receiver.
In addition, with its 40 audio and video inputs the RCA High-Resolution Monitor
has much more to offer outside the world of HDTV. It’s the perfect display for your
computer, VCR, standard TV broadcasts, video games and your DVD player—and
they can all be connected at the same time!
It’s what goes on behind the screen that makes this picture incredible.
The RCA Digital High-Resolution Monitor delivers an incredible picture.
It starts with a Digital Precision Pitch Picture Tube which features a 0.78mm
center screen pitch that delivers crisp focus and incredible color. An INVAR shadow
mask is combined with 65 watts of concentrated picture power to deliver a bright
and sharp picture.
The RCA Digital High-Resolution Monitor is a true SVGA 800x600 pixel
progressive scan, (multiscan/multisync) display. This gives you professional
quality monitor capability with a multiscan/multisync system that automatically
detects signals with horizontal scan rates from 15.7 kHz to 37.7 kHz. Connecting
your computer to this SVGA input delivers 480,000 pixels of resolution.
The quality picture delivered to your screen can be precision tuned to your needs
with the Video and Text/Graphics Modes. These deliver the optimum picture
performance whether you are watching an HD movie or surfing the web.
• 3-Line Digital Comb Filter
Separates black-and-white detail from
color information to virtually eliminate
edge crawls and rainbow effects while
extending picture resolution.
• High Performance Video Amplifier
Delivers high resolution and clarity by
extending the video frequency response.
Optimizes performance from highresolution sources such as the RCA
Satellite System, DVD players, and
S-Video signals (S-VHS, Hi8).
• Dynamic BlackStretch Circuitry
Extends black levels in bright scenes
to enhance contrast and detail.
• Dark-Tint, High-Contrast
Picture Tube
Delivers outstanding picture contrast
for blacker blacks, brilliant whites, and
deep rich colors even in bright room
conditions.
• Deluxe Shielded Tuner
with 181-Channel Tuning
Capability
3
Special shielding dramatically reduces
ghosting caused from off-air pick-up
when watching cable c h a n n els. Digitallycontrolled frequency synthesis tuning
system “locks on” to cable and standard
signals with unsurpassed accuracy.
•
Automatically maintains natural flesh
tones and color fidelity from channel
to channel and scene to scene.
• Auto Color Balance
Resets individual picture tube guns (Red,
Green, Blue) to maintain consistent overall
picture quality for the life of the tube.
• Adaptive Video Noise Reduction
Video noise filter greatly reduces noisy
picture interference by automatically
adjusting to the incoming signal level,
providing a cleaner and more consistent
overall picture.
• High Performance Scan Velocity
Modulation (SVM)
Improved SVM circuitry automatically varies
the scanning speed of the picture tube's
electron beam to improve sharpness and
detail especially in high contrast areas.
• High-Resolution Dynamic Focus
Electron Gun
Specifically designed to optimize picture
performance of Digital Precision Pitch
Picture Tube. Improves corner and edge
focus for an overall sharper picture.
The RCA High-Resolution Digital Monitor is our most versatile TV ever.
MM36100
High Performance Video System
864,000 pixels
of resolution
High-Definition
Digital Receiver
RCA Model DTC100
4:3 ratio = 864,000 pixels
16:9 ratio = Over 1 million pixels
Within the monitor’s 4:3 aspect ratio viewing
area, you receive the same pixel resolution
inch for inch as with an HDTV picture.
It is the 30% wider 16:9 aspect ratio screen
that defines HDTV resolution.
Combining the Digital High-Resolution
Monitor with a DTC100 High-Definition
Digital Receiver will provide you an HDTV
quality picture.
➧
• Broadcast Stereo with dbx
4
Noise Reduction
Improves the clarity and fidelity
of stereo broadcasts by restoring
dynamic range and suppressing
unwanted noise.
• SRS Sound Retrieval
System
5
Brings dimensional realism to
television audio without the need
for additional speakers. Restores
the information used to
determine distance and direction
turning normal audio into a
three-dimensional sensation.
• Second Audio Program
(SAP)
Decodes the second audio
program available on some
broadcasts.
• Front-Fired Speaker System
Front-fired speakers offer 7.5
watts per channel of audio
power. Provide excellent imaging
while localizing voices at the
screen.
Remote
Sound
➤Master Touch®Universal
Glo-In-The-Dark Remote,
CRK76TD3
Connects Your World For Today And Tomorrow
To maximize the performance of the Digital High-Resolution Monitor, connect an RCA Satellite System. And the addition of the RCA DTC100 HDTV Digital
Receiver provides up to 864,000 pixel capability and will enable reception of high-definition programming when it becomes available.
Connections
• Audio/Video Monitor Panels
Feature 35 rear panel and
5 front panel connectors for:
Coaxial antenna, three
composite/three S-Video A/V
inputs, Y-Pr-Pb component video
inputs, two D-sub SVGA inputs
(one supports PC connection with
a mini-plug audio jack for PC
applications, the second SVGA
input with RCA-type audio jacks
provides connection for an HDTV
converter or other high-resolution
source component).
Composite outputs with RCAtype jacks provide A/V system
connection versatility.
• USB Connection System
The monitor/receiver is complete
with Universal Serial Bus (USB)
Port connection system which
provides connection convenience
with the latest USB compatible
PCs. Front and rear panel USB
jacks allow connections up to 127
USB peripherals such as game
pads, joysticks, keyboards, and
digital video cameras to be
configured with the monitor.
• SVGA Inputs
VGA monitor “plug-and-play”
convenience is supported via EDID
data reporting through DDC2B
protocol.
40 Multiple Inputs/Outputs
ANTENNA/
CABLE
INPUT
INPUT
INPUT
VIDEO
POWER
LR
AUDIO
S-VIDEO AUDIO
R
L
PIP MAIN S-VIDEO
SELECTED OUTPUTS
STEREO
OUTPUT
DVD COMPONENT INPUT
P
B PRY
STEREO INPUT
(S)VGA 1 (S)VGA 2
AUDIO INPUTS
L
R
DIGITAL
TV
FIXED VARIABLE
LR LR
AUDIO OUTPUTS
R
L
EXT SPEAKERS
EXT
INT
DEVICE /
HUB
PC/
HUB
USB
+––+
Computer
Speaker System
Terrestrial
(NTSC)
HDTV Digital
Receiver
Cable
Satellite
System
VCR
DVD Player
OR
Stereo System
Front Jack Panel
Camcorder
Video Game
OR
©1999 Thomson Consumer Electronics, Inc.
Form S-MM36100
Trademark(s) ® Registered
Marca(s) Registrada(s)
Photos and features subject to change
without notice. Illustration of product finish
may vary from actual color. Screen sizes
measured diagonally.
PC13155
1 Lines per picture width, 700 lines based on EIA measurement criteria.
2 VCR or second video source required
3 Check your cable company’s compatibility requirements.
4 dbx is a registered trademark of Carillon Electronics Corporation.
5 SRS, the SRS symbol and Sound Retrieval System are registered trademarks of SRS Labs, Inc.
Specifications
MM36100
Screen Size (diagonal) 36"
Finish Ebony Texture
Cabinet Dimensions 309⁄10" H, 333⁄5" W, 243⁄10" D
Approx. Shipping Weight 190 Lbs.
Lines of Horizontal Resolution 930
Plus
• Limited Warranty
–One year for labor charges.
–One year for parts.
–Two years for picture tube.
–See RCA dealer for complete details.
Convenience
• Color Picture-In-Picture
2
Watch two programs at the
same time—both in color.
Remote-controlled operation
includes Picture-In-Picture On/Off,
Move and Swap.
• Picture Reset
Instantly returns picture to factory
settings for Color, Tint, Contrast,
Brightness, and Sharpness.
• Advanced Auto Channel
Search
Auto Cable/Air Switch sets tuner
to cable or “off-air” frequencies
during initial setup. Then system
automatically scans for and locks
active channels into channel
memory.
• On-Screen Menu System
On-screen displays make it easy
to adjust more picture, sound, and
convenience features from either
the remote control or the TV front
panel buttons.
• Interactive Setup Menu
Convenient on-screen menu system
automatically steps user through
the initial setup procedures.
•
Assign on-screen characters to easily
identify channels (e.g. NBC, HBO,
ESPN, VH-1).
• V-Chip Parental Control
Puts control back into the hands of
the viewer by blocking unwanted
television broadcasts with NEW
U.S. Government required circuitry.
Blocks three types of programs:
regular television programs,
broadcast movies and unrated
programs.
Program rating information is
sent by the broadcaster
before the beginning of each
program. The television will match
program rating to user preference
and block the entire program.
User preference is secured using
a four-digit password.
Changing Entertainment. Again.
