RCA Intuition HT User Manual

800.426.6844 | 503.648.6500 | 503.648.7500 f
1050 NW 229th Avenue | Hillsboro OR 97124
www.mti-interactive.com

MTI P/N 063-0209-00 | Rev B | July 2004

PRODUCT MANUAL

Intuition HT

Home Theater Switching Application

INTRODUCTION/SYSTEM OVERVIEW

The Intuition HT is an interactive display system designed to showcase home theater systems and accessories. With
this system, customers can easily configure a home theater system and then compare the performance of different
product combinations by substituting system components. Customers can also use the system to get detailed
product information and thus make comparisons between different manufacturers, prices, and options.

USAGE APPLICATIONS

The system offers several retail applications:

• Retail Product Demonstration – The system provides an attractive display to demonstrate audio systems and
accessories to prospective buyers.

• Customer Attraction - When the display is not in use by a customer, it automatically plays a video “attract
loop.” The attract loop is designed to grab the attention of a passing customer and thus increase traffic to the
display.

• Employee Training – The system can help train employees by providing them the ability to test different audio
system combinations.

PRODUCT DESCRIPTIONS/GENERAL SPECIFICATIONS

The system is comprised of the following major components:

• Display fixture – cabinet that showcases the home theater components and accessories. It contains the
hardware that connects the audio components together and the switching modules that activate the selected
components.

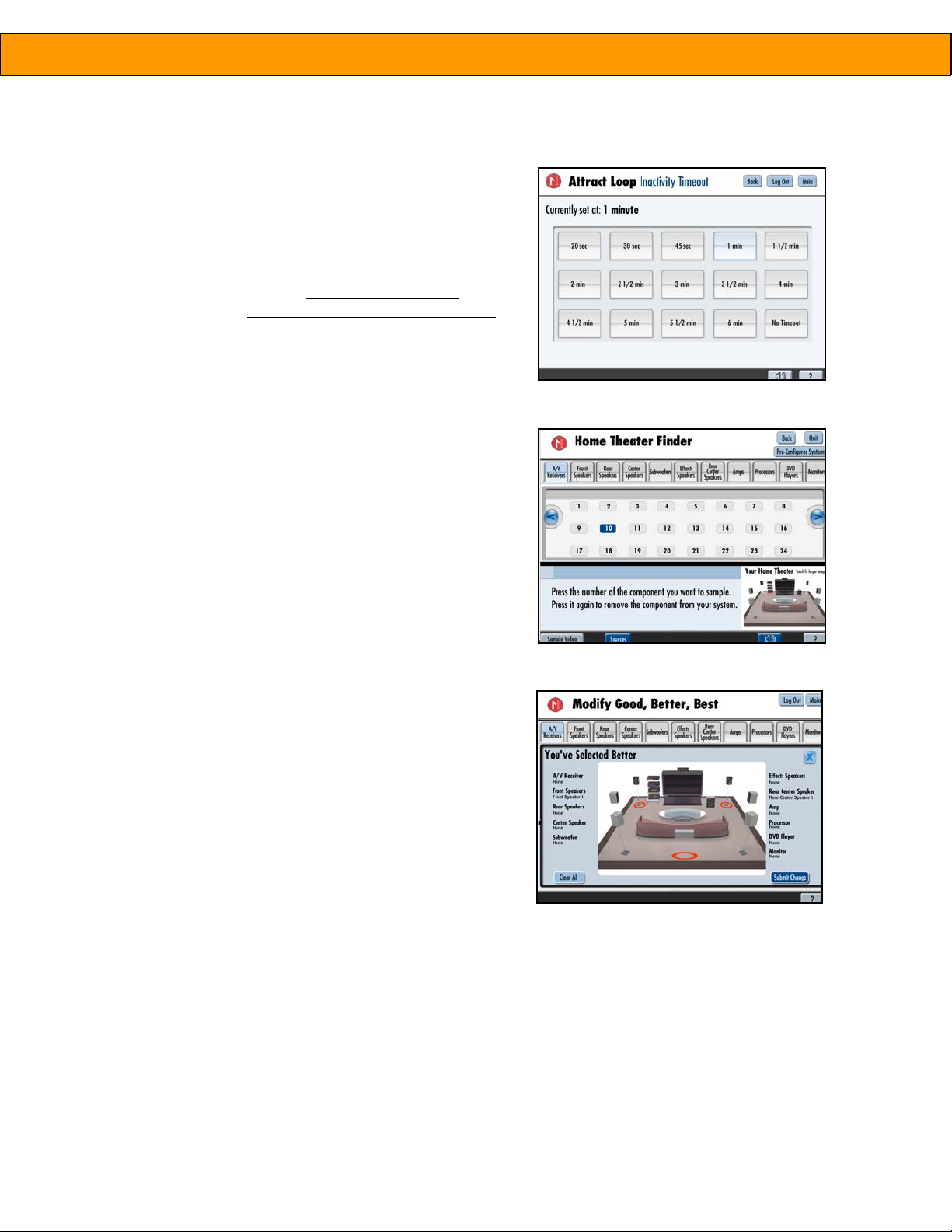

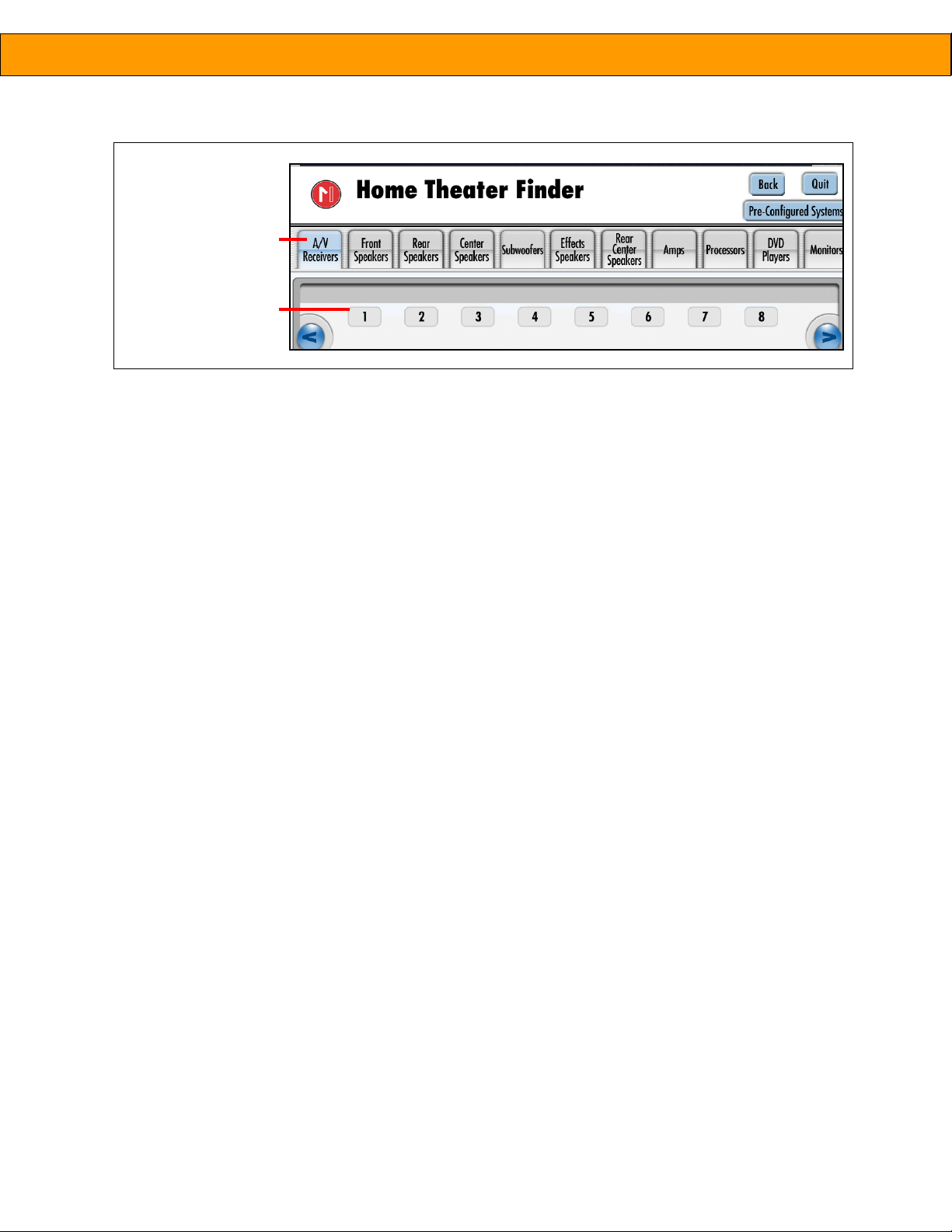

• Intuition Touch Panel (touchscreen) – flat panel monitor that provides the user interface for controlling the
display. When a customer touches a selection button on the screen, it activates the selected component in the
display.

• Master Control Unit (MCU) – processor that links and controls the touchscreen and switching hardware.

3

Product Manual – INTUITION HT

4

Product Manual – INTUITION HT

INSTALLATION

MASTER CONTROL UNIT (MCU)

1. Insert a USB cable into the top USB slot in middle rear of MCU (

indicated as USB in fig. 1

).

2. Insert blue, male-ended VGA monitor cable from the touchscreen into female monitor port on the left rear of
the MCU

(Monitor, fig. 1)

.

3. Insert white/grey female-ended serial cable from the switching system into left male serial port

(Switching,

fig. 1)

.

4. Insert red and white male RCA cables into same color ports

(Audio, fig. 1)

.

5. Insert power cable into power port

(AC, fig. 1)

.

TOUCHSCREEN

1. Insert a USB cable from the MCU into the USB
slot on the bottom of the touchscreen (

circled

in fig. 2

).

2. Insert blue, male-ended VGA monitor cable
from the MCU into female monitor port on the
bottom of the touchscreen.

3. Insert power cable into power port.

SWITCHING INTERFACE BOARD

1. Insert white/grey female-ended serial cable from the MCU
into the interface board connected to your MTI switching
system. (

fig. 3

)

fig. 1 – Master Control Unit

fig. 3 – Switching interface board

fig. 2 – Touchscreen
