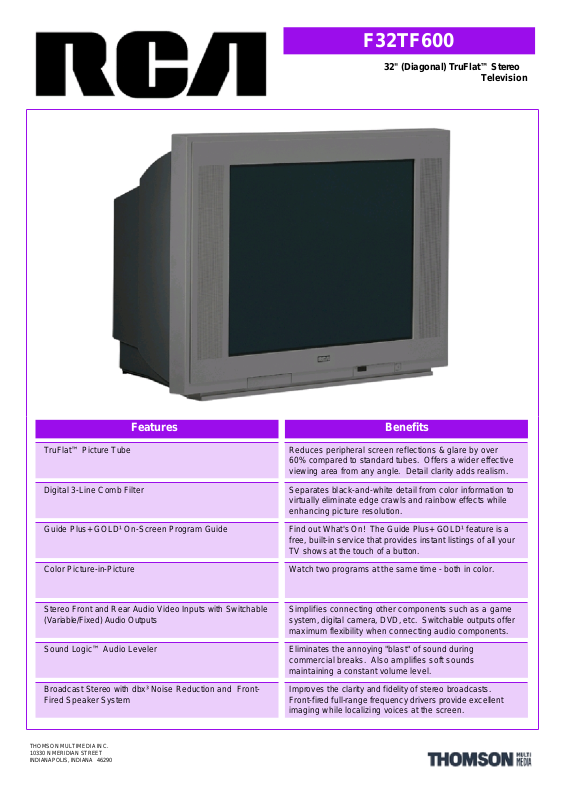

RCA F32TF600 User Manual

F32TF600

32" (Diagonal) TruFlat™ Stereo

Television

Features Benefits

TruFlat™ Picture Tube

Digital 3-Line Comb Filter

Guide Plus+ GOLD¹ On-Screen Program Guide

Color Picture-in-Picture

Stereo Front and Rear Audio Video Inputs with Switchable
(Variable/Fixed) Audio Outputs

Sound Logic™ Audio Leveler

Broadcast Stereo with dbx³ Noise Reduction and Front­Fired Speaker System

Reduces peripheral screen reflections & glare by over
60% compared to standard tubes. Offers a wider effective
viewing area from any angle. Detail clarity adds realism.

Separates black-and-white detail from color information to
virtually eliminate edge crawls and rainbow effects while
enhancing picture resolution.

Find out What's On! The Guide Plus+ GOLD¹ feature is a
free, built-in service that provides instant listings of all your
TV shows at the touch of a button.

Watch two programs at the same time - both in color.

Simplifies connecting other components such as a game
system, digital camera, DVD, etc. Switchable outputs offer
maximum flexibility when connecting audio components.

Eliminates the annoying "blast" of sound during
commercial breaks. Also amplifies soft sounds
maintaining a constant volume level.

Improves the clarity and fidelity of stereo broadcasts.
Front-fired full-range frequency drivers provide excellent
imaging while localizing voices at the screen.

THOMSON MULTIMEDIA INC.
10330 N MERIDIAN STREET
INDIANAPOLIS, INDIANA 46290

F32TF600

Technical Specifications :

BRAND

Brand RCA


Screen Size - diagonal (inch) 32 TruFlat™
Category Table TV
Aspect Ratio 4x3
Screen Type TruFlat™
Adjustable Color Temperature Yes
Auto Color Balance (AKB) ­ Auto Color Control Yes
Comb Filter Digital 3-Line
Dynamic BlackStretch Circuitry Yes
Preferred Picture Presets 3+Personal
Scan Velocity Modulation (SVM) -

SOUND

Sound Type Brdcst Str w/dbx³ Noise Reduction
Second Audio Program (SAP) Yes
Sound Logic™ Audio Leveler Yes
Tone Control Bass & Treble + Balance
Balance Control Yes
Front Speakers (number) 2
Front-Fired Speaker System Yes

RECEPTION

Tuning Capability NTSC

CONVENIENCE

Auto Channel Search Yes
Channel Labeling Yes
Commercial Skip Yes
Guide Plus+ Program Guide¹ Gold (Free Service)
Interactive Set-up w/ Menus Yes
Multilingual On-Screen Display English/French/Spanish
On-Screen Time & Channel Display Yes
One-Touch VCR Record (Gemstar) Yes
One Button Launch for Inputs Yes - Auto Tune
Parental Control (V-Chip) Yes
Pic Memory Presets for Vid Inputs ­ Picture Reset Yes
Picture-in-Picture Yes
Programmable Timer System Clock/Sleep/Turn-On/Scheduler

REAR CONNECTORS

RCA VPORT™ ­ Audio/Video Inputs (Composite) 1 L&R Audio, 1 Video
S-Video Input 1 - Auto-Detectible
Component Video Input (YPrPb) ­ Audio Outputs 1 Set - L&R Audio
Audio Outputs (Type) Switchable - Variable/Fixed
G-Link¹ Connector Yes
RF Input (Antenna) 1

FRONT CONNECTORS

Audio/Video Inputs (Composite) 1 L&R Audio, 1 Video
S-Video Input ­ Headphone Jack -

SPECIFICATIONS

Finish Silver Shark
Product Size (WxHxD) inches 36 7/8 x 27 1/8 x 22 1/8
Approx. Shipping Weight, lbs 157 lbs
AC/DC Power Options AC Only

REMOTE CONTROL

Remote Model Number CRK76TA1
Remote Type Universal Glo-in-the-Dark

INCLUDED ACCESSORIES

Instruction Book Languages English/French
DC Cigarette Lighter Adapter ­ VPORT™ Component Video Cable -

1 - Guide Plus+ GOLD and G-LINK are trademarks of Gemstar-TV Guide International Inc.
3 - dbx is a registered trademark of Carillon Electronics Corporation.

©2002 Thomson multimedia Inc.
Trademark(s) ® Registered
Marca(s) Registrada(s)

Photos and features subject to change without notice. Illustration of product finish may vary
from actual color.

Revised 5/10/02
