USER'S

GUIDE

C 0

[

WARNING

To reduce the risk of fire or shock hazard, do not expose

this TV to rain or moisture.

To reduce the risk of electric shock, do not remove

cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

_This symbol indicates

This

symbol

indicates

"dangerous voltage" inside

important instructions

the product that presents a accompanying the product.

risk of electric shock or personal injury.

Caution: To reduce the risk of electric shock, match wide

blade of plug to wide slot, fully insert.

Attention: Pour eviter les chocs electriques, introduire la

lame la plus large de la fiche darts la borne

correspondante de la prise et pousserjusqu au fond.

Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

FCCRegulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.

If fixed (non-moving) images are left on the screen for long periods, they may be permanently imprinted on the screen. Such images include network Iogos, phone numbers, and video games. This damage is not

covered by your warranty. Extended viewing of channels displaying these

images should be avoided.

Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as

practical.

I CR Plus+, PlusCode and GUIDE Plus+ are trademarks of Gemstar |

Development Corporation. TV GUIDE is a trademark of TV Guide Financial, Inc. The VCR Plus+ and TV GUIDE Plus+ systems are manufactured under license from Gemstar Development Corporation and VCR Index Systems B.V., respectively.

FIRST THINGS FIRST ...................................... 3

Connecting your TV ....................................................... 4

TV Only ..................................................................... 4

TV with other Components ..................................... 4

TV Guide Plus+ Controller ....................................... 5

USING THE MENU SYSTEM ........................... 7

The Menu Rule: Point and Select ................................. 8

What is Point and Select? ........................................ 8

Menus and Control Panels .......................................... 10

Menus ..................................................................... 10

Control Panels ........................................................ 11

Choice Lists ............................................................. 12

Numeric Entry ......................................................... 13

TV Guide Plus+ Menus ........................................... 14

INTERACTIVE SETUP ..................................... 15

Entering Setup ............................................................. 16

Select a Language ....................................................... 16

Auto Channel Search ................................................... 16

TV Guide Plus+ System ................................................ 17

Set the Time ................................................................. 23

Set the VCR1 Channel ................................................. 24

Set the DVD/VCR2 Channel ......................................... 25

Set the SAT/CABLE Channel ........................................ 26

Label the Channels ...................................................... 27

PROGRAMMING THE REMOTE .................. 29

Programming the Remote .......................................... 30

To Control a VCR .................................................... 30

To Control a DVD Player or Laserdisc Player ........ 32

To Control an RCA Audio Device: ......................... 32

To Control a Satellite Receiver or Cable Box ........ 33

Using the remote to Control a Device ....................... 33

TOUR OF THE TV ........................................... 35

Remote Buttons ........................................................... 36

Back Panel .................................................................... 38

Front Panel ................................................................... 40

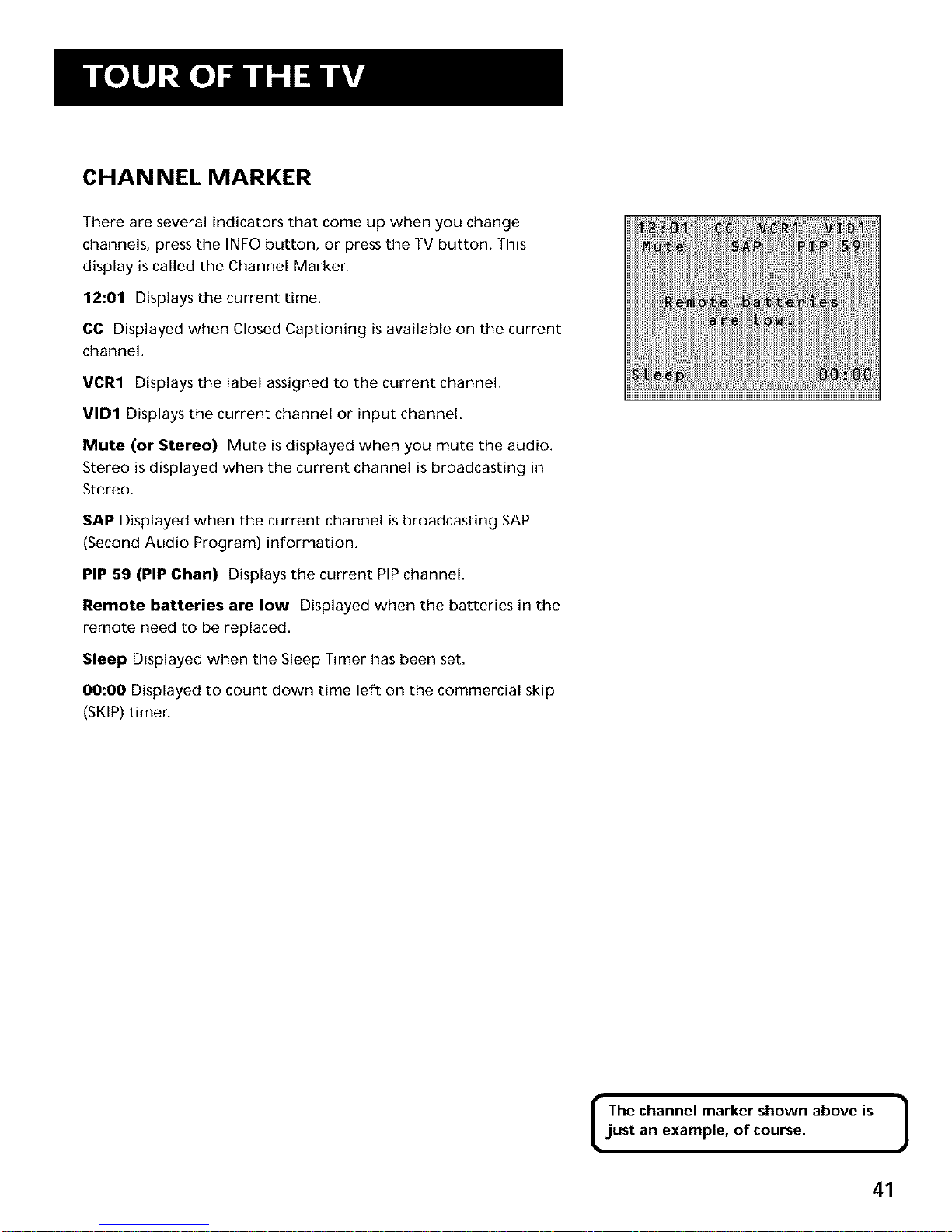

Channel Marker ........................................................... 41

QUICK REFERENCE ........................................ 43

Audio Menu ................................................................. 44

Picture Quality Menu .................................................. 45

Screen Menu ................................................................ 46

Channel Menu ............................................................. 47

Time Menu ................................................................... 49

Parental Controls Menu .............................................. 50

TV GUIDE Plus+ Menu ................................................. 51

Setup Menu ................................................................. 52

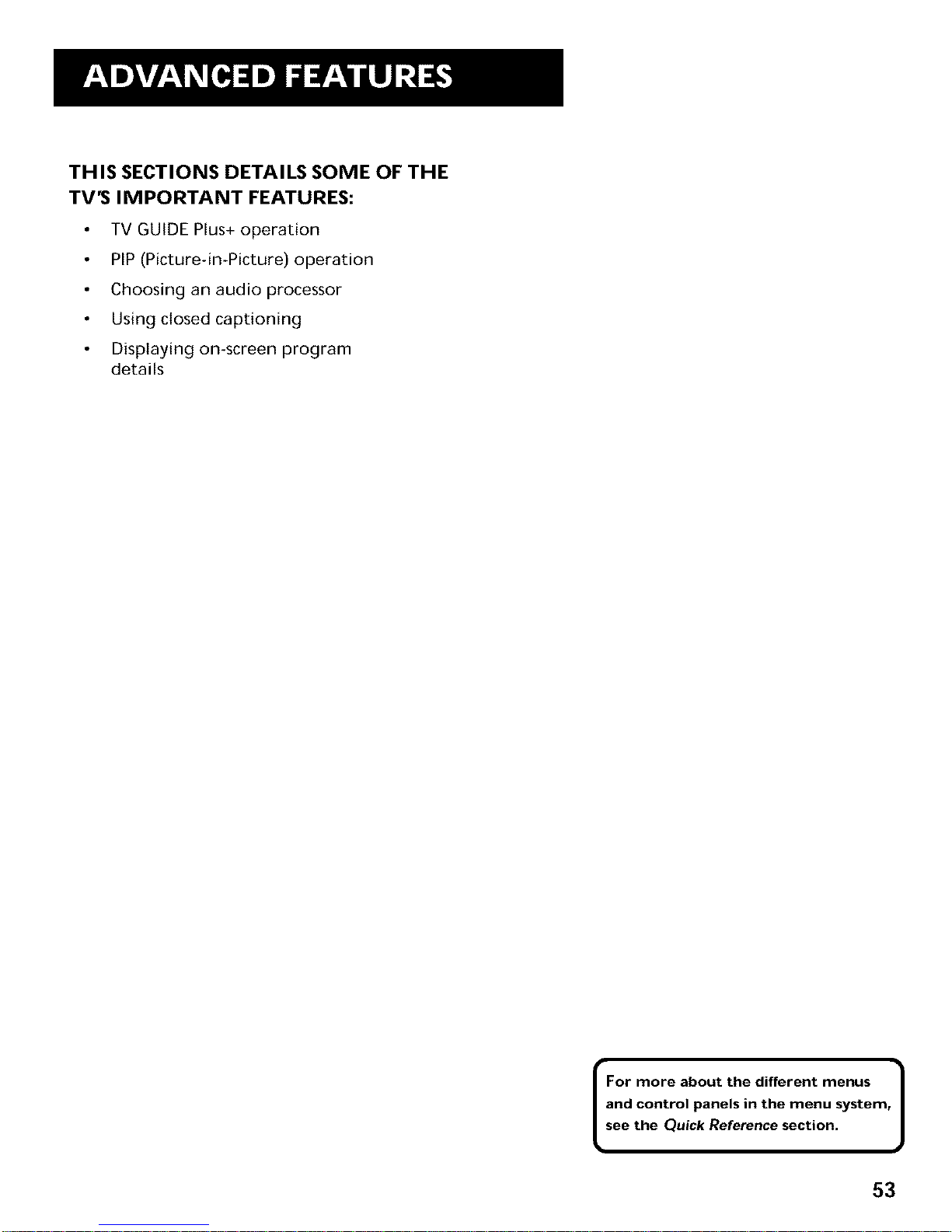

ADVANCED FEATURES ................................. 53

TV Guide Plus+ Operation .......................................... 54

Surf Menu ............................................................... 54

Next Menu .............................................................. 55

Scan Menu .............................................................. 55

Sort Menu ............................................................... 56

PIP (Picture-in-Picture) Operation .............................. 58

Two Tips for using PIP Buttons .............................. 59

Choosing an Audio Processor ..................................... 60

Closed Captioning ....................................................... 61

To display Closed Captioning ................................ 61

Closed Captioning Modes ...................................... 62

On-screen Program Details ......................................... 63

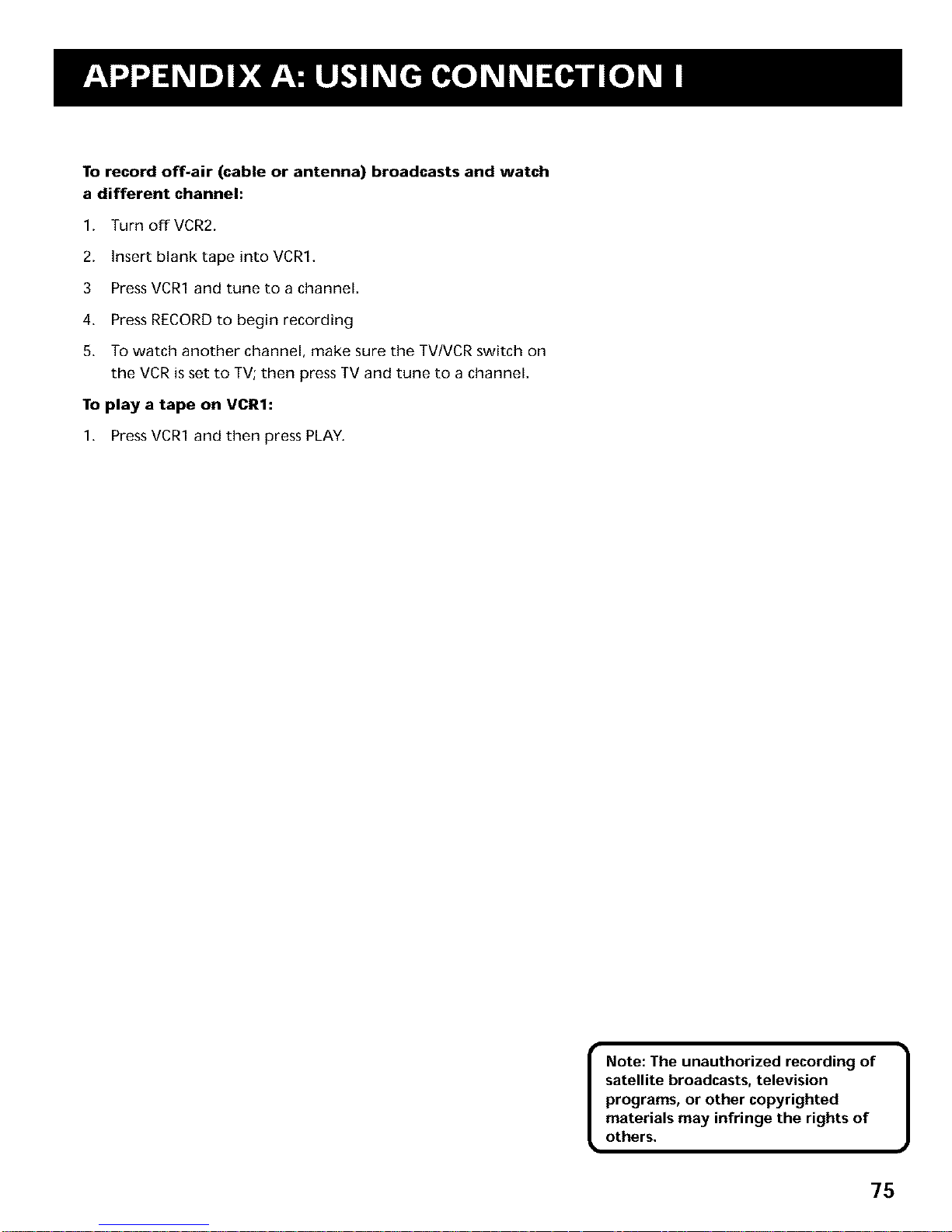

APPENDIX A: TV CONNECTIONS ............... 65

APPENDIX B: OTHER COMPONENTS ........ 76

APPENDIX C: TROUBLESHOOTING ............ 78

APPENDIX D: LIMITED WARRANTY ........ 80

APPENDIX E: CARE AND CLEANING .......... 81

ACCESSORIES ................................................. 82

INDEX ............................................................. 85

HI, IM ROGER.

I wrote this manual to help you get the most from your TV. 1know you expect a lot from your TV, so I designed this user manual to give you the information you need.., when you need it.

FIRST THINGS FIRST

READ THE FIRST FOUR CHAPTERS

The manual is designed to get you started

quickly.., and let you catch up on the details when you get a chance. The first four sections of the manual will get your TV up and running. You'll learn how to use the menu system, run the

interactive setup routine and program the remote.

The rest of the manual gives you the specifics: a tour of the TV, a quick reference guide, details

on the TV GUIDE Plus+ system, advanced features, and appendices.

Well... if your TV's out of the box, let's get started, First things first,

I Check out the notes I've added 1

throughout the manual. I've got some great tips that will help you get the most from your TV.

STEP 1

Unpack the TV. Make sure to locate the remote control and

Connections Foldout.

Important Stand Information

CAUTION: Choose the location for your TV carefully. Take

precautions that the stand or other furniture the TV is placed on is properly located (see Important Safeguards sheet) and of

adequate size and strength to prevent the TV from accidentally

being tipped over, pushed off, or pulled off. This could cause

damage to the TV and/or personal injury.

STEP 2: CONNECTING YOUR TV

If you're only going to connect the TV to your home antenna or cable system, use the "TV Only" connection shown below. If you're going to connect the TV to a VCR, satellite receiver, DVD

player or other component, look at the Connections Foldout. The Connections Foldout details recommended connection schemes

for hooking up the TV to a cable box or antenna, one or two VCRs, a laserdisc player, and a satellite receiven

TV ON LY

This is a basic connection from an antenna or cable system to your TV. Connect the cable as shown. If you have a VCR or other

components to connect to the TV, skip to the top of the next

page.

CABLE, CABLE BOX, OR ANTENNA

TV Only Connection

TV WITH OTH ER COMPON ENTS

Use the Connections Foldout to connect your TV to a VCR, DVD

player, and/or satellite receiver. After connecting your TV and other components, proceed to the next step. SeeAppendix A for detailed information about using each of these connections.

If your components don't match those shown on the foldout, or if you prefer a different connection, see your dealer or specific

component user manuals.

_::_::_:::::

TV GUIDE PLUS+ CONTROLLER

The TV GUIDE Plus+* controller allows direct control of a cable

box and VCR using a pair of IR (infrared) controllers.

Plug the TV GUIDE Plus+ controller into the VCR CONTROL

.jack on the back of the TV.

Affix the IR controllers directly over the IR remote sensors on your cable box and VCR.

Back of TV

Cable Box

VCR

Connect IR controllers to the infrared remote

sensors on your cable box and VCR

STEP 3

Plug in the TV.

Plug the end into the wall outlet, matching the wide blade of the plug with the wide slot in the outlet. Be sure to insert the

plug completely.

* GUIDE Plus+ is a trademark of Gemstar Development Corporation.

TV GUIDE is a trademark of TV Guide Financial, Inc.

Locating the IR (infrared)

Remote Control Sensor on

Your Cable Box or VCR

The IR controllers must be affixed directly over the IR remote sensors on

your cable box or VCR. Some cable boxes and VCRs label the

IR sensors; others do not. If the

sensors are labeled, affix the IR controllers directly over them.

IR Remote Sensor

For those that do not label the IR

sensor, you need to use the cable box or VCR's remote to locate the sensor

before affixing the IR controllers.

1. Hold the remote control so that it is touching the front of the cable

box or VCR.

Slowly move the remote over the front of the cable box or VCR

while pressing the remote's

POWER button on and off

3. When the cable box or VCR turns off or on, you've located the

sensor.

You should test the IR controllers after setting up the TV GUIDE Plus+

system. Temporarily attach the IR controllers with clear tape to the spots where you think the sensors are located. After determining that the controllers are working correctly, affix them permanently.

STEP 4

Put batteries in the remote.

Remove the battery compartment cover from the back of the remote.

Insert batteries as shown, matching the + and - ends of each battery in the compartment.

Replace the cover.

STEP 5

Turn on the TV.

Press TV on the remote, or press POWER on the TV itself.

STEP 6

Read the next section, Using the Menu System, which is a brief

overview of the basic rules for getting around in the menus,

STEP 7

Proceed to section three, Interactive Setup. The interactive setup

routine walks you through the steps needed to fully configure the TV. The first steps ask you to select your preferred language for the menu system and to begin the auto channel search, which

puts available cable TV or antenna signals into the TV's memory. You can skip any of the steps and return to them later.

R_WRSE FORWARD

R_C'VCR+ _ PAUSE

Fiq r_q

MUT_ _H- GOBACK

FAMI NpUT ANTENNA

0 00 0

_. SOUND

GU_OE

mTV

ONE RULE TO REMEMBER

You control and customize the TV by making changes to various control panels in the menu system. The great thing is, you only need to know one rule: point and select.

USING THE MENU SYSTEM

THE MENU RULE: POINT AND SELECT

You only need to know one rule to use the on-screen menus and

control panels: point and select.

WHAT IS POINT AND SELECT?

The point and select method has two steps.

1. Point to a menu item using the MOVE arrows on the remote.

To point up or down, press the up or down arrows. To point

left or right, press the left or right arrows.

2. Select a menu item by pressing MENU-SELECT. Selecting an item tells the TV's menu system to go ahead and

make the change or go to a place you have indicated.

For example, to select the Channel menu from the Main menu:

1. Press MENU to bring up the Main menu.

Point to Channelby pressing the down arrow until the word

Channel is highlighted.

Tip: You can also select a menu item by entering the item number with the

number buttons on the remote, Press CLEAR at any time to remove all

displays from the screen and return to TV viewing,

Many VCRuser manuals refer to a

PROGRAM button, The MENU*SELECT button on this remote works as a PROGRAM button in VCR mode. The rest of this manual refers to this

button only as MENU.

3. Press MENU to select Channel. The Channel menu comes up.

Point to Exitand press MENU to return to the Main menu. Point to Exitand press MENU to leave the menu system and

return to TV viewing. If you ever want to leave the menu system, press CLEAR.

Once you know how to point and select your way through the

menus, you can apply this rule in the control panels, which do

the real work in the menu system.

MENUS AND CONTROL PANELS

There are three parts to the menu system: menus, control panels, and the TV GUIDE Plus+ system. But before you can use control

panels or the TV GUIDE Plus+ system, you first have to move

through at least one menu--the Main menu.

MENUS

The first menu is called the Main menu. To bring up the Main

menu:

1. Press MENU on the remote or front panel:

Menus take you to another menu or a control panel. There are

two ways to make a choice in a menu:

Point and select with the MOVE arrows and MENU. Press a number button on the remote. For example, in the

Main menu press 3 to go straight to the Screen menu.

Exiting a menu

There are three ways to exit a menu:

Point to Exitand press MENU. Press 0 on the remote.

Press CLEAR. The on-screen displays are cleared from the

screen and you are returned to TV viewing.

Feel free to explore the menu system. If you're ever unsure where you are in

the menu system, or you're just plain tired of exploring, press CLEARto

remove the menus from the screen and start over again.

CONTROL PANELS

Control Panels do the work in the menu system: it's where you choose a setting, enter a number, or adjust a level such as tint or

brightness. There are three kinds of control panels: sliders, choice lists, and numeric entry.

Sliders

Sliders are used to make adjustments to a particular control.

For example, to adjust the TV's contrast:

1. Press MENU to bring up the Main menu.

2. Point to Picture Quality and press MENU. The Picture Quality menu comes up.

3. Press MENU to select Basic Picture Controls.

4. Press the right or left arrow to adjust the indicator line, Notice that the picture changes as you adjust the contrast,

Now that you know how the Contrast slider works, you know how all sliders work.

You don't need to remember the |

names of the control panel types. Once you've learned how each type works, you'll be able to use any part of the menu system.

CHOICE LISTS

Choice lists are used to choose a particular setting from a list of settings. The current setting in a choice list is always the

highlighted item.

For example, to indicate whether you're currently using a home

antenna or a cable TV signals:

1. Press MENU to bring up the Main menu.

2. Point to Channeland press MENU. The Channel menu comes up.

3. Point to Signal Type and press MENU. The Signal Type choice list comes up with the current setting highlighted. For

example:

Point to the correct setting for your connection and press

MENU. As soon as you select a choice, the TV saves your

change, and you are returned to the previous menu. Point to Exitand press MENU to return to the Main menu. Point to Exitand press MENU to return to TV viewing.

NUMERIC ENTRY

A numeric entry control panel is used to enter numbers or

letters. For example, to set the current time:

1. Press MENU to bring up the Main menu.

2. Point to Time and press MENU.

3. Point to Set Time and press MENU. The Set Time numeric

entry control panel comes up. Notice the pointer underneath the first column.

Press the up arrow to enter a number in that column. Press the right arrow to move to the next column, then press

the up or down arrow to enter a number.

Repeat Step 5 until you have entered the hour and minute

for the current time. Notice that when you reach the last column, pressing the up or down arrow changes whether the

time reads AM or PM. When you have entered the correct time, press MENU. You

are returned to the Time menu. Point to Exitand press MENU to return to the Main menu.

Point to Exitand press MENU to return to TV viewing.

If the control panel is not set at the

current time, use the left arrow to go back over the columns and the up arrow to make changes.

You can also enter numbers directly

by using the number buttons.

TV GUIDE PLUS+MENUS

The TV GUIDE Plus+ system is an interactive on-screen program guide that lists TV schedules for your area, and allows your TV direct control of a cable box and VCR. Use of the system's menus differs slightly from the point and select method described

earlier.

1. Press GUIDE to bring up the TV GUIDE Plus+ menu.

WABC 5 Cosby WGN 9 Baseball Cubs vs Braves WNBC 4 Simple Pleasures

WCBS 11 Jerry Springer WTRW 17 Weaving Today

WJAX 34 The Ubiquitious G Men WIMT 42 YOU Bez Your Life

Menus or Options

Information

Channel Listing

There are three sections to a TV GUIDE Plus+ menu:

A row of menus or options across the top of the screen

Program information

Channel listing

Unlike your TV's other menus, TV GUIDE Plus+ menus use two methods of pointing and selecting on the same screen--one for menus or options, and one for program information.

To select menus or options:

Press the right or left arrow to highlight your choice. Press MENU to select the highlighted item. MENU is used only

when selecting menus or options.

To make selections in the program listing:

Press the up or down arrow to select a channel.

Press GUIDE or CLEAR to exit the TV GUIDE Plus+ system. The TV will change to the channel you selected if you used the GUIDE button. Pressing CLEAR returns to the original

channel.

See Interactive Setup and Advanced Features for more information on using the TV GUIDE Plus+ system.

TV GUIDE Plus+ screens illustrated in this book are representations of what

you are likely to see. Not all channels, programs, and TV GUIDE Plus+ infor- mation depicted will be available in your area.

Currently, program information can include title, brief description, time program starts, length, and the availability of closed captioning, stereo and additional program

information. New features and options can be

downloaded to the TV GUIDE Plus+ system, so these too are subject to

change.

THERE_ AN ON-SCREEN SETUP ROUTINE

Your TV has software that tells it what to do,just

like a computer, The interactive setup routine takes

you through the steps needed to configure the TV:

Select a menu language Search for available channels

Set up the TV GUIDE Plus+ system Set the time

Set the VCR1 channel Set the DVD/VCR2 channel Set the SAT/CABLE channel

Make the channel list and labels

I NTERACTIVE SETUP

Complete the first two steps, Select

Language and Auto Channel Search, to receive antenna or cableTV signals.After

that, you can skip other steps and return

to them at your convenience.

ENTERING SETUP

Setup is accessed through the Main menu:

1. Press MENU to bring up the Main menu.

2. Point to Setup and press MENU. The first Setup screen comes up, asking you to confirm that you want to begin.

3. Press MENU to begin the Setup routine.

SELECT A LANGUAGE

The first part of the setup routine asks you to select your

preferred language for the menuing system.

1. Point to your preferred language for the menuing system.

2. Press MENU to select that language for the menuing system.

AUTO CHANNEL SEARCH

The next part of the setup routine asks you if you want the TV to search automatically for all channels available through your

antenna or cable TV system. This is sometimes called "autoprogramming."

Press MENU to tell the TV to begin searching for channels. The display gives you a progress report and tells you when it

has finished.

2. Press MENU to continue.

TV GU IDE PLUS+÷SYSTEM

The next step lets you set up the TV GUIDE Plus+ system to display your local program listings, and control your cable box

and VCR.

If you skip Auto Channel Search now,

you can access it later through the

Channel menu. You can also put channels in memory manually using

List & Labels. See Quick Reference for

more details.

)

1. Press MENU to bring up the TV GUIDE Plus+ initial menu.

Demo Select Channels Exit

2. Press MENU to begin setup.

To complete TV Guide Plus+ setup, you must have already connected the TV Guide Plus+ controllers to your

cable box and VCR. Refer to First

Things First for more details.

The first two screens ask for information about where you live.

Where do you live?

Canada

3. Select your country.

CA.CSL

Enter your zipcode

4. Enter your ZIP code (Postal Code in Canada) using the numeric keypad. If you make a mistake, press MENU to back up a number.

The next series of screens asks you about your cable TV setup. If you have a cable box, you will want to set the TV GUIDE Plus+ system to control it. Otherwise, it may not be able to locate and download program information.

DO you have cable?

5. Select YESif you have cable, or NO if you do not

[

Since the program information | provided by TV Guide Plus+ is based

on your locale, you will need to run setup again if you move.

DO you have a cable box?

6. Select YESif you have a cable box, or NO if you do not.

CANCEL EXIT

Turn on cable box Enter cable box brand # from

brand table in your manual

7. Enter the code for your cable box's brand from the table on the following pages.

When the TV GUIDE Plus+ system correctly identifies the brand and model of your cable box, the cable box changes to channel 9.

Testing code i 2 0 •

_as your cable box switched to channel 9?

8. Select YESif the cable box changed to channel 9, or NO if it did not. If you select NO, the system will try another code.

Once the correct model of cable box has been identified, you will need to set the cable box's output channel.

When TV Guide Plus+ cannot

recognize either your cable box or VCR after several tries, a screen

reading, "Cable Box (VCR) test failed... Please consult manual and try

again" appears. If this happens, you should:

• Double check the codes listed in the

tables. Try entering another.

• Check to make sure the IR

controllers are positioned correctly.

CANCEL

Select Cable Box Output Channel

Enter the channel you normally use to view channels through

your cable box--usually 3 or 4. Consult your cable bows

instruction book or your cable company if you are not sure.

Choose 0 to use VIDEO INPUT 1.

The last series of screens asks about your VCR setup.

DO you have a VCR?

10. Select YE$ifyou have a VCR, or NOif you do not.

Answering NO automatically skips forward to the end of TV GUIDE Plus+ setup.

CA:<EL EXIT

Tune VCR to 2 and turn it off Enter VCR brand # from brand table in your manual

11. Tune your VCR to channel 2 and turn it off.

12. Enter the code for your VCR's brand from the table on the following pages.

Channels 0-7 can be used for the cable box's output channel. "0" is

used for VIDEO INPUT 1 (INPUT 2

cannot be used); 1-7 are regular TV channels.

See Advanced Features for more details on using the TV GUIDE Plus+

system to control a cable box and VCR.

When the TV GUIDE Plus+ system correctly identifies the brand and model of your VCR, the VCR's tuner changes to channel 9.

NO EXIT

Testing code i 2 0 1

Has your VCR

switched to channel 9?

13. Select YESif the VCR automatically changed to channel 9, or NO if it did not. If you select NO, the system will try

another code.

This screen comes up when you've successfully finished TV GUIDE Plus+ setup.

Your TV Guide Plus_ will be ready for use within 24 hour_,

Always leave your cable box ON and your VCR OFF.

14. Select EXITto continue with the remainder of the interactive setup.

The TV GUIDE Plus+ system will be unavailable until it completes

its first download of program information.

When the power is turned off, the TV locates a "host channel" that carries TV GUIDE Plus+ data containing program schedule and channel mapping information. A channel map is the list of

stations and their respective channels. See Advanced Features for more details.

Downloads may be scheduled several times a day. The TVmust be turned off for TV GUIDE Plus+ data to download,

If more than one cable company

services your area, the TV GUIDE Plus+ system may download a

channel map for each company. After the TV completes its first

download, you will be prompted to manually select the channel map.

See Advanced Features for complete

instructions.

(

TV GUIDE Plus+ VCR Codes

Admiral ................................ 19

Akai ..................................... 15

Audio Dynamics .................. 11

Belcor ................................... 16

Bell&Howell ........................ 04

Broksonic ............................. 26

Candle ................................. 27

Canon .................................. 03

Capehart .............................. 16

Craig .................................... 17

Curtis ................................... 23

Daewoo ............................... 16

DBX ...................................... 11

Electrohome ........................ 08

Electron ............................... 01

Emerson ............................... 05

Fisher ................................... 04

Funai .................................... 14

GE ........................................ 01

Go Video ............................. 02

Goldstar ............................... 22

Grundig ............................... 03

Harman Kardon .................. 08

Hitachi ................................. 21

Images ................................. 02

JC Penney ............................ 25

Jenson .................................. 31

JVC ....................................... 12

Kenwood ............................. 12

KLH ...................................... 17

Magnavox ........................... 07

Magnin ................................ 23

Marantz ............................... 11

Marta ................................... 22

Memorex ............................. 29

MGA .................................... 08

Minolta ................................ 21

Mitsubishi ............................ 08

Montgomery Ward ............. 14

Movie Walker ...................... 14

MTC ..................................... 14

Multitech ............................. 14

NEC ...................................... 11

Nikko .............................. 16,22

Olympus .............................. 03

Optimus ............................... 27

Optonica .............................. 19

Orion ................................... 24

Panasonic ............................ 03

Pentax .................................. 21

Philco ................................... 28

Philips .................................. 28

Pilot ..................................... 22

Pioneer ................................ 21

ProScan ................................ 01

Quasar ................................. 03

Radio Shack/Realistic .......... 30

Randix .................................. 22

RCA ...................................... 01

Samsung .............................. 23

Sansui .................................. 20

Sanyo ................................... 04

Scott ..................................... 05

Sears .................................... 06

Sharp ................................... 19

Shintom ............................... 17

Shogun ................................ 23

Signature ............................. 19

Sony ..................................... 13

Sylvania ............................... 28

Symphonic ........................... 14

Tatung ................................. 31

Teac ...................................... 31

Teknika ................................ 18

Telefunken .......................... 05

TMK ..................................... 05

Toshiba ................................ 10

Totevision ............................ 23

Vector Research .................. 11

Zenith .................................. 09

The TV GUIDE Plus+ system may not operate all models of | the brands listed in the tables on this page.

TV GUIDE Plus+ Cable Box Codes

Archer .................................. 14

Cable Cinema ...................... 31

Cabletenna .......................... 31

Cableview ............................ 31

Century ................................ 27

Citizen ................................. 29

Curtis ................................... 04

Diamond .............................. 31

Eagle .................................... 09

Eastern ................................. 13

GC Electronics ..................... 26

Gemini ................................. 15

General Electric ................... 19

General Instrument ............ 01

Gerrard ................................ 27

Hamlin ............................ 06,13

Hitachi ................................. 16

Jasco .................................... 15

Jerrold ................................. 01

Macom ................................. 16

Magnavox ........................... 11

Matsushita ........................... 07

Movietime ........................... 17

NEC ...................................... 22

Novavision ........................... 04

NSC ...................................... 22

Oak ...................................... 05

Oak Sigma ........................... 05

Panasonic ............................ 07

Philips .................................. 10

Pioneer ................................ 02

Pulser ................................... 24

Quest ................................... 02

RCA ...................................... 07

Realistic ............................... 27

Recoton ............................... 27

Regal .................................... 06

Regency ............................... 13

Rembrant ............................ 26

L.L. Marx .............................. 23

Samsung .............................. 23

Scientific Atlanta ................ 04

Sheritech ............................. 12

Signal ................................... 11

Sprucer ................................ 07

Standard Components ........ 17

Stargate ............................... 24

Sylvania ............................... 08

Teknika ................................ 20

Telecaption .......................... 21

Teleview .............................. 22

Texscan ................................ 08

Tocom .................................. 18

Toshiba ................................ 30

Unika ................................... 26

Universal .............................. 25

Videoway ............................ 03

Vidtek .................................. 28

Viewstar .............................. 09

Zenith .................................. 03

SET THE TIME

The next step lets you set the time of day,

1. PressMENU to bring up the Set Time control panel,

Use the left and right arrows to point to the hour and minutes spaces, Use the up and down arrows to scroll through the

numbers and change from AM to PM.

3. Press MENU to continue.

SET THE VCR1 CHANNEL

The next step lets you set the VCR1 channel. When you set the VCR1 channel, you're telling the TV what channel to tune to when you press the VCR1 button on the remote.

For example, if'you have a VCR connected to the Video 1 input

.jacks on the back of" the TV, you want the TV to tune to the

Video 1 input channel when you press the VCR1 button. If,you don't have a VCR1 component connected to the TV, skip this step or select Not Connected from the VCR1 Channel choice list. (For

more, see Auto Tuning in the Quick Reference section.)

1. PressMENU to bring up the VCR1 choice list.

Point to the choice that matches the way you have your VCR connected to the TV.

If,you used the Connections Foldout to hook up your TV, use the table shown at the right to select the VCR1 channel.

3. Press MENU to continue.

If you used Connection A

Connection B Connection C

Connection D Connection E

Connection F Connection G

Connection H Connection I

Select

Video 1 Input Video 1 Input Video 1 Input

Video 1 Input

Not Connected Not Connected

Video 2 Input Channel 3*

Video 2 Input

* Or Channel 4, depending on

how your VCR's 3/4 switch is set.

SET THE DVD/VCR2 CHANNEL

The next step lets you set the DVD/VCR2 channel. When you set the DVDiVCR2 channel, you're telling the TV what channel to tune to when you press the DVD°VCR2 button on the remote.

For example, if" you have a DVD player connected to the Video 2

input jacks on the back of the TV, you want the TV to tune to the Video 2 input channel when you press DVD°VCR2. If you don't have a DVD°VCR2 component connected to the TV, skip this step or select Not Connected from the DVD/VCR2 Channel choice list. (For more, see Auto Tuning in the Quick Reference section.)

1. Press MENU to bring up the DVD/VCR2 choice list.

Point to the choice that matches the way you have your DVD

player or second VCRconnected to the TV. If you used the Connections Foldout to hook up your TV, use

the table at right to select the DVD/VCR2 channel.

3. Press MENU to continue.

If you used

Connection A Connection B

Connection C Connection D Connection E

Connection F Connection G

Connection H Connection I

Select

Not Connected Not Connected

Video 2 Input Channel 3*

Video 1 Input

Not Connected Not Connected

Video 2 Input Channel 3*

* Or Channel 4, depending on how

your VCR's3/4 switch is set.

SET THE SAT/CABLE CHANNEL

The next step lets you set the SAT/CABLE channel. When you set the SAT/CABLE channel, you're telling the TV what channel to tune to when you press the SAT-CABLE button on the remote.

For example, if'you have a cable box connected to the Antenna

.jack on the back of the TV, and you usually tune your TV to

channel 3 to see cable stations, you want the TV to tune to channel 3 when you press SAT.CABLE. If'you don't have a satellite receiver or cable box connected to the TV, skip this step

or select Not Connected from the SAT/CABLE Channel choice list.

(For more, see Auto Tuning in the Quick Reference section.)

1. Press MENU to bring up the SAT/CABLE choice list.

Point to the choice that matches the way you have your

satellite receiver or cable box connected to the TV.

If,you used the Connections Foldout to hook up your TV, use

the table at the right to select the SAT/CABLE channel.

Press MENU to complete the Setup routine and return to TV

viewing.

Important:

If you have both a satellite receiver

and a cable box connected to the TV...

...The remote cannot control both a cable box and the satellite receiver. The chart details how to set the SAT,CABLE button to control the satellite receiver. You must then use

your cable box remote to control the cable box. You may, however, prefer

to use the satellite receiver remote for satellite programming, and set

your SAT,CABLE button to control your cable box. It's your choice.

If you used With Cable Box

Select

Connection A Channel 3* Connection B Channel 3*

Connection C Channel 3* Connection D Channel 3*

Connection E Channel 3*

If you used With Satellite

Receiver Select

Connection F Video 1 Input Connection G Video 1 Input Connection H Video 1 Input

Connection I Video 1 Input

* Or Channel 4, depending on how

your VCR's3/4 switch is set.

LABEL THE CHANNELS

The next step lets you make your channel list and label your channels. (For more, see List and Labels in the Quick Reference section.)

1. Press MENU to bring up the List and Labels control panel.

Use the left and right arrows to point to the three different

areas of the control panel (called "fields"),

Use the up and down arrows to scroll through the numbers

and letters and select Yesor No in the Normal List field. You

may wish to refer to the call letters listed in your newspaper's

TV section for ideas on labelling the channels.

Repeat this process for each of your channels. Then press MENU to continue. The TV can store up to 27 labels in

memo_.

Use the OH ^ (channel up) or OH v (channel down) buttons to change

channels in the Chan # field. This

works even if you're not in the Chan

# field. Or, enter the channel number

directly using the number buttons on

the universal remote. To enter a

number greater than 99, press and

hold "1" to enter the hundreds digit,

then press the two remaining

numbers.

The list and labels feature can also be

accessed from the Channel menu.

Because this procedure can be time

consuming, feel free to skip this step

and come back to it later.

What Now?

Now that you've finished the interactive setup, you can sit back, relax, and enjoy the TV. Or...

Program the Remote

Since you've gone this far, you can take a few minutes to

program the remote to control your VCR, DVD player, laserdisc player, and other component. To find out how to program the remote, go to the next section.

IF YOU HAVE A VCR OR OTHER

COMPONENT...

The universal remote can be programmed to control

most brands of remote controllable VCRs, satellite

receivers, DVD players and cable boxes. If you have an RCA, GE, or ProScan component, you probably don't need to program it at all--other

manufacturers' brands need to be programmed.

NOW WATCH SOME TV!

Once you've programmed the remote, you will have completed all four setup sections. Now you can sit

back and enjoy the TV. If you want to know more about the different parts of the TV, see the next

section, Tour of the TV. Refer to the other sections and appendices as needed.

PROGRAMMING THE REMOTE

The universal remote can be programmed to control most

brands of remote controllable VCRs and cable boxes. The remote is already programmed to control most ROA, GE and ProScan TVs

VCRs, DVD players, laserdisc players and satellite receivers. Other

manufacturers' brands need to be programmed.

PROGRAMMING THE REMOTE TO CONTROL

A VCR

To determine whether the universal remote needs to be

programmed, turn the VOR on, point the remote at the VCR,

and press the VCR1 button. Then press POWER or OH ^ (channel

up) or CH v (channel down) to see if the VCR responds to the remote commands. If not, the remote needs to be programmed.

Follow these steps to program your universal remote to control

your VCR:

Turn on the VCR to be programmed.

Look up your VCR brand and code number(s) on the code list

on the next page,

3. Press and hold the VCR1 button on the remote.

Enter the two-digit code from the code list. Release VCR1 then press POWER to see if the VCR responds

to the remote commands, If it doesn't, try pressing VCR1 and

POWER to see if the VCR responds, Repeat these steps using the next code listed for your brand,

until the VCR responds to the remote commands.

10 20 30 40 50 60

70 80 90

You'll use these buttons when you program the remote to control any

devices.

This remote may not operate all models of the brands that are shown.

Use the codes shown at right or on

the sheet packed in with your remote.

To program the DVD.VCR2 button to control a second VCR, follow these

steps but use the DVD.VCR2 button

instead of the VCR1 button.

Universal Remote VCR Codes

Admiral ................................. 06,79

Aiwa ........................................... 15

Akai ................... 03,17,22,23,63,66

Audio Dynamics .................... 14,16

Bell&Howell ............................... 02

Broksonic ................................... 10

Candle ........................ 07,09,13,44,

.......................................... 45,46,52

Cannon .................................. 08,53

Capehart .................................... 01

Citizen ........................ 07,09,13,44,

.......................................... 45,46,52

Colortyme .................................. 14

Craig ...................................... 07,12

Curtis-Mathes ............ 00,07,08,14,

........................... 15,44,46,53,64,67

Daewoo ....................... 13,45,52,76

DBX ....................................... 14,16

Dimensia .................................... 00

Dynatech .................................... 15

Electrohome .............................. 27

Emerson ...... 08,09,10,13,15,20,23,

.......................... 27,34,41,42,47,49,

........................... 57,62,65,67,68,70

Fisher ............ 02,12,18,19,43,48,58

Funai .......................................... 15

GE ...................... 00,07,08,32,37,53

Goldstar ...................... 09,14,46,60

Harman Kardon ......................... 14

Hitachi ......................... 05,15,35,36

Instant Replay ............................ 08

JCL .............................................. 08

JC Penney .............. 02,05,07,08,14,

................................ 16,30,35,51,53

JVC ..................... 02,14,16,30,46,74

Kenwood .......... 02,14,16,30,44,46

KLH ............................................. 73

Lloyd ........................................... 15

Logik .......................................... 31

Magnavox ................... 08,29,53,56

Marantz ................ 02,08,14,16,29,

..................................... 30,44,46,61

Marta ......................................... 09

MEI ............................................. 08

Memorex ..................... 08,09,12,15

MGA ...................................... 04,27

Midland ...................................... 32

Minolta ................................. 05,35

Mitsubishi .............. 04,05,27,35,40

Montgomery Ward .................... 06

MTC ....................................... 07,15

Multitech .................... 07,15,31,32

NEC ..... 02,14,16,30,44,46,59,61,64

Panasonic .................... 08,53,75,77

Pentax .............................. 05,35,44

Pentex Research + ..................... 46

Philco ........................... 08,29,53,56

Philips .................................... 08,29

Pioneer ............................. 05,16,50

Portland ........................... 44,45,52

ProScan ...................................... O0

Quartz ........................................ 02

Quasar ................................... 08,53

Radio Shack/Realistic ...... 02,06,08,

...................... 09,12,15,19,27,43,53

RCA ..... 00,05,07,08,28,35,37,54,69

Samsung ................. 07,13,22,32,42

Sansui .................................... 16,71

Sanyo ..................................... 02,12

Scott ....................... 04,13,41,49,68

Sears _, 02,05,09,12,18,19,35,43,48

Sharp ...................... 06,24,27,39,45

Shintom ....................... 17,26,31,55

Signature ................................... 15

Sony .................................. 17,26,38

Sylvania .................. 08,15,29,53,56

Symphonic ................................. 15

Tandy ..................................... 02,15

Tashiko ....................................... 09

Tatung ........................................ 30

Teac .................................. 15,30,69

Technics ...................................... 08

Teknika ........................ 08,09,15,21

Toshiba ................... 05,13,19,48,49

Totevision .............................. 07,09

TMK ............................................ 67

Unitech ....................................... 07

Vector Research ............... 14,16,44

Victor .......................................... 16

Video Concepts ................ 14,16,44

Videosonic .................................. 07

Wards .................... 05,06,07,08,09,

...................... 12,13,15,25,27,31,35

Yamaha .................. 02,14,16,30,46

Zenith ..................... 11,17,26,72,79

PROGRAMMING THE REMOTE TO CONTROL

A DVD PLAYER OR LASERDISC PLAYER

The remote's DVD.VCR2 button is preprogrammed to control the

primary functions of an RCA, GE, or ProScan DVD player. If you

would like this button to control a device other than a DVD

player, you may program the remote to control a laserdisc player

or VCR. To program the DVD.VCR2 button to control a device,

use the DVD player or laserdisc player codes at the right or the

VCR codes on the previous page.

1. Turn on the DVD player, laserdisc player or VCR.

2. Look up your brand and its code number(s) on the code lists.

3. Press and hold the DVD-VCR2 button on the remote.

Enter the two-digit code from the code list. Release the DVDoVCR2 button and press POWER or another

button to see if the device responds to the remote

commands.

6. Repeat these steps using the next code listed for your brand, until the device responds to the remote commands.

DVD Player Codes

GE ............................................... 78

ProScan ...................................... 78

RCA ............................................. 78

[

Laserdisc Player Codes

Pioneer .................................. 33,37

ProScan ................................. 33,37

RCA ........................................ 33,37

]

PROGRAMMING THE REMOTE TO CONTROL

AN RCA AUDIO DEVICE:

Your remote controls only RCA audio equipment such as an audio receiver or amplifier--it does not control other brands of

audio equipment. Also, the remote may need to be programmed for your equipment. This remote may not operate all models of

the brands that are shown at right. Use the codes below or on the sheet packed in with your remote.

1. Turn on the component to be programmed,

2. Look up your brand and its code number(s) on the code list.

3. Press and hold the AUDIO button.

Enter the two-digit code from the code list.

Release the AUDIO button and press POWER or CH ^ (channel up) or CH v (channel down) to see if the audio

device responds to the remote commands.

Repeat these steps using the next code listed for your brand until the audio device responds to the remote commands,

Audio Codes

RCA/Dimensia

AM/FM ....................................... 03

CD ............................................... 07

Tape ............................................ 06

Phono ......................................... 05

Aux ............................................. 04

PROGRAMMING THE REMOTE TO CONTROL A

SATELLITE RECEIVER OR CABLE BOX

Refer to the Connection Foldout or contact your cable company

to hook up your cable box. If you have a cable box with its own

remote, then you may also be able to use the TV's remote with

your cable box. This remote may not operate all models of the

brands that are shown. Use the codes at the right, or on the

sheet packed with your remote.

1. Turn on the cable box or satellite receiver.

2. Look up your brand and its code number(s) on the code list.

3. Press and hold the SAT-CABLE button on the remote.

Enter the two-digit code from the code list. Release the SAT-CABLE button and press POWER or CH ^

(channel up) or CH v (channel down) to see if the cable box responds to the remote commands.

Repeat these steps using the next code listed for your brand until the cable box or satellite receiver responds to the

remote commands.

USING THE REMOTE TO CONTROL A DEVICE

Once the remote has been programmed with the correct codes, you are ready to use it to control your devices.

To operate the device:

1. Press the device button (TV, VCR1, SAT-CABLE, DVD-VCR2, or AUDIO) to set the remote to control the device.

2. Press POWER to turn the device off or on.

3. Use the remote buttons that apply to that device.

Satellite / Cable Box Codes

ABC .............................. 22,46,53,54

Anvision ................................ 07,08

Cablestar ............................... 07,08

Chaparral .............................. 80,81

Cheyenne ................................... 81

Diamond .................................... 56

Drake ..................................... 82,83

Eagle ..................................... 07,08

Eastern Int .................................. 02

General Instruments... 46,92,93,94

GI 400 ...... 04,05,15,23,24,25,30,36

Hamlin .................... 03,12,13,34,48

Hitachi .............................. 37,43,46

Jerrold ......... 04,05,15,23,24,25,30,

........................... 36,45,46,47,62,65

Macom .................................. 37,43

Magnavox ........ 07,08,19,21,26,28,

................................ 29,32,33,40,41

NSC ............................................. 09

Oak ................................... 01,16,38

Oak Sigma .................................. 16

Panasonic .................... 03,27,39,61

Philips ............... 07,08,19,21,26,28,

................................ 29,32,33,40,41

Pioneer ............................. 18,20,44

Randtek ................................. 07,08

RCA ................................... 00,27,66

Realistic ...................................... 84

Regal ................................ 03,12,13

Regency ................................. 02,33

Samsung ..................................... 44

Sierra I,I1,111................................. 81

Sci. Atlanta ............. 03,22,35,63,64

Signature ................................... 46

Sony DBS .................................... 95

Sprucer ....................................... 27

Starcom ...................................... 46

Stargate 2000 ............................ 58

STS1,2,3,4 .................... 85,86,87,88

Sylvania ................................. 11,59

Teknika ....................................... 06

Texscan ............................. 10,11,59

Tocom ..................... 17,21,49,50,55

Toshiba ....................................... 89

Uniden ....................................... 90

Unika ................................ 31,32,41

Universal .......................... 51,52,60

Video Cipher II ........................... 91

Viewstar ........... 07,08,19,21,26,28,

................................ 29,32,33,40,41

Warner Amex ............................. 44

Zenith .......................... 14,42,57,61

A PICTURE BOOK TOUR

This section talks about the TV's main parts (at least the parts you'll actually use):

The remote control The back panel

The front panel The channel marker

REMOTE BUTTONS

POWER When in TV mode, turns off the TV. In VCR mode, and if

programmed, turns on and off most VCRs.

VCR1 If programmed, turns on VCR and puts the remote in VCR

mode. Also turns on the TV.

SAT.CABLE If programmed, turns on satellite receiver or cable

box. Puts the remote in SAT-CABLE mode. Also turns on the TV. DVD.VCR2 If programmed, turns on DVD player or second VCR

or laserdisc player. Puts the remote in DVD-VCR2 mode. Also turns on the TV.

AUDIO If programmed, turns on RCA audio component and puts the remote in audio mode.

TV Turns on the TV and puts the remote in TV mode. Also displays channel information.

REVERSE, PLAY, FORWARD, REC.VCR+, STOP, PAUSE If

programmed, provides transport control for some remote-

controllable VCRs, DVD players, laserdisc players, tape decks, and CD players. Pressing REC.VCR+ when using the TV GUIDE+ system sets the VCR to record a program.

VOL - or VOL + Decreases or increases the TV's volume.

CH ^ or CH v Scans up or down through the current channel list.

Press once to change the channel up or down; press and hold to

continue changing channels.

INFO Brings up channel information. Press repeatedly to see

detailed program information, if available. SKIP Press once before changing channels and the TV will wait

30 seconds before returning you to the original channel. Press repeatedly to add more time.

MUTE Reduces the TV's volume to its minimum level. Press again to restore the volume.

GO BACK Returns you to the previous channel.

(0-9) Number Buttons Enters channel numbers and time

settings directly though the remote control. To enter a two-digit channel, press the two digits. To enter a three-digit channel,

press and hold the first digit, then add the second two. Example:

to tune to channel 123, press and hold 1, press 2, then press 3.

REVERSE PLAY FORWARD

<3 g>

REC'VCR+ STOP PAUSE

r_7 r_7

INFO CH+ SKIP

CH-

MUTE GO BACK

10 20 30 40 50 60 70 80 90

FAV'INPUT ANTENNA

0 o(_ O

CLEAR _ e_ RESET

PiP _ SOUND

SWAP CHCTRL

0 0

GUIDE

I For more details, see the previous 1

section, Programming the Remote.

FAV.INPUT In TV mode, press to toggle through the available

input sources (VID1, VID2, previous channel). In SAT mode, press

to select available channel lists.

ANTENNA Functions as TV/VCR button in VCR mode and TV/

receiver button in SAT,CABLE mode.

CLEAR Removes any menu or display from the screen and

returns you to TV viewing.

MENU.SELECT Brings up the Main menu. When in the menu system, se]ecLs highlighted items or returns you to the previous

menu. When in VCR mode, it functions as a PROGRAM button.

RESET Resets picture quality controls to the Bright Lighting

Picture Control Preset. Point and select to choose a different Picture Control Preset.

MOVE (Arrows) Used to point to different items in the menu system. Also used to adjust the menu controls. Also move the PIP

window when no menus are on the screen. PiP Brings up the small picture-in-picture window. Press again to

remove the PIPwindow.

SOUND Press once to display the audio processor control panel.

Point and select to choose a different processor or press CLEAR to

exit.

SWAP Swaps the main picture with the PiPwindow. CH CTRL Selects the picture window, (that is, the main or PIP

window) that is changed by the CH ^ (channel up) or CH v

(channel down) buttons.

GUIDE Brings up TV GUIDE Plus+ menus. In SAT-CABLE mode

brings up available on-screen guides.

BACK PANEL

VIDEO

,NPOTl:e

Lmono I

VIDEO R

-- --,NPOT2

e CABLE/

ANTENNA

INPUT 1 Lets you connect a video component such as a VCR,

satellite receiver, DVD player or laserdisc player.

L/MONO Provides left audio connection. Or, if you are connecting a mono component, use the L/MONO input. The

left audio connector is usually white.

RIGHT Provides right audio connection. The right audio connector is usually red.

VIDEO Provides video connection. The video connector is

usually yellow.

S-VIDEO Lets you connect a component with S-Video capability, such as an S-video satellite receiver, DVD player or

VCR. When using S-Video, make sure to connect the three audio/video cables as well as the S-Video connector.

INPUT 2 Provides a connection for a second video component

such as a VCR, satellite receiver, DVD player or laserdisc player.

L/MONO Provides left audio connection. Or, if you are connecting a mono component, use the L/MONO input. The

left audio connector is usually white.

RIGHT Provides right audio connection. The right audio connector is usually red.

VIDEO Provides video connection. The video connector is

usually yellow.

ANT (Antenna) Provides connection to a home antenna or cable TV system.

If you are connecting a component to

the VIDEO 1 INPUT and you are using S-Video, remember to connect the

regular VIDEO 1 INPUT video cable as well.

Hooking up components isn't hard,

but double-checking the cable and

jack connections may help you avoid

problems.

AUDIO OUTPUT Provides variable-controlled or fixed-level stereo audio output.

Variable output is ideal when connecting the TV to an amplifier that does not have its own volume control or

remote control.

Fixed output is ideal when connecting to an A/V receiver or amplifier that has its own remote control,

You can choose the type of audio output by selecting the Audio Output & Speakers control panel in the Audio menu.

VCR CONTROL Lets you connect the TV GUIDE Plus+ controller, which allows direct control of your cable box and VCR,

I o connect an amplified subwoofer to 1

the TV, use the left (L) AUDIO OUTPUT

jack.

FRONT PANEL

MENU Brings up the Main menu. When in the menu system, it

selects highlighted items. Also returns you to the previous menu. CH v Scans down through the current channel list. In the menu

system, it points down to items and adjusts menu controls. CH ^ Scans up through the channel list. In the menu system, it

points up to items and adjusts menu controls.

VOL - Decreases the volume. When in the menu system, VOL -

is used to point left to items and adjust menu controls.

VOL + Increases the volume. When in the menu system, VOL + is

used to point right to items and adjust menu controls.

POWER Turns the TV on and off.

MENU _ _ VOL-- VOL + POWER I

The front panel above shows a typical

button layout. The exact look of the buttons may be different from those

on the front of your TV,

If you turn Parental Control on, or lockout the front panel, the front panel no longer provides accessto

the menus. For more information, see

Parental Control, in the Quick Reference section.

CHANNEL MARKER

There are several indicators that come up when you change channels, press the INFO button, or press the TV button. This display is called the Channel Marker.

12:01 Displays the current time.

CC Displayed when Closed Captioning is available on the current channel.

VCR1 Displays the label assigned to the current channel. VlD1 Displays the current channel or input channel. Mute (or Stereo) Mute is displayed when you mute the audio.

Stereo is displayed when the current channel is broadcasting in Stereo.

SAP Displayed when the current channel is broadcasting SAP

(Second Audio Program) information.

PIP 59 (PIP Chan) Displays the current PIPchannel. Remote batteries are low Displayed when the batteries in the

remote need to be replaced. Sleep Displayed when the Sleep Timer has been set, 00:00 Displayed to count down time left on the commercial skip

(SKIP) timer.

I The channel marker shown above is 1

just an example, of course.

A SHORT GUIDE TO THE MENU SYSTEM

This section provides a brief explanation of all the

menu commands. These commands are organized in the chapter by their location in the Main menu.

• Audio Contains the controls that let you adjust the way the TV sounds.

• Picture Quality Contains the controls that let you adjust the picture.

• Screen Contains the controls that let you adjust the closed-caption mode and display.

Channel Contains all the commands used to control your channels, including custom-building

your channel list and setting up your TV to control the components connected to the TV,

• Time Contains the controls that let you set the time and schedule the TV to turn off and on at

specific times.

• Parental Controls Contains the controls that

let you block out specific channels and locks the

TV's front panel controls. TV GUIDE Plus+ Menu Contains the controls

that let you set up the TV GUIDE Plus+ menu,

run a demonstration, or turn the Label & Title

display on and off, Setup Begins an interactive setup routine that

lets you adjust your TV's menu system, channel list and how your TV receives signals from other

components,

AUDIO MENU

Mute Press MENU to reduce the TV's volume to its minimum

level. Press MENU again to restore the volume.

Tone Controls Displays the slider controls for adjusting the TV's treble, bass and balance.

Audio Processor Displays a choice list of available audio modes, which control the way the sound comes through your speakers.

Mono Plays the sound in mono only. Use this setting when

receiving broadcasts with weak stereo signals.

Stereo Splits the incoming stereo audio signal into left and

right channels. Most TV programs and recorded materials have stereo audio. The TV displays the word STEREOwhen

you tune to a program that is broadcast in stereo. SRS Stereo (.) SRS* is an audio processing technology that

adds greater depth and stereo separation to stereo audio signals.

Enhanced SRS Stereo Enhances the SRSsignal to give the impression of even greater depth and stereo separation.

Sound Logic Stereo Sound Logic monitors a program's audio track and limits the volume to a minimum and

maximum volume range. Whenever you adjust the volume on

the TV, the minimum and maximum volume range adjusts, too. Second Audio Program (SAP) Plays the program's audio in

a second language, if one is available. The TV displays the word SAP when you tune to a program that is broadcast with

SAP information. SAP audio is broadcast in mono.

Audio Output & Speakers Displays a choice list that lets you turn the TV's internal speakers on or off and set the audio outputs to fixed-level or variable control level.

Variable Output, Speakers On This setting turns the TV's speakers on and allows variable output from the TV's audio

output jacks. Variable Output, Speakers Off This setting turns the TV's

speakers off and allows variable output from the TV's audio output jacks.

Fixed Output, Speakers Off This setting turns the TV's speakers off and allows fixed output from the TV's audio output jacks.

* SRS,Sound Retrieval System and the SRSlogo are registered

trademarks of SRSLabs, Inc.

I If a loud commercial comes on, Sound |

Logic can compress the sound and

limit the volume to a minimum and

maximum volume range.

PICTURE QUALITY MENU

Basic Picture Controls Displays the five slider controls for

adjusting the way the picture looks,

Contrast Adjusts the difference between the light and dark areas of the picture,

Color Adjusts the richness of the color. Tint Adjusts the balance between the red and green levels. Black Level Adjusts the brightness of the picture. Sharpness Adjusts the crispness of edges in the picture.

Auto Color Displays a choice list that lets you turn on the

feature that automatically corrects the color of the picture. (This

is especially useful for tracking realistic flesh tone colors as you

switch from channel to channel.) Choose On or Off, depending on your preference. It's your choice.

Color Warmth Displays a choice list that lets you set one of three automatic color adjustments: Cool for a more blue palette of picture colors; Normal; and Warm for a more red palette of

picture colors.

Picture Control Presets Displays a choice list that lets you select one of three preset picture settings: Bright Lighting,

Normal Lighting or Soft Lighting. Choose the setting that is best

for your viewing environment.

Video Noise Reduction Displays a choice list that lets you turn on the feature that automatically reduces noise, or "snow," from

the picture.

I Press the RESET button on the remote |

to bring up the Picture Control Presets

choice list. Point to the desired setting; press MENU to select it.

SCREEN MENU

Closed-Caption Display Displays a choice list that lets you

choose the way closed captioning information is shown on the screen.

Off No captioning information displayed. On Always Captioning information shown always, when

available. On When Sound is Muted Displays captioning

information, when available, whenever the TV's sound is muted by pressing the MUTE button. The captioning

information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which captioning mode is used for displaying captioning

information.

Menu Language Displays a choice list that lets you select your

preferred language: English, Spanish or French,

Picture Tilt (31" screen size or above only) Your TV has an extra-large picture tube (31" or above), which makes it vulnerable to the effects of the Earth's magnetic field. You may

need to adjust the picture tilt. Use the left and right arrow buttons to adjust the picture tilt.

CHANNEL MENU

Signal Type Displays a choice list that lets you select the

current antenna type. This option does not appear when the TV GUIDE Plus+ system is set up.

UHF/VHF Antenna Choose this if you are currently using an off-air antenna for TV signals.

Cable TV Choose this if you are currently using cable or a cable box for TV signals.

Auto Channel Search Tells the TV to search automatically for all the channels available Lhrough the antenna input. When the

TV finds an active channel, it places it in the channel list; inactive channels (weak stations or channels with no signal at all) will be

removed from the channel list.

List and Labels Displays a control panel that lets you custom-

build your Normal channel list and choose a six-character label

for each channel. Follow the on-screen directions to enter your channels and other information.

Chan# Use the up and down arrows to scroll up and down through the channel scan list. You can enter the channel

number directly using the number buttons. Normal List Only the channels included in the Normal list

are available when you scan up and down using the CHAN

buttons. Use the up and down arrows to indicate whether

the channel number indicated is included (Yes) or is not

included (No) in the Normal channel list.

Chan Labels Use the up and down arrows to enter a six- character label for each channel. Hold the button down to

scroll quickly through the characters. Press RESETto clear a

label. The TV can store up to 27 labels in memory.

Channel Directory Displays all of the labeled channels. In the Channel Directory control panel, you can select a channel by

entering the channel number, or by pressing MENU to return to the current channel. This option does not appear when the TV GUIDE Plus+ system is set up.

(Channel Menu continued)

Auto Tuning Displays a choice list that lets you set up the TV to

automatically tune to the correct input channel when you press a component button (VCR1, DVD.VCR2, or SAT-CABLE).

Set VCR 1 Channel Displays a choice list that lets you select the channel that the TV tunes to when you press the VCR1

button.

Set DVD/VCR 2 Channel Displays a choice list that lets you select the channel that the TV tunes to when you press the

DVD.VCR2 button.

Set SAT/Cable Channel Displays a choice list that lets you select the channel that the TV tunes to when you press the

SAT.CABLE button.

The choices are:

Not Connected Choose this if you do not have a

component connected to an antenna or video input on the

back of the TV, or if you don't want the TV to tune to a

channel when the particular component button is pressed. Channel 2 (SAT/Cable only) Choose this if your component

is connected to the antenna`jack on the back of the TV, and you want the TV to tune to channel 2 when you press the specified component button. Reminder: Make sure the

component's Ch 2/3/4 switch is set to channel 2. Channel 3 Choose this if your component is connected to

the antenna`jack on the back of the TV, and you want the TV to tune to channel 3 when you press the specified component button. Reminder: Make sure the component's

Ch 3/4 switch isset to channel 3. Channel 4 Choose this if your component is connected to

the antenna`jack on the back of the TV, and you want the TV to tune to channel 4 when you press the specified component button. Reminder: Make sure the component's

Ch 3/4 switch isset to channel 4. Video 1 Input Choose this if your component is connected

to the Video 1.jacks on the back of the TV and you want the TV to tune to Video1 input when you press the specified component button.

Video 2 Input Choose this if your component is connected to the Video 2.jacks on the back of the TV and you want the

TV to tune to Video 2 input when you press the specified component button.

TIME MENU

Sleep Timer Displays a control panel that lets you select the amount of time you want to give the TV before it shuts itself off.

Schedule Displays a control panel that lets you set up a schedule for turning the TV on and off automatically. Make

sure to turn the schedule On. The on-screen directions guide

you through the steps needed to set the schedule,

Set Time Displays a control panel that lets you enter the current time, The on-screen directions guide you through the steps needed to set the time.

PARENTAL CONTROLS MENU

Displays the menu items that let you adjust the Parental Controls

feature.

Parent Approved Channels Displays a control panel that lets you decide what channels can be viewed or selected using the

TV's front panel controls,

Chan# Use the up and down arrows to scroll up and down

through the channel scan list. You can enter the channel

number directly using the number buttons.

Parent Approved Use the up and down arrows to choose

whether the channel indicated should be shown when the

Channel Block feature is turned on. Select Yesto indicate

that the channel can be shown at any time, regardless of

whether Channel Block is turned on. Select Noto indicate

that the front panel cannot tune to that channel when

Channel Block is turned on. Important: You must turn the

Channel Block feature on. (See Channel Block, below.)

Channel Block Displays a control panel that lets you decide when a channel can be viewed,

Off All channels are available On Always The front panel CH (channel) buttons will

tune only to channels that you have marked as "Parent Approved," The remote will still tune to any channel,

Scheduled Selected channels will be blocked out

between start and stop times you enter in the control

panel. The front panel CH (channel) buttons will tune only to channels that you have marked as "Parent Approved." The remote will still tune to any channel.

Front Panel Lockout Displays a control panel that lets you lock

(disable) the TV's front control panel, or unlock (enable) the TV's

front control panel. The remote will still tune to any channel.

If you can't accessa channel or use

the TV's front panel control, maybe you've forgotten to turn off a parental control. Check the Channel

Block and Front Panel Lockout control

panels.

TV GUIDE PLUS+

TV GUIDE Plus+ Setup Displays the TV GUIDE Plus+ setup

screen.

Setup Setting up the TV GUIDE Plus+ system is detailed

earlier in Interactive Setup.

Demo Runs the TV GUIDE Plus+ demonstration.

Select Channels Allows you to choose which channels

appear in the TV GUIDE Plus+ program schedule.

TV Guide Plus+ Label & Title Displays the TV GUIDE Plus+

Label & Title menu.

On Displays the station name and shows title when you change channels,

Off Disables the Label & Title feature.

Continuous Demo Runs the TV GUIDE Plus+ demonstration

until it is turned off.

SETUP MENU

The setup routine is detailed earlier in the manual in the

Interactive Setup section.

THIS SECTIONS DETAILS SOME OF THE TV'S IMPORTANT FEATURES:

TV GUIDE Plus+ operation

PIP (Picture-in-Picture) operation

Choosing an audio processor

Using closed captioning Displaying on-screen program

details

For more about the different menus 1

and control panels in the menu system,| see the Quick Reference section, J

TV GUIDE PLUS OPERATION

The TV GUIDE Plus+ system offers four different menus for

browsing program listings: SURF,NEXT, SCAN, and SORT.

1. Press GUIDE to bring up the TV GUIDE Plus+ display.

_/#SgZJJ_

WABC 5 Cosby WGN 9 Baseball Cubs vs Braves

WNBC 4 Simple Pleasures WCBS Ii Jerry Springer WTRW 17 Weaving Today WJAX 34 The Ubiquitious G Hen WIHT 42 You Bet Your Life

To choose a menu, select CHOICE. The Surf Menu comes up

by default. Use the left and right arrows to access another menu. Press

MENU to select your choice.

Surf Menu

The Surf Menu displays the current program on each channel, The live program displayed in the video window changes as you surf channel listings.

WGN 9 Baseball Cubs vs Braves WNBC 4 Simple Pleasures

WCBS ii Jerry Sprlnger Wq'RW 17 Weaving Today WJ_i£ 34 The Ubiquitious G Men

WIMT 42 You Bet Your Life

Use the up and down arrows to surf channel listings.

To select another menu, use the left and right arrows, and then press MENU.

Press GUIDE or CLEAR to exit the TV GUIDE Plus+ system. Pressing GUIDE changes to the last channel highlighted. Pressing CLEAR returns to the original channel.

Channel Mapping

If more than one cable company services your area, you may be prompted with this Channel Mapping

screen after the first TV GUIDE Plus+ download. You will need to identify

your cable company by selecting the correct channel numbers for the

stations in question.

LEFT RIGHT

1. Determine the correct channels for

the stations. Check your local listings if you are not sure.

2. Select LEFTor RIGHTto change the channel group.

3. Select SELECTwhen the correct channel group is highlighted.

Next Menu

The Next Menu displays the programs on a selected channel from the current time to midnight of the next day.

_NBC CH 4

12:30p The Flintstones

l:00p Tom and Jerry l:30p Jenny Jones 2:30p Quincy

3:30p Extra! 4:00p Roseanne

Use the up and down arrow buttons to move through the

schedule. An asterisk after the time indicates that the

program is scheduled for tomorrow. Use the right and left arrows to select a different menu, or

press GUIDE or CLEAR to exit the TV GUIDE Plus+ system.

Scan Menu The Scan Menu shows programming schedules for all channels

from the current time to midnight on the following day.

iSLrR_ 4:30p 5:00p

WGN 9 Baseball Cubs vs Braves WNBC 4 Simple Pleasures

WCBS Ii Extreme Dieting WTRW 17 Tomorrow Never Knows

WJAX 34 Sculpture Review WIMT 42 YOU Bet Your Life

Use the left and right arrows to select the time of day. Use the up and down arrows to move through the schedule.

The channel displayed in the video window remains on the

initial channel.

Select SURFto return to the surf menu, or press GUIDE or CLEAR to exit the TV GUIDE Plus+ system.

The Info Center

If this icon '_/appears in the program information, you may access

additional information about that program by pressing INFO. This

feature is available in all four menus. Even if the_yicon isn't displayed,

pressing INFO will show a PlusCode programming number which allows you to program your VCRto record using VCR Plus+.

PressINFO a second time to return to the TV GUIDE Plus+ menu.

Alternately, you will find the Info Center in the Surf and Sort menus.

Select it to view additional

information. Along with additional programming

information, the Info Center may contain information on local events,

or on the TV GUIDE Plus+ system itself. Information contained in the

info center will vary from area to area, so not all of these options may be available to you at this time.

PressINFO to exit back to the menu.

Sort Menu

The Sort Menu lets you browse programs by category. The channel you are currently tuned to is displayed in the video window and by

name.

Movies

Children

Info Center

1. Use the up and down arrows to select a category. In this ex- ample we'll choose Sports. A listing of subcategories comes up.

SURF

All Racing

Baseball Skaning

_i_!_i_iii ski ins

Boxing Soccer Equestrian Tennis

Football Track

Golf Water Sports Hockey Wrestling

2. Use the up and down arrows to select a subcategory, in this example Basketball. The message, "Searching in progress.

Please Wait" comes up.

PgDn PgUp BACK

Sporzs Basketball Tue Mar25

College Basketball 7:0Op WTTV NBA Basketball 8:00p TNT

3. When the listing comes up, select PgDn to view more entries. Seven days of programming are listed in the Sort Menu.

4. Select SURFto return to the surf menu, or press GUIDE or CLEAR to exit the TV GUIDE Plus+ system.

Customizing Your Channel

Listing

You may customize the channel

listing by enabling or disabling the

display of certain channels. For

instance, you may disable channels

that you never watch. You can restore disabled channels at a later point in

time, of course.

1. From the TV's Main Menu, select TV Guide Plus+ Menu.

Select TV Guide Plus+ Setup. The TV GUIDE Plus+ menu comes up.

Select Select Channels.

ExzT

TV GUIDE Plus+ Select Channels

WABC WWOR

WGN

WTRW ESPN WRAp WJAX

4. Use the up and down arrows to select a channel.

5. Select ENABLE or DISABL to add

or remove a channel from the guide's listing. Note that this

button's name changes depending on the activation

status of the selected channel.

6. Select EXITwhen you are

finished.

Selected channels will be added or removed from the list during the next

download.

Sort Menu Options

PgDn shows more listings PgUp returns to the previous screen.

BACK allows you to select another

category to sort.

One-Button Recording

The TV GUIDE Plus+ system allows one-button recording if you

have connected the IR controller to your VCR, See First Things Firstfor more details on connecting the IR controller,

1. Press GUIDE to bring up the TV GUIDE Plus+ menu.

SURF REVIEW i_! EXIT

WABC 5 Cosby WGN 9 B&seball Cub_ v_ Braves

WCBS 11 Jerry Springer

WTR_ 17 Wea_in_ _da_ _AX 34 _e Ubi_i_i_ _ _en

_I_T _ You _e_ Y_ur _e

Select a program to record, You may choose a program from any of the four browsing menus.

Press REC-VCR+. A screen confirming your selection comes

up.

SURF DAILY I;!ONI_E!!! WSE_LY

Plus Code # 12345 , for Simple Pleasures WNBC 4

TO Record Select

Select a recording option: DALLY,ONCE, or WEEKLY,

_R_ _EVI_ _XIT

Simple Pleasures WNBC 4

Remember to turn your VCR off.

Insert a blank tape into your VCR and turn it off.

Recording Options

DAILYrecords the same program Monday through Friday.

ONCE records only on that day.

WEEKLYrecords the program each

week at the same time.

REVIEW displays a list of programs

set to be recorded. You may delete

programs from this list.

Tip: You can record the program you are currently watching by simply

pressing REC.VCR+.

PIP (PICTURE-I N-PICTURE) OPERATION

The PIPfeature (picture-in-picture) lets you display a second, smaller picture on top of the main picture.

There are seven remote buttons that control the way the PIP window works:

Main Pictured 1

PIP Brings up the PIPwindow. Press PIP again to remove the

window. MOVE buttons Let you move the PIPwindow to different areas

of the screen. SWAP Switches, or "swaps," the video from the PIP window

with the main picture. CH CTRL (Channel Control) Lets you switch channel control

between the PIPwindow and the main picture.

For instance, press PIPto bring up the PIPwindow. You can change channels by entering channel numbers or pressing the CH ^ (channel up) or CH v (channel down) buttons. When you

press the CH CTRL button the channel control switches to the

main picture. You can now change channels in the main picture

by entering channel numbers or pressing the CH ^ (channel up) or CH v (channel down) buttons.

Press CH CTRL again to return the channel control to the PIP window.

A typical use of SWAP is to scan through channels in the PIP window, and when you find a channel you like, press SWAP to display that channel in the main picture, sending the current

channel to the PIPwindow,

Two Tips for Using PIP Buttons Skip to PIP: Channel Surfing in the Main Picture

You can surf through the channels during commercial breaks

using the SKIP and CH (channel) buttons.

1. Press SKIP to set the commercial skip timer and bring up the PIPwindow. The current channel appears in both the main picture and the PIPwindow.

2. Press the CH ^ (channel up) or CH v (channel down) buttons.

The main picture surfs through the channel list. When the SKIP feature times out, the original channel will return automatically to the main picture.

Channel Surfing in the PiP Window

You can use the PIPwindow to surf through channels as well.

1. Press PIP to bring up the PIPwindow.

2. Press the CH ^ (channel up) or CH v (channel down) buttons.

The TV begins displaying each channel in the PIPwindow. If you see a channel that interests you, press SWA£

CHOOSING AN AUDIO PROCESSOR

Changing the audio processor changes the way your TV sounds. There are two ways to change the audio processor: a) from the

Audio menu, and b) by pressing SOUND on the remote. For

more, see Audio menu in the Quick Reference section.

Choosing an audio processor from the Audio menu

Press MENU to bring up the Main menu. Press MENU again to select the Audio menu. Point to Audio Processor and press MENU. The Audio

Processor choice list comes up, with the current mode highlighted.

Point to an audio processor mode and press MENU to select it and return to the Audio menu. The options are:

Mono Plays the sound in mono only. Stereo Splits the incoming stereo audio signal into left and

right channels.

SRS Stereo (.) SRS* is an audio processing technology that adds greater depth and stereo separation to stereo audio

signals.

Enhanced (.) SRS Stereo Enhances the SRS signal to give

the impression of even greater depth and stereo separation.

Sound Logic Stereo Sound Logic monitors a program's audio track and limits the volume to a minimum and

maximum volume range. Whenever you adjust the volume on

the TV, the minimum and maximum volume range adjusts, too. Second Audio Program (SAP) Plays the program's audio in

a second language, if one is available. Setting the audio

processor to SAP tells the TV to play the program's audio in

this second language, if one is available.

Choosing an audio processor from the remote

1. Press SOUND to display the audio processor choice list, 2, Point to and select a different audio processor or press CLEAR

to exit.

SRS,Sound Retrieval System, and the SRS logo are registered trademarks of SRSLabs, Inc.

The number of audio processor choices available depends on the type

of signal you are currently using. For example, depending on the way you

have your VCR connected to the TV, the number of choices is greater

when you are watching TV than when you are watching a video tape.

CLOSED CAPTION I NG

Many programs are encoded with closed captioning information, which lets you display the audio portion of a program as text on the TV screen. You can tell the TV to display closed captioning: a) never, b) whenever it is available, or c) whenever the program

is muted.

TO DISPLAY CLOSED CAPTIONING

1. Press MENU to bring up the Main menu.

2. Point to Screen and press MENU, The Screen menu comes up with Closed-Caption Display highlighted.

3. Press MENU to select Closed-Caption Display.

Off No closed captioning information will be displayed. On Always Closed captioning will be displayed whenever it

is available.

On when sound is muted Closed captioning will be displayed only when you have muted the sound by pressing

the MUTE butLon.

Point to your choice and press MENU to select it and return

to the Screen menu.

Closed captioning is not available on all channels at all times. Only specific programs encoded with closed captioning information are applicable. When a program isclosed captioned, the letters CCare displayed in the

channel marker.

CLOSED CAPTIONING MODES

The TV offers eight closed-captioned modes, including four text

modes.

To Set the Closed-Captioning Mode:

1. Select Screen from the Main menu

2. Point to Closed-Caption Mode and press MENU. This choice

list comes up:

3. Point to your choice and press MENU to select it and return to the Screen menu.

Turning off Closed Captioning

1. Select Screen from the Main menu.

2. Press MENU to select Closed-Caption Display

3. Point to Offand press MENU. The closed captioning is turned off and you are returned to the Screen menu.

If you are unsure of the differences

among the modes, you may prefer to

leave the closed captioned mode set

to CC1, which displays complete text of the program in the primary

language in your area.

ON-SCREEN PROGRAM DETAILS

Program providers have the option of sending information

through the airwaves along with their programs. If this

information is available, the TV can display it up when you press INFO on the remote. To display the on-screen program details:

1. Press INFO once to bring up the channel marker.

2. Press INFO again to bring up the program title, the program's

length and elapsed time.

3. Press INFO again to bring up other program details such as the story line and whether Closed-Captioning is available.

4. Press INFO again to clear the screen, Whether all (or any) of the program details are displayed

depends on whether the program provider has sent the

information along with the program.

THINGS TO DO BEFORE CONNECTING COMPONENTS

Protect your components from power surges

Connect all components before plugging any power cords into the wall outlet,

Always turn off the TV and/or component before you connect or disconnect any cables,

POSITION CABLES CORRECTLY TO AVOID

AUDIO HUM OR INTERFERENCE

Insert all cable plugs firmly into their Jacks, Place the audio/video cables to the sides of the TV's

back panel instead of straight down the middle after

you connect your components. Try not to coil any twin-lead cables and keep them

away from the audio/video cables as much as possible,

Make sure all antennas and cables are properly grounded, Refer to the Safety Tips sheet packed with your TV,

PROTECT YOUR COMPONENTS FROM

OVERHEATING

Do not block ventilation holes in any of the components, Arrange the components so that air can circulate freely.

Do not stack components. Allow adequate ventilation when placing your

components in a stand.

Place an amplifier on the top shelf of the stand so

heated air rising from it will not flow around other components,

Important:

This section assumes that you have already used the Interactive Setup and programmed the remote.

TV AND MONO VCR

(CONNECTION A)

This information applies to Connection A in the Connections

Foldout.

Connection A provides:

stereo sound from broadcast programs

mono sound from VCR

Picture in Picture (PIP) watch one channel on TV while recording another channel

To use this connection you must have:

(2) audio/video cables

(2) coaxial cables

To connect:

1. Connect cables as shown in Connection A.

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION A

To watch TV programs:

1. Turn VCR off.

2. Press TV and tune to a channel.

To record one program and watch another:

1. Press VCR1 and tune to a channel.

2. Begin recording.

3. Make sure the TViVCR switch on the VCR is set to TV.

4. Press TV and tune to a channel.

To play a tape on the VCR:

1. PressVCR1.

2. Press PLAY.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

_N _OM ANT

OH4

OUTTOTV

VIDEO AUDIO

See Connections Foldout,

Connection A

TV AND STEREO VCR

(CONNECTION B)

This information applies to Connection B in the Connections

Foldout.

Connection B provides:

stereo sound from broadcast programs stereo sound from VCR

Picture in Picture (PIP)

watch one channel on TV while recording another channel

To use this connection you must have:

(2) coaxial cables (3) audio/video cables

(1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection B.

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION B

To watch TV programs:

1. Turn VCR off.

2. Press TV and tune to a channel.

To record one program and watch another:

1. Press VCR1 and tune to a channel,

2. Begin recording.

3. Make sure the TV/VCR switch on the VCR is set to TV.

4. Press TV and tune to a channel,

To play a tape on the VCR:

1. PressVCR1.

2. Press PLAY.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

• Tr

See Connections Foldout,

Connection B

TV, VCR AND DVD PLAYER

(CONNECTION C)

This information applies to Connection C in the Connections

Foldout.

Connection C provides:

stereo sound from broadcast programs stereo sound from VCR

Picture in Picture (PIP)

watch one channel on TV while recording another channel

To use this connection you must have:

(2) coaxial cable (6) audiolvideo cables

(1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection C.

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION C

To watch TV programs:

1. Turn VCR off.

2. Press TV and tune to a channel.

To record one program and watch another:

1. Press VCR1 and tune to a channel.

2. Begin recording.

3. Make sure the TViVCR switch on the VCR is set to TV.

4. Press TV and tune to a channel.

To play a tape on the VCR:

1. PressVCR1.

2. Press PLAY.

To play a disc:

1. Press DVD,VCR2.

2. Press PLAY.

CABLE, CABLE BOX, OR ANTENNA

VCR 1

See Connections Foldout,

Connection C

TV AND (2) VCRS

(CONNECTION D)

This information applies to Connection D in the Connections

Foldout.

Connection D provides:

stereo sound from broadcast programs stereo sound from VCR

Picture in Picture (PIP)

watch one channel on TV while recording another channel

record from one VCR to the other

To use this connection you must have:

(3) coaxial cable (6) audio/video cables (1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection D.

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION D

To watch TV programs:

1. Turn VCR off.

2. Press TV and tune to a channel.

To record one program and watch another:

1. Turn VCR2 off,

2. Press VCR1 and tune to a channel.

3. Begin recording.

4. Make sure the TV/VCR switch on the VCR1 is set to TV.

5. Press TV and tune to a channel,

To play a tape on the VCR:

1. PressVCR1.

2. Press PLAY.

You can record from one tape to another (tape dubbing):

1. Insert original tape into VCR2.

2. Insert blank tape into VCRI.

3. PressVCRI.

4. Set VCR to line input (for more, see

your VCR User Manual).

5. PressRECORD to begin recording.

6. PressDVD.VCR2, then press PLAY.

7. If you want to watch a different

channel, set both the TV/VCR switch on both VCRs to TV; press

TV; then tune to a channel.

Note: The unauthorized recording

of satellite broadcasts, television

programs, or other copyrighted materials may infringe the rights

of others.

CABLE, CABLE BOX, OR ANTENNA

VCR I

OUT

•

SVE £o

/ !

_N I_ FROM ANT CH3 i

_" _" g IN_ROMA_T

R L r i_1o

_L_r i

See Connections Foldout,

Connection D

TV AND DVD PLAYER

(CONNECTION E)

This information applies to Connection E in the Connections

Foldout.

Connection E provides:

stereo sound from broadcast programs

Picture in Picture (PIP)

To use this connection you must have:

(1) coaxial cable (3) audio/video cables (1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection E.

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION E

To watch TV programs:

1. Press TV and tune to a channel.

To play a disc:

1. Press DVD.VCR2.

2. Press PLAY.

CABLE, CABLE 8OX, ORANTENNA

i -

See Connections Foldout,

Connection E

TV AND SATELLITE RECEIVER

(CONNECTION F)

This information applies to Connection F in the Connections

Foldout.

Connection F provides:

stereo sound from broadcast programs stereo sound from the satellite receiver

Picture in Picture (PIP)

To use this connection you must have:

(3) coaxial cable (3) audio/video cables

(1) S-Video cable (optional)

stereo sound from satellite programming

To connect:

1. Connect cables as shown in Connection E

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION F

To watch TV programs:

1. Turn satellite receiver off.

2. Press TV and tune to a channel.

To watch satellite programming:

1. Press SAT-CABLE and tune to a channel.

CABLE, CABLE BOX, OR ANTENNA

o-oo.-......1 I

See Connections Foldout,

Connection F

TV, VCR, AND SATELLITE RECEIVER

(CONNECTION G)

This information applies to Connection G in the Connections

Foldout.

Connection G provides:

stereo sound from broadcast programs stereo sound from VCR

Picture in Picture (PIP)

watch one channel on TV while recording another channel

To use this connection you must have:

(4) coaxial cable (6) audio/video cables

(1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection G.

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION G

To watch TV programs:

1. Turn VCR and satellite receiver off.

2. Press TV and tune to a channel.

To watch Satellite programming:

1. Press SAT-CABLE and tune to a channel.

To record off-air broadcasts and watch a different channel:

1. Turn satellite receiver off.

2. Press VCR1 and tune to a channel.

3. Begin recording.

4. To watch another channel, make sure the TV/VCR switch on the VCR is set to TV; then press TV and tune to a channel.

To play a tape on the VCR:

1. Press VCR1 and then press PLAY.

CABLE, CABLE BOX, OR ANTENNA

SATELLITE RECEIVER

SATELLITE SIGNAL

See Connections Foldout,

Connection G

TV, VCR, SATELLITE RECEIVER, AND DVD

PLAYER (CONNECTION H)

This information applies to Connection H in the Connections

Foldout.

Connection H provides:

stereo sound from broadcast programs stereo sound from VCR

Picture in Picture (PIP)

watch one channel on TV while recording another channel

To use this connection you must have:

(4) coaxial cable (6) audio/video cables

(1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection H.

2. Return to First Things First, and do the Interactive Setup.

USING CONNECTION H

To watch TV programs:

1 Turn VCR and satellite receiver off 2 Press TV and tune to a channel

To watch satellite programming:

1 Press SAT-CABLE and tune to a channel

To record off-air (cable or antenna) broadcasts and watch a different channel:

1. Turn satellite receiver off.

2. Press VCR1 and tune to a channel.

3. Press RECORD to begin recording.

4. To watch another channel, make sure the TV/VCR switch on the VCR is set to TV; then press TV and tune to a channel.

To play a tape on the VCR:

1. Press VCR1 and then press PLAY.

To play a disc:

1. Press DVD.VCR2 and then press PLAY.

CABLE, CABLE BOX, OR ANTENNA

SATELLITE SIGNAL

SATELLITE RECEIVER

SWDEO VIDEO R

See Connections Foldout,

Connection H

TV, (2) VCRS, AND SATELLITE RECEIVER (CONNECTION I)

This information applies to Connection I in the Connections

Foldout.

Connection I provides:

stereo sound from broadcast programs stereo sound from VCR

Picture in Picture (PIP)

watch one channel on TV while recording another channel

To use this connection you must have:

(5) coaxial cable (9) audio/video cables (1) S-Video cable (optional)

To connect:

1. Connect cables as shown in Connection I.

2. Return to First Things First, then follow the steps in the Interactive Setup.

USING CONNECTION I

To watch TV programs:

1. Turn VCR and satellite receiver and laserdisc player off.

2. Press TV and tune to a channel.

To watch Satellite programming:

1. Press SAT-CABLE and tune to a channel.

To record from one VCR to the other (tape dubbing):

1. Turn satellite receiver off.

2. Insert original tape into VCR2.

3. Insert blank tape intoVCR1.

4. PressVCR1.

5. Set VCR to line input (for more, see your VCR User Manual).

6. Press RECORD to begin recording.

7. Press DVD*VCR2, then press PLAY.

8. If you want to watch a different channel, set the TV/VCR

switch on both VCRsto TV; press TV; then tune to a channel.

CABLE, CABLE BOX, OR ANTENNA

SATELLITE SIGNAL

SATELLITE RECEIVER

See Connections Foldout,

Connection I

Torecordoff-air (cableor antenna) broadcastsand watch adifferent channel:

1. Turn offVCR2.

2. Insert blank tape into VCR1. 3 Press VCR1 and tune to a channel.

4. Press RECORD to begin recording

5. To watch another channel, make sure the TV/VCR switch on the VCR is set to TV; then press TV and tune to a channel.

To play a tape on VCRI:

1. Press VCR1 and then press PLAY.

Note: The unauthorized recording of

satellite broadcasts, television programs, or other copyrighted

materials may infringe the rights of others.

CONNECTING AUDIO COMPONENTS

CONNECTING A STEREO AMPLIFIER

Connect the amplifier's TV audio inputs to the left (L) and

right (R) AUDIO OUTPUT jacks.

You may prefer to turn off the TV's internal speakers by selecting Audio Output and Speakers from the Audio menu,

then turning the speakers off,

If your audio amplifier is part of a system that uses its own remote control, you may prefer to select the fixed output

settings.

Important: Do not use the amplifier's PHONO inputs, If the amplifier is not stereo, use the left (L) AUDIO OUT jack, Consult the amplifier's owner's manual for the

manufacturer's recommended hookup.

CONNECTING A SUBWOOFER

To connect a subwoofer to the TV:

1. Connect the subwoofer's audio input to the left (L) AUDIO OUT jack.

CONNECTING A TAPE DECK

To use a tape deck to record audio from TV:

1. Connect the tape deck's audio inputs to the AUDIO OUTPUT

jacks on the back of the TV.

CONNECTING A CAMCORDER FOR

PLAYBACK

This connection is recommended for playing back from the camcorder to the TV:

Connect the camcorder's audio/video outputs to the INPUT 1 or INPUT 2 audio and video,jacks on the TV.

Press INPUT on the remote until the channel marker displays

VlD1.

3. Start playback on the camcorder.

PLAYBACK FROM AN S-VHS CAMCORDER

To connect a camcorder with S-Video capability:

1. Connect an S-Video cable from the camcorder to the S-VIDEO

-jack on the TV.

2. Connect the camcorder's audio/video outputs to the INPUT 1 audio and video jacks on the TV,

3. Press INPUT on the remote until the channel marker displays VlD1.

4. Start playback on the camcorden

TROURLESHOOTI NG

Troubles sometimes are caused by simple "faults" that you can correct without the help of a service technician.

If you experience any difficulty with your TV, check a few basic remedies before calling your service technician.

TV will not turn on

Check to make sure it is plugged in. Check the wall receptacle (or extension cord) to make sure it is "live" by plugging in something else.

Maybe batteries in remote control are "dead." Maybe remote control is not aimed at remote sensor.

The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front Panel Lockout in the Parental Controls menu and choosing Unlock.

Controls don't work

If using remote control, make sure remote is in TV mode by first pressing TV button. Try unplugging set for two minutes and then plug it back in and turn it on again. The front panel MENU button may be disabled. Use the remote control to turn off channel blocking. Select

Channel Block in the Parental Controls menu and choose Off.

Problems with Remote

Maybe something is between the remote and the remote sensor.

Maybe the remote is not aimed directly at the component (TV or VCR) you are trying to control.

Maybe remote is not in TV Mode. Press the TV button so remote will control TV.

Maybe batteries in remote are weak, dead or installed incorrectly. Try replacing batteries. (Note, if you

remove the batteries, you may have reprogram the remote to control other components.)

Remove batteries and hold number 1 for at least 60 seconds to drain the microprocessor inside the remote.

Release number 1, replace the batteries, and (if necessary) reprogram the remote.

Remove all batteries for approximately 12 hours. Then replace batteries and (if necessary) reprogram the

remote.

Turns off while playing

Schedule function may have been activated.

Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn on again. If this happens frequently, the voltage in your house may be abnormally high or low.

TV Turns on unexpectedly

Schedule On function may have been activated.

Blank screen

Maybe the device connected to the input,jacks is not turned on. Try another channel.

Press RESET,in case the picture controls are set too low.

No sound, picture okay

Maybe sound is muted. Try pressing volume up button to restore sound.

Maybe TV's speakers are turned off. Check the Audio Output and Speakers control panel in the Audio

menu.

If using an S-VHS component, remember to also connect the component's L and RAUDIO OUT jacks to the TV's L and R INPUT 1,jacks.

Can't select certain channel

Channel may be blocked or not approved in the Parental Controls menu.

If using a VCR, check to make sure the TV/VCR switch on the VCR is in the correct position.

Noisy stereo reception

May be a weak station. Use SOUND button to change to mono mode instead of stereo.

No picture, no sound but TV is on

Maybe the cable/air function is set to the wrong position.

Maybe a vacant channel is tuned.

If watching VCR (connected only through antenna input), make sure TV istuned to channel 3 or 4 - same as CH3/4 switch on VCR. Also check to make sure TV/VCR switch on VCR is in correct position.

Sound okay, picture poor

Check antenna connections. Try adjusting sharpness function to improve weak signals.

Black Box appears on the screen:

Captioning may be turned on. Check the Closed-Caption Display control panel in the Channel menu.

TV GUIDE Plus+ IR Controllers not working

Check to make sure the controllers are positioned correctly over the IR remote sensors. Your remote may be interfering with the IR controller. Place a piece of dark tape over the IR controller. TV GUIDE Plus+ control of a cable box is slower than direct control of the box itself. Keep this in mind when

changing channels.

What your warranty covers:

• Any defect in materials or workmanship.

For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

• Two years for picture tube. (The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental

firm, whichever comes first.)

What we will do:

• Pay any Authorized RCA Television Servicenter the labor charges to repair your television.

• Pay any Authorized RCA Television Servicenter for the new or, at our option, refurbished replacement parts and picture tube required to repair your television.

How you get service:

• Request home service from any Authorized RCA Television Servicenter. To identify your nearest Authorized

RCA Television Servicenter, ask your dealer, look in the Yellow Pages, or call 1-800-336-1900.

• Show the service technician your evidence of purchase date or first rental.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, and operate your television. Any additional information should be obtained from your dealen)

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Batteries.

• Images burnt onto the screen.

• A television that has been modified or incorporated into other products or is used for institutional or other commercial purposes.

• A television purchased or serviced outside the USA.

• Acts of God, such as but not limited to lightning damage.

Product Registration:

• Please complete and mail the Product Registration Card packed with your television. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage.

How state law relates to this warranty:

• This warranty gives you specific legal rights, and you may have other rights that vary from state to state.

If you purchased your product outside the USA:

• This warranty does not apply. Contact your dealer for warranty information.

CARE AND CLEANING

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet to help assure adequate ventilation.

The TV's screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If

necessary, you may use a cloth dampened with warm water. Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types

of cleaners will damage the TV. While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen

and inside the TV. Also, avoid placing drinks or vases with water on top of the TV. This could

increase the risk of fire or shock hazard or damage to the TV.

• ]

Caution: If fixed (non-moving) images are left on the screen for long periods, they may be permanently

imprinted on the screen. Such images include network Iogos, phone numbers, and video games. Extended

viewing of channels displaying these images should be avoided.

General Cable Information

Antenna (or cable-TV) connections are made with either coaxial antenna cable or twin-lead cable.

Coaxial cables are shielded so they are less susceptible to hum or interference from adjacent

cables.

The following accessories are available from most dealers and electronics supply stores in case you want to position your components farther apart or need

additional cables.

Round 75-ohm coaxial cable

Push-on Connector

Screw-on Coaxial Connector

Flat 300-ohm twin-lead cable

Most audio/video connections between

components can be made with shielded audio and video cables that have RCA-type phono connectors.

Standard Audio/Video cable with RCA-type

phono plugs (such as No. VH83)

Color-Coded Jacks

The jacks on the TV's monitor panel are color-coded for ease of use. The VIDEOjacks are yellow, the right

AUDIOjacks are red, and the left AUDIOJACKSare white.

When connecting components to each other, be sure that you always connect left outputs to left

inputs and right outputs to right inputs. If a

component has only one output (mono), connect it to the R/MONOINPUTjack.

To connect S-VHS (Super-VHS) components, an S-VHS video cable is required.

S-Video cable (such as No. VH913)

Gold-Plated Jacks and Gold-Tipped Cables

Gold plating helps prevent oxidation of contacts which provides much less loss than conventional contacts. A complete line of gold-tipped cables is available to help you obtain optimum performance from your equipment.

Antenna Cables

VH81 (3-ft) VH82 (6-ft)

VH89 (6-ft)

Screw-on Cable attaches to the round antenna connectors

(called 75-ohm F-type) on the back of your VCR or TV. The

ends screw onto the connectors

for a secure connection.

Push-on Cable attaches to the round antenna connectors

(called 75-ohm F-type) on the back of your VCR or TV. Ends push on for a quick connection.

Audio/Video Cables

Gold-Tipped cable VH83 (6-ft)

Monaural VCR Dubbing

Cable Double cable that lets

you connect the VIDEOand AUDIO

JACKS Of tWO VHS VCRs tO

duplicate tapes. Can also be used to connect a VCR to your

TV. Cable is color-coded and shielded. Has RCA-type phono

plugs on each end.

Stereo VCR Dubbing Cable

Triple cable that lets you connect the VIDEOand AUDIO jacks

of stereo components.

Gold-Tipped cable AH84 (6-ft)

VH976 (6-ft) VH913 (12-ft)

S-Video Cable has multi-pin connectors on each end for

connecting S-Video components to your TV.

CRK7OM1 238544

Splitter VH47

ANT200

Remote Control This is the remote control that

came packed with your TV.

Replacements or spares

can be ordered as needed.

2-way Signal Splitter

helps you connect to a

second TV or VCR.

Amplified VHF/UHF/FM Antenna allows you to

easily switch from the antenna signal to cable or satellite easily without disconnecting antenna.

Accessory Order Form

Description

Screw-on antenna cable (3ft)

;crew-on antenna cable (6ft) VH82

>ush-on antenna cable (6-ft) VH89

Monaural VCR Dubbing Cable (6-ft) VH83

;tereo VCR Dubbing Cable (6-ft) VH84 ;Video Cable (6-ft) VH976 ;Video Cable (12-ft) VH913

__-waySignal Splitter VH47 _,mplified Antenna ANT200

_,ntenna Mixer 193984

_emote Control (CRKTOM1) 238544

_,udio-Video Adapter 228449

$6.95

$5,95 $5,95 $9.95

$7.95 $8.95

$3.95

$49.95 $10.95

$36.40

$4.35

Prices are subject to change without notice.

Total Merchandise ............................................ $

Sales Tax .............................................................. $__

We are required by law to collect the appropriate sales tax for each individual

state, country, and locality to which the merchandise is being sent.

Shipping and Handling ..................................... $ 5o0

Total Amount Enclosed ..................................... $-_

Use VISA, MasterCard, or Discover Card

3referably.

Money order or check must be in U.S. currency only.

No COD or CASH.

All accessories are subject to availability, Where applicable, we will ship a superseding model.

Charge your order on your VISA,

MasterCard, or Discover Card by

filling in below

USE YOUR CREDIT CARD

IMPORTANT: ( opy complete accomlt number

from your VISA card

VISA

Mycard expires: _

IMPORTANT: ( opy complete accomlt number

from your Master( ard

(opy Number

above your

nallae on

MasterCard

My card ["'_ [""_ _xplr_g:

IMPORTANT: (opy COlZaplete account number

fi'oln your Discover (ard

Mycardexpires: _

AUTHORIZED SIGNATURE

(Credit card order will not be processed without signature)

Prices are subject to change withotd notice.

Print or type your name and A complete and correct address clearly. This will be order will save you days

your mailing label, of waiting.

Name:

Street:

Apt:

City:

State: Zip:

...... ,J

Please make sure that both sides of this form have been filled out completely.

• Allow 4 weeks for delivery,

• All accessories are subject to availability,

• Prices are subject to change

United States and Canada Orders

To place your order by phone, have your Visa, MasterCard

or Discover Card ready and call the toll-free number

listed below between 8AM and 8PM (EST) Monday

through Friday or between 9AM and 5PM (EST)Satur- day.

Use this number only to place on order for accessory items listed on this order form.

1-800-338-0376

To place your order by mail, detach and mail the completed order form with credit card information,

money order or check in UScurrency (made payable

to Thomson Consumer Electronics, Inc.) to the following address:

Video Accessories PO Box 8419

Ronks, PA 17573

Accessories 82 Amplifier 76

Antenna (ANT) 38 Audio menu 44

AUDIO OUTPUT 39 Audio Output Volume & Speakers 44

Audio Processor 44, 60 Auto Channel Search 16, 47 Auto Color 45

Auto Tuning 25, 26, 48

B Back panel jacks 38

Basic Picture Controls 45 Batteries 5, 41

Black Level 45 Buttons

Front panel 40 Remote 36

Cables 82 Care and Cleaning 81

CC 41 CH CTRL button 58 Chan# 47 Chan Labels 47 Channel Block 50

Channel Directory 47 Channel Mapping 21, 54

Channel Marker 41 Channel menu 47 Channels

DVD/VCR2 Channel 25, 48 SAT/CABLEChannel 26, 48 VCR1 Channel 48

Closed Caption

Display 46, 61

Mode 46, 62

Color 45 Color Warmth 45

Connections

Basic 4 Components 66

Foldout 4

Hints and tips 65

Contrast 45 Control Panels 11

Enhanced SRS Stereo 44, 60

Fixed images 81 Fixed output 39 Fixed Output, Speakers Off 44 Front panel buttons 40

Front Panel Lockout 50

INFO button 63 Inputs

Audio, video 38

INPUT 1,2 38

L/MONO 38 Labels 27, 47 Language 16, 46

Memory 47 Menu Language 16, 46

Menus 10 Mono 44, 60

MOVE buttons 58 Mute 44

Normal List 47

On-screen Program Details 63 One Touch Recording 57 Outputs 39

Parent Approved 50 Parental Controls

Channel Block 50

Front Panel Lockout 50

Parental Controls menu 50 Picture Control Presets 45 Picture Quality menu 45

Picture Tilt 46 PIP(Picture in Picture) 58

PiP Chan 41

PiP button 58 Point and Select 8 Program details 63

Programming the remote to control

components 30, 32, 33

Remote Control

Programming 30 Remote batteries are low 41

using the 33

RIGHT 38

S-VIDEO 38 SAP 41 Schedule 49 Screen menu 46

Second Audio Program (SAP) 44, 60 Set

DVD/VCR2 Channel 25, 48

SAT/CABLEChannel 26, 48 VCR1 Channel 48

Set Time 49 Setup 16

Setup menu 51, 52 Sharpness 45 Signal Type

Cable TV 47

UHFiVHF Antenna 47

Sleep 41 SleepTimer 41, 49

SOUND button 60 Sound Logic Stereo 44, 60

SRSStereo 44, 60 Stereo 41, 44, 60 Subwoofer 39, 76

SWAP button 58

Tape Deck 76 Time

Current 41 Set Time 23

Time menu 49 Tint 45 Tone Controls 44

TV GUIDE Plus+ System 5, 14, 17-22,

51, 54-57, 79

Channel Mapping 21, 54

IR Controllers 5 Next Menu 55

One-Button Recording 57 Scan Menu 55

Sort Menu 56 Surf Menu 54

Troubleshooting 79

V Variable output 39

Variable Output, Speakers Off 44 Variable Output, Speakers On 44

VIDEO 38 Video Noise Reduction 45

CREATING A GREENER FUTURE

At Thomson Consumer Electronics we are dedicated to the preservation of our

natural heritage and to a healthy and safe way of life for current and future generations. This is a global effort which encompasses every THOMSON facility

throughout the world. We believe that clean air, clean water, a protected earth, and healthy people are not

only practical and desirable goals, but achievable ones as well. Our Corporate Environmental, Health and Safety Charter acknowledges our commitment to protect

these precious assets and provides a challenging vision and guideline for conducting

our business.

_ 1HOMSONCONSUMER_1C$

Below are a few examples of Thomson's achievements in our efforts to preserve our natural resources.

THE EARTH

Thomson reclaims millions of pounds of hazardous waste annually, diverting

it from landfills.

Thomson treats millions of pounds of waste water sludge annually and

renders it non-hazardous.

Thomson recycles over 50 million

pounds of non-hazardous material

annually that otherwise would have

been treated astrash, an overall recovery rate of 50%.

Thomson globally recycles millions of

pounds of broken television picture

tube glass annually through both

internal and external reclaim processes.

THE AIR

Thomson has replaced solvent-based paints at many locations resulting in an

80% reduction in toxic air emissions for equivelant material used.

Thomson has eliminated the use of ozone-depleting substances at television

manufacturing facilities around the world.

Thomson collects and returns over 1.5 million pounds of glass and furnace dust

to the glass making process annually. Thomson has launched worldwide

energy savings programs which contribute to efforts to reduce air

emissions from electrical generating facilities.

TH E WATE R

Thomson recovers over 2 million

pounds of fine glass particles from process water each year and recycles

them back into its glass furnaces.

Thomson's state-of-the-art waste water treatment plants filter out over 26

million pounds of solids from process

water each year. Thomson's U.S. glass factory recycles

2,500 gallons of water per minute and

cleans 2.6 million gallons of water per

day.

Thomson is researching new processes

and is developing new manufacturing equipment and technologies to further reduce large volume water use.

Thomson has also increased its usage of recycled materials for packaging of our products. For example, in the U.S. and Mexico our television plants use recycled content in our television cartons and instruction booklets. The inks used for the print on cartons and instruction booklets are soy based. For afree brochure regarding Thomson's Environmental Health and Safety

Programs, write to Thomson Consumer Electronics' address below, attention Environmental Programs: INH340.

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in

service for your product.

114OMSONCONSUMER ELECTRONICS

10330 North Meridian Street Indianapolis, IN 46290

01997 Thomson Consumer Electronics, Inc. Trademark(s)® Registered

Marca(s) Registrada(s) Printed in USA

TOCOM 15127900 Rev. 1

The following materials were used in

printing this publication:

5O%

RECYCLEDPAPER MINIMUM10%POSTCONSUMER

___j PRINTED WITHI

I SOYINK M

RCA F32683SBFM1CE3, F32683SBFM1CE2, F36683ETJX1CE2, G32686LVLX1CE3, F32686LVLX1CE2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
