Page 1

Television

User’s Guide

Changing Entertainment. Again.

Please read this manual before operating this product for the first time.

TOCOM 16068120

Models: F27550, F32550

Page 2

Important Information

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Power Consumption: 120V ~ 60 Hz A.C. 128W (model F27550), 142W (model F32550)

Attention: Pour éviter les chocs électriques, introduire la lame la plus large de

la fiche dans la borne correspondante de la prise et pousser jusqú au fond. Refer to the identification/rating label located on the back panel of your product for its proper

operating voltage. FCC Regulations state that unauthorized changes or modifications to this equipment may void

the user’s authority to operate it.

Caution: Using video games or any external accessory with fixed images for extended periods of time can cause them to be permanently imprinted on the picture tube (or projection TV picture tubes). ALSO, some network/program logos, phone numbers, etc. may cause similar damage. This damage is not covered by your warranty.

Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the

National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

CAUTION

RISK OF ELECTRIC SHOCK DO

NOT OPEN

This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates important instructions accompanying the product.

Product Registration

Please fill out the product registration card (packed separately) and return it immediately, or register on-line at rca.com. Returning the card allows us to contact you if needed.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. These numbers are located on the product.

Model No. ______________________________________________________________ Serial No. _______________________________________________________________ Purchase Date: ___________________________________________________________ Dealer/Address/Phone: _____________________________________________________

Page 3

Table of Contents

Chapter 1: Connections & Setup

Things to Consider Before You

Connect .................................................. 2

Connecting Components to Your TV .... 3

TV + VCR + DVD Player ....................... 3

Using the VPORT Jack ........................... 4

Jacks on the Back of the TV ................. 5

Put Batteries in the Remote ................. 6

Complete the Interactive Setup ............ 6

Set the Menu Language...................... 6

Complete Auto Channel Search........ 6

Chapter 2: Using the Remote

Control

The Buttons on the Remote Control .... 7

Using the WHO•INPUT Button ......... 8

Programming the Remote to Operate

Other Components ................................. 8

Find Out If You Need to Program

the Remote ............................................ 8

How to Program the Remote ............ 9

How to Use the Remote After You’ve

Programmed It ....................................... 9

Remote Codes....................................... 10

Parental Controls and V-Chip ............. 14

How V-Chip Works ............................. 14

V-Chip TV Rating Limit ..................... 15

Blocking Age-Based Ratings ...... 16

Viewing Age-Based Ratings ....... 16

Blocking Specific Content

Themes ..........................................16

Viewing Specific Content

Themes ..........................................17

V-Chip Movie Rating Limit .............. 17

V-Chip Unrated Program Block ...... 17

Channel Block ......................................17

Front Panel Block ................................ 18

Lock/Unlock Parental Controls ........ 18

Chapter 4: Using the TV’s Menu

System

How to Use Your TV’s Menu System .. 19

Audio Menu ......................................... 19

Picture Quality Menu .......................... 20

Screen Menu ........................................ 21

Using Closed Captioning ..................... 21

Channel Menu ...................................... 22

Time Menu ........................................... 23

Chapter 5: Other Information

Chapter 3: Using the TV’s

Features

Channel Banner .................................... 12

Why You Should Use the Auto

Tuning Feature ..................................... 13

How to Set Up the Auto

Tuning Feature.....................................13

Troubleshooting ................................... 24

Limited Warranty ................................. 26

Care and Cleaning................................ 28

The Front of Your TV ........................... 28

Accessories ........................................... 29

Page 4

Chapter 1: Connections & Setup

Things to Consider Before You Connect

Protect Against Power Surges

• Connect all components before you plug any of their power cords into the wall outlet.

• Turn off the TV and/or component before you connect or disconnect any cables.

• Make sure all antennas and cables are properly grounded. Refer to the Important Safeguards sheet packed with your TV.

Protect Components from Overheating

• Don’t block ventilation holes on any of the components. Arrange the components so that air can circulate freely.

• Don’t stack components.

• When you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it won’t flow around other components.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

• If you place components above the TV, route all cables down the side of the back of the TV instead of straight down the middle of the back of the TV.

• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin lead cables away from audio/video cables.

Important Stand and Base Safety Information

Choose the location for your TV carefully. Place the TV on a stand or base that is of adequate size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury and/or damage the TV. Refer to the Important Safeguards sheet packed with your TV.

Use Indirect Light

Don’t place the TV where sunlight or room lighting will be directed toward the screen. Use soft or indirect lighting.

Connection Pictures

Audio/video cables are usually bundled together. For better visibility, the connection pictures in this book show each cable separately (audio left, audio right, and video).

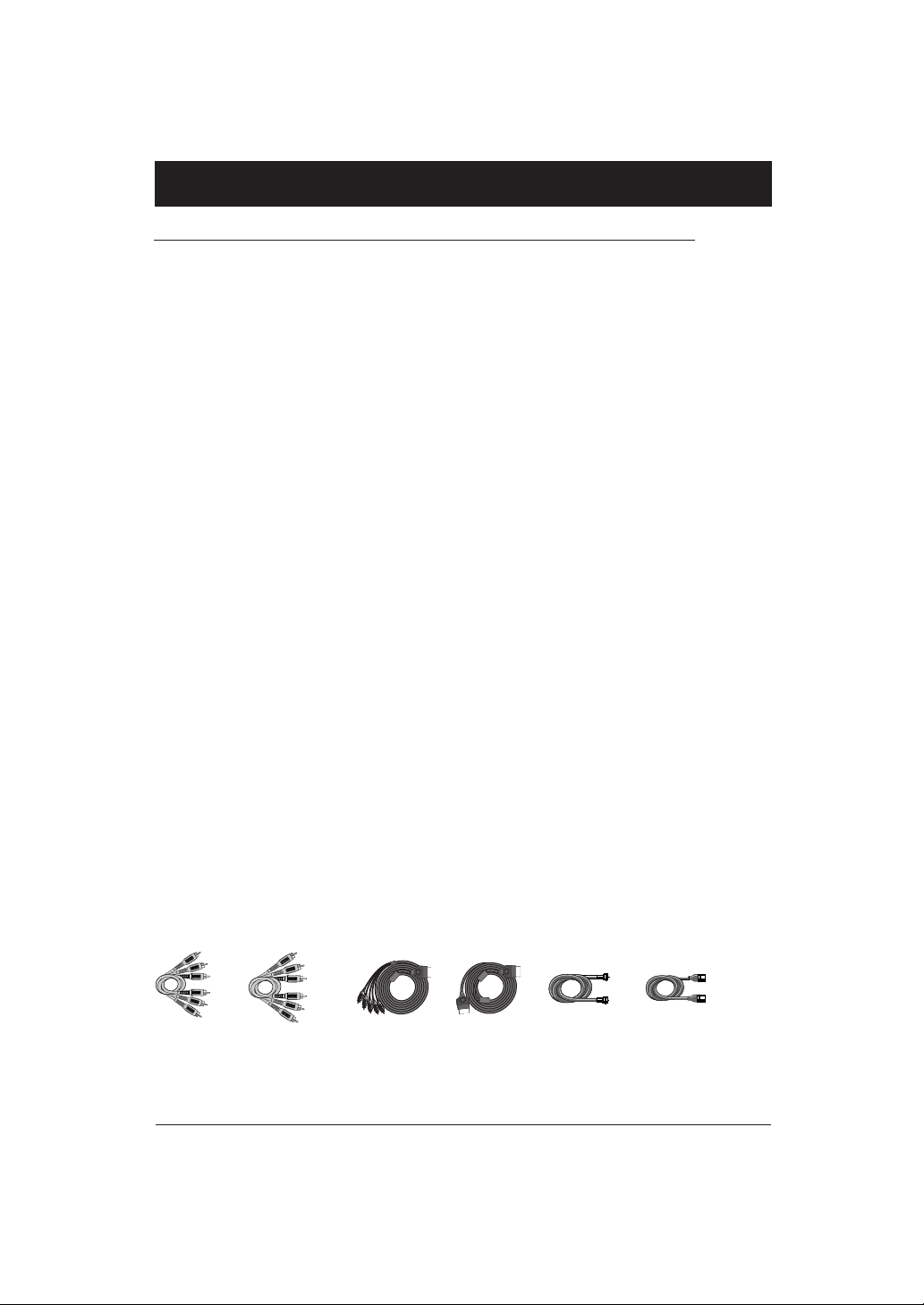

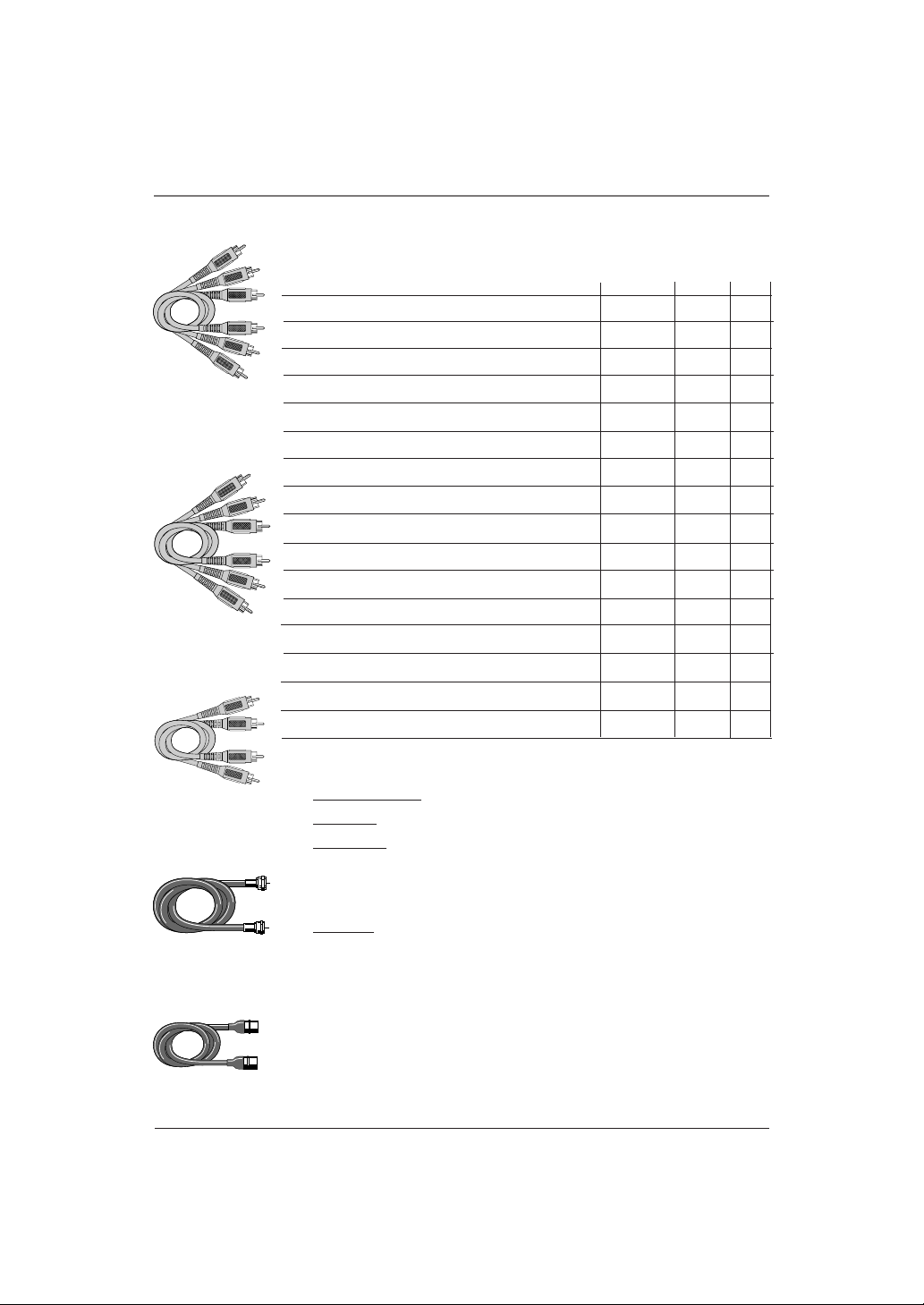

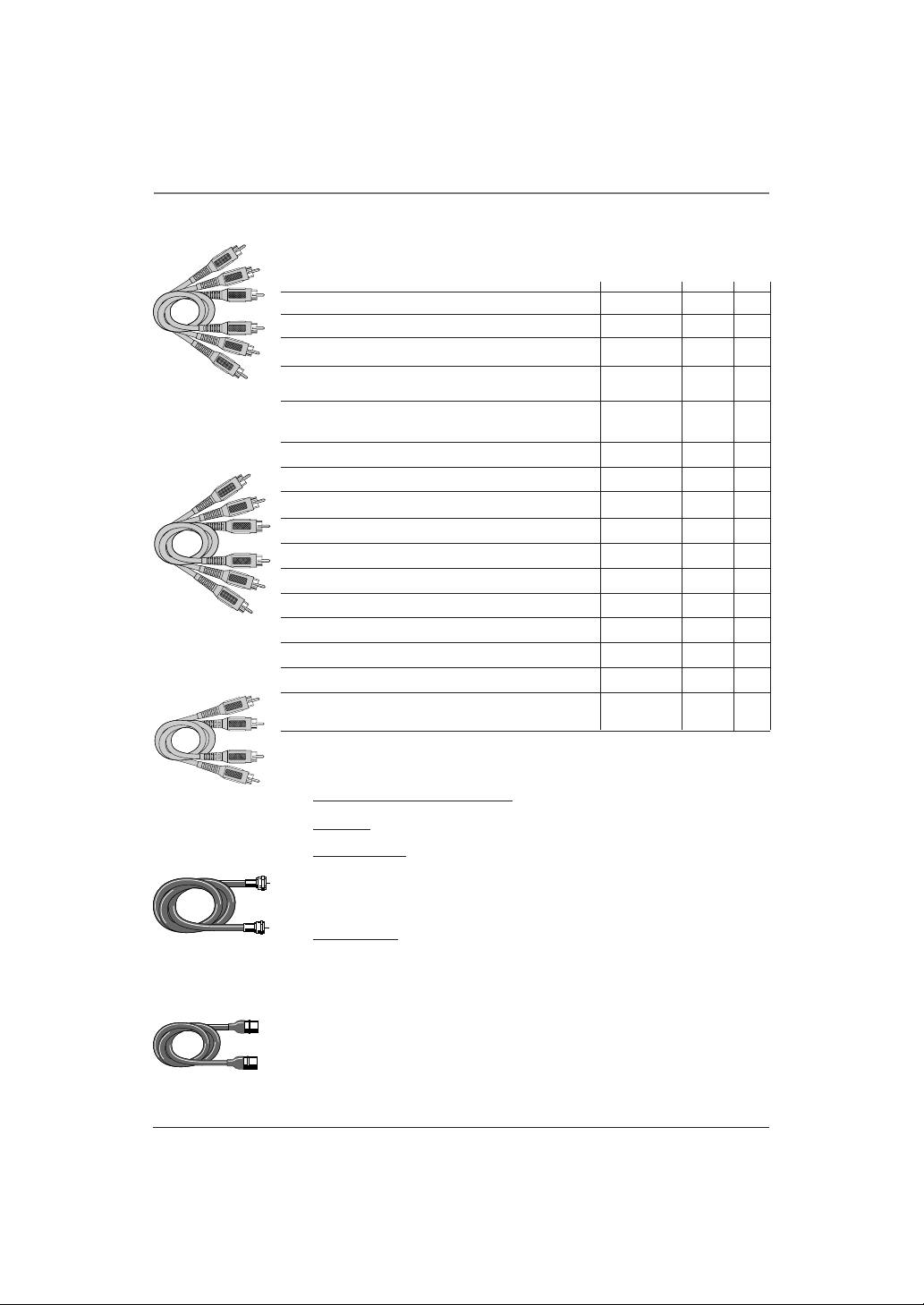

Cables Needed to Connect Components to Your TV

The pictures below show the cables needed for the connections represented in this book.

Notes: Audio/Video cables (A/V cables for short) are usually sold as a bundled set, but the connection pictures in this book show each cable separately for better visibility.

Audio/Video cables

2 Chapter 1

Component video

, PR) cables

(Y, P

Illustrations contained in this document are for representation only.

Component video to VPORT cable

Xbox to VPORT cable

Coaxial cable

S-Video cable

Page 5

Connections and Setup

VCR

VIDEO

TV (back panel)

VPORT

DVD

OUT

VIDEO

U O

AUDIO

R-AUDIO-L

S-VIDEO

IN FROM ANT

OUT TO TV

CABLE/ ANTENNA

CH3 CH4

From Cable or Antenna

OUT

VIDEO

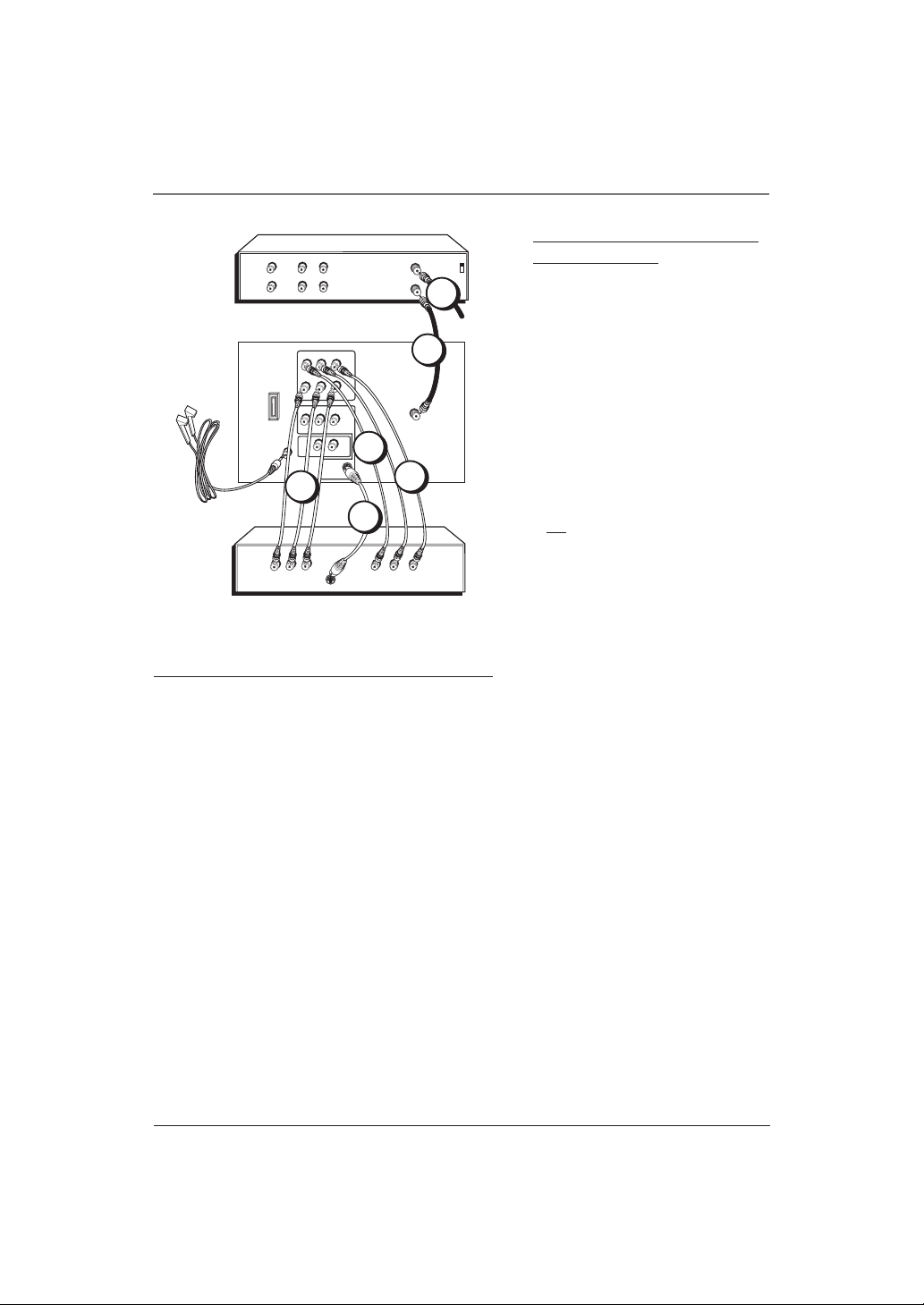

Connecting Components to Your TV

For information on using the different jacks on the back of your TV to hook up other components not listed below, see the following pages.

Note: If you prefer, we can provide you with the name of an Authorized Service Representative who will visit your home for a fee to install your electronic entertainment system and to instruct you in its operation. For details about this service, call 1-888206-3359 or visit www.rca.com.

* If you connect an S-Video cable, you must connect the audio cables to the INPUT1 AUDIO R and L jacks on the back of the TV,

not the INPUT2 AUDIO jacks.

TV + VCR + DVD Player

1. Connect your TV to your DVD player

A. Connect the audio cables (white and red) to the INPUT2 AUDIO R and L jacks on the back of the

TV and to the Audio Output Jacks on the DVD player.

B. If your DVD player has Component Output Jacks (Y, PB, PR), connect three video grade cables to

the Y, PB, PR jacks on the DVD player and to the Y, PB, PR jacks on the back of the TV. If your DVD player doesn’t have Y, PB, PR jacks, go to C.

-OR-

C. If your DVD player has an S-Video jack, connect an S-Video cable to the S-Video jack on the DVD

player and the S-VIDEO jack on the back of the TV. If your DVD player doesn’t have an S-Video jack, go to D.

-OR-

D. Connect a video cable (yellow) to the Video Output Jack on the DVD player and to the INPUT2

VIDEO jack on the back of the TV.

2. Connect your TV to your VCR

Connect a coaxial cable to the CABLE/ANTENNA jack on your TV and to the Output Jack on your VCR (sometimes labeled OUT TO TV).

3. Connect cable or antenna to your VCR

Connect the coaxial cable from your cable outlet or antenna to the Input Jack on your VCR (sometimes labeled IN FROM ANTENNA or IN FROM ANT).

Chapter 1 3

Illustrations contained in this document are for representation only.

Page 6

Connections and Setup

Xbox

TV (back panel)

INPUT

R-AUDIO-L

VIDEO

VPORT

DVD

OUT

VIDEO

Using the VPORT Jack

The VPORT jack lets you connect an Xbox video game console to the TV using an Xbox to VPORT cable (not provided). Go to the Accessory Order Form on page 29 to purchase the Xbox to VPORT cable. You can also connect a component, such as a DVD player, that has component video jacks (Y, PB, PR) using a Component video to VPORT cable (not provided). When using the Component video to VPORT cable, make sure to connect the left and right audio cables to the component in order for the TV to receive sound.

Note: The VPORT jack cannot be used for game consoles other than the Xbox video game console.

R-AUDIO-L

INPUT 1

EO D

I V

CABLE/ ANTENNA

From Cable

Cable Box

r Antenn

1. Connect your TV to a DVD player

Use a Component video to VPORT cable (not provided) to connect your TV to another component, such as a DVD player, that has Y, PB, PR jacks. Connect the Component video to VPORT cable to the VPORT jack on the back of the TV. Connect the other ends of the Component video to VPORT cable to the Y, PB, P

Component video to VPORT cable (not supplied)

and the Audio Output Jacks on the back of the DVD.

-OR-

2. Connect your TV to an Xbox video game console

Connect the end of an Xbox to VPORT cable (not provided) labeled TV to the VPORT jack on the back of the TV and the other end to the corresponding jack on the back of the Xbox video game console.

Xbox to VPORT cable (not supplied)

4 Chapter 1

Note: If you have an audio receiver, you might be able to connect a digital audio cable to the digital audio jack that’s on the VPORT cable.

Illustrations contained in this document are for representation only.

Page 7

Connections and Setup

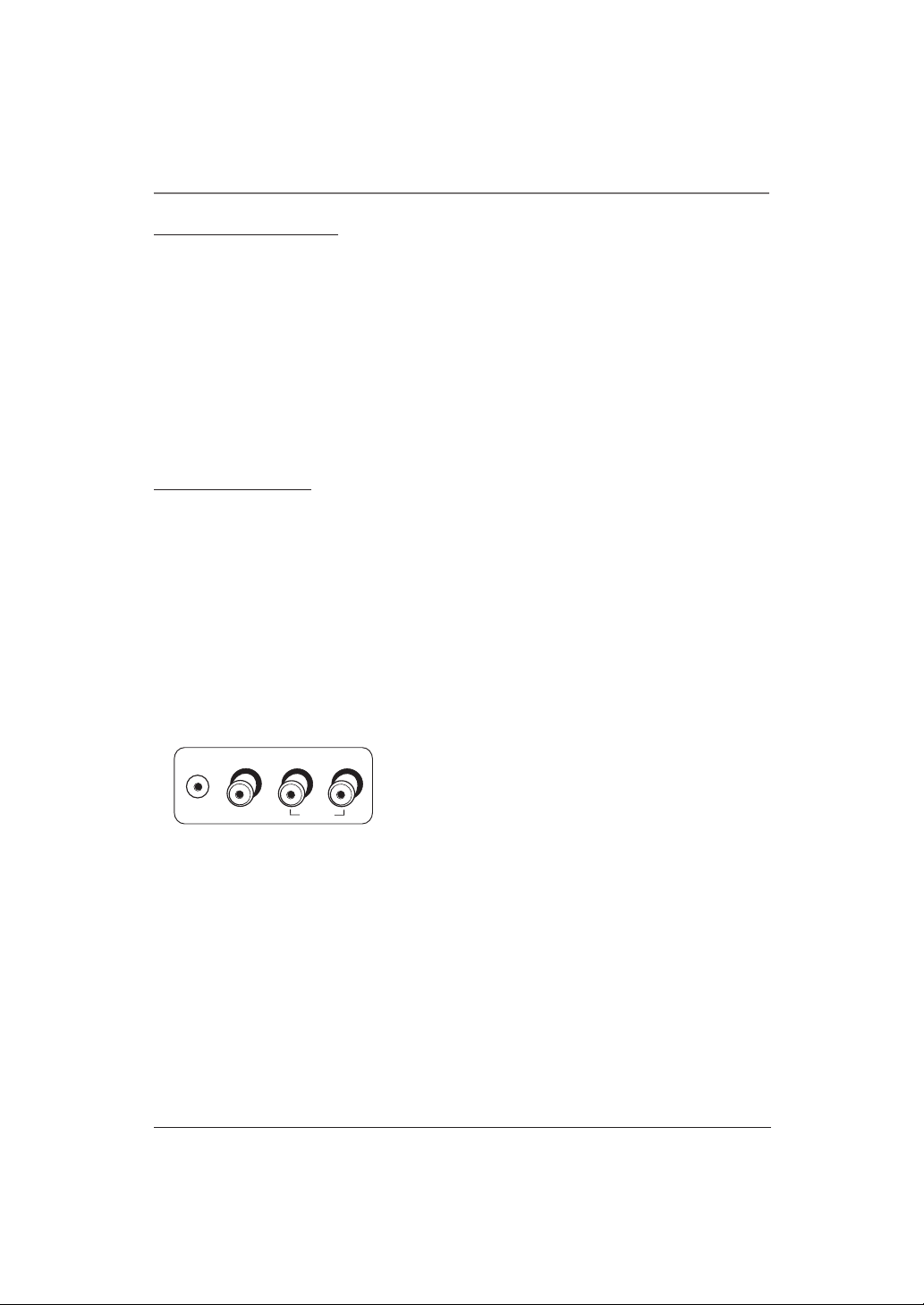

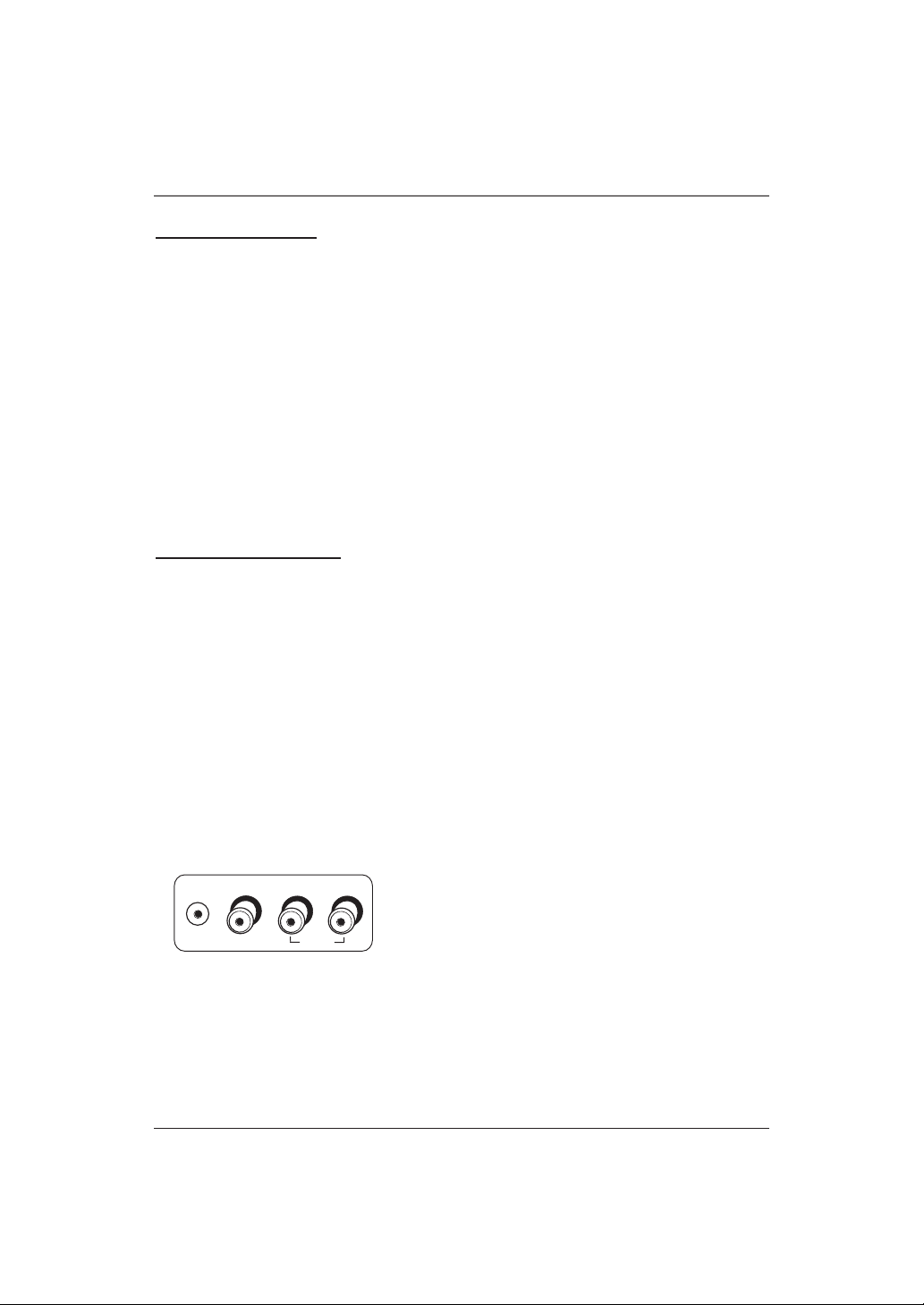

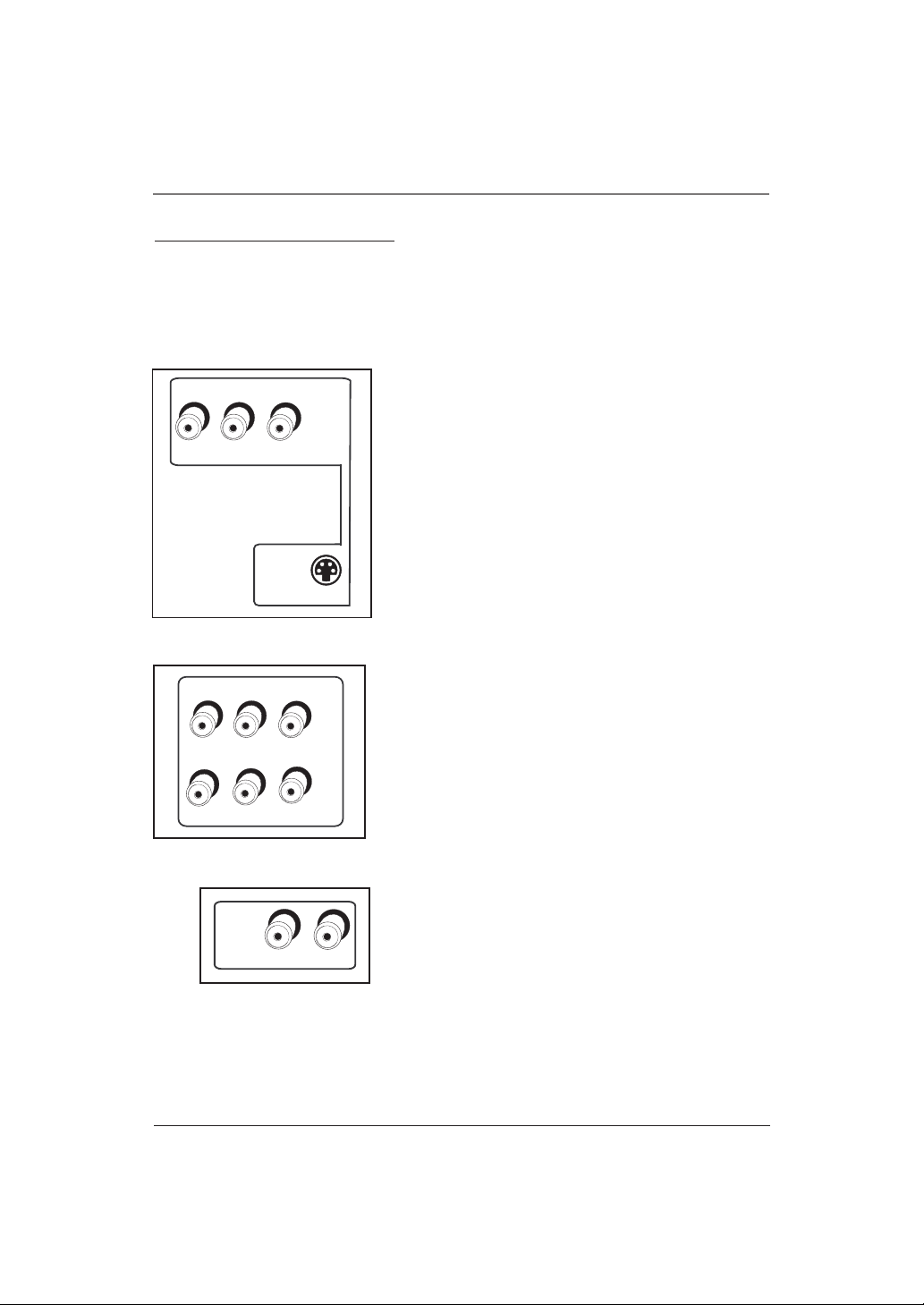

Jacks on the Back of the TV

This section describes each of the jacks on the back of the TV. When connecting A/V cables, be sure to connect corresponding outputs to inputs (video to video, right audio to right audio, etc.)

VPORT Go to page 4 for VPORT explanation.

CABLE/ANTENNA Lets you connect a coaxial cable to receive the signal from the antenna, cable or cable

box.

VIDEO

R-AUDIO-L

INPUT1

IN P

INPUT1 Lets you connect a component such as a VCR, DVD player, satellite receiver or laserdisc player.

• VIDEO provides composite video connection. The video connector is usually yellow.

• R AUDIO provides right audio connection. The right audio connector is usually red.

• L AUDIO provides left audio connection. The left audio connector is usually white.

• S-VIDEO provides better picture quality than the regular video jacks (INPUT1 and INPUT 2 VIDEO) because the color part of the signal is separated from the black and white part of the picture. When using S-Video, make sure to connect left and right audio cables to the R-AUDIO-L INPUT1 jacks.

INPUT2 Lets you connect a second component such as a VCR, internet access device, DVD player, or laserdisc player. Its AUDIO and VIDEO jacks are the same as described for INPUT1 above.

•Y, PB, PR (Component Video) provides optimum picture quality because the video is separated into three signals. Use three video-grade cables for the connection. When using Y, PB, PR, make sure to connect left and right audio cables to the R-AUDIO-L INPUT2 jacks.

AUDIO OUT R/L Lets you connect an amplifier or audio receiver for improved sound quality.

Note: You might want to turn off the TV’s speakers from the Audio Menu. Go to page 19 for more information.

Chapter 1 5

Illustrations contained in this document are for representation only.

Page 8

Connections and Setup

Put Batteries in the Remote

1. Remove the battery compartment cover on the remote.

2. Insert new batteries. Match the polarities (+ and -) on the batteries with the diagram on the remote.

3. Put the battery compartment cover back on the remote.

Turn on the TV

Press the TV button on the remote control or the POWER button on the TV (the first screen of the Interactive Setup appears). The menu screens “time out” after a period of time if you don’t make a selection. The tips in this section tell you how to access the Setup menu screens manually.

Note: Pressing the TV button not only turns on the TV, but puts the remote into TV mode. “TV mode” means that the buttons on the remote control operate the TV’s functions.

Complete the Interactive Setup

The menu system in your TV allows the TV’s features to work properly. The first time you turn on your TV, the setup screens appear automatically. The TV will prompt you, you answer, and the TV makes the appropriate adjustments.

SETUP

Select the language to be used in these menus.

1 English

2 Español 3 Français

Use the arrow buttons on the remote to highlight an option.

SETUP

Would you like the TV to search for all available channels?

1 Search for channels

2 Skip this step

Press OK to select.

Set the Menu Language

1. Use the arrow buttons on the remote to highlight your preferred language for the menu system.

2. Press OK to select that language.

Complete Auto Channel Search

The TV will search for all channels viewable through your antenna or cable TV system. This is called “auto programming.”

1. Press OK to tell the TV to begin searching for channels. A progress report appears on the screen.

2. When the screen tells you the search is complete, press OK.

6 Chapter 1

Illustrations contained in this document are for representation only.

Page 9

Chapter 2: Using the Remote Control

VCR

DVD

SOUND

GUIDE

WHO•INPUT

RECORD

L.E.D.

ON OFF

VPORT

PLAY FORWARDREVERSE

STOP PAUSE

CABLE

SAT

AUX

SKIPMUTE

GO BACK

INFO

CLEAR

ANTENNA

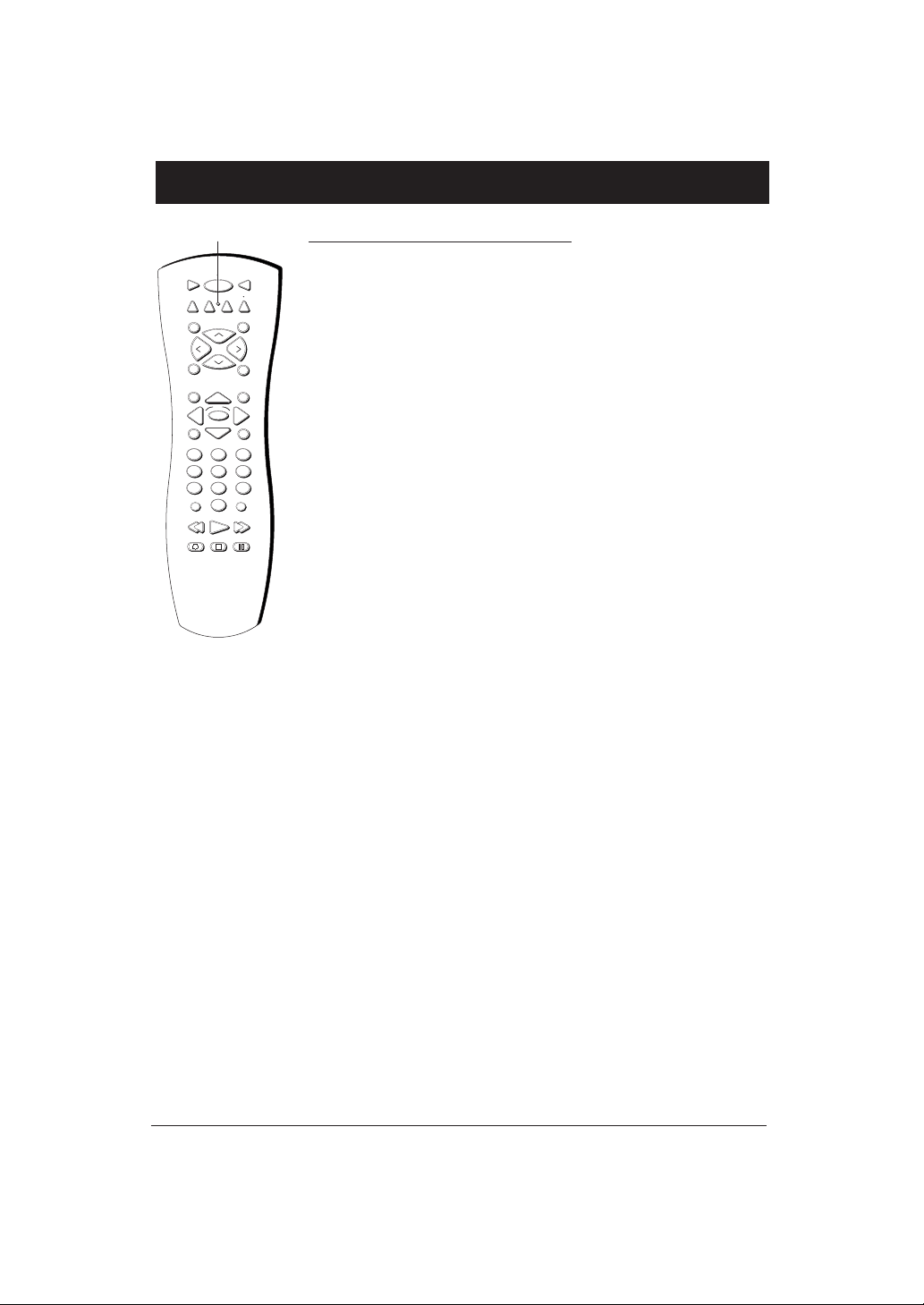

The Buttons on the Remote Control

0-9 (Number buttons) Enter channel numbers and time settings directly through the remote control.

To enter a two-digit channel, press the two digits. To enter a three-digit channel, press and hold the first digit for two seconds until two dashes appear to the right of the number, then add the second two. Example: to tune to channel 123, press and hold 1 for two seconds, press 2, then press 3.

Arrow buttons (up, down, left, right) Move through the on-screen menu system.

ANTENNA Functions as TV/VCR button in VCR mode and TV/receiver button in SAT•CABLE mode.

AUX (auxiliary) Puts the remote in auxiliary mode to operate the component you’ve programmed the remote to operate with this button. You can program this button to control a cable box, audio components, a VCR, DVD player or satellite receiver. If you set up the Auto Tuning feature (Chapter 3), pressing the AUX button automatically tunes the TV to the correct channel.

CH (up and down) buttons Scan up or down through the current channel list. Press once to change the channel up or down; press and hold to continue changing channels.

CLEAR Removes any menu or display from the screen and returns you to TV viewing.

DVD Puts the remote in DVD mode. If you set up the Auto Tuning feature (Chapter 3), pressing the DVD button automatically tunes the TV to the correct channel.

FORWARD If you’re operating a VCR or DVD player with the remote control, press FORWARD to advance a videotape or disc.

GO BACK Returns you to the previous channel.

GUIDE If you’re operating another component that has a guide, this button access the on-screen guide.

INFO Displays channel information.

L.E.D. (light-emitting diode) The little light on the remote that lights when you are programming the

remote. It also lights when you press a valid button on the remote.

MENU Displays the TV’s Main menu.

MUTE Lowers the volume to its minimum level. Press again to restore volume.

OK When a menu is on the screen, press OK to select the item that is highlighted.

ON•OFF Turns the TV on and off. When the remote is in another mode (VCR, DVD, Satellite, etc.) and the

remote is programmed to operate that component, you can press ON•OFF to turn the component on and off.

PAUSE If you’re operating a VCR or DVD player with the remote control, press PAUSE when the videotape or disc is playing to pause playback.

PLAY If you’re operating a VCR or DVD player, plays the videotape or disc.

RECORD If the remote is in VCR mode, press REC•VCR+ to start recording.

REVERSE If you’re operating a VCR or DVD player, press REVERSE to go backwards on a videotape or disc.

SAT•CABLE Puts the remote in SAT•CABLE mode. If you set up the Auto Tuning feature (Chapter 3),

pressing the SAT•CABLE button automatically tunes the TV to the correct channel.

Chapter 2 7

Illustrations contained in this document are for representation only.

Page 10

Using the Remote Control

SKIP If you press this button before you change the channel, the TV waits 30 seconds and goes back to the original channel. Each time you press SKIP, you add 30 seconds (i.e, if you press SKIP two times, the TV waits 60 seconds and turns back to the original channel). Press CLEAR to cancel skip timer.

SOUND Displays the AUDIO PROCESSOR menu.

STOP If you’re operating a VCR or DVD player, stops playing the videotape or disc.

TV Turns on the TV and puts the remote in TV mode. Also displays channel information.

VCR Puts the remote in VCR mode. If you set up the Auto Tuning feature (Chapter 3), pressing the VCR

button automatically tunes the TV to the correct channel.

VPORT Tunes the TV to the VPORT input channel. Program this button to control a cable box, audio components, a VCR, DVD or satellite receiver. When programmed, changes the mode of the remote when the button is pressed. To restore the VPORT button to factory default mode (unprogrammed), press and hold VPORT, then press 1, 0, 0, and 0.

VOL (up and down) buttons Decrease or increase the TV’s volume.

WHO•INPUT In TV mode, press WHO•INPUT to toggle through the available Video Input channels (FRNT,

VID1/SVID1, VID2/CVID2, VPORT and the current channel). In SAT mode, press to select available channel lists.

Using the WHO•INPUT Button

Use the WHO•INPUT button to toggle through the available input sources (FRNT, VID1/SVID1, VID2/CVID2, VPORT and the current channel) and view the content from the component you have connected to the TV.

1. Press TV to place the remote in TV mode. Make sure that the content from the component is turned ON.

2. Press WHO•INPUT to tune to the available input source and view the component.

3. Press WHO•INPUT again to tune back to the channel you were previously watching.

ON OFF

VCR

CABLE

SAT

AUX

VPORT

DVD

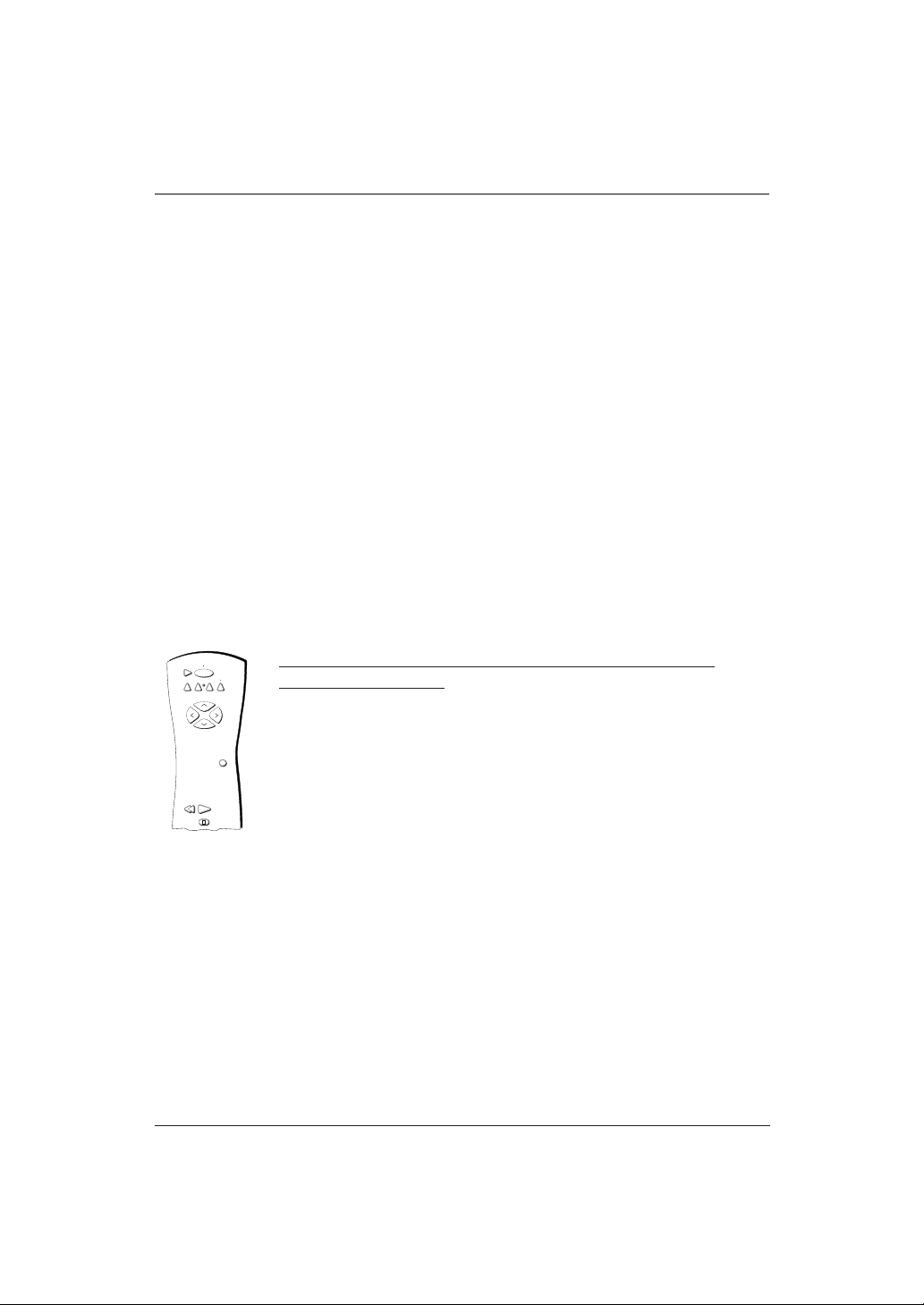

Programming the Remote to Operate Other Components

The universal remote can be programmed to operate most brands of remote controllable VCRs, DVD players, audio receivers, satellite receivers and cable boxes. The remote is already programmed to operate most RCA, GE and Proscan VCRs, DVD

CLEAR

PLAYREVERSE

STOP

players, audio receivers and satellite receivers. The TV button cannot be programmed.

Find Out If You Need to Program the Remote

To determine whether the universal remote needs to be programmed, turn a component ON, such as a VCR, point the remote at the VCR, and press the VCR button. Then press ON•OFF or channel up or channel down to see if the VCR

Use these buttons when you program the remote to operate another

responds to the remote commands. If not, the remote needs to be programmed.

How to Program the Remote

There are two ways to program the remote control: automatic code search and direct entry. Instructions for both ways follow.

component.

The remote may not operate all models of all brands.

8 Chapter 2

Illustrations contained in this document are for representation only.

Page 11

Using the Remote Control

Using Automatic Code Search

1. Turn on the component you want the remote to operate (VCR, etc.).

2. Press and hold the component button on the remote control that corresponds to the component you want the remote to operate (VCR, etc.). While you hold down the component button, press and hold ON•OFF (when the light on the remote turns on, release both buttons).

3. Press PLAY (the light on the remote, located below the ON•OFF button, starts flashing).

The remote is searching the first set of component codes (there are 20 sets of codes). If the component you want to operate doesn’t turn off automatically after 5 seconds, press PLAY again (the light starts flashing again as the remote searches through the next set of codes).

Continue pressing PLAY until the component turns off.

Note: If the component doesn’t turn off after you’ve pressed the PLAY button 20 times, the component can’t be programmed.

4. Press REVERSE, wait 2 seconds. Repeat this step until the component turns back on.

5. To finish, press and hold the STOP button until the light on the remote turns off.

Using Direct Entry

1. Turn on the component you want the remote to operate.

2. Look up the brand and code number(s) for the component on the code list on pages 10-11.

3. Press and hold the component button that corresponds to the component you want the remote to operate (VCR, etc.)

4. Enter the code from the code list.

5. Release the component button.

6. Press ON•OFF to see if the component responds to the remote commands. If it doesn’t, try pressing the component button and then ON•OFF again.

7. If you get no response, repeat these steps using the next code listed for your brand until the component responds to the remote commands.

How to Use the Remote After You’ve Programmed It

Once the remote has been programmed successfully, you are ready to use it to control your components. To operate the component:

1. Press the component button (TV, VCR, VPORT, DVD, AUX, or SAT•CABLE) to set the remote to operate the component.

2. Press ON•OFF to turn the component ON or OFF.

3. Use the remote buttons that apply to that component.

Note: If you keep pressing buttons and nothing happens, the remote is probably in the wrong mode. You must press the component button that matches the component you want to operate (i.e., if you want to operate the VCR, press VCR on the remote control to put the remote in VCR mode.)

Chapter 2 9

Illustrations contained in this document are for representation only.

Page 12

Using the Remote Control

Remote Codes

Cable Box Codes

Programmable for SAT•CABLE, AUX and VPORT buttons.

ABC . 5002, 5003, 5004, 5005, 5006, 5053

Antronix ........................................ 5008, 5009

Archer ................................. 5008, 5009, 5010

Cabletenna ............................................... 5008

Cableview ................................................. 5008

Colour Voice ..................................5012, 5013

Comtronics ................................................ 5014

Contec ........................................................ 5016

Eastern ........................................................5017

GC Electronics ......................................... 5009

GE .....................................................5000, 5001

Gemini ............................................ 5018, 5019

General Instrument ................................ 5003

Hamlin ....... 5020, 5021, 5022, 5028, 5035,

Hitachi ....................................................... 5003

Jerrold ....... 5003, 5018, 5023, 5024, 5046,

Magnavox ................................................. 5025

Memorex ................................................... 5026

Movie Time ............................................... 5027

NEC ............................................................. 5005

NSC ............................................................. 5027

Oak .................................................. 5016, 5029

Panasonic ..................................... 5048, 5052

Philips .......... 5011, 5012, 5013,5015, 5019,

Pioneer .......................................... 5033, 5034

Proscan ...........................................5000, 5001

RCA ......................... 5007, 5047, 5049, 5052

Realistic ..................................................... 5009

Regal .............................................. 5022, 5035

Regency ...................................................... 5017

Rembrandt ................................................ 5003

Samsung ................................................... 5034

Scientific Atlanta 5006, 5036, 5037, 5038

Signal .......................................................... 5018

Signature .................................................. 5003

Sprucer ...................................................... 5052

Standard Components .............. 5039, 5044

Starcom ......................................... 5018, 5053

Stargate ..................................................... 5018

Starquest ....................................................5018

Tandy .......................................................... 5040

Teleview ..................................................... 5014

Tocom ............................................ 5004, 5023

Tusa ............................................................. 5018

TV86 ........................................................... 5027

Unika .............................................. 5008, 5009

United Cable ............................................ 5053

Universal ............................ 5008, 5009, 5010

Viewstar ......................................... 5025, 5027

Zenith ............................................. 5050, 5051

5025, 5030, 5031, 5032

Satellite Receiver Codes

Programmable for SAT•CABLE, AUX and VPORT buttons.

Alphastar ................................................... 5079

Chapparal ..................................... 5056, 5057

Dishnet ....................................................... 5078

Drake .............................................. 5058, 5059

Echostar .................................................... 5089

GE .....................................................5000, 5001

General Instruments ...... 5060, 5061, 5062

Hitachi ........................................... 5083, 5084

Hughes ........................................... 5077, 5090

5045

5053

JVC ............................................................... 5082

Panasonic ................................................... 5075

Philips ......................................................... 5085

Primestar .................................................... 5076

Proscan ........................................... 5000, 5001

RCA ............... 5000, 5001, 5071, 5080, 5081

Realistic ...................................................... 5063

Sony ............................................................. 5072

STS1 ............................................................. 5064

STS2 ............................................................. 5065

STS3 ............................................................. 5066

STS4 ............................................................. 5067

Toshiba ........................................... 5068, 5073

Uniden ........................................................ 5086

VCR Codes

Programmable for VCR, VPORT and AUX buttons.

Admiral ....................................................... 2132

Adventura .................................................. 2026

Aiko ............................................................. 2027

Aiwa ............................................................ 2026

Akai ............ 2003, 2004, 2005, 2007, 2008,

American High ......................................... 2021

Asha ............................................................ 2013

Audio Dynamics ........................... 2009, 2010

Audiovox .................................................... 2014

Bell & Howell .............................................2011

Beaumark ................................................... 2013

Broksonic ....................................... 2012, 2025

Calix ............................................................ 2014

Candle .....................2013, 2014, 2015, 2016,

Canon ................................... 2021, 2022, 2114

Capehart ......................................... 2020, 2110

Carver ......................................................... 2062

CCE .................................................. 2027, 2061

Citizen ............................................ 2013, 2014,

2015, 2016, 2017, 2018, 2019, 2027

Colortyme .................................................. 2009

Colt .............................................................. 2061

Craig ........................ 2013, 2014, 2023, 2061

Curtis-Mathes ................. 2000, 2009, 2013,

2016, 2018, 2021, 2022, 2024, 2115, 2131

Cybernex .................................................... 2013

Daewoo ..... 2015, 2017, 2019, 2025, 2026,

Daytron ........................................................ 2110

DBX .................................................. 2009, 2010

Dimensia ........................................ 2000, 2131

Dynatech .................................................... 2026

Electrohome .................................. 2014, 2029

Electrophonic ............................................ 2014

Emerson ..... 2012, 2014, 2015, 2021, 2024,

2025, 2026, 2029, 2030, 2031, 2032, 2033, 2034, 2035, 2036, 2037, 2038, 2039, 2040, 2041, 2042, 2044, 2045,

2046, 2047, 2065, 2113, 2116, 2117, 2130

Fisher ...................................2011, 2023, 2048,

Fuji .................................................... 2021, 2119

Funai ........................................................... 2026

Garrard ....................................................... 2026

GE .... 2000, 2001, 2013, 2021, 2022, 2053,

Goldstar ...... 2009, 2014, 2018, 2054, 2131

Gradiente ................................................... 2026

Harley Davidson ....................................... 2026

Harman Kardon ........................................ 2009

Harwood ..................................................... 2061

Headquarter ............................................... 2011

Hitachi ......... 2055, 2056, 2057, 2107, 2111,

2049, 2050, 2051, 2052, 2118

2111, 2112, 2113

2017, 2018, 2019

2027, 2028, 2110

2115, 2120, 2131

2120, 2122

Hi-Q ............................................................. 2023

Instant Replay .......................................... 2021

JCL ............................................................... 2021

JC Penney ............... 2009, 2010, 2011, 2013,

Jensen .................................. 2055, 2056, 2111

JVC ..... 2009, 2010, 2011, 2018, 2111, 2123

Kenwood ............................ 2009, 2010, 2011,

KLH .............................................................. 2061

Kodak .............................................. 2014, 2021

Lloyd ............................................................ 2026

Logik ............................................................ 2061

LXI ................................................................ 2014

Magnavox ......................... 2021, 2022, 2062,

Magnin ....................................................... 2013

Marantz .............................. 2009, 2010, 2011,

Marta .......................................................... 2014

Masushita .................................................. 2021

Mei ............................................................... 2021

Memorex ........................................2011, 2013,

MGA .................................... 2029, 2065, 2113

MGN Technology ..................................... 2013

Midland ...................................................... 2053

Minolta ............................... 2055, 2056, 2107

Mitsubishi .2029, 2055, 2056, 2065, 2066,

2067, 2068, 2070, 2071, 2072, 2073, 2074,

Montgomery Ward ...................... 2075, 2132

Motorola ........................................ 2021, 2132

MTC ................................................. 2013, 2126

Multitech ... 2013, 2016, 2026, 2053, 2061

NEC ............... 2009, 2010, 2011,2016, 2018,

Nikko ........................................................... 2014

Noblex ........................................................ 2013

Olympus ..................................................... 2021

Optimus .......................................... 2014, 2132

Optonica ..................................................... 2096

Panasonic ...2021, 2022, 2109, 2125, 2126,

Pentax ..........2016, 2055, 2056, 2107, 2120

Pentex Research....................................... 2018

Philco ...................... 2021, 2022, 2062, 2063

Philips ..................... 2021, 2062, 2096, 2124

Pilot ............................................................. 2014

Pioneer ....... 2010, 2055, 2080, 2081, 2123

Portland ................... 2016, 2017, 2019, 2110

Proscan ............................... 2000, 2001, 2131

Protec .......................................................... 2061

Pulsar .......................................................... 2104

Quarter ........................................................ 2011

Quartz ..........................................................2011

Quasar ................................ 2021, 2022, 2125

RCA . 2000, 2001, 2003, 2013, 2021, 2055,

2087, 2088, 2089, 2090, 2091, 2107, 2115,

Radioshack/Realistic .......2011, 2013, 2014,

Radix ........................................................... 2014

Randex ........................................................ 2014

Ricoh ........................................................... 2128

Runco .......................................................... 2104

Samsung ... 2005, 2013, 2015, 2033, 2053,

Sanky ............................................... 2104, 2132

Sansui ...................... 2010, 2092, 2111, 2123

Sanyo ................................... 2011, 2013, 2023

Scott ........................ 2012, 2015, 2025, 2032

2014, 2021, 2022, 2055, 2056,

2058, 2059, 2060, 2107, 2118

2016, 2018, 2111, 2123

2063, 2104, 2105, 2108, 2124

..................... 2016, 2018, 2021, 2062, 2064

2014, 2021, 2023, 2026, 2104, 2132

2106, 2113, 2123

2064, 2076, 2078, 2079, 2111, 2123

2127

2056, 2082, 2083, 2084, 2085, 2086,

2120, 2125, 2131, 2133

2021, 2022, 2023, 2026, 2029, 2049,

2050, 2096, 2132

2112

2038, 2065, 2093, 2116

10 Chapter 2

Illustrations contained in this document are for representation only.

Page 13

Using the Remote Control

Sears .............2011, 2014, 2021, 2023, 2048,

2049, 2050, 2051, 2055, 2056, 2107, 2118

Sharp ............ 2017,2029, 2094, 2095, 2096,

Shintom ...................2004, 2056, 2061, 2098

Shogun ........................................................ 2013

Signature .................................................... 2131

Singer ................................... 2021, 2061, 2128

Sony .......................... 2004, 2098, 2099, 2119

STS ..................................................... 2021, 2107

Sylvania .......................................... 2021, 2022,

Symphonic .................................................. 2026

Tandy ............................................................ 2011

Tashiko ......................................................... 2014

Tatung ........................................................... 2111

TEAC ...................................... 2026, 2085, 2111

Technics ........................................... 2021, 2109

Teknika ......... 2014, 2021, 2026, 2100, 2129

TMK ...................................... 2013, 2024, 2047

Toshiba ............................... 2015, 2049, 2051,

Totevsion ......................................... 2013, 2014

Unitech ........................................................ 2013

Vector Research .... 2009, 2010, 2015, 2016

Victor ........................................................... 2010

Video Concepts .... 2009, 2010, 2015, 2016,

Videosonic .................................................. 2013

Wards ...................... 2013, 2014, 2015, 2021,

XR-1000 .............................. 2021, 2026, 2061

Yamaha .......... 2009, 2010, 2011, 2018, 2111

Zenith ........... 2004, 2098, 2104, 2119, 2128

2026, 2062, 2063, 2065, 2124

2055, 2065, 2093, 2116

2023, 2026, 2029, 2055, 2056, 2061,

2096, 2101, 2102, 2103, 2107, 2116, 2132

2097, 2131

2113

DVD codes

For DVD, VPORT and AUX buttons.

Aiwa ............................................................. 3009

GE ..................................................................3000

Hitachi ......................................................... 3008

JVC .................................................... 3002, 3010

Konka ................................................ 3011, 3012

Magnavox .................................................... 3003

Mitsubishi ....................................................3004

Panasonic .....................................................3013

Philips ....................... 3003, 3019, 3021, 3022

Pioneer ......................................................... 3005

Proscan .........................................................3000

RCA .................................................... 3000, 3001

Sanyo ............................................................ 3014

Sony .......................................3006, 3015, 3016

Toshiba ................................. 3007, 3017, 3020

Zenith ........................................................... 3018

Audio Codes

For AUX and VPORT buttons.

RCA and Dimensia

AM/FM ..............................................4003, 4270

AUX ................................................................4004

Phono ............................................................4005

Tape ............................................................... 4006

CD ........................................... 4007, 4190, 4211

Receivers

Aiwa ....................... 4261, 4262, 4263, 4264,

................................... 4265, 4266, 4267, 4277

Denon ........................................................... 4283

Harman Kardon ..........................................4276

JVC .................................................................4268

JVL ................................................................. 4276

Kenwood ...................................................... 4269

Onkyo ............................................................ 4278

Optimus ........................................................4284

Panasonic ........................................ 4279, 4280

Pioneer ......................................................... 4275

RCA ................................................................ 4270

Sherwood .....................................................4282

Sony ....................................... 4271, 4272, 4281

Technics ........................................... 4279, 4280

Wards ............................................................4275

Yamaha ............................................ 4274, 4275

CD Players

ADC ..................................... 4200, 4201, 4220

Aiwa ............................................... 4175, 4203

Akai ............................................................ 4205

Denon ........................................................ 4208

Dynatech ................................................... 4177

Emerson .................................................... 4178

Fisher .................................. 4179, 4212, 4213

GE ................................................................ 4216

Hitachi ....................................................... 4180

JVC .................................................. 4181, 4221

Kenwood ........................... 4183, 4222, 4224

Luxman ...................................................... 4225

Marantz ......................................... 4185, 4226

Mitsubishi ..................................... 4229, 4230

MCS ............................................................ 4228

Nakamichi .................................... 4232, 4233

NEC ............................................................. 4184

Onkyo ................................. 4186, 4234, 4235

Optimus ............................. 4237, 4238, 4239

Panasonic .................................................. 4188

Pioneer .......................................... 4189, 4240

RCA .................................................. 4190, 4211

Sanyo ......................................................... 4250

Sears ........................................................... 4207

Sherwood .................................................. 4243

Sony .................................... 4195, 4209, 4244

Teac .................................... 4245, 4246, 4247

Technics ..................................................... 4197

Toshiba ...................................................... 4231

Yamaha.............................. 4198, 4199, 4268

Chapter 2 11

Illustrations contained in this document are for representation only.

Page 14

Chapter 3: Using the TV’s Features

12:01 ESPN 60 SAP

00:00

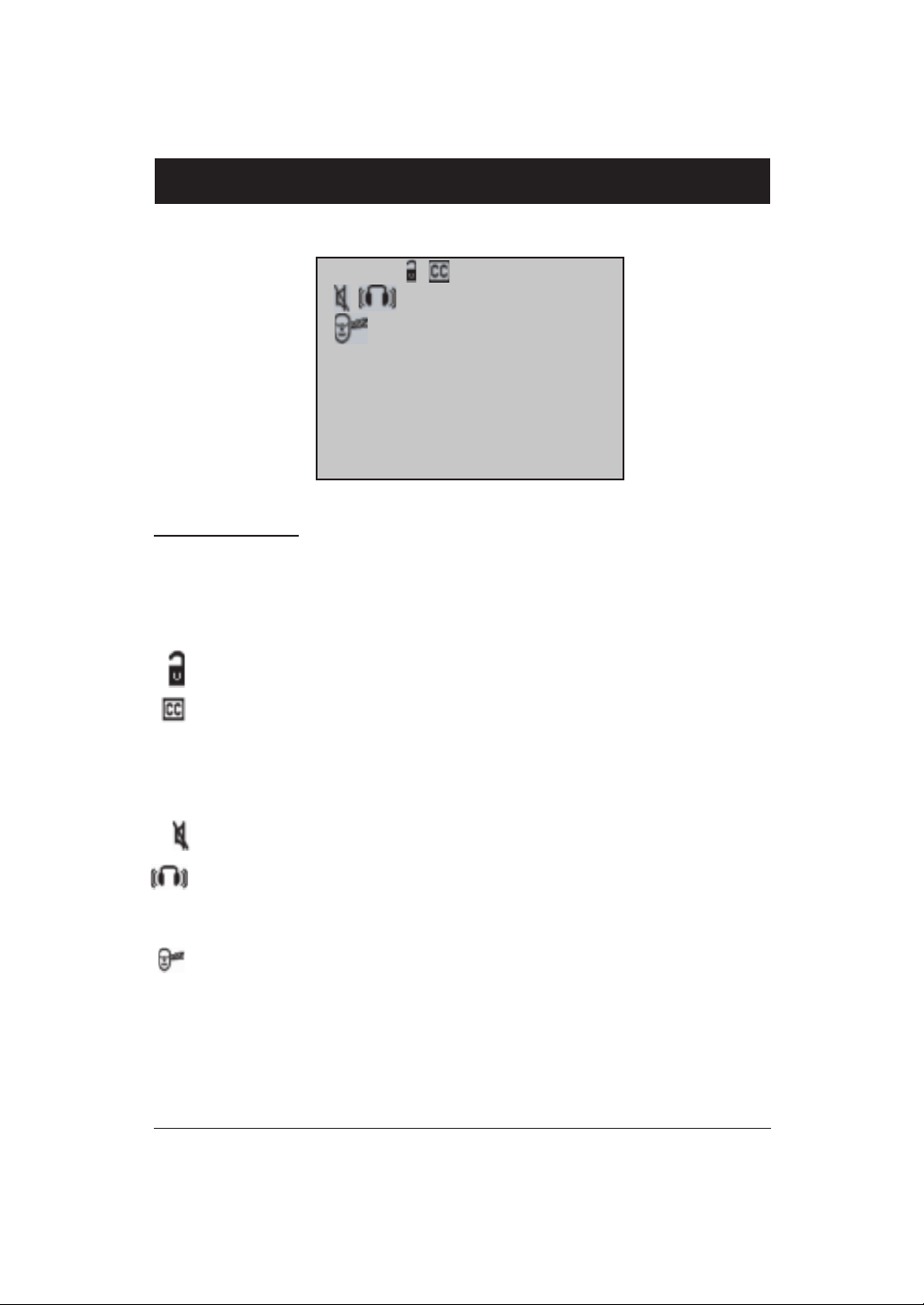

Channel Banner

There are several indicators that might appear when you press the TV or INFO buttons on the remote. This display is called the Channel Banner. The following list describes the items on the Channel Banner screen (left to right and top to bottom).

12:01 Displays the current time.

The lock is displayed to indicate when Parental Controls are locked or unlocked.

Displayed when Closed Captioning is available on the current channel.

ESPN Displays the label assigned to the current channel.

60 Displays the current channel or input channel.

Mute is displayed when you mute the audio.

Stereo is displayed when the current channel is broadcasting in Stereo.

SAP Displayed when the current channel is broadcasting SAP (Second Audio Program) information.

Displayed when the Sleep Timer has been set.

00:00 Displayed to count down time left on the commercial skip (SKIP) timer.

12 Chapter 3

Illustrations contained in this document are for representation only.

Page 15

Using the TV’s Features

TV MAIN MENU

1 Audio 2 Picture Quality 3 Screen

4 Channel

5 Time 6 Parental Controls

1 Signal Type

7 GUIDE Plus+ Menu

8 Setup

3 List and Labels

0 Exit

4 Auto Tuning

0 Exit

1. Press MENU (the TV MAIN MENU appears).

2. Highlight Channel and press OK on your remote control.

3. Highlight Auto Tuning and press OK.

4. Choose which channel you would like to set:

Set VCR Channel Displays a list that lets you set up the channel that the TV tunes to when you press the VCR button on the remote.

Set DVD Channel Displays a list that lets you select the channel that the TV tunes to when you press the DVD button.

Set SAT/CABLE Channel Displays a list that lets you set up the channel that the TV tunes to when you press SAT•CABLE.

5. Highlight the choice that matches the way you have the component connected to this TV, and press OK. The choices and a brief explanation follow:

Not connected Choose this if you don’t have this particular component connected to the TV, or if you don’t want the TV to automatically tune to the correct channel when you’re using this component.

Channel 2 (SAT/CABLE only) Component (satellite or cable box) is connected to the CABLE/ANTENNA jack on the back of the TV, and you want the TV to tune to channel 2 when you press the SAT• CABLE button on the remote. Reminder: make sure the component’s Channel 2/3/4 switch is set to channel 2. Usually this switch is on the back of the component.

Channel 3 Component is connected to the CABLE/ANTENNA jack on the back of the TV, and you want the TV to tune to channel 3 when you press the corresponding button on the remote. Reminder: make sure the component’s Channel 3/4 switch is set to channel 3.

Channel 4 Component is connected to the CABLE/ANTENNA jack on the back of the TV, and you want the TV to tune to channel 4 when you press the corresponding button on the remote. Reminder: make sure the component’s Channel 3/4 switch is set to channel 4.

Video Input 1 Component is connected to the INPUT1 VIDEO jack on the back of the TV and you want the TV to tune to VID1 Input Channel when you press the component button.

Video Input 2 Component is connected to the INPUT2 VIDEO jack on the back of the TV and you want the TV to tune to VID2 Input Channel when you press the component button.

Note: You should choose Video Input 1 or 2 for your VCR if you connected it to the TV with

audio/ video cables.

CHANNEL

Auto Channel Search

Why You Should Use the Auto Tuning Feature

The auto-tuning feature automatically tunes the TV to the correct channel for different components you have connected to your TV (like a VCR, DVD Player, etc.) When you set up auto tuning in the menu system you don’t have to remember to change your TV to channel 3, for example, when you want to watch the tape in your VCR.

How to Set Up the Auto Tuning Feature

The way you set up the auto tuning feature in the TV’s menu corresponds to the component buttons on the remote and the way you have each component connected to your TV. When you set auto tuning, you’re telling the TV what channel to tune to when you press the VCR, DVD, or SAT•CABLE button on the remote control.

Chapter 3 13Illustrations contained in this document are for representation only.

Page 16

Using the TV’s Features

Parental Controls and V-Chip

The first three choices in the Parental Controls menu involve software inside your TV (referred to as V-Chip) which allows you to block TV programs and movies based on violence, sex, or other content you may believe children should not view.

Once you block programs, you can unblock programs by entering a password.

By default, the software inside your TV is turned “off.”

How V-Chip Works

V-Chip reads the program’s age-based rating (TV-MA, TV-14, etc.) and content themes [(Violence (V), Adult Language (L), etc.)]. If you have blocked the rating and/or content themes that the program contains, you will receive the message, “This channel is not approved for viewing.”

Broadcasters are not required to provide content themes, so programs received with no content themes will only be blocked if you block their age-based rating. You can also block out programs that have been given a rating of “Not Rated,” and programs that are considered “unrated.” The TV age-based ratings and content themes you can block follow:

TV-MA – Mature Audience Only. Specifically designed to be viewed by adults and may be unsuitable for children under 17. It contains one or more of the following content themes: crude indecent language (L), explicit sexual activity (S), or graphic violence (V).

TV-14 – Parents Strongly Cautioned. Contains some material that many parents would find unsuitable for children under 14. Parents are strongly urged to exercise greater care in monitoring this program and are cautioned against letting children under the age of 14 watch unattended. This program contains one or more of the following content themes: intensely suggestive dialogue (D), strong coarse language (L), intense sexual situations (S), or intense violence (V).

TV-PG – Parental Guidance Suggested. Contains material that parents may find unsuitable for younger children. Many parents may want to watch it with their younger children. The program contains one or more of the following content themes: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or moderate violence (V).

TV-G – General Audience. Most parents would find this program suitable for all ages. It contains little or no sexual dialogue (D) or situations (S), no strong language (L), and little or no violence (V).

TV-Y7 – Directed to Children 7 years and older. Designed for children ages 7 and above. It may be more appropriate for children who have acquired the developmental skills needed to distinguish between makebelieve and reality. Themes and elements in this program may include mild fantasy violence (FV) or comedic violence, or may frighten children under the age of 7.

TV-Y – All Children. Themes and elements in this program are designed for a young audience, including children from ages 2-6. It is not expected to frighten younger children.

14 Chapter 3

Illustrations contained in this document are for representation only.

Page 17

Using the TV’s Features

V-Chip TV Rating Limit

The V-Chip TV Rating Limit lets you decide which TV programs can and cannot be viewed. To set TV programming limits:

1. Choose Parental Controls from the Main menu. If Parental Controls are locked, you must enter your password. If they are not locked, you will get a message reminding you that your limits will not be effective until you lock Parental Controls.

2. Press MENU to continue.

3. Highlight and select V-Chip TV Rating Limit.

4. Use the arrow buttons and the OK button on your remote to change the status of a TV program rating or content theme from View to Block.

Changing the status of TV program limits is described in more detail later in the chapter.

The V-Chip Rating Limit Screen

The following is an example of where items are located within the Rating Limit screen.

Rating Field

Lets you select from a list of age-based ratings you can block or view.

V-CHIP TV RATING LIMIT

Rating Status TV-MA VIEW

Press ^/v to select rating. Press MENU to exit.

RATING STATUS TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

Rating Status Field

Lets you select whether the status of the age-based rating limit to the left is View or Block.

- - Content - -

D L S V FV V V V

D L S V FV

View View View View View View

V V V

V V V V V V V V

Content Themes

Lists the content themes you can block or view.

Content Status Fields

Lets you select which content themes to view for the selected rating, and whether the status of the content theme is currently View (V) or Block (B).

Rating Settings Area

Lets you see the current block/view state of age-based ratings and associated content. The View (V) settings are coded in green, and the Block (B) settings are coded in red.

Chapter 3 15Illustrations contained in this document are for representation only.

Page 18

Using the TV’s Features

V-CHIP TV RATING LIMIT

Rating Status TV-MA VIEW

Press ^/v to select rating. Press MENU to exit.

RATING STATUS TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y

View View View View View View

- - Content - -

D L S V FV V V V

D L S V FV

V V V

V V V V V V V V

Hierarchy of Age-Based Ratings

TV-MA Mature Audience Only

TV-14 Parents Strongly Cautioned

TV-PG Parental Guidance Suggested

TV-G General Audience

TV-Y7 Directed to Children 7 years

TV-Y All Children

and older

Blocking Age-Based Ratings

You can automatically block all program ratings above a specified age-based rating level.

To block programs with higher ratings:

1. Use the arrow buttons to highlight the Rating field.

2. Press the up/down arrow buttons on the remote to scroll to the rating corresponding with the lowest rating you do not want the child to watch.

3. Press the right arrow button to move the yellow highlight to the Status field.

4. Press the up or down arrow button to toggle between View and Block. The status for the rating listed to the left and all higher ratings automatically changes to Block (and B).

5. Press OK on the remote to return to the menu or exit the screen when you are finished.

6. Select Lock Parental Controls from the Parental Controls menu. Enter a password; if you have not set your password, you will be prompted to enter it again.

Viewing Age-Based Ratings

After you block age-based ratings, you can change some of the ratings back to View.

1. Use the up/down arrow buttons to select the rating with a status of Block.

2. Press the right arrow button to move the yellow highlight to the rating status field.

3. Press the up button to select View.

Notes: The content status fields corresponding to the unblocked rating become View as well. They and the age-based rating status are the only fields that automatically change back to View when you complete this process.

Remember to lock Parental Controls for rating limits to take effect.

Blocking Specific Content Themes

Content Themes

D Sexually explicit dialogue

L Adult language

S Sexual situations

V Violence

FV Fantasy Violence

16 Chapter 3

Illustrations contained in this document are for representation only.

You can block programs based on their content. (Content is represented by the D, L, S, V, and FV on your screen.) When you block a content theme for a particular rating, you automatically block that content theme for higher rated programs as well.

To block program content, highlight the Content Field, and then follow the same steps described for blocking age-based ratings (above).

Notes: Broadcasters are not required to provide content themes or age-based ratings.

You must remember to lock Parental Controls for rating limits to take effect.

Page 19

Using the TV’s Features

Viewing Specific Content Themes

If you block specific content themes, you have the option of going back and changing some of the content themes back to (V) View:

1. Determine the content themes you want to change to (V) View.

2. Use the up/down arrow buttons to scroll to the rating whose content theme you want to change to View.

3. Press the right arrow button to move the yellow highlight to a particular content theme status.

4. Press the up or down arrow button to change its status back to V.

Note: Only the content theme status corresponding to TV-14 (L) language changes to (V) View. Higher rated content themes, such as that for TV-MA language, do not change.

V-Chip Movie Rating Limit

Set movie rating limits by blocking movies rated above a specified level.

To access the V-CHIP MOVIE RATING LIMIT menu:

1. Press MENU on the remote control (the TV MAIN MENU appears).

2. Select Parental Controls.

3. Select V-Chip Movie Rating Limit .

Blocking Movie Ratings

Once you are in the Movie Ratings menu, follow the same steps described for blocking TV ratings.

V-CHIP UNRATED PROGRAM BLOCK

1 View

2 Block

CHANNEL BLOCK

Channel # Status 59 HEADLN Block

Press ^ or v, keypad, or CH ^/v to set channel, MENU to exit.

V-Chip Unrated Program Block

This option lets you decide if programs that the V-Chip recognizes as “unrated” can be viewed. “Unrated” TV programs may include news, sports, political, religious, local and weather programs, emergency bulletins, public announcements, and programs without ratings.

View All unrated programs are available.

Block All unrated programs are not available.

Note: You must remember to lock Parental Controls for rating limits to take effect.

Channel Block

Selecting this option lets you decide what channels can be viewed.

View Makes the selected channel viewable. Block The front panel and remote control CH (channel)

buttons will tune only to channels that you have marked as View. The remote will still tune to the blocked channel if you use the digits to access the channel, but the channel will be blocked.

Lock parental controls after you change the status of Channel Block. If you don’t, the channel block will not take effect.

Note: If you have a digital cable box channels 126-999 can be blocked but will not be removable from your scan list.

Chapter 3 17Illustrations contained in this document are for representation only.

Page 20

Using the TV’s Features

FRONT PANEL BLOCK

1 Unblock

2 Block

Front Panel Block

Selecting this option lets you block (disable) or unblock (enable) the TV’s front panel. The remote still tunes to any channel. When using this as a Parental Control method, remove access to any remote that is capable of operating the television while you have the front panel blocked.

Don’t forget to lock parental controls after you change the status. If you don’t, the front panel block will not take effect.

Lock/Unlock Parental Controls

Selecting this option lets you lock and unlock parental controls settings using a password.

If you do not lock parental controls, none of the settings for V-Chip, Channel Block, or Front Panel Block will take effect.

If you forget your password, simultaneously press and hold MENU on the television and volume down on the remote for 3 seconds. Nothing appears on the screen; Parental Controls simply unlock and you can reenter a password via Lock Parental Controls.

18 Chapter 3

Illustrations contained in this document are for representation only.

Page 21

Chapter 4: Using the TV’s Menu System

How to Use Your TV’s Menu System

The buttons on the remote or the front of your TV access the menu system and can change the settings.

Menus

The first menu is called the Main menu. Press MENU on the remote or on the front panel to bring up the Main menu.

Menus take you to another menu or a control panel. There are two ways to select a choice in a menu:

• Use your arrow buttons on your remote control to highlight your choice, and press OK.

• Press a number button on the remote. For example, in the Main menu press 3 to go straight to the

Screen menu.

Exiting a menu

There are three ways to exit a menu:

• Highlight Exit and press OK.

• Press 0 on the remote.

• Press CLEAR. The on-screen displays are cleared from the screen and you return to TV viewing.

TV MAIN MENU

1 Audio

2 Picture Quality 3 Screen 4 Channel 5 Time 6 Parental Controls 7 Setup 0 Exit

Mono Plays the sound in mono only. Use this setting when receiving broadcasts with weak stereo signals.

Stereo Splits the incoming stereo audio signal into left and right channels. Most TV programs and recorded materials have stereo audio. The word STEREO appears on the TV when you tune to a program that is broadcast in stereo.

Expanded Stereo Electronically “widens” sound from stereo broadcasts, stereo VCRs, digital satellite systems, DVD players, and laserdisc players for a fuller, more spacious sound.

Sound Logic™ Stereo Reduces the annoying blasts in volume during commercial breaks, and also amplifies softer sounds in program material. Eliminates the need to constantly adjust volume control.

Second Audio Program (SAP) Plays the program’s audio in a second language, if one is available. The word SAP appears on the TV when you tune to a program that is broadcast with SAP information. SAP audio is broadcast in mono. SAP is also used to broadcast a program’s audio with descriptions of the video for the visually impaired.

Audio Menu

Mute Press OK to reduce the TV’s volume to its minimum level. Press OK again to restore the volume.

Tone Controls Displays the slider controls for adjusting the TV’s treble, bass and balance.

Audio Processor Displays a choice list of available audio modes, which control the way the sound comes through your speakers. You can also access the AUDIO PROCESSOR menu by pressing the SOUND button on the remote.

Chapter 4 19

Illustrations contained in this document are for representation only.

Page 22

Using the TV’s Menu System

Audio Output & Speakers Displays a choice list that lets you turn the TV’s internal speakers on or off, and set the audio outputs to fixed-level or variable control level.

Variable Output, Speakers On This setting turns the TV’s speakers on and allows variable output from the TV’s audio output jacks.

Variable Output, Speakers Off This setting turns the TV’s speakers off and allows variable output from the TV’s audio output jacks to an external component such as a surround sound amplifier.

Fixed Output, Speakers Off This setting turns the TV’s speakers off and allows fixed output from the TV’s audio output jacks to an external component such as a surround sound amplifier. When you choose Fixed Output Off, the TV’s volume control, tone controls, and mute are disabled.

PICTURE QUALITY

1 Basic Picture Controls

2 Picture Presets 3 Auto Color 4 Color Warmth 0 Exit

When exiting this menu, the Save Personal Picture Preset choice list appears. You can choose either Yes or No. If you save the settings as a Personal Picture Preset, the TV stores the settings so you can re-select them quickly if someone changes the settings.

Note: You can change the picture controls for each component connected to your Video, Y, PB, PR and S-Video jacks on the back of your TV. The next time you tune to the component, the picture changes according to the settings you created previously.

Picture Presets Displays a choice list that lets you select one of three preset picture settings: Bright Lighting, Normal Lighting, Soft Lighting or Personal Picture Preset. Choose the setting that is best for your viewing

environment.

Auto Color Displays a choice list that lets you turn on the feature that automatically corrects the color of the picture. (This is especially useful for tracking realistic flesh tone colors as you switch from channel to channel.) Choose On or Off, depending on your preference.

Color Warmth Displays a choice list that lets you set one of three automatic color adjustments: Cool for a more blue palette of picture colors; Normal; and Warm for a more red palette of picture colors. The warm setting corresponds to the NTSC standard of 6500 K.

Picture Quality Menu

Basic Picture Controls Displays the five slider controls for adjusting the way the picture looks.

Contrast Adjusts the difference between the light and dark areas of the picture.

Color Adjusts the richness of the color.

Tint Adjusts the balance between the red and green levels.

Black Level Adjusts the brightness of the picture.

Sharpness Adjusts the crispness of the edges in the picture.

20 Chapter 4

Illustrations contained in this document are for representation only.

Page 23

Using the TV’s Menu System

SCREEN

1 Closed-Caption Display

2 Closed-Caption Mode 3 Menu Language 0 Exit

F27550 Screen menu

SCREEN

1 Closed-Caption Display

2 Closed-Caption Mode 3 Menu Language 4 Picture Tilt 0 Exit

F32550 Screen menu

Screen Menu

Closed-Caption Display Displays a choice list that lets you choose the way closed captioning information is shown on the screen.

Off always No captioning information is displayed.

On always Captioning information is shown always,

when available.

On when sound is muted Captioning information is shown, when available, whenever the TV’s sound is muted. (To mute the sound, press the MUTE button.) The captioning information is not displayed when the sound is not muted.

Closed-Caption Mode Displays a choice list that lets you choose which captioning mode is used for displaying captioning information.

Menu Language Displays a choice list that lets you select your preferred language for the menus: English, Spanish or

French.

Picture Tilt (Available only on model F32550) Your TV has

an extra large picture tube that makes it vulnerable to the effects of the Earth’s magnetic field. You may need to adjust the picture tilt.

Using Closed Captioning

Many programs are encoded with closed-captioning information, which lets you display the audio portion of a program as text on the TV screen.

Closed captioning is not available on all channels at all times. Only specific programs encoded with closedcaptioning information are applicable. When a program is closed captioned, the CC icon is displayed in the channel banner. See Chapter 3 for more information about the channel banner.

CLOSED-CAPTION MODE

1 CC1

2 CC2 3 CC3 4 CC4 5 Text 1 6 Text 2 7 Text 3 8 Text 4

Tip

If you don’t know which Closed-Caption mode to use, select CC1. CC1 is probably the mode that is used in your area. CC2, CC3, and CC4 are reserved for foreign languages, but are rarely used at this time.

Chapter 4 21

Illustrations contained in this document are for representation only.

Closed-Caption Modes

The TV offers eight closed-captioned modes, including four text modes.

To set the Closed-Caption Mode:

1. Select Screen from the Main menu.

2. Highlight Closed-Caption Mode and press OK (the Closed- Caption Mode appears).

3. Highlight your choice and press OK (the Screen menu appears again).

Note: The Text modes cover nearly half of the picture on the screen to display the closed-captioned text. Most broadcasters use the CC mode, which displays a few lines of captions at a time.

Page 24

Using the TV’s Menu System

Turning off Closed-Caption

1. Select Screen from the Main menu.

2. Press OK to select Closed-Caption Display.

3. Highlight Off Always and press OK. The closed captioning is turned off and you go back to the Screen menu.

CHANNEL

1 Signal Type 2

Auto Channel Search 3 List and Labels

4 Auto Tuning

0 Exit

Auto Channel Search Tells the TV to search automatically for all the channels available through the antenna input. When the TV finds an active channel, it places it in the Normal channel list; inactive channels (weak stations or channels with no signal at all) will be removed from the channel list.

List and Labels Displays a control panel that lets you edit your Normal channel list and choose a sixcharacter label for each channel. Follow the on-screen directions to enter your channels and other information.

Channel # Use the up and down arrows to scroll up and down through the channels available via your antenna. You can enter the channel number directly using the number buttons.

Normal List Only the channels included in the Normal list are available when you scan up and down using channel up and down. Use the up and down arrow buttons to indicate whether the channel number indicated is included (Yes) or is not included (No) in the Normal channel list.

Channel Label Use the up and down arrow buttons to enter a six-character label for each channel. Hold the button down to scroll quickly through the characters. The TV can store up to 27 labels in memory.

Auto Tuning Displays a choice list that lets you set up the TV to automatically tune to the correct input channel when you press a component button (VCR, DVD, or SAT•CABLE) on the remote. Go to Chapter 3 for details about the Auto Tuning feature.

Channel Menu

Signal Type Displays a choice list that lets you select the current antenna type.

UHF/VHF Antenna Choose this if you are currently using an off-air antenna for TV signals.

Cable TV Choose this if you are currently using cable or a cable box for TV signals.

22 Chapter 4

Illustrations contained in this document are for representation only.

Page 25

Using the TV’s Menu System

1 Sleep Timer

2 Schedule 3 Set Time 0 Exit

TIME

Time Menu

Sleep Timer Displays a control panel that lets you select the amount of time you want to give the TV before it shuts itself off.

Schedule Displays a control panel that lets you set up a schedule for turning the TV on and off automatically. Reminder: you must turn the schedule On. The on-screen directions guide you through the steps needed to set the schedule.

Set Time Displays a control panel that lets you enter the current time. The on-screen directions guide you through the steps needed to set the time.

Chapter 4 23

Illustrations contained in this document are for representation only.

Page 26

Chapter 5: Other Information

Troubleshooting

Consult the Troubleshooting list that follows to correct most problems you encounter with your TV.

TV Problems

TV won’t turn on

• Press the TV button on the remote.

• Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in something else.

• Press the POWER button on the front of the TV. If the TV turns on, check the remote control solutions.

• The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front

Panel Block in the Parental Controls menu and choosing Unblock.

Controls don’t work

• If you’re using the remote control, press the TV button first to make sure the remote is in TV mode.

• The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by selecting the Front

Panel Block in the Parental Controls menu and choosing Unblock.

• Unplug the TV for two minutes and then plug it back in. Turn the TV on and try again.

TV turns off while playing

• Scheduled Off function may have been activated. Go to page 23 for instructions.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn the TV on again. If

this happens frequently, the voltage in your house may be abnormally high or low.

TV turns on unexpectedly

• Scheduled On may have been activated.

Blank screen

• Make sure the component connected to the TV is turned on.

No sound, picture okay

• Maybe sound is muted. Press the volume up button to restore sound.

• Maybe speakers are turned off. Check the Audio Output and Speakers control panel in the Audio menu.

• If using S-VIDEO cables to connect a component, remember to also connect the component’s left and right Audio Output Jacks to the TV’s R-AUDIO-L INPUT1 Jacks.

Can’t select certain channel

• Channel may be blocked or not approved in the Parental Controls menu.

• If using a VCR, make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR).

Noisy stereo reception

• The station might be weak. Press the SOUND button on your remote to change from stereo to mono.

No picture, no sound but TV is on

• Maybe the cable/air setting is set to the wrong position. Select Signal Type from the Channel menu.

• If you’re watching your VCR and it’s connected with coaxial cable to the CABLE/ANTENNA jack, tune the TV to channel 3 or 4

(whichever channel is selected on the 3/4 switch on the back of your VCR). Check to make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR).

24 Chapter 5

Illustrations contained in this document are for representation only.

Page 27

Other Information

• If you’re trying to watch content from a component that’s connected to the TV (like a DVD player or VCR), press the WHO•INPUT button on the remote control until the content appears.

Sound okay, picture poor

• Check antenna connections. Make sure all of the cables are firmly connected to the jacks.

• Try adjusting sharpness function to improve weak signals.

Black box appears on the screen

• Closed-captioning might be on. Check the Closed-Caption Display control panel in the Screen menu.

Can’t see commercial skip timer

• If closed-captioning is on, skip timer does not stay on-screen. Turn off closed-captioning.

The Remote Control Doesn’t Work

• Make sure there is a clear path between the remote and the remote sensor on the component.

• Maybe the remote isn’t aimed directly at the component (TV or VCR) that you’re trying to operate.

• Maybe remote is not in TV Mode. Press the TV button so remote will control TV.

• Maybe batteries in remote are weak, dead or installed incorrectly. Put new batteries in the remote.

• You might need to drain the remote’s microprocessor: remove batteries and press the number 1 button for at least 60 seconds.

Release the 1 button, replace batteries, and (if necessary) program the remote again.

Problems with V-Chip/Parental Controls

The rating limits don’t work

• You must lock the settings. Go to the TV MAIN MENU (press MENU on your remote), select Parental Controls (press 6 on your remote), select Lock Parental Controls (press 6 on your remote).

I don’t remember my password and I want to unlock the TV

• If you forget your password, simultaneously press and hold MENU on the television and volume down on the remote for 3 seconds. Nothing appears on the screen, Parental Controls simply unlock and you can re-enter a password via Lock Parental Controls.

The V-Chip won’t let me watch a program even though it’s not rated as violent.

• Maybe the movie was given an NR (Not Rated) status. After you block movie ratings, you must set NR to View separately in order to view movies with an NR rating.

Problems with VPORT Connection

No picture

• Press the WHO•INPUT button until VPORT appears on-screen.

• If using the Component video to VPORT cable, make sure the cables to the other component are connected correctly.

• If using the Xbox to VPORT cable, make sure the end labeled TV is connected to the TV and the other end is connected to the Xbox

video game console. No other gaming device can be connected to the TV with this cable.

No sound or poor sound

• If using the Component video to VPORT cable, make sure the red and white cables are connected to the Audio Output Jacks.

• If using the digital audio jack on the Xbox to VPORT cable, make sure the cable is fully connected to the jack and the audio receiver.

Chapter 5 25

Illustrations contained in this document are for representation only.

Page 28

Other Information

Limited Warranty

What your warranty covers:

• Defects in materials or workmanship.

For how long after your purchase:

• 90 days from date of purchase for labor charges.

• One year from date of purchase for parts.

• Two years from date of purchase for the picture tube.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first.

What we will do:

• Pay any Authorized RCA Television Service Center the labor charges to repair your television.

• Pay any Authorized RCA Television Service Center for the new or, at our option, refurbished replacement parts and

picture tube required to repair your television.

How you get service:

• For screen sizes of 26” and smaller: Take your RCA television to any Authorized RCA Television Service Center and pick up when repairs are complete.

• For screen sizes larger than 26": Request home or pick up, repair, and return service from any Authorized RCA Television Service Center, provided that your television is located within the geographic territory covered by an Authorized RCA Television Service Center. If not, you must take your television to the Service Center location at your own expense, or pay for the cost the Service Center may charge to transport your television to and from your home.

• To identify your nearest Authorized RCA Television Service Center, ask your dealer, visit RCA.com, look in the Yellow Pages, or call 1-800-336-1900.

• Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period must be presented to obtain warranty service. For rental firms, proof of first rental is also required.

What your warranty does not cover:

• Customer instruction. (Your Owner’s Manual describes how to install, adjust, and operate your television. Any additional information should be obtained from your dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by your television.

• Damage from misuse or neglect.

• Batteries.

• Customer replacement fuses.

• Damage from images burnt onto the screen.

• A television that has been modified or incorporated into other products or is used for institutional or other

commercial purposes.

• A television purchased or serviced outside the U.S.A.

• Acts of nature, such as but not limited to lightning damage.

26 Chapter 5

Illustrations contained in this document are for representation only.

Page 29

Other Information

Product Registration:

• Please complete the online Product Registration on RCA.com or complete and mail the Product Registration Card packed with your TV. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage.

Limitation of Warranty:

• THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMA TION GIVEN BY THOMSON MULTIMEDIA INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.

• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. THOMSON MULTIMEDIA INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

How state law relates to this warranty:

• Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

• This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

If you purchased your product outside the United States:

• This warranty does not apply. Contact your dealer for warranty information.

Service calls which do not involve defective materials or workmanship are not covered by this warranty. Costs of such service calls are the sole responsibility of the purchaser.

Chapter 5 27

Illustrations contained in this document are for representation only.

Page 30

Other Information

Care and Cleaning

CAUTION: Turn OFF your TV before cleaning.

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet to help assure adequate ventilation.

The TV’s screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If necessary, you may use a cloth dampened with warm water. Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of cleaners will damage the TV.

While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV. Also, avoid placing drinks or vases with water on top of the TV. This could increase the risk of fire or shock hazard or damage to the TV.

The Front of Your TV

If you can’t find your remote control you can use the buttons on your TV to operate many of the TV’s features.

MENU Brings up the TV MAIN MENU. When in the menu system, it selects highlighted items. Also returns you to the previous menu.

CH Scans down through the current channel list. When you’re using the TV’s menu system, it acts like the arrow down button on the remote control.

CH ^ Scans up through the channel list. When you’re using the TV’s menu system, it acts like the arrow up button on the remote control.

VOL – Decreases the volume. When you’re using the TV’s menu system, it acts like the left arrow button on the remote control.

VOL + Increases the volume. When you’re using the TV’s menu system, it acts like the right arrow button on the remote control.

POWER Turns the TV on and off.

PHONES

VIDEO

28 Chapter 5

L/MONO R

AUDIO

Illustrations contained in this document are for representation only.

Front Panel Jacks

You can access the component you connected to the front of the TV by pressing the WHO•INPUT button on your remote until FRNT appears on the screen.

PHONES (Available only on model F27550) Allows you to connect headphones to listen to the sound coming from the TV.

VIDEO (in) Receives video from another component such as a VCR, camcorder or video game console.

L/MONO and R AUDIO Receives audio from another component such as a VCR, camcorder or video game console.

Page 31

Other Information

Accessory Order Form

Gold-Tipped cable

DT6DC (6-ft)

DT12DC (12-ft)

Gold-Tipped cable

VH84 (6-ft)

Gold-Tipped cable

VH83 (6-ft)

VH81 (3-ft)

VH82 (6-ft)

Description

Screw-on antenna cable (3-ft) VH81 $3.95

Screw-on antenna cable (6-ft) VH82 $4.95

Push-on antenna cable (6-ft) VH89 $5.95

Monaural VCR Dubbing Cable (6-ft) VH83 $5.95

Stereo VCR Dubbing Cable (6-ft) VH84 $9.95

Component Video Cables (6-ft) DT6DC $24.95

Component Video Cables (12-ft) DT12DC $34.95

S-Video Cable (6-ft) VH976 $7.95

S-Video Cable (12-ft) VH913 $14.95

2-way Signal Splitter VH47 $3.95

Amplified Antenna ANT200 $49.95

Remote Control (RCR160TJM1) 258743 $29.95

Antenna Mixer (not shown) 193984 $11.15

Audio•Video Adapter (not shown) 228449 $4.45

Xbox to VPORT Cable (not shown) GP641XB $29.95

Component Video to VPORT Cable (not shown) GP650XB $29.95

Part No.

Price

How to Order

ON-LINE: www.rca.com (subject to availability) BY PHONE: Have your Visa, MasterCard or Discover Card ready and

call 1-800-338-0376 Use this number only to place an order for accessory items on this

order from. BY MAIL: Mail money order or check in US currency (made payable to

Thomson multimedia Inc.) to the following address: Video Accessories

P.O. Box 8419 Ronks, PA 17573

All accessories are subject to availability; prices are subject to change. Where applicable, we will ship a superseding model.

Qty

VH89 (6-ft)

Chapter 5 29

Illustrations contained in this document are for representation only.

Page 32

Visit the RCA web site at www.rca.com

Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product.

IMPORTER: (for Mexico only)

Comercializadora Thomson de México, S.A. de C.V. Miguel de Cervantes Saavedra 57 Col. Ampliación Granada C.P. 11529 México D.F. Telefono: (55) 25 81 53 20 R.F.C. CTM-980723 KS5

EXPORTER:

Thomson Inc. 10330 North Meridian Street Indianapolis, IN 46290

Country of Origin: Mexico TOCOM 16068120

THOMSON

Page 33

Guide de

l’utilisateur

du Téléviseur

Transforme encore le divertissement.

Veuillez lire ce manuel d’instructions avant d’utiliser ce produit pour la première fois.

TOCOM 16068120

Modèles : F27550, F32550

Page 34

Information importante

AVERTISSEMENT

Afin de réduire le risque d’incendie et de choc électrique, ne pas exposer ce produit à la pluie ou l’humidité.

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention : Pour éviter les chocs électriques, introduire la lame la plus large de la fiche

dans la borne correspondante de la prise et pousser jusqu’au fond. Consommation d’énergie : 120 V ~ 60 Hz c.a. 128 W (modèle F27550),

142 W (modèle F32550)

Se reporter à l’étiquette d’identification/capacité nominale située sur le panneau arrière du produit pour connaître la tension de fonctionnement adéquate.

Le règlement de la FCC stipule que toute modification non autorisée de ce produit peut annuler le privilège d’utilisation de l’utilisateur.

Attention : L’utilisation de jeux vidéo ou de tout autre accessoire projetant des images fixes pendant des périodes prolongées peut entraîner une impression permanente sur l’écran (ou sur l’écran des téléviseurs à projection). DE PLUS, certains logos de réseaux/programmes, numéros de téléphone, etc., peuvent entraîner des dommages similaires. Ces dommages ne sont pas couverts par votre garantie.

À l’installateur de câble : Ce rappel à pour but d’attirer attention sur l’article 54 du Code canadien de

l’électricité, partie 1 (article 820-40 du code de l’électricité des États-Unis) qui énonce des directives de mise à la terre et stipule que le fil de terre du câble doit être connecté au système de mise à la terre de l’édifice, aussi près que possible du point d’entrée.

ATTENTION

RISQUE DE CHOC

ÉLECTRIQUE, NE PAS OUVRIR

Ce symbole indique une « tension dangereuse » dans le produit qui présente un risque d’électrocution ou de blessure.

Attention : Afin de réduire le risque de choc électrique, ne pas enlever le couvercle (ou l’arrière). Ne contient aucune pièce réparable par l’utilisateur. Confiez l’entretien à du personnel qualifié.

Ce symbole indique des instructions importantes accompagnant le produit.

Enregistrement du produit

Veuillez remplir la carte d’enregistrement du produit (emballée séparément) et la retourner immédiatement, ou vous enregistrer en ligne au rca.com. Le renvoi de cette carte nous permet de vous contacter si nécessaire.

Information sur le produit

Conservez votre facture comme preuve d’achat ainsi que pour obtenir des pièces ou un service sous garantie. Attachez-la ici et inscrivez le numéro de série et de modèle au cas où vous en auriez besoin. Les numéros se trouvent sur le produit.

N° de modèle ____________________________________________________________________ N° de série ______________________________________________________________________ Date d’achat : ___________________________________________________________________ Détaillant / Adresse / Téléphone : ____________________________________________________

Page 35

Table des matières

Chapitre 1 : Connexions et réglage

Points à prendre en considération avant

d’effectuer les connexions ............................2

Connexion de composants à votre

téléviseur ........................................................3

Téléviseur + magnétoscope + lecteur DVD .....3

Utilisation de la prise VPORT ........................4

Prises à l’arrière du téléviseur ....................... 5

Installation des piles dans

la télécommande ........................................... 6

Exécution du réglage interactif ....................6

Réglage de la langue des menus .............. 6

Recherche automatique complète

de canaux........................................................ 6

Chapitre 2 : Utilisation de la

télécommande

Les touches de la télécommande .................. 7

Utilisation de la touche WHO•INPUT ..... 8

Programmation de la télécommande pour

commander d’autres composants .................8

Comment savoir si vous devez programmer

la télécommande .......................................... 8

Programmation de la télécommande...... 8

Utilisation de la télécommande une fois

programmée ...................................................9

Codes pour télécommande ......................... 10

Chapitre 3 : Utilisation des

fonctions du téléviseur

Bannière de canal ....................................... 12

Pourquoi devriez-vous utiliser la fonction

de syntonisation automatique ................... 13

Réglage de la fonction de syntonisation

automatique .................................................13

Contrôles des parents et puce V ................ 14

Fonctionnement de la puce V .................14

L’écran de limite des catégories TV .......15

Blocage des catégories d’âge .............16

Visionnement des catégories

d’âge .....................................................16

Blocage de thèmes particuliers .........16

Visionnement de thèmes

particuliers ..........................................17

Limite des catégories de films

(puce V).......................................................... 17

Blocage des émissions sans code ...........17

Blocage des canaux ................................... 17

Blocage du panneau avant ......................18

Verrouillage / déverrouillage des

contrôles des parents ................................ 18

Chapitre 4 : Utilisation du système

de menus du téléviseur

Utilisation du système de menus du

téléviseur ..................................................... 19

Menu Audio ................................................ 19

Menu Qualité de l’image............................ 20

Menu Écran ................................................. 21

Utilisation du sous-titrage ........................ 21

Menu Canal ................................................. 22

Menu Horloge ............................................. 23

Chapitre 5 : Autres informations

Dépannage................................................... 24

Garantie limitée .......................................... 26

Entretien et nettoyage ............................... 28

Avant du téléviseur .................................... 28

Accessoires .................................................. 29

Page 36

Chapitre 1 : Connexions et réglage

Points à prendre en considération avant d’effectuer les connexions

Prévenez les surtensions

• Connectez tous les composants avant de brancher leurs cordons d’alimentation dans la prise murale.

• Éteignez le téléviseur et (ou) le composant avant de connecter ou de déconnecter un câble.

• Assurez-vous que toutes les antennes et tous les câbles sont mis à la terre correctement. Consultez le feuillet des mises en garde importantes qui accompagne votre téléviseur.

Protégez vos composants contre la surchauffe

• Évitez de bloquer les trous de ventilation sur tous les composants. Disposez les composants de façon que l’air puisse circuler librement.

• N’empilez pas les composants.

• Lorsque vous placez les composants dans un meuble, assurez-vous que la ventilation est adéquate.

• Si vous connectez un récepteur ou un amplificateur audio, placez-le au sommet du support afin que la chaleur qui en émane n’affecte pas les autres composants.

Disposez les câbles correctement pour éviter toute interférence audio

• Insérez tous les câbles à fond dans les prises correspondantes.

• Si vous placez des composants au-dessus du téléviseur, placez les câbles sur les côtés du panneau arrière plutôt que de les laisser pendre au centre.

• Si votre antenne utilise des câbles à deux fils 300 ohms, évitez de les enrouler. De plus, maintenez les câbles à deux fils à l’écart des câbles audio/vidéo.

Informations de sécurité importantes concernant le support et la base

Choisissez minutieusement l’emplacement de votre téléviseur. Placez le téléviseur sur une base ou un meuble suffisamment grand et solide pour que le téléviseur ne soit pas renversé, poussé ou tiré. La chute du téléviseur pourrait entraîner des blessures et (ou) endommager le téléviseur. Consultez le feuillet des mises en garde importantes qui accompagne votre téléviseur.

Utilisez un éclairage indirect

Ne placez pas le téléviseur dans une pièce où il est directement exposé à la lumière du soleil ou à un éclairage. Utilisez un éclairage modéré ou indirect.

Illustrations des connexions

Les câbles audio/vidéo sont généralement regroupés. Pour une meilleure visibilité, les illustrations de ce guide montrent chaque câble séparément (audio gauche, audio droit et vidéo).

Câbles nécessaires pour connecter des composants à votre téléviseur

Les illustrations ci-dessous indiquent les câbles nécessaires pour les connexions représentées dans ce manuel.

Nota : Les câbles Audio/Vidéo (câbles A/V) sont généralement vendus tous ensemble, mais les illustrations de ce guide montrent chaque câble séparément pour une meilleure visibilité.

Câbles audio/ vidéo

2 Chapitre 1

Câbles pour vidéo à composantes (Y, P

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

, PR)

Câble pour vidéo à composantes vers VPORT

Câble Xbox vers VPORT

Câble coaxial Câble S-vidéo

Page 37

Connexions et réglage

MAGNÉTOSCOPE

VIDEO

AUDIO

OUT

TÉLÉVISEUR (panneau arrière)

R-AUDIO-L

VIDEO

VPORT

R-AUDIO-L

VIDEO

AUDIO

S-V

G-LINK

DEO

DVD

S-VIDEO

IN P U T 2

IN P U T 1

VIDEO

IN FROM ANT

OUT TO TV

OUT

CABLE/ ANTENNA

CH3 CH4

Du câble ou de l’antenne

Connexion de composants à votre téléviseur

Pour obtenir de l’information sur les différentes prises situées à l’arrière de votre téléviseur, qui servent à raccorder d’autres composants de figurant pas dans la liste cidessous, voyez les pages qui suivent.

Nota : Si vous préférez, nous pouvons vous fournir le nom d’un représentant de service autorisé qui, moyennant des frais, se rendra chez vous pour installer votre système de divertissement électronique et pour vous montrer à l’utiliser. Pour obtenir des détails sur ce service, appelez le 1 888 206-3359 ou visitez www.rca.com.

* Si vous connectez un câble S-vidéo, vous devez connecter les câbles audio aux prises INPUT1 AUDIO R et L à l’arrière du téléviseur

non aux prises INPUT2 AUDIO.

Téléviseur + magnétoscope + lecteur DVD

1. Connectez votre téléviseur à votre lecteur DVD

A. Connectez les câbles audio (blanc et rouge) dans les prises INPUT 2 AUDIO R et L à l’arrière du téléviseur et dans

les prises de sortie Audio du lecteur DVD.

B. Si votre lecteur DVD a des prises de sortie pour composant (Y, P

Y, P

, PR du lecteur DVD et aux prises Y, PB, PR à l’arrière du téléviseur. Si votre lecteur DVD n’a pas de prises

, PR voyez C.

Y, P

- OU -

C. Si votre lecteur DVD comporte une prise S-vidéo, connectez le câble à la prise S-Video du lecteur DVD et à la

prise S-VIDEO à l’arrière du téléviseur. Si votre lecteur DVD n’a pas de prise S-Video, voyez D.

- OU -

D. Connectez le câble vidéo (jaune) dans la prise de sortie VIDEO à l’arrière du lecteur DVD et dans la prise d’entrée

INPUT2 VIDEO à l’arrière du téléviseur.

, PR), connectez les trois câbles vidéo aux prises

2. Connectez votre téléviseur à votre magnétoscope

Connectez un câble coaxial dans la prise CABLE/ANTENNA de votre téléviseur et dans la prise de sortie de votre magnétoscope (parfois marquée OUT TO TV).

3. Connectez le câble ou l’antenne à votre magnétoscope

Connectez le câble coaxial à partir de la prise de sortie du câble ou de l’antenne dans la prise Input de votre magnétoscope (parfois marquée IN FROM ANTENNA ou IN FROM ANT).

Chapitre 1 3

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

Page 38

Connexions et réglage

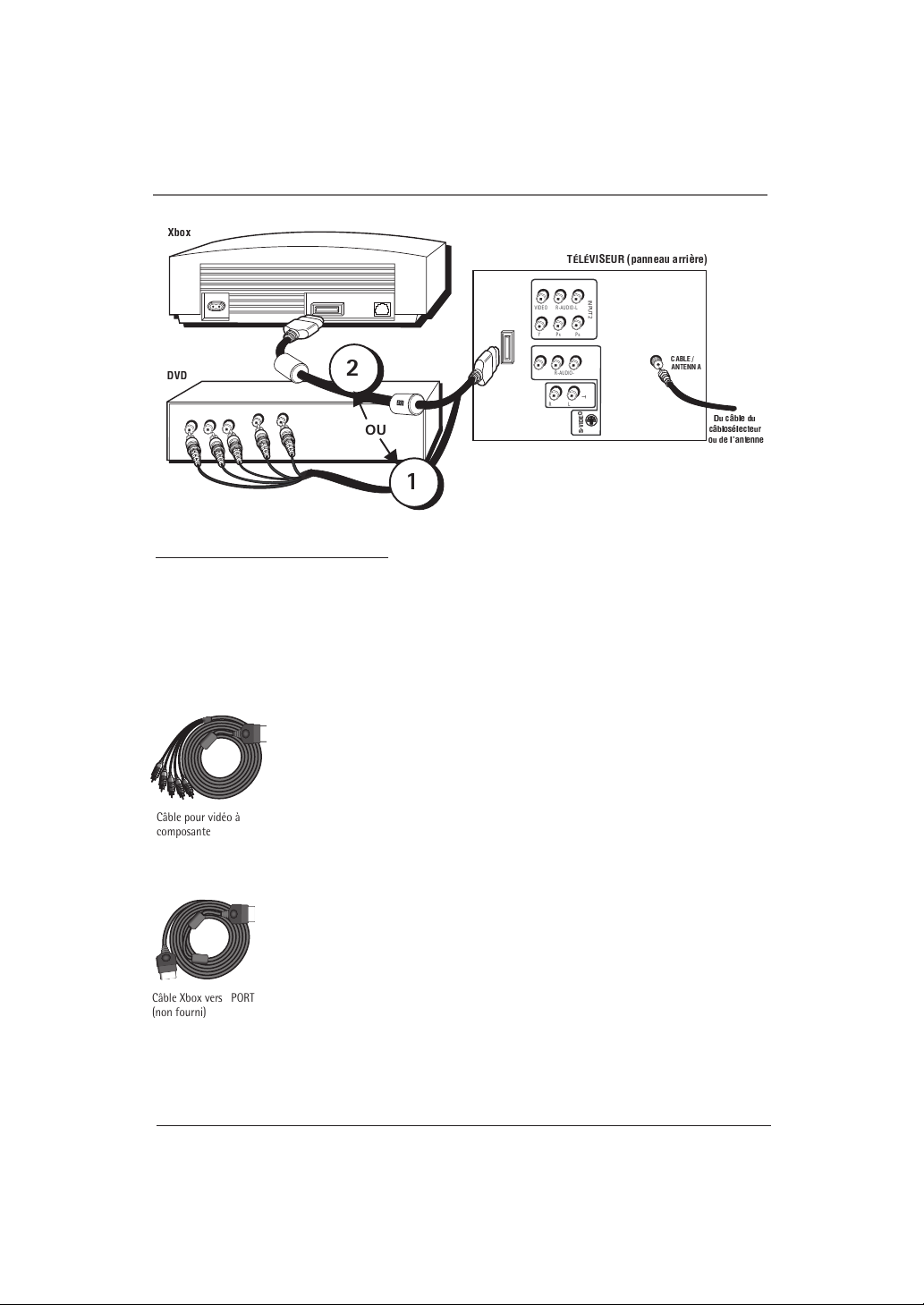

Xbox

TÉLÉVISEUR (panneau arrière)

INPUT

R-AUDIO-L

VIDEO

VPORT

DVD

OUT

VIDEO

Utilisation de la prise VPORT

La prise VPORT vous permet de connecter une console de jeux vidéo Xbox au téléviseur en utilisant un câble Xbox vers VPORT (non fourni). Voyez le Bon de commande d’accessoires à la page 29 pour vous procurer un câble Xbox vers VPORT. Vous pouvez également connecter un composant, comme un lecteur DVD, muni de prises de vidéo à composantes

, PR) en utilisant câble de composant vidéo vers VPORT (non fourni). Si vous utilisez le câble de composant vidéo

(Y, P

vers VPORT, assurez-vous de connecter les câbles audio gauche et droit pour que le téléviseur reçoive le son à partir du composant connecté.

Nota : La prise VPORT ne peut servir à connecter des consoles de jeux différentes de la Xbox.

R-AUDIO-L

INPUT 1

CABLE/ ANTENNA

Du câble d

câblosélect

ou de l’ant

eur

enn

1. Connectez votre téléviseur à un lecteur DVD

Utilisez le câble de vidéo à composante VPORT (non fourni) pour connecter le téléviseur à un autre composant, comme un lecteur DVD muni des prises Y, P de vidéo à composante VPORT à la prise VPORT située à l’arrière du téléviseur. Connectez

, PR. Connectez le câble

l’autre extrémité du câble de vidéo à composante VPORT aux prises de sortie Y, PB, PR et de sortie audio situées à l’arrière du lecteur DVD.

Câble pour vidéo à composantes vers VPORT (non fourni)

- OU -

2. Connectez votre téléviseur à une console de jeux vidéo Xbox

Connectez l’extrémité du câble Xbox à VPORT (non fourni) marquée TV à la prise VPORT à l’arrière du téléviseur et l’autre extrémité à la prise correspondante à l’arrière de la console de jeux vidéo Xbox.

Nota : Si vous avez un récepteur audio, vous pourrez peut-être connecter un câble audio numérique à la prise audio numérique du câble VPORT.

Câble Xbox vers VPORT (non fourni)

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

4 Chapitre 1

Page 39

Connexions et réglage

Prises à l’arrière du téléviseur

Cette section décrit chaque prise située à l’arrière du téléviseur. Lorsque vous connectez des câbles A/V, assurez-vous de connecter les sorties et les entrées correspondantes (vidéo à vidéo, audio droite à audio droite, etc.).

VPORT Voyez la page 4 pour une explication du VPORT. CABLE/ANTENNA Vous permet de connecter un câble coaxial afin de recevoir un signal d’antenne, de câble ou de

câblosélecteur.

INPUT1 Vous permet de connecter un composant, comme un magnétoscope, un lecteur DVD, un récepteur satellite ou un lecteur de disques laser.

• VIDEO permet la connexion vidéo composite. Le connecteur vidéo est généralement jaune.

• R AUDIO permet la connexion à l’audio droit. Le connecteur audio droit est généralement rouge.

• L AUDIO permet la connexion à l’audio gauche. Le connecteur audio droit est généralement blanc.

• S-VIDEO offre une meilleure qualité d’image que les prises vidéo régulières (INPUT1 et INPUT2 VIDEO) parce que la portion couleur du signal est séparée de la portion noir et blanc de l’image. Si vous utilisez le S-vidéo, assurez-vous de connecter les câbles audio gauche et droit dans les prises R-AUDIO-L INPUT1.

INPUT2 Vous permet de connecter un composant, comme un magnétoscope, un appareil d’accès à Internet, un lecteur DVD ou un lecteur de disques laser. Ses prises AUDIO et VIDEO sont identiques à celles décrites pour l’entrée INPUT1 ci-dessus.

, PR (Vidéo à composantes) donne la meilleure qualité d’image,

•Y, P

car le signal vidéo est divisé en trois composantes. Utilisez trois câbles de type vidéo pour effectuer la connexion. Si vous utilisez

, PR, assurez-vous de connecter les câbles audio gauche et

Y, P

droit dans les prises R-AUDIO-L INPUT2.

VIDEO

R-AUDIO-L

INPUT1

IN P

AUDIO OUT R/L Vous permet de connecter un amplificateur ou un récepteur audio afin d’améliorer la qualité du son.

Chapitre 1 5

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

Nota : Vous pouvez éteindre les haut-parleurs du téléviseur à partir du menu Audio. Voyez la page 19 pour obtenir des renseignements supplémentaires.

Page 40

Connexions et réglage

Installation des piles dans la télécommande

1. Enlevez le couvercle du compartiment à piles de la télécommande.

2. Insérez des piles neuves. Assurez-vous de bien suivre les indications de polarité sur le diagramme (+ et -).

3. Replacez le couvercle du compartiment à piles sur la télécommande.

Mise en marche du téléviseur

Appuyez sur la touche TV de la télécommande, ou sur le bouton POWER du téléviseur (le premier écran du réglage interactif apparaît). Les menus disparaissent après un certain « laps de temps » si vous ne faites aucune sélection. Les conseils fournis dans cette section vous indiquent comment accéder manuellement aux menus de réglage.

Nota : Lorsque vous appuyez sur la touche TV, le téléviseur se met en marche et la télécommande se met en mode TV. « Mode TV » signifie que les touches de la télécommande activent les fonctions du téléviseur.

Exécution du réglage interactif

Le système de menus de votre téléviseur vous permet de régler les fonctions du téléviseur. La première fois que vous allumez votre téléviseur, les écrans de réglage apparaissent automatiquement. Le téléviseur vous pose des questions et vous répondez pour qu’il exécute les réglages appropriés.

RÉGLAGE

Choisissez la langue de votre choix pour ces menus.

1 English 2 Español

3 Français

Utilisez les touches à flèche de la télécommande pour mettre en surbrillance une option.

RÉGLAGE

Voulez-vous que le TV recherche

tous les canaux disponibles?

1 Recherche des canaux

2 Passer cette étape

Appuyez sur OK pour sélectionner.

Réglage de la langue des menus

1. Utilisez les touches de la télécommande pour mettre en

2. Appuyez sur OK pour sélectionner cette langue.

Recherche automatique complète de canaux

Le téléviseur recherche tous les canaux pouvant être visionnés par l’intermédiaire de votre système d’antenne ou de câble. Cette fonction est appelée « auto-programmation ».

1. Appuyez sur OK pour indiquer au téléviseur de rechercher des

2. Lorsque l’écran affiche que la recherche est terminée, appuyez

surbrillance votre choix de langue pour le système de menus.

canaux. Un indicateur de progression s’affiche à l’écran.

sur OK.

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

6 Chapitre 1

Page 41

Chapitre 2 : Utilisation de la télécommande

VCR

DVD

SOUND

GUIDE

WHO•INPUT

RECORD

DÉL

VPORT

ON OFF

AUX

PLAY FORWARDREVERSE

STOP PAUSE

ANTENNA

SAT

GO BACK

CLEAR

CABLE

SKIPMUTE

INFO

Les touches de la télécommande

(0 à 9) Touches numériques Elles permettent d’entrer directement le numéro du canal et de régler l’heure au moyen de la télécommande.

Pour entrer un canal à deux chiffres, appuyez sur les deux chiffres. Pour entrer un canal à trois chiffres, appuyez sur la première touche et maintenez-la enfoncée pendant deux secondes jusqu’à l’apparition de deux tirets (– –) à droite du chiffre, puis entrez les deux autres chiffres. Exemple : pour régler sur le canal 123, appuyez sur 1 et maintenez cette touche enfoncée pendant deux secondes, appuyez sur 2, puis appuyez sur 3.

ANTENNA (Antenne) Cette touche fonctionne comme une touche TV/VCR en mode VCR (magnétoscope) et comme une touche TV/RCV (récepteur) en mode SAT•CABLE.

AUX (auxiliaire) Met la télécommande en mode auxiliaire pour commander le composant pour lequel vous avez programmé la touche AUX. Vous pouvez programmer cette touche pour commander un câblosélecteur, des composants audio, un magnétoscope, un lecteur DVD ou un récepteur satellite. Si vous réglez la fonction de syntonisation automatique (Chapitre 3), appuyez sur la touche AUX pour syntoniser automatiquement le téléviseur sur le bon canal.

Boutons CH (haut et bas) Faites défiler la liste actuelle des canaux vers le haut ou vers le bas. Appuyez une fois pour passer au canal précédent ou suivant ou maintenez la touche enfoncée pour continuer à changer les canaux.

CLEAR (Effacer) Efface tout menu ou affichage de l’écran et vous ramène au visionnement normal.

DÉL (diode électroluminescente) Le petit voyant sur la télécommande qui s’allume lorsque vous programmez la télécommande. Il s’allume également lorsque vous appuyez sur une touche valide de la télécommande.

DVD Met la télécommande en mode DVD. Si vous réglez la fonction de syntonisation automatique (Chapitre 3), appuyez sur la touche DVD pour syntoniser automatiquement le téléviseur sur le bon canal.

FORWARD (Avant) Si vous faites fonctionner un magnétoscope ou un lecteur DVD avec la télécommande, appuyez sur FORWARD pour avancer sur le disque ou faire avancer la bande vidéo.

GO BACK (Retour) Vous ramène au canal précédent. GUIDE Si vous commandez un autre composant comportant un guide, cette touche permet d’accéder au guide à l’écran. INFO Cette touche affiche les informations sur le canal. MENU Affiche le menu principal du téléviseur. MUTE (Silencieux) Abaisse le volume au niveau le plus bas. Appuyez de nouveau sur cette touche pour rétablir le volume. OK Lorsqu’un menu est affiché à l’écran, appuyez sur OK pour sélectionner l’élément mis en surbrillance. ON•OFF (Allumé•Éteint) Allume ou éteint le téléviseur. Lorsque la télécommande est dans un autre mode

(magnétoscope, lecteur DVD, satellite, etc.) et programmée de façon à commander le composant correspondant, vous pouvez appuyer sur la touche ON•OFF pour allumer ou éteindre ce composant.

PAUSE Si vous faites fonctionner un magnétoscope ou un lecteur DVD avec la télécommande, appuyez sur PAUSE pendant la lecture du disque ou de la vidéocassette pour marquer une pause.

PLAY (Lecture) Si vous faites fonctionner un magnétoscope ou un lecteur DVD, appuyez sur cette touche pour démarrer la lecture du disque ou de la vidéocassette.

RECORD (Enregistrer) Si la télécommande est en mode VCR, appuyez sur REC•VCR+ pour démarrer l’enregistrement. REVERSE (Arrière) Si vous faites fonctionner un magnétoscope ou un lecteur DVD, appuyez sur REVERSE pour revenir en

arrière sur un disque ou sur une bande vidéo. SAT•CABLE Met la télécommande en mode SAT•CABLE. Si vous réglez la fonction de syntonisation automatique

(Chapitre 3), appuyez sur la touche SAT•CABLE pour syntoniser automatiquement le téléviseur sur le bon canal. SKIP (Sauter) Si vous appuyez sur cette touche avant de changer de canal, le téléviseur attend 30 secondes avant de

revenir au canal d’origine. Chaque fois que vous appuyez sur SKIP, vous ajoutez 30 secondes (c’est à dire que si vous appuyez deux fois sur SKIP, le téléviseur attend 60 secondes et revient au canal d’origine). Appuyez sur CLEAR pour annuler le minuteur de saut.

Chapitre 2 7

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

Page 42

Utilisation de la télécommande

SOUND (Son) Affiche le menu du PROCESSEUR DE L’AUDIO. STOP (Arrêt) Si vous faites fonctionner un magnétoscope ou un lecteur DVD, appuyez sur cette touche pour arrêter la

lecture du disque ou de la vidéocassette.

Touches à flèche (haut, bas, gauche, droite) Pour se déplacer dans le système de menus à l’écran. Touches VOL (haut ou bas) Abaissent ou augmentent le volume du téléviseur. TV Allume le téléviseur et met la télécommande en mode TV. Affiche également les informations sur les canaux. VCR Met la télécommande en mode magnétoscope. Si vous réglez la fonction de syntonisation automatique (Chapitre 3),

appuyez sur la touche VCR pour syntoniser automatiquement le téléviseur sur le bon canal. VPORT Syntonise le téléviseur au canal du port d’entrée VPORT. Vous pouvez programmer cette touche pour commander

un câblosélecteur, des composants audio, un magnétoscope, un lecteur DVD ou un récepteur satellite. Une fois programmée, elle change de mode de la télécommande lorsque l’on appuie sur cette touche. Pour rétablir la touche VPORT au mode programmé à l’usine (non programmée), maintenez appuyée la touche VPORT et appuyez sur 1, 0, 0, puis 0.

WHO•INPUT (Quelle entrée?) En mode TV, appuyez sur WHO•INPUT pour alterner entre les canaux d’entrée vidéo disponibles (FRNT, VID1/SVID1, VID2/CVID2, VPORT et le canal actuel). En mode SAT, appuyez sur cette touche pour sélectionner les listes de canaux disponibles.

Utilisation de la touche WHO•INPUT

Utilisez la touche WHO•INPUT pour faire défiler les sources d’entrée disponibles (FRNT, VID1/SVID1, VID2/CVID2, VPORT et le canal actuel) et visionner le contenu du composant que vous avez branché au téléviseur.

1. Appuyez sur TV pour mettre la télécommande en mode TV. Vérifiez que le composant que vous voulez utiliser est bien ALLUMÉ.

2. Appuyez sur WHO•INPUT pour syntoniser la source d’entrée disponible et regarder le composant.

3. Appuyez de nouveau sur WHO•INPUT pour vous revenir canal que vous regardiez précédemment.

ON OFF

VCR

CABLE

SAT

AUX

VPORT

DVD

Programmation de la télécommande pour commander d’autres composants

La télécommande universelle peut être programmée pour commander la plupart des marques de magnétoscopes, de lecteurs DVD, de récepteurs audio, de récepteurs satellite et de câblosélecteurs. La télécommande est déjà programmée pour commander la plupart des magnétoscopes, des lecteurs DVD, des récepteurs audio et des récepteurs satellite RCA, GE et

CLEAR

PLAYREVERSE

STOP

Proscan. La touche TV ne peut être programmée.

Comment savoir si vous devez programmer la télécommande

Pour déterminer si la télécommande universelle doit être programmée, allumez un composant (comme un magnétoscope), pointez la télécommande vers celui-ci et appuyez sur la touche VCR.

Utilisez ces touches pour programmer la télécommande de façon à commander un autre composant.

Il se peut que cette

Appuyez ensuite sur ON•OFF ou CH + ou – pour voir si le magnétoscope répond à la télécommande. Sinon, la télécommande doit être programmée.

Programmation de la télécommande

Il existe deux méthodes pour programmer la télécommande : la recherche automatique du code

et l’entrée directe. Voici les instructions pour chacune. télécommande ne puisse faire fonctionner tous les modèles de toutes les marques.

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

8 Chapitre 2

Page 43

Utilisation de la télécommande

Utilisation de la recherche automatique du code

1. Allumez le composant que vous voulez commander par télécommande (magnétoscope, etc.).

2. Maintenez appuyée la touche de la télécommande correspondant au composant que vous voulez commander (VCR,

etc.). Tout en maintenant la touche du composant enfoncée, appuyez sur la touche ON•OFF (lorsque le voyant sur la télécommande s’allume, relâchez les deux touches).

3. Appuyez sur PLAY (le voyant sur la télécommande, situé en-dessous de la touche ON•OFF, commence à clignoter).

La télécommande recherche la première série de codes pour les composants (il y a 20 séries de codes). Si, après 5 secondes, le composant que vous voulez commander ne s’éteint pas automatiquement, appuyez de nouveau sur la touche PLAY (le voyant commence à clignoter à nouveau pendant que la télécommande poursuit sa recherche dans les autres séries de codes).

Continuez d’appuyer sur PLAY jusqu’à ce que le composant s’éteigne.

Nota : Si le composant ne s’éteint pas après que vous ayez appuyé 20 fois sur la touche PLAY, le composant ne peut être programmé.

4. Appuyez sur la touche REVERSE et attendez deux secondes. Répétez cette étape jusqu’à ce que le composant se

rallume.

5. Pour terminer, appuyez sur la touche STOP et maintenez-la enfoncée jusqu’à ce que le voyant de la télécommande

s’éteigne.

Utilisation de l’entrée directe

1. Allumez le composant que vous désirez commander avec la télécommande.

2. Identifiez la marque et le(s) numéro(s) de code du composant dans la liste des codes aux pages 10 et 11.

3. Appuyez sur la touche de la télécommande correspondant au composant que vous voulez commander (VCR, etc.) et

maintenez-la enfoncée.

4. Entrez le code indiqué dans la liste des codes.

5. Relâchez la touche du composant.

6. Appuyez sur ON•OFF pour voir si le composant répond à la télécommande. S’il ne répond pas, essayez d’appuyer sur la

touche du composant, puis de nouveau sur ON•OFF.

7. Si vous n’obtenez pas de réponse, répétez ces étapes en utilisant le code suivant dans la liste correspondant à la

marque du composant, jusqu’à ce que le composant réponde à la télécommande.

Utilisation de la télécommande une fois programmée

Une fois que la télécommande est programmée, vous êtes prêt à l’utiliser pour commander vos composants. Pour faire fonctionner le composant :

1. Appuyez sur la touche du composant (TV, VCR, VPORT, DVD, AUX, ou SAT•CABLE) pour régler la télécommande afin

qu’elle commande le composant.

2. Appuyez sur ON•OFF pour ALLUMER ou ÉTEINDRE le composant.

3. Utilisez les touches de la télécommande qui correspondent à ce composant.

Nota : Si vous continuez d’appuyer sur des touches et que rien ne se passe, la télécommande n’est probablement pas dans le bon mode. Vous devez appuyer sur la touche du composant correspondant à l’appareil que vous voulez faire fonctionner (p. ex., si vous voulez utiliser le magnétoscope, appuyez sur la touche VCR de la télécommande pour la mettre en mode magnétoscope).

Chapitre 2 9

Les illustrations contenues dans ce document servent uniquement à des fins de représentation.

Page 44

Utilisation de la télécommande

Codes pour télécommande

Codes pour câblosélecteur

Programmables pour les touches SAT•CABLE et AUX et VPORT.

ABC . 5002, 5003, 5004, 5005, 5006, 5053

Antronix ........................................ 5008, 5009

Archer ................................. 5008, 5009, 5010

Cabletenna ............................................... 5008

Cableview ................................................. 5008

Colour Voice ..................................5012, 5013

Comtronics ................................................ 5014

Contec ........................................................ 5016

Est ................................................................ 5017

GC Electronics ......................................... 5009

GE .....................................................5000, 5001

Gemini ............................................ 5018, 5019

General Instrument ................................ 5003

Hamlin ....... 5020, 5021, 5022, 5028, 5035,

Hitachi ....................................................... 5003

Jerrold ....... 5003, 5018, 5023, 5024, 5046,

Magnavox ................................................. 5025

Memorex ................................................... 5026

Movie Time ............................................... 5027

NEC ............................................................. 5005

NSC ............................................................. 5027

Oak .................................................. 5016, 5029

Panasonic ...................................... 5048, 5052

Philips .......... 5011, 5012, 5013,5015, 5019,

Pioneer .......................................... 5033, 5034

Proscan ...........................................5000, 5001

RCA ......................... 5007, 5047, 5049, 5052

Realistic ..................................................... 5009

Regal .............................................. 5022, 5035

Regency ......................................................5017

Rembrandt ................................................ 5003

Samsung ................................................... 5034

Scientific Atlanta 5006, 5036, 5037, 5038

Signal .......................................................... 5018

Signature .................................................. 5003

Sprucer ...................................................... 5052

Composants standards .............. 5039, 5044
