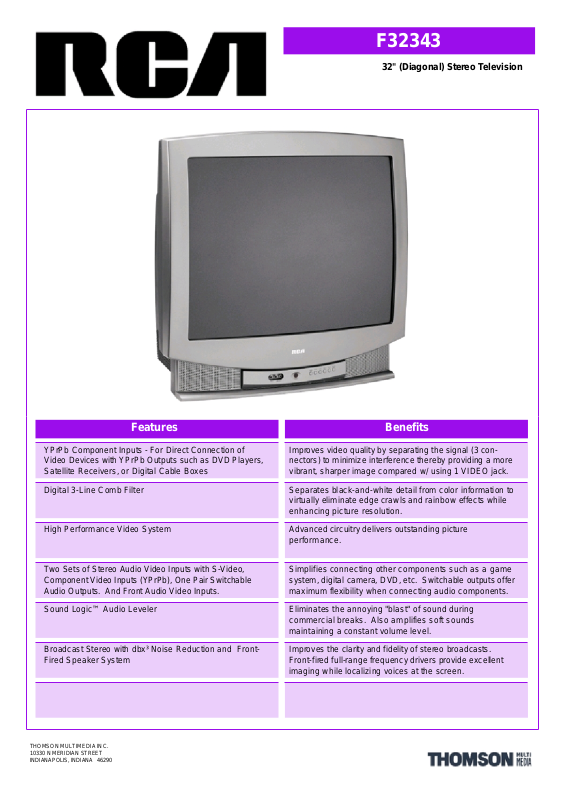

RCA F32343 User Manual

F32343

32" (Diagonal) Stereo Television

Features Benefits

YPrPb Component Inputs - For Direct Connection of
Video Devices with YPrPb Outputs such as DVD Players,
Satellite Receivers, or Digital Cable Boxes

Digital 3-Line Comb Filter

High Performance Video System

Two Sets of Stereo Audio Video Inputs with S-Video,
Component Video Inputs (YPrPb), One Pair Switchable
Audio Outputs. And Front Audio Video Inputs.

Sound Logic™ Audio Leveler

Broadcast Stereo with dbx³ Noise Reduction and Front­Fired Speaker System

Improves video quality by separating the signal (3 con­nectors) to minimize interference thereby providing a more
vibrant, sharper image compared w/ using 1 VIDEO jack.

Separates black-and-white detail from color information to
virtually eliminate edge crawls and rainbow effects while
enhancing picture resolution.

Advanced circuitry delivers outstanding picture
performance.

Simplifies connecting other components such as a game
system, digital camera, DVD, etc. Switchable outputs offer
maximum flexibility when connecting audio components.

Eliminates the annoying "blast" of sound during
commercial breaks. Also amplifies soft sounds
maintaining a constant volume level.

Improves the clarity and fidelity of stereo broadcasts.
Front-fired full-range frequency drivers provide excellent
imaging while localizing voices at the screen.

THOMSON MULTIMEDIA INC.
10330 N MERIDIAN STREET
INDIANAPOLIS, INDIANA 46290

F32343

Technical Specifications :

BRAND

Brand RCA


Screen Size - diagonal (inch) 32
Category Table TV
Aspect Ratio 4x3
Screen Type Optimum Contrast
Adjustable Color Temperature Yes
Auto Color Balance (AKB) Yes
Auto Color Control Yes
Comb Filter Digital 3-Line
Dynamic BlackStretch Circuitry Yes
Picture Presets 3+Personal
Scan Velocity Modulation (SVM) -

SOUND

Sound Type Brdcst Str w/dbx³ Noise Reduction
Second Audio Program (SAP) Yes
Sound Logic™ Audio Leveler Yes
Tone Control Bass & Treble + Balance
Balance Control Yes
Front Speakers (number) 2
Front-Fired Speaker System Yes

RECEPTION

Tuning Capability NTSC

CONVENIENCE

Auto Channel Search Yes
Channel Labeling Yes
Close Captioning
Commercial Skip Yes
Guide Plus+ Program Guide¹ ­ Interactive Set-up w/ Menus Yes
Multilingual On-Screen Display English/French/Spanish
On-Screen Time & Channel Display Yes
One-Touch VCR Record (Gemstar) ­ One Button Launch for Inputs Yes - Auto Tune
Parental Control (V-Chip) Yes
Pic Memory Presets for Vid Inputs Yes
Picture Reset Yes
Picture-in-Picture ­ Programmable Timer System Clock/Sleep/Wake/Scheduler

REAR CONNECTORS

RCA VPORT™ ­ Audio/Video Inputs (Composite) 2 L&R Audio, 2 Video
S-Video Input 1 - Auto-Detectible
Component Video Input (YPrPb) Yes
Audio Outputs 1 Set - L&R Audio
Audio Outputs (Type) Switchable - Variable/Fixed
G-Link¹ Connector ­ RF Input (Antenna) 1

FRONT CONNECTORS

Audio/Video Inputs (Composite) 1 L&R Audio, 1 Video
S-Video Input ­ Headphone Jack -

SPECIFICATIONS

Finish Silver Shark
Product Size (WxHxD) inches 30 1/8 x 29 x 22 1/2
Approx. Shipping Weight, lbs 120
AC/DC Power Options AC Only

REMOTE CONTROL

Remote Model Number CRK76BC1
Remote Type Universal

INCLUDED ACCESSORIES

Instruction Book Languages English/French
DC Cigarette Lighter Adapter ­ VPORT™ Component Video Cable -

3 - dbx is a registered trademark of Carillon Electronics Corporation.

©2002 Thomson multimedia Inc.
Trademark(s) ® Registered
Marca(s) Registrada(s)

Photos and features subject to change without notice. Illustration of product finish may vary
from actual color.

Revised 9/30/02
