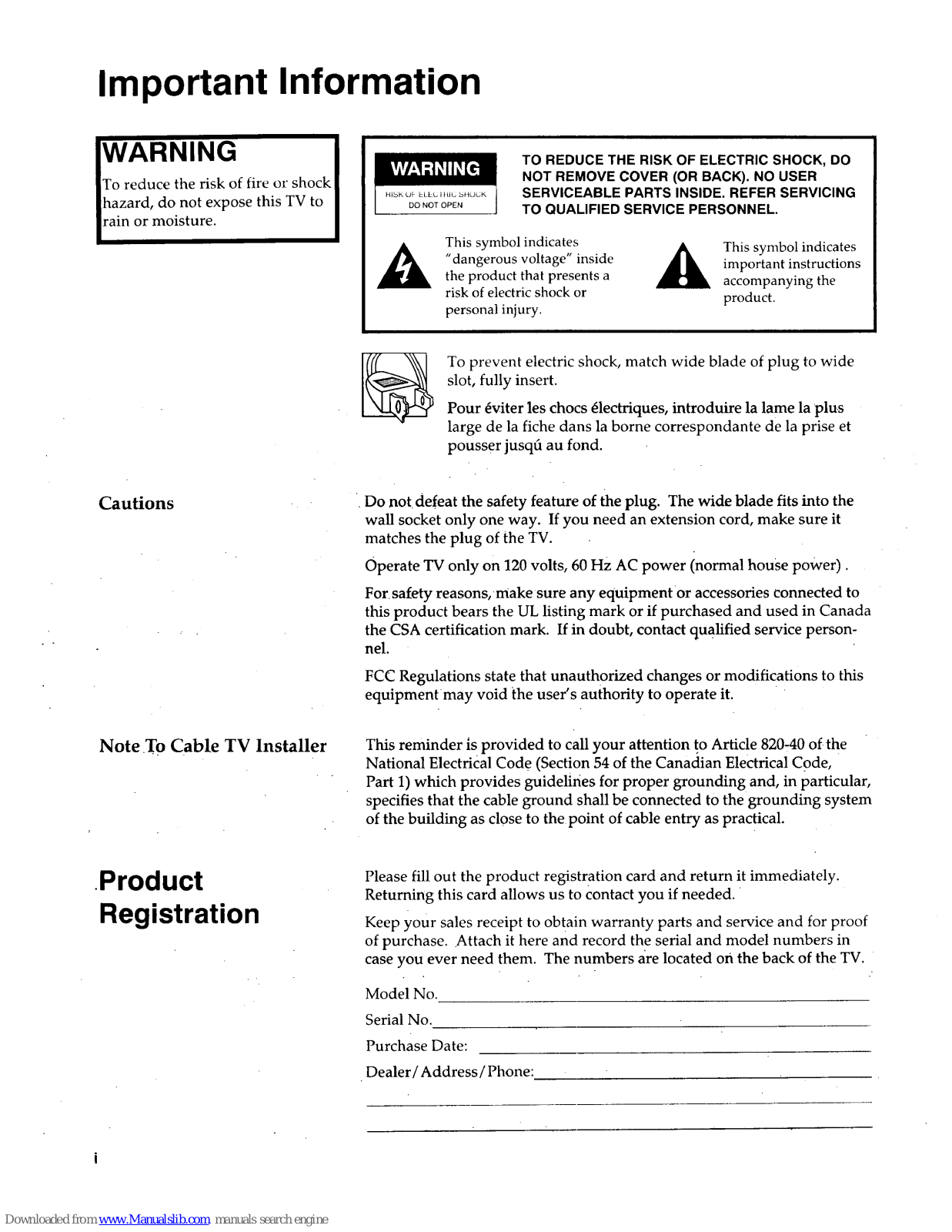

Important Information
WARNING
To reduce the risk of fire or shock
hazard, do not expose this TV to
rain or moisture.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
personal injury.
This symbol indicates
important instructions
accompanying the
product.
To prevent electric shock, match wide blade of plug to wide
slot, fully insert.
Pour _viter les chocs _lectriques, introduire la lame la plus
large de la fiche dans la borne correspondante de la prise et
pousser jusqd au fond.
Cautions
. Do not defeat the safety feature of the plug. The wide blade fits into the
wall socket only one way. If you need an extension cord, make sure it
matches the plug of the TV.
Operate TV only on 120 volts, 60 HZ AC power (normal house power).
For. safety reasons, make sure any equipmentor accessories connected to
this product bears the UL listing mark or if purchased and used in Canada
the CSA certification mark. If in doubt, contact qualified service person-
nel.
FCC Regulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
Note TOCable TV Installer This reminder is provided to call your attention to Article 820-40 of the
National Electrical Code (Section 54 of the Canadian Electrical Code,
Part 1) which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system
of the building as close to the point of cable entry as practical.
Product
Registration
Please fill out the product registration card and return it immediately.
Returning this card allows us to contact you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof
of purchase. Attach it here and record the serial and model numbers in
case you ever need them. The numbers are located on the back of the TV.
Model No.
Serial No.
Purchase Date:
Dealer/Address/Phone:
Page 3

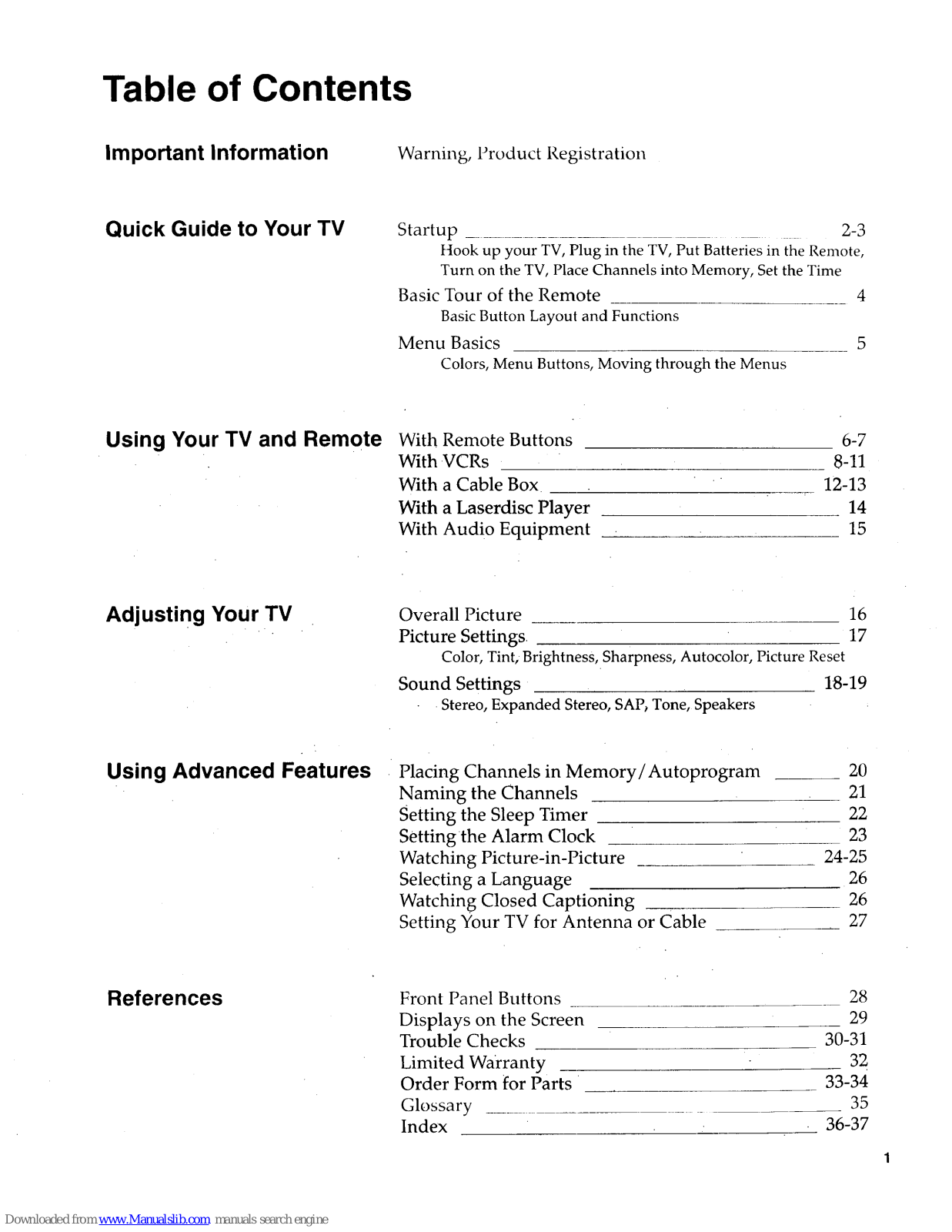

Table of Contents
Important Information Warning, Product Registration
Quick Guide to Your TV
Startup 2-3
Hook up your TV, Plug in the TV, Put Batteries in the Remote,
Turn on the TV, Place Channels into Memory, Set the Time
Basic Tour of the Remote 4
Basic Button Layout and Functions
Menu Basics 5
Colors, Menu Buttons, Moving through the Menus
Using Your TV and Remote
With Remote Buttons
With VCRs
With a Cable Box
With a Laserdisc Player
With Audio Equipment
6-7
8-11
12-13
14
15
Adjusting Your TV
Overall Picture 16
Picture Settings. 17
Color, Tint, Brightness, Sharpness, Autocolor, Picture Reset
Sound Settings 18-19
•Stereo, Expanded Stereo, SAP_ Tone, Speakers
Using Advanced Features Placing Channels in Memory/Autoprogram
Naming the Channels
Setting the Sleep Timer
Setting •the Alarm Clock
Watching Picture-in-Picture
Selecting a Language
Watching Closed Captioning
Setting Your TV for Antenna or Cable
20
21
22
23
24-25
26
26
27
References
Front Panel Buttons
Displays on the Screen
Trouble Checks
Limited Warranty
Order Form for Parts
Glossary
Index
28
29
30-31
32
33-34
35
36-37
Page 4
Quick Guide to Your TV
Startup
The steps below will get your TV connected and ready for watching.
For more details, see the page numbers listed.

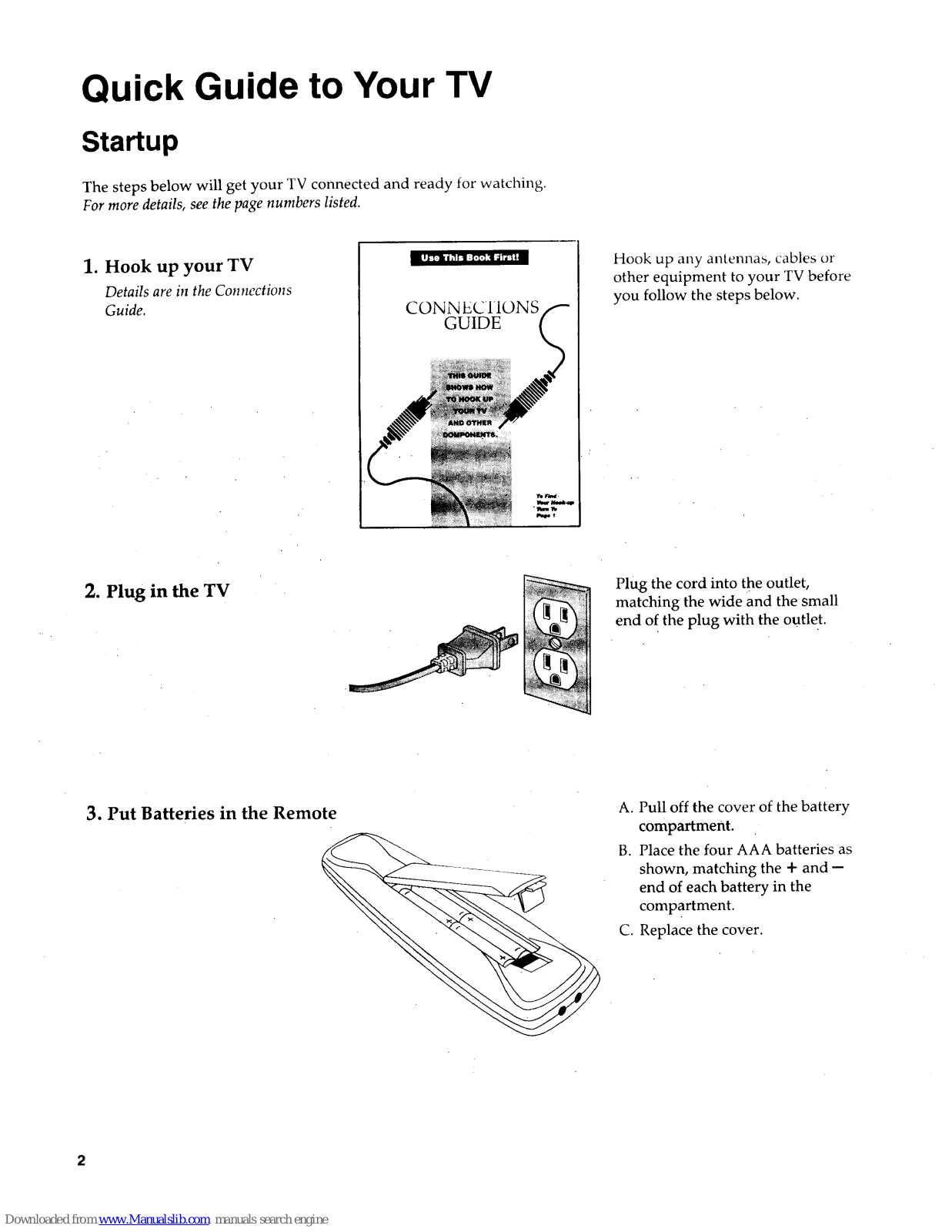

1. Hook up your TV
Details are in the Connections
Guide.
CONNECI 1ONS
GUIDE
Hook up any antennas, cables or
other equipment to your TV before
you follow the steps below.
2. Plug in the TV
Plug the cord into the outlet,
matching the wide and the small
end of the plug with the outlet.
3. Put Batteries in the Remote
A. Pull off the cover of the battery
compartment.
B. Place the four AAA batteries as
shown, matching the + and --
end of each battery in the
compartment.
C. Replace the cover.
2
Page 5
Quick Guide to Your TV
Startup

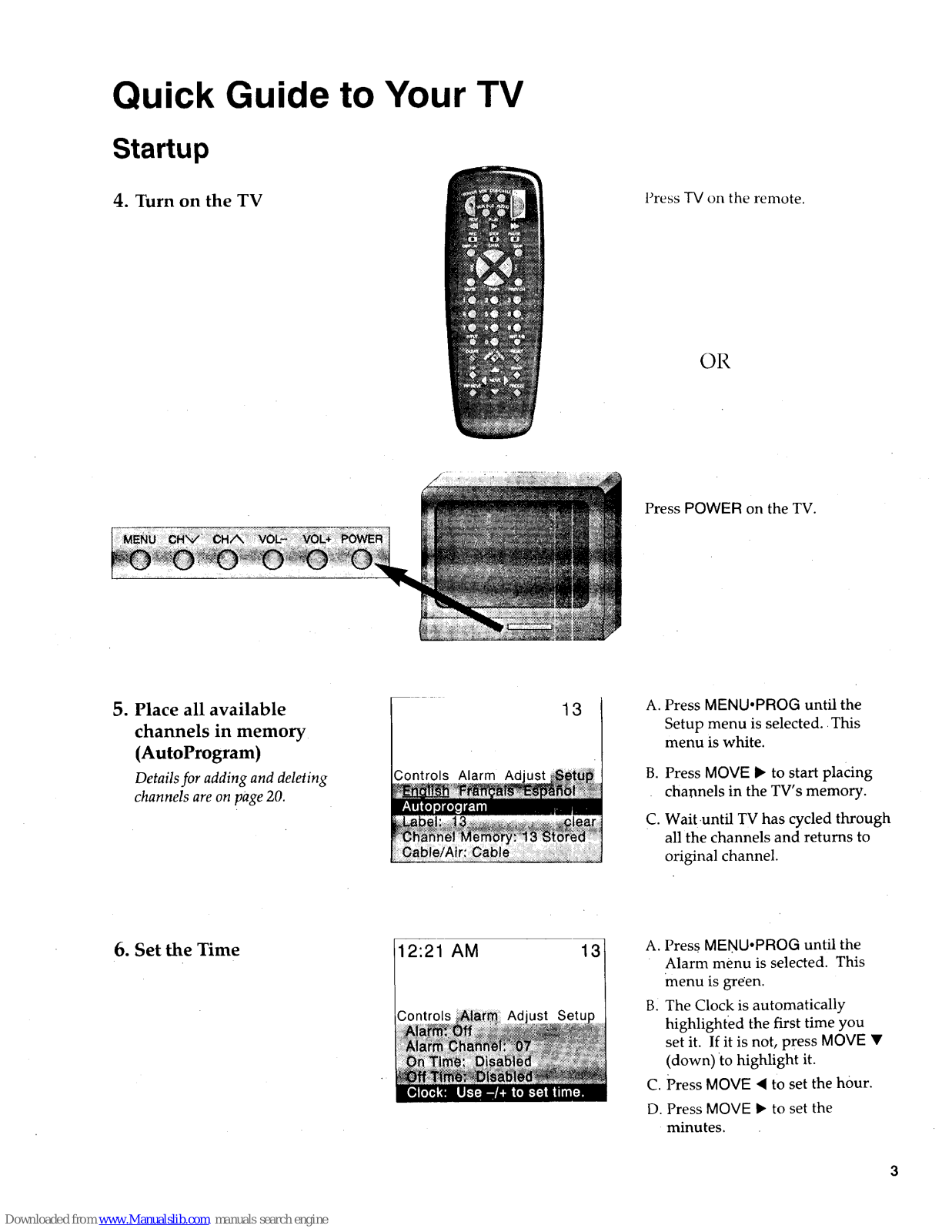

4. Turn on the TV
Press -IV on the remote.
OR
Press POWER on the TV.
5. Place all available
channels in memory
(AutoProgram)
Details for adding and deleting
channels are on page 20.
Controls Alarm Ad
13
A. Press MENU'PROG until the
Setup menu is selected. This
menu is white.
B.
C.
Press MOVE I_ to start placing
channels in the TV's memory.
Wait.until TV has cycled through
all the channels and returns to
original channel.
6. Set the Time
12:21 AM
Press MENUopROG until the
Alarm menu is selected. This
menu is green.
The Cloc k is automatically
highlighted the first time you
set it. If it is not, press MOVE •
(down) to highlight it.
Press MOVE • to set the hour.
Press MOVE • to set the
minutes.
Page 6
Quick Guide to Your TV

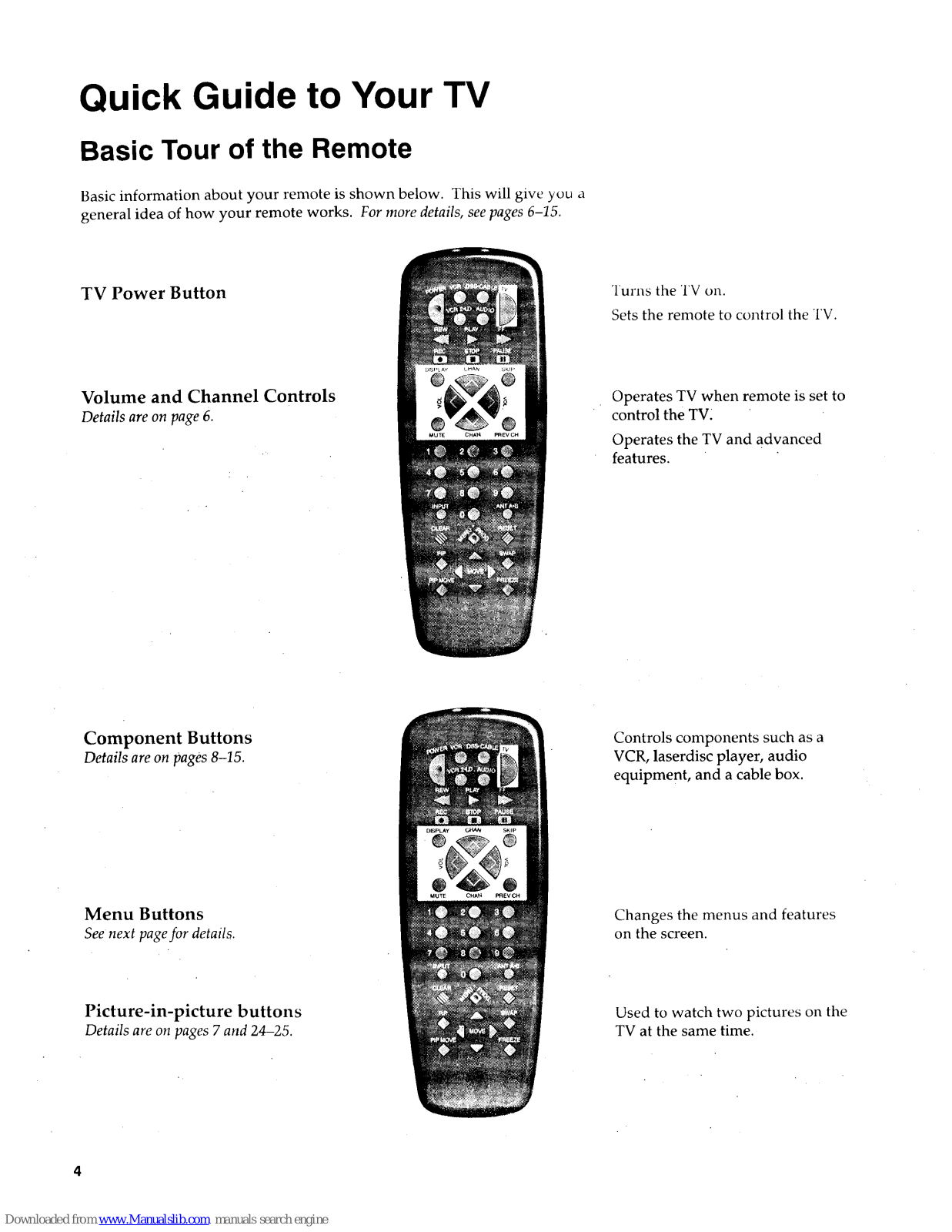

Basic Tour of the Remote
Basic information about your remote is shown below. This will give you a
general idea of how your remote works. For more details, see pages 6-15.
TV Power Button
Volume and Channel Controls
Details are on page 6.
MUTE CHAt_ PREV CH
Turns the TV on.
Sets the remote to control the TV.
Operates TV when remote is set to
control the TV_
Operates the TV and advanced
features.
Component Buttons
Details are on pages 8-15.
Menu Buttons
See next page for details.
Picture-in-picture buttons
Details are on pages 7 and 24-25.
Controls components such as a
VCR, laserdisc player, audio
equipment, and a cable box.
Changes the menus and features
on the screen.
Used to watch two pictures on the
TV at the same time.
Page 7
Quick Guide to Your TV

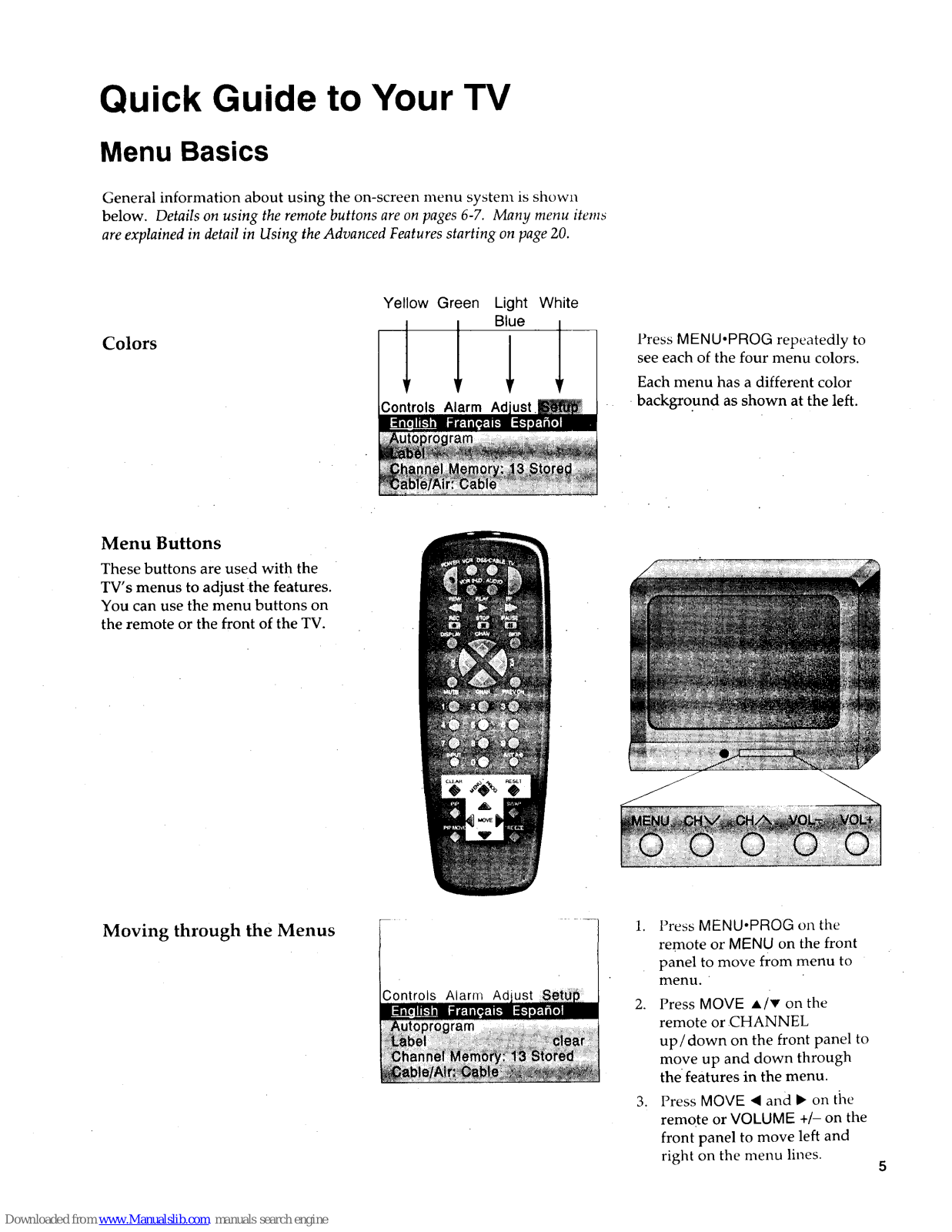

Menu Basics
General information about using the on-screen menu system is shown
below. Details on using the remote buttons are on pages 6-7. Many menu items
are explained in detail in Using the Advanced Features starting on page 20.
Colors
Yellow Green Light White
Blue
1,
Press MENUopROG repeatedly to
see each of the four menu colors.
Each menu has a different color
•background as shown at the left.
Menu Buttons
These buttons are used with the
TV's menus to adjust ithe features.
You can use the menu buttons on
the remote or the front of the TV.
Moving through the Menus
Controls Alarm Ad
1. Press MENU°PROG on the
remote or MENU on the front
panel to move from menu to
menu.
2. Press MOVE A/_' on the
remote or CHANNEL
up/down on the front panel to
move up and down through
the features in the menu.
3. Press MOVE < and _ on the
remote or VOLUME +/- on the
front panel to move left and
right on the menu lines.
Page 8

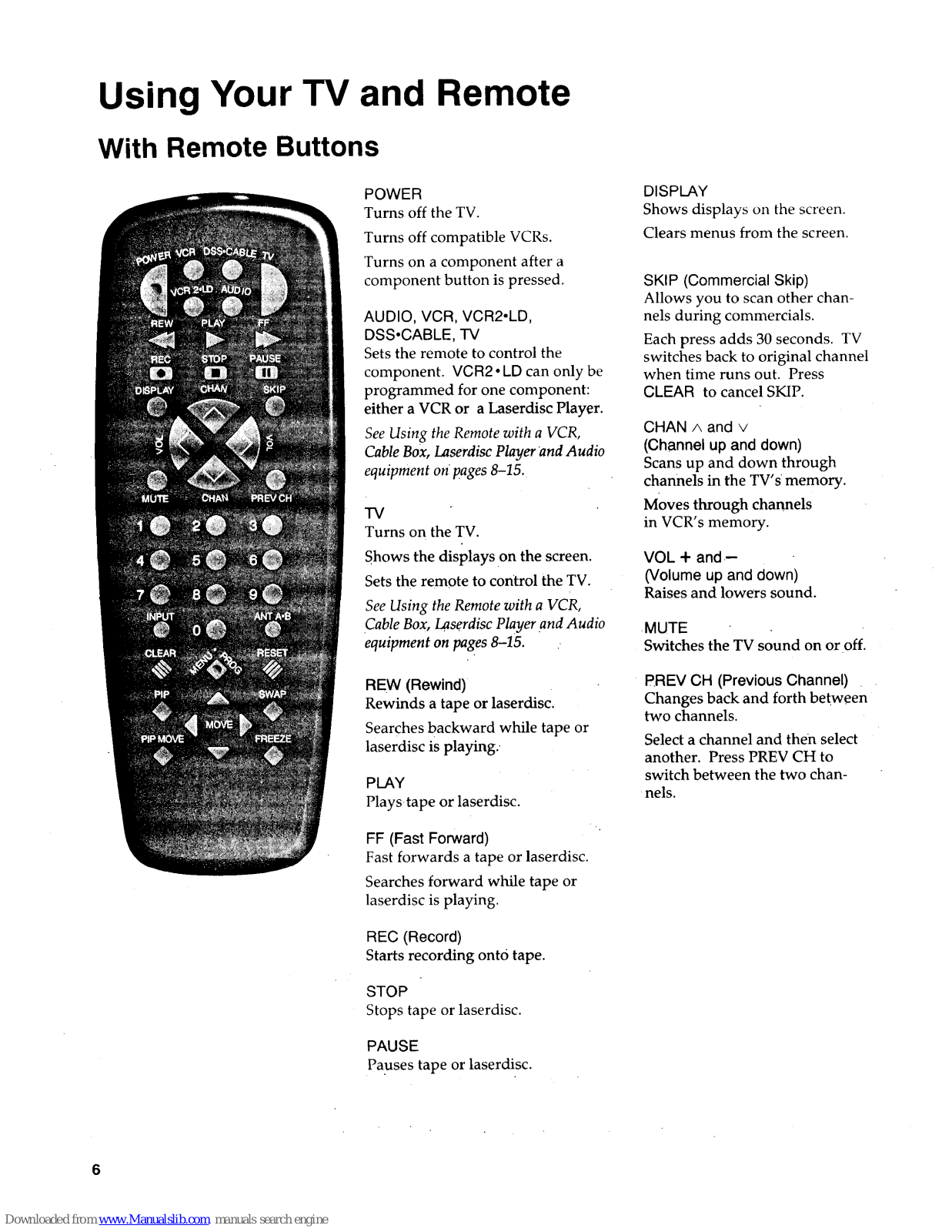

Using Your TV and Remote
With Remote Buttons
POWER
Turns off the TV.
Turns off compatible VCRs.
Turns on a component after a
component button is pressed.
AUDIO, VCR, VCR2-LD,
DSS,CABLE, TV
Sets the remote to control the
component. VCR2 ° LD can only be
programmed for one component:
either a VCR or a Laserdisc Player.
See Using the Remote with a VCR,
Cable Box, Laserdise Player and Audio
equipment on Eages 8-15.
TV
Turns on the TV.
Shows the displays on the screen.
Sets the remote to control the TV.
See Using the Remote with a VCR,
Cable Box, Laserdisc Player and Audio
equipment on pages 8-15.
REW (Rewind)
Rewinds a tape or laserdisc.
Searches backward while tape or
laserdisc is playing.
PLAY
Playstape or laserdisc.
FF (Fast Forward)
Fast forwards a tape or laserdisc.
Searches forward while tape or
laserdisc is playing.
REC (Record)
Starts recording ont6 tape.
STOP
Stops tape or laserdisc.
PAUSE
Pauses tape or laserdisc.
DISPLAY
Shows displays on the screen.
Clears menus from the screen.
SKIP (Commercial Skip)
Allows you to scan other chan-
nels during commercials.
Each press adds 30 seconds. TV
switches back to original channel
when time runs out. Press
CLEAR to cancel SKIP.
CHAN/_ and v
(Channel up and down)
Scansup and down through
channels in the TV's memory.
Moves through channels
in VCR's memory.
VOL + and-
(Volume up and down)
Raises and lowers sound.
•MUTE
Switches the TV sound on or off.
PREV CH (Previous Channel)
Changes back and forth between
two channels.
Select a channel and then select
another. Press PREV CH to
switch between the two chan-
nels.
Page 9
Using Your TV and Remote

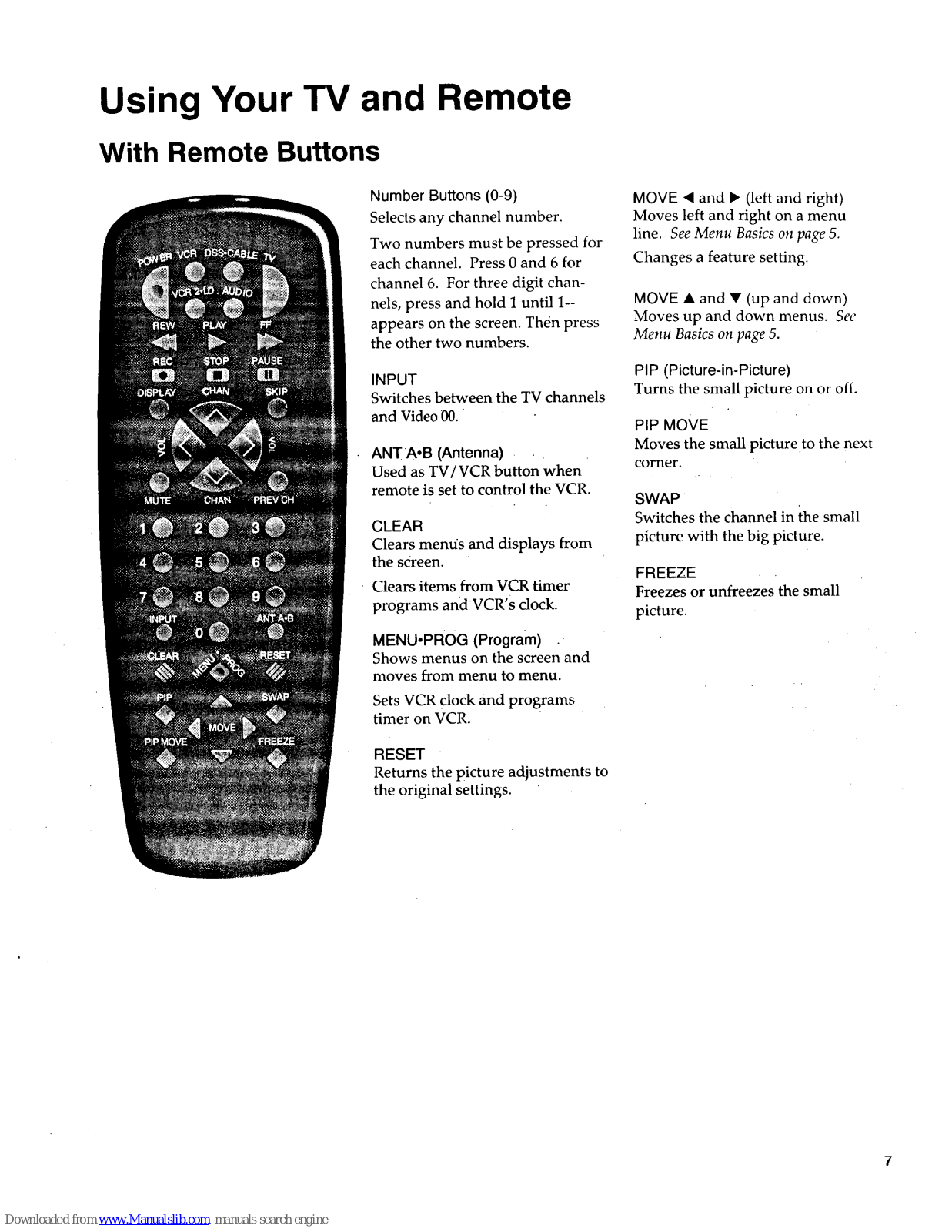

With Remote Buttons
Number Buttons (0-9)
Selects any channel number.
Two numbers must be pressed for
each channel. Press 0 and 6 for
channel 6. For three digit chan-
nels, press and hold I until 1--
appears on the screen. Then press
the other two numbers.
INPUT
Switches between the TV channels
and Video 00.
ANT A,B (Antenna)
Used as TV/VCR button when
remote is set to control the VCR.
CLEAR
Clears mentis and displays from
the screen.
Clears items from VCR timer
programs and VCR s clock.
MENUopROG (Program) .
Shows menus on the screen and
moves from menu to menu.
Sets VCR clock and programs
timer on VCR.
RESET
Returns the picture adjustments to
the original settings.
MOVE < and I_ (left and right)
Moves left and right on a menu
line. See Menu Basics on page 5.
Changes a feature setting.
MOVE • and • (up and down)
Moves up and down menus. See
Menu Basics on page 5.
PIP (Picture-in-Picture)
Turns the small picture on or off.
PIP MOVE
Moves the small picture to the next
corner.
SWAP
Switches the channel in the small
picture with the big picture.
FREEZE
Freezes or unfreezes the small
picture.
Page 10
Using Your TV and Remote

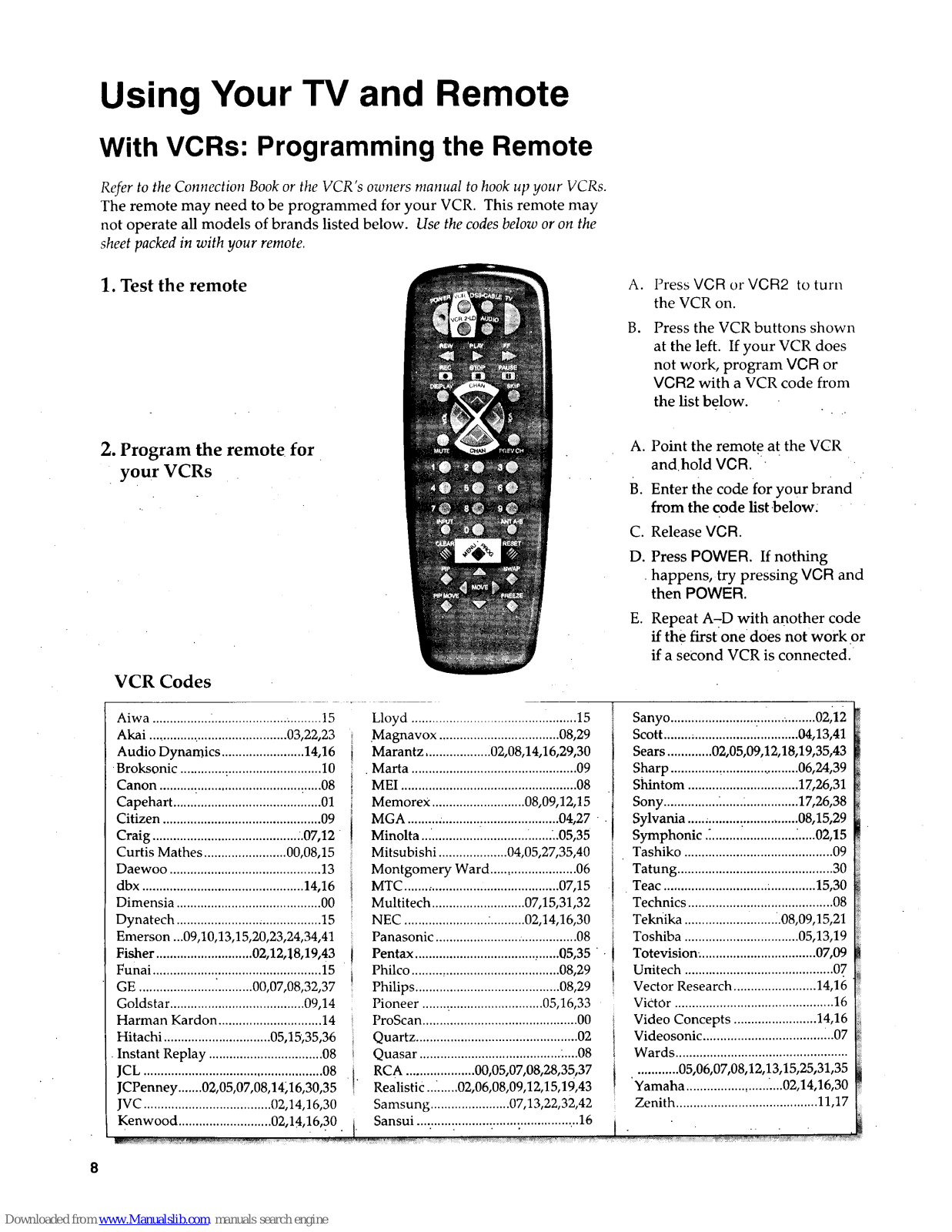

With VCRs: Programming the Remote
Refer to the Connection Book or the VCR's owners manual to hook up your VCRs.
The remote may need to be programmed for your VCR. This remote may
not operate all models of brands listed below. Use the codes below or on the
sheet packed in with your remote.
1. Test the remote
2. Program the remote• for
your VCRs
VCR Codes
a.
B°
ao
B
C.
D.
E,
Press VCR or VCR2 to turn
the VCR on.
Press the VCR buttons shown
at the left. If your VCR does
not work, program VCR or
VCR2 with a VCR code from
the list below.
Point the remote at the VCR
andhold VCR. •
Enter the code for your brand
from the code list .below:
Release VCR.
Press POWER. If nothing
•happens, try pressing VCR and
then POWER.
Repeat A-D with another code
if the first one does not work .or
if a second VCR is connected.
Aiwa ................. . ................................ 15
Akai ............. ,.......................... 03,22,23
Audio Dynamics ........................ 14,16
Broksonic ......................................... 10
Canon ............................................... 08
Capehart ........................................... 01
Citizen .............................................. 09
Craig .......................................... :.07,12
Curtis Mathes ........................ 00,08,15
Daewoo ............................................ 13
dbx ............................................... 14,16
Dimensia .......................................... 00
Dynatech .......................................... 15
Emerson ...09,10,13,15,20,23,24,34,41
Fisher ............................ 02,12,18,19,43
Funai ................................................. 15
GE ...................... i.......... 00,0%08,32,37
Goldstar ....................................... 09,14
Harman Kardon .............................. 14
Hitachi ............................... 05,15,35,36
•Instant Replay ................................. 08
JCL .................................................... 08
JCPenney .......02,05,07,08,14) 16,30,35
JVC ..................................... 02,14,16,30
Lloyd ................................................15
Magnavox ................................... 08,29
Marantz ................... 02,08,14,16,29,30
•Marta ................................................ 09
MEI ................................................... 08
M emorex ........................... 08, 09,12,15
MGA ......... ............ ....................... 04,27
Minolta ............................... .......•..05,35
Mitsubishi .................... 04,05,27,35,40
Montgomery Ward ......................... 06
MTC ............................................. 07,15
Multitech ........................... 07,15,31,32
NEC ........................ :.......... 02,14,16,30
Panasonic ......................... ................ 08
Pentax ................................... , ......05,35
Philco ........................................... 08,29
Philips .......................................... 08,29
Pioneer ......._........................... 05,16,33
ProScan ............................................. 00
Quartz ............................................... 02
Quasar ......................................... .....08
RCA .................... 00,05,07,08,28,35,37
Realistic ... ......02,06,08,09,12,15,19,43
Samsung ....................... 07,13,22,32,42
t
ii
Sanyo ......................... ...i............... 02j12
Scott ....................................... 04,13,41
Sears ............. 02,05,09,12,18,19,35,43
Sharp .............. _...................... 06,24,39
Shintom ................................ 17,26,31
Sony ................ ....... :............... 17,26,38
Sylvania ............... ................. 08,15,29
Symphonic ._........................ 2....02,15
Tashiko ........................................... 09
Tatung ............................................. 30
Teac .............................. :............. 15,30
Technics .......................................... 08
Teknika .................. ........ 1.08,09,15,21
Toshiba ................................. 05,13,19
Totevision. ................................. 07,09
Unitech ........................................... 0.7
Vector Research ........................ 14,16
Victor .............................................. 16
Video Concepts ........................ 14,16
Videosonic ...................................... 07
Wards ..................................................
............ 05,06,07,08,12,13,15,25,31,35
'Yamaha .................. ..........02,14,16,30
Zenith ......................................... 11,17
Kenwood ........................... 02,14,16,30 t Sansui ............................................... 16 i "
8
Page 11
Using Your TV and Remote

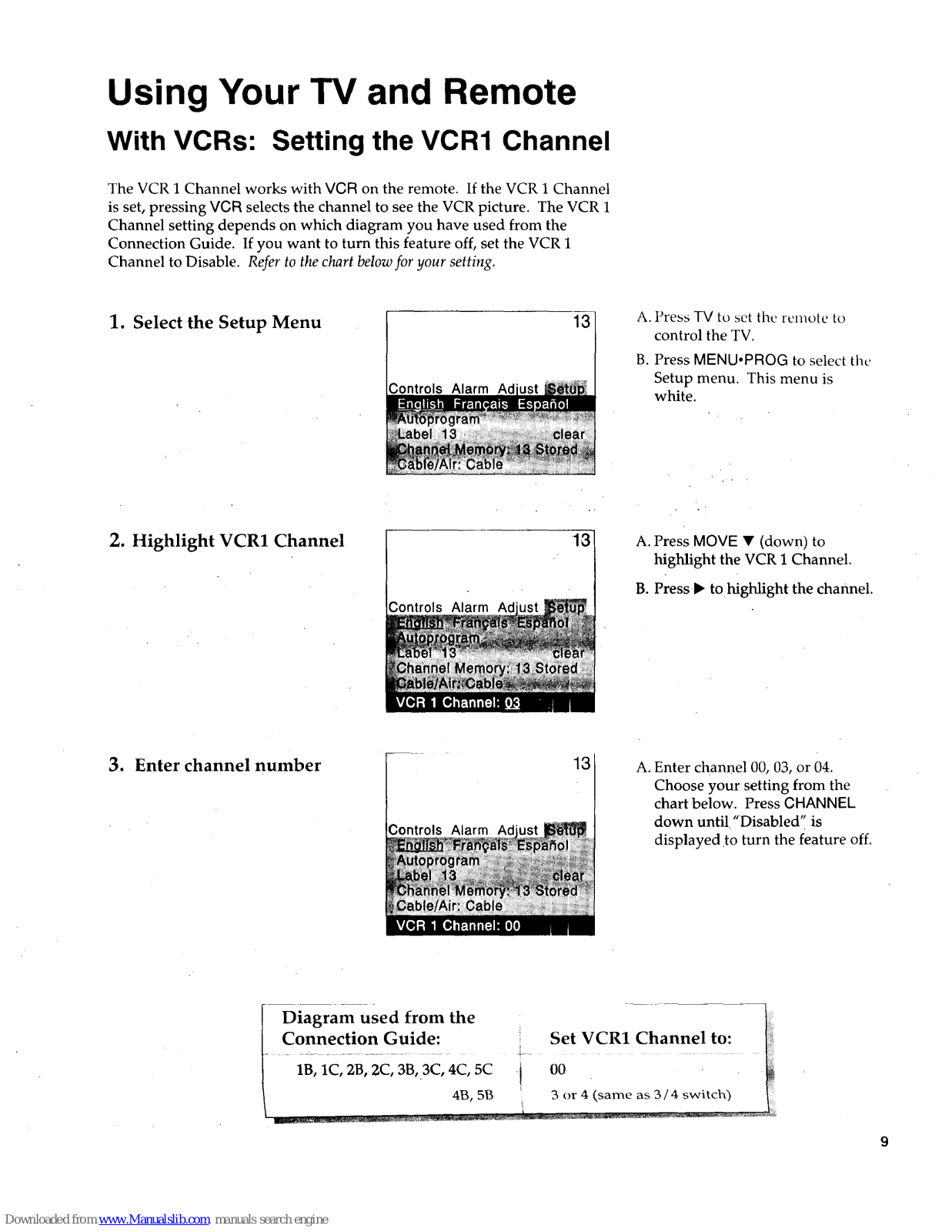

With VCRs: Setting the VCR1 Channel
The VCR 1 Channel works with VGR on the remote. If the VCR 1 Channel
is set, pressing VCR selects the channel to see the VCR picture. The VCR 1
Channel setting depends on which diagram you have used from the
Connection Guide. If you want to turn this feature off, set the VCR 1
Channel to Disable. Refer to the chart below for your setting.
1. Select the Setup Menu
Controls Alarm Ad
13
A. Press TV to set the remote to
control the TV.
B. Press MENUopNOG to select the
Setup menu. This menu is
white.
2. Highlight VCR1 Channel
Controls Alarm
13
A. Press MOVE • (down) to
highlight the VCR 1 Channel.
B. Press I*"to highlight the channel.
3. Enter channel number
3ontrols Alarm
13
A. Enter channel 00, 03, or 04.
Choose your setting from the
chart below. Press CHANNEL
down until "Disabled" is
displayed to turn the feature off.
Diagram used from the
Connection Guide:
1B, 1C, 2B, 2C, 3B, 3C, 4C, 5C
4B, 5B
Set VCR1 Channel to:
i .............
i 00
3 or 4 (same as 3/4 switch)
9
Page 12
Using Your TV and Remote

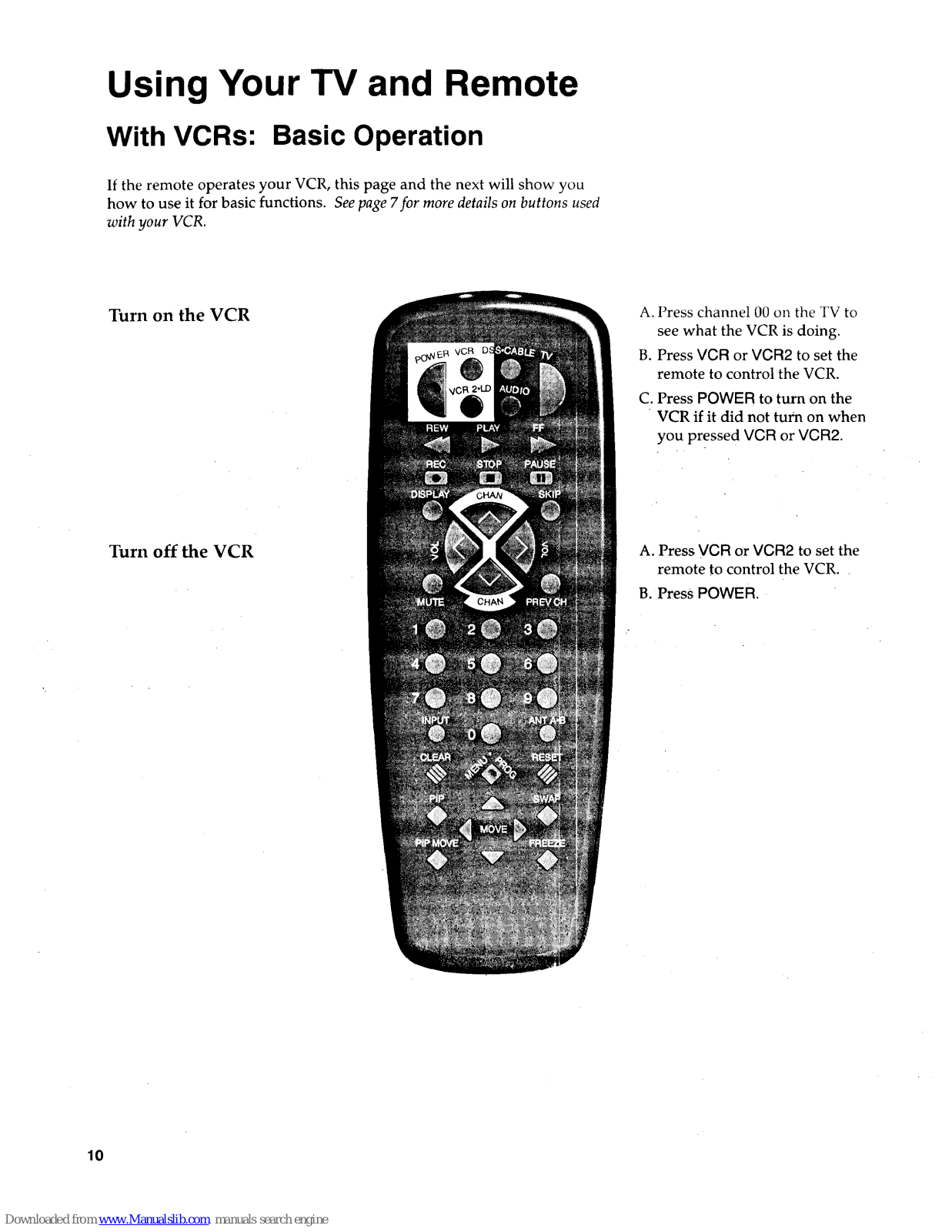

With VCRs: Basic Operation
If the remote operates your VCR, this page and the next will show you
how to use it for basic functions. See page 7for more details on buttons used
with your VCR.
Turn on the VCR
Turn off the VCR
A. Press channel 00 on the TV to
see what the VCR is doing.
B. Press VCR or VGR2 to set the
remote to control the VCR.
C. Press POWER to turn on the
VCR if it did not turn on when
you pressed VCR or VCR2.
A. Press VCR or VGR2 to set the
remote to control the VCR.
B. Press POWER.
10
Page 13
Using Your TV and Remote

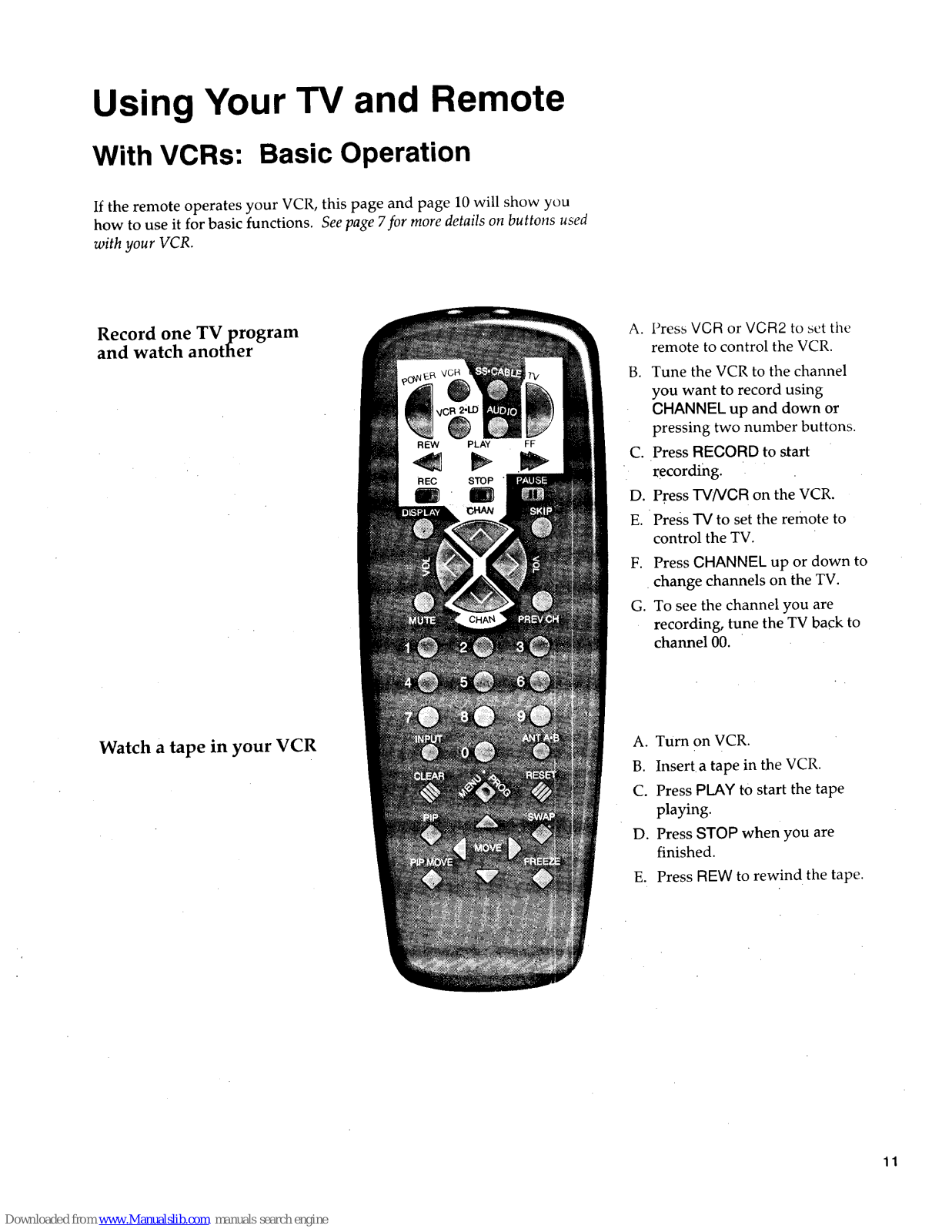

With VCRs: Basic Operation
If the remote operates your VCR, this page and page 10 will show you
how to use it for basic functions. See page 7for more details on buttons used
with your VCR.
Record one TV program
and watch another
Watch a tape in your VCR
REW PLAY FF
,_ _ .D,_
REC STOP
A. Press VCR or VCR2 to set the
remote to control the VCR.
B, Tune the VCR to the channel
you want to record using
CHANNEl up and down or
pressing two number buttons.
C. Press RECORD to start
recording.
D. P.ress TV/VCR on the VCR.
E. Press "IV to set the remote to
control the TV.
F. Press CHANNEL up or down to
•change channels on the TV.
G. To see the channel you are
recording, tune the TV back to
channel 00.
A. Turn on VCR.
B. Insert•a tape in the VCR.
C. Press PLAY to start the tape
playing.
D. Press STOP when you are
finished.
E. Press REW to rewind the tape.
11
Page 14
Using Your TV and Remote

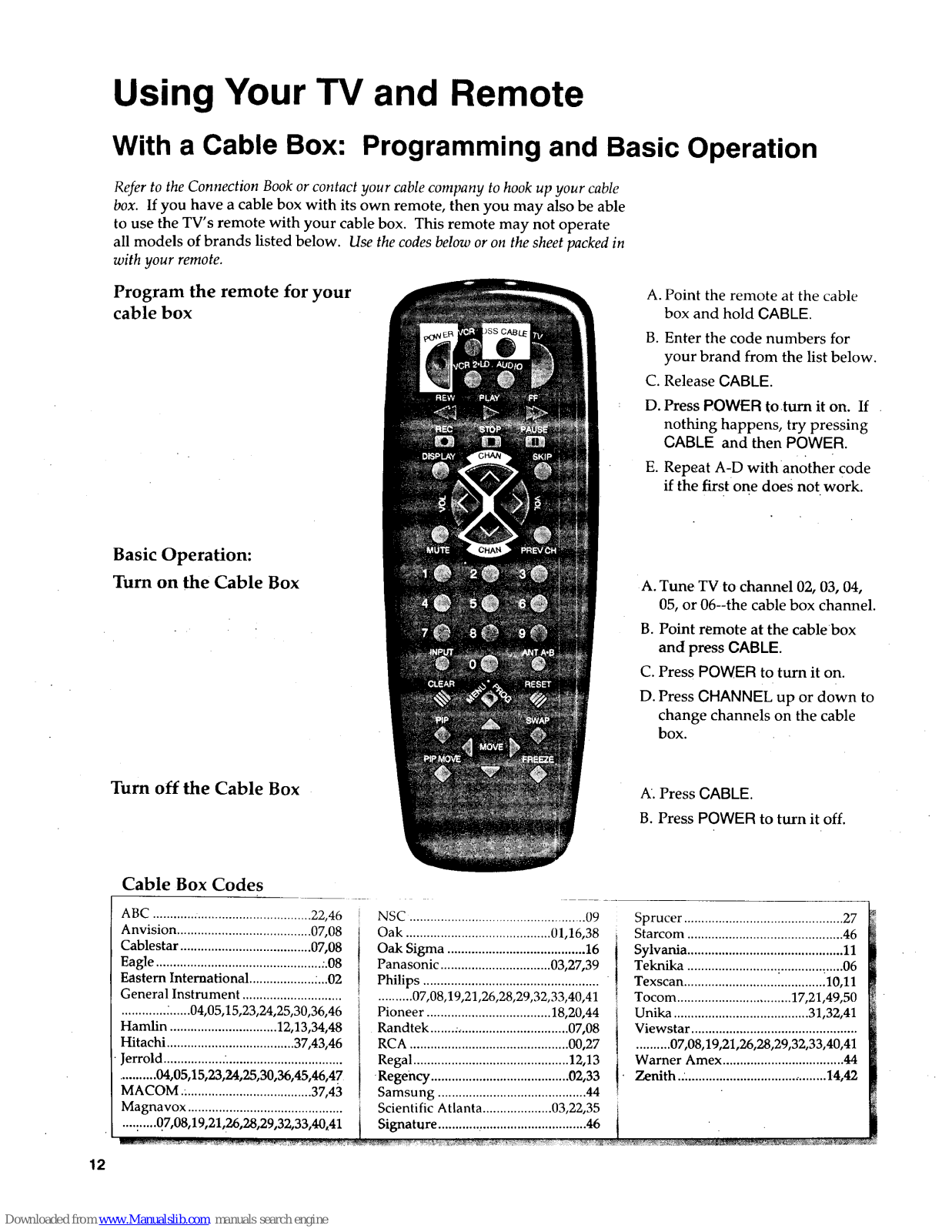

With a Cable Box: Programming and Basic Operation
Refer to the Connection Book or contact your cable company to hook up your cable
box. If you have a cable box with its own remote, then you may also be able
to use the TV's remote with your cable box. This remote may not operate
all models of brands listed below. Use the codes below or on the sheet packed in
with your remote.
Program the remote for your
cable box
Basic Operation:
Turn on the Cable Box
Turn off the Cable Box
A. Point the remote at the cable
box and hold GABLE.
B. Enter the code numbers for
your brand from the list below.
C. Release GABLE.
D. Press POWER to turn it on. If
nothing happens, try pressing
GABLE and then POWER.
E. Repeat A-D with another code
if the first one does not work.
A. Tune TV to channel 02, 03, 04,
05, or 06--the cable box channel.
B. Point remote at the cablebox
and press CABLE.
C. Press POWER to turn it on.
D. Press CHANNEL up or down to
change channels on the cable
box.
A. Press GABLE.
B. Press POWER to turn it off.
Cable Box Codes
ABC .............................................. 22,46
Anvision ....................................... 07,08
Cablestar ...................................... 07,08
Eagle ................................................ :.08
Eastern International ................... :...02
General Instrument .............................
............. _...... 04,05,15,23,24,25,30,36,46
Hamlin ............................... 12,13,34,48
Hitachi ..................................... 37,43,46
•Jerrold .................. "..................................
...........04,05,15,23,24,25,30,36,45,46,47
MACOM ...................................... 37,43
Magnavox .............................................
....:.....07,08,19,21,26,28,29,32,33,40,41
NSC ...................................................09
Oak ..........................................01,16,38
Oak Sigma ........................................16
Panasonic ................................03,27,39
Philips ...................................................
..........07,08,19,21,26,28,29,32,33,40,41
Pioneer ....................................18,20,44
Randtek .......:................................07,08
RCA ..............................................00,27
Regal .............................................12,13
Regency ........................................02,33
Samsung ...........................................44
Scientific Atlanta ....................03,22,35
Signature............,..............................46
Sprucer .............................................. 27
Starcom ............................................. 46
Sylvania ............................................. 11
Teknika ............................................. 06
Texscan ......................................... 10,11
Tocom ................................. 17,21,49,50
Unika ....................................... 31,32,41
Viewstar ................................................
.......... 07,08,19,21,26,28,29,32,33,40,41
Warner Amex ................................... 44
Zenith.. ......................................... 14,42
12
Page 15
Using Your TV and Remote

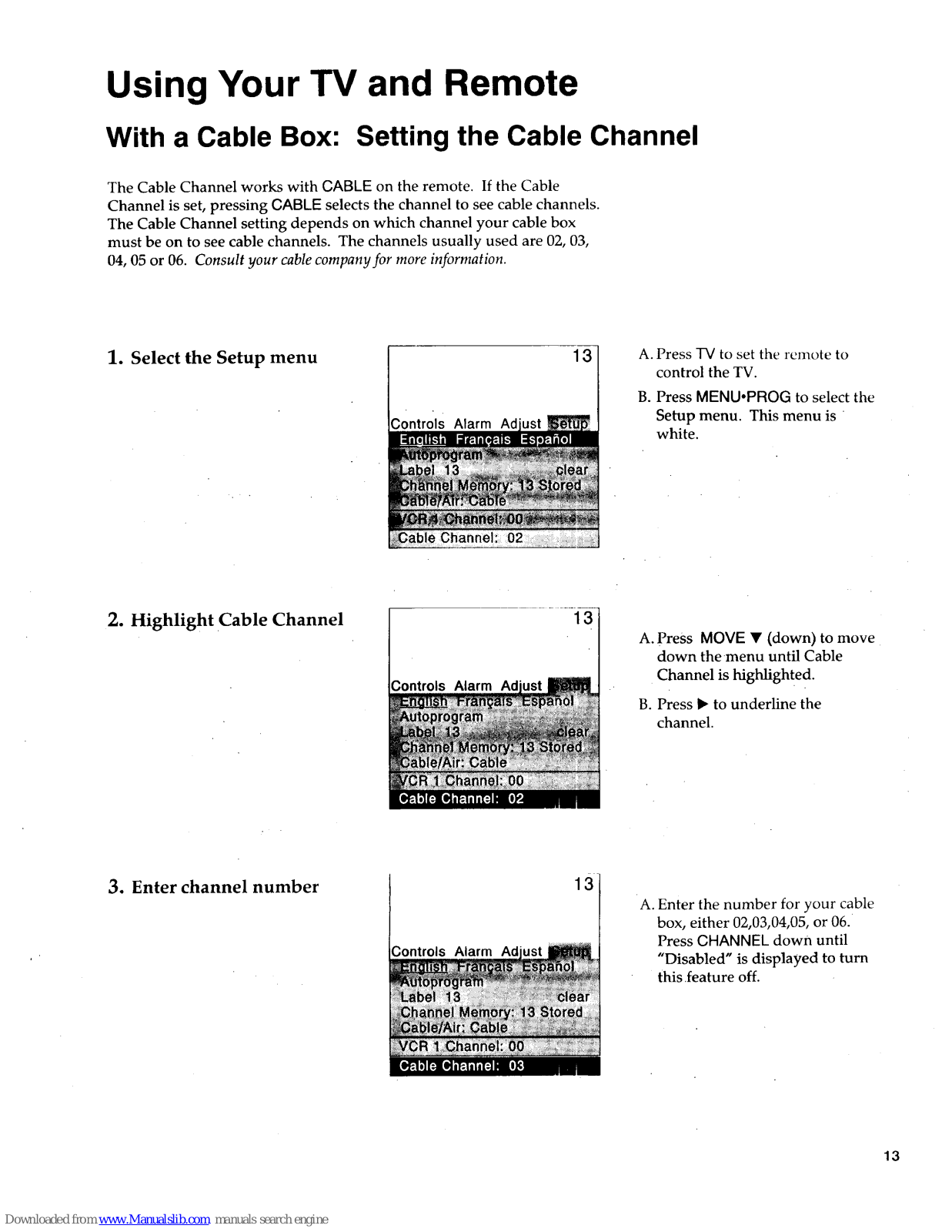

With a Cable Box: Setting the Cable Channel
The Cable Channel works with CABLE on the remote. If the Cable
Channel is set, pressing CABLE selects the channel to see cable channels.
The Cable Channel setting depends on which channel your cable box
must be on to see cable channels. The channels usually used are 02, 03,
04, 05 or 06. Consult your cable company for more information.
1. Select the Setup menu
13
A. Press -rv to set the remote to
control the TV.
B. Press MENUopROG to select the
Setup menu. This menu is
white.
2. Highlight •Cable Channel
13
A. Press MOVE • (down) to move
down the menu until Cable
Channel is highlighted.
B. Press • to underline the
channel.
3. Enter channel number
;ontrols Alarm Ad
13
A. Enter the number for your cable
box, either 02,03,04,05, or 06.
Press CHANNEL down until
"Disabled" is displayed to turn
this feature off.
13
Page 16
Using Your TV and Remote

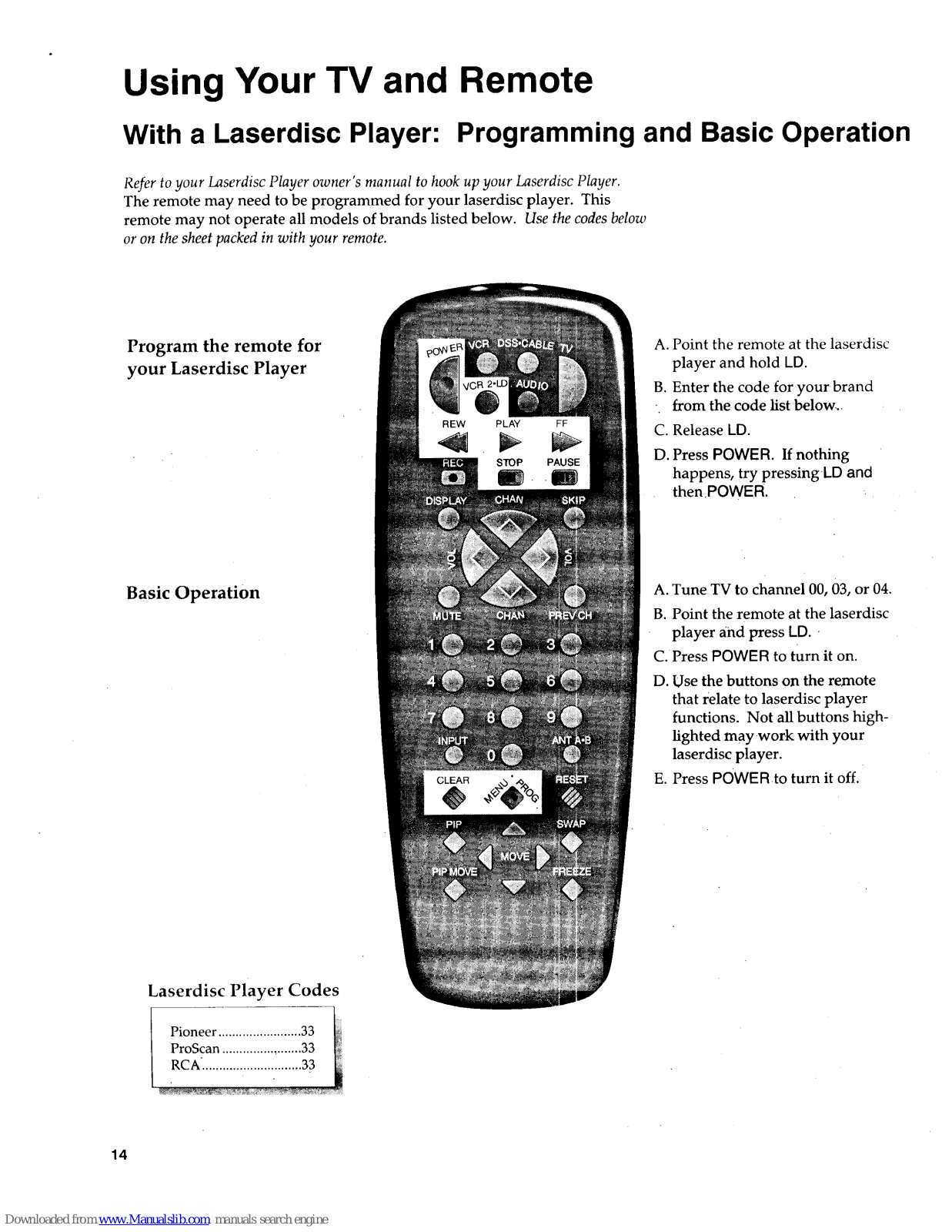

With a Laserdisc Player: Programming and Basic Operation
Refer to your Laserdisc Player owner's manual to hook up your Laserdisc Player.
The remote may need to be programmed for your laserdisc player. This
remote may not operate all models of brands listed below. Use the codes below
or on the sheet packed in with your remote.
Program the remote for
your Laserdisc Player
Basic Operation
Laserdisc Player Codes
/
Pioneer ........................33 _i
ProScan .......................33 _l!_
RCA........i,.i...........i.......33 _
REW PLAY FF
STOP PAUSE
A. Point the remote at the laserdisc
player and hold LD.
B. Enter the code for your brand
from the code list below.
C. Release LD.
D. Press POWER. If nothing
happens, try pressingLD and
then POWER.
A. Tune TV to channel 00, 03, or 04.
B. Point the remote at the laserdisc
player and press LD.
C. Press POWER to turn it on.
D. Use the buttons on the remote
that relate to laserdisc player
functions. Not all buttons high-
lighted may work with your
laserdisc player.
E. Press POWERto turn it off.
14
Page 17
Using Your TV and Remote

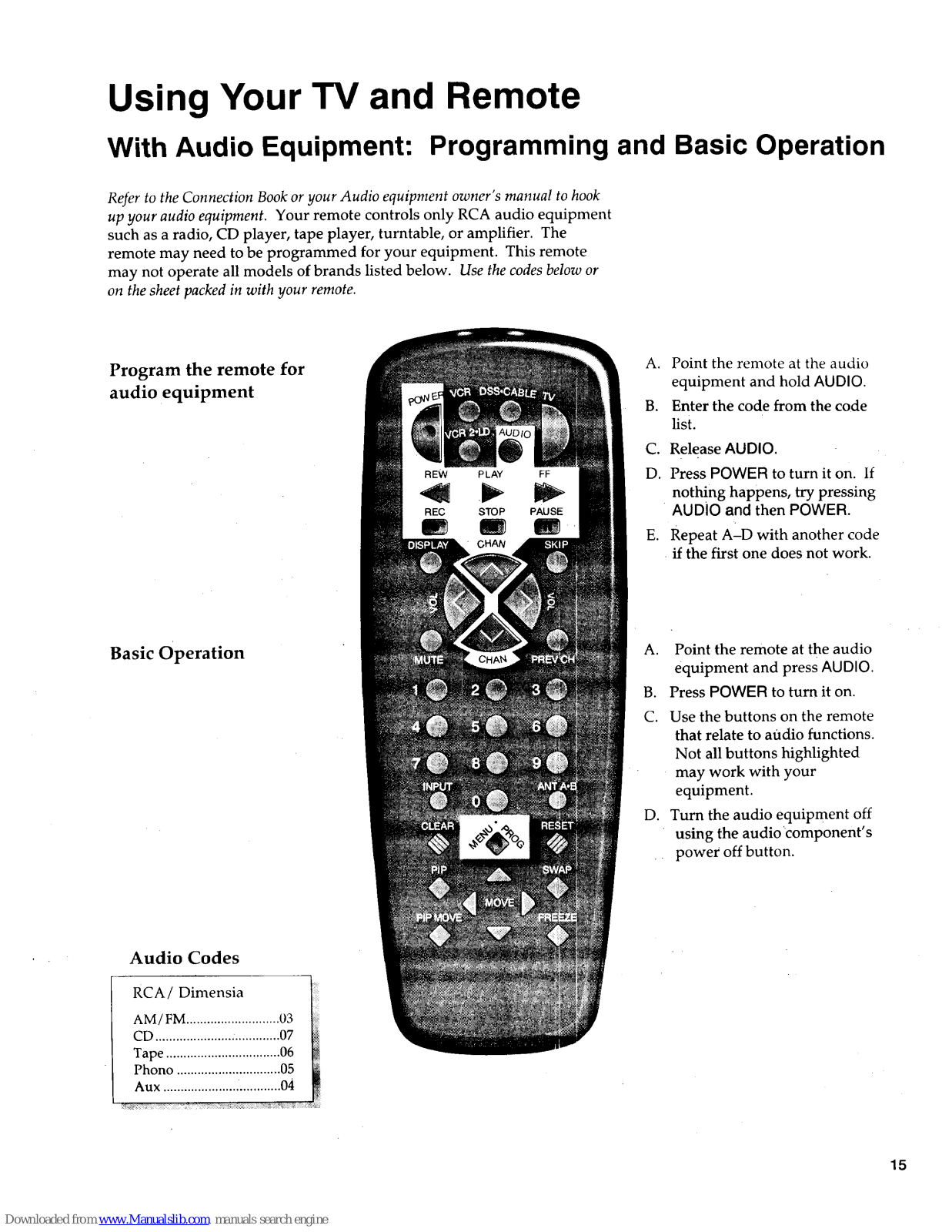

With Audio Equipment: Programming and Basic Operation
Refer to the Connection Book or your Audio equipment owner's manual to hook
up your audio equipment. Your remote controls only RCA audio equipment
such as a radio, CD player, tape player, turntable, or amplifier. The
remote may need to be programmed for your equipment. This remote
may not operate all models of brands listed below. Use the codes below or
on the sheet packed in with your remote.
Program the remote for
audio equipment
Basic Operation
Audio Codes
RCA/Dimensia i
AM/FM ........................... 03
CD .................................... 07
Tape ................................. 06
Phono .............................. 05
Aux ...................... ............ 04
REW PLAY FF
REC STOP PAUSE
A. Point the remote at the audio
equipment and hold AUDIO.
B. Enter the code from the code
list.
C. Release AUDIO.
D. Press POWER to turn it on. If
nothing happens, try pressing
AUDIO and then POWER.
E. Repeat A-D with another code
• if the first one does not work.
A. Point the remote at the audio
equipment and press AUDIO.
B. Press POWER to turn it on.
C. Use the buttons on the remote
that relate to audio functions.
Not all buttons highlighted
may work with your
equipment.
D. Turn the audio equipment off
using the audio'component's
power off button.
15
Page 18

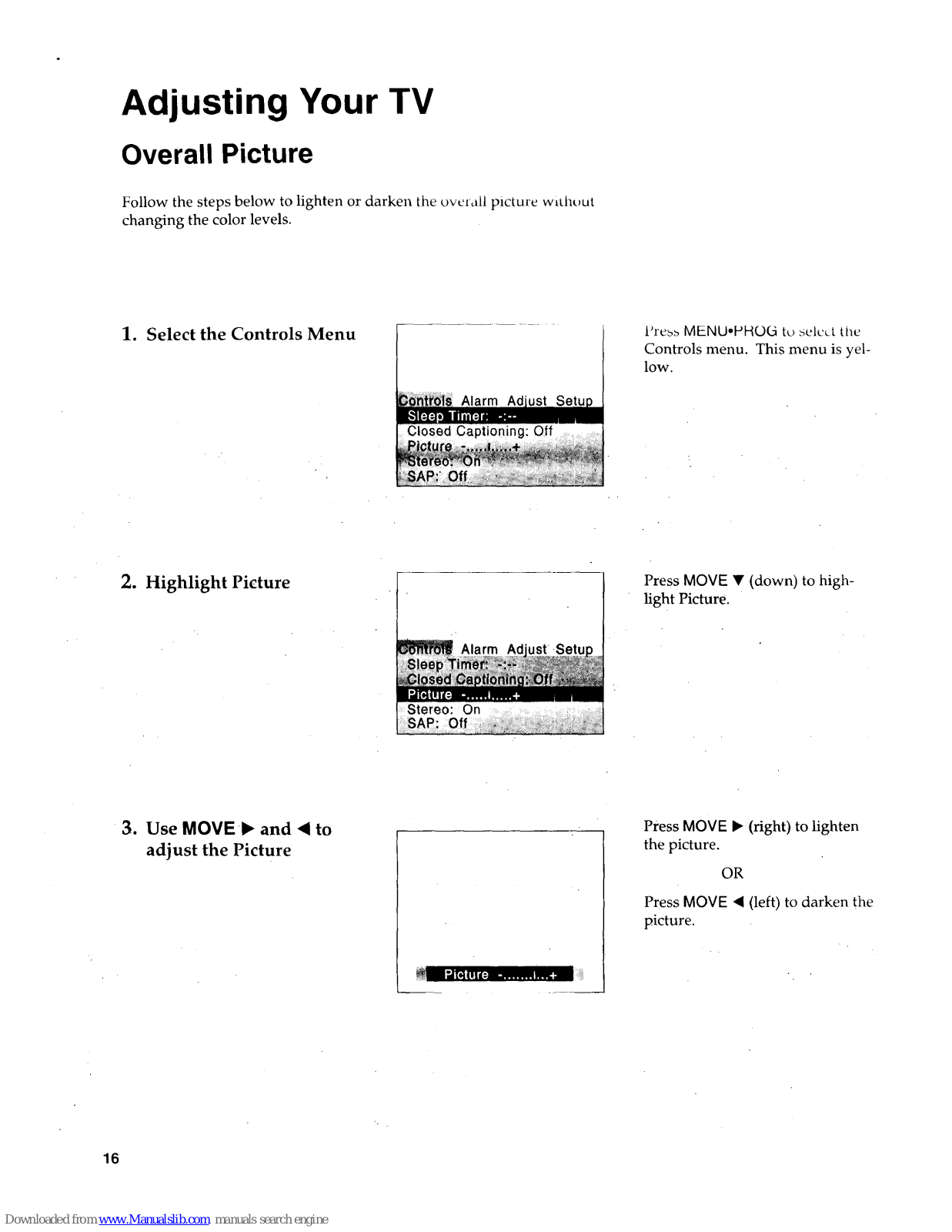

Adjusting Your TV
Overall Picture
Follow the steps below to lighten or darken the overall picture withuut
changing the color levels.
1. Select the Controls Menu
Pre_ MENU.PHOG to select tile
Controls menu. This menu is yel-
low.
2. Highlight Picture
Alarm Ad
Press MOVE • (down) to high-
light Picture.
3. Use MOVE, and • to
adjust the Picture
Press MOVE I_ (right) to lighten
the picture.
OR
Press MOVE • (left) to darken the
picture.
i_[L"A Illa_-=_ ....... .mR._
16
Page 19
Adjusting Your TV

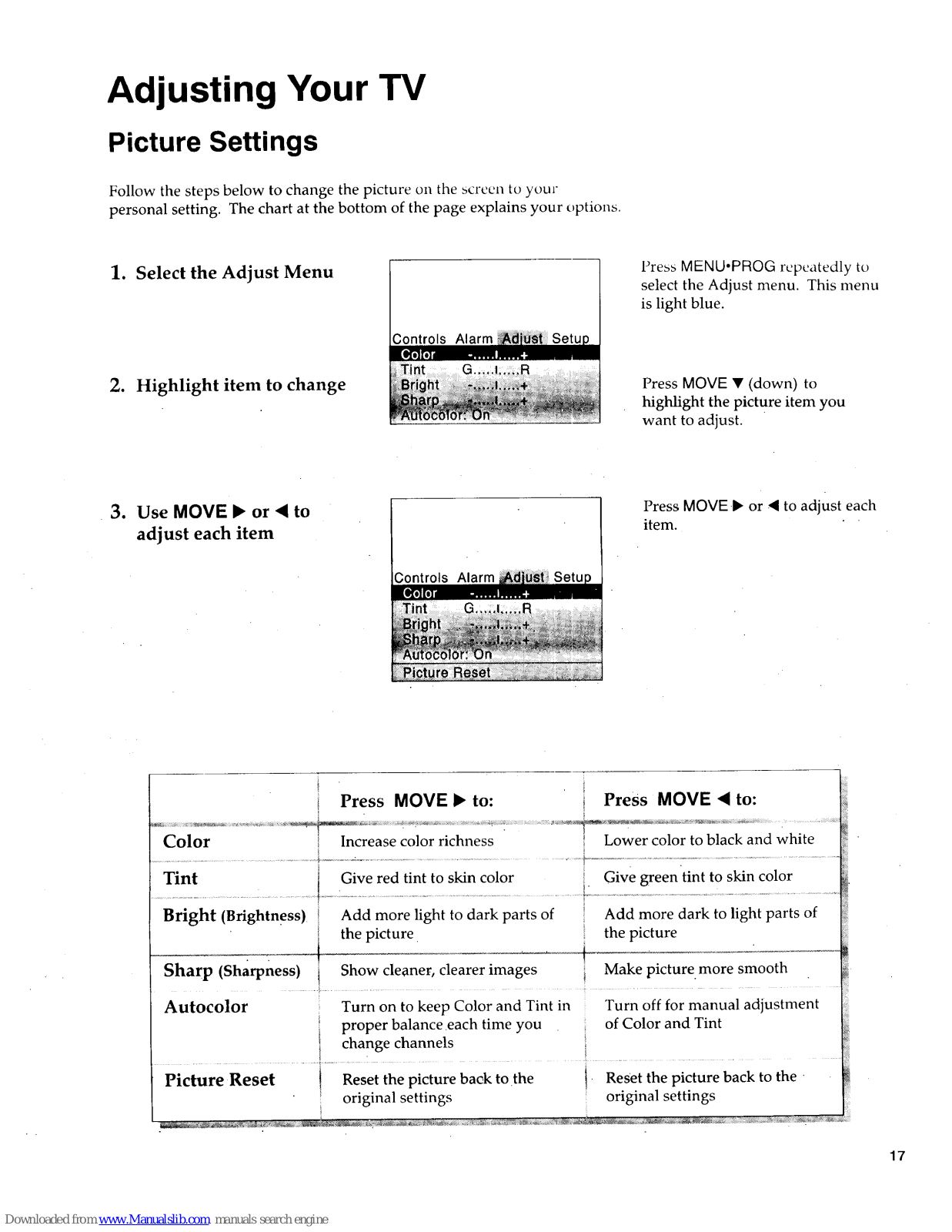

Picture Settings
Follow the steps below to change the picture on the screen to your
personal setting. The chart at the bottom of the page explains your options.
1. Select the Adjust Menu
2. Highlight item to change
Controls Alarm
G.,,..I;._i;R ...........
Press MENU.PROG repeatedly to
select the Adjust menu. This menu
is light blue.
Press MOVE • (down) to
highlight the picture item you
want to adjust.
3. Use MOVE • or "dto
adjust each item
,Tint ,G, .i,R
J
Press MOVE _ or ,q to adjust each
item.
Color
Tint
Bright (Brightness)
Sharp (Sharpness)
Press MOVE • to: Press MOVE < to:
Lower color to black and whiteIncrease color richness
Give red tint to skin color
Add more light to dark parts of
the picture•
Show cleaner, clearer images
.! ......
Autocolor Turn on to keep Color and Tint in
proper balance each time you
i change channels
Picture Reset i Reset the picture back to the
original settings
............................................
Give green tint to skin color
Add more dark to light parts of
the picture
Make picture, more smooth
Turn off for manual adjustment
of Color and Tint
Reset the picture back to the
original settings
17
Page 20
Adjusting Your TV

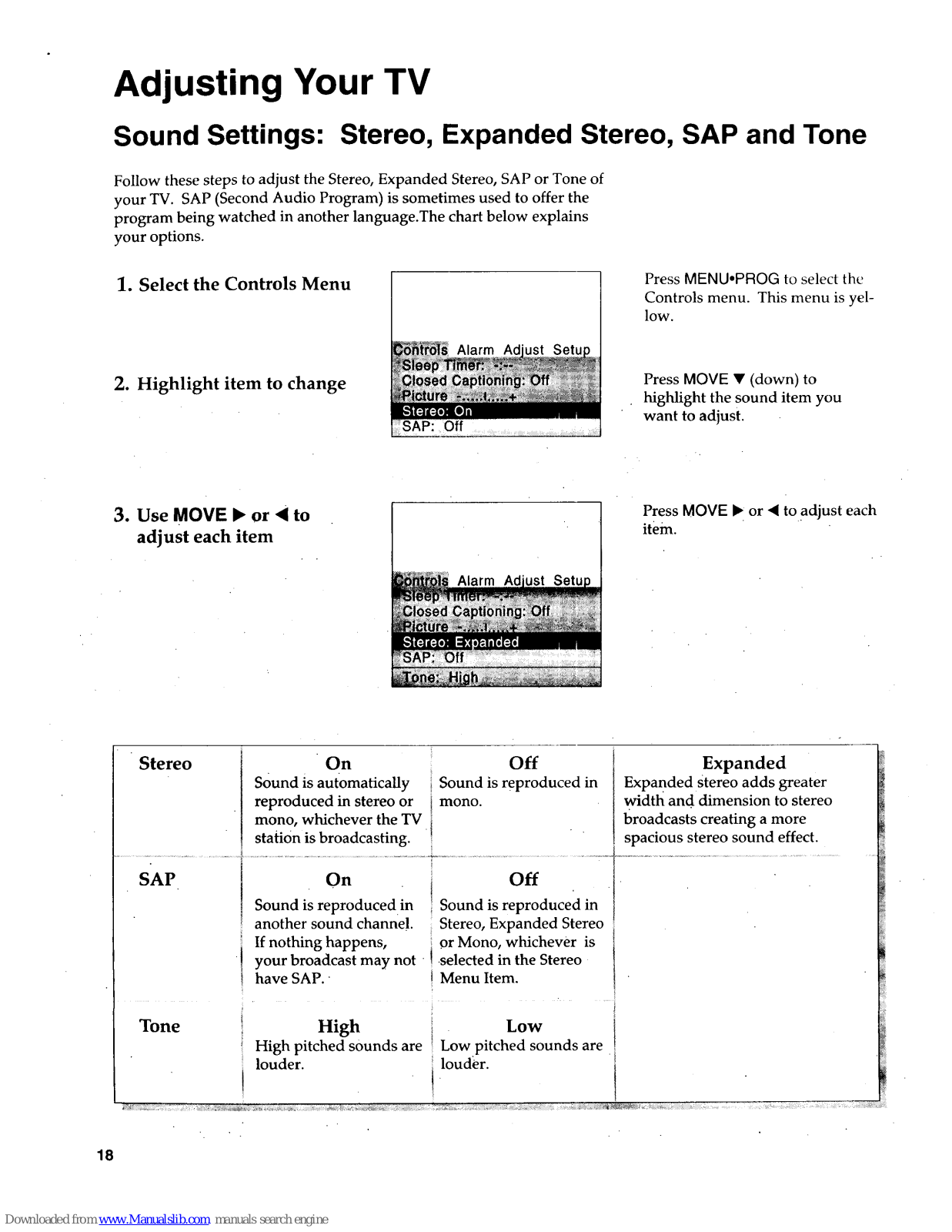

Sound Settings: Stereo, Expanded Stereo, SAP and Tone
Follow these steps to adjust the Stereo, Expanded Stereo, SAP or Tone of
your TV. SAP (Second Audio Program) is sometimes used to offer the
program being watched in another language.The chart below explains
your options.
1. Select the Controls Menu
2. Highlight item to change
Alarm Ad
Press MENU.PROG to select the
Controls menu. This menu is yel-
low.
Press MOVE V (down) to
highlight the sound item you
want to adjust.
3. Use MOVE • or '# to
adjust each item
Press MOVE • or • to adjust each
item.
18
Stereo I
SAP
.!
Tone
On
Sound is automatically
reproduced in stereo or
mono, whichever the TV
station is broadcasting.
On
Sound is reproduced in
another sound channel.
If nothing happens,
your broadcast may not
have SAP.
High
High pitched sounds are
louder.
Off
Sound is reproduced in
mono.
Expanded
Expanded Stereo adds greater
width and dimension to stereo
broadcasts creating a more
spacious stereo sound effect.
Off
J
I Sound is reproduced in
Stereo, Expanded Stereo
or Mono, whichever is
t selected in the Stereo
I Menu Item.
Low I
Low pitched sounds are
t louder, i
Page 21

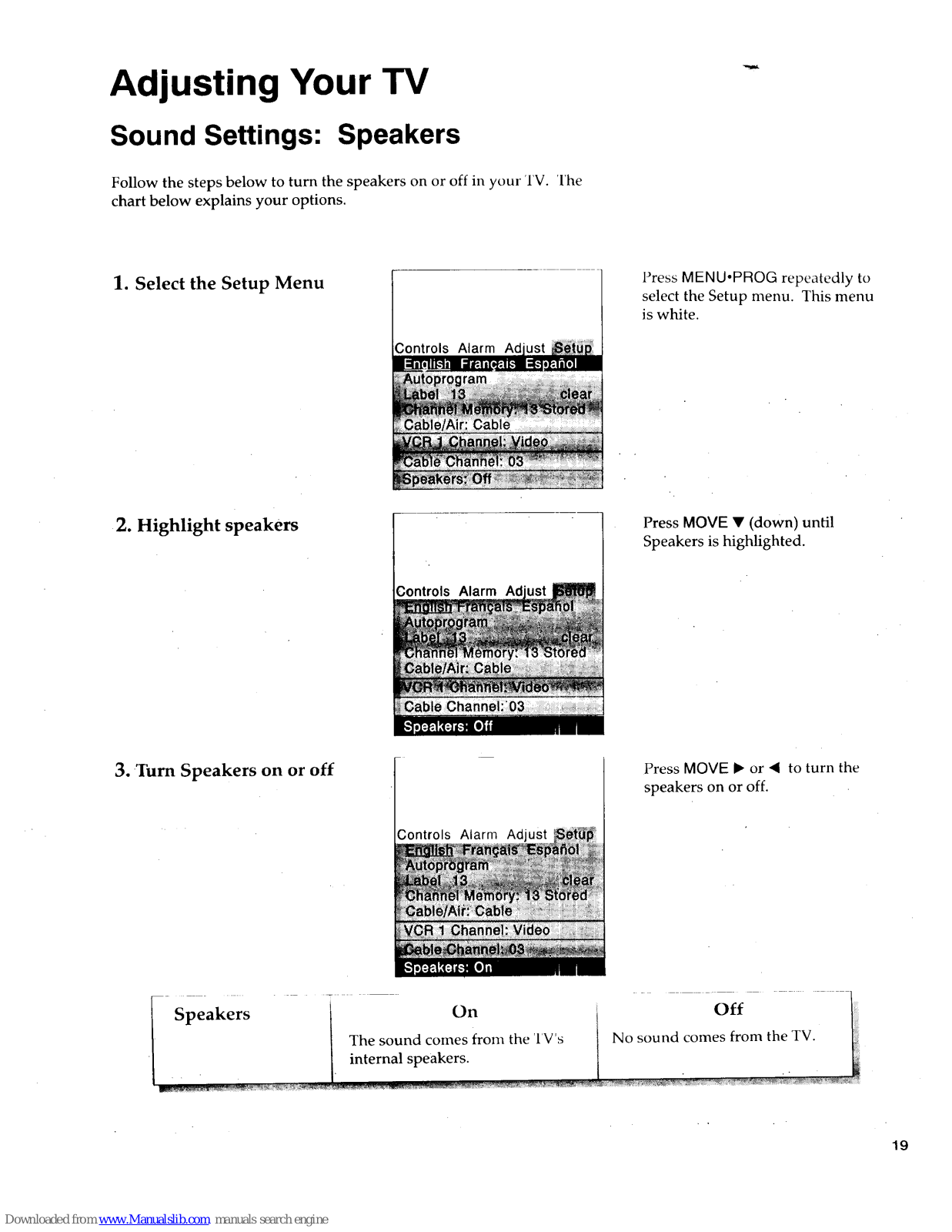

Adjusting Your TV
Sound Settings: Speakers
Follow the steps below to turn the speakers on or off in your TV.
chart below explains your options.
'l'he
1. Select the Setup Menu
Controls Alarm Ad
Press MENU'PROG repeatedly to
select the Setup menu. This menu
is white.
2. Highlight speakers
Press MOVE • (down) until
Speakers is highlighted.
3. Turn Speakers on or off
Controls Alarm Adjust
Press MOVE • or 4 to turn the
speakers on or off.
t The sound comes from the 'lV's I No sound comes from the TV. Ii
19
Page 22
Using Advanced Features

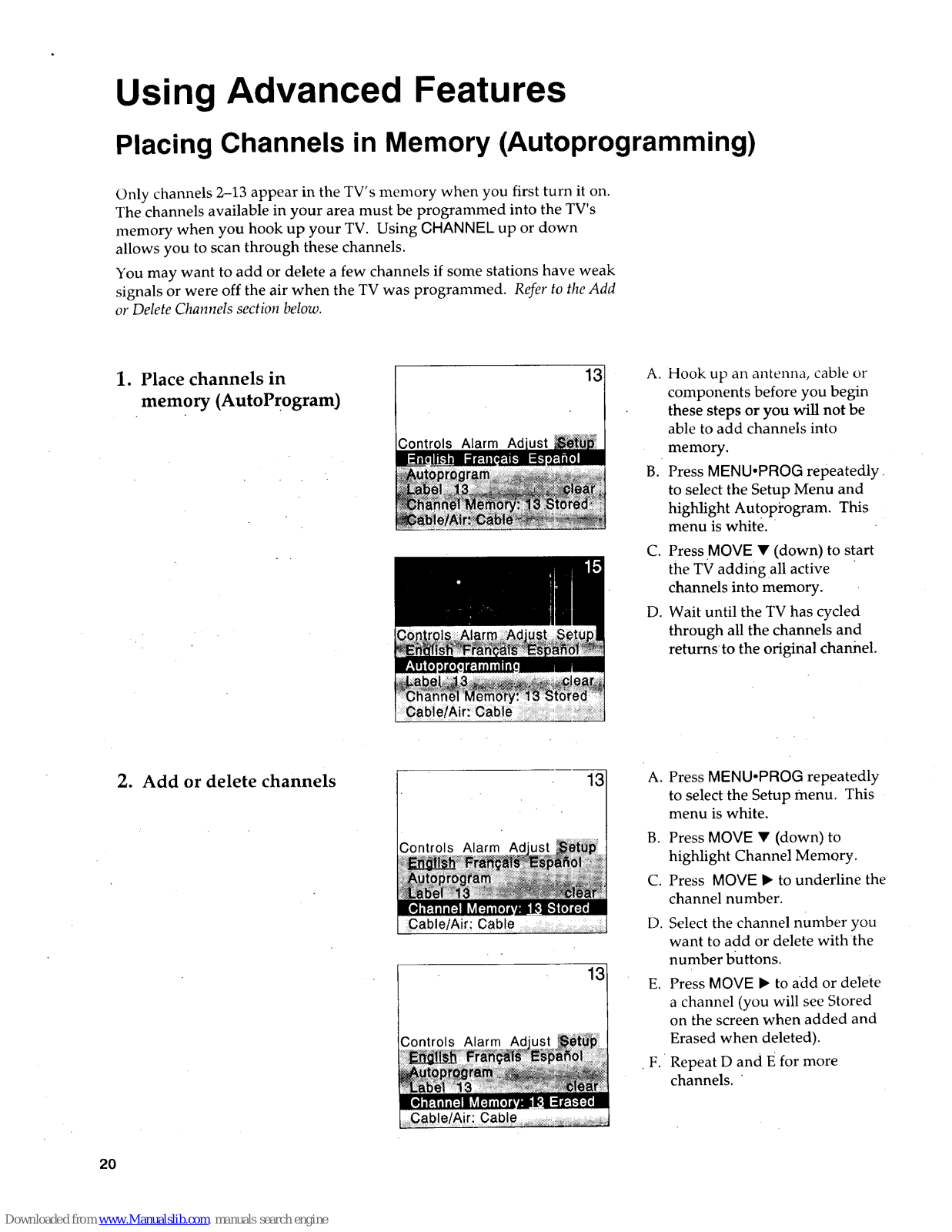

Placing Channels in Memory (Autoprogramming)
Only channels 2-13 appear in the TV's memory when you first turn it on.
The channels available in your area must be programmed into the TV's
memory when you hook up your TV. Using CHANNEL up or down
allows you to scan through these channels.
You may want to add or delete a few channels if some stations have weak
signals or were off the air when the TV was programmed. Refer to the Add
or Delete Channels section below.
lo Place channels in
memory (AutoProgram)
13
:CabiefAir Cabi_
13
A. Hook up an antenna, cable or
components before you begin
these steps or you will not be
able to add channels into
memory.
B. Press MENU.PROG repeatedly.
to select the Setup Menu and
highlight Autoprogram. This
menu is white.
C. Press MOVE • (down) to start
the TV adding all active
channels into memory.
D. Wait until the TV has cycled
through all the channels and
returns to the original channel.
2. Add or delete channels
3ontrols Alarm Ad
Cable/Air; Cable
Controls Alarm Ad
A. Press MENU-PROG repeatedly
to select the Setup menu. This
menu is white.
B. Press MOVE • (down) to
highlight Channel Memory.
C. Press MOVE • to underline the
channel number.
D. Select the channel number you
want to add or delete with the
number buttons.
E. Press MOVE • to a'dd or delete
a channel (you will see Stored
on the screen when added and
Erased when deleted).
• F. Repeat D and E for more
channels.
2O
Page 23
Using Advanced Features

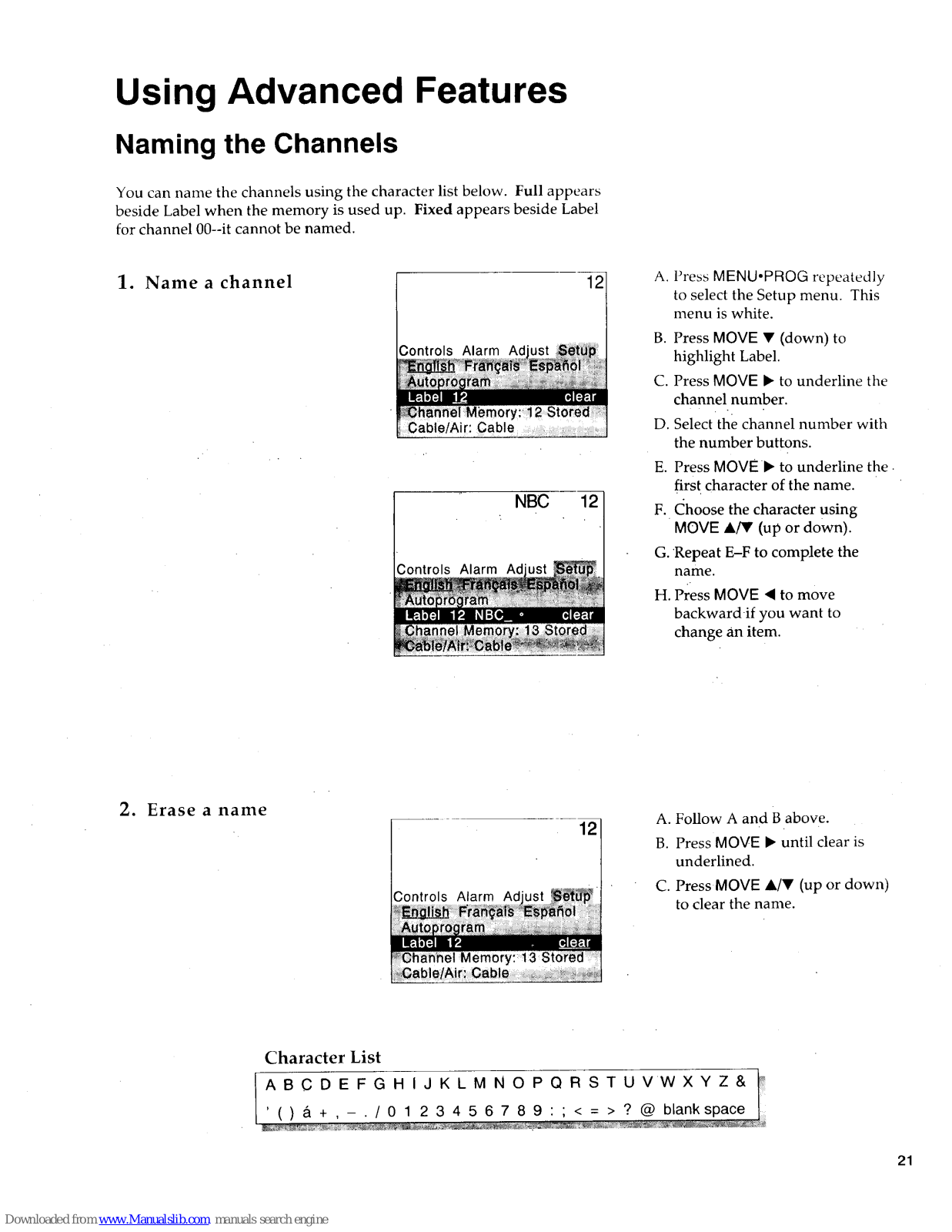

Naming the Channels
You can name the channels using the character list below. Full appears
beside Label when the memory is used up. Fixed appears beside Label
for channel 00--it cannot be named.
1. Name a channel
Controls Alarm Ad
nel Memory
Cable/Air: Gable
NBC 12
12
A, Press MENU'PROG repeatedly
to select the Setup menu. This
menu is white.
B. Press MOVE • (down) to
highlight Label.
C. Press MOVE • to underline the
channel number.
D. Select the channel number with
the number buttons.
E. Press MOVE • to underline the.
first character of the name.
F. Choose the character using
MOVE A/y (up or down).
G. Repeat E-F to complete the
name,
H. Press MOVE '11to move
backward if you want to
change an item.
2. Erase a name
12
Controls Alarm Adjust _
A. Follow A and B above.
B. Press MOVE • until clear is
underlined.
C. Press MOVE A/• (up or down)
to clear the name.
Character List
IABCDEFGHIJKLMNOPQRSTUVWXYZ& _[
' ( ) & + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ blank space
_:_ ;_ _ _T'," _ _ __: "_-_%_ ;'_._ _ _'_ _
21
Page 24
Using Advanced Features

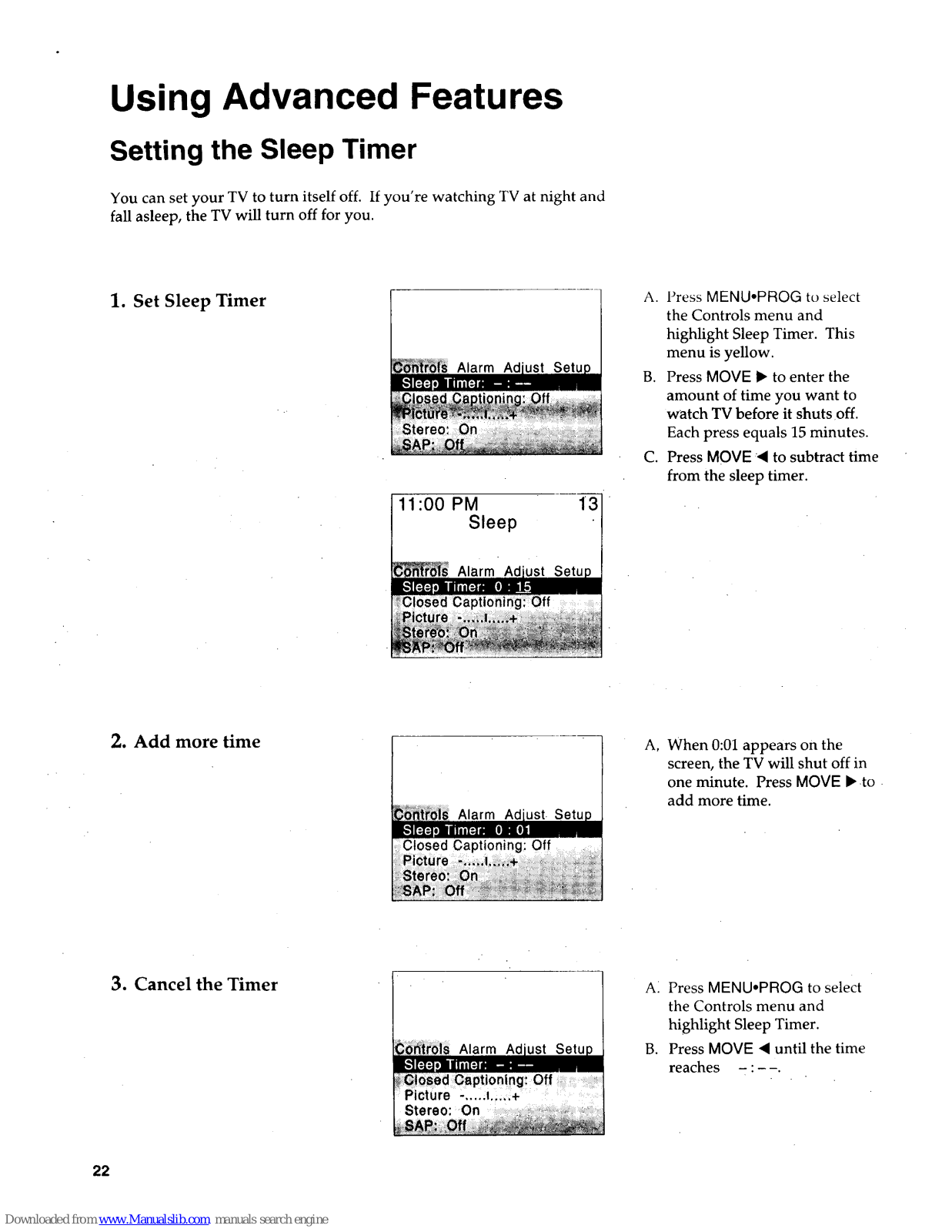

Setting the Sleep Timer
You can set your TV to turn itself off. If you're watching TV at night and
fall asleep, the TV will turn off for you.
1. Set Sleep Timer
Alarm Ad
11:00 PM 13 '
Sleep
A. Press MENU,PROG to select
the Controls menu and
highlight Sleep Timer. This
menu is yellow.
B. Press MOVE • to enter the
amount of time you want to
watch TV before it shuts off.
Each press equals 15 minutes.
C. Press MOVE 4 to subtract time
from the sleep timer.
2. Add more time
Alarm Ad
A, When 0:01 appears on the
screen, the TV will shut off in
one minute. Press MOVE • to
add more time.
3. Cancel the Timer
Alarm Ad
AI Press MENU°PROG to select
the Controls menu and
highlight Sleep Timer.
B. Press MOVE • until the time
reaches :
22
Page 25
Using Advanced Features

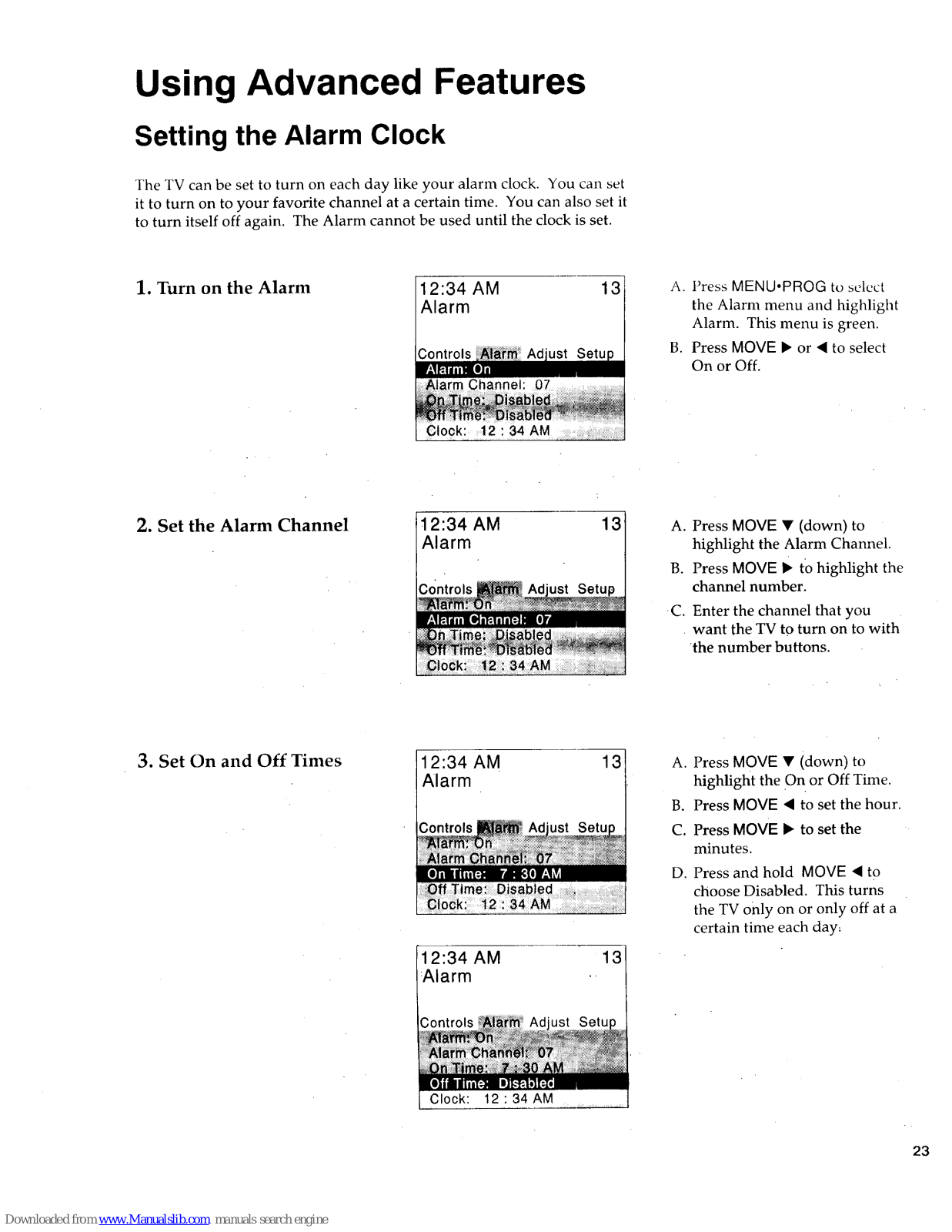

Setting the Alarm Clock
The TV can be set to turn on each day like your alarm clock. You can set
it to turn on to your favorite channel at a certain time. You can also set it
to turn itself off again. The Alarm cannot be used until the clock is set.
1. Turn on the Alarm
12:34 AM 13
Alarm
A. Press MENU'PROG to select
the Alarm menu and highlight
Alarm. This menu is green.
B. Press MOVE • or • to select
On or Off.
2. Set the Alarm Channel 12:34 AM
Alarm
13
A. Press MOVE • (down) to
highlight the Alarm Channel.
B. Press MOVE • to highlight the
channel number.
•C. Enter the channel that you
• want the TV tO turn on to with
the number buttons.
3. Set On and Off Times
12:34 AM 13
Alarm
12:34 AM
:A arm
13
A. Press MOVE • (down) to
highlight the On or Off Time.
B. Press MOVE • to set the hour.
C. Press MOVE • to set the
minutes.
D. Press and hold MOVE • to
choose Disabled. This turns
the TV only on or only off at a
certain time each day_
Clock: 12"34AM
Page 26
Using Advanced Features

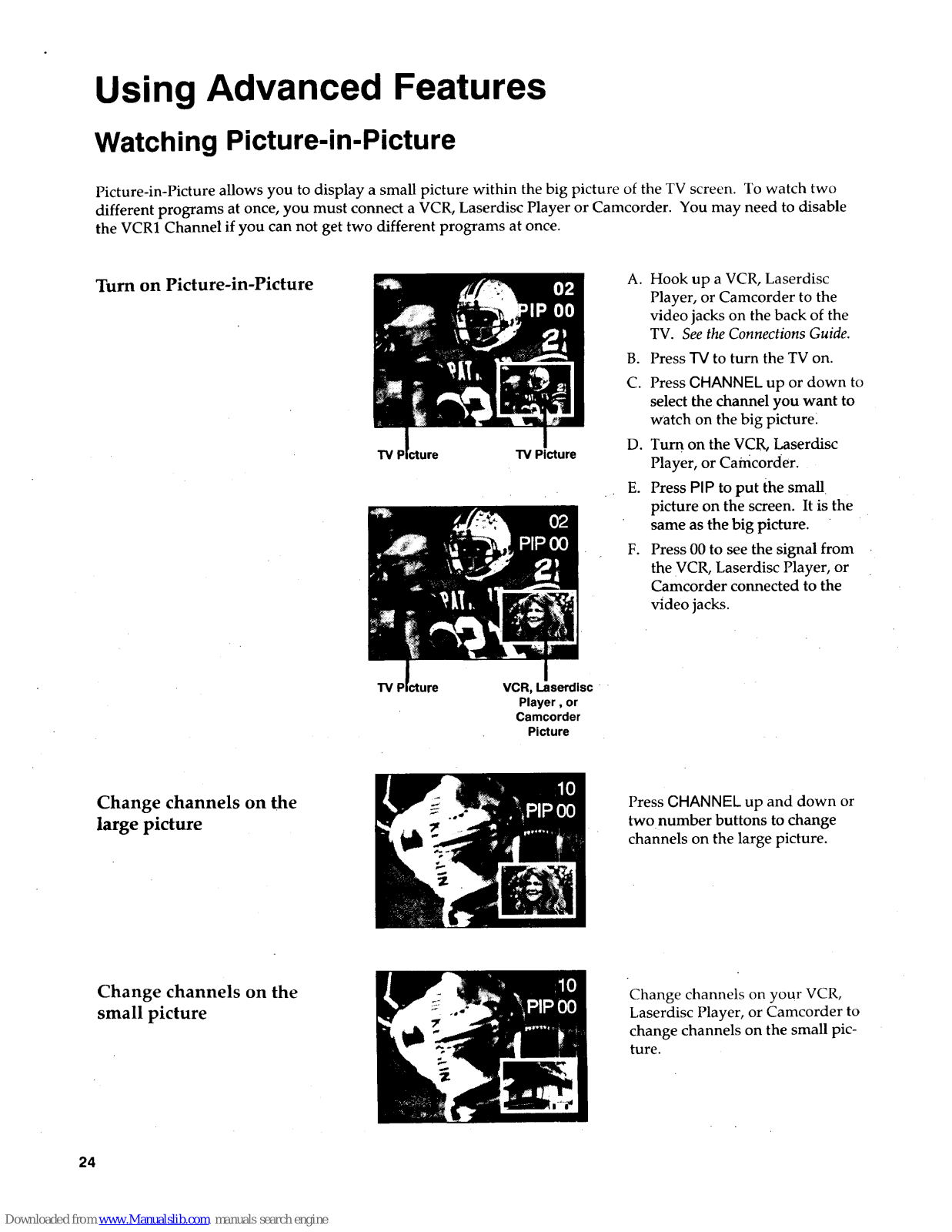

Watching Picture-in-Picture
Picture-in-Picture allows you to display a small picture within the big picture of the TV screen. To watch two
different programs at once, you must connect a VCR, Laserdisc Player or Camcorder. You may need to disable
the VCR1 Channel if you can not get two different programs at once.
Turn on Picture-in-Picture
TV P "IV Picture
a.
B.
C.
D.
E.
F°
Hook up a VCR, Laserdisc
Player, or Camcorder to the
video jacks on the back of the
TV. See the Connections Guide.
Press TV to turn the TV on.
Press CHANNEL up or down to
select the channel you want to
watch on the big picturel
Turn on the VCR, Laserdisc
Player, or Carncorder.
Press PIP to put the small
picture on the screen. It is the
same as the big picture.
Press 00 to see the signal from
the VCR, Laserdisc Player, or
Camcorder connected to the
v_deo jacks.
TVP re VCR, Laserdisc
Player, or
Camcorder
Change channels on the
large picture
Press CHANNEL up and down or
two number buttons to change
channels on the large picture.
Change channels on the
small picture
Change channels on your VCR,
Laserdisc Player, or Camcorder to
change channels on the small pic-
ture.
24
Page 27
Using Advanced Features
Watching Picture-in-Picture

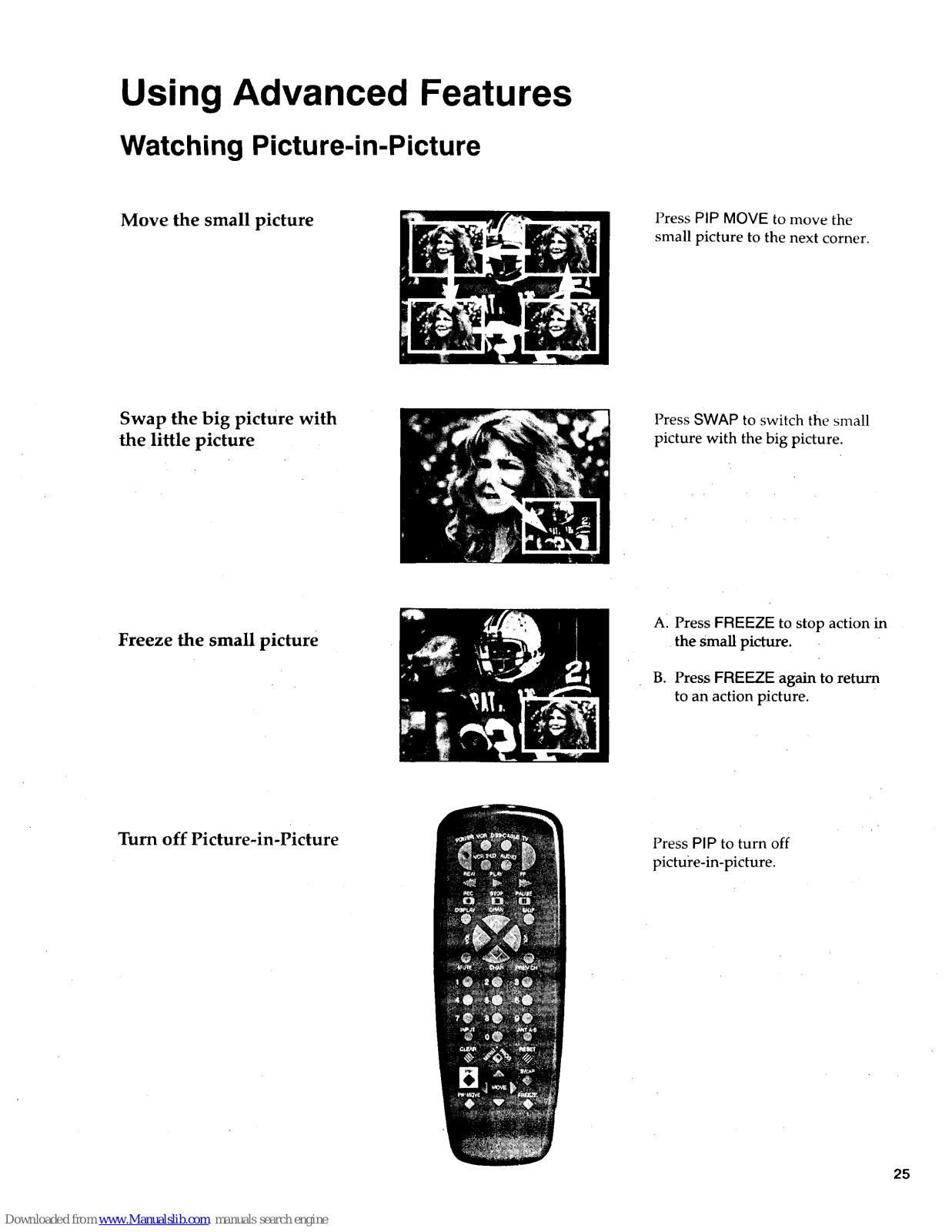

Move the small picture
Press PIP MOVE to move the
small picture to the next corner.
Swap the big picture with
the little picture
Press SWAP to switch the small
picture with the big picture.
Freeze the small picture
AI Press FREEZE to stop action in
the Small picture.
B. Press FREEZE again to return
to an action picture.
Turn off Picture-in-Picture
Press PIP to turn off
picture-in-picture.
25
Page 28
Using Advanced Features

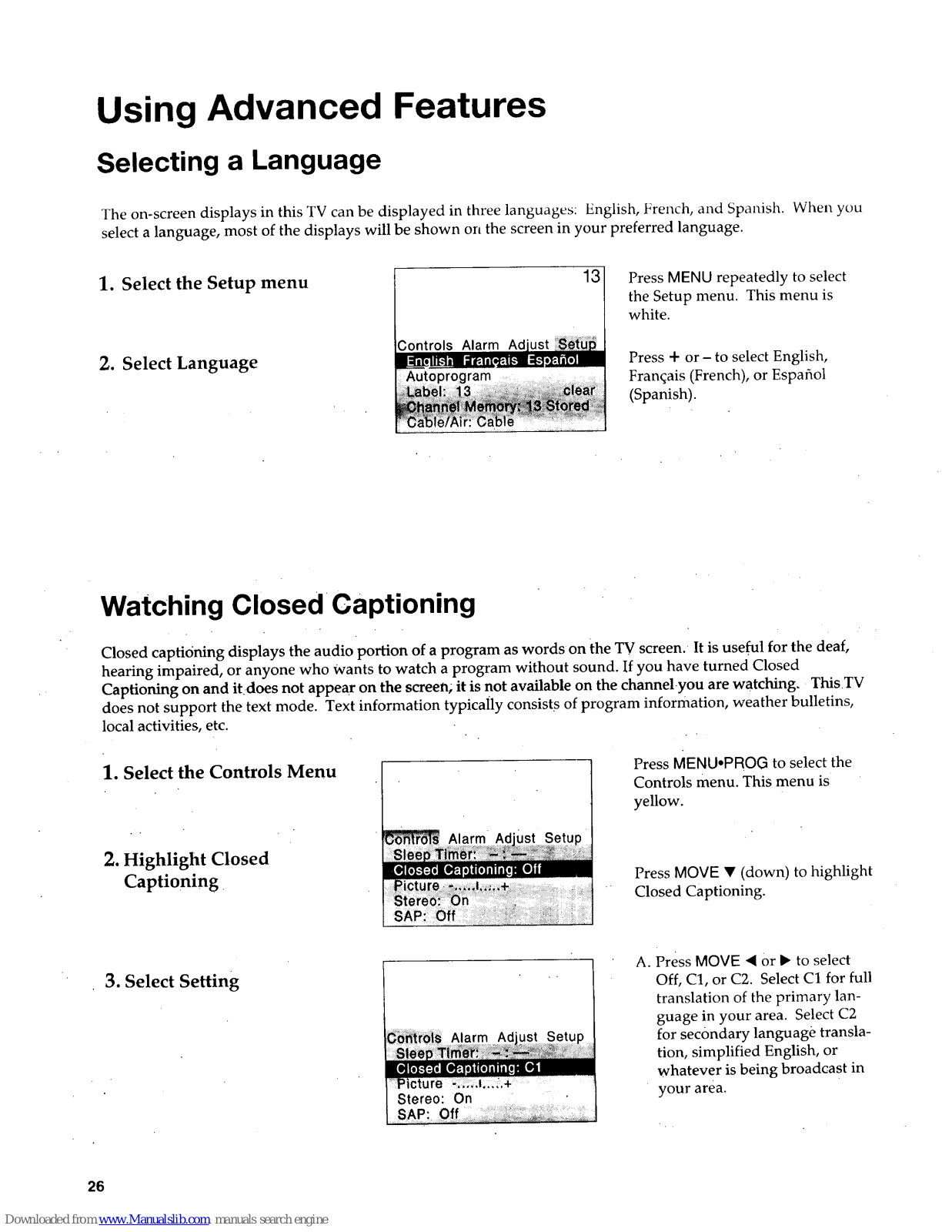

Selecting a Language
The on-screen displays in this TV can be displayed in three languages: English, French, and Spanish. When you
select a language, most of the displays will be shown on the screen in your preferred language.
1. Select the Setup menu
2. Select Language
Controls Alarm Ad
13
Press MENU repeatedly to select
the Setup menu. This menu is
white.
Press 4- or- to select English,
Frangais (French), or Espafiol
(Spanish).
Watching Closed Captioning
Closed captioning displays the audio portion of a program as words on the TV screen. It is useful for the deaf,
hearing impaired, or anyone who Wants to watch a program without sound. If you have turned Closed
Captioning on and itdoes not appear on the screen; it is not available on the channelyou are watching. This TV
does not support the text mode. Text information typically consists of program information, weather bulletins,
local activities, etc.
1. Select the Controls Menu
2. Highlight Closed
Captioning
Press MENU.PROG to select the
Controls menu. This menu is
yellow.
Press MOVE • (down) to highlight
Closed Captioning.
3. Select Setting
Alarm Ad
A. Press MOVE • Or _, to select
Off, C1, or C2. Select C1 for full
translation of the primary lan-
guage in your area. Select C2
for secondary language transla-
tion, simplified English, or
whatever is being broadcast in
your area.
26
Page 29
Using Advanced Features

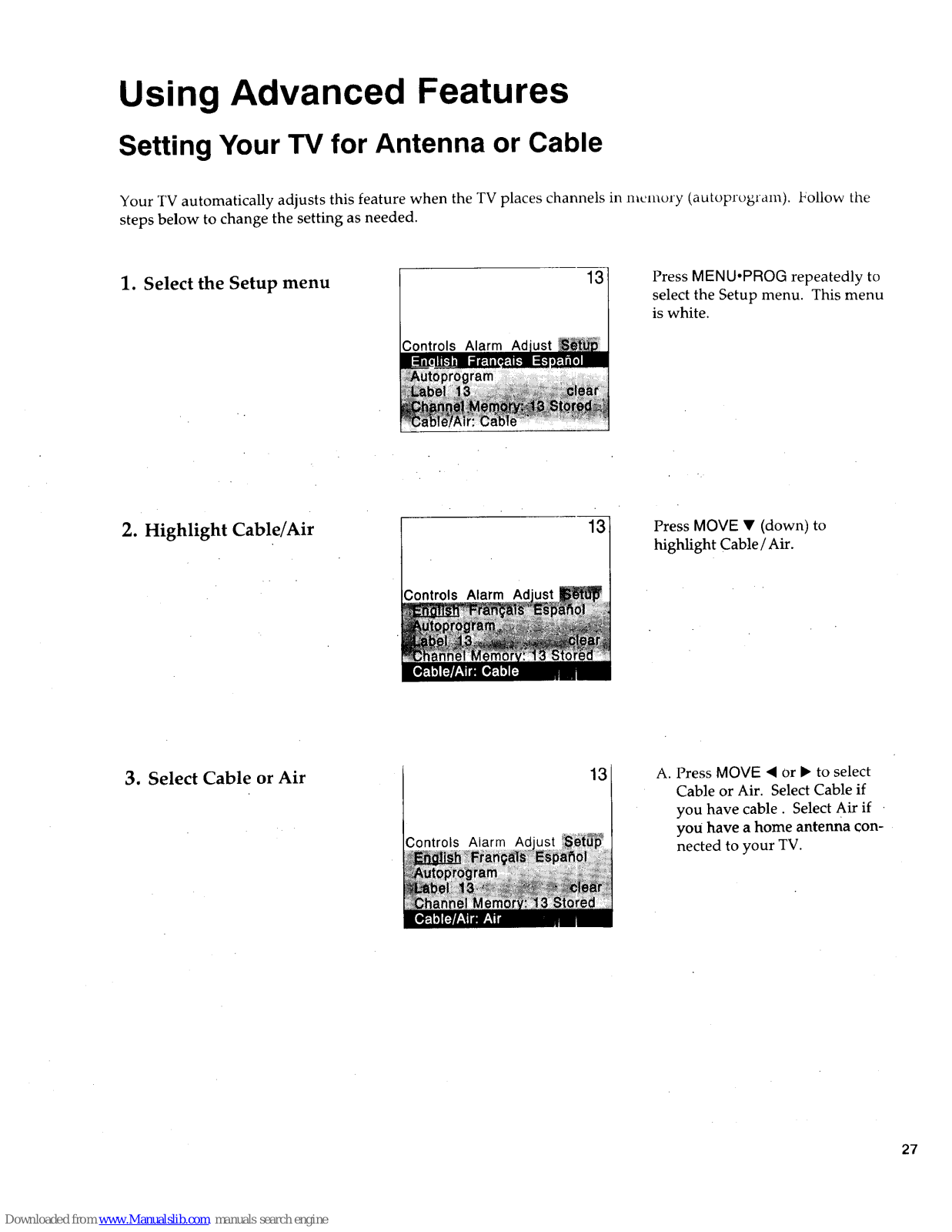

Setting Your TV for Antenna or Cable
Your TV automatically adjusts this feature when the TV places channels ill memory (autoprogram). Follow the
steps below to change the setting as needed.
1. Select the Setup menu
Controls Alarm Ad
13
Press MENU,PROG repeatedly to
select the Setup menu. This menu
is white.
2. Highlight Cable/Air
Controls Alarm Ad
Press MOVE • (down) to
highlight Cable / Air.
3. Select Cable or Air
Controls Alarm
13
A. Press MOVE • or I_ to select
Cable or Air. Select Cable if
you have cable. Select Air if
you have a home antenna con-
nected to your TV.
27
Page 30
References

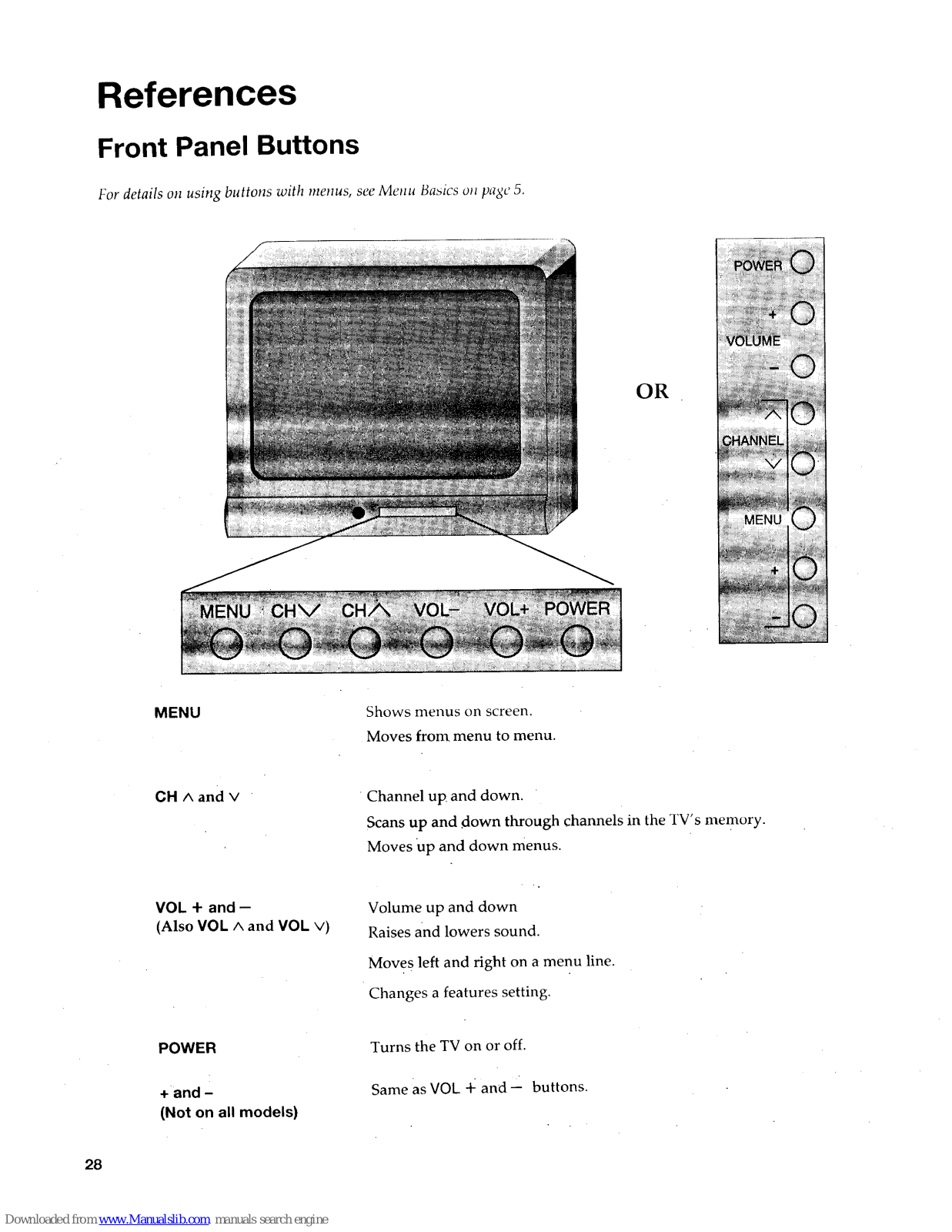

Front Panel Buttons
For details on using buttons with menus, see Menu Basics oH page 5.
OR
MENU
Shows menus on screen.
Moves from menu to menu.
CH ^ and v "
VOL + and-
(Also VOL ^ and VOL v)
•Channel up and down.
Scans up and .down through channels in the TV's memory.
Moves up and down menus.
Volume up and down
Raises and lowers sound.
Moves left and right on a menu line.
Changes a features setting.
POWER
+and -
(Not on all models)
Turns the TV on or off.
Same as VOL 42and Z buttons.
28
Page 31
References

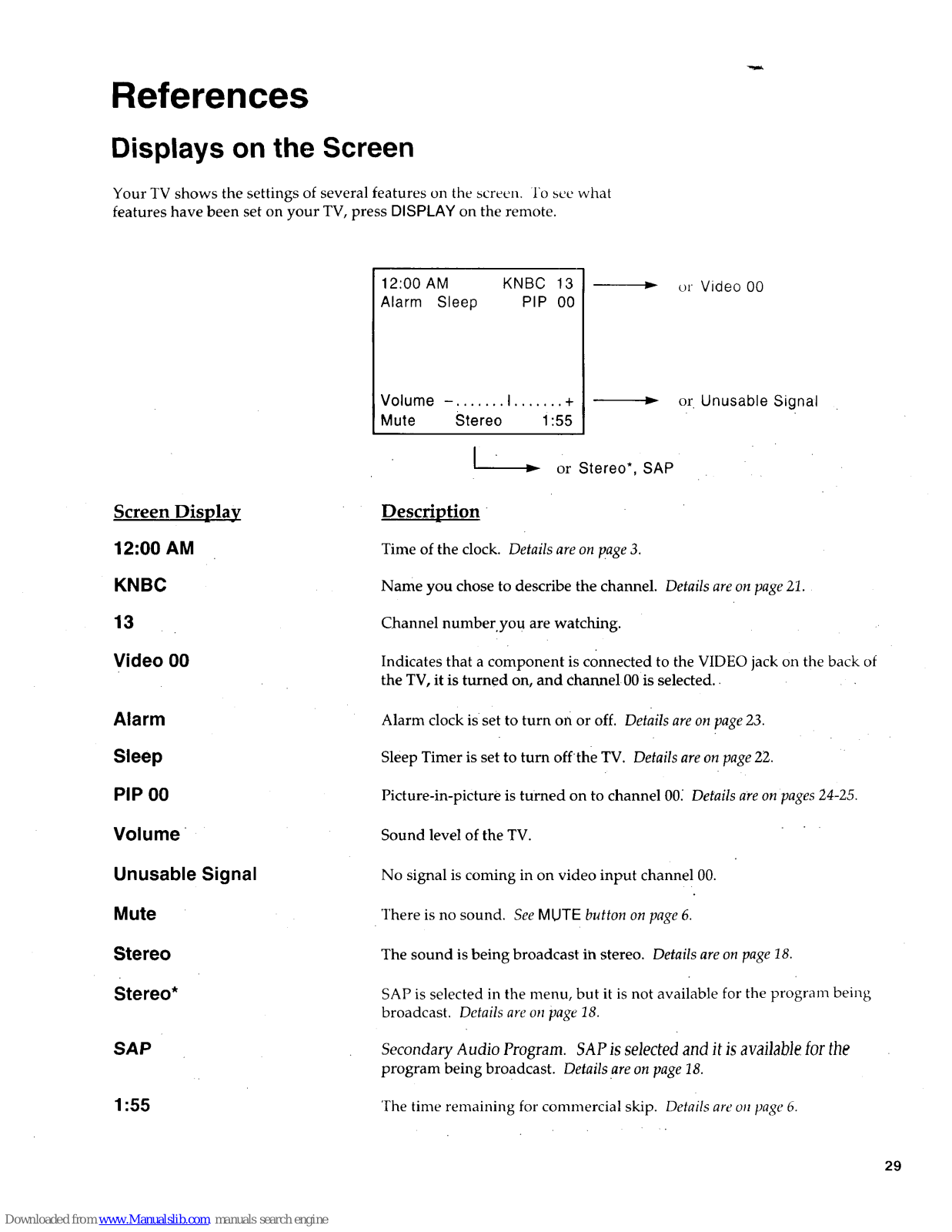

Displays on the Screen
Your TV shows the settings of several features on the screen. I'o see what
features have been set on your TV, press DISPLAY on the remote.
Screen Display
12:00 AM
KNBC
13
Video 00
Alarm
Sleep
PIP 00
Volume
Unusable Signal
Mute
Stereo
Stereo*
SAP
1:55
12:00 AM KNBC 13
Alarm Sleep PIP 00
Volume -. ...... I ....... +
Mute Stereo 1:55
or Video O0
or Unusable Signal
._ or Stereo*, SAP
Description "
Time of the clock. Details are on page 3.
Name you chose to describe the channel. Details are on page 21.
Channel number.yo u are watching.
Indicates that a component is connected to the VIDEO jack on the back of
the TV, it is turned on, and channel 00 is selected..
Alarm clock is set to turn on or off. Details are on page 23.
Sleep Timer is set to turn offthe TV. Details are on page 22.
Picture-in-picture is turned on to channel 00Z Details are on pages 24-25.
Sound level of the TV.
No signal is coming in on video input channel 00.
There is no sound. See MUTE button on page 6.
The sound is being broadcast in stereo. Details are on page 18.
SAP is selected in the menu, but it is not available for the program being
broadcast. Details are on pag_ 18.
Secondary Audio Program. SAP is selected and it is available for the
program being broadcast. Details are on page 18.
The time remaining for commercial skip. Details are on page 6.
29
Page 32
References

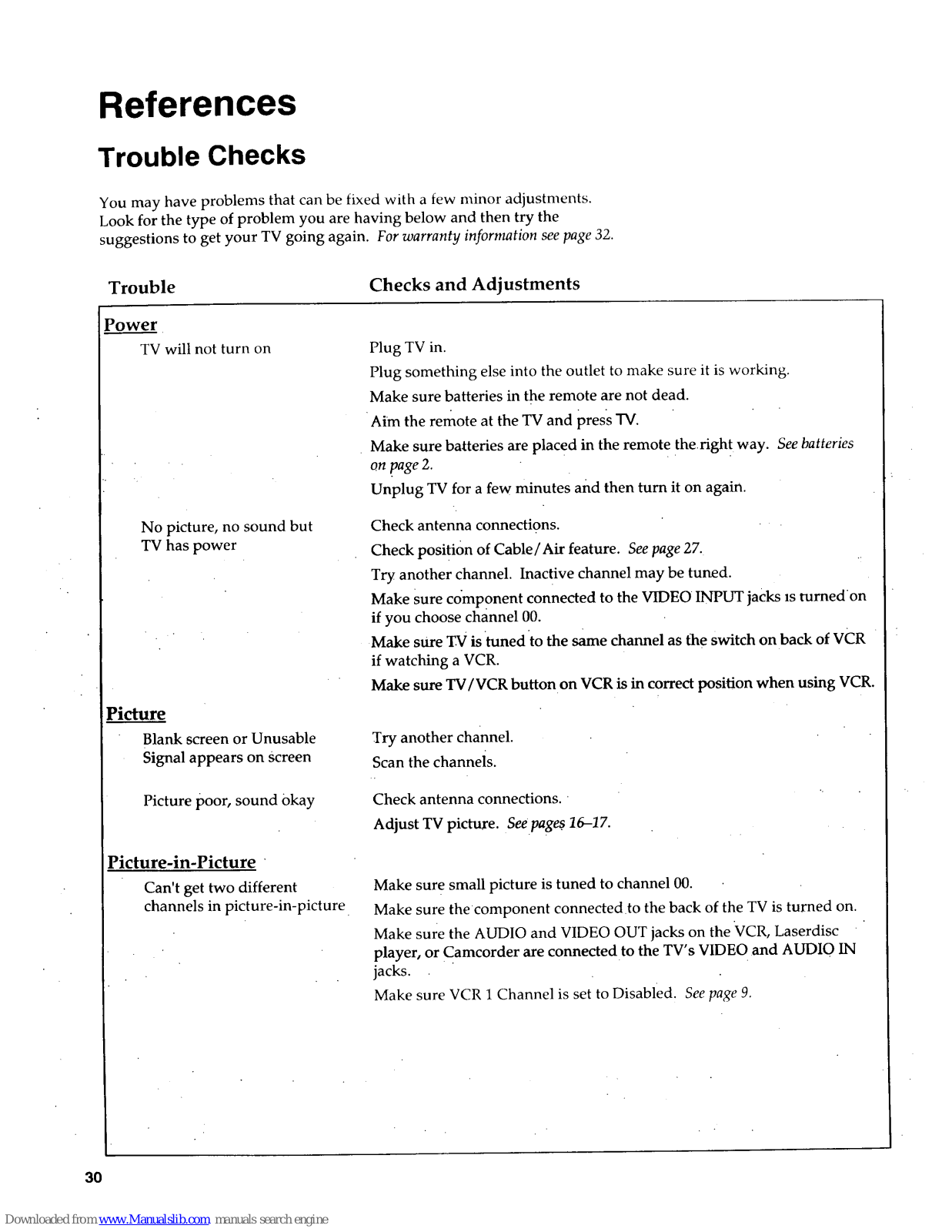

Trouble Checks
You may have problems that can be fixed with a few minor adjustments.
Look for the type of problem you are having below and then try the
suggestions to get your TV going again. For warranty information see page 32.
Trouble Checks and Adjustments
P___ower
TV will not turn on
No picture, no sound but
TV has power
Blank screen or Unusable
Signal appears on Screen
Picture poor, sound Okay
Picture-in-Picture
Can't get two different
channels in picture-in-picture
Plug TV in.
Plug something else into the outlet to make sure it is working.
Make sure batteries in the remote are not dead.
Aim the remote at the TV and press "IV.
Make sure batteries are placed in the remote the right way. See batteries
on page 2.
Unplug TV for a few minutes and then turn it on again.
Check antenna connections.
Check position of Cable/Air feature. See page 27.
Try another channel. Inactive channel may be tuned.
Make Sure component connected to the VIDEO INPUT jacks is turnedon
if you choose channel 00.
Make sure T.V is tunedto the same channel as the switch on back of vCR
if watching a VCR.
Make sure TV/VCR button on VCR is in correct position when using VCR.
Try another channel.
Scan the channels.
Check antenna connections. •
Adjust TV picture. See pages. 16-17.
Make sure small picture is tuned to channel 00.
Make sure thecomponent connected to the back of the TV is turned on.
Make sure the AUDIO and VIDEO OUT jacks on the VCR, Laserdisc
player, or Camcorder are connected to the TV's VIDEO and AUDIO IN
jacks.
Make sure VCR 1 Channel is set to Disabled. See page 9.
3O
Page 33

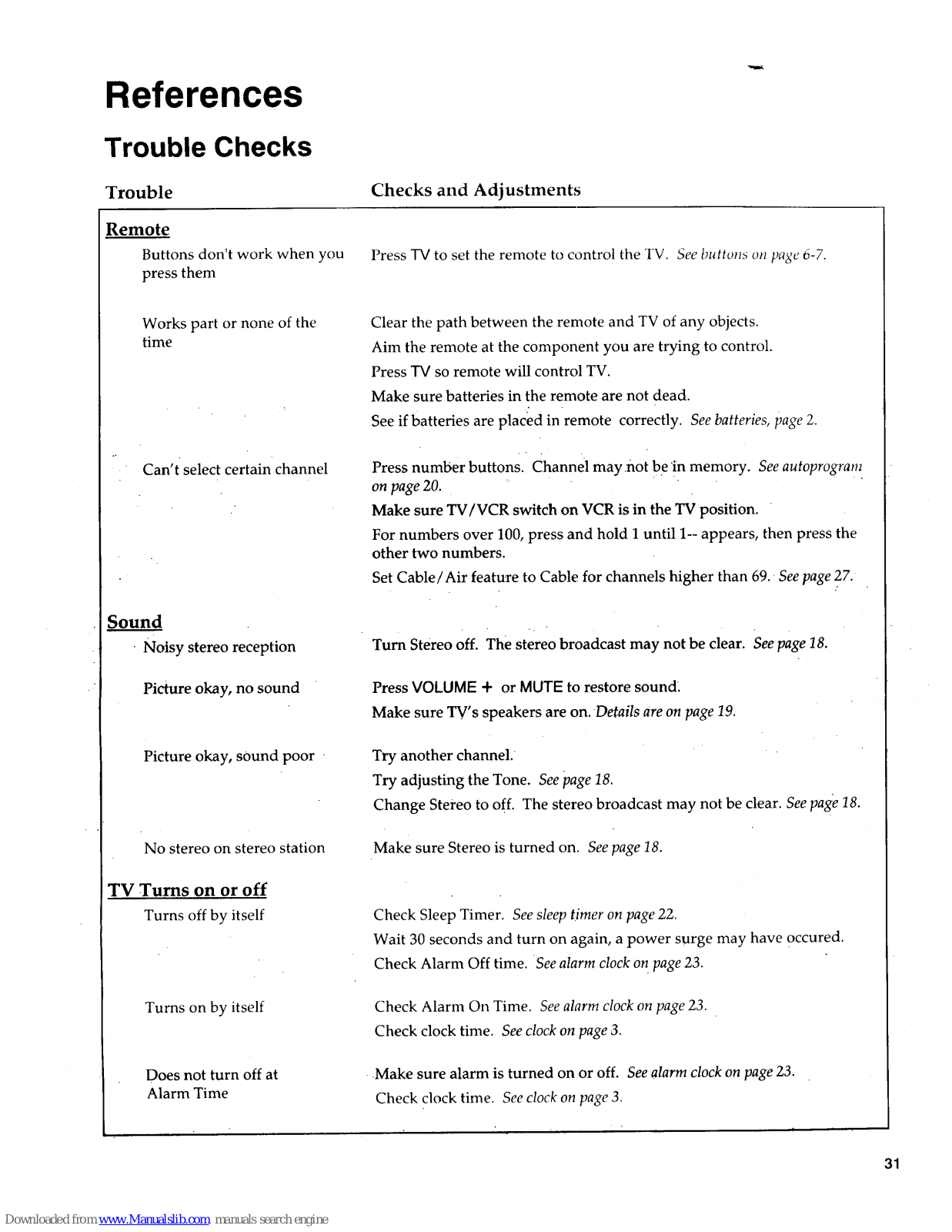

References
Trouble Checks
Trouble
Remote
Buttons don't work when you
press them
Checks and Adjustments
Press "IV to set the remote to control the TV.
See buttons on page 6-7.
Works part or none of the
time
• Can't select certain channel
Sound
• Noisy stereo reception
Picture okay, no sound
Picture okay, sOund poor
No stereo on stereo station
TV Turns on or off
Turns off by itself
Turns on by itself
Does not turn off at
Alarm Time
Clear the path between the remote and TV of any objects.
Aim the remote at the component you are trying to control.
Press TV so remote will control TV.
Make sure batteries in the remote are not dead.
See if batteries are placed in remote correctly. See batteries, page 2.
Press number buttons. Channel may not bei n memory. See autoprogram
on page 20.
Make sure TV/VCR switch on VCR is in the TV position.
For numbers over 100, press and hold I until 1-- appears, then press the
other two numbers.
Set Cable/Air feature to Cable for channels higher than 69. See page 27.
Turn Stereo off. The stereo broadcast may not be clear. See page 18.
Press VOLUME + or MUTE to restore sound_
Make sure TV's speakers are on. Details are on page 19.
Try another channel.
Try adjusting the Tone. See page 18.
Change Stereo to off. The stereo broadcast may not be clear. See page 18.
Make sure Stereo is turned on. See page 18.
Check Sleep Timer. See sleep timer on page 22.
Wait 30 seconds and turn on again, a power surge may have occured.
Check Alarm Off time. See alarm clock on page 23.
Check Alarm On Time. See alarm clock on page 23.
Check clock time. See clock on page 3.
•Make sure alarm is turned on or off. See alarm clock on page 23.
Check clock time. See clock on page 3.
31
Page 34
References

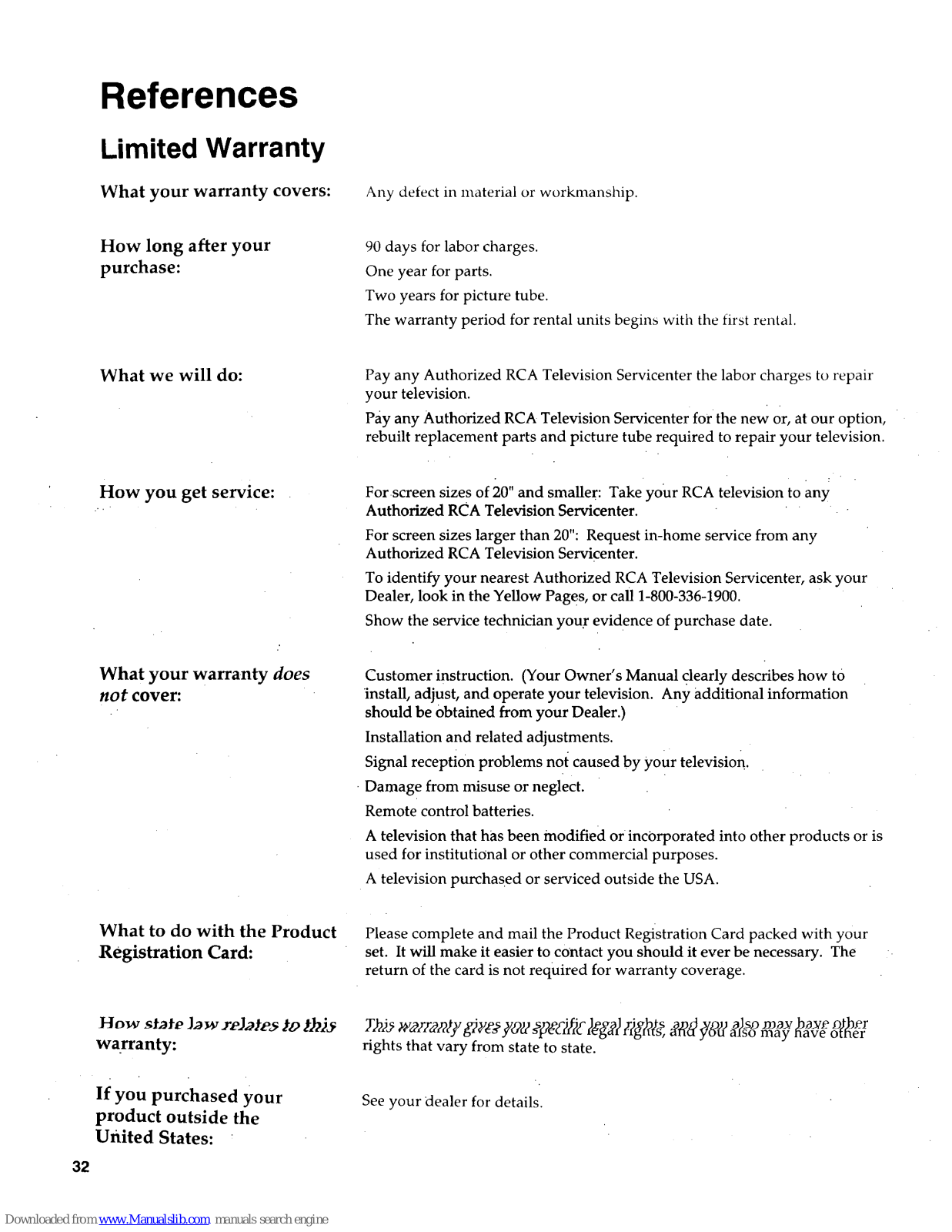

Limited Warranty
What your warranty covers: Any defect in material or workmanship.
How long after your
purchase:
90 days for labor charges.
One year for parts.
Two years for picture tube.
The warranty period for rental units begins with the first rental.
What we will do:
Pay any Authorized RCA Television Servicenter the labor charges to repair
your television.
Pay any Authorized RCA Television Servicenter for the new or, at our option,
rebuilt replacement parts and picture tube required to repair your television.
How you get service:
What your warranty does
not cover:
For •screen sizes of 20" and smaller: Take your RCA television to any
Authorized RCA Television Servicenter.
For screen sizes larger than 20": Request in-home service from any
Authorized RCA Television Servicenter.
To identify your nearest Authorized RCA Television Servicenter, ask your
Dealer, look in the Yellow Pages, or call 1-800-336-1900.
Show the service technician you.r evidence of purchase date.
Customer instruction. (Your Owner's Manual clearly describes how to
install, adjust, and operate your television. Any additional information
should be Obtained from your Dealer.)
Installation and related adjustments.
Signal reception problems not caused by your television.
• Damage from misuse or neglect.
Remote control batteries.
A television that has been modified or incorporated into other products or is
used for institutional or other commercial purposes.
A television purchased or serviced outside the USA.
What to do with the Product
Registration Card:
Please complete and mail the Product Registration Card packed with your
set. It will make it easier to contact you should it ever be necessary. The
return of the card is not required for warranty coverage.
32
How state Ja _, _eJa)e_ Ir__.bJ_
warranty:
If you purchased your
product outside the
united States:
dlt_.lyou also may nave omer
rights that vary from state to state.
See your dealer for details.
Page 35
References

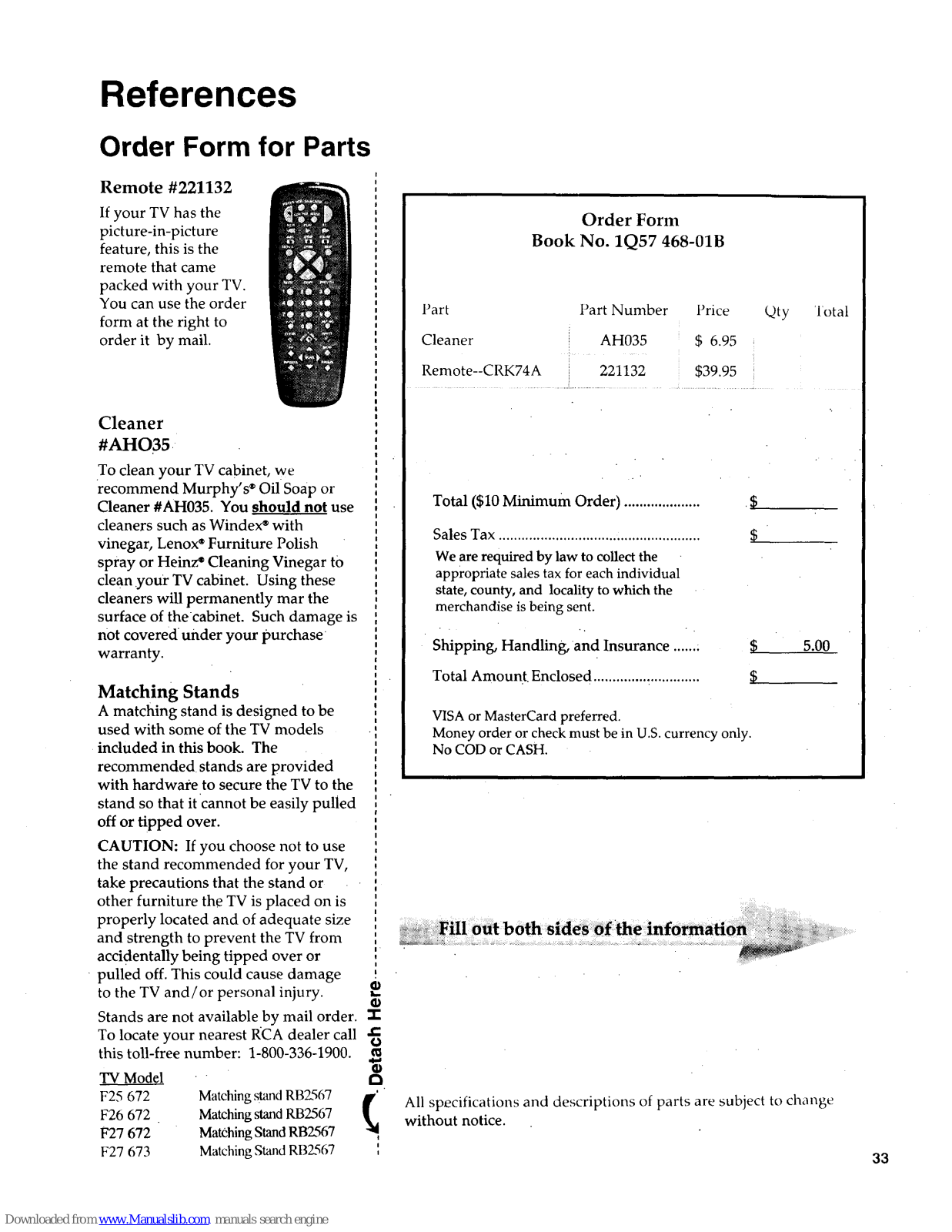

Order Form for Parts
Remote #221132
If your TV has the
picture-in-picture
feature, this is the
remote that came
packed with your TV.
You can use the order
form at the right to
order it by mail.
Cleaner
#AHO35
To clean your TV cabinet, we
recommend Murphy's" Oil Soap or
Cleaner #AH035. You should not use
cleaners such as Windex" with
vinegar, Lenox ®Furniture Polish
spray or Heinz" Cleaning Vinegar to
clean your TV cabinet. Using these
cleaners will permanently mar the
surface of the cabinet. Such damage is
not covered under your purchase
warranty.
Matching Stands
A matching stand is designed to be
used with some of the TV models
included in this book. The
recommended stands are provided
with hardware to secure the TV to the
stand so that it cannot be easily pulled
off or tipped over.
CAUTION: If you choose not to use
the stand recommended for your TV,
take precautions that the stand or
other furniture the TV is placed on is
properly located and of adequate size
and strength to prevent the TV from
accidentally being tipped over or
pulled off. This could cause damage
to the TV and/or personal injury.
Stands are not available by mail order.
To locate your nearest RCA dealer call
this toll-free number: 1-800-336-1900.
TVModel
F25 672
F26 672
F27 672
F27 673
Matching stand RBZ567
Matching stand RB2567
Matching Stand RB2567
Matching Stand RBZ%7
!
c-
o
Order Form
Book No. 1Q57 468-01B
Part Part Number
Cleaner _ AH035
Remote--CRK74A :i 221132
Price
$ 6.95
$39.95
Qty lotal
Total ($10 Minimum Order) ....................
Sales Tax .....................................................
We are required by law to collect the
appropriate sales tax for each individual
state, county, and locality to which the
merchandise is being sent.
Shipping, Handling, and Insurance .......
Total Amount. Enclosed .............. ..............
$
$
$ 5.00
$
VISA or MasterCard preferred.
Money order or check must be in U.S. currency only.
No COD or CASH.
bo_ s_des :o£ _ in formafio ........
All specifications and descriptions of parts are subject to change
without notice.
33
Page 36
References
Order Form for Parts
USE YOUR CREDIT CARD
Copy complete account number
I lll IVT-T-1VTT-IVT-
Cardexpires:F-V1F-r-1
Copy complete account number
7T-T-Tq F-1--TN N--T-T,1F-T-I-
Copy Number above the name
onyour MasterCard
Card expires: [_ _-_
AUTHORIZED SIGNATURE
Prices are subject to change without notice.
PLEASE
Print or type your name and address.
This will be your mailing label.
A complete and correct order will
save you days of waiting.
Name:
Street:.
Apt:
City:
State: Zip:
Make sure that both sides of this
form have been filled out.
1
34
L_
-r-
e-
o
I:l
i
U.S. and Canadian Orders
By Phone:
1 - 800 - 338 - 0376
Call this toll-free number between
8AM and 8PM Eastern Standard Time
and place your order using your Visa
or MasterCard. Use this number
only to place an order for accessory
items listed on this order form.
By Mail:
Detach the information at the left and
mail th e payment to Thomson
ConsumerElectronics, Inc., at:
Vide6 Accessories
PO Box 8419
Ronks, PA 17573
Most orders are shipped UPS within
72 hours. If it is not possible to ship
within 30 days, ..wewill notify you.
For more current information on
these accessories, write to the
following address:
Video Accessories Customer Service
Thomson Consumer Electronics, inc.
Distributor & Special Products _
2000 Clements Bridge Rd
Deptford, NJ 08096-2088
International Orders
This offer is valid only in the U.S.
Send your request for price quotation
(not orders) to:
International Customer Service
Thomson Consurner Electronics, Inc.
Distributor & Special Products
2000 Clements Bridge Rd
Deptford, NJ 08096-2088 USA
Page 37

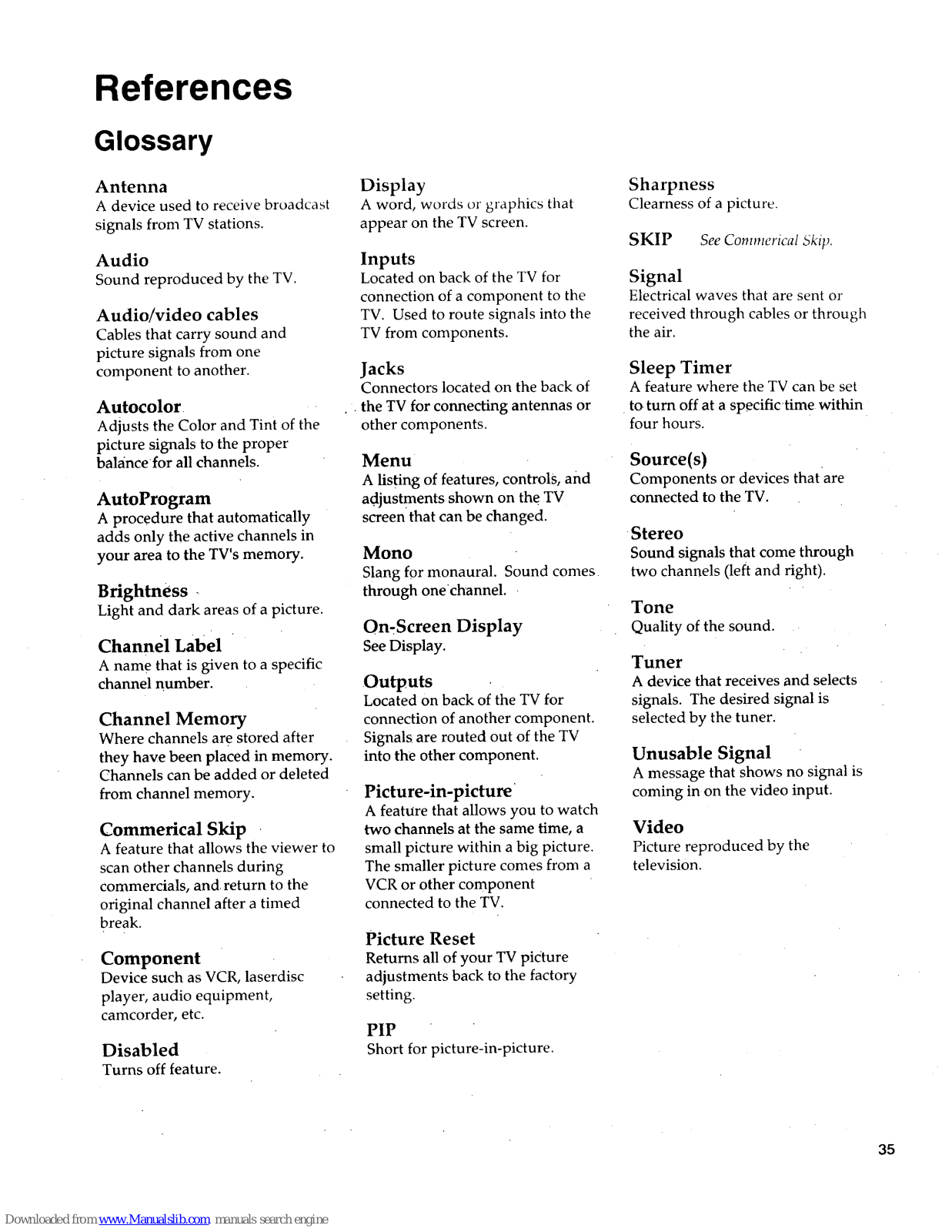

References
Glossary
Antenna
A device used to receive broadcast
signals from TV stations.
Audio
Sound reproduced by the TV.
Audio/video cables
Cables that carry sound and
picture signals from one
component to another.
Autocolor• •
Adjusts the Color and Tint of the
picture signals to the proper
bahincefor all channels.
AutoProgram
A procedure that automatically
adds only the active channels in
your area to the TV's memory.
Brightness .
Light and dark areas of a picture.
Channel Label
A nam e that is given to a specific
channel number.
Channel Memory
Where channels are stored after
they have been placed in memory.
Channels can be added or deleted
from channel memory.
Commerical Skip
A feature that allows the viewer to
scan other channels during
commercials, and return to the
original channel after a timed
break.
Component
Device such as VCR, laserdisc
player, audio equipment,
camcorder, etc.
Disabled
Turns off feature.
Display
A word, words or graphics that
appear on the TV screen.
Inputs
Located on back of the TV for
connection of a component to the
TV. Used to route signals into the
TV from components.
Jacks
Connectors located on the back of
•the TV for connecting antennas or
other components.
Menu
A listing of features, controls, and
adjustments shown on the TV
screen that can be changed.
Mono
Slang for monaural. Sound comes
through onechannel. •
On-Screen Display
See Display.
•Outputs
Located on back of the TV for
connection of another component.
Signals are routed out of the TV
into the other component.
Picture-in-picture
A feature that allows you to watch
two channels at the same time, a
small picture within a big picture.
The smaller picture comes from a
VCR or other component
connected to the TV.
Picture Reset
Returns all of your TV pi(ture
adjustments back to the factory
setting.
PIP
Short for picture-in-picture.
Sharpness
Clearness of a picture.
SKIP See Commerical 5kip.
Signal
Electrical waves that are sent or
received through cables or through
the air.
Sleep Timer
A feature where the TV can be set
to turn off at a specific•time within
four hours.
Source(s)
Components or devices that are
connected to the TV.
Stereo
Sound signals that come through
two channels (left and right).
Tone
Quality of the sound.
Tuner
A device that receives and selects
signals. The desired signal is
selected by the tuner.
Unusable Signal
A message that shows no signal is
coming in on the video input.
Video
Picture reproduced by the
television.
35
Page 38
References
Index
A
Adding Channels to Memory ....20
Adjust Menu
Autocolor ................................... 17
Bright .......................................... 17
Color ........................................... 17
Picture Reset .............................. 17
Sharpness ................................... 17
Tint .............................................. 17
Adjusting
Picture ........................................ 16
Picture Settings ......................... 17
Sound Settings ..................... 18,19
Air or Cable Feature ................. 27
Alarm Channel ............................. 23
Alarm Clock _................................ 23
Alarm Display .............................. 28
Alarm Menu ................... .............. 23
Alarm ...................... ......•............ 23
Alarm Channel .......................... 23
Off Time ..................................... 23
On Time._ ................................... 23
Set Clock ...................................... 3
ANT A oB Button ............ ............... 7
Antenna i....................................... 27
Audio .......................... 7,15,18,19,35
AUDIO Button .......................... 7,15
Audio Codes ................................ 15
Audio Equipment Buttons ......... 15
CLEAR
FF/Fast Forward
PAUSE
PLAY
REC/Record
REW / Rewind
STOP
Audio/video cables ................... .35
Autocolor.... ................. ............ 17,35
Autoprogram ....................... 3,20,35
B
Batteries (Remote) ......................... 2
Bright ............................................ 17
Brightness ................ :.............. :17,35
Buttons
+ and-. ......................... 2,3,4,5,6,7
Audio Equipment ..................... 15
Component .................................. 4
Laserdisc .................... ,................14
Menu ..2................................ .'....4,5
Number ........................................ 6
Picture-in-Picture ...... 4,7,24,25,35
Power ................... i....................... 6
Remote Control ..................... 4,6,7
TV ............................................ 4,12
•TV Front Panel .......................... 28
VCR ............................................ 13
C
CABLE/ANFENNNA Jack ....... 15
Cable Box ................................. 12,13
Cable Box Codes .......................... 12
CABLE Button ...................... 7,12,13
Cable Channel .............................. 13
Cable or Air Feature .................... 27
Cancelling Sleep Timer ............... 22
Captioning, Closed ...................... 26
Cautions ........................................... i
Channel Label ......................... 21,35
Channel Memory ................. 3,20,35
Channel Name Display .............. 29
Channel Number Display .......... 29
CHANNEL Up/Down Buttons
Remote ................................... 4,5,6
TV ............................................... 28
Channels
Adding ....................................... 20
Deleting ...................................... 20
Naming ................................. 21,29
Placing in Memory ................ 3,20
Checks and Adjustments .......30,31
Cleaner ....................................... ,..33
CLEAR Button ............................ 6,7
Clock ........................................... 3,23
Closed Captioning ........ i.............. 26
Codes
Audio .................................. .......15
Cable Box ...................................12
Laserdisc Player ........................14
• VCR .............. ..................... •.....!....8
ColOr ............. :................................ 17
Colors (Menus) ...._..................... 2..5
Commerical Skip ................. 6,29,35
Button ......... ;................................ .6
Display ....................................... 29
Component ................ ................... 35
Componen t Buttons .................... 13
AUDIO, CABLE, LD,
VCR, VCR2, Components
Audio Equipment ..................... 15
Cable Box .............................. 12,13
Laserdisc Player ........................ 14
VCR ................................ .8,9,10,11
Contents .......................................... 1
Controls
TV Front Panel .......................... 28
Remote ..................................... _6,7
Controls Menu
Closed Captioning ............... :....26
Picture ........................................ 16
Sleep Timer ................................ 22
Stereo .......................................... 18
Tone ............................................ 18
D
Delete Channels from Memory .20
Disabled ........................................ 35
DISPLAY Button ....................... 6,23
Displays (On-Screen) .................. 29
Alarm, Channel Name,
Channel Number, Commerical
Skip, Mute, PIP 00, Sleep, Stereo,
Time, Unusable Signal,
VIDEO 00, Volume
DISPLAY Button ....................... 6,29
E
Erase a Name ............................... 21
Erasing Channels from Memory20
F
FF/Fast ForWard Button .............. 7
Front Panel Controls ................ 4,28
FREEZE Button ......................... 7,25
G .,
Glossary ........................................ 35
Guide
Colors ........................................... 5
Menu Buttons ........................... 4,5
Moving through the Menus ......5
TV ................................ ........2,3,4,5
H
Hook up TV.,..Connections Guide
I
INPUT Button ................................ 7
Inputs ............................................ 35
• J •
Jacks.: ............................................. 35
L
Laserdisc Player Codes ........ .......14
Laserdisc Player Buttons ......... 7,14
FF/Fast Forward, PAUSE, PLAY,
PROG / Program, REW / Rewind,
STOP
Laserdisc Player ........................... 14
36
Page 39
M
Menu ............................................. 35
MENU Buttons ........................... 4,5
Menus .............................................. 5
Menu Colors ................................... 5
Mono ........................................ 18,35
MOVE Button ........................... 2,5,7
Moving through the Menus ......... 5
MUTE Button ................................. 6
Mute Display ................................ 29
N
Naming the Channels ................. 21
Number Buttons ............................ 6
O
Off Time (Alarm) ......................... 23
On-Screen Displays ................ 29,35
On Time (Alarm) ................... ......23
Order Form for Parts .............. 33,34
Outputs ...................... ................... 35
P
PAUSE Button ........................ 7,8,14
Picture ...................................... 16,17
Picture Adjustments ............... 16,17
Picture-in-Picture .............. 4,7,2,4,25
Chang e Channels ..................... :24
Turn on ....................................... 24
Turn off ...................................... 25
Use PIP Buttons ..................... 7,25
•Picture-in-PiCture Buttons....7,25
FREEZE, PIP, PIP MOVE, SWAP
Picture Settings ....................... 16,17
Picture Reset ................................. 17
PIP ......... r.-........... •.............. 4,7,24,25
PIP Button ................. i........4,7,24,25
PIP 00 Display .............................. 29
PIP MOVE Button ................. ...7,25
Place Channels in Memory ..... 3,20
PLAY Button ..................... 7,8,14,15
Plug in TV ........................ . ......_.......2
POWER Button .................. .........2,6
Power Buttons ............. ................ 2,6
PREV CH Button ........................... 6
Previous Channel Button ............. 6
Problem Solving ..................... 31,32
Product Registration ...................... i
PROG/Program Button ............... 7
Programming the Remote
Audio Equipment ..................... 15
Cable Box ......... :............... :....12,13
Laserdisc Player ........................ 14
VCR ................................. 8,9,10,11
Put Batteries in Remote ................ 2
Q
Quick Gui.de to Your TV .....2,3,4,5
R
REC / Record Button ............ 7,11,15
References ............................... 28-37
Glossary ..................................... 35
Order Form for Parts ........... 33,34
Trouble Checks .................... 30,31
Warranty .................................... 32
Registration Card ........................... i
Remote Control
Batteries ....................................... 2
Buttons ...................................... 6,7
Order Form ................................ 33
Tour .............................................. 4
With Components .............. 7,8-15
RESET Button ................................. 6
REW/Rewind Button .7,8,11,14,15
S
Safety Information ......................... i
Screen Displays ............................ 29
Service ........................................... 32
Set Clock ........................... .............. 3
Set Time .......................... "................ 3
Setting Cable / Air ............ i........... 27
Setting the Cable Channel .......... 12
Setting the Sleep Timer ............... 22
Setup Menu
Autoprogram .................... 3,20,35
Cable / Air .................................. 27.
Cable Channel ........................... 13
Channel Label ............................ 21
Channel Memory ................... 3,20
Speakers ....................................... 9
VCR 1 Channel ............ :..:............ 8
Sharpness ...................................... 17
Signa ! ............................................. 35
SKIP ............................................ 6,35
Sleep Display ........................... 22,28
Sleep Timer ................................... 22
Sharpness .................. .................... 17
Sound ....................................... 18,19
Source ............................................ 35
Speakers .................................... :....19
Startup ................... ....................... 2,3
Stereo ........................................ 18,35
Stereo Display .............................. 29
STOP Button ...................... 7,8,11,15
SWAP Button .................... 4,7,24,25
T
Table of Contents ........................... 1
Time
Alarm. ..........".............................. 23
Clock ............................................. 3
Sleep Timer ............................. :..22
Time Display ................................ 29
Tint ........•......................................... 17
Tone .......................................... 18,35
Tour of the Remote ......................... 4
Trouble Checks ....................... 30,31
•Turn on Alarm ............................. 23
Turn on Picture-in-Picture ....24,25
Turn on TV ..................................... 2
TV
Buttons ................................. 4,6,28
Guide to ................................. 2,3,4
TV Button ................................. 3,4,6
Time ................................................. 3
Two Pictures at one time .......24,25
U
Unusable Signal Display .......29,35
Using Advanced Features .....20-27
Naming the Channels .............. 21
Place Channels in Memory .....20
Setting Cable or Air .................. 27
Setting the Alarm Clock ..........23
Setting the Sleep Timer ............ 22
Watching Closed Captioning..26
Watching Two Pictures ...... 24,25
Using the Remote
Audio Equ!_ment ..................... 15
Laserdisc Player ........ i....... 12..... 14
Cable Box .............................. 12,13
VCR ................................. 8,9,10,11
V
VCR
Turn on ....................................... 10
Turn off ...................................... 10
Record one TV program and
watch another ........................... 11
Watch a tape .............. ................ 11
VCR Button ......................... 7,8,9,10
VCR 1"Channel ..................... .......... 8
VCR2 Button .. ..................... 7,8,9,10
VCR Codes ..................................... 8
VCR Buttons ................................ 7,8
CLEAR, FF/Fast Forward,
PAUSE,. PLAY, PROG/Program,
REC / Record, REW / Rewind, .
STOP
Video .............................. ............... 35
VIDEO 00 Display. ...................... 29
Volume Display ........................... 29
VOL + and - Buttons
Remote ...................................... 4,6
TV .................. _............................ 28
W
Warning ........................................... i
Warranty ....................................... 32
Watching Closed Captioning .....26
Watching Picture-in-Picture .24,25
37
Page 40
l'homson Consumer Electronics is one of the first corporations to take part in a special program to improve our
environment.
Thomson has committed itself to a voluntary initiative program through the U.S. Environmental Protection
Agency. The program's purpose is to reduce toxic air emissions and to promote pollution prevention.
Thomson's involvement includes a concentrated effort to phase in new water-based paints to replace solvent-
based paints normally used in our manufacturing operations. The key benefit of these new paints is to
significantly reduce air pollution.
Thomson Consumer Electronics remains committed to improving our manufacturing process through changes
like these to help our environment. At Thomson, 0n-going efforts t° maintain our valuable natural resources will
continue to be a priority.
If your TV needs service, please
contact your dealer or the nearest
servicenter from the yellow pages.
Please do not send any products to
the Indianapolis address listed in this
manual or on the carton. This will
only add delays in service for your
product.
©1994 Thomson Consumer Electronics, Inc.
Trademark(s)@ Registered
Marca(s) Registrada(s)
Printed in the U.S.A.
Part Number 1Q57 468-01B
Thomson Consumer Electronics
600 N Sherman Dr, PO Box 1976
Indianapolis, IN 46206-1976
Loading...
