RCA F27250 User Manual

USER'S

GUIDE

__ 73Jo

%

3O

C 0

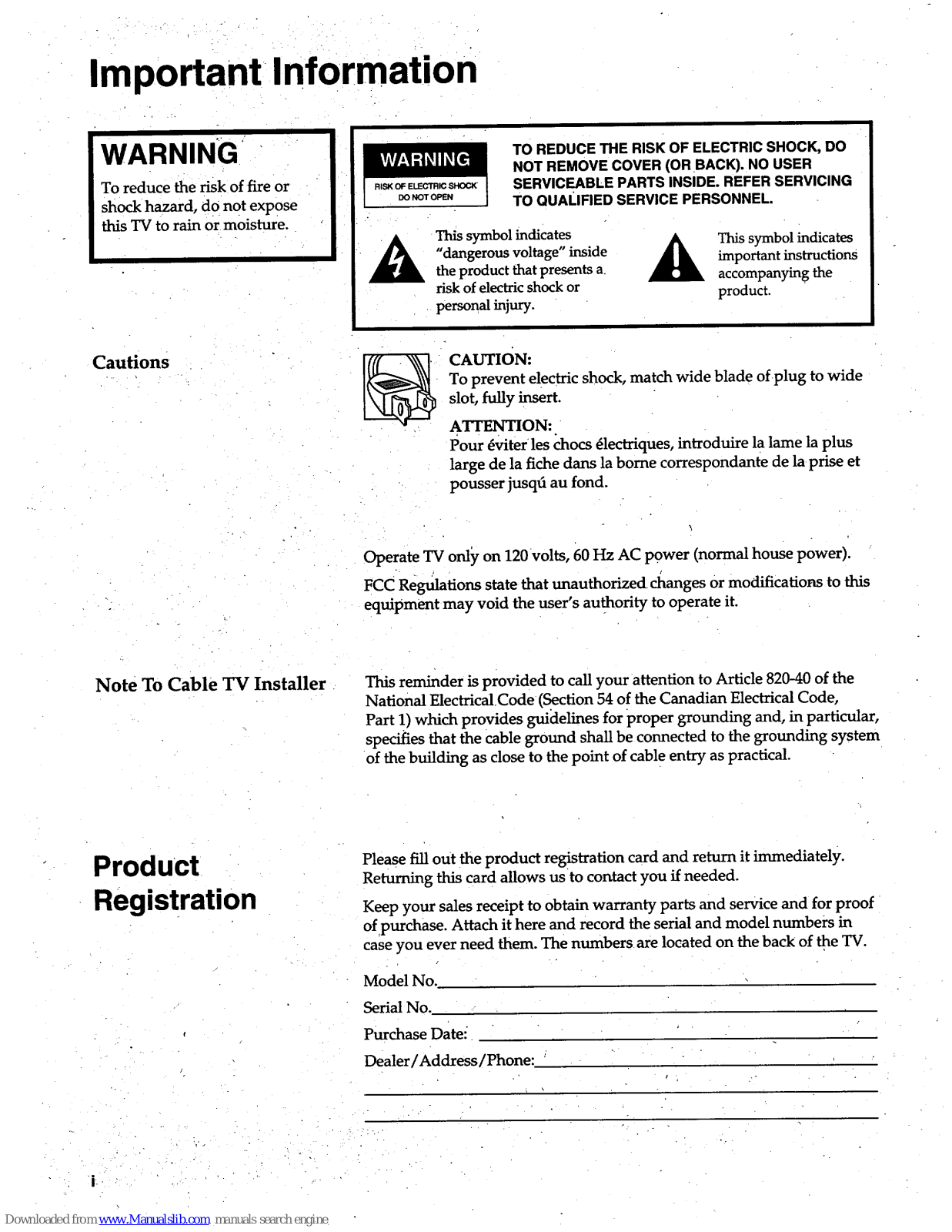

Important Information

WARNING

To reduce the risk of fire or
shock hazard, do not expose

this TV to rain or moisture.

RISK OF ELECTRIC SHOCK

DO NOTOPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates
"dangerous voltage" inside
the product that presents a.

risk of electric shock or
personal injury.

This symbol indicates

important instructions
accompanying the
product.

Cautions

CAUTION:
To prevent electric shock, match wide blade of plug to wide

slot, fully insert.
ATTENTION:

Pour _viterles chocs 41ectriques, introduire la lame la plus
large de la fiche dans la borne correspondante de la prise et

pousser jusqti au fond.

Operate TV orayon 120 volts, 60 Hz AC power (normal house power).

FCC Regulations state that unauthorized changes Ormodifications to this

equipment may void the user's authority to operate it.

Note To Cable TV Installer

This reminder is provided to call your attention to Article 82040 of the

National ElectricalCode (Section 54 of the Canadian Electrical Code,
Part 1) which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system

of the building as close to the point of cabl e entry as practical.

Product

Registration

t

Please fill out the product registration card and return it immediately.

Returning this card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof
of purchase. Attach it here and record the serial and model numbers in
case you ever need them. The numbers are located on the back of the TV.

Model No.
Serial No.
Purchase Date"

Dealer/Address/Phone:

j-..

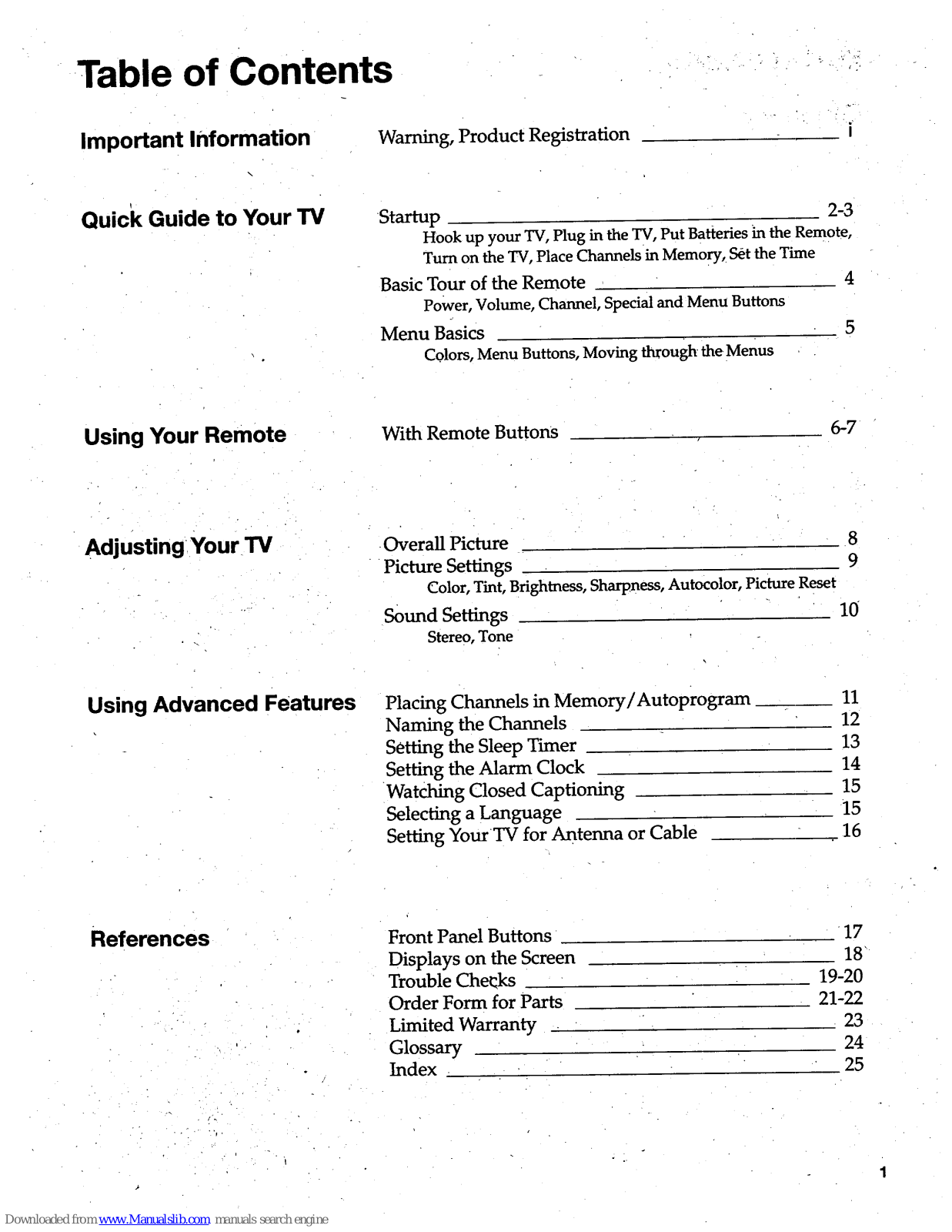

Table of Contents

Important Information

Warning, Product Registration

_ . : , .,;

i

Quick Guide to Your TV

Startup 2-3

Hook up your TV, Plug in the TV, Put Batteries in the Remote,

Turnon the TV,Place Channels in Memory, Set the Time

Basic Tour of the Remote

Power, Volume, Channel, Special and Menu Buttons

Menu Basics

Colors, Menu Buttons, Moving through the Menus

4

5

Using Your Remote

With Remote Buttons

6-7

Adjusting Your TV

Overall Picture
Picture Settings

Color, Tint,Brightness, Sharpness, Autocolor, Picture Reset

Sound Settings

Stereo, Tone

8
9

10

Using Advanced Features

Placing Channels in Memory/Autoprogram
Naming the Channels

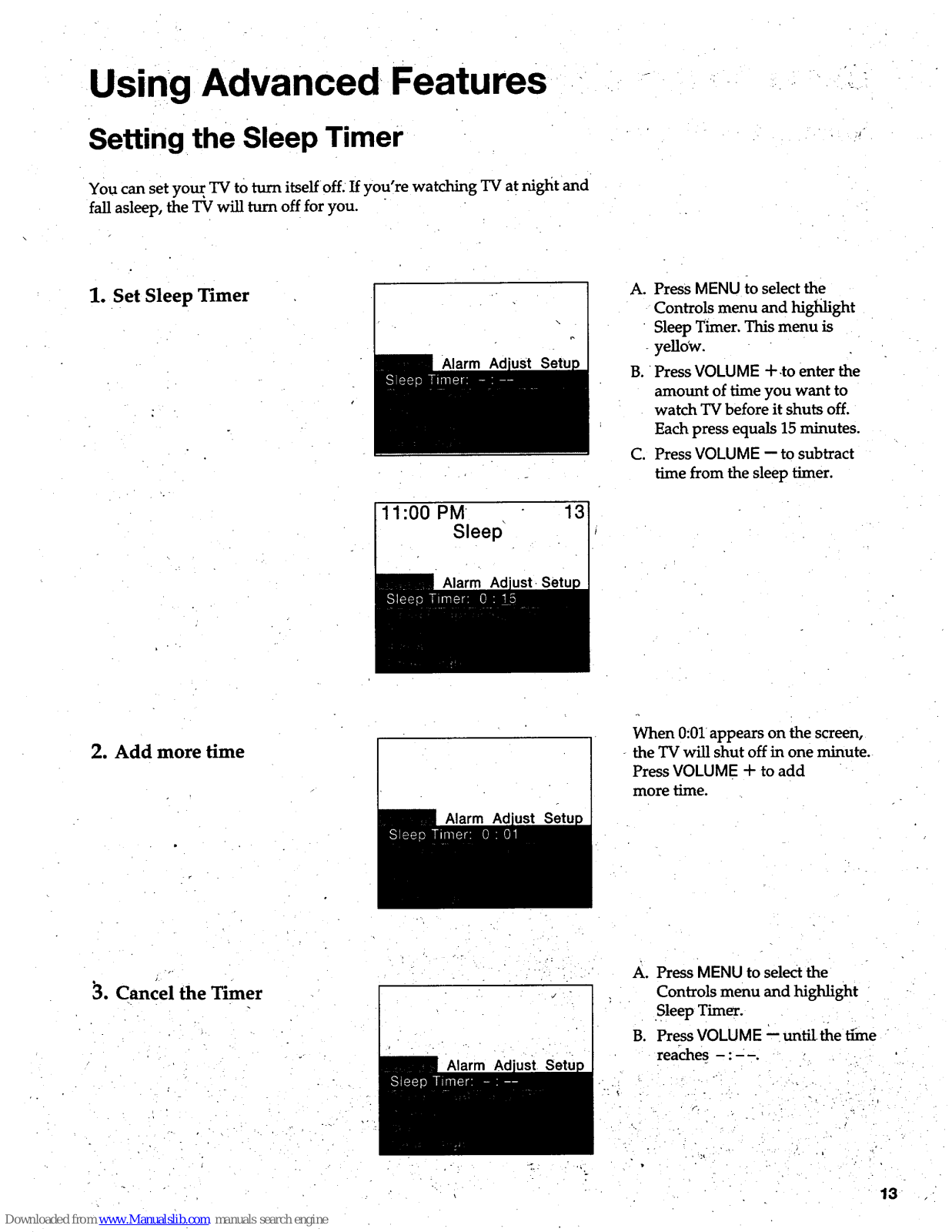

Setting the Sleep Timer

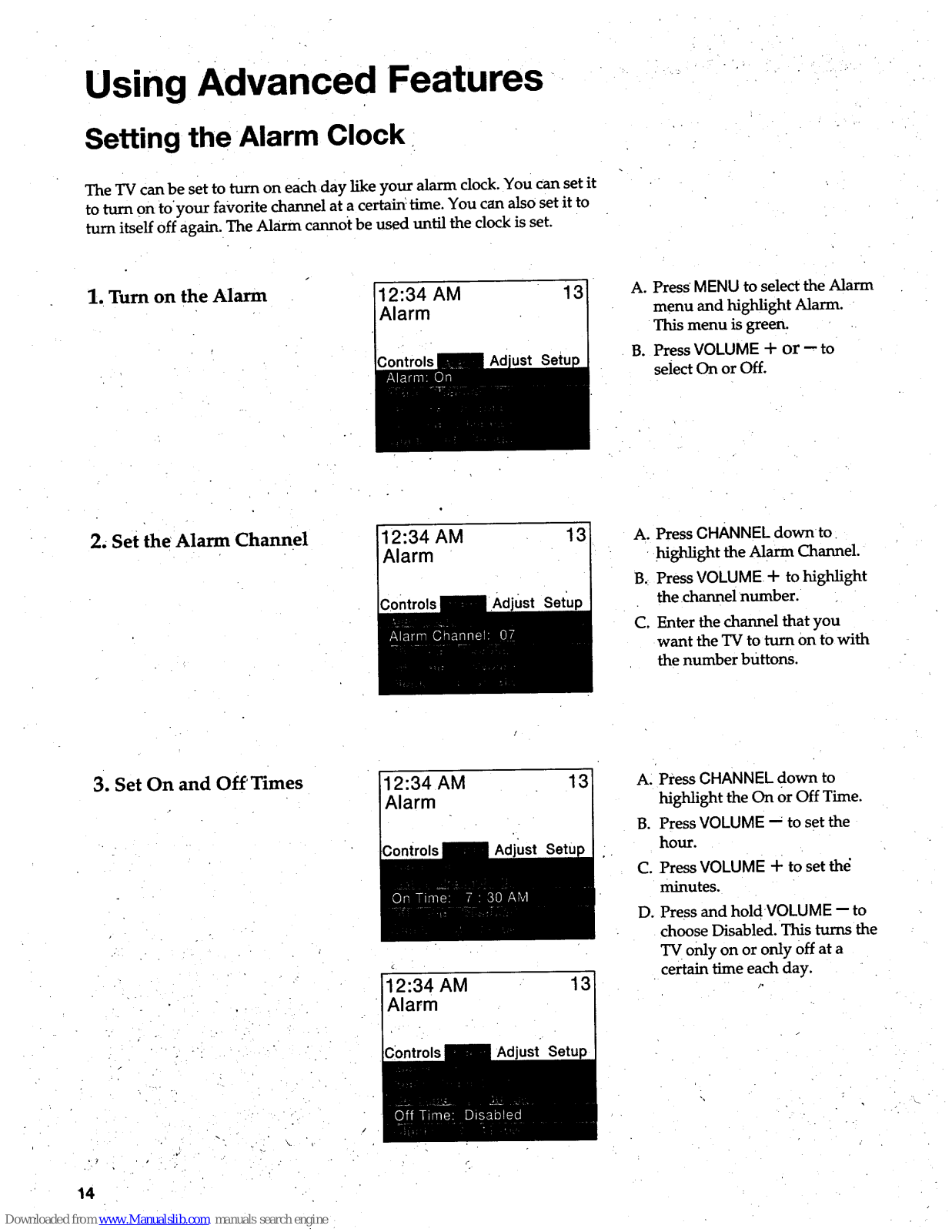

Setting the Alarm Clock
Watching Closed Captioning

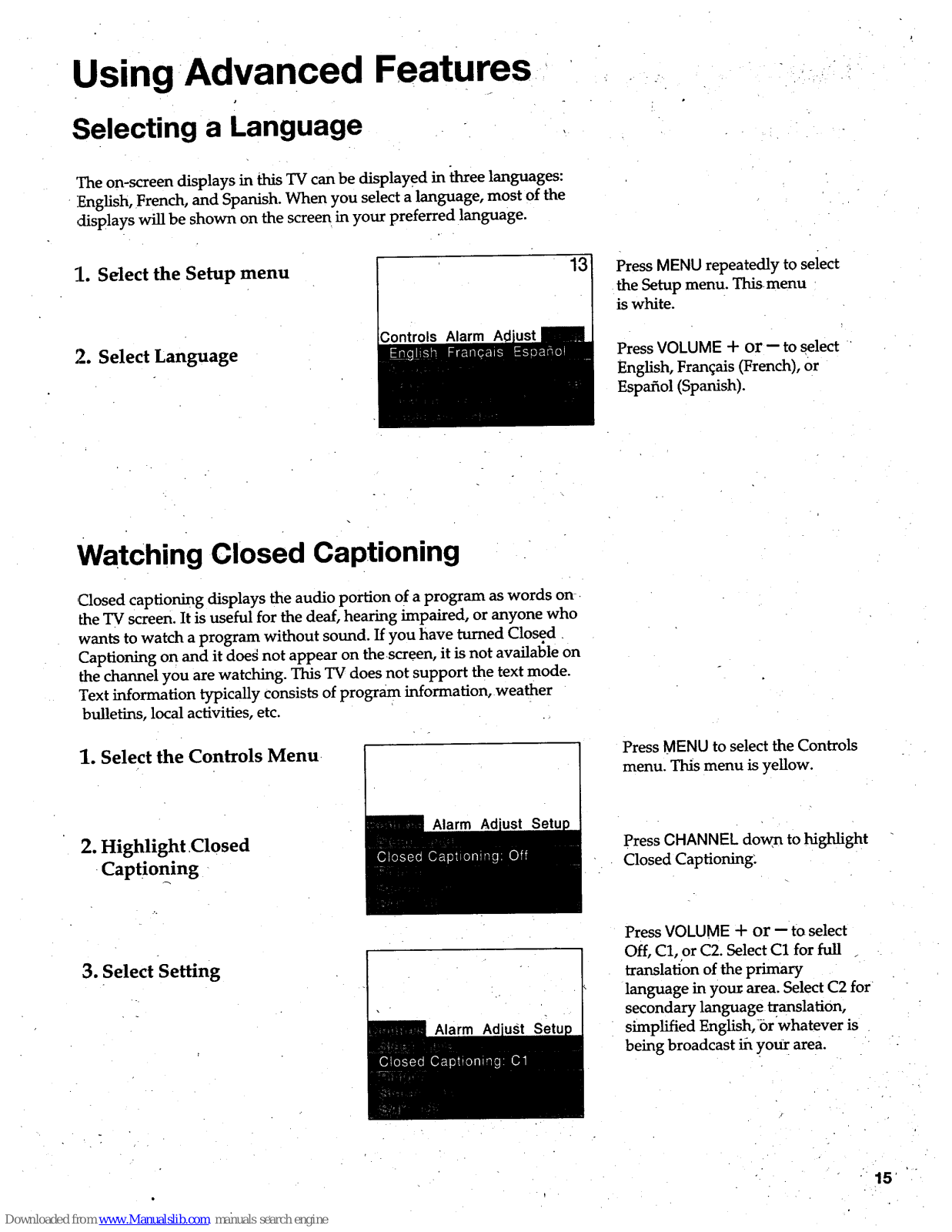

Selecting a Language

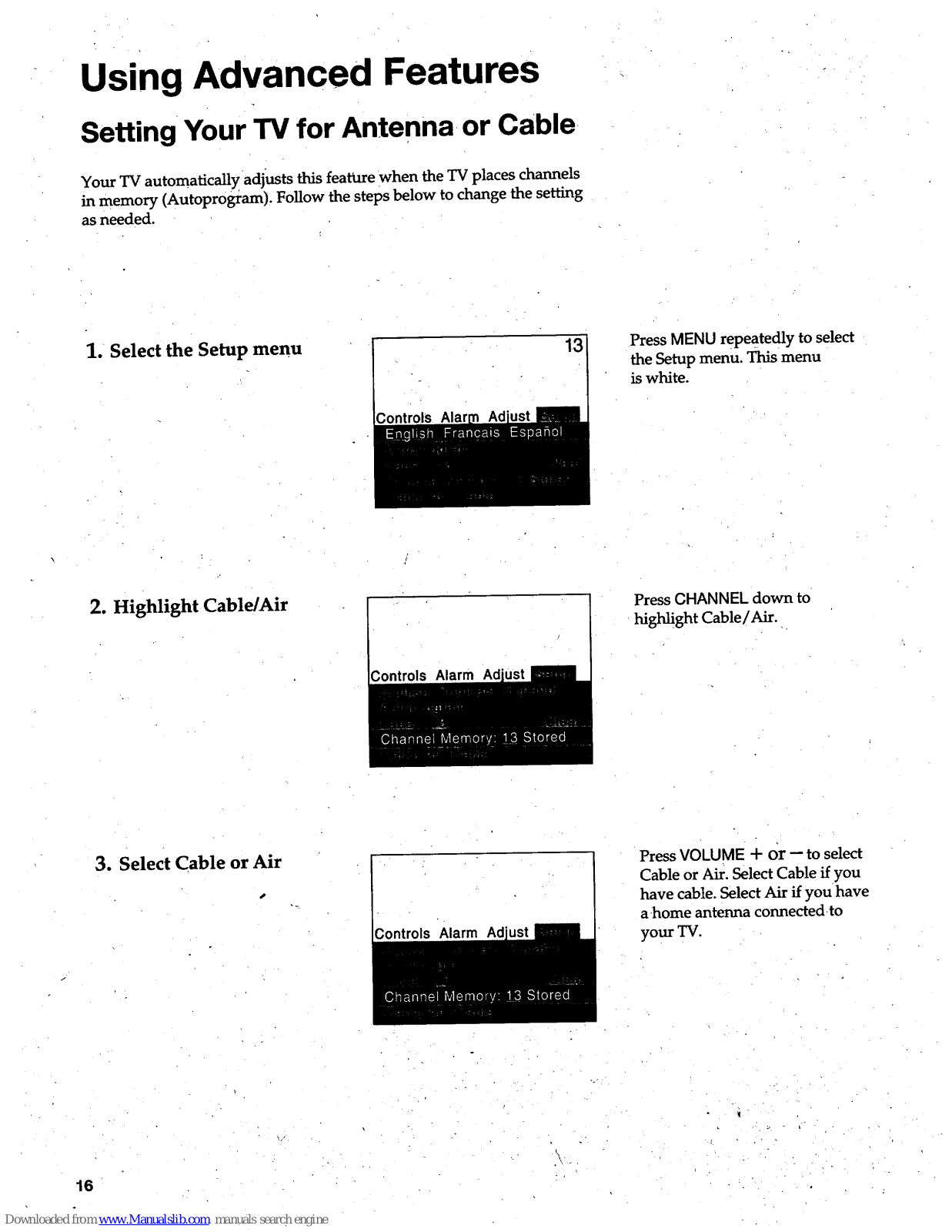

Setting YourTV for Antenna or Cable

11

12

13
14

15

15

16

References

Front Panel Buttons

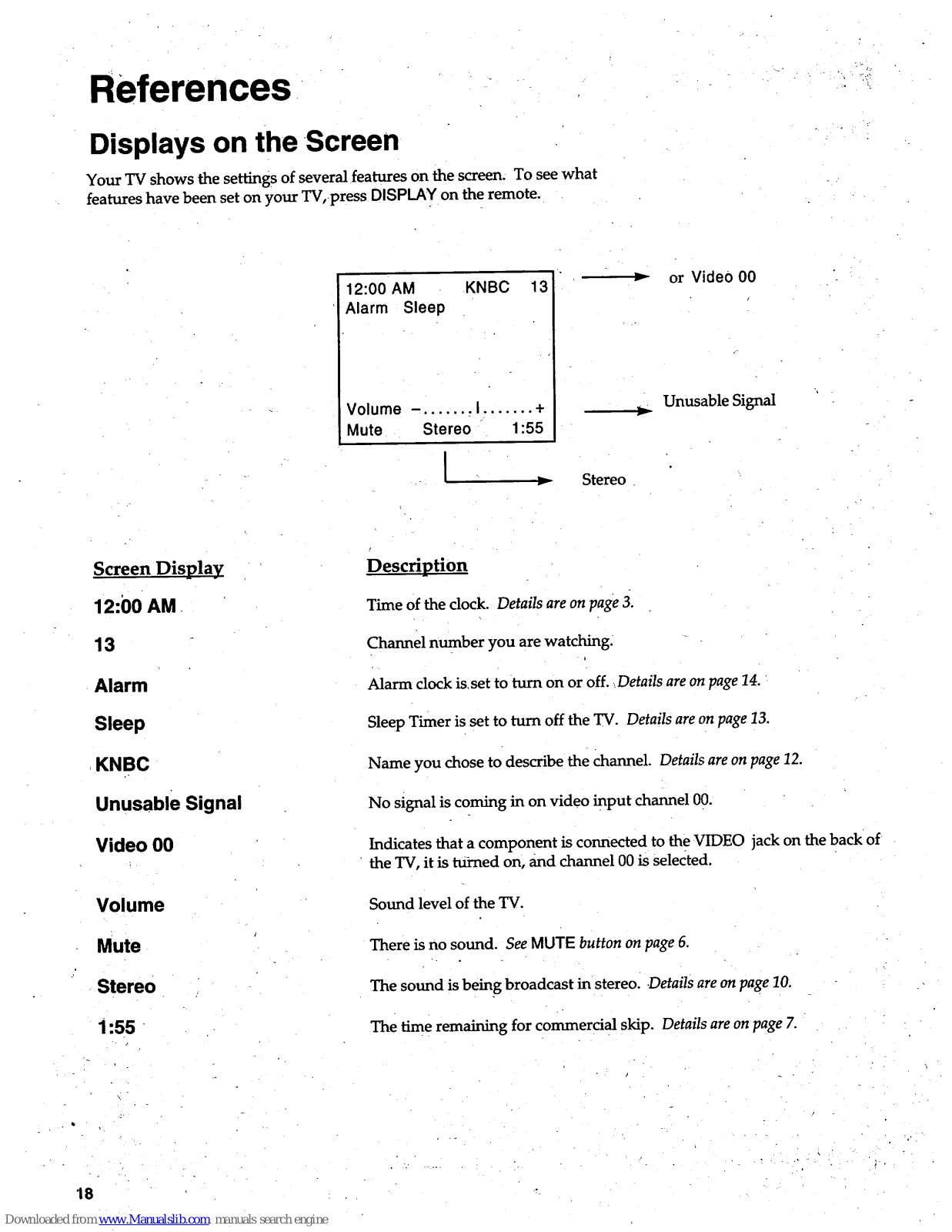

Displays on the Screen

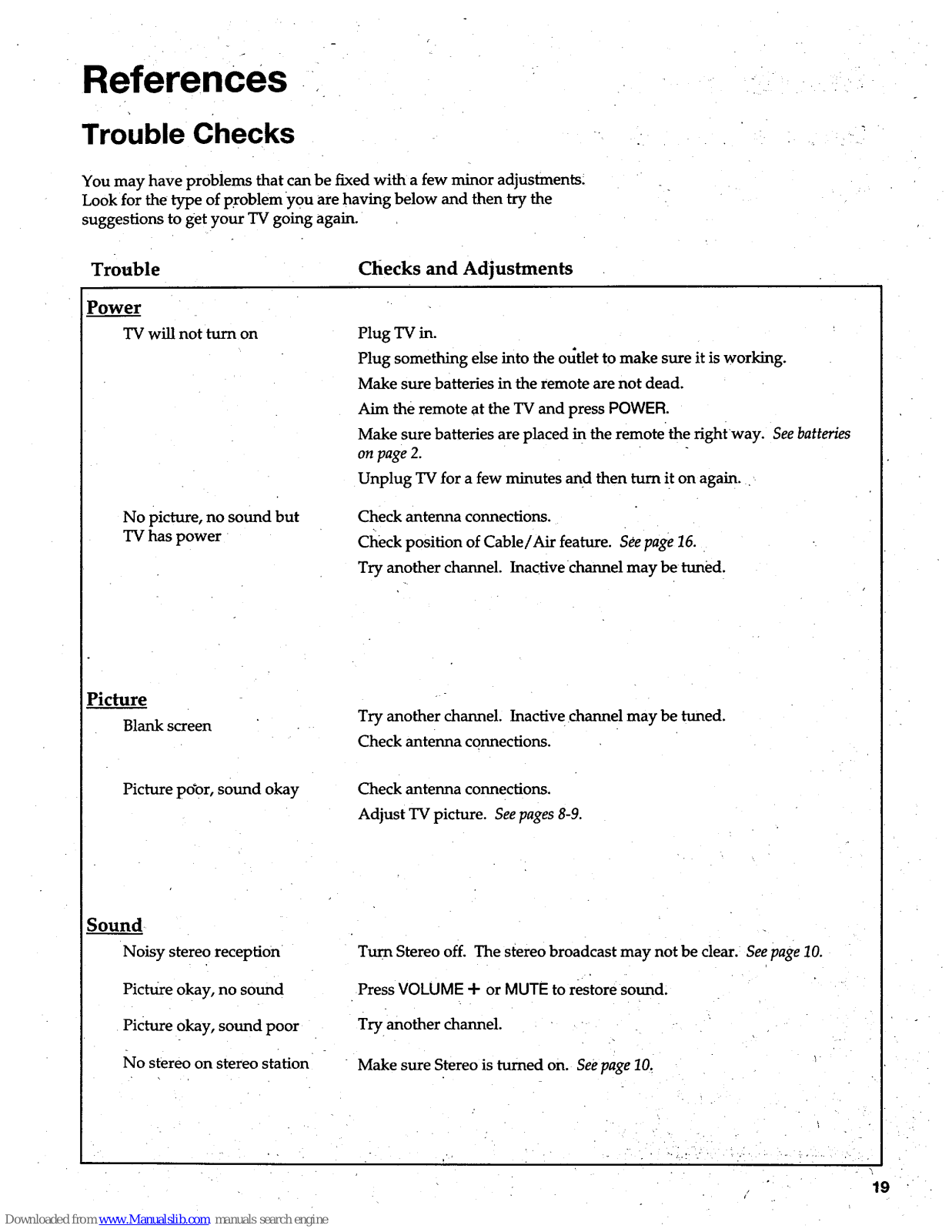

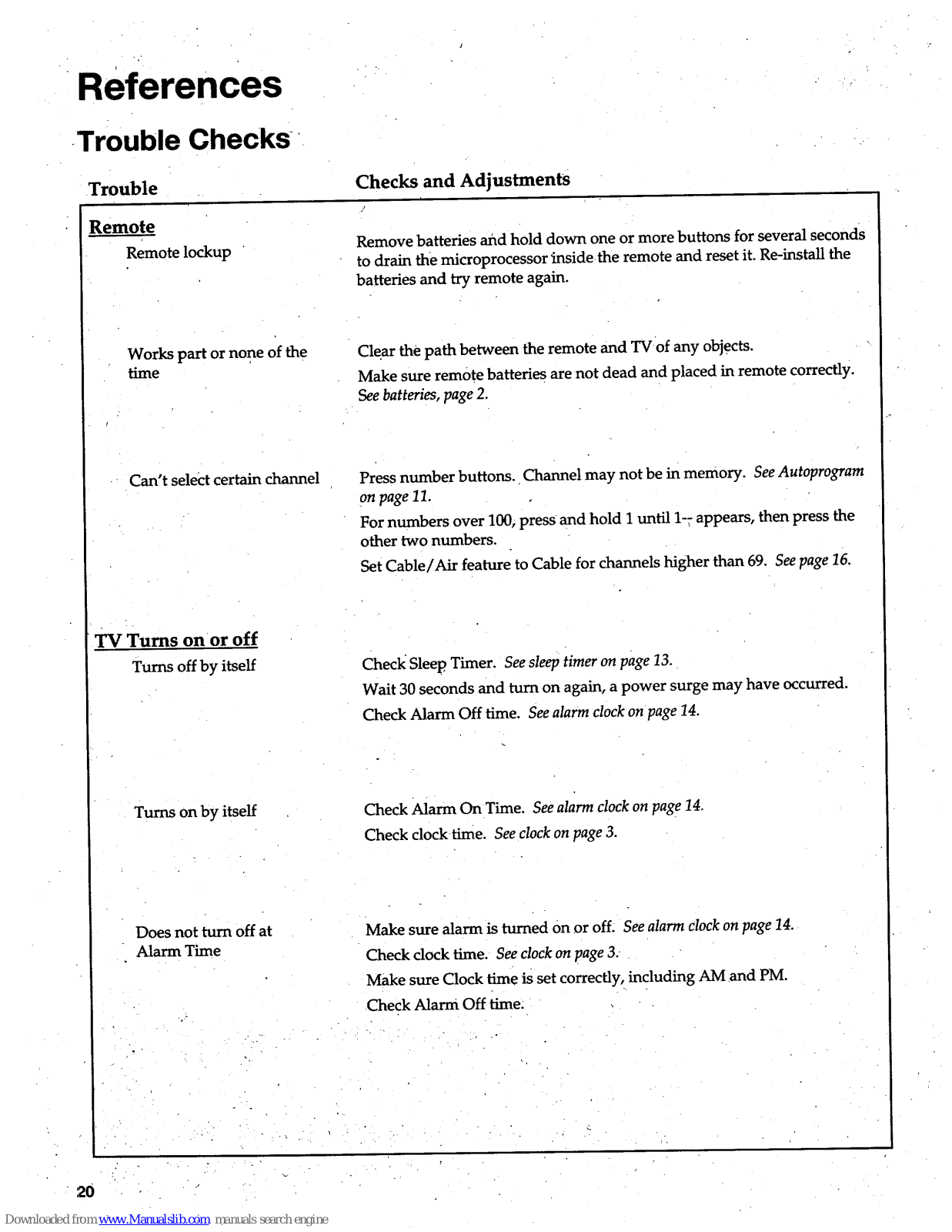

Trouble Checks

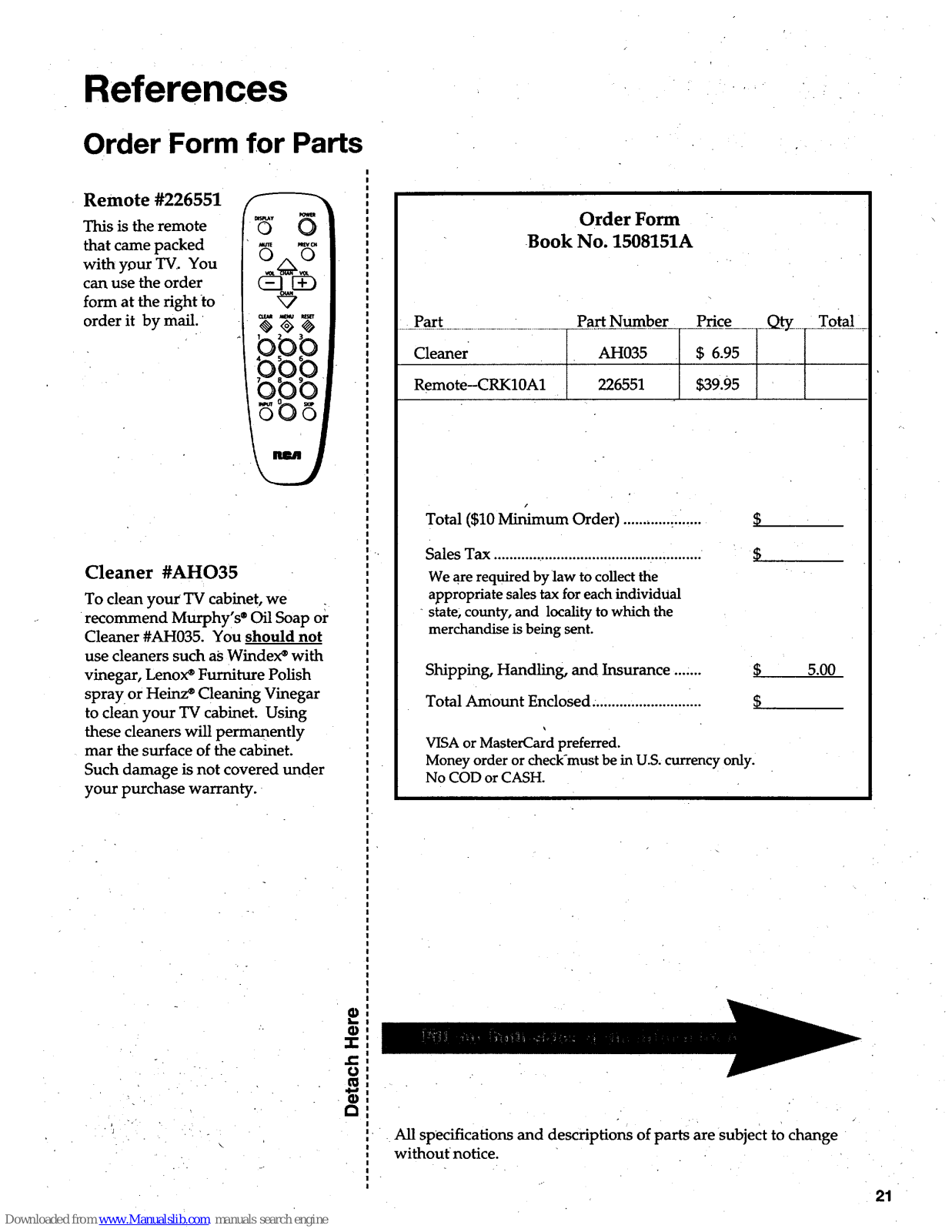

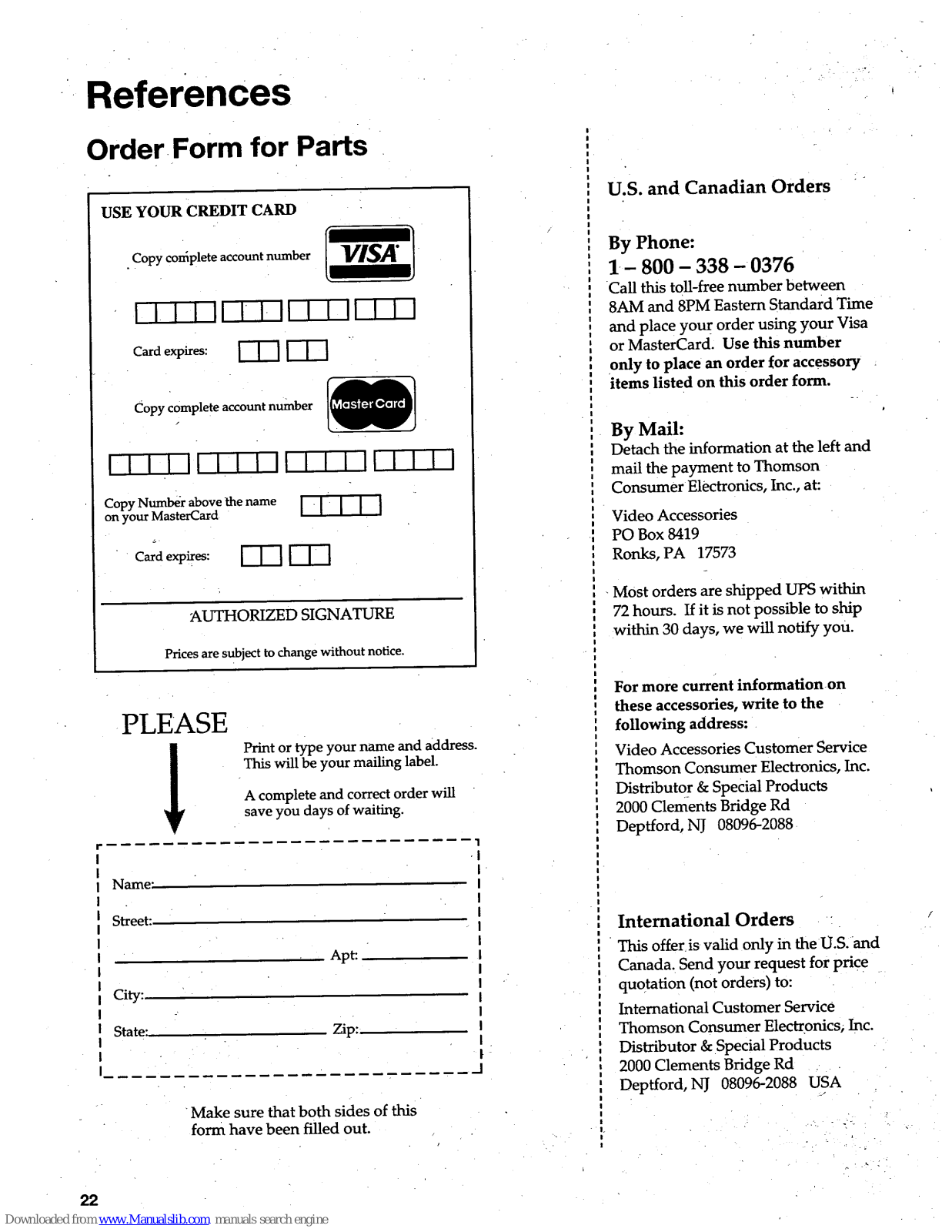

Order Form for Parts

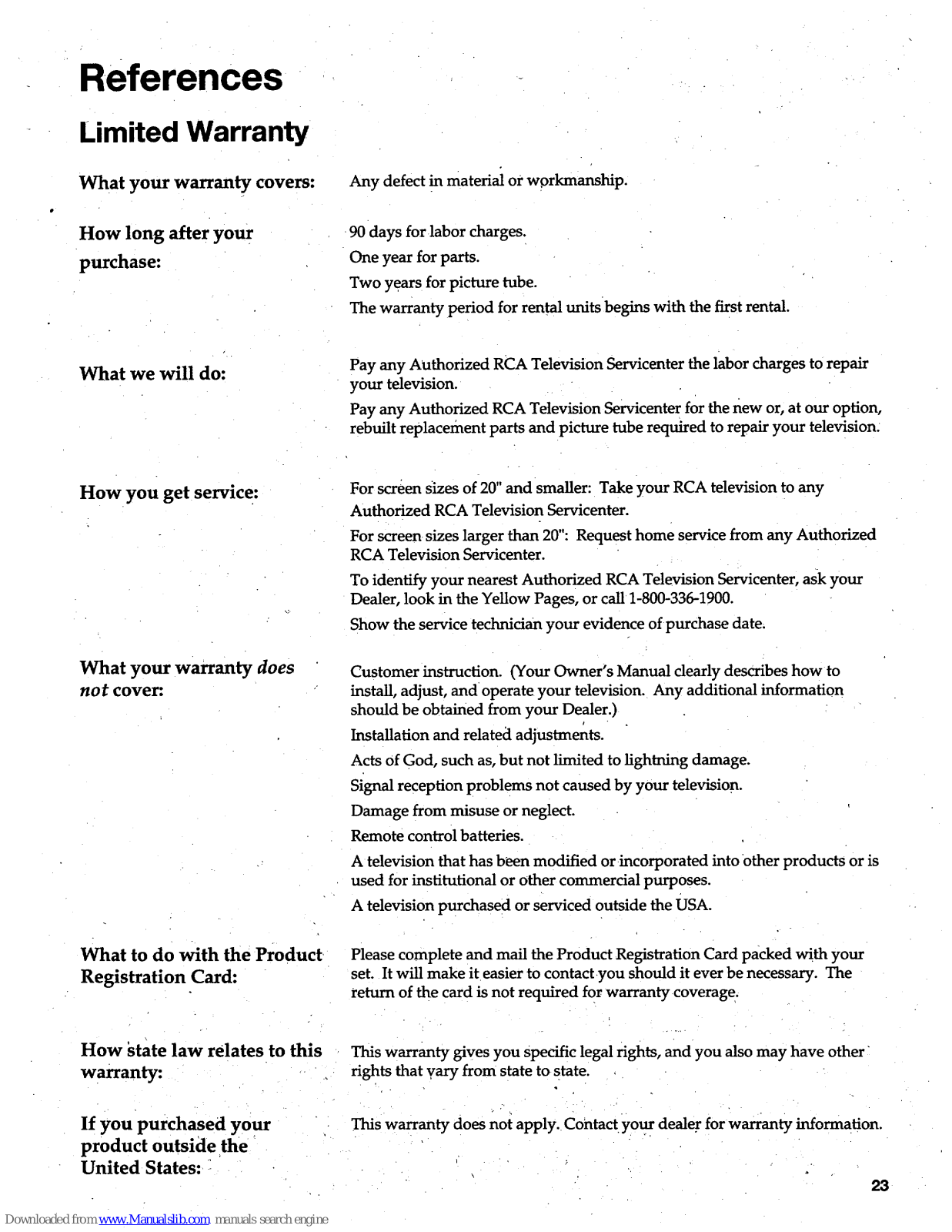

Limited Warranty

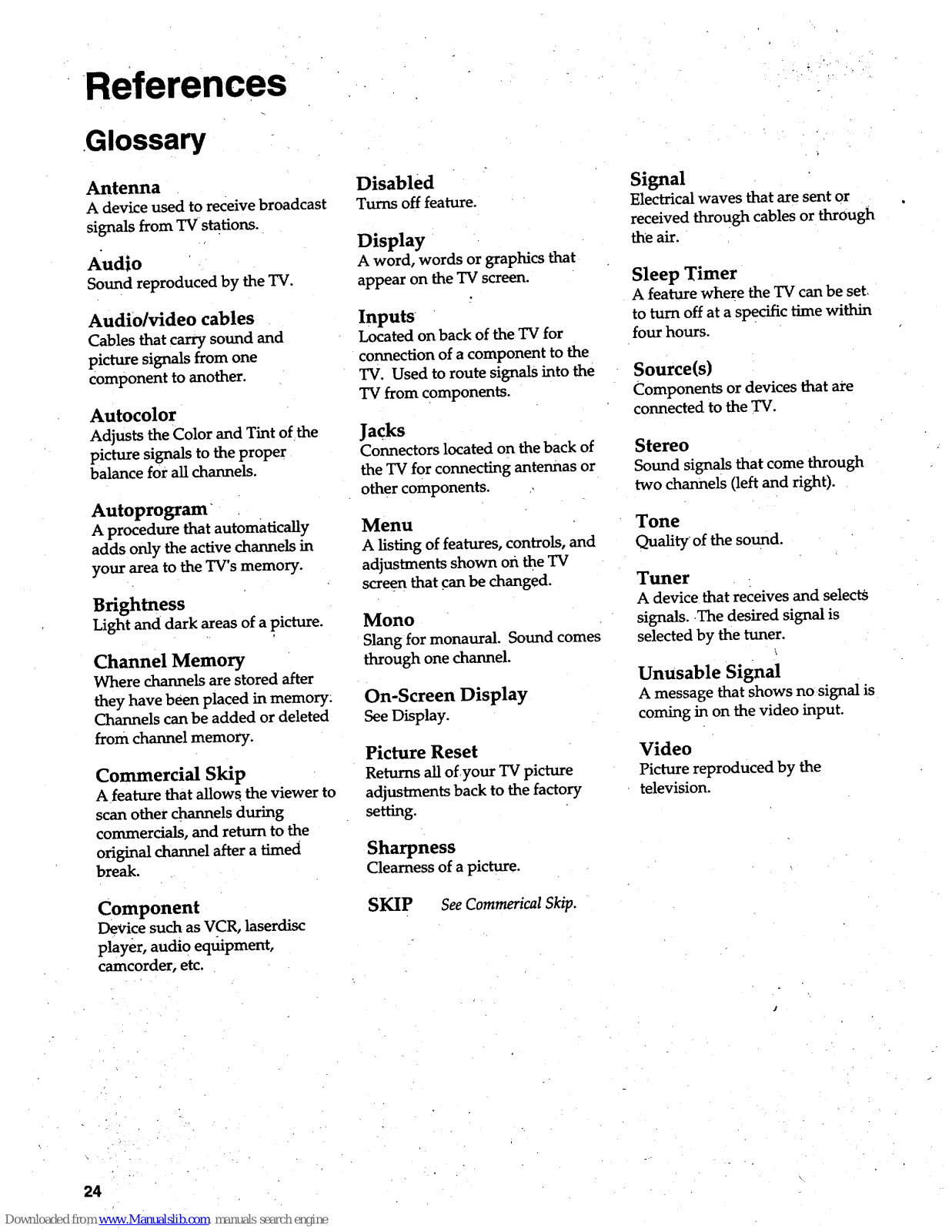

Glossary

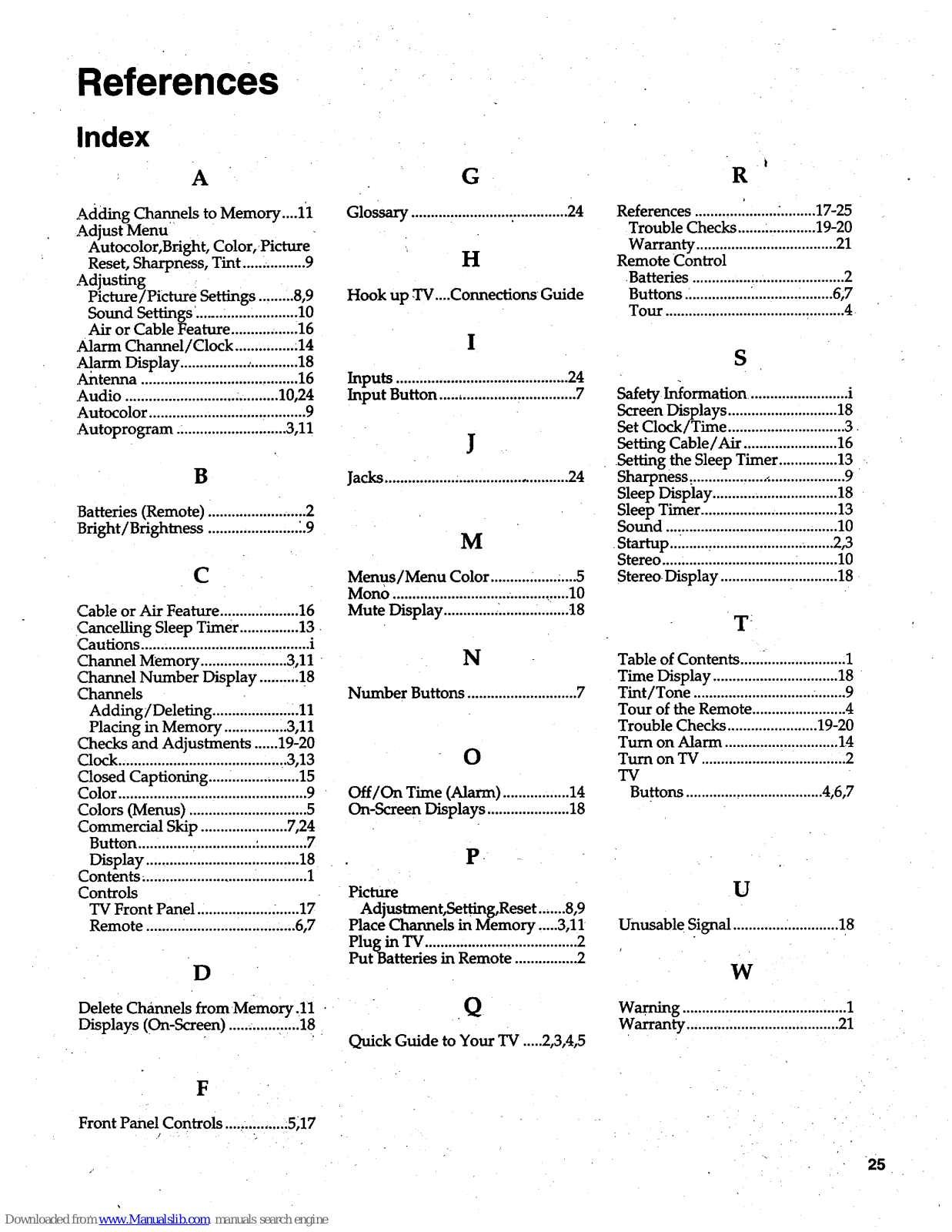

Index .

17
18

19-20
21-22

23
24

25

Quick Guide to Your TV

Startup

The steps below will get your TV connected and ready for watching. For
more details, see the page numbers listed. •

1. Hook up your TV

Details are in the Connections

Guide.

CONNECTIONS

, GUIDE

Hook up any antennas, cables or

other equipment to your TV before
you foUow the ste _s below.

2. Plug in the TV

Plug the •cord into the outlet,
matching the wide and the small
end of the plug with the outlet.

3. Put Batteries in the Remote

p

A. Pull off the cover of thebattery

compartment.

B. Place two AAA batteries as

shown, matching the 4- and -

•end of each battery in the
.compartment.

C. Replace the cover.

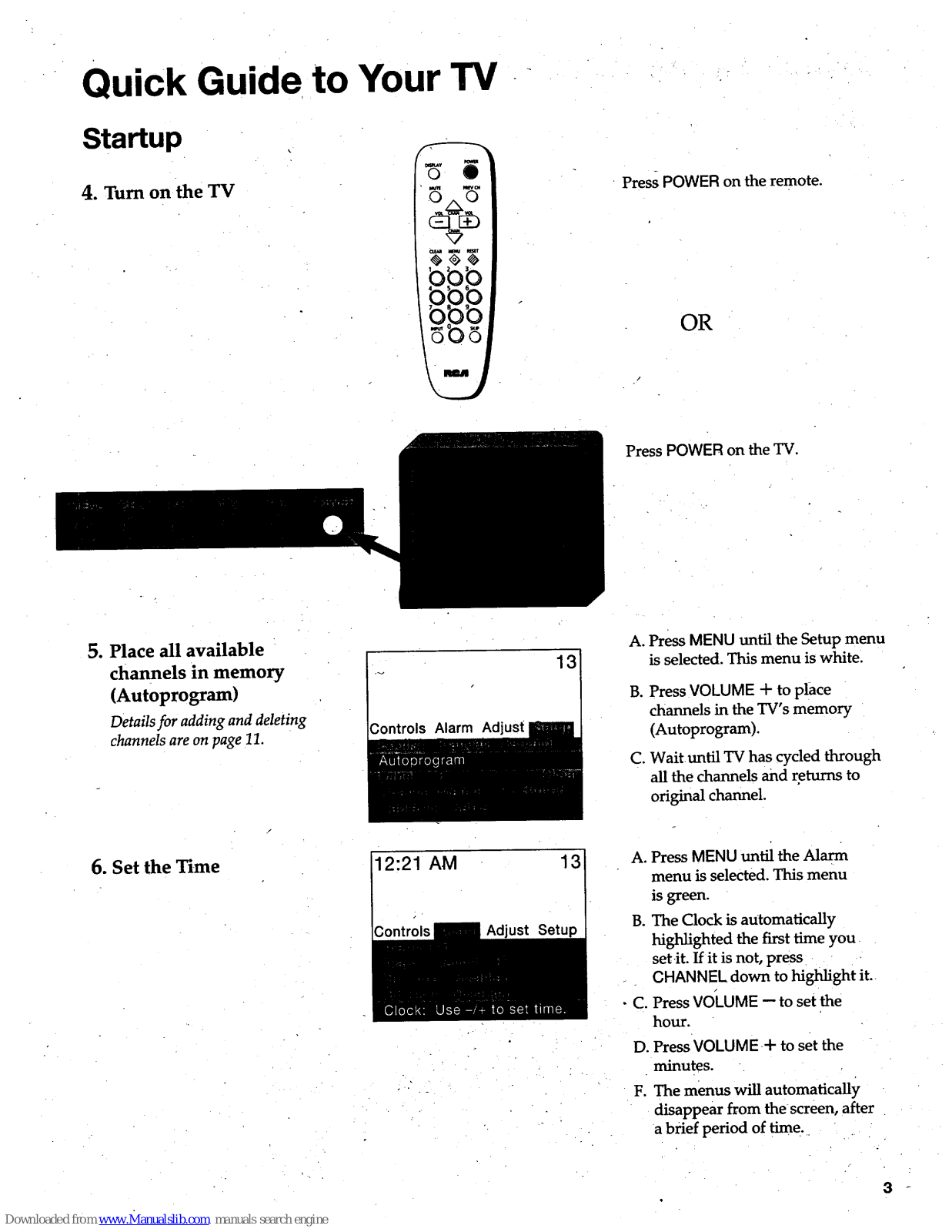

Quick Guide to Your TV

Startup

4. Turn on the TV

•_? I

_'_1

_'9 I

_1

),J.

Press POWER on the remote.

OR

Press POWER on the TV.

5. Place all available
channels in memory

(Autoprogram)

Detailsfor addinganddeleting
channelsareon page11.

Controls

Alarm

13

A. Press MENU until the Setup menu

is selected. This menu is white.

B. Press VOLUME + to place

channels in the TV's memory
(Autoprogram).

C. Wait until TV has cycled through

all the channels and rettu-ns to

original channel.

6. Set the Time

2:21 AM

13

ust Setup

A. Press MENU until the Alarm

menu is selected. This menu

is green.

B. The Clock is automatically

highlighted the first time you
set-it. If it is not, press

CHANN EL down to highlight it.

- C. Press VOLUME -- to set the

hour.

D. Press VOLUME + to set the

minutes.

F. The menus will automatically

disappear from the screen, after
a brief period of time.

3

QuickGuide to Your TV

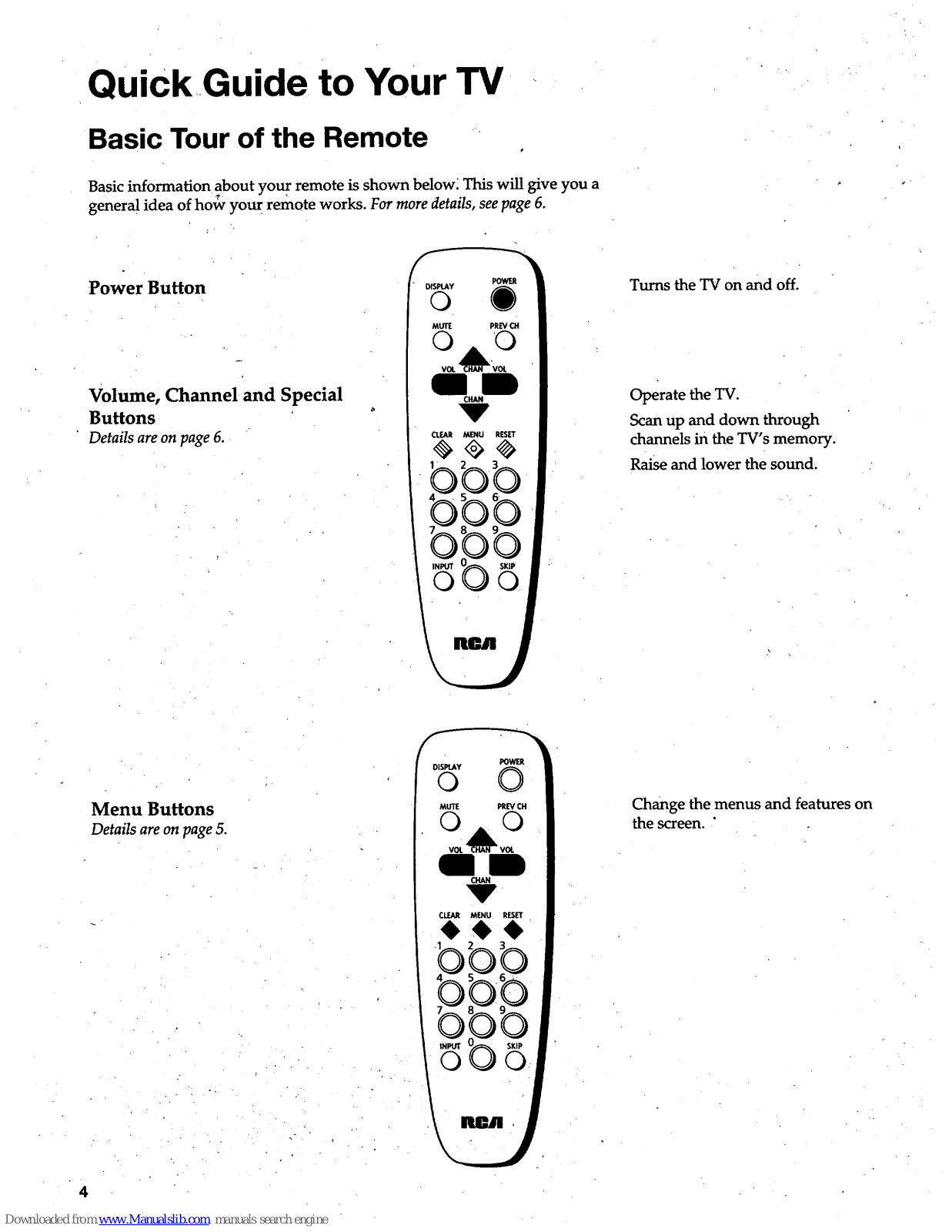

Basic Tour of the Remote

Basic information about your remote is shown below_ This will give you a

general idea of holy your remote works. For more details, see page 6.

Power Button

Volume, Channel and Special
Buttons

Details are on page 6.

MUTE PREV CH

0 0

VOL '_'VO_.

CHAN

CLEAR MENU RESET

'_5

Turns the TV on and off.

Operate the TV.
Scan up and down through

channels in the TV's memory.
Raise and lower the sound.

Menu Buttons

Details areon page5.

POWER

°_ 0

MUTE PREV CH

CLEAR MENU RESET

4b4b 4b

p2 3

PP

PPP

opo

Change the menus and features on
the screen. "

4

Quick Guide to.Your TV

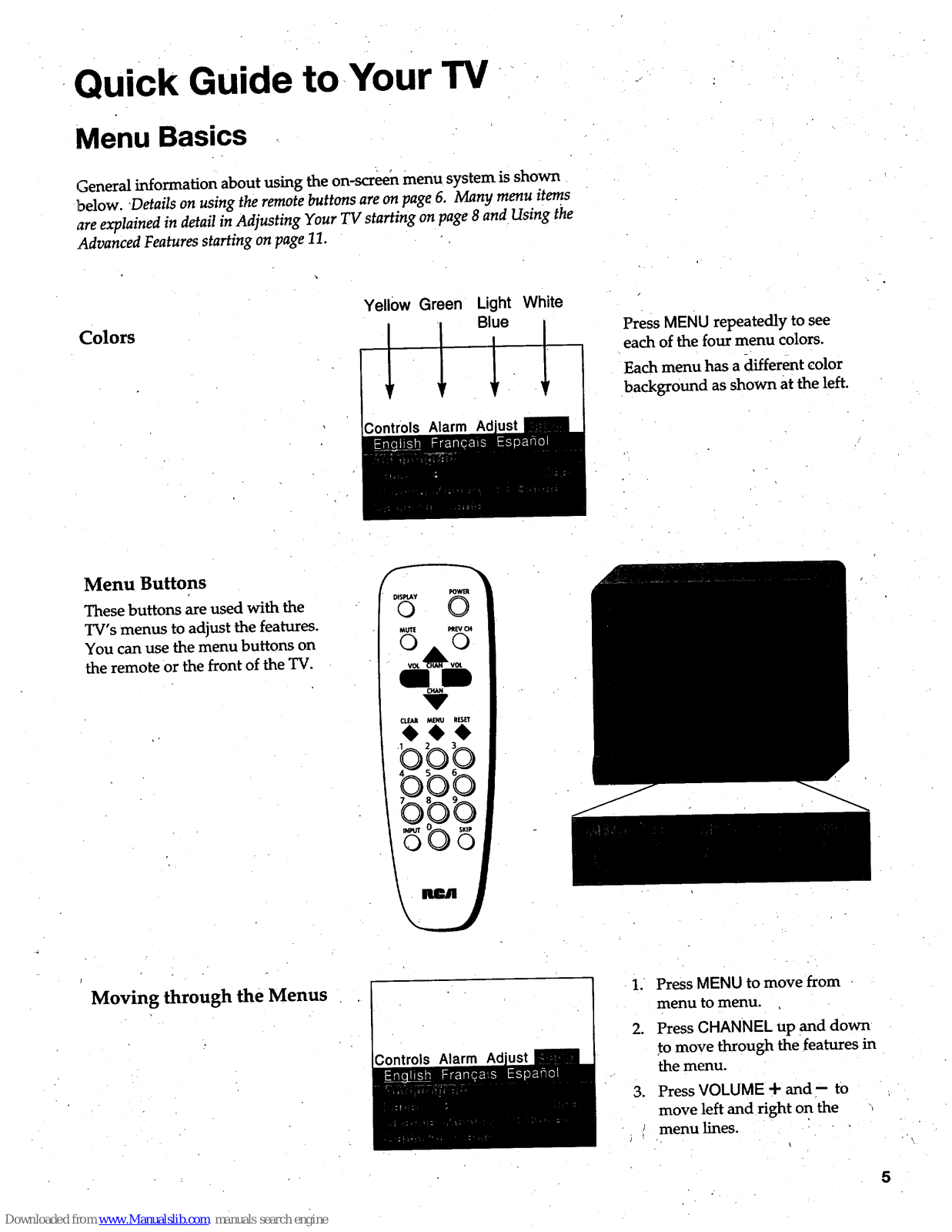

Menu Basics

General information about using the on-screen menu system is shown

below. Details on using the remote buttons are on page 6. Many menu items

are explained in detail in Adjusting Your TV starting on page 8 and Using the

.Advanced Features starting on page 11.

Colors

Yellow Green Light White

Controls Alarm

Press MENU repeatedly to see

each of the four menu colors.
Each menu has a (iifferent color
background as shown at the left.

Menu Buttons
These buttons are used with the

TV's menus to adjust the features.
You can use the menu buttons on

the remote or the front of the TV.

Moving through the Menus

;ontrols Alarm

• 1.

.

3.

) •!

Press MENU to move from
menu to menu.

Press CHANNEL up and down

to move through the features in
the menu.

Press VOLUME-I- and -- to

move left and right on the
menu lines.

\,

5

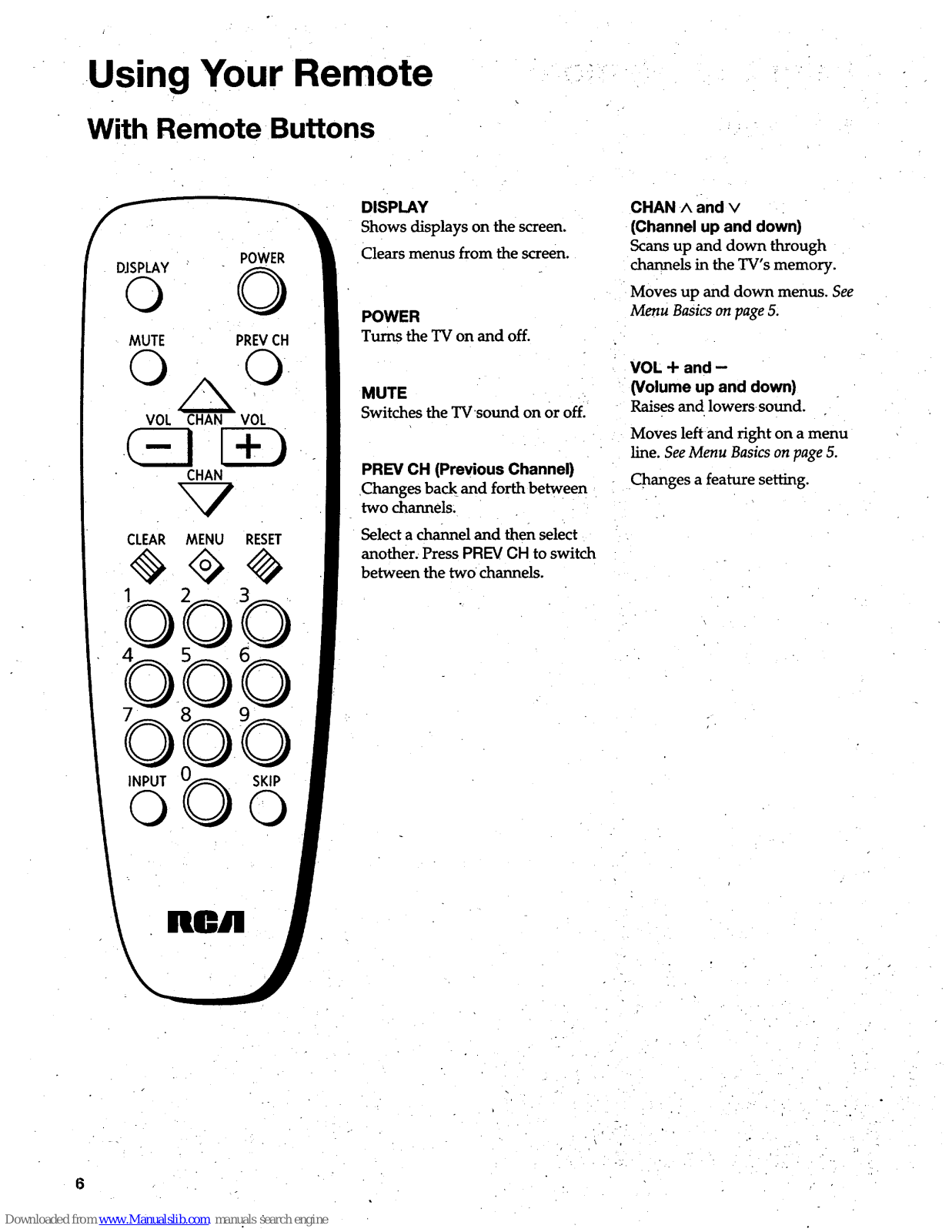

Using Your Remote

With Remote Buttons

÷ .

POWER

©

MUTE PREVCH

VOL CHAN VOL

CHAN

CLEAR MENU RESET

INPUT

©

SKIP

DISPLAY
Shows displays on the screen.

Clears menus from the screen.

POWER

Turns the TV on and off.

MUTE
Switches the TVsound on or off.

PREV CH (Previous Channel)

Changes back and forth between

two channels:

Select a channel and then select
another. Press PREV CH to switch

between the two channels.

CHAN -^ and v
(Channel up and down)

Scansup and down through

channels in the TV's memory.
Moves up and down menus. See

Menu Basics on page 5.

VOL + and --

(Volume up and down)

Raises and lowers sound.

Moves left and right on a menu

line. See Menu Basics on page 5.
Changes a feature setting.

6

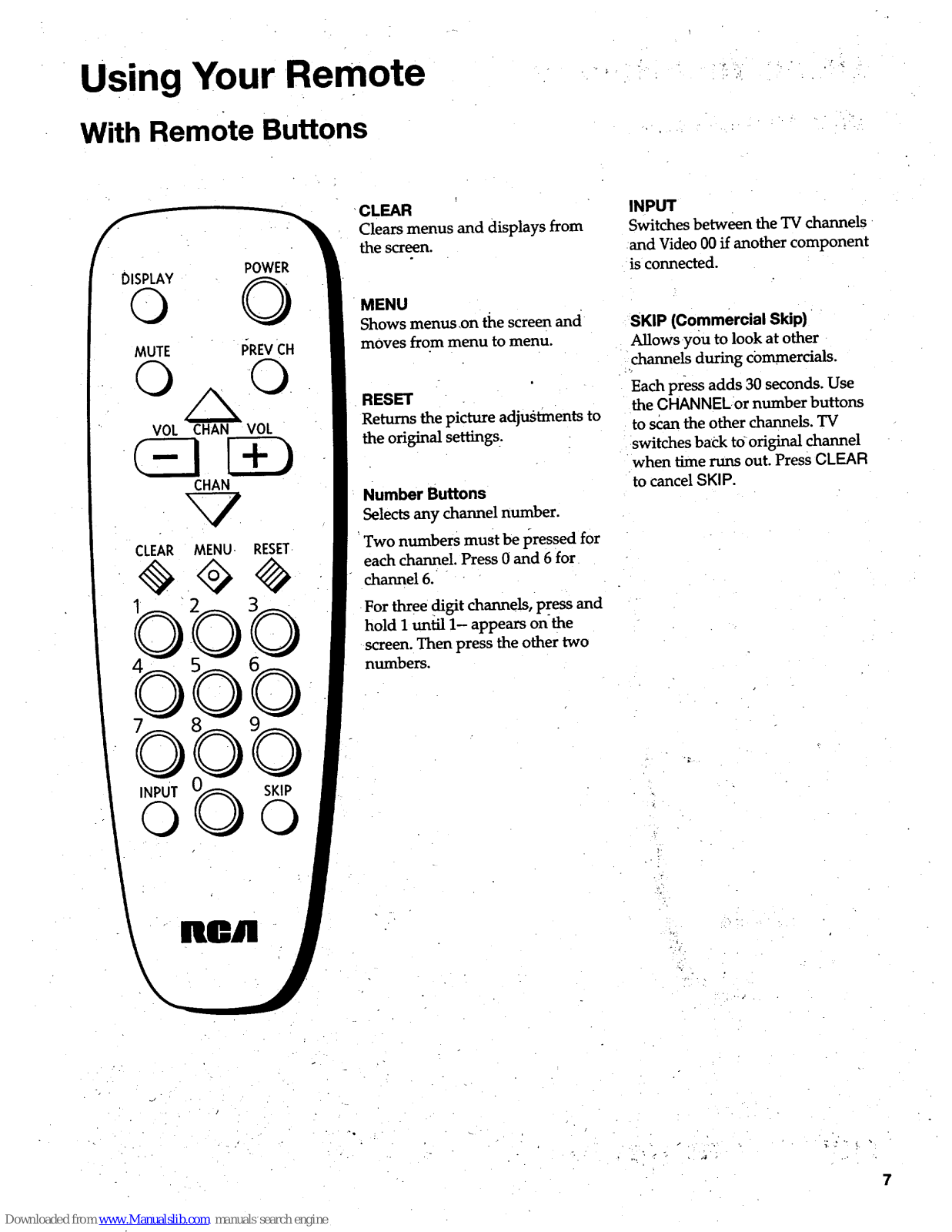

Using Your Remote

With Remote Buttons

T ;

. , . .-...

POWER

MUTE I_REVCH

© 0

VOL CHAN VOL

CHAN

V

CLEAR MENU, RESET-

neA

CLEAR

Clears menus and displays from

the screen.

MENU
Shows menus ,on the screen and

moves from menu to menu.

RESET

Returns the picture adjustments to
the original settings.

Number Buttons
Selects any channel number.

Two numbers must be t_ressed for
each channel. Press 0 and 6 for

channel 6.
For three digit channels, press and

hold I until 1- appears on the
screen. Then press the other two

numbers.

INPUT

Switches between the TV channels

and Video 00 if another component
is connected.

SKIP (Commercial Skip)

Allowsyou to look at other

channels during commercials.
Each press adds 30 seconds. Use

the CHANNEL or number buttons
to scan the other channels. TV

switches back to original channel
when time runs out. Press CLEAR

to cancel SKIP.

7

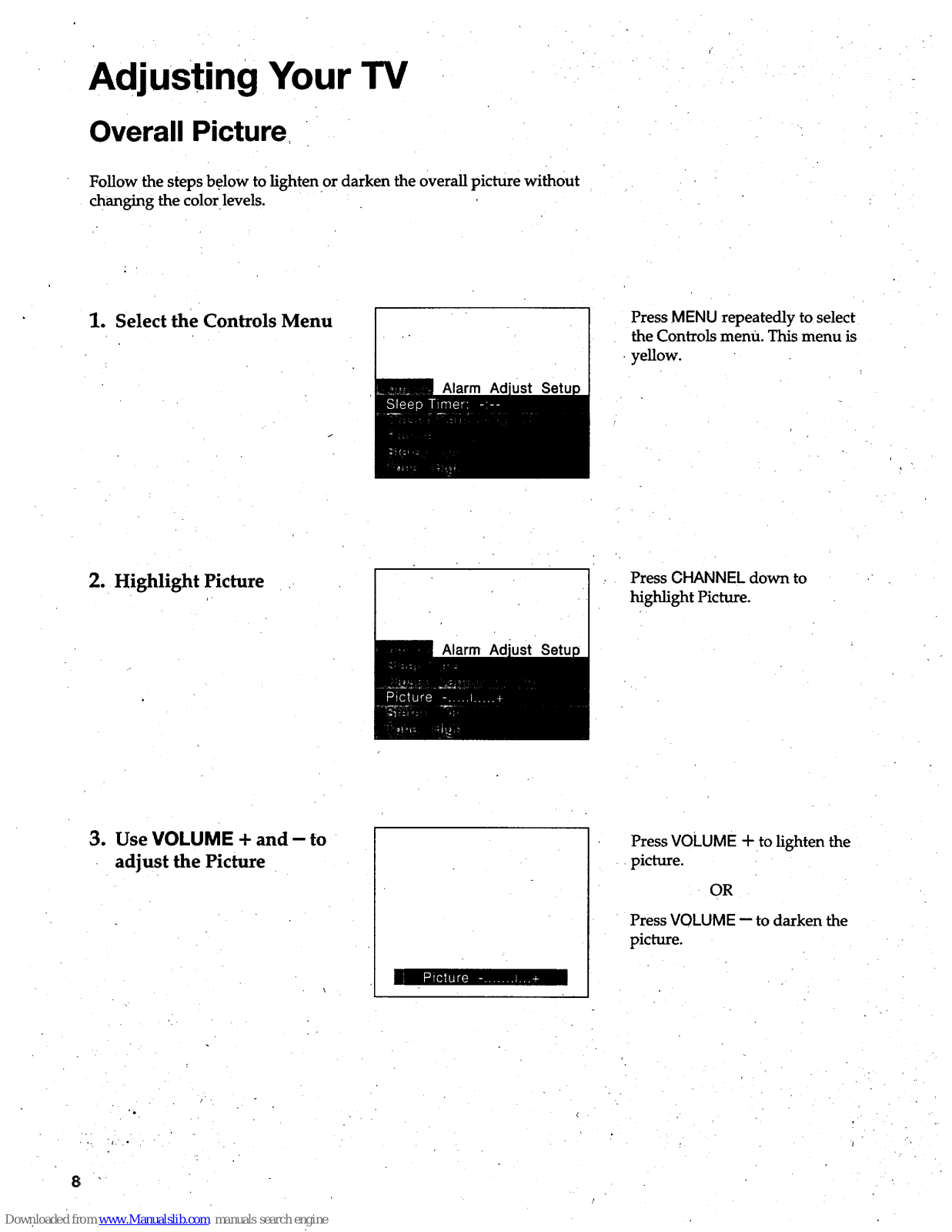

Adjusting Your TV

Overall Picture.

Follow the steps below to lighten or darken the overall picture without
changing the color levels.

1. Select the Controls Menu

Alarm Ad

Press MENU repeatedly to select

the Controls menu. This menu is

• yellow.

2. Highlight Picture

Alarm Ad

Press CHANNEL down to

highlight Picture.

3. Use VOLUME + and - to

adjust the Picture

Press VOLUME + to lighten the
picture.

OR

Press VOLUME -- to darken the
picture.

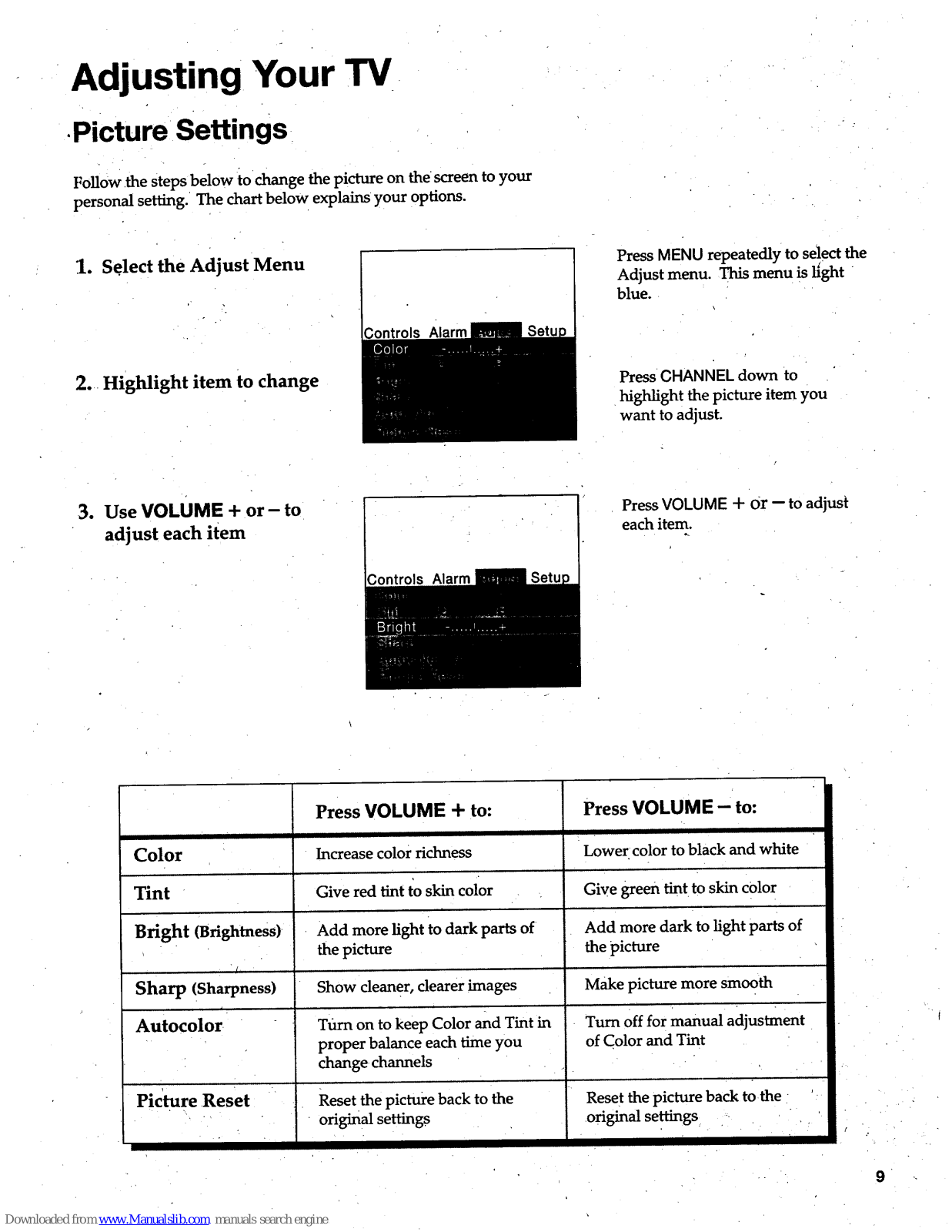

Adjusting Your TV

•Picture Settings

Follow the steps below to change the picture on the screen to your
personal setting. The chart below explains your options.

1. Select the Adjust Menu

2. Highlight item to change

Controls Alarm

Press MENU repeatedly to select the

Adjust menu. This menu is l_ght

blue.

Press CHANNEL down to
highlight the picture item you

want to adjust.

e Use VOLUME + or - to

adjust each item

Alarm

Press VOLUME+ Or -- to adjust

each item.

Color

Tint

Bright (Brightness)

J

Sharp (Sharpness)
Autocolor

Picture Reset

Press VOLUME + to:

IL II

Increase color richness

Give red tint to skin color • •

Add more light to dark parts of
the picture

Show cleaner, dearer images

Turn on to keep Color and Tint in
proper balance each time you
change channels

Reset the picture back to the
original settings

Press VOLUME - to:

III

Lower color to black and white

Give green tint to skin c01or

Add more dark to light parts of
the picture

Make picture more smooth

Turn Off for manual adjustment

of Color and Tint

Reset the picture back tothe '

.original settings -- . , ,

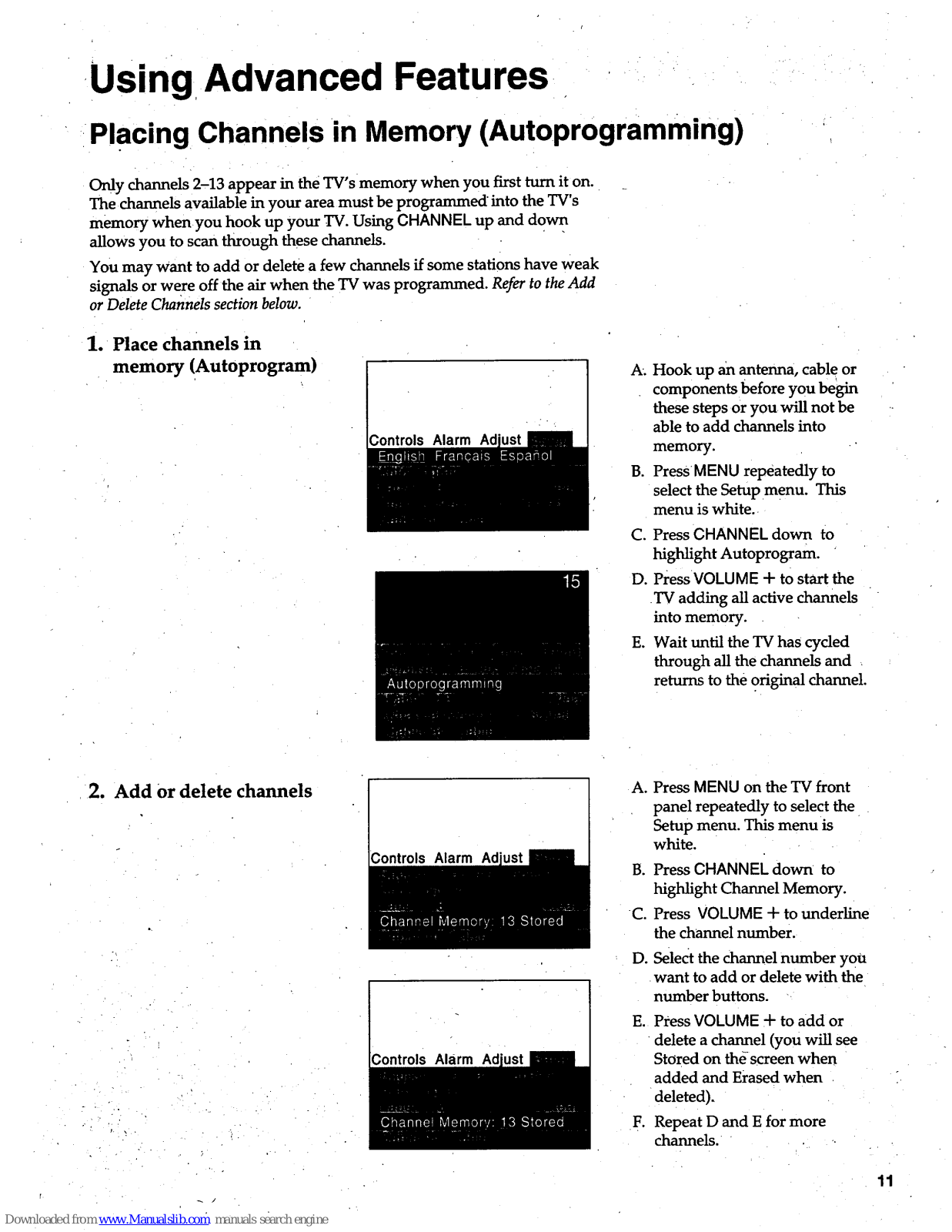

Using, Advanced Features

Placing Channels in Memory (Autoprogramming)

Only channels 2-13 appear in the TV's memory when you first turn it on.
The channels available in your area must be programmed into the TV's

memory when you hook up your TV. Using CHANNEL up and down
allows you to scan through these channels.

You may want to add or delete a few channels if some stations have weak
signals or were off the air when the TV was programmed. Refer to the Add

or Delete Channels section below.

1. Place channels in

memory (Autoprogram)

Controls Alarm

A..

g.

Hook up an antenna, cable or

components before you begin
these steps or you will not be

able to add channels into
memory.

Press MENU repeatedly to

select the Setup menu. This
menu is white.

C. Press CHANNEL down to

highlight Autoprogram.

D. Press VOLUME + to start the

TV adding all active channels
into memory.

E. Wait until the TV has cycled

through all the channels and
returns to the original channel.

2. Add or delete channels

Controls Alarm Ad

;ontrols Alarm Ad

A. Press MENU on the TV front

panel repeatedly to select the
Setup menu. This menu is

white.

B. Press CHANNEL down to

highlight Channel Memory.

C. Press VOLUME + to underline

the channel number.

D. Select the channel number you

want to add or delete with the
number buttons.

E. Press VOLUME + to add or

delete a channel (you will see

Stored on the screen when

added and Erased when
deleted).

F. Repeat D and E for more

channels.

11

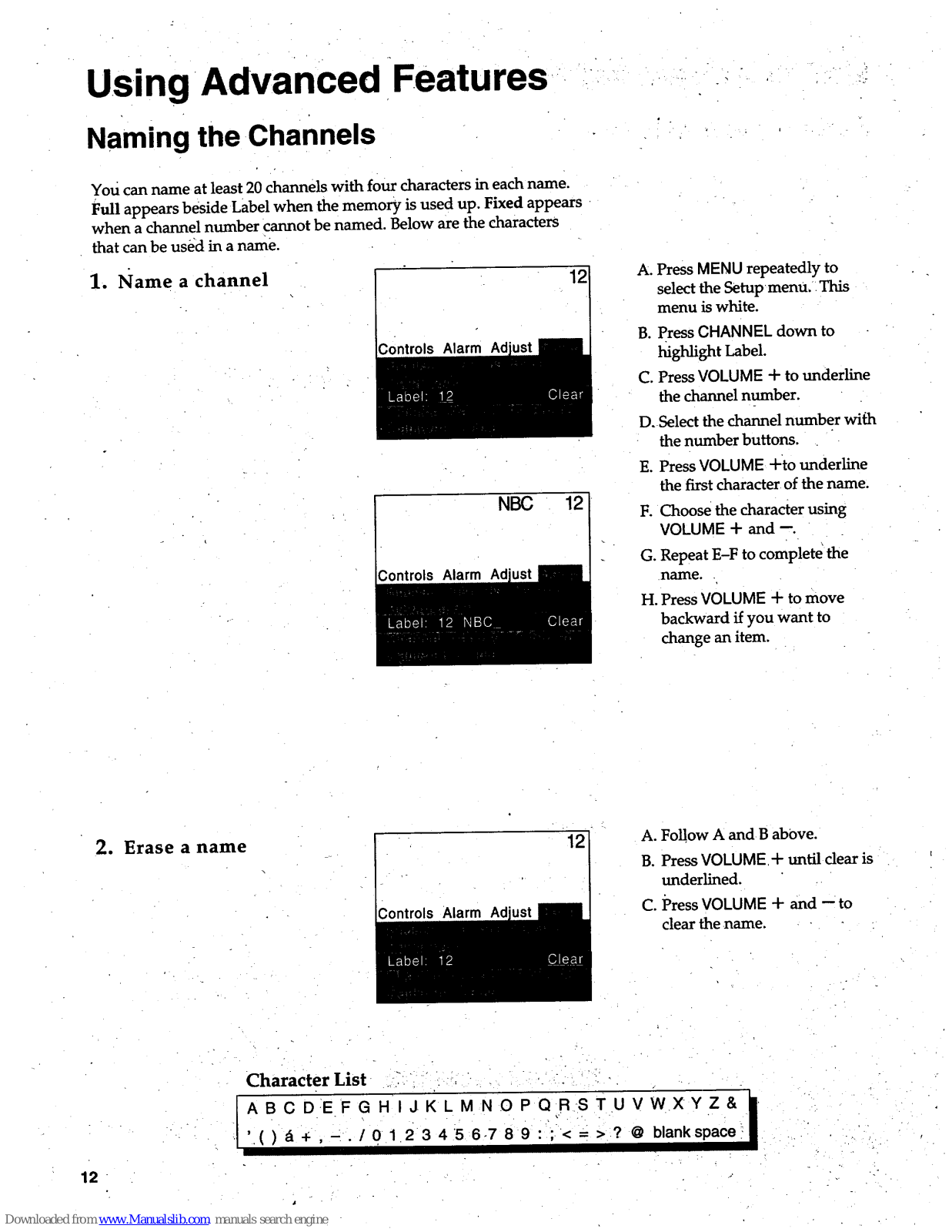

Using Advanced Features

Naming the Channels

You can name at least 20 channels with four characters in each name.

Full appears beside Label when the memory is used up. Fixed appears
when a channel number cannot be named. Below are the characters

that can be used in a name.

1. Name a channel ' 12

Controls Alarm Ad

Controls Alarm

NBC

12

A. Press MENU repeatedly to

select the Setupmenu. iThis

menu is white.

B. Press CHANNEL down to

highlight Label.

C. Press VOLUME + to underline

the channel number.

D.Select the channel number wif.h

the number buttons.

E. Press VOLUME +to underline

the first character of the name.

F. Choose the character using

VOLUME + and --.

G. Repeat E-F to complete the

IlalTte.

H. Press VOLUME + to move

backward if you want to
change an item.

2. Erase a name

,ontrols Alarm Ad

12

A. FoUow A and B above.
B. Press VOLUME,+ until clear is

underlined.

C. Press VOLUME + and --to

clear the name.

12

- ..... •. ,

Character

List

IABC DEFG H ,J KLM. " NO PQ R:STUVWXYZ&/,.. .

• ' () d +,,. /01 2345 6-789:";< = > ? @ blank space

8

Using Advanced Features

Setting the Sleep Timer

You can set your, TV tOturn itself off: If you're watching TV at rdgM and
fall asleep, the TV will turn off for you.

1. Set Sleep Timer

Alarm Ad

11:00 PM 13

A. Press MENU to select the

Controls menu and highlight

• Sleep Timer, This menu is

- yellow.

B. Press VOLUME +,to enter the

amount of time you want to
watch TV before it shuts off.

Each press equals 15 minutes.

C. Press VOLUME -- to subtract

time from the sleep timer.

Alarm Ad

2. Add more time

Alarm

When 0:01•appears on the screen,

- the TV will shut off in one minute.

Press VOLUME + to add
more time.

9. Cancel the Timer

. ° ...

Alarm

A. Press MENU to select the

Controls menu and highlight

Sleep Timer.

B. Press VOLUME "untitthe t_ne

reaches - :--.

. - .

- . . . -

f. . . ..

13

Using Advanced Features

Setting the Alarm Clock

The TV can be set to turn on each day like your alarm clock. You can set it

to turn on toyour favorite channel at a certain time. You can also set it to
turn itself off again. The Alarm cannot be used until the clock is set.

1. Turn on the Alarm

12:34 AM 13
Alarm

A. PressMENU to selectthe Alarm

menu and highlight Alarm.
This menu is green.

B. Press VOLUME + or -- to

select On or Off.

2. Set the Alarm Channel

12:34 AM 13

rm

A. PressCHANNEL downto

highlight the Alarm Channel.

B. Press VOLUME + to highlight

the channel number.

C. Enter the channel that you

want the TV to turn on to with

the number buttons.

• i

3. Set On and Off' Times

12:34 AM 13

Alarm

AM 13

Ai Press CHANNEL down to

highlight the On or Off Time.

B. Press VOLUME -; to set the

hour.

C. Press VOLUME + to set th6

minutes.

D. Press and holdVOLUME -- to

choose Disabled. This turns the
TV only on or only off at a

certain time each day.

14

UsingAdvanced Features

Selecting a Language

'The on-screen displays in this TV can be displaye d in _tree languages:
English, French, and Spanish. When you select a language, most of the

displays will be shown on the screen in your preferred language.

1. Select the Setup menu

2. Select Language

;ontrols Alarm

13

Press MENU repeatedly to select
the Setup menu. This menu

is white.

Press VOLUME + or -- to select

English, Fran_ais (French), or

Espafiol (Spanish).

Watching Closed Captioning

,Closed captioning displays the audio portion of a program as words on-
the TV screen. It is useful for the deaf, hearing impaired, or anyone who

wants to watch a program without sound. If you have tumed Closed
Captioning on and it doe_ not appear on the,screen, it is not available on
the channel you are watching. This TV does not support the text mode.
Text information typically consists of program information, weather

bulletins, local activities, etc.

1. Select the Controls Menu

2. Highlight Closed
Captioning

Alarm Ad

Press MENU to select the Controls
menu. This menu is yellow.

Press CHANNEL down to highlight

Closed Captioning:

3. Select Setting

Alarm

Press VOLUME + or -- to select
Off, C1, or C2. Select C1 for full

translation of the primary
language in your area. Select C2 for
secondary language _anslati0n,
simplified English,-or whatever is

being broadcast ifi your area.

15'

Using Advanced Features

Setting Your TV for Antenna or Cable-

Your TV automatically adjusts this feature when the TV places channels
in memory (Autoprogram). Follow the steps below to change the setting

as needed.

1. Select the Setup menu

13

Press MENU repeatedly to select
the Setup menu. This menu

is white.

2. Highlight Cable/Air

;ontrols Alarm

Press CHANNEL down to
highlight Cable/Air.

3. Select Cable or Air

Controls Alarm Ad

Press VOLUME -t- or -- to select
Cable or Air. Select Cable if you

have cable. Select Air if you have
a home antenna connectedto

your TV.

16

References

Front Panel Buttons

For details on using buttons with menus see Menu Basics on page 5,

MENU Shows menus on screen.

Moves from menu to menu.

CH A and v

Channel up and down.
Scans up and down through channels in the TV's memory.

Moves up and down menus.

VOL + and ---

POWER

. . .. -

Volume up and down
Raises and lowers sound.

-\

Moves left and right on a menu line.
CHanges a feattlre setting.

Tdrns the TV on or of E

17

References

Displays on the Screen

Your TV shows the setting s of several features on the screen. To see what
features have been set on your TV,press DISPLAY on the remote.

. .

12:00 AM KNBC 13
Alarm Sleep

Volume -. ...... I ....... +

Mute Stereo 1:55

_ Stereo

or Video 00

Unusable Signal

Screen Display
12:00 AM

13

Alarm

Sleep

KNBC

Unusable Signal

Video 00

Description

Time of the clock. Details are on page 3.

Channel number you are watching.

Alarm clock is, set to turn on or off. Details are on page 14.

Sleep Timer is set to turn off the TV. Details are on page 13.

Name you chose to describe the channel. Details are on page 12.

No signal is coming in on video input channel 00.

Indicates that a component is connected to the VIDEO jack on the back of
the TV, it is tui-ned on, and channel 00 is selected.

Volume

Mute

Stereo

1:55 "

Sound level of the TV.

There is no sound. See MUTE button on page 6.

The sound is being broadcast in stereo..Details are on page 10.

The time remaining for commercial skip. Details are on page 7.

"18

References

Trouble Checks

You may have problems that can be fixed with a few minor adjustments.
Look for the type of problem you are having below and then try the

suggestions to get your TV going again.

Trouble

Checks and Adjustments

Power

TV will not turn on

No picture, no sound but
TV has power

Plug TV in.
Plug something else into the outlet to make sure it is working.

Make sure batteries in the remote are not dead.
Aim the remote at the TV and press POWER.

Make sure batteries are placed in the remote the rightway. See batteries

on page 2.

Unplug TV for a few minutes and then turn it on again.

Check antenna connections.
Check position of Cable/Air feature. See page 16.

Try another channel. Inactive channel may be tuned.


Blank screen

Try another channel. Inactive channel may be tuned.
Check antenna connections.

Picture poor, sound okay

Check antenna connections.
Adjust TV picture. See pages 8-9.

Sound-

Noisy stereo reception

Picture okay, no sound

Picture okay, sound poor

No stereo on stereo station

Turn Stereo off. The stereo broadcast may not be clear. See page 10.

Press VOLUME 4- or MUTE to restore sound.

Try another channel.

Make sure Stereo is turned on. See page 10.

-...!..

19

References

Trouble Checks

Trouble

Remote

Remote lockup

Checks and Adjustments

Remove batteries and hold down one or more buttons for several seconds
to drain the microprocessor _lsidethe remote and reset it. Re-install the

batteries and try remote again.

Works part or none of the

time

Clear the path between the remote and TVof any objects.
Make sure remote batteries are not dead and placed in remote correctly.

See batteries, page 2.

Can't select certain channel

Press number buttons. Channel may not be in memory. See Autoprogram

on page 11.

For numbers over 100, press and hold I until 1-- appears, then press the
other two numbers.

Set Cable/Air feature to Cable for channels higher than 69. See page 16.

TV Turns on or off

Turns off by itself

Check Sleep Timer. See sleep timer on page 13.
Wait 30 seconds and turn on again, a power surge may have occurred.

Check Alarm Off time. See alarm clock on page 14.

Turns on by itself

Check Alarm On Time. See alarm clock on page 14.
Check clocktime. See clockon page 3.

Does not turn off at
Alarm Time

Make sure alarm is turned on or off. See alarm clock on page 14.
Check clock time. See clock on page 3:

Make sure Clock time is set correctly, including AM and PM.
Check Alarm Off time.

2O

. • b

References

Order Form for Parts

Remote #226551

This is the remote
that came packed

with your TV. You
can use the order

form at the right to

order it by mail.

cuba _xu _

000
O_(3O

Cleaner #AHO35

To clean your TV cabinet, we
recommend Murphy's ®Oil Soap or

Cleaner #AH035. You should not
use cleaners such as Windex ®with

vinegar, Lenox _ Furniture Polish
spray or Heinz _ Cleaning Vinegar

to clean your TV cabinet. Using
these cleaners will permanently

mar the surface of the cabinet.
Such damage is not covered under

your purchase warranty.

.=

-1-

c-
o

Ill

dl,.a

r_

Order Form -

Book No. 1508151A

.__t ..................................:..................__P_rt__i',T___umber__Pric_e............._ ..........._T_.o_ta_]....

l-

Cleaner AH035 / $ 6.95
Remote-CRK10A1 226551 $39.95

/

Total ($10 Minimum Order)

Sales Tax ........................................ .............

We are required by law to collect the

appropriate sales tax for each individUal
state; county, and locality to which the
merchandise is being sent.

Shipping, Handling, and Insurance $

Total Amount Enclosed: ........................ ... $

VISA or MasterCard preferred.
Money order or check-must be in U.S. currency only.

No COD or CASH.

$
$

5.00

All specifications and descriptions of parts are subject to change
withoutnotice.

21

References

Order. Form for Parts

USE YOUR CREDIT CARD

. Copy conlpleteaccountnumber (_

l i l i Ii--['NI i i il I I i

_ar_e_: FT1N--1

Copy complete account number

IIII II I II II I I I II I I I I

CopyNumber above the name

on your MasterCard

c_o_,_: I--I--IFT-I

AUTHORIZED SIGNATURE

Prices aresubject to change without notice.

PLEASE

Print or type your name and address.
This will be your mailing label.

A complete and correct order will
save you days of waiting.

NDxne •

Street:

City:

State:

Apt:

Zip:

•Make sure that both sides of this

form have been filled out.

22

U.S. and Canadian Orders :

By Phone:

1- 800 - 338 - 0376

Call this toll-free number between

8AM and 8PM Eastern Standard Time
and place your order using your Visa

or MasterCard. Use this number

only to place an order for accessory

items listed on this order form.

By Mail:

Detach the information at the left and
mail the payment to Thomson

Consumer Electronics, Inc., at:

Video Accessories
PO Box 8419

Ronks, PA 17573

Most orders are shipped UPS within
72 hours. If it is not possible to ship

within 30 days, we will notify you.

For more current informationon
these accessories, write to the

following address:
Video Accessories Customer Service

Thomson Consumer Electronics, Inc.
Distributor & Special Products
2000 Clements Bridge Rd

Deptford, NJ 08096-2088

International Orders
This offer is valid orayin the U.S. and

Canada. Send your request for price
quotation (not orders) to:

International Customer Service
Thomson Consumer Electronics; Inc.
Distributor &Special Products
2000 Clements Bridge Rd

Deptford, NJ 08096-2088 USA

References

Limited Warranty

What your warranty covers:

How long after your
purchase:

Any defect in material or workmanship.

90 days for labor charges.
One year for parts.

Two years for picture tube.
The warranty period for rental unitsbegins with the first rental.

What we will do:

Pay any Authorized RCA Television Servicenter the labor charges to repair
your television.

Pay any Authorized RCA Television Servicenter for the new or, at our option,
rebuilt replacement parts and picture tube required to repair your television.

How you get service:

What your warranty does
not cover:

For screen sizes of 20" and smaller: Take your RCA television to any
Authorized RCA Television Servicenter.

For screen sizes larger than 20": Request home service from any Authorized
RCA Television Servicenter.

To identify your nearest Authorized RCA Television Servicenter, ask your
Dealer, look in the Yellow Pages, or call 1-800-336-1900.

Show the service technician your evidence of purchase date,

Customer instruction. (Your Owner's Manual dearly describes how to
install, adjust, and operate your television. Any additional information
should be obtained from your Dealer.)

Installation and related adjustments.
Acts OfGod, such as, but not limited to lightning damage.

Signal reception problems not caused by your television.
Damage from misuse or neglect.

Remote control batteries.
A television that has been modified or incorporated into Other products or is

used for institutional or other commercial purposes.
A television purchased or serviced outside the USA.

What to do with the Product

Registration Card:

Please complete and mail the Product Registration Card packed with your
set. It will make it easier to contact you should it ever be necessary. The
return of the card is not required for warranty coverage.

How state law relates to this

warranty:

This warranty gives you Specific legal rights, and you also may have other
rights that yary from state to state.

If you purchased your
product outside the

United States: •

This warranty does not apply. Contact your dealer for warranty information.

23

References

.Glossary

Antenna

A device used to receive broadcast

signals from TV stations.

Audio

Sound reproduced by the TV.

Audio/video cables

Cables that carry sound and
picture signals from one

component to another.

Autocolor

Adjusts the Color and Tint of the

picture signals to the proper

balance for all channels.

Autoprogram

A procedure that automatically
adds only the active channels in

your area to the TV's memory.

Brightness

Light and dark areas of a picture.

Channel Memory

Where channels are stored after
they have been placed in memory:

Channels can be added or deleted
from channel memory.

Commercial Skip

A feature that allows the viewer to

scan other channels during
commercials, and return to the

original channel after a timed
break.

Component
Device such as VCR, laserdisc

player, audio equipment,
camcorder, etc.

Disabled

Turns off feature.

Display

A word, words or graphics that

appear on the TV screen.

Inputs

Located on back of the TV for
connection of a component to the
TV. Used to route signals into the

TV from components.

Jacks
Connectors located on the back of

the TV for connecting antennas or

other components.

Menu

A listing of features, controls, and
adjustments shown oh the TV

screen that can be changed.

Mono

Slang for monaural. Sound comes
through one channel.

On-Screen Display

See Display.

Picture Reset

Returns all of your TV picture

adjustments back to the factory
setting.

Sharpness

Clearness of a picture.

SKIP SeeCommericalSkip.

Signal

Electrical waves that are sent or

received through cables or through
the air.

Sleep Timer

A feature where the TV can be set.

to turn off at a specific time within
four hours.

Source(s)

Components or devices that are
connected to the TV.

Stereo
Sound signals that come through

two channels (left and right).

Tone
Quality of the sound.

Tuner

A device that receives and selec_
signals. The desired signal is

selected by the tuner.

Unusable Signal

A message that shows no signal is

coming in on the video input.

Video

Picture reproduced by the

television.

24

References

Index

A

.Adding Channels to Memory....11

,Adjust Menu

Autocolor, Bright, Color, Picture

Reset, Sharpness, Tint ................9

.Adjusting

Picture/Picture Settings ......... 8,9

Sound Settings .......................... 10

Air or Cable Feature .......... .......16

.Alarm Channel/Clock ............... :14

.Warm Display .............................. 18

.Antenna ........................................ 16

Audio ............................ ...........10,24

Autocolor ........................................ 9

Autoprogram ............................ 3,11

B

Batteries (Remote) ......................... 2

Bright/Brightness ....................... '..9

C

Cable or Air Feature .................... 16

Cancelling Sleep Timer ............... 13

,Cautions ........................................... i

,Channel Memory ...................... 3,11

,Channel Number Display .......... ! 8

,Channels

Adding/Deleting ...................... 11

Placing in Memory ................ 3,11

,Checks and Adjustments ...... 19-20

,Clock ........................................... 3,13

,Closed Captioning ....................... 15

,Color ................................................ 9

,Colors (Menus) .............................. 5

,Commercial Skip ...................... 7,24

Button .............................. ............. 7

Display ....................................... 18

Contents. ......................................... 1

Controls

TV Front Panel ................... .......17

Remote ...................................... 6,7

D

Delete Channels from Memory.ll

Displays (On-Screen) .................. 18

G

Glossary ......................... ............... 24

H

Hook up -TV....Connections Guide

I

Inputs ............................................ 24

Input Button ................................... 7

J

Jacks ............................................... 24

M

Menus/Menu Color ................. :....5

Mono ............................................. 10

Mute Display ................................ 18

N

Number Buttons ............................ 7

O

Off/On Time (Alarm) ................. 14

On-Screen Displays ..................... 18

P


Adjustment, Setting, Reset .......8,9

Place Channels in Memory .....3,11

Plug in TV ....................................... 2

Put Batteries in Remote ................ 2

Q

Quick Guide to Your TV .....2,3,4,5

R

References ............ _........ .......... 17-25

Trouble Checks .......:............ 19-20

Warranty .................................... 21

Remote Control

Batteries ....................................... 2

Buttons ...................................... 6,7

Tour .............................................. 4

S

Safety Information .......................... i

Screen Displays ............................ 18

Set Clock/Time .............................. 3

Setting Cable/Air ........................ 16

Setting the Sleep Timer ............... 13

Sharpness ........................................ 9

Sleep Display ................................ 18

Sleep Timer ................................... 13

Sound ............................................ 10

•Startup.._ ....................................... 2,3

Stereo ............................................. 10

Stereo Display .............................. 18

:

Table of Contents ........................... 1

Time Display ................................ 18

Tint/Tone ............................... . ....... 9

Tour of the Remote ........................ 4

Trouble Checks ....................... 19-20

Turn on Alarm ............................. 14

Turn on TV ..................................... 2

TV

Buttons ................................... 4,6,7

U

Unusable Signal ........................... 18

W

Waming .......................................... 1

Warranty ........................................ 21

F

Front Panel Controls ..... .......... :5,17

25

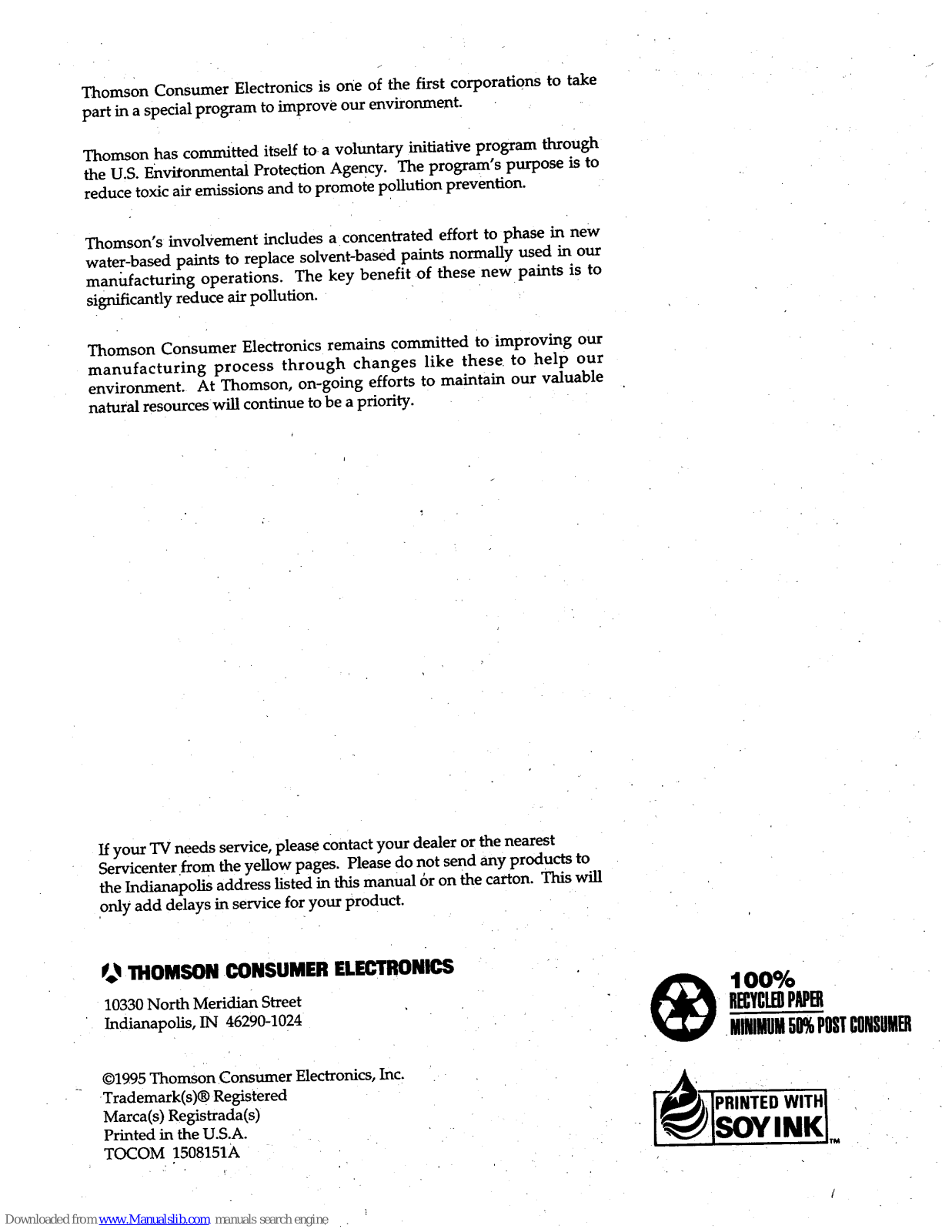

ThomsonConsumerElectronicsis one of the first corporations to take

part in a special program to improve our environment.

Thomson has committed itself to a voluntary initiative program through

the U.S. Environmental Protection AgencY. The program's purpose is to

reduce toxic air emissions and to promote pollution prevention.

Thomson's involvement includes a concentrated effort to phase in new
water-based paints to replace solvent-based paints normally used in our

manufacturing operations. The key benefit of these new paints is to

significantly reduce air pollution.

Thomson Consumer Electronics remains committed to improving our

manufacturing process through changes like these to help our

environment. At Thomson, on-going efforts to maintain our valuable
natural resources will continue to be a priority.

If your TV needs service, please contact your dealer or the nearest
Servicenter from the yellow pages. Please do not send any products to

the Indianapolis address listed in this manual 6r on the carton. This will

0nly add delays in service for your product.

_ tHOMSON CONSUMER ELECTRONICS

10330 North Meridian Street
Indianapolis, IN 46290-1024

©1995 Thomson Consumer Electronics, Inc.

Trademark(s)@ Registered
Marca(s) Registrada(s)

Printed in the U.S.A.
TOCOM 1508151A

100%

RECYCI.EgPAP_

HINIHUH50%POSTCONSUHI]

["4_J_--I"PRINTF.DWITHi

[ [SOY INK],,,
