TELEVISION
D52120
D61120
52/61"Digital
High-Definition
Projection Monitors
• HDTV Monitor2:
– 1080i Capable
– 1232 x 1080i Pixel Resolution
• Progressive Scan Up Conversion
• Anamorphic Mode
• Up to 1.3 Million Pixels
• INTELLIFOCUS
™
Auto Convergence
• 3D Y/C Digital Frame Comb Filter
• Advanced Twin Tuner
™
Picture-In-Picture
(NTSC Only)
• SYNCROSCAN
™
HD Component
Video Inputs
• SRS Focus
3
Audio Technology
• Six Sets of Audio/Video Inputs
• GUIDE Plus+ GOLD
1
On-Screen
Program Guide
• Built-In Screen Protector
diagonal
1
4:3 ratio = 1,330,560 pixels
16:9 ratio = Over 1.5 million pixels
➧
D52120/D61120
The RCA brand has always offered innovative technologies to enhance your home
entertainment experience. The RCA Digital High-Definition Monitor lives up to this
commitment by offering outstanding picture performance and multiple connectivity
options. This is the perfect vehicle to help you make the transition into the world
of HDTV. The RCA Digital High-Definition Monitor can display 1080i (interlaced)
television signals (1,330,560 pixels) when you combine this television with an
RCA DTC100 HD/Digital Receiver. In addition, with its six sets of audio and video
inputs the RCA High-Definition Monitor has much more to offer outside the world
of HDTV. It’s the perfect display for analog, digital and HDTV broadcasts, digital
satellite receiver, video games, DVD player and your VCR—and they can all be
connected at the same time!
The RCA Digital High-Definition Monitor is our most versatile TV ever.
High-Definition
Digital Receiver
RCA Model DTC100
Within the monitor’s 4:3 aspect ratio viewing area, you
receive the same pixel resolution inch for inch as with
a 16:9 HDTV.
Combining the HDTV-ready Digital High-Definition
Monitor with a DTC100 High-Definition Digital
Receiver will provide you an HDTV-quality picture.
• Progressive Scan Up Conversion
The new RCA HDTV|monitor series
employs motion adaptive up conversion
using spatial and temporal filtering to
de-interlace NTSC video. This process
digitally combines two fields of data
into one high-resolution image frame.
• Anamorphic Mode
The new RCA HDTV|monitor
series decodes an Anamorphically
encoded digital signal (DVD for
example) allowing for maximum
horizontal lines of resolution to
be displayed.
• INTELLIFOCUS
™
Auto
Convergence
Menu-selectable option that
automatically adjusts the TV’s
convergence using eight optical
sensors mounted around the
inside of the screen. It results
in the sharpest picture possible
with corner-to-corner clarity that
has to be seen to be believed.
• SYNCROSCAN™HD Component
Automatically adjusts scan rate of
component video inputs (Y-Pr-Pb).
Allows for connection of regularor progressive-scan DVD players
or component-output HDTV
set-top boxes.
• Custom-Designed 5-Element Lens
System with Color Correction
Provides a brighter picture with improved
corner focus and overall video resolution.
An integrated thermal focus control
ensures accurate pinpoint focus by
eliminating heat-related lens movement.
• Digital Focus
Computer-aligned ten-bit digital
circuitry provides precise and
consistent picture performance
from the moment the TV is turned
on. Combined with Dynamic Focus,
it maximizes picture brightness with
sharper corner focus, ensuring a
beautifully detailed picture across
the entire screen.
• 3D Y/C Digital Frame Comb Filter
The ultimate in color separation—this
three-dimensional filter evaluates both
current and future video information,
eliminating dot and edge crawl, while
providing for better transitions between
scene changes—resulting in a
dramatically enhanced picture.
• Hi-Gain Dark-Tint Screen—25%
Improved Brightness
New screen design improves brightness
by 25% while utilizing dark-tint double
lenticular and fresnel levels to enhance
picture contrast with blacker blacks,
brilliant whites, and deep rich colors.
• High Performance
Video Amplifier
Delivers high resolution and clarity by
extending the video frequency response.
Optimizes performance from highresolution sources such as the RCA®DIRECTV™System, DVD players, and
S-Video signals (S-VHS, Hi8).
• Dynamic Focus
Improves corner and edge focus for
an overall sharper picture.
• Dynamic BlackStretch Circuitry
Extends black levels in bright scenes
to enhance contrast and detail.
• Deluxe Shielded Tuner with
181-Channel Tuning Capability
4
Special shielding dramatically reduces
ghosting caused from off-air pick-up
when watching cable channels. Digitallycontrolled frequency synthesis tuning
system “locks on” to cable and standard
signals with unsurpassed accuracy.
• High Performance Scan Velocity
Modulation (SVM)
Improved SVM circuitry automatically
varies the scanning speed of the
picture tube’s electron beam to
improve sharpness and detail,
especially in high-contrast areas.
• Adjustable Color Warmth
Customer-selectable color temperature
system allows for background color
balance adjustment of the picture to
-personal preference. Setting choices
are Cool, Warm, or Normal. Warm =
NTSC standard of 6500°K.
High Performance Video System
RemoteSound
Connections
• SRS Focus
3
Audio Technology
Ingenious new technology from
SRS Labs. Raises the sound
stage to ear level providing more
lifelike audio. It creates a fully
immersive “live performance”
listening experience.
• Broadcast Stereo with dbx
5
Noise Reduction
Improves the clarity and fidelity of
stereo broadcasts by restoring
dynamic range and suppressing
unwanted noise.
• Front-Fired Speaker System
Front-fired speakers offer 10 watts
per channel of audio power. Provide
excellent imaging while localizing
voices at the screen.
• Second Audio Program (SAP)
Decodes the second audio program
available on some broadcasts.
• Universal Backlit Remote
CRK76TVL1
Connects Your World For Today And Tomorrow
To maximize the performance of the Digital High-Definition Monitor, connect an RCA®-DIRECTV™System. And the addition of the RCA DTC100 HDTV Digital Receiver
provides up to 1,330,560 pixel capability and will enable reception of high-definition programming when it becomes available.
• Six Sets of Audio/
Video Inputs!
–3 A/V composite inputs each with
auto-detectible S-Video input.
–1 set SYNCROSCAN™HD
component video inputs (YPrPb)
allows for connection of regularor progressive-scan DVD players
or component-output HDTV
set-top boxes.
–1 set audio/video inputs located
on front panel.
–1 high-resolution SYNCROSCAN
™
input accepts either RGB or YPrPb.
• Audio/Video Outputs
–1 pair fixed audio outputs
(provides constant level output
for recording or for stereo
system with its own remote).
–1 pair variable audio outputs
(the output audio level changes
with TV’s remote).
–1 set of speaker jacks for
external speakers.
•G-LINK1Connector
The G-LINK1connector allows
the GUIDE Plus+ GOLD1Program
Guide to work with your VCR
(enabling one-touch record)
and/or cable box (ability to
tune directly to a station when
the program guide is on your
TV screen).
Speaker System
Terrestrial
(NTSC)
HDTV Digital
Receiver
VCR or Cable Box
Cable
Satellite
System
VCR
DVD Player
OR
Stereo System
Front A/V
Camcorder
Back of Models: D52120/D61120
1
2
3
HIGH RESOLUTION
INPUT
RGB OR
COMPONENT YPBPR VIDEO
(REFER TO OWNER'S
MANUAL FOR CONNECTION)
RIGHT
LEFT
Convenience
• INTELLIFOCUS™Auto
Convergence
Menu-accessible feature
automatically optimizes
convergence for the sharpest
picture possible.
• Advanced Twin Tuner
™
Picture-In-Picture
Two built-in, independent tuning
systems allow both large-picture
and small-picture viewing
without the need for a second
external source (eg. VCR). In
addition to standard RCA
features of swap, the Twin
Tuner™PIP System also provides:
–Continuous Move
Permits placement of the
small picture anywhere
on the screen.
–Commercial Skip-to-PIP
This exclusive RCA feature
allows the main picture to
move to the PIP window
simultaneously with the
activation of an on-screen
countdown timer. The viewer
can then monitor the original
program while browsing
through other channels during
commercial breaks.
• Picture Reset
Instantly returns picture to
factory settings for Color,
Tint, Contrast, Brightness,
and Sharpness.
• Personal Picture Settings
Favorite settings for each set
of inputs can be programmed
into memory.
• Built-In Screen Protector
Protects screen against marks,
scratches and other damage.
Brightens color and contrast for
enhanced TV viewing.
• Advanced Auto
Channel Search
Auto Cable/Air Switch sets tuner
to cable or “off-air” frequencies
during initial setup. Then system
automatically scans for and
locks active channels into
channel memory.
• On-Screen Menu System
On-screen displays make it easy
to adjust more picture, sound,
and convenience features from
either the remote control or the
TV front panel buttons.
• Interactive Setup Menu
Convenient on-screen menu
system automatically steps
user through the initial
setup procedures.
• Channel Labeling
Assign on-screen characters
to easily identify channels
(e.g. NBC, HBO, ESPN, VH-1).
• Front Panel Lockout
Completely disables front panel
controls to prevent toddlers
from altering settings.
• V-Chip Parental Control
Puts control back into the
hands of the viewer by blocking
unwanted television broadcasts
with U.S. Government required
circuitry. Blocks three types of
programs: regular television
programs, broadcast movies
and unrated programs.
Program rating information
is sent by the broadcaster
continuously during the program.
The television will match program
rating to user preference and block
the entire program (when program
is aired with the encoded signal).
User preference is secured using a
four-digit password.
“Command” Buttons
Program
Info
Promotional
Windows
Preview
Window
Channel
Line-ups
Guide
Selector
Program
Grids
The Program Guide appears
on your television.
WHAT’S ON TV!
Tonight, Tomorrow
and the Next Day!
2 ways to find your programs
➁

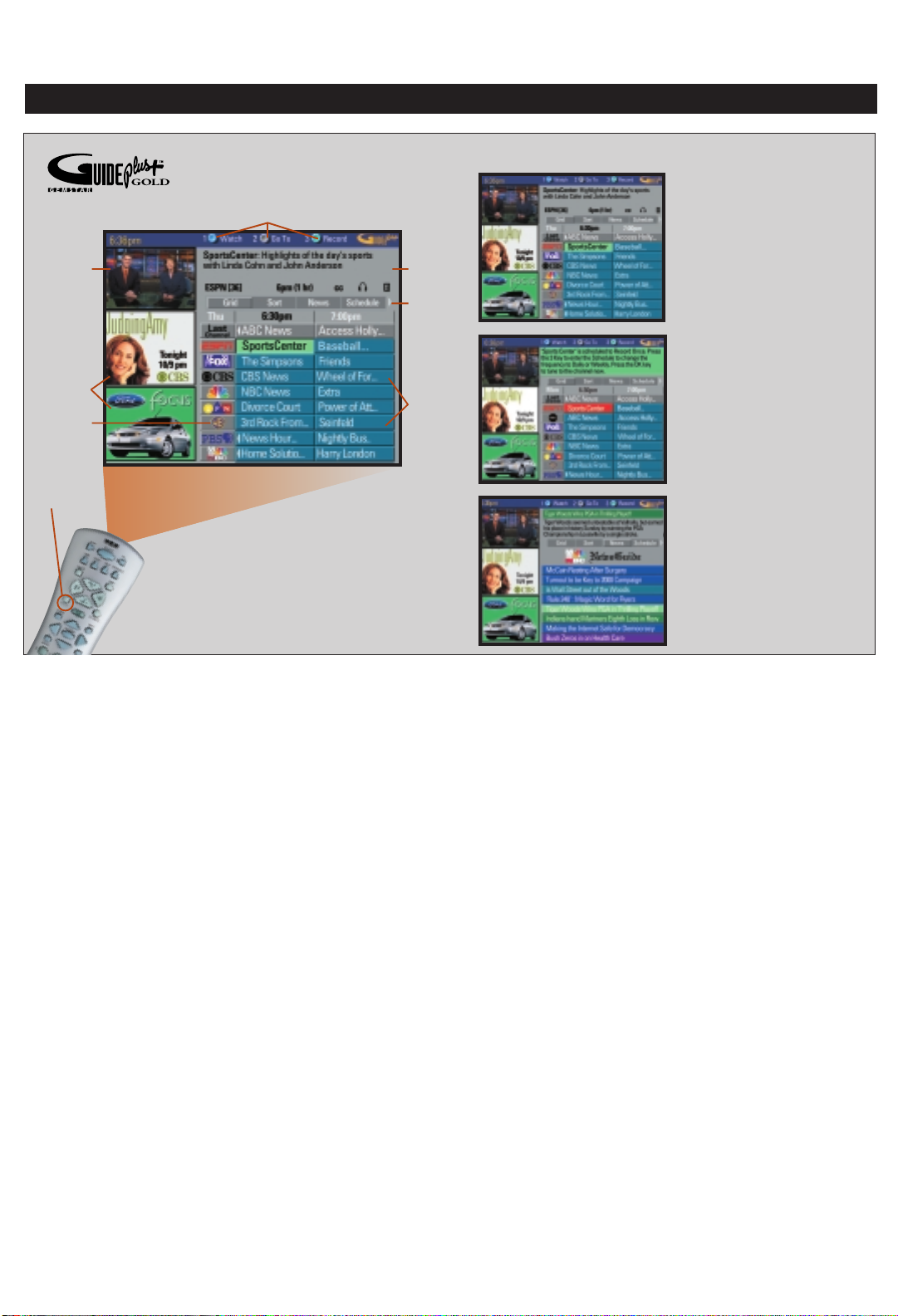

GUIDE Plus+ GOLD1Interactive Program Guide
Find out What’s On! The GUIDE Plus+ GOLD1Program Guide
is a FREE, built-in service that provides instant listings of all your
TV shows at the touch of a button. View listings up to seven days
in advance and enjoy the capability of One-Touch Recording
to your VCR.
The Grid Guide
Using your remote, easily scroll through
current or future TV listings to see what’s
on. As each program is highlighted, an
informative summary appears in the
Program Info area.
Press
Here.
➀
The Sort Guide
Find your favorite sports, movies, or kids’
programs, for up to seven days in advance,
instantly with the Sort Guide.
And The Benefit
of One-Touch Record*
Even if your VCR is flashing 12:00, the
GUIDE Plus+ GOLD
1
Program Guide can
record your favorite shows. Simply use
your remote to highlight the program you
want to record, set it to record and the
GUIDE Plus+ GOLD
1
Program Guide does
the rest! You can even set shows to record
daily and weekly!
*compatible with most VCRs
MSNBC News Guide
Check out up-to-date national and world
news stories from MSNBC in the News
Guide. Comprehensive coverage includes
business, sports, and entertainment news.
Model D52120 D61120
Hi-Gain, Dark-Tint Screen Yes Yes
Progressive Scan Yes Yes
Dynamic Focus Yes Yes
Scan Velocity Modulation Yes Yes
Anamorphic Mode Yes Yes
Comb Filter 3D Y/C Digital Frame 3D Y/C Digital Frame
Auto Color Control Color Level & Tint Color Level & Tint
BlackStretch Yes Yes
Color Detail Enhancement Yes Yes
Wide Band Video Amplifier Yes Yes
Video Noise Reduction Yes Yes
Calibrated Color Temperature 6500 & 9300 Kelvin 6500 & 9300 Kelvin
SYNCROSCAN™Modes
NTSC 15.7kHz/30Hz Interlaced 15.7kHz/30Hz Interlaced
Digital TV Mode 1080 Interlaced 1080 Interlaced
Horizontal Resolution
Lines Per Picture Height 924 924
Lines Per Picture Width 1232
6
1232
6
Sound
Audio Power (Watts) Total 20 (10 Watts/Ch) 20 (10 Watts/Ch)
dbx5Broadcast Stereo Yes Yes
Second Audio Program Yes Yes
SRS Sound Retrieval System
3
SRS Focus SRS Focus
Speakers 2 – 5" x 7" Full Range and 2 – 2" Tweeters 2 – 5" x 7" Full Range and 2 – 2" Tweeters
Convenience
INTELLIFOCUS™Auto Convergence Yes Yes
Channel Tuning Capability
4
181 181
Twin-Tuner™Picture-In-Picture Yes Yes
PIP Swap And Move Yes Yes
Channel Labeling Yes Yes
V-Chip Parental Control Yes Yes
GUIDE Plus+ GOLD1with News Yes Yes
Stereo Headphone Jack 3.5mm Stereo Mini-Jack 3.5mm Stereo Mini-Jack
Front A/V Input Composite, L/R Audio Composite, L/R Audio
Universal Remote Backlit Backlit
Back Panel Inputs/Outputs
A/V Inputs 3 – S-Video / Composite, L /R 3 – S-Video / Composite, L /R
SYNCROSCAN™HD YPrPb (RCA Jacks): YPrPb (RCA Jacks):
Component Video Input 15.7 – 37.7 kHz 15.7 – 37.7 kHz
UHF/VHF, Cable Input 75-OHM Terminal 75-OHM Terminal
High-Definition Input 15-Pin D-SUB/YPrPb/RGB 15-Pin D-SUB/YPrPb/RGB
Audio Output Jacks Fixed & Variable Fixed & Variable
External Speaker Terminals 1 Pair 1 Pair
User Adjustments
Adjustable Via On-Screen Menu Adjustable Via On-Screen Menu
Basic Adjustments
Cont, Col, Tint, Blk Level, Sharp. Cont, Col, Tint, Blk Level, Sharp.
Advanced Adjustments Noise Filt., Color Temp. Noise Filt., Color Temp.
Audio Bass, Treb., Bal., Vol., Mute Bass, Treb., Bal., Vol., Mute
General Specifications
Screen Size (measured diagonally) 52" 61"
Product Dimensions (H x W x D) 511⁄2" x 443⁄8" x 25" 611⁄4" x 511⁄2" x 253⁄4"
Approximate Shipping Weight 278 Lbs. 305 Lbs.
Finish Silver Shark/Charcoal Silver Shark/Charcoal
1 GUIDE Plus+ GOLD and G-LINK are trademarks of Gemstar-TV Guide International, Inc.
2 HD/Digital receiver required to receive digital TV signals.
3 SRS, the SRS symbol , Focus and Sound Retrieval System are registered
trademarks of SRS Labs, Inc.
4 Check your cable company’s compatibility requirements.
5 dbx is a registered trademark of Carillon Electronics Corporation.
6 Lines per picture width, 924 lines based on EIA measurement criteria.
• Limited Warranty
– One year for labor charges.
– One year for parts.
– Two years for picture tube.
– See RCA dealer or visit
www.rca.com for
complete details.
©2001 Thomson multimedia Inc.
Form S-D52120/D61120
Trademark(s) ® Registered
Marca(s) Registrada(s)
Photos and features subject to change
without notice. Illustration of product finish
may vary from actual color. Screen sizes
measured diagonally.
Printed in the U.S.A. 3/01
PC15930
GAC38656
Plus
D52120
D61120
Loading...
