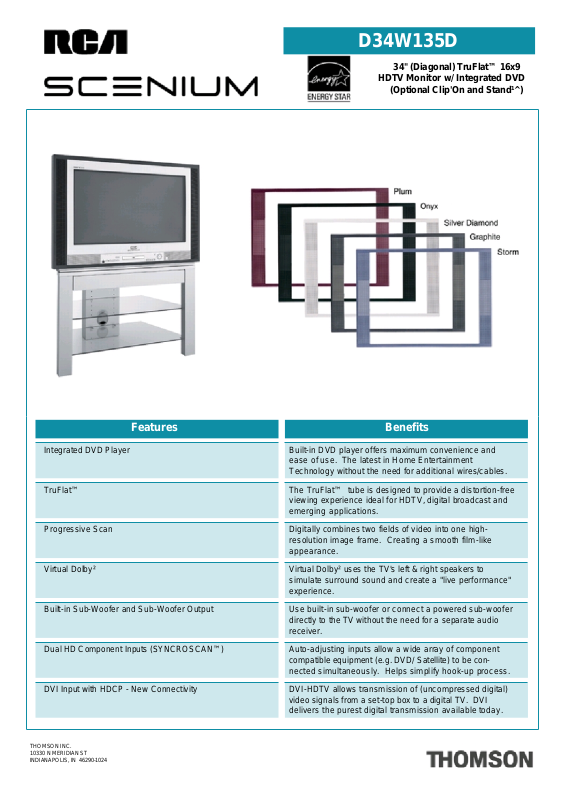

RCA D34W135D User Manual
D34W135D
34" (Diagonal) TruFlat™ 16x9
HDTV Monitor w/ Integrated DVD
(Optional Clip'On and Stand¹^)
Features Benefits
Integrated DVD Player
TruFlat™
Progressive Scan
Virtual Dolby²
Built-in Sub-Woofer and Sub-Woofer Output
Dual HD Component Inputs (SYNCROSCAN™)
DVI Input with HDCP - New Connectivity
Built-in DVD player offers maximum convenience and
ease of use. The latest in Home Entertainment
Technology without the need for additional wires/cables.
The TruFlat™ tube is designed to provide a distortion-free
viewing experience ideal for HDTV, digital broadcast and
emerging applications.
Digitally combines two fields of video into one highresolution image frame. Creating a smooth film-like
appearance.
Virtual Dolby² uses the TV's left & right speakers to
simulate surround sound and create a "live performance"
experience.
Use built-in sub-woofer or connect a powered sub-woofer
directly to the TV without the need for a separate audio
receiver.
Auto-adjusting inputs allow a wide array of component
compatible equipment (e.g. DVD/ Satellite) to be connected simultaneously. Helps simplify hook-up process.
DVI-HDTV allows transmission of (uncompressed digital)
video signals from a set-top box to a digital TV. DVI
delivers the purest digital transmission available today.
THOMSON INC.
10330 N MERIDIAN ST
INDIANAPOLIS, IN 46290-1024
D34W135D
Technical Specifications
BRAND
BRAND RCA Scenium
Screen Size - diagonal (inch) 34
Category HDTV Monitor w/DVD
Aspect Ratio 16x9
CRT / Light System TruFlat™
Dynamic Focus Yes
Screen Type TruFlat™
Protective Shield Video Noise Reduction Adaptive
Progressive Scan Yes
Scan Rate Converter Yes
Comb Filter Digital 3-Line
3:2 Pull Down Yes
Adjustable Color Temp Yes
Auto Color Balance (AKB) Yes
Dynamic Color Stretch Circuitry Yes
Scan Velocity Modulation - SVM Yes
Contrast Expand (B&W Stretch) Low/Med/High
Format Control Zoom
Automatic Letterbox Detection Yes
Picture Presets 6+Personal
Pix Tube Pitch (Edge&Center) 0.82mm
Horiz Resolution (Picture Width) 910
Picture Power (watts) 60
Wide Band Video Amplifier Yes
SOUND
Sound Type Brdcst Str w/dbx³ Noise Reduction
Second Audio Program (SAP) Yes
3D Audio Surround Processor Virtual Dolby²
Tone Control 5-Band Graphic Equalizer
Balance Control Yes
Front Speakers (number) 2
Fully Enclosed Speaker System Yes
Total Watts 38 (10/Chan + Subwoofer)
Integrated Subwoofer Yes - 18 Watts
Channels / Watts 2 Channels, 10 Watts Per
Sound Logic™ Audio Leveler Yes
Sound Presets 7 Modes + Personal
Headphone Adjustments Yes
Dolby² Digital Pass-Through Yes - From DVD
RECEPTION
Tuning Capability NTSC 2-Tuner
Digital Cable Compatibility YPrPb / DVI ²^
HD Ready Yes
CONVENIENCE
Interactive Set-up w/ Menus Yes
Integrated Web Browser²° Power ON Indicator Green LED
Auto Channel Search Yes
Multilingual On-Screen Display English/French/Spanish
One Button Launch for Inputs Yes - Auto Tune
Energy Star Qualified Yes
Channel Labeling Yes
Commercial Skip Skip to POP
Parental Control (V-Chip) Yes
Picture Reset Yes
Picture-in-Picture 2-Tuner with POP
Picture Freeze Yes
Pic Memory Presets for Vid Inputs Yes
Guide Plus+¹ Program Guide One-Touch VCR Record (Gemstar) Picture in Guide PSIP Guide Timers Clock/Sleep/Turn-On
Lighted Control Panel -
REAR CONNECTORS
RF Input (Antenna) 1
Audio/Video Inputs (Composite) 2 L&R Audio, 2 Video
S-Video Input 2 - Auto-Detectible
THOMSON INC.
10330 N MERIDIAN ST
INDIANAPOLIS, IN 46290-1024
Component Video Input (YPrPb) 2 - SYNCROSCAN™
External Center Channel Input DVI-HDCP: Digital Visual Interface 1 DVI-HDTV
Sub Woofer Output Yes - RCA Phono
Audio Outputs (L+R) 2 Sets - Variable & Fixed
A/V Outputs (Composite) 1 Set - L&R Audio + Video
DVD A/V Outputs SP-DIF, L+R Audio, Video, S-Video
Audio Output (Coaxial/Optical) Yes, SP-DIF From DVD
Amplified Speaker Outputs L & R Front or Surround
G-Link¹ Connector IEEE1394 Connector Broadband Conn (Ethernet RJ45) Gold Jacks Yes
FRONT CONNECTORS
Audio/Video Inputs (Composite) 1 L&R Audio, 1 Video
S-Video Input 1 - Auto Detectible
Headphone Jack 3.5mm Stereo
SPECIFICATIONS
Color, Overall (Screen Frame for PTVs) Scenium Silver
Color - Center Panel (PTVs) Color - Speaker Grill (PTVs) Color - Base Board (Toe Plate) (PTVs) Color - Back Cool Gray
Clip-On Frame Color Onyx (Black)
Product Size (WxHxD) inches 39 x 26 1/2 x 24 1/2
Packaging Size (WxHxD) inches 45 3/4 x 33 x 34 1/2
Weight: Product/Packaged, lbs 180 / 200
REMOTE CONTROL
Model Number RCR160TALM1
Type Universal Partially Backlit
INCLUDED ACCESSORIES
Instruction Book Languages English/French
OPTIONAL ACCESSORIES
Stand / Component Cabinet RTF34SS / -
DVD CAPABILITIES
Compatible with Audio CDs Yes
CD-R/MP3 Playback Yes³^
CD Format Compatibility CD, CD-R, CD-RW, CD+RW
DVD Format Compatibility DVD-R, DVD-RW, DVD+RW
Progressive Scan Picture Yes
Screen Format Selection 4x3 + 16x9
Frame-by-Frame Advance Yes
Intelliseek® Scan Modes 3x, 6x, 15x, 30x, 60x
Slow Motion Speeds 1/2x, 1/6x, 1/12x
Multi-Zoom Function 1.5x, 2x, 4x
1 - Guide Plus+ and G-LINK are trademarks of Gemstar-TV Guide International Inc.
2 - Dolby, Dolby Digital, and Virtual Dolby are registered trademarks of Dolby Laboratories Corp.
2º - Requires monthly fee for broadband or cable modem subscription. May not be
available in all areas.
2^ - Assumes cable companies will use these standard connections for transferring the
output of the box to the display device.
3 - dbx is a registered trademark of Carillon Electronics Corporation.
3^ - Disk must be finalized or closed.
©2003 Thomson Inc. Trademark(s) ® Registered Marca(s) Registrada(s)
Photos and features subject to change without notice. Illustration of product finish may vary
from actual color.
As an Energy Star Partner, Thomson has determined that this product or product
model meets the Energy Star guidelines for energy efficiency. Energy Star and the
Energy Star logo are registered US marks.
Revised 3/31/03
