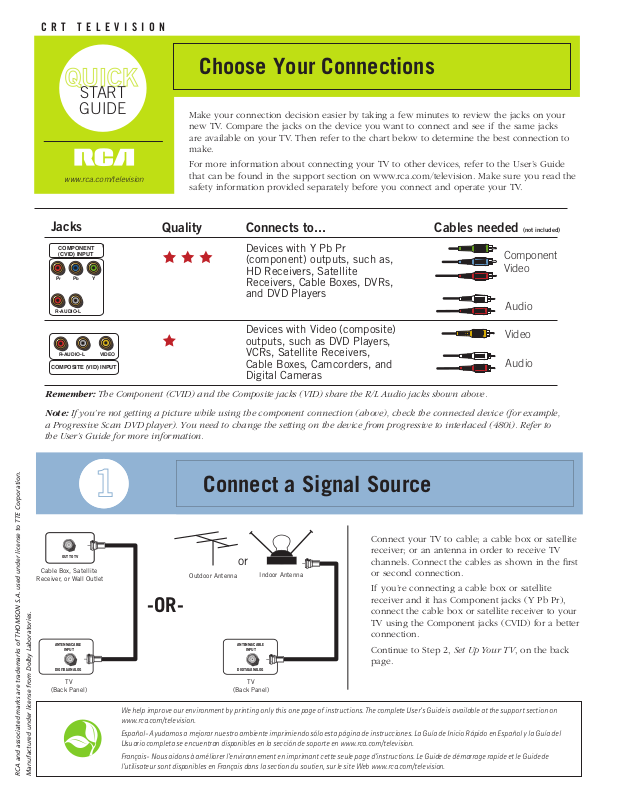

RCA 20F524T, 14F514T, 24V414T, J13805CL, 20F424T Quick Start Guide

...

START GUIDE

Choose Your Connections

VIDEO

Quality Connects to... Cables needed (not included)

Audio

Video

R-AUDIO-L

Devices with Video (composite) outputs, such as DVD Players, VCRs, Satellite Receivers, Cable Boxes, Camcorders, and Digital Cameras

C R T T E L E V I S I O N

Devices with Y Pb Pr (component) outputs, such as, HD Receivers, Satellite Receivers, Cable Boxes, DVRs, and DVD Players

COMPONENT (CVID) INPUT

Component Video

Audio

Jacks

COMPOSITE (VID) INPUT

R-AUDIO-L

Connect a Signal Source

Cable Box, Satellite

Receiver, or Wall Outlet

OUT TO TV

(Back Panel)

Outdoor Antenna

Indoor Antenna

-OR-

ANTENNA/CABLE

INPUT

DIGITAL/ANALOG

(Back Panel)

ANTENNA/CABLE

INPUT

DIGITAL/ANALOG

Make your connection decision easier by taking a few minutes to review the jacks on your new TV. Compare the jacks on the device you want to connect and see if the same jacks are available on your TV. Then refer to the chart below to determine the best connection to make.

For more information about connecting your TV to other devices, refer to the User’s Guide

www.rca.com/television

that can be found in the support section on www.rca.com/television. Make sure you read the safety information provided separately before you connect and operate your TV.

Remember: The Component (CVID) and the Composite jacks (VID) share the R/L Audio jacks shown above.

Note: If you’re not getting a picture while using the component connection (above), check the connected device (for example,

a Progressive Scan DVD player). You need to change the setting on the device from progressive to interlaced (480i). Refer to the User’s Guide for more information.

RCA and associated marks are trademarks of THOMSON S.A. used under license to TTE Corporation.

Manufactured under license from Dolby Laboratories.

We help improve our environment by printing only this one page of instructions. The complete User’s Guide is available at the support section on www.rca.com/television.

Español- Ayudamos a mejorar nuestro ambiente imprimiendo sólo esta página de instrucciones. La Guía de Inicio Rápido en Español y la Guía del Usuario completa se encuentran disponibles en la sección de soporte en www.rca.com/television.

Français- Nous aidons à améliorer l’environnement en imprimant cette seule page d’instructions. Le Guide de démarrage rapide et le Guide de l’utilisateur sont disponibles en Français dans la section du soutien, sur le site Web www.rca.com/television.

Connect your TV to cable; a cable box or satellite receiver; or an antenna in order to receive TV channels. Connect the cables as shown in the rst or second connection.

If you’re connecting a cable box or satellite receiver and it has Component jacks (Y Pb Pr), connect the cable box or satellite receiver to your TV using the Component jacks (CVID) for a better connection.

Continue to Step 2, Set Up Your TV, on the back page.

Set Up Your TV

First, make sure you have connected your TV to any devices, connected a signal source,

DIG•ANA

GUIDE

+•?

CH LIST

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

INPUT

FAV

ZOOM+

ZOOM–

DIG•ANA

Operate Your Product

SETUP

Go back Auto Channel Search List & Labels Closed Caption Favorite Channel Language Eng. Format Normal Auto Vol. Level Off

AUTO CHANNEL SEARCH

Go back Source Type Cable Start Search

plugged in the TV, and put batteries in the remote.

• Now, turn on the TV and begin the setup.

• Set the Menu Language. The default menu language is set to English. To choose another

language, press the MENU button, highlight Setup, then press OK. Go to Language and press the right arrow button to choose a language. Press MENU to return to the previous menu or CLEAR to exit.

• Set the Signal. From the Setup menu, highlight Auto Channel Search and press the right arrow button. Source Type is highlighted. Press the right arrow button to select Cable or Antenna. Press the down arrow button to highlight Start Search.

• Search Channels. Press the right arrow or OK button to start the channel search. When searching for cable channels, this step can take some time. Your TV tunes to a channel once the search is complete. Go to Set the Clock, or to Step 3, Operate Your TV, for more information.

• Set the Clock. From the Main Menu, highlight Time and press OK. Set your Time Zone and Daylight Savings (if necessary). Go to Setting since this is the rst time you’re setting the time. Press OK. Use the arrow button to highlight Clock. Press the right arrow button to enter the menu. To set the time manually, use the number buttons. If it’s 7:25, for example, press 0 and then 7. To change the minutes, press 2 and then 5 to complete the minutes. The OK button selects AM or PM. Press CLEAR to exit.

Remember: The DIG•ANA button switches between analog or digital stations. Analog channels are sent in a 4:3 format. Most digital channels are sent in a 16:9 format.

Thank you for your purchase. Before making a trip back to the retailer, please visit www.rca.com/television for more information or contact us at 1-800-336-1900 so that we may assist you in operating the unit, replacing missing parts, and ensuring your satisfaction with the product.

Viewing Devices Connected to Your TV

To view devices connected to your TV, use the INPUT button until the input name appears that matches the input of the device you connected. Your choices are FRNT (front input), VID (composite input), and CVID (component input).

Using the Menu System

To access the menu system, press the MENU button. Use the arrow buttons to navigate and the OK button to change selections. Here are some features you might want to use:

• Deleting Channels. After running the channel search there might be channels you don’t want in the channel list. To delete a channel, press MENU, press the down arrow button to highlight Setup, and press OK. Highlight List & Labels and press OK. Select Channel and press the right arrow button to select the channel. Highlight In List and press the right arrow button to uncheck the box. Repeat to delete other unwanted channels. Press CLEAR to exit.

• Changing the Screen Format. Your remote has buttons you can use to change the format of your picture. Press the ZOOM– and ZOOM+ buttons to choose different screen formats (Normal, Crop, Letterbox or Squeeze). The User’s Guide has more information.

• Saving a Favorite Channel. To store a favorite channel, press MENU, highlight Setup, and press OK. Highlight Favorite Channel and press OK. Press the left or right arrow button to choose the rst channel. Continue to use this method to add favorite channels. To quickly access a favorite channel while watching TV, press the FAV button.

• Locking the Front Panel. Locking the front panel is convenient to keep children from using the front panel buttons. Press MENU, highlight Parental Control and press OK. Highlight Front Panel and press the right arrow button to choose lock ( ). Create your password and make sure to set Master Enable to lock ( ) so that your choice is activated.

For more information on features, refer to the User’s Guide that can be found in the support section on www.rca.com/television.
