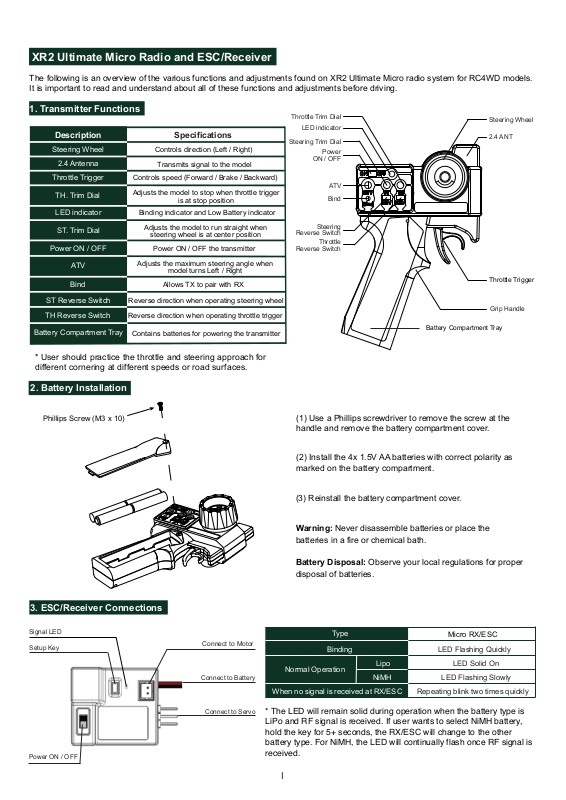

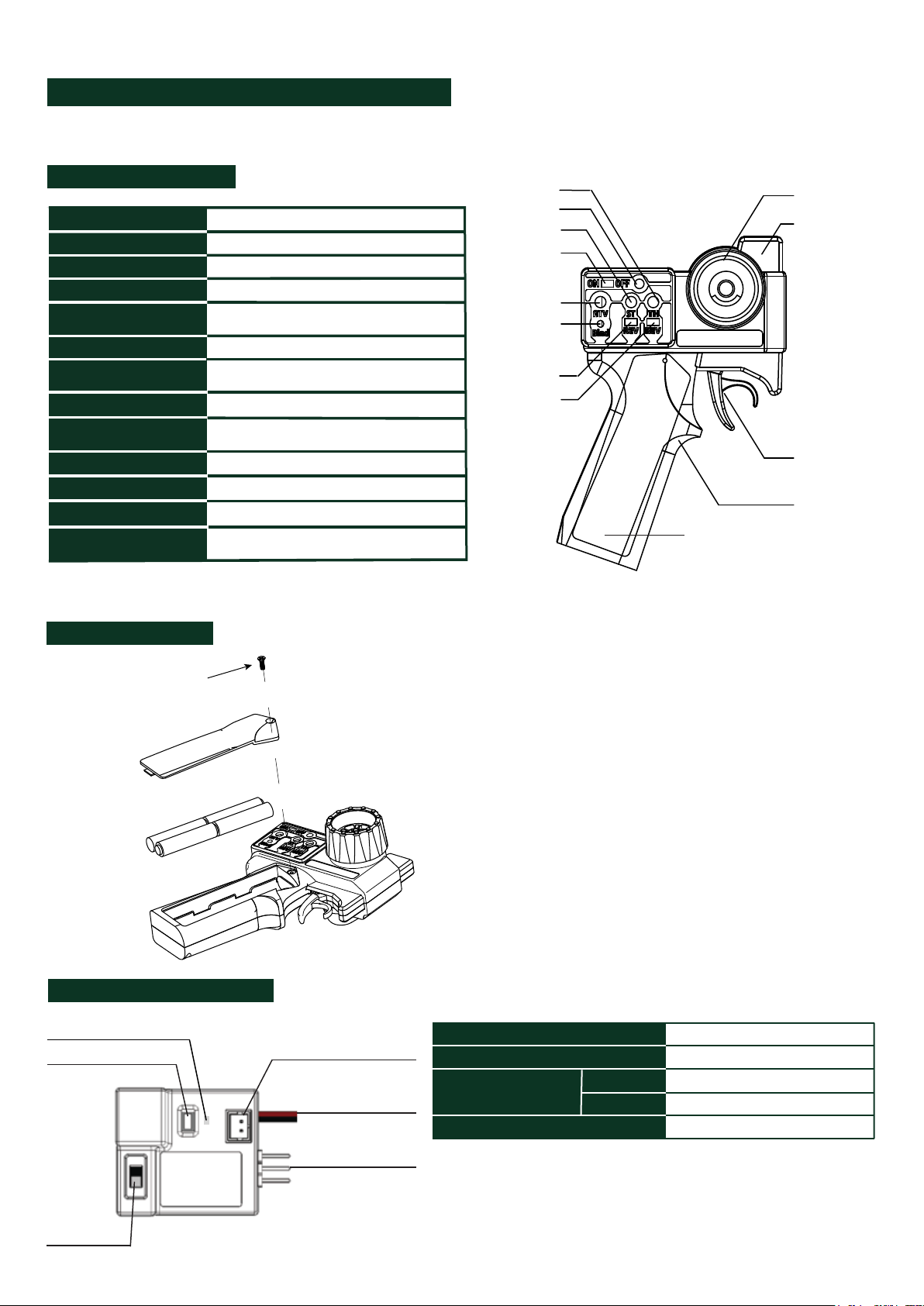

XR2 Ultimate Micro Radio and ESC/Receiver
The following is an overview of the various functions and adjustments found on XR2 Ultimate Micro radio system for RC4WD models.
It is important to read and understand about all of these functions and adjustments before driving.
1. Transmitter Functions
Description Specifications
Steering Wheel
2.4 Antenna
Throttle Trigger Controls speed (Forward / Brake / Backward)
TH. Trim Dial
LED indicator
ST. Trim Dial
Power ON / OFF
ATV
Bind
ST Reverse Switch
TH Reverse Switch
Battery Compartment Tray
* User should practice the throttle and steering approach for
different cornering at different speeds or road surfaces.
Controls direction (Left / Right)
Transmits signal to the model
Adjusts the model to stop when throttle trigger
is at stop position
Binding indicator and Low Battery indicator
Adjusts the model to run straight when
steering wheel is at center position
Power ON / OFF the transmitter
Adjusts the maximum steering angle when
model turns Left / Right
Allows TX to pair with RX
Reverse direction when operating steering wheel
Reverse direction when operating throttle trigger
Contains batteries for powering the transmitter
Throttle Trim Dial
LED indicator
Steering Trim Dial
Power
ON / OFF
ATV
Bind
Steering
Reverse Switch
Throttle
Reverse Switch
Steering Wheel
2.4 ANT
Throttle Trigger
Grip Handle
Battery Compartment Tray
2. Battery Installation
Phillips Screw (M3 x 10)
3. ESC/Receiver Connections
Signal LED
Setup Key
Connect to Motor
Connect to Battery
(1) Use a Phillips screwdriver to remove the screw at the
handle and remove the battery compartment cover.
(2) Install the 4x 1.5V AA batteries with correct polarity as
marked on the battery compartment.
(3) Reinstall the battery compartment cover.
Warning: Never disassemble batteries or place the
batteries in a fire or chemical bath.
Battery Disposal: Observe your local regulations for proper
disposal of batteries.
Type
Binding
Normal Operation
When no signal is received at RX/ESC
Lipo
NiMH
Repeating blink two times quickly
Micro RX/ESC
LED Flashing Quickly
LED Solid On
LED Flashing Slowly
Power ON / OFF
Connect to Servo
* The LED will remain solid during operation when the battery type is
LiPo and RF signal is received. If user wants to select NiMH battery,
hold the key for 5+ seconds, the RX/ESC will change to the other
battery type. For NiMH, the LED will continually flash once RF signal is
received.
I
XR2 Ultimate Micro ESC/Receiver
1. ESC/Receiver Features
Type
Servo Port Standard 3 Pin Servo Port
BEC For Servo
Battery
7.2V NiMH or 2S LiPo, JST connector (Use setup key to select battery type)
2.4GHz RX with Crawler ESC
5V,1A
2. ESC/Receiver
Status LED
TX Off
Normal Operation: LiPo Mode
Normal Operation: NiMH Mode
LED Off: If after 4 sec with no TX
detected, it will flash 2 times repeatedly
to indicate loss of signal.
LED Solid On
LED Flashing Quickly
To select battery type, See section 3
To select battery type, See section 3
Remark
3. Selecting Battery Type
During normal operation, hold the key for 5+ seconds until LED change status. Now battery type is changed and saved in the memory.
4. Electrical Specifications
Description
Low Voltage Cut-off (NiMH) 4V
Low Voltage Cut-off (LiPo) 6.6V
Max Battery Voltage 9V
Max Continuous Current
Max Peak Current
Thermal Protection
Stall Protection
BEC 5V, 1A with Thermal and Over Current Protection
(Motor will stop once battery voltage below this value)
(Motor will stop once battery voltage below this value)
Specifications
3.5A
6A
110˚C
By current limit – 3A
II

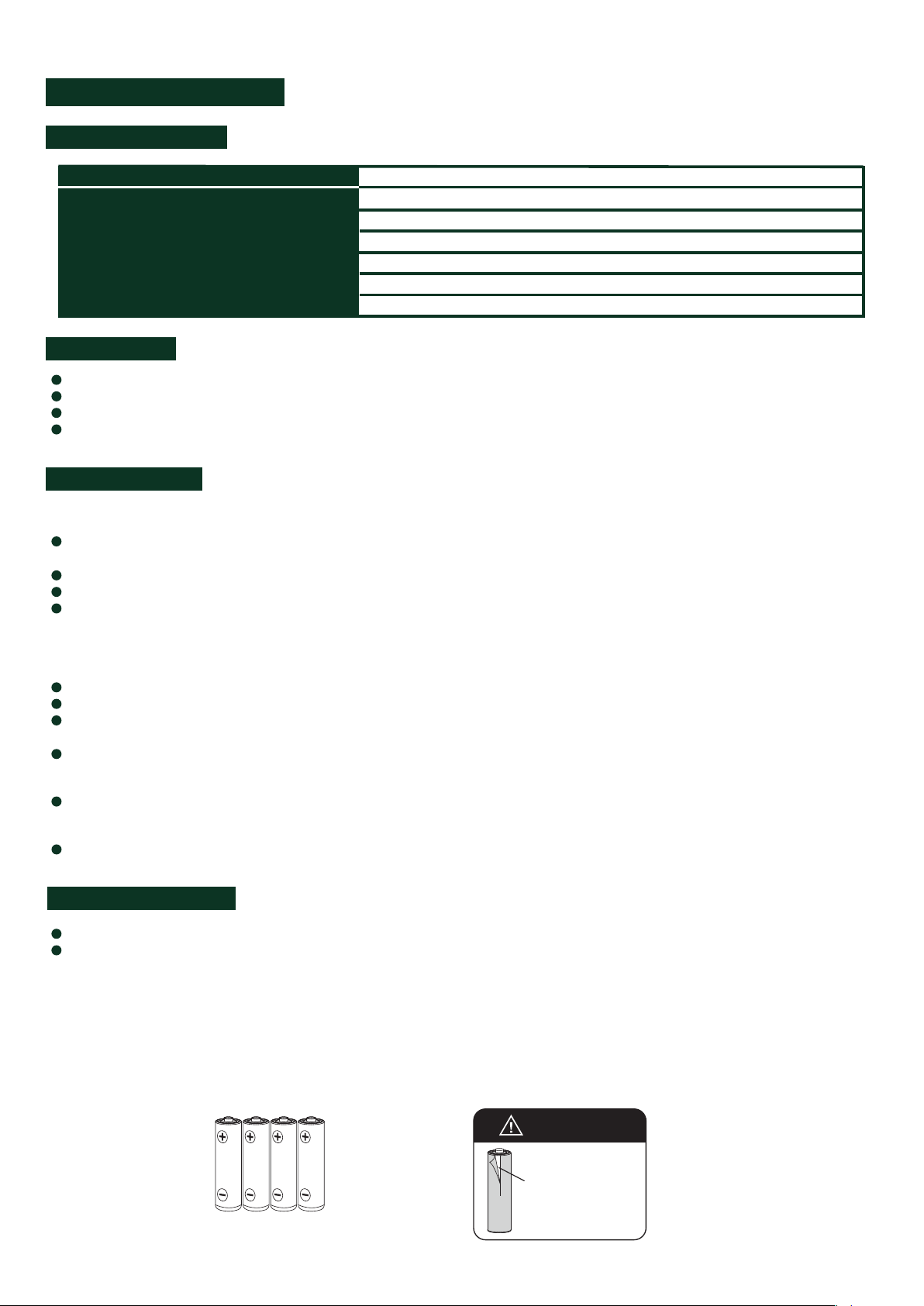

XR2 Ultimate Micro Radio
1. Transmitter Features
Type
2.4GHz, Frequency Hopping, FHSS
Programmable Steering End-points by Setup Key
Programmable Throttle End-points by Setup Key
2 Channel System
Adjustable Steering Trim
Adjustable Throttle Trim
Dual Rate Steering
Low Battery Indicator LED
2. Pairing to TX
1
Power off the TX.
2
Press and hold the program button of the RX/ESC and turn on RX/ESC, the LED will flash slowly.
3
Next, hold the Bind button of TX and then power on TX. TX LED will flash when binding starts.
4
When the RX LED Solid On, this means RX has paired to TX successfully. If TX LED stops flashing and RX is not bound, move
closer and start over at step 1.
3. Setup Your Radio
a) Reverse Switches, Trimmer and ATV Knob
1
If the truck turns the wrong direction when driving, you can reverse the direction with the reverse switch. The same principle can be
applied to forward and reverse
2
Use the steering trim to make minor adjustments to keep truck going in a straight line when not steering.
3
Use throttle trim to adjust if truck does not stop when not using the throttle.
4
Use the ATV Knob to adjust the steering endpoints. This can be used to make the truck steer more or less sharp.
b) Programming the End-points
To set the Right End-point of Steering
1
Turn on TX and RX.
2
Hold the steering wheel at right-most position and then hold the setup key for 10+ seconds until LED flashes.
3
Now move the steering wheel until the front wheel is at the right-most position. Then hold the steering wheel at this position and
press the setup key to save this End-point.
4
The LED will blink 4 times and then return the TX back to normal operation.
To set the Left End-point of Steering
1
Similar to above, only difference is hold the steering at left-most position and then hold the setup key for 10+ seconds.
Throttle End-points Programming
1
Similar to steering end-point programming, hold the throttle at forward-most position to set forward end-point, (Reverse-most
position to set reverse end-point) hold the setup key for 10+ seconds.
4. Low Battery Indicator
1
During normal operation, the LED should be solid ON.
2
Once battery gets too low, the LED will begin flashing very slowly to indicate battery is low. You should replace
with a new battery replacement as soon as possible.
Instructions for Disposal of WEEE by Users in the European Union
This product must never be thrown away with other waste. Thus, the users are responsible for disposing the wasted model by submitting them to designated collection stations specic for recycling electronic and electric items. Disposing of the wasted model in this
way is helpful in conserving natural resources and promotes human health while protecting the environment. For more information
about wasted model disposal and recycling, please contact your local city ofce, your disposal service or where you purchased the
product.
Z-S1718
RC4WD AA Batteries
4x
ATTENTION
Do not use damaged
or leaking batteries.
III
Safety Precautions
THIS MODEL IS ONLY SUITABLE FOR PEOPLE 14 YEARS OLD AND UP.
THIS RADIO CONTROL MODEL IS NOT A TOY.
It is recommended that beginners seek advice from an experienced person in order to assemble the model or parts correctly.
* During assembly: Keep out of reach of children. Parts are small and may be hazardous to small children.
Use precaution while operating this model. User is fully responsible for the model's assembly and safe operation.
Introduction
This is an advanced hobby grade product. It must be operated with caution and common sense. Basic mechanical aptitude is required
to operate this model: Failure to operate this product in a safe and responsible manner could result in injury, damage the product or
other properties. This product is not intended for use by children without direct adult supervision. The product manual contains
instructions for safe operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual prior
to assembly, setup and use, in order to operate correctly and avoid damage or injury.
Safety, Precautions and Warnings
As the user of this product, you are solely responsible for operating it in a manner that does not endanger yourself and others or result
in damage to the product or the property of others.
This model is controlled by a radio signal that is subject to interference from many sources outside your control. This interference can
cause momentary loss of control so it is necessary to always keep a safe distance in all directions around your model, as this will help
to avoid collisions or injury.
• Always operate your model in an open area away from cars, traffic or people.
• Avoid operating your model on the street where injury or damage can occur.
• Never operate the model on a busy street or populated areas for any reason.
• Never operate your model with low transmitter batteries.
• Carefully follow the directions, warnings for this product and any optional support equipments (chargers, rechargeable battery packs,
etc.) that you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.
• Moisture causes damage to electronics. Avoid water exposure to all equipment not specifically designed and protected for this
purpose.
CE Compliance Information for The European Union
The associated regulatory agencies of the following countries recognize the noted certifications for this product as authorized for sale
and use.
UK DE DK BG SE CZ ES NL SK HU RO FR PT
FI EE LV LT PL AT CY SI GR MT IT IE LU
FCC ID ??????
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
NOTE: Modifications to this product will void the user’s authority to operate this equipment.
RF Exposure Warning:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
And should be operated with minimum distance of 20 cm between the antenna & your body.
