Razor MX650, MX500 User Manual
Read and understand this entire manual before riding!
Version 1_04/11
OWNER’S MANUAL
DO NOT RETURN TO STORE!
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
Item Numbers:
Dirt Rocket MX500 15128190
Dirt Rocket MX650 15165070
CONTENTS
Safety Warnings .................................................................................1
Before You Begin .................................................................................2
Assembly and Set-Up ...................................................................... 3-5
Before Riding .......................................................................................5
Repair and Maintenance ................................................................. 5-8
SAFETY WARNINGS
WARNING: Riding an electric motorbike can be a hazardous activity.
Certain conditions may cause the equipment to fail without fault of the
manufacturer. Like other electric products, the Dirt Rocket can and is intended
to move, and it is therefore possible to lose control, fall off and/or get into
dangerous situations that no amount of care, instruction or expertise can
eliminate. If such things occur you can be seriously injured or die, even when
using safety equipment and other precautions. RIDE AT YOUR OWN RISK
AND USE COMMON SENSE.
This manual contains many warnings and cautions concerning the
consequences of failing to maintain, inspect or properly use your electric
motorbike. Because any incident can result in serious injury or even death, we
do not repeat the warning of possible serious injury or death each time such a
possibility is mentioned.
APPROPRIATE RIDER USE AND PARENTAL SUPERVISION
This manual contains important safety information. It is your responsibility to
review this information and make sure that all riders understand all warnings,
cautions, instructions and safety topics and assure that young riders are able
to safely and responsibly use this product. Razor USA recommends that you
periodically review and reinforce the information in this manual with younger
riders, and that you inspect and maintain your child’s product to insure their
safety.
The recommended rider age (14 for the MX500 and 16 for the MX650) is only
an estimate, and can be affected by the rider’s size, weight or skills. Any rider
unable to fit comfortably on the Dirt Rocket should not attempt to ride it.
A parent’s decision to allow his or her child to ride this product
should be based on the child’s maturity, skill and ability to follow
rules.
Keep this product away from small children and remember that this product
is intended for use only by persons who are, at a minimum, completely
comfortable and competent while operating the product.
DO NOT EXCEED THE WEIGHT LIMIT OF 175 pounds for the MX500 and 220
pounds for the MX650. Rider weight does not necessarily mean a person’s
size is appropriate to fit or maintain control of the Dirt Rocket.
Do not touch the brakes or electric motor on your electric motorbike when in
use as they can become very hot.
Refer to the section on safety for additional warnings.
ACCEPTABLE RIDING PRACTICES AND CONDITIONS
Always check and obey any local laws or regulations which may
affect the locations where the Dirt Rocket may be used.
Ride defensively. Watch out for potential obstacles that could catch your
wheel or force you to swerve suddenly or lose control. Be careful to avoid
pedestrians, skaters, skateboards, scooters, bikes, children or animals who
may enter your path, and respect the rights and property of others.
The Dirt Rocket is meant to be used only in controlled environments free of
potential traffic hazards and not on public streets or sidewalks. Do not ride
your electric motorbike in any areas where pedestrian or product traffic is
present.
Do not activate the speed control on the hand grip unless you are on the
electric motorbike and in a safe, outdoor environment suitable for riding.
These bikes were manufactured for performance and durability but are not
impervious to damage. Jumping or other aggressive riding can over-stress and
Troubleshooting Guide ........................................................................9

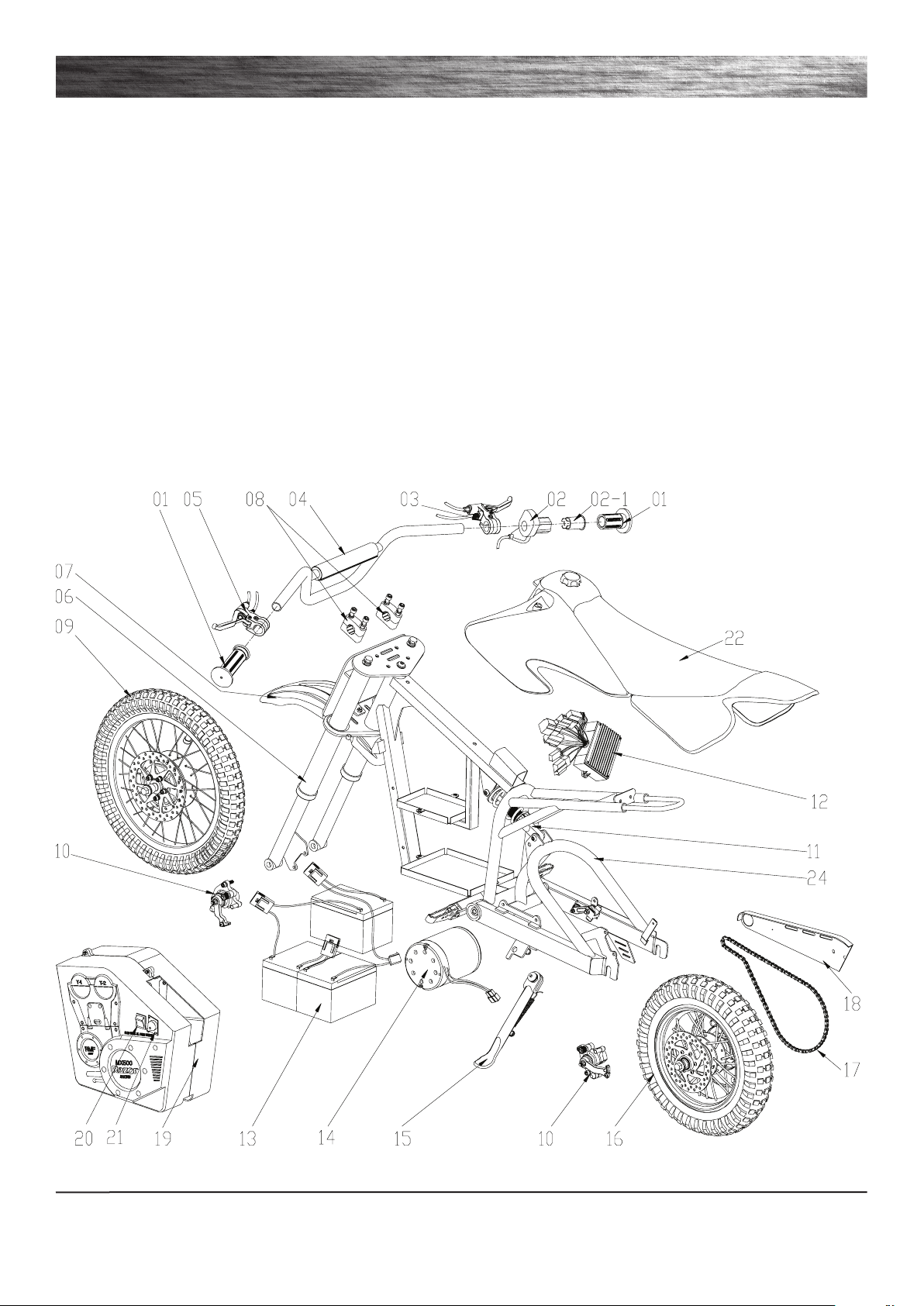

MX500 / MX650 Parts ......................................................................10
Safety Reminders ..............................................................................12
Warranty Information ........................................................................12
damage any product, including the electric motorbike, and the rider assumes
all risks associated with high-stress activity.
Be careful and know your limitations. Risk of injury increases as the degree
of riding difficulty increases. The rider assumes all risk associated with
aggressive riding activities.
Maintain a hold on the handlebars at all times.
Never carry passengers or allow more than one person at a time to ride the
electric motor bike.
Never use near steps or swimming pools.
Keep your fingers and other body parts away from the drive chain, steering
system, wheels and all other moving components.
Never use headphones or a mobile phone when riding.
Never hitch a ride with another product.
Do not ride the Dirt Rocket in wet or icy weather and never immerse the
electric motorbike in water, as the electrical and drive components could be
damaged by water or create other possibly unsafe conditions.
The Dirt Rocket is intended for use on flat, level ground without loose debris
such as rocks or gravel. Wet, slick, bumpy, uneven or rough surfaces may
impair traction and contribute to possible accidents. Do not ride the electric
motorbike in mud, ice, puddles or water. Avoid excessive speeds that can be
associated with downhill rides. Never risk damaging surfaces such as carpet
or flooring by use of an electric motorbike indoors.
Do not ride at night or when visibility is limited.
PROPER RIDING ATTIRE
Always wear proper protective equipment such as an approved safety helmet
(with chin strap securely buckled), elbow pads and kneepads. A helmet may
be legally required by local law or regulation in your area. A long-sleeved
shirt, long pants and gloves are recommended. Always wear athletic shoes
(lace-up shoes with rubber soles), never ride barefooted or in sandals, and
keep shoelaces tied and out of the way of the wheels, motor and drive
system.

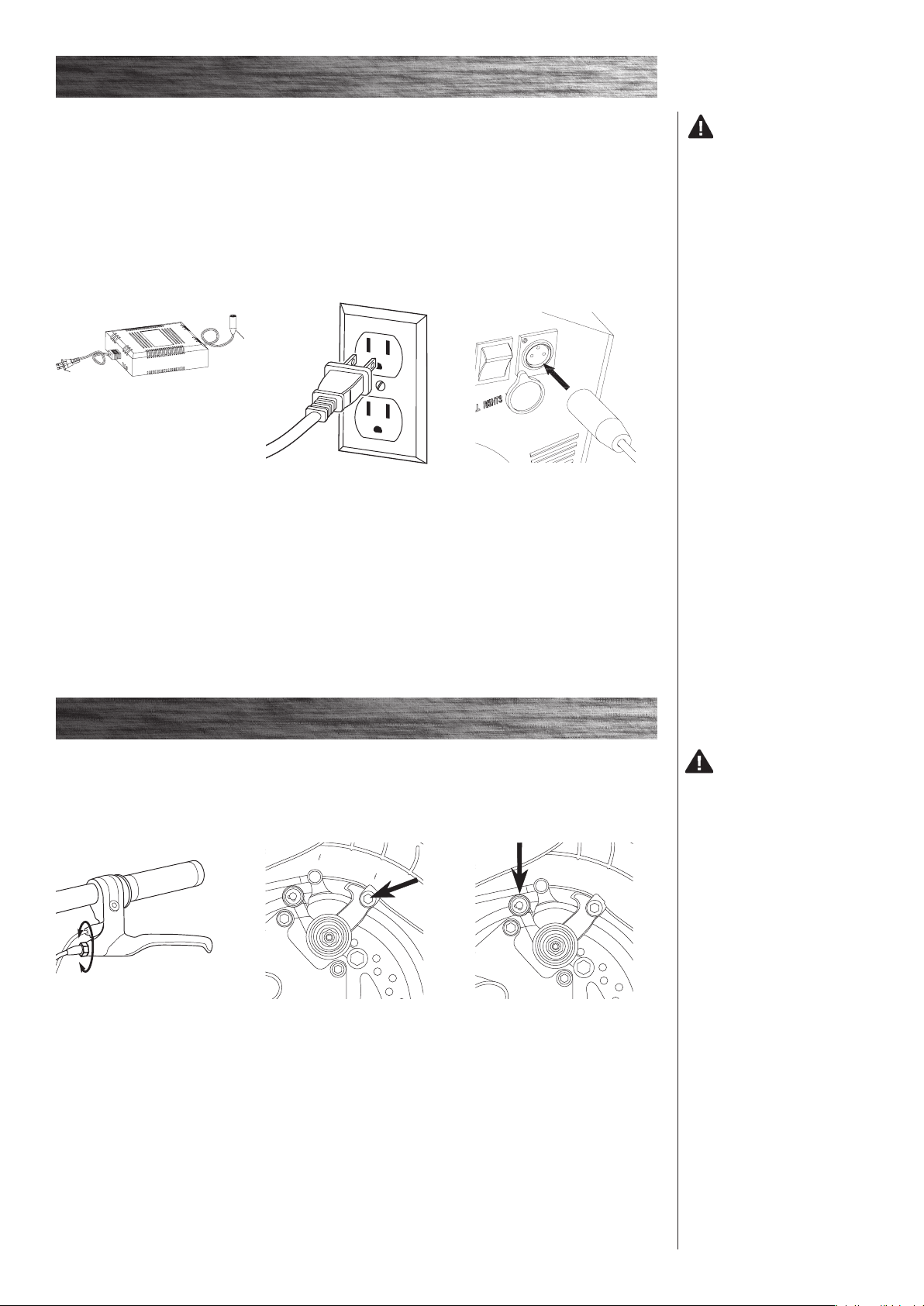

USING THE CHARGER
The charger supplied with the electric motorbike should be regularly
examined for damage to the cord, plug, enclosure and other parts, and in the
event of such damage, the bike must not be charged until the charger has
been repaired or replaced.
Use only with the recommended charger.
Use caution when charging.
The charger is not a toy. Charger should be operated by an adult.
Do not operate near flammable materials.
Unplug charger and disconnect from bike when not in use.
Always disconnect from the charger prior to wiping down and cleaning your
electric motorbike with liquid.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE
WARNINGS INCREASES RISK OF SERIOUS INJURY. USE WITH
APPROPRIATE CAUTION AND SERIOUS ATTENTION TO SAFE
OPERATION.
1
BEFORE YOU BEGIN
Remove contents from box. Remove the foam separators that protect the components from damage during
shipping. Inspect the contents of the box for scratches in the paint, dents or kinked cables that may have
occurred during shipping. Because the Dirt Rocket is 95 percent assembled and packed at the factory, there
should not be any problems, even if the box has a few scars or dents.
MAKE SURE POWER SWITCH IS TURNED “OFF” BEFORE CONDUCTING ANY
MAINTENANCE PROCEDURES.
Estimated Assembly and Set-Up Time
Razor recommends assembly by an adult.
Allow up to 30 minutes for assembly.
Allow up to 12 hours for initial charge (see page 5 for charging information).
Charger
Charger
Port
Brake Lever
Charger
Plug
WARNING:
DO NOT USE NON-RAZOR
PRODUCTS WITH YOUR RAZOR
DIRT ROCKET. The Dirt Rocket
has been built to certain Razor
design specifications. The
original equipment supplied at
the time of sale was selected
on the basis of its compatibility
with the frame, fork and all
other parts. Certain aftermarket
products may or may not be
compatible and will void your
warranty.
Required Tools
Brake Lever
Front Fork
Speed Control
Brake Lever
Drive
Chain
5mm and 6mm
Allen wrenches
(Included)
2.5mm Allen wrench
(Not Included)
10mm, 14mm and 17mm
open wrenches
(Included)
19mm open wrench
(Not Included)
Phillips
screwdriver
(Included)

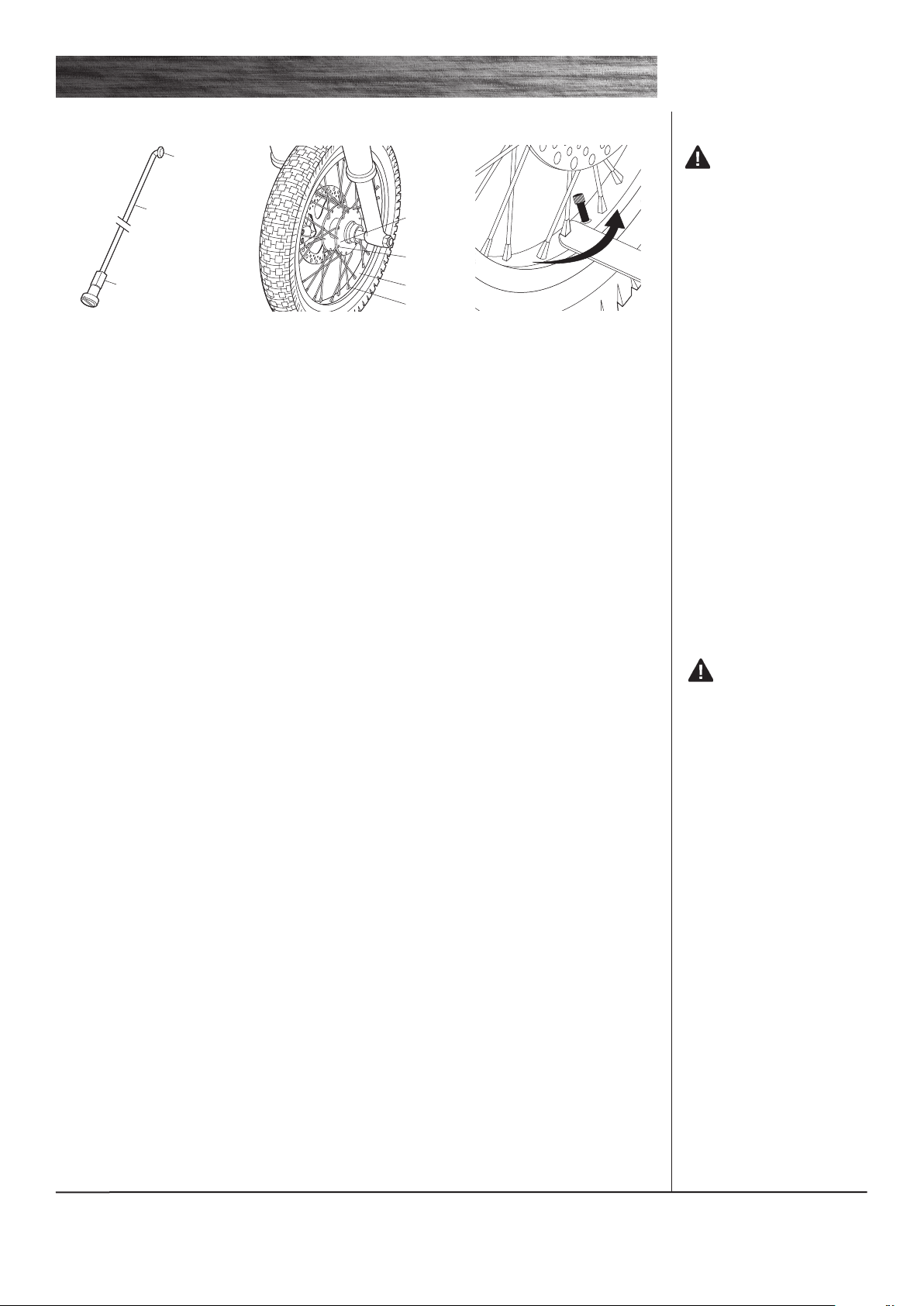

Spoke tightener
(Included)
Bicycle tire pump
for Schrader valve tires,
with pressure gauge
(Not Included)
Need Help? Visit our website for replacement parts, product support and a list of authorized service centers
at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
2
ASSEMBLY AND SET-UP
Attaching the Handlebars
1 Place the handlebars in
the handlebar clamps.
Note: Handlebar clamps are
located in the plastic bag.
2 Align parallel to the fork and
tighten the bolts using a 6mm
Allen wrench. When properly
tightened, the handlebars should
not move forward or back.
q Attaching the Front Fender
1 Align fender with the hole
in the fork and insert the
bolt. Tighten securely using a
10mm open wrench and 5mm
Allen wrench.
3 Adjust the brake lever
adjuster to the proper place
and tighten it with the 5mm
Allen wrench.
q Attaching the Number Plate
1 Remove screw from front
fork. Align the number plate
with the hole in the fork and
tighten with a Phillips screwdriver.
Need Help? Visit our website for replacement parts, product support and a list of authorized service centers
at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
3
