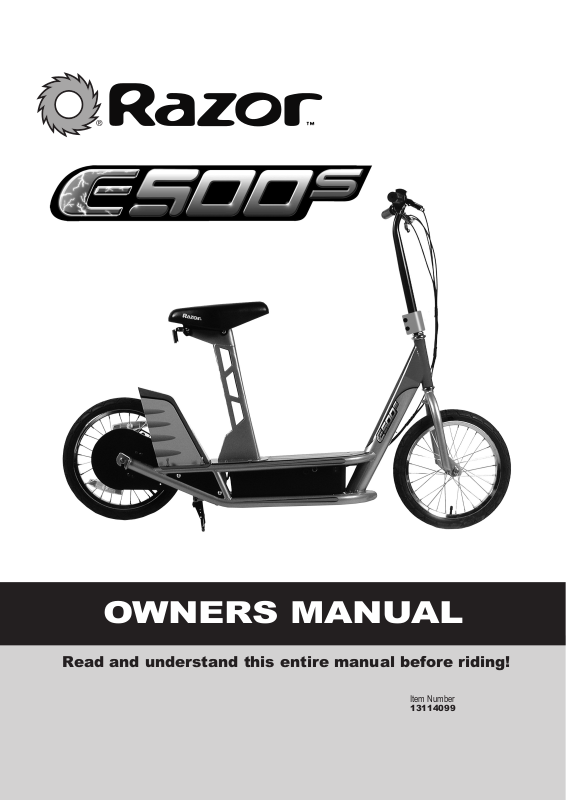

OWNERS MANUAL
Read and understand this entire manual before riding!
Item Number
13114099
CONTENTS
Safety Warnings ................................................................................ 1
Before You Begin ...............................................................................
Assembly and Set-Up ........................................................................
Repair and Maintenance ................................................................4-
2
3
5
SAFETY WARNINGS
WARNING: Riding the E500S scooter can be a hazardous
activity. Certain conditions may cause the equipment to fail without
fault of the manufacturer. Like other electric vehicles, the E500S
scooter can and is intended to move, and it is therefore possible
to lose control, fall off and/or get into dangerous situations that no
amount of care, instruction or expertise can eliminate. If such things
occur you can be seriously injured or die, even when using safety
equipment and other precautions. RIDE AT YOUR OWN RISK AND
USE COMMON SENSE.
This manual contains many warnings and cautions concerning the
consequences of failing to maintain, inspect or properly use your
E500S scooter. Because any incident can result in serious injury or
even death, we do not repeat the warning of possible serious injury
or death each time such a possibility is mentioned.
APPROPRIATE RIDER USE AND
PARENTAL SUPERVISION
This manual contains important safety information. It is your
responsibility to review this information and make sure that all riders
understand all warnings, cautions, instructions and safety topics
and assure that young riders are able to safely and responsibly use
this product. Razor recommends that you periodically review and
reinforce the information in this manual with younger riders, and
that you inspect and maintain your children’s scooter to insure their
safety.
The recommended rider age of 14 and older for the E500S scooter
is only an estimate, and can be affected by the rider’s size, weight
or skills. Any rider unable to fit comfortably on the scooter should not
attempt to ride it.
A parent’s decision to allow his or her child to ride this product
should be based on the child’s maturity, skill and ability to
follow rules.
Keep this product away from small children and remember that this
product is intended for use only by persons who are, at a minimum,
completely comfortable and competent while operating the scooter.
DO NOT EXCEED THE WEIGHT LIMIT OF 220
POUNDS.
Rider weight does not necessarily mean a person’s size is
appropriate to fit or maintain control of the E500S scooter.
Do not touch the brake or motor on your E500S scooter when in use
as these parts can become very hot.
Refer to the section on safety reminders for additional warnings.
ACCEPTABLE RIDING PRACTICES AND
CONDITIONS
Always check and obey any local laws or regulations which may
affect the locations where the E500S scooter may be used.
Ride defensively. Watch out for potential obstacles that could catch
your wheel or force you to swerve suddenly or lose control. Be
careful to avoid pedestrians, skaters, skateboards, scooters, bikes,
children or animals who may enter your path, and respect the rights
and property of others.
Troubleshooting Guide ...................................................................7-8
E500S Scooter Parts ....................................................................9-10
Safety Reminders ..............................................................Back Cover
Warranty ............................................................................Back Cover
Do not attempt or do stunts or tricks on your E500S scooter. The
scooter is not made to withstand abuse from misuse such as
jumping, curb grinding or any other type of stunts.
Maintain a hold on the handlebars at all times.
Never carry passengers or allow more than one person at a time to
ride the E500S scooter.
Never use near steps or swimming pools.
Keep your fingers and other body parts away from the drive chain,
steering system, wheels and all other moving components.
Never use headphones or a cell phone when riding.
Never hitch a ride with another vehicle.
Do not ride the E500S scooter in wet or icy weather and never
immerse the scooter in water, as the electrical and drive components
could be damaged by water or create other possibly unsafe
conditions.
The E500S scooter is intended for use on flat, dry surfaces such as
pavement or level ground without loose debris such as sand, leaves,
rocks or gravel. Wet, slick, bumpy, uneven or rough surfaces may
impair traction and contribute to possible accidents. Do not ride the
E500S scooter in mud, ice, puddles or water. Avoid excessive speeds
that can be associated with downhill rides. Never risk damaging
surfaces such as carpet or flooring by use of an E500S scooter
indoors.
Do not ride at night or when visibility is impaired.
PROPER RIDING ATTIRE
Always wear proper protective equipment such as an approved safety
helmet (with chin strap securely buckled), elbow pads and kneepads.
A helmet may be legally required by local law or regulation in your
area. A long-sleeved shirt, long pants and gloves are recommended.
Always wear athletic shoes (lace-up shoes with rubber soles), never
ride barefooted or in sandals, and keep shoelaces tied and out of the
way of the wheels, motor and drive system.
USING THE CHARGER
The charger supplied with the E500S scooter should be regularly
examined for damage to the cord, plug, enclosure and other parts,
and in the event of such damage, the bike must not be charged until
the charger has been repaired or replaced.
Use only with the recommended charger.
The charger is not a toy.
Always disconnect from the charger prior to wiping down and
cleaning your E500S scooter with liquid.
FAILURE TO USE COMMON SENSE AND HEED
THE ABOVE WARNINGS INCREASES RISK OF
SERIOUS INJURY. USE WITH APPROPRIATE
CAUTION AND SERIOUS ATTENTION TO SAFE
OPERATION.
1
BEFORE YOU BEGIN
Remove contents from box. Remove the foam separators that protect the components from damage
during shipping. Inspect the contents of the box for scratches in the paint, dents or kinked cables that may
have occurred during shipping. Because the E500S scooter was 95 percent assembled and packed at the
factory, there should not be any problems, even if the box has a few scars or dents.
Estimated Assembly and Set-Up Time
Razor recommends assembly by an adult with experience in bicycle mechanics.
Allow up to 20 minutes for assembly, not including initial charge time.
Allow up to 12 hours for initial charge (see page 3 for charging information).
Front Brake Lever
Speed Control
Rear Brake Lever
Brake Lever
Adjuster
WARNING:
DO NOT USE NON-RAZOR
PRODUCTS WITH YOUR
RAZOR E500S SCOOTER. The
scooter has been built to certain
Razor design specifications.
The original equipment supplied
at the time of sale was selected
on the basis of its compatibility
with the frame, fork and all
other parts. Certain aftermarket
products may or may not be
compatible.
Charger
Charger
Plug
Front Fork
Charger
Port
Kick
Stand
Wheel
Tire
Stem
Collar
Collar Bolts
On/Off Switch
Charger Port
Required Tools
Some tools may be supplied; however, we recommend the use of mechanic’s grade tools. Use the
supplied tools only as a last resort.
5 mm
hexagonal key wrench
(included)
Need Help? Visit our web site for updates and a list of authorized service centers at www.razor.com or
toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
call
10/15 mm wrench
(included)
Bicycle-style tire pump for
Schrader valve tires, with
pressure gauge
2
ASSEMBLY AND SET-UP
q Charging the Battery
Your electric scooter may not have a fully charged battery. Therefore it is a good idea to charge the battery
prior to use.
• Initial charge time: 12 hours • Run time: up to 40 minutes
• Recharge time: up to 8 hours, • Average battery life: 250 charge/discharge cycles
depending on the level of depletion
Charger
Port
Charger
Plug
1 Plug the charger port into
the port on the scooter. The
charger works with the power
switch in either the on or off
position.
2 Plug the charger plug into a
wall outlet.
q Attaching the Handlebars
WARNING:
Always disconnect your E500S
scooter from the charger before
cleaning with liquid.
Note: If your charger does
not look like the one illustrated,
your unit has been supplied
with an alternative charger. The
specifications and charging
procedure would not change.
The charger has a small
window with one LED or two
LEDs to indicate the charge
status. Refer to the illustration
on the charger unit for the
actual “charging” and “charged”
status indications for your
model charger.
Chargers have built-in overcharge protection to prevent
battery from being overcharged.
Be sure to properly align the
groove on the charger input
plug with the corresponding
socket on the case; otherwise,
no charging action will occur.
1 Insert handlebar assembly
into fork.
2 Handlebar assembly should
be all the way in with the collar
covering the threaded portion
of the fork. Spin the handlebar
stem clockwise down onto the
fork to ease installation.
3 Once stem is all the way
down and no more threads
on fork are visible, tighten
two collar bolts with 5 mm
hexagonal key wrench.
q Attaching the Seat
1 Remove the four bolts
from the frame with the 5 mm
hexagonal key wrench.
2 Position seat onto frame and
align holes.
3 Secure seat with the
four bolts.
q Riding Your Scooter
Testing the Brake – To use the brake, squeeze the brake lever to increase the pressure on the brake.
The brake lever is fitted with a cable adjuster to compensate for cable stretch and/or to fine-tune the
lever movement to brake engagement. If brake is not engaging properly, follow instructions for adjusting
the brake on page 4.
WARNING:
Failure to properly tighten
the collar bolts may allow
the handlebars to dislodge
while riding and may cause
you to lose control and fall.
When correctly tightened, the
handlebars will not rotate out of
alignment with the front wheel
under normal circumstances.
Note: The cable and wire
assembly from the handlebar
must be routed as shown in
step 1, not wrapped around
the steering tube or handlebar.
Sharp bends or twisting of the
brake cable can cause the
brake to malfunction.
3
ASSEMBLY AND SET-UP
q Inflating the Tires
Tires are inflated when shipped, but they invariably lose some pressure between the point of
manufacturing and your purchase.
1 Using a bicycle style tire
pump equipped for a Schradertype valve, inflate the tire to the
PSI indicated on the sidewall of
the tire.
REPAIR AND MAINTENANCE
Check the Razor web site for any updates on the latest repair and maintenance procedures.
Turn power switch off before conducting any maintenance procedures.
Note: The pressurized air
supplies found at gasoline
stations are designed to inflate
high-volume automobile tires.
If you decide to use such
an air supply to inflate your
scooter tires, first make sure
the pressure gauge is working,
then use very short bursts to
inflate to the correct PSI. If
you inadvertently over-inflate
the tire, release the excess
pressure immediately.
q Adjusting the Brake
1 To adjust the brake cable
play, thread the brake lever
adjuster in or out 1/4 to 1/2 turn
until the desired brake adjustment is attained. Most
adjustments are complete at
this step. If brake still needs
further adjustment, proceed
to step 2 for rear or step 4 for
front.
2 If the brake has too much
slack, loosen the rear anchor
bolt and pull the brake wire
tighter. The distance of the
brake wire between the end of
the cable and the anchor bolt
should be between 37 and 44
mm.
37-44 mm
Rotor
Backside
view of wheel
3 If the brake rotor is dragging
on the brake pads use your
fingers to twist the caliper
adjuster in either direction until
rotor is centered between pads.
WARNING:
The brake is capable of
skidding the tire and throwing
an unsuspecting rider. Practice
in an open area free from
obstacles until you are familiar
with the brake function. Avoid
skidding to a stop as this can
cause you to lose control or
damage the rear tire.
4
REPAIR AND MAINTENANCE
q Front Tire Replacement
1 Loosen front axle by
attaching 10/15 mm wrenches
to both axle nuts and loosening
counter-clockwise.
2 Remove wheel and replace
tire. To reinstall wheel, reverse
these steps.
q Rear Tire/Chain Replacement
1 Remove chain guard with
Phillips Screwdriver.
2 Loosen rear axle by attach-
ing wrenches to both axle nuts
and loosening counter-clockwise. Pull chain off sprocket and
remove wheel from frame.
3 Remove wheel and replace
tire or chain. To reinstall wheel,
reverse these steps.
q Battery Care and Disposal
Do not store the battery in temperatures above 75° or below -10° F.
CONTAINS SEALED LEAD BATTERY. BATTERY MUST BE RECYCLED.
Disposal: Your Razor product uses sealed lead-acid batteries which must be recycled or disposed of in an
environmentally sound manner. Do not dispose of a lead-acid battery in a fire. The battery may explode
or leak. Do not dispose of a lead-acid battery in your regular household trash. The incineration, land filling
or mixing of sealed lead-acid batteries with household trash is prohibited by law in most areas. Return
exhausted batteries to a federal or state approved lead-acid battery recycler or a local seller of automotive
batteries. If you live in Florida or Minnesota, it is prohibited by law to throw away lead-acid batteries in the
municipal waste stream.
WARNING:
If a battery leak develops, avoid
contact with the leaking acid
and place the damaged battery
in a plastic bag. Refer to the
disposal instructions at left. If
acid comes into contact with
skin or eyes, flush with cool
water for at least 15 minutes
and contact a physician.
q Charger
The transformer/charger supplied with the scooter should be regularly examined for damage to the cord,
plug, enclosure and other parts, and, in the event of such damage, the scooter must not be charged until it
has been repaired or replaced.
Use ONLY with the recommended charger.
q Replacement Parts
The most frequently requested replacement parts (wheels, tires, tubes, batteries and chargers) are
available for purchase at some Razor retail partners or online at www.razorama.com. For other parts
contact an authorized Razor repair center.
q Repair Centers
For a list of authorized Razor repair centers:
• Check online at www.razor.com.
• Send e-mail to customerservice@razorusa.com or call 866-467-2967 for the center nearest you.
5
SB 1918 (CALIFORNIA) DECLARATION
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR
ACCIDENTS INVOLVING THE USE OF THIS SCOOTER/ELECTRIC
VEHICLE. TO DETERMINE IF COVERAGE IS PROVIDED, YOU SHOULD
CONTACT YOUR INSURANCE COMPANY OR AGENT.
6
TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
Scooter does not run
Undercharged battery
Charge the battery. A new battery should have been charged for at
least 12 hours before using the scooter for the first time and up to 8
hours after each subsequent use.
Check all connectors. Make sure the charger connector is tightly
plugged into the charging port, and that the charger is plugged into
the wall.
Make sure power flow to the wall outlet is on.
Scooter was running but
suddenly stopped
Short run time (less than
30 minutes per charge)
Scooter runs sluggishly
Charger is not working
Loose wires or connectors
Burned out fuse
Motor or electrical switch
damage
Undercharged battery
Battery is old and will not accept
full charge
Brake not adjusted properly
Driving conditions are too
stressful
You may check to see if your charger is working by using a volt meter
or asking your local Razor authorized service center to test your
charger for you.
Check all wires and connectors to make sure they are tight.
The fuse will burn out and automatically shut off the power if the
motor is overloaded.
An excessive overload, such as too heavy a rider or too steep a hill,
could cause the motor to overheat. Replace the fuse with a new one
of equal amperage. Correct the conditions that caused the fuse to
burn out and avoid repeatedly burning out fuse.
Contact your local Razor authorized service center for diagnosis and
repair.
Charge the battery. A new battery should have been charged for at
least 12 hours before using the scooter for the first time and up to 8
hours after each subsequent use.
Check all wires and connectors. Make sure the battery connector is
tightly plugged into the charger connector, and that the charger is
plugged into the wall.
Make sure power flow to the wall outlet is on.
Even with proper care, a rechargeable battery does not last forever.
Average battery life is 1 to 2 years depending on scooter use and
conditions. Replace only with a Razor replacement battery.
Refer to adjusting the brake instructions on page 4.
Use only on solid, flat clean and dry surfaces such as pavement or
level ground.
Tires are not properly inflated
Scooter is overloaded
Brake rotor is dragging on pads
Brake not adjusted properly
The tires are inflated when shipped, but they invariably will lose some
pressure between the point of manufacturing and your purchase.
Refer to instructions on page 5 of this manual to properly inflate tires.
Make sure you do not overload the scooter by allowing more than
one rider at a time, exceeding the 220 lb. maximum weight limit,
going up a hill or towing objects behind the scooter. If the scooter
is overloaded, the circuit breaker may trip and shut off power to the
motor. Correct the driving conditions that caused the overload, wait
a few seconds, and then push the breaker to reset the circuit. Avoid
repeatedly tripping the circuit breaker.
Use your fingers to twist the caliper adjuster in either direction until
rotor is centered between pads.
Refer to adjusting the brake instructions on page 4.
7
TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
Sometimes the scooter
doesn’t run, but other
times it does
Loose wires or connectors
Motor or electrical switch damage
Check all wires around the motors and all connectors to make sure
they are tight.
Contact your local Razor authorized service center for diagnosis and
repair.
Charger gets warm
during use
Scooter does not stop
when applying the brake
Scooter makes loud
noises or grinding
sounds
Normal response to charger use
Brake not adjusted properly
Chain is too dry
Brake rotor is dragging on brake pads
No action required. This is normal for some chargers and is no cause
for concern. If your charger does not get warm during use, it does not
mean that it is not working properly.
Refer to adjusting the brake instructions on page 4 .
Apply a lubricant such as 3 in 1TM or Tri-FlowTM to the chain.
Use your fingers to twist the caliper adjuster in either direction until
rotor is centered between pads.
Need Help? Visit our web site for updates and a list of authorized service centers at www.razor.com or
toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
call
8
E500S PARTS
Keep your E500S scooter running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability. (Specifications subject to change without notice.)
1. Front wheel with tire, tube, axle nuts
2. Rear wheel with tire, tube, sprocket, freewheel, axle nuts
3. Fork
4. Handlebar
5. Quill and handlebar clamp
6. Brake levers
7. Speed control
8. Seat mast w/screws
9. Chainguard w/screws
10. Sprocket and freewheel
11. Chain
12. Chain tensioner w/screws
13. Motor, 400 or 600 watt w/screws
14. Deck plate w/screws
15. Battery tray w/screws
16. 12V 10Ah battery x 2 (two)
17. Control module
18. Rotor for brake
19. Rear caliper w/screws
20. Kick stand w/screws
21. Right side cover w/screws
22. Headset bearing
23. Seat w/screws
24. Fender
25. Grips
9
E500S PARTS
16
1
7
5
4
3
22
15
17
24
20
21
14
13
12
23
11
10
6
25
8
9
18
2
19
10
SAFETY REMINDERS
PRE-RIDE CHECKLIST
q
q
q
Loose Parts
Check and secure all fasteners before every ride. Make
sure steering stem clamp bolts are locked properly in place.
There should not be any unusual rattles or sounds from
loose parts or broken components. If you are not sure, ask
an experienced mechanic to check.
Brake
Check the brake for proper function. When you squeeze
the lever, the brake should provide positive braking action.
When you apply the brake with the speed control on, the
brake cut-off switch will stop the motor.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although broken
frames are rare, it is possible for an aggressive driver to
bash into a curb or wall and wreck and bend or break a
frame. Get in the habit of inspecting yours regularly.
q
q
Tire Inflation
Periodically inspect the tires for excess wear, and
regularly check the tire pressure and re-inflate as
necessary. If you get a flat tire, the inner tube can be
patched or a new tube can be purchased from Razor or
an authorized repair center.
Safety Gear
Always wear proper protective equipment such as an
approved safety helmet, elbow pads and kneepads.
Always wear athletic shoes (lace-up shoes with rubber
soles), never drive barefooted or in sandals, and keep
shoelaces tied and out of the way of the wheels, motor
and drive system.
WARRANTY
Razor Limited Warranty
The manufacturer warranties this product to be free of manufacturing
defects for a period of 90 days from date of purchase. This Limited
Warranty does not cover normal wear and tear, tires, tubes or
cables, or any damage, failure or loss caused by improper assembly,
maintenance, or storage or use of the Razor electric chopper.
This Limited Warranty will be void if the product is ever
• used in a manner other than for recreation or transportation
• modified in any way;
• rented.
The manufacturer is not liable for incidental or consequential loss or
damage due directly or indirectly to the use of this product.
Razor does not offer an extended warranty. If you have purchased an
extended warranty, it must be honored by the store at which it was
purchased.
Need Help? Visit our web site for updates and a list of authorized service centers at www.razor.com or
toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
call
Patent Pending
Printed in China for:
Razor USA LLC
PO Box 3610
Cerritos, CA 90703
© Copyright 2005 Razor USA. All rights reserved.
For your records, save your original sales receipt with this manual
and write the serial number below.
__________________________________________
Item Number
13114099
082605
Loading...
