Razor E300S, E300 User Manual

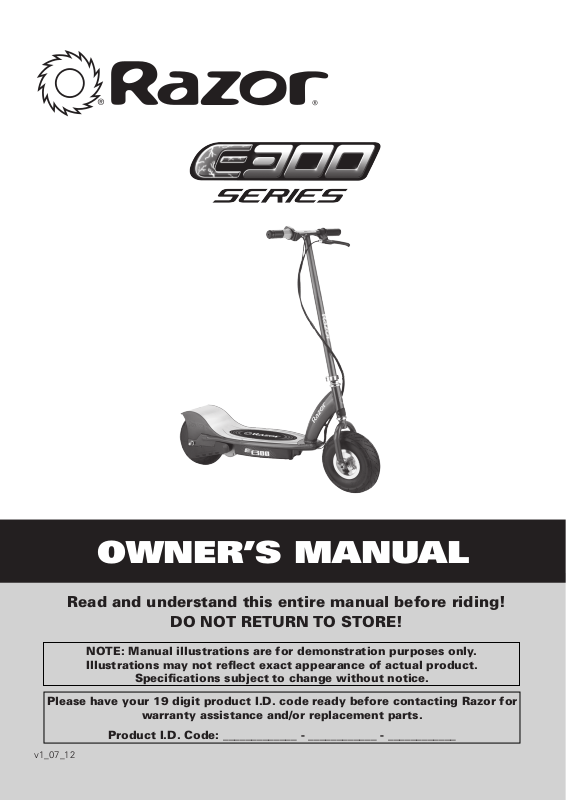

OWNER’S MANUAL
Read and understand this entire manual before riding!
DO NOT RETURN TO STORE!
NOTE: Manual illustrations are for demonstration purposes only.
Illustrations may not reflect exact appearance of actual product.
Specifications subject to change without notice.
Please have your 19 digit product I.D. code ready before contacting Razor for
warranty assistance and/or replacement parts.
Product I.D. Code: _____________ - ____________ - ____________
v1_07_12
CONTENTS
Safety Warnings ...............................................................1
Before You Begin ..............................................................2
Assembly and Set-Up/Usage .........................................3-4
Charging Battery/Pre-Ride Checklist ................................5
SAFETY WARNINGS
WARNING: Riding an electric scooter does present potential risks and
caution is required. Like any riding product, an electric scooter has inherent
hazards associated with its use (for example, falling off or riding it into a
hazardous situation). Like any riding product, electric scooters can and are
intended to move and it is therefore, of course, possible to lose control or
otherwise get into dangerous situations. Both children and adults responsible
for supervising them must recognize that if such things occur, a rider can
be seriously injured or die, even when using safety equipment and other
precautions. RIDE AT YOUR OWN RISK AND USE COMMON SENSE.
WARNING: PARENTAL AND ADULT
RESPONSIBILTY AND SUPERVISION IS NECESSARY:
Because products, like electric scooters, can and do present potential
hazards plainly associated with their use, it is well recognized THE NEED
FOR EXERCISE OF PARENTAL RESPONSIBILITY IN SELECTING RIDING
PRODUCTS APPROPRIATE TO THE AGE OF A CHILD, OR PARENTAL
SUPERVISION IN SITUATIONS IN WHICH CHILDREN OF VARIOUS AGES
MAY HAVE ACCESS TO THE SAME RIDING PRODUCTS, IS IMPORTANT.
Not every product is appropriate for every age or size of child, and different
age recommendations are found within this category of product which are
intended to reflect the nature of the hazards and the expected mental or
physical ability, or both, of a child to cope with the hazards.
The recommended rider age is 13 and older. Any rider unable to fit
comfortably on the scooter should not attempt to ride it. A parent’s decision
to allow his or her child to ride this product should be based on the child’s
maturity, skill and ability to follow rules.
Keep this product away from small children and remember that it is
intended for use only by persons who are, at a minimum, completely
comfortable and competent while operating the scooter.
Persons with any mental or physical conditions that may make them
susceptible to injury, impair their physical dexterity or mental capabilities
to recognize, understand, and follow safety instructions and to be able
to understand the hazards inherent in scooter use, should not use or be
permitted to use products inappropriate for their abilities. Persons with
heart conditions, head, back or neck ailments (or prior surgeries to these
areas of the body), or pregnant women, should be cautioned not to operate
such products.
DO NOT EXCEED THE WEIGHT LIMIT OF 220 lbs (100 kg). Rider
weight does not necessarily mean a person’s size is appropriate
to fit or maintain control of the scooter.
CHECK AND MAINTAIN SCOOTER CONDITIONS
Before use, check to confirm that any and all chain guards or other
covers and guards are in place and in serviceable condition. Check that
the brake is functioning properly, and that tires are inflated properly and
have sufficient tread remaining. The scooter should be maintained and
repaired in accordance with the manufacturer’s specifications, using
only the manufacturer’s authorized replacement parts, and should not
be modified from the manufacturer’s original design and configuration.
ACCEPTABLE RIDING PRACTICES AND
CONDITIONS
Always check and obey any local laws or regulations, which may
affect the locations where the electric scooter may be used. Keep
safely away from cars and motor vehicle traffic at all times, and only
use where allowed and with caution.
Do not activate the speed control on the hand grip unless you are on the
scooter and in a safe, outdoor environment suitable for riding.
Repair and Maintenance ................................................6-8
Troubleshooting Guide ...................................................... 9
Electric Scooter Parts .....................................................10
Warranty .........................................................................12
The normal powered top speed of this scooter will be approximately 15 mph
(24 kmh), which can be affected by conditions, such as rider weight, inclines,
tire inflation and battery charge level. Avoid excessive speeds that can be
associated with downhill rides.
Maintain a hold on the handlebars at all times. Do not touch the brakes or
motor on your scooter when in use or immediately after riding as these parts
can become very hot.
Ride defensively. Watch out for potential obstacles that could catch your wheel
or force you to swerve suddenly or lose control. Be careful to avoid pedestrians,
skaters, skateboards, scooters, bikes, children or animals who may enter your
path, and respect the rights and property of others.
The electric scooter is intended for use on flat, dry surfaces such, as pavement
or level ground, without loose debris, such as sand, leaves, rocks or gravel.
Wet, slick, bumpy, uneven or rough surfaces may impair traction and contribute
to possible accidents. Do not ride your scooter in mud, ice, puddles or water.
Watch out for potential obstacles that could catch your wheel or force you
to swerve suddenly or lose control. Avoid sharp bumps, drainage grates, and
sudden surface changes.
Do not attempt or do stunts or tricks on your electric scooter. The scooter is not
made to withstand abuse from misuse, such as jumping, curb grinding or any
other type of stunts. Racing, stunt riding, or other maneuvers also enhance risk
of loss of control, or may cause uncontrolled rider actions or reactions.
Never allow more than one person at a time to ride the scooter.
Do not ride at night or when visibility is limited.
Never use near steps or swimming pools.
Do not allow hands, feet, hair, body parts, clothing, or similar articles to
come in contact with moving parts, wheels, or drivetrain, chain while the
motor is running.
Never use headphones or a cell phone to talk or text when riding.
Never hitch a ride with a vehicle.
Do not ride your scooter in wet or icy weather and never immerse the scooter
in water, as the electrical and drive components could be damaged by water or
create other possibly unsafe conditions. Never risk damaging surfaces, such as
carpet or flooring, by use of an electric scooter indoors.
PROPER RIDING ATTIRE
Always wear proper protective equipment, such as an approved safety helmet
(with chin strap securely buckled), elbow pads and kneepads. A helmet may
be legally required by local law or regulation in your area. A long-sleeved
shirt, long pants, and gloves are recommended. Always wear athletic shoes
(lace-up shoes with rubber soles), never ride barefooted or in sandals, and keep
shoelaces tied and out of the way of the wheels, motor and drive system.
USING THE CHARGER
The charger supplied with the electric scooter should be regularly examined
for damage to the cord, plug, enclosure and other parts. In the event of such
damage, the scooter must not be charged until the charger has been repaired
or replaced.
Use only with the recommended charger.
Use caution when charging.
The charger is not a toy. Charger should be operated by an adult.
Do not operate charger near flammable materials.
Unplug charger and disconnect from scooter when not in use.
Do not exceed charging time.
Always disconnect from the charger prior to wiping down and cleaning your
scooter with damp cloth.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS
INCREASES RISK OF SERIOUS INJURY. USE WITH APPROPRIATE
CAUTION AND SERIOUS ATTENTION TO SAFE OPERATION.
1
BEFORE YOU BEGIN
Port End
Remove contents from box. Remove the foam separators that protect the components from damage during
shipping. Inspect the contents of the box for scratches in the paint, dents or kinked cables that may have
occurred during shipping. Because the scooter is 95 percent assembled and packed at the factory, there
should not be any problems, even if the box has a few scars or dents.
MAKE SURE POWER SWITCH IS TURNED “OFF” BEFORE CONDUCTING ANY ASSEMBLY
OR MAINTENANCE PROCEDURES.
Estimated Assembly and Set-Up Time
Allow up to 10 minutes for assembly, not including initial charge time.
Allow up to 12 hours for initial charge (see page 5 for charging information)
3. Charger
(Note: Charger design
may vary from one shown)
Charger
Plug
Charger
Twist Grip Throttle
WARNING:
DO NOT USE NON-RAZOR
PARTS WITH YOUR RAZOR
ELECTRIC SCOOTER. The
scooter has been built to certain
Razor design specifications. The
original equipment supplied at the
time of sale was selected on the
basis of its compatibility with the
frame, fork and all other parts.
Certain aftermarket parts may or
may not be compatible and will
void your warranty.
Required Tools
1. Handlebar
Stem
2. Battery Tray
PRODUCT I.D. CODE
1. Handlebar Stem
2. Battery Tray
3. Charger
4. UPC Side of Box (not shown)
5 mm Allen Wrench (Included)
Two (2) 4 mm Allen Wrenches
(Only Included with E300S)
8 mm/10 mm/16 mm
Wrenches (Not Included)
Phillips Screwdriver
(Only Included
with E300S)
Valve Extender
(Located in right
handlebar grip)
Bicycle-style tire pump
for Schrader valve tires
with pressure gauge
(Not Included)
Need Help? Visit our website for replacement parts, product support and a list of authorized service centers
at www.razor.com or call toll free 866-467-2967 Monday - Friday 8AM - 5PM Pacific Time. Please have the
product I.D. code (located on the white label on your product or back of charger) available for better assistance.
2
ASSEMBLY AND SET-UP
q Attaching the Handlebars
Tools required: 5 mm Allen wrench.
1 Loosen the collar clamp and
slide it upward. With a twisting
motion, push and twist to slide
the steering tube onto the fork.
2 With the front wheel pointed
straight ahead and the handlebars square to the front wheel,
tighten the clamp as shown.
Tighten securely.
Note: Make sure the cables/
wires are out of the way before
inserting the stem in the fork.
WARNING: Failure to
properly tighten the collar clamp
may allow the handlebars to
dislodge while riding and may
cause you to lose control and
fall. When correctly tightened,
the handlebars will not rotate
out of alignment with the
front wheel under normal
circumstances.
Note: The cable and wire
assembly from the handlebar
must not wrap around the
steering tube or handlebar.
Sharp bends or twisting of
the brake cable can cause the
brakes to malfunction.
q Inflating the Tires
Tires are inflated when shipped, but they invariably lose some pressure between the point of
manufacturing and your purchase. Always inflate tires to the correct PSI before first time use.
Rear Tire
1 Use the valve extender
located inside the end of
the right handlebar grip.
Front Tire
2 Open the round cover
located on the chain cover
by sliding the cover upward.
Align the opening in the drive
sprocket with the valve stem.
Thread the valve extender
completely onto the valve stem
and attach the pump. Inflate
to the PSI indicated on the tire
sidewall.
3 Remove valve extender
immediately after inflating and
close the round cover.
WARNING:
Failure to remove the valve
extender after inflating will
cause the inner tube and/or
adapter to be severed by the
rear drive sprocket.
Note: If you lose the valve
extender, contact customer
service or one can be purchased
at almost any auto parts store.
WARNING:
Do not over inflate, as this
could damage tire or wheel
Note: The pressurized air
supplies found at gasoline
stations are designed to inflate
high-volume automobile tires.
If you decide to use such an air
supply to inflate your electric
scooter tires, first make sure
the pressure gauge is working,
then use very short bursts to
inflate to the correct PSI. If you
inadvertently over-inflate the
tire, release the excess pressure
immediately.
4 Using a bicycle tire pump equipped for a
Schrader valve, inflate the front tire to the
PSI indicated on the sidewall of the tire.
3
Loading...
