RAZER KAIRA

MAST ER GU IDE

.

FOR GA ME R S. BY G AM ER S.™

1

Whether you’re on console or mobile, rule both realms with the Razer

Kaira—a dual wireless PS5™ headset powered by Razer™ SmartSwitch.

Capable of connecting to a 2.4GHz and Bluetooth device at once, enjoy

unrivalled convenience as you switch seamlessly between them.

FOR GA ME R S. BY G AM ER S.™

2

CONTENTS

1. WHAT’S INSIDE / WHAT’S NEEDED ........................................................................................................ 3

2. LET’S GET YOU COVERED ....................................................................................................................... 5

3. TECHNICAL SPECIFICATIONS .................................................................................................................. 6

4. GETTING STARTED .................................................................................................................................. 7

5. USING YOUR HEADSET ......................................................................................................................... 10

6. SAFETY AND MAINTENANCE ................................................................................................................ 18

7. LEGALESE .............................................................................................................................................. 19

FOR GA ME R S. BY G AM ER S.™

3

1. WHAT’S INSIDE / WHAT’S NEEDED

LEFT

RIGHT

WHAT’S INSIDE

▪ Razer Kaira

A. Auto-adjusting headband

B. FlowKnit memory foam ear

cushions

C. Sidetone wheel

D. Razer SmartSwitch / EQ button

E. Bendable Razer™ HyperClear

cardioid mic

F. Charging port

G. Power button

H. Status indicator

I. Volume wheel

J. Mic mute switch

FOR GA ME R S. BY G AM ER S.™

4

▪ Type-C wireless dongle

▪ Type-A to Type-C charging cable

▪ Type-A to Type-C adapter cable

▪ Important Product Information Guide

WHAT’S NEEDED

Product requirements

▪ PlayStation®4 / PlayStation®5 or PC (Windows® 10 64-bit or higher)

▪ USB Type-C or Type-A port

▪ Devices with Bluetooth audio capability

Razer Audio App requirements

▪ iOS 12 / Android 8.1 Oreo (or higher) device with Bluetooth connectivity

▪ Internet connection for app installation

FOR GA ME R S. BY G AM ER S.™

5

2. LET’S GET YOU COVERED

Your product’s

serial number can

be found here.

You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now

maximize its potential and score exclusive Razer benefits by registering at

razerid.razer.com

Got a question? Ask the Razer Support Team at

support.razer.com

FOR GA ME R S. BY G AM ER S.™

6

3. TECHNICAL SPECIFICATIONS

HEADPHONES

▪ Frequency response: 20 Hz – 20k Hz

▪ Impedance: 32Ω at 1 kHz

▪ Sensitivity (@1 kHz): 108 dB

▪ Drivers: 50 mm, with Neodymium magnets

▪ Inner ear cup diameter: Width 45mm / Length 65mm

▪ Oval ear cushions: Designed for full-ear coverage with heat-transfer fabric, perfect for long-

wearing comfort

▪ Connection type: Wireless via Type-C dongle / Bluetooth

▪ Wireless range: 10 m / 30 ft

▪ Wireless frequency: 2.4 GHz

▪ Battery life: Up to 30 hours

MICROPHONE

▪ Fixed mic boom

▪ Frequency response: 100 – 10,000 Hz

▪ Signal-to-noise ratio: > 60 dB

▪ Sensitivity (@1 kHz): -54 ± 3 dB

▪ Pick-up pattern: Unidirectional

RANGE

▪ Bluetooth wireless range: Up to 10 m / 30 ft

SYSTEM REQUIREMENT

▪ PlayStation 5 / PlayStation 4

▪ PC

▪ Devices with Bluetooth audio capacity

FOR GA ME R S. BY G AM ER S.™

7

4. GETTING STARTED

Indicator

Battery level

Charging

Fully charged

CHARGING THE HEADSET

Connect the Razer Kaira to a powered USB port using the charging cable. For best results, please fully

charge the headset before using it for the first time. A depleted headset will fully charge in about 4

hours.

FOR GA ME R S. BY G AM ER S.™

8

CONNECTING YOUR HEADSET

Indicator

Status

Connected

Press and

hold

A. TO A PLAYSTATION CONSOLE / PC VIA 2.4GHZ

1. Plug the Type-C wireless dongle to your PlayStation console or PC.

2. Press and hold the Power button until the status indicator is briefly lit or until you hear a voice
prompt.

3. Wait until the status indicator briefly becomes static green indicating that the headset is now
connected to the Type-C wireless dongle.

FOR GA ME R S. BY G AM ER S.™

9

4. On your PlayStation console or PC, set the Razer Kaira as the default Input and Output Device.

Paired

Pairing

On PlayStation 5, go to Settings > Sound

• On Microphone, set the Input Device to Razer Kaira (2.4).

• On Audio Output, set the Output Device to Razer Kaira (2.4).

On PlayStation 4, go to Settings > Devices > Audio Devices

• Set the Input Device and Output Device to Razer Kaira (2.4).

On PC / Laptop

a. Right click on the sound icon on the system tray and then select Open Sound settings.

b. On the Sound window, set Razer Kaira (2.4) as the default Output and Input device.

B. TO OTHER DEVICES VIA BLUETOOTH

While powered on, press the Razer SmartSwitch / EQ button for 5 seconds to activate Bluetooth

pairing mode. Follow your device’s instructions and select “Razer Kaira (BT)” from the list of found

devices. The status indicator will briefly change to static blue to indicate that the headset is now

paired with your device.

RAZER SMARTSWITCH

With the Razer Kaira connected to a PC or PlayStation console (via 2.4 GHz) and a mobile device (via

Bluetooth), you’ll be able to manage calls from your mobile device even while gaming on your PC or

FOR GA ME R S. BY G AM ER S.™

10

PlayStation console. The status indicator will briefly show static white to indicate that the headset is

connected to both audio sources.

5. USING YOUR HEADSET

BATTERY LEVEL

When unplugged and powered on, the status indicator will show the connection and battery status.

FOR GA ME R S. BY G AM ER S.™

11

While in use, you’ll hear a voice prompt when the headset needs to be recharged; during such time,

Indicator

Battery

Level

Low

Prompt

Voice

OFF

ON

the indicator will continue showing the battery level until you charge the headset.

POWER BUTTON

Power ON / OFF

Power on the headset by holding the Power button until the status indicator is on; and holding the

Power button again to turn off. An audio prompt will help notify you when the headset is powered on

or off.

Other functions

Other power button functions are available when the headset is powered on and connected to your

device via Bluetooth. These functions operate based on your device’s current activity.

FOR GA ME R S. BY G AM ER S.™

12

Single press

Play/pause

Accept incoming call or end current call

Put call on-hold and accept incoming call

End call and swap to on-hold call

Double press

Reject incoming call

Swap calls

Skip track

Triple press

Previous track

While powered off, press and

hold for 5 seconds

Activate Bluetooth pairing mode

Some features listed here may not be applicable to certain devices.

RAZER SMARTSWITCH / EQ BUTTON

Switching EQ Presets

Press the Razer SmartSwitch / EQ button to switch between Default, Amplified, Enhanced Bass, FPS,

and Custom* EQ presets available on the headset.

FOR GA ME R S. BY G AM ER S.™

13

Press

Double

press

*This preset will only be available when you customize a preset on the Razer Audio app.

Switching audio source

When powered on and connected to any audio source, double press the Razer SmartSwitch / EQ

button to switch between 2.4 GHz and Bluetooth audio source or vice versa.

Using Bluetooth as the audio source will reconnect the headset to the last known device. Pairing
mode will be activated if no device is found.

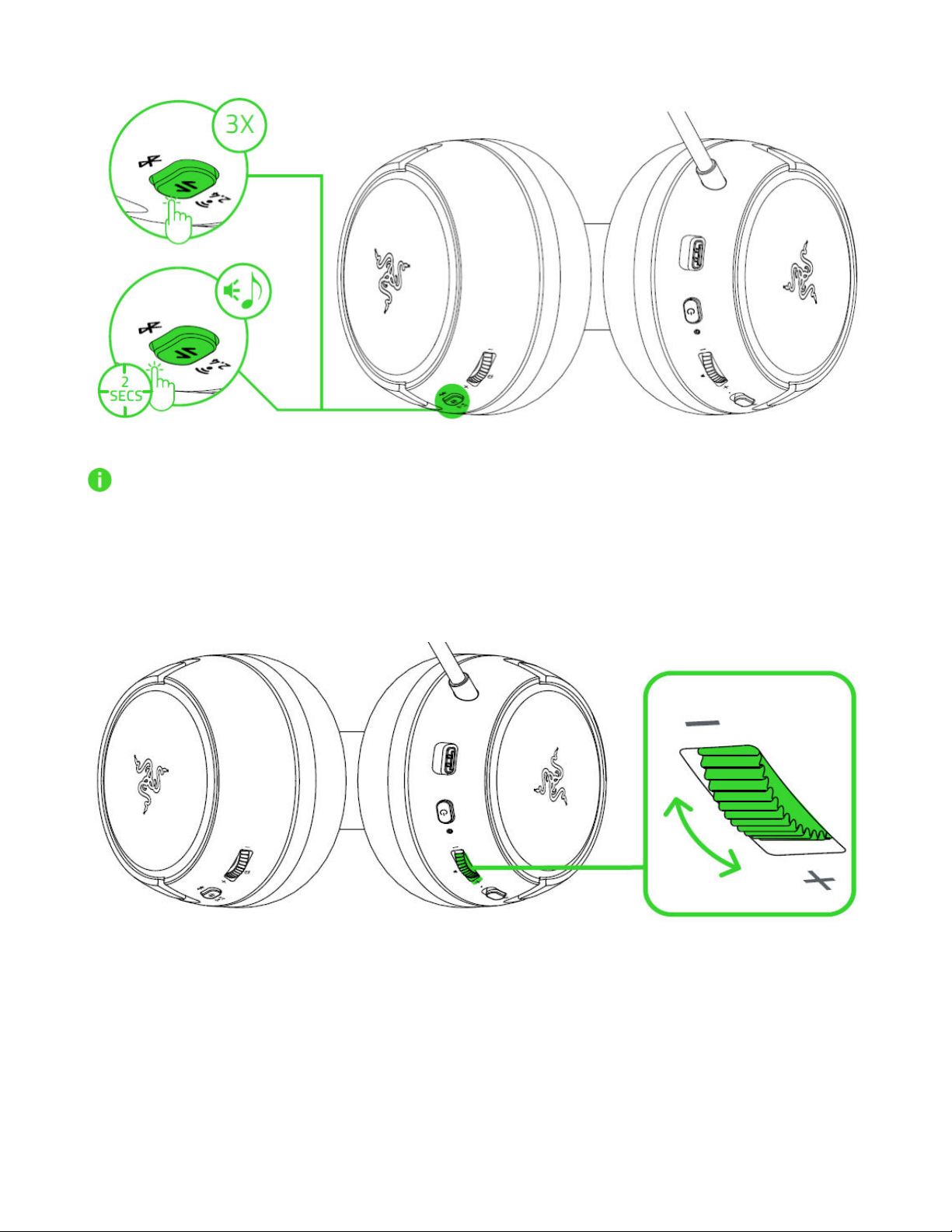

Enable / Disable Gaming Mode

While connected via Bluetooth, triple press the Razer SmartSwitch / EQ button then hold the last

press for 2 seconds to activate Gaming Mode. Once enabled, the headset will function at a lower

latency; giving you real-time audio feedback while gaming. Repeat to disable gaming mode.

FOR GA ME R S. BY G AM ER S.™

14

This feature is only available on Bluetooth connection. For best performance, it is recommended
to keep the headset within a very close distance of the audio source.

VOLUME WHEEL

Rotate the Volume wheel to increase or decrease the volume.

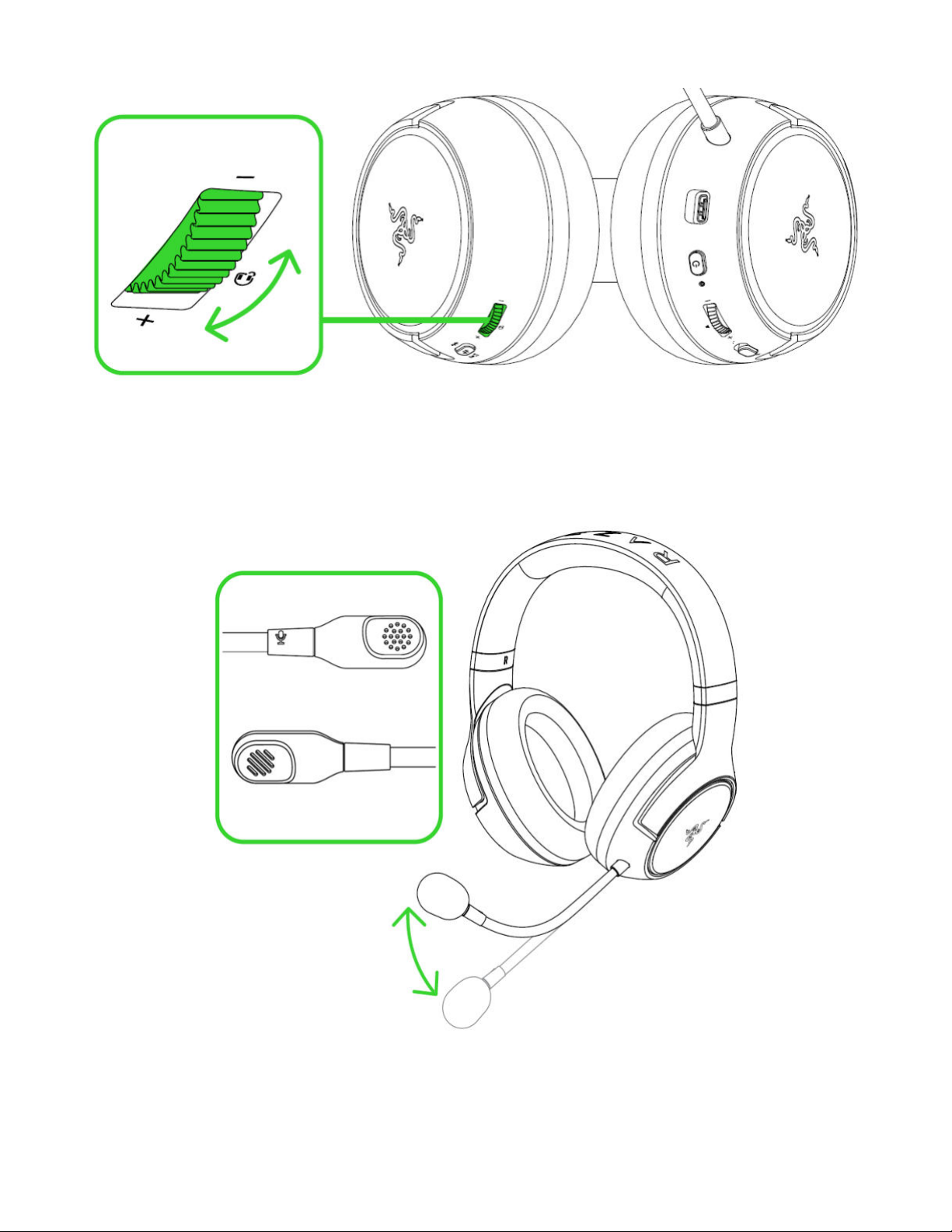

SIDETONE WHEEL

Rotate the Sidetone wheel to adjust the volume of your voice that you can hear through the headset.

FOR GA ME R S. BY G AM ER S.™

15

RAZER™ HYPERCLEAR CARDIOID MIC

Mic diaphragm

Air vent

Bend the RazerTM HyperClear Cardioid mic until it is parallel to your mouth. Make sure the mic

diaphragm is in front and the air vent is facing away from your mouth.

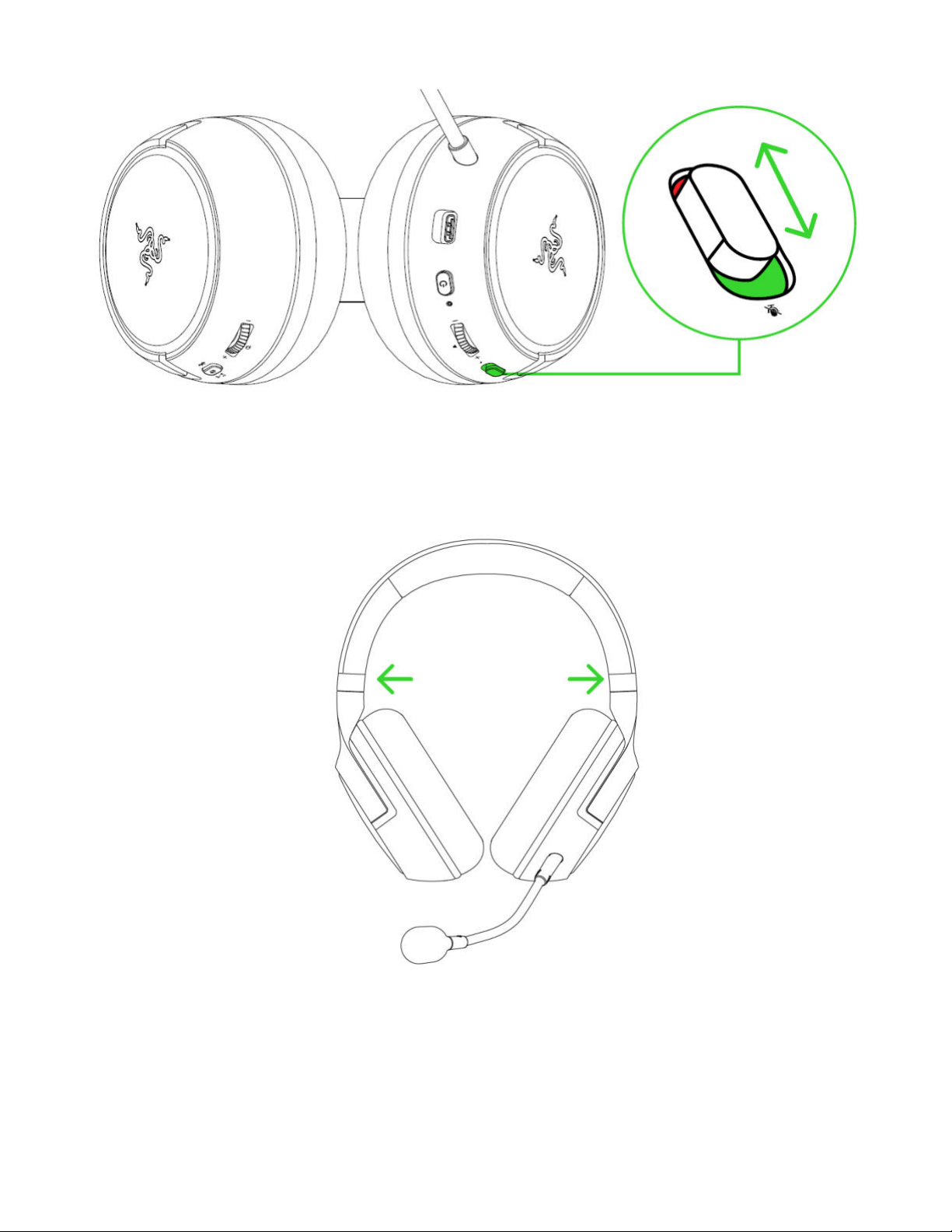

Slide the mic mute switch to mute or unmute the microphone.

FOR GA ME R S. BY G AM ER S.™

16

COMFORT

It’s recommended to gently stretch the headset before placing it over your head to minimize

headband stress, however, don’t stretch the headset beyond its limits.

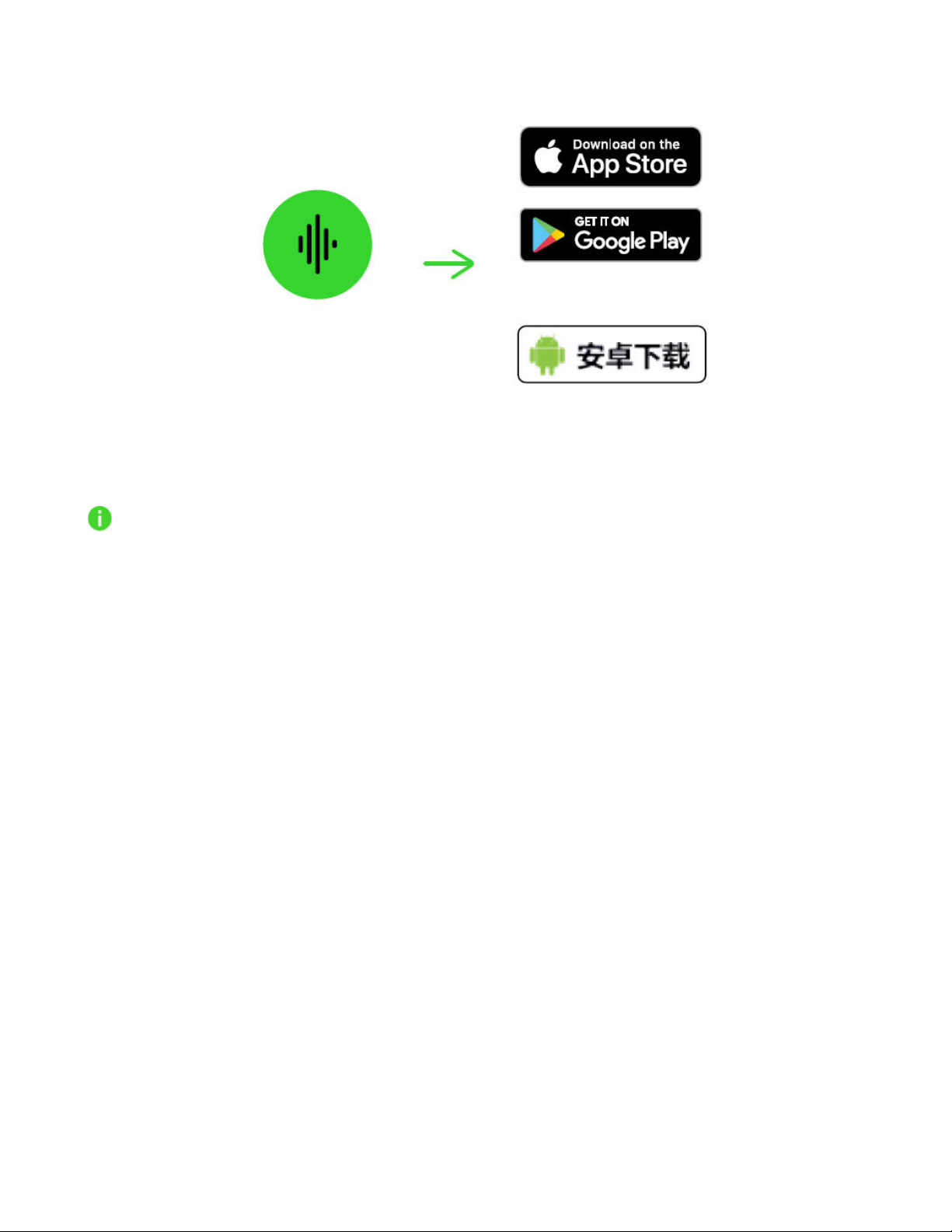

RAZER AUDIO APP

Making advanced customization just got a whole lot easier for your Razer Kaira. With the Razer Audio

app, personalize your own EQ setting or cycle through presets, customize its auto shutoff feature, and

much more — anytime, anywhere.

FOR GA ME R S. BY G AM ER S.™

17

AUDIO APP

RZR.TO/AUDAPP

(For China Only)

OR

When using the app, make sure that the headset is only connected to your mobile device via

Bluetooth. A solid blue status indicator indicates this connection.

FOR GA ME R S. BY G AM ER S.™

18

6. SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Kaira, we suggest that you adopt the

following guidelines:

Should you have trouble operating the device properly and troubleshooting does not work, unplug

the device and contact the Razer hotline or go to

Do not take apart the device (doing so will void your warranty) and do not attempt to operate it

under abnormal current loads.

Keep the device away from liquid, humidity or moisture. Operate the device only within the specific

temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug

and/or switch off the device in order to let the temperature stabilize to an optimal level.

The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of

your external surroundings. Please remove the device when engaging in any activities that requires

active awareness of your surroundings.

Listening to excessively loud volumes over extended periods of time can damage your hearing.

Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your

hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable

level when listening for prolonged periods of time. Please, take good care of your hearing.

support.razer.com for assistance.

MAINTENANCE AND USE

The Razer Kaira requires minimum maintenance to keep it in optimum condition. Once a month we

recommend you clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or

harsh cleaning agents.

BATTERY WARNING

The Razer Kaira contains a Li-ion rechargeable battery. In general, the life expectancy of such batteries

is dependent upon usage. If you suspect that the Li-ion rechargeable battery inside the Razer Kaira

may be drained (has a low charge), try charging it.

Caution: Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or

heat. Doing so may cause batteries to leak or explode, resulting in personal injury. Battery life varies

with usage.

FOR GA ME R S. BY G AM ER S.™

19

7. LEGALESE

COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION

©2021 Razer Inc. All rights reserved. Razer, the triple-headed snake logo, Razer logo, “For Gamers. By

Gamers.” and “Razer Chroma” are trademarks or registered trademarks of Razer Inc. and/or affiliated

companies in the United States and other countries. Actual product may differ from pictures. All other

trademarks are the property of their respective owners. Warranty not valid outside of product’s

intended region.

Android, Google, Google Logo, Google Play, and the Google Play logo are registered trademarks of

Google LLC.

Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other

countries. App Store is a service mark of Apple Inc. iOS is a trademark or registered trademark of Cisco

in the U.S. and other countries and is used under license.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any

use of such marks by Razer is under license.

" ", "PlayStation", ”PS5”, and "PS4" are registered trademarks of Sony Interactive Entertainment

Inc. All rights reserved. Manufactured and distributed under license from Sony Interactive

Entertainment LLC.

Windows and the Windows logo are trademarks of the Microsoft group of companies.

Razer Inc. (“Razer”) may have copyright, trademarks, trade secrets, patents, patent applications, or

other intellectual property rights (whether registered or unregistered) concerning the product in this

guide. Furnishing of this guide does not give you a license to any such copyright, trademark, patent or

other intellectual property right. The Razer Kaira (the “Product”) may differ from pictures whether on

packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that

may appear. Information contained herein is subject to change without notice.

LIMITED PRODUCT WARRANTY

For the latest and current terms of the Limited Product Warranty, please visit

razer.com/warranty.

LIMITATION OF LIABILITY

Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental,

indirect, punitive or consequential or incidental damages, arising in any way out of distribution of,

FOR GA ME R S. BY G AM ER S.™

20

sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the

retail purchase price of the Product.

GENERAL

These terms shall be governed by and construed under the laws of the jurisdiction in which the

Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in

so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without

invalidating any of the remaining terms. Razer reserves the right to amend any term at any time

without notice.
