Introduction

The Raytek ThermoView Ti30 imager is a state-of-the-art, lightweight, gun-grip
style thermal imaging unit that lets you obtain instant and accurate thermal images
and radiometric readings at a remote distance from your target. Ergonomically
designed for either left or right-handed use, the ThermoView imager captures
thermal images and data with a simple click of the trigger. The unit can store up to
100 images that can then be downloaded to your personal computer where the
images can be stored, evaluated further or added to reports and presentations.

The ThermoView’s docking station allows effortless connection to a host computer,
and offers rapid data downloading and uploading. The docking station also
automatically recharges the (rechargeable) batteries when the unit is not in use.

The companion software application, InsideIR, included with the imager lets you
display, examine, and analyze your images and data to discover qualitative and
quantitative trends associated with the target. InsideIR software allows you to define
maintenance databases based on your specific equipment condition, monitoring, and
asset management needs.

The ThermoView imager contains 100 image storage locations that can also be
predefined with unique equipment data and parameters. Notes and comments can
also be included for the technician performing the given maintenance routine.
Maintenance reports and follow-up actions can be created quickly and accurately
using information carried over from image files. Reports can be easily printed or sent
electronically.

Using the ThermoView imager’s structured database, maintenance professionals can
ensure consistent, repeatable measurements over time. They can efficiently and
accurately communicate with co-workers, management, equipment manufacturers,
and service providers by incorporating thermal images in emails and reports. In
addition, customers can easily create permanent inspection records indicating
temperature behavior before and after repairs, and monitor thermal trends over long
periods.

We are confident the ThermoView Ti30 imager is both an easy-to-use, yet powerful,
thermal imaging tool on the market today. We know you will find it a valuable and
indispensable tool for your workplace and for your professional growth.

July 1, 2003 - 7 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Quick Specifications Table

Thermal Measurement Range 0 to 250°C (32 to 482°F)

Accuracy ±2% or ±2°C, whichever is greater at calibration geometry and 25°C

Repeatability ±1% or ±1°C, whichever is greater

NETD 250 mK

Thermal

Temperature Indication Resolution 0.1 (°F or °C)

Spectral Range 7-14 microns

Target Sighting Single Laser Dot (Meets lEC Class 2 & FDA Class II requirements)

Optical Resolution 90:1

Minimum Diameter Measurement Spot 7mm (0.27”) at 60cm (24”)

Image Frame Rate 20Hz

Field of view (FOV) 17° Horizontal x 12.8° Vertical

Optical / IR

Instantaneous Field of view (IFOV) 1.9mrad

Focus Focusable, 61 cm / 24” to infinity

Temperature Scale °C or °F selectable

Palettes Gray, Ironbow, or Rainbow selectable

Measurement Modes Automatic, Semi-Automatic, or Manual selectable

Laser On/Off

9

Gain Control

9

Level Control

9

Controls

LCD Backlight Bright, Dim, Off selectable

Adjustable Emissivity

(0.10 to 1.00 by 0.01)

9

Display Type Liquid Crystal Display - TFT technology optimized for both indoor and

outdoor use
Reflected Background Temperature -50 to 460°C (58 to 860°F)
Ambient Operating Temperature 0 to 50°C (32 to 122°F)
Relative Humidity 10 to 90% Non-condensing
Storage Temperature -25 to 70°C (-13 to 158°F) [without batteries]
Storage Capacity

✑✐✐ ❉❍❁❇❅▲

Laser On Icon

9

Low Battery Icon

9

Palette Icon

9

Measurement Mode Icon

9

Thermal Analysis Software InsideIR (included)

Operational

PC Software Operating Systems Microsoft® Windows® 98, Windows 2000 or Windows XP

Power 6 AA batteries(not included) or rechargeable battery pack (included)
Battery Life Min. 5 hours continuous use
Data Transfer USB interface, total transfer time up to 30s for 100 pictures
Storage Device Flash Memory

Electrical

Tripod Mount

9

(6.35 mm (1/4) 20 unc threading)

Weight (includes batteries) 1kg (2.2 lb)

Other

Standard Accessories • Multi-language Interactive Manual (CD ROM) • InsidelR Software •

Docking station with Universal Power Adapter and USB Connection •

Hardshell Carry Case • USB Computer Cable • Rechargeable and

Non-rechargeable Battery Packs (batteries not included) • Multi

Language Thermography Training Presentation (CD ROM) • Carrying

Pouch • Wrist Strap • Quick Reference Card

Accessories /

O

p

tions

Options NIST Calibration certificate

July 1, 2003 - 8 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Chapter 1 Unpacking Your New Imager

Begin by opening the shipping box. Be sure to save the box and shipping materials in
the event you need to ship the imager.

In the shipping box, you will find a hard carrying case, containing the following
items:

x 1 ThermoView Ti30 Imager x 1 Quick Reference Card

x 1 ThermoView Imager Docking

Station

x 1 Carrying pouch and 1 Wrist Strap

x 1 Universal power supply and plug

adapters

x 1 USB Cable

x 1 CD ROM containing multi-

language training materials

x 1 rechargeable battery pack

x 1 CD ROM containing InsideIR¥

software and multi-language
interactive manual

x 1 battery pack for 6 AA non-

rechargeable batteries (batteries not
included)

July 1, 2003 - 9 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

First, the Batteries

The battery compartment is located in the handle of the unit.
The unit is shipped with an empty battery pack for non-rechargeable batteries installed in the
battery compartment.

Battery Lock Tab

Remove the empty battery pack from the battery compartment.
The battery pack can be removed by sliding the lock tab towards the trigger.

Move the lock tab in this direction

Once the lock is released, the battery pack will slide down. Tilt the top of the unit up to slide
the battery pack out.

Battery pack slides out
(AA batteries not included)

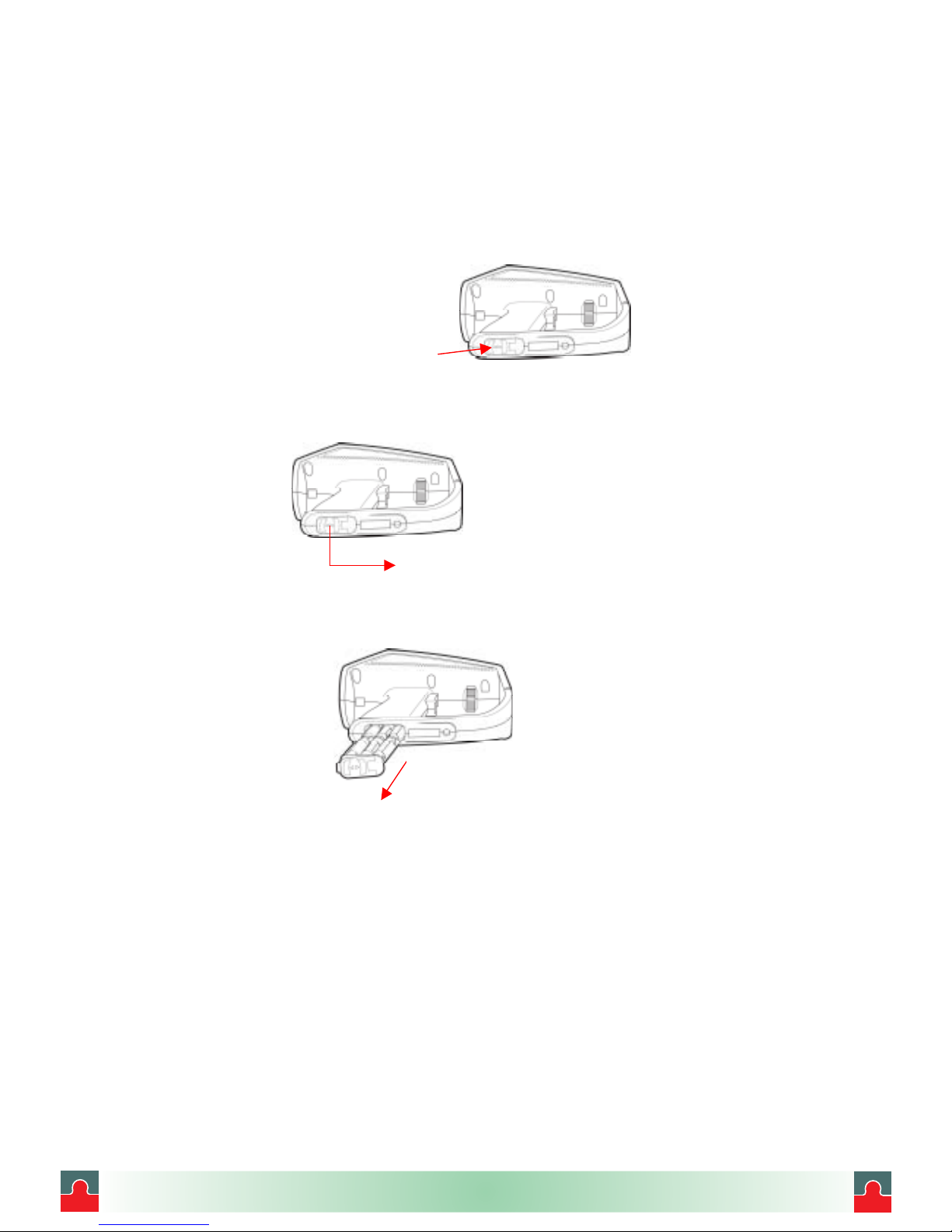

Figure 1. Removing the Battery Pack

July 1, 2003 - 10 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

At this point, you have two options: insert six new AA batteries into the empty non­rechargeable batteries pack or replace it with the supplied rechargeable battery pack. You will
notice the difference between the two battery packs as shown in Figure 2 below:

Non-rechargeable battery pack

(batteries not included)

Rechargeable battery pack

Figure 2. Battery Packs

To replace the battery pack just slide it back in, making sure the plastic tab lock is in the
unlocked position (to the right of the pack). Use the rails on battery pack as guides. Once it
is inserted, slide the lock tab back into the locked position as shown below in Figure 3.

Keep the lock tab in the unlocked position

Move the lock tab back to the locked position

Battery pack slides in

Figure 3. Installing Batteries

July 1, 2003 - 11 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Charging the Rechargeable Battery Pack

Connect the docking station to a power
outlet using the supplied universal
power adapter. Be sure to use the plug
adapter that fits your local electrical
standards. Connect the power jack of
the power adaptor to the DC power
inlet located on the docking station.

DC Power inlet

USB cable

Docking Station

Normal Charge Cycle

x With the ThermoView unit powered off, place it on the docking station.

x Do not connect the USB cable to the computer at this point.

x The red LED (on the left) will flash several times as the circuit senses a rechargeable

battery pack and determines its state of charge.

Note:

If a non-rechargeable battery pack is sensed by the docking station, neither LED
will blink.

The remaining points assume that the imager contains a sealed, rechargeable battery pack.

x The red LED turns on continuously to indicate that charging is in progress. This process

can take from a few minutes to more than an hour.

x The red LED turns off once the battery pack is fully charged and the green LED (on the

right) turns on continuously.

x Momentarily lifting the ThermoView unit from the docking station for about 5 seconds

or longer interrupts the charging process. The green light will come on and no further
charging will occur. Press the Restart / Sync button between the LEDs to resume
charging. Pressing the button if the batteries are completely charged will have no effect.

x The imager may be removed from the docking station before recharging is completed

without harm. However, the imager may not be fully charged and its operating time may
be reduced accordingly.

x An imager containing single-use batteries may safely be placed on the docking station for

storage or image transfer. In fact, we recommend the imager always be placed on the
docking station when not in use.

July 1, 2003 - 12 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

A charge cycle takes a rechargeable battery pack from whatever level of charge it presently
has and brings it to a fully charged condition. The charger will not over-charge a battery pack
no matter how many times the button is pushed.

ght

Restart / Sync button

GREEN

light

RED

li

Figure 4. Docking Station LED Indicators

Note:

You may download stored images from the ThermoView imager to a personal
computer if the docking station’s USB cable is connected to a computer running
the InsideIR software. Press the Restart / Sync button to transfer stored images to
the computer (see Chapter 3 Downloading and Looking at Images for details).
Pressing the Restart / Sync button also starts the charging cycle.

Once the batteries are charged, you are ready to begin taking thermal images and
temperature measurements. Take a moment now to read the next section and become
acquainted with the basic features and controls of the imager.

July 1, 2003 - 13 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Chapter 2 Getting Started

Your ThermoView imager has settings and capabilities that let you customize its
operation for the task at hand. The following section describes each setting on the
imager.

Attaching the Wrist Strap

Your ThermoView imager comes with a wrist strap, which can be attached by
clipping the metal part of the strap to the small metal bar at the base of the imager
(see Figure 5 below).

Attach wrist strap

Figure 5. Attaching the Wrist Strap

July 1, 2003 - 14 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Turning the Unit On

Power is switched on or off by opening or closing the lens door. Sliding down the
lens door turns the imager on (see Figure 6 below). Slide the door up to turn off the
imager.

Open
(UnitOn)

Closed
(Unit

Off

)

Figure 6. Powering the ThermoView Imager On and Off

Note:

The unit is self-protected against excessive levels of infrared radiation and it will
cause the unit to automatically shut down. If that happens, slide the lens door
closed, wait a minute and slide it open again.

Important:

Always dock the imager in the docking station when not in use. By doing so,
you will assure the batteries will be always fully charged when using the
rechargeable battery pack. The image will not show thermal images or
respond to controls while it is in the docking station.

Displaying Images

The ThermoView imager performs an initial auto-check each time it is activated and then
immediately shows the Information Screen. The Information Screen displays the
following information about the ThermoView imager unit:

July 1, 2003 - 15 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

x Unit Serial Number
x Date and Time (configured by the user through the software)
x Tag name is the name of the user-defined folder from which data was uploaded

through the software. Useful tag names are department names or area associated
with the unit. This space is blank until configured by the user.

x Station is the name of the networked computer associated with a specific unit. This

is blank until configured by the user.

x Palette is the type of palette currently selected
x Firmware revisions
x Icons for LCD illumination, palette type, measurement mode and laser status

Figure 7. The Information Screen

Press the MODE button to exit the Information Screen. (Refer to Figure 9, the MODE
button is located center, below the LCD screen.) The ThermoView imager immediately goes
into measurement mode, showing a real time thermal image of what is in front of the lens. A
reticle with a crosshatch at the center of the display shows the temperature spot.

Note:

Do not change any of the settings yet. User configurable parameters will be
explained later in Figure 31.

July 1, 2003 - 16 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Figure 8. Normal Mode

Mode icon Palette iconLCD backlight icon

Target Temperature

Emissivity value

Location name

Temperature scale

Take time to experiment with the imager and become familiar with how the thermal image is
updated on the display as you aim the imager at different targets with different thermal
patterns. Notice how images display in varying colors, which are related to the different
target temperatures. The color scale at the bottom of the thermal image shows the minimum
and maximum temperature value in the thermal scene at any moment. These values will
change as you point the imager at other targets, or if the temperatures of the current target
change. The sequence or progression of different colors along the color scale indicates the
distribution of the different temperatures on the thermal scene. Notice how the colors along
the beginning of the color scale represent lower temperatures and colors along the end of
the color scale represent higher temperatures.

Note:

At this point you probably have noticed that the image freezes briefly from time to
time while an hourglass icon is briefly displayed. This is a normal process that
happens when the unit momentarily shuts down the optical channel to eliminate
offset errors. This is a recalibration sequence that begins immediately after the unit
is turned on. Recalibration occurs at 5 seconds, then 10 seconds, then 20 seconds,
then 30 seconds and then finally at every other minute. It is a good idea to keep the
unit On if you are using it constantly over a period of time to avoid resetting the
recalibration procedure counter.

The ThermoView imager settings can be customized for your particular application. The
following sub-section reviews the settings and controls.

July 1, 2003 - 17 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Settings and Controls

Keypad

Three buttons located below the LCD screen allow you to select operation modes and
change parameter values. These buttons are the MODE button, the Up button, and the
Down button. The Up and Down buttons are used mostly to increment and decrement
parameter values. They activate some special functions as well. The MODE button is used
mostly to cycle between the different operations. Details about the function of each button
are discussed later.

Down

button

MODE

button

Up

button

Figure 9. Keypad Controls

A hinged door on the top surface of the ThermoView imager hides five switches that allow
you to change the basic imager settings. Open the hinged door by lifting it up.

July 1, 2003 - 18 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Pull door up to
show control
switches

Push buttons
(toggle)

3-position
Switches

Thumbwheels

Figure 10. ThermoView Imager Settings Switches (icons not shown)

The illustration below shows the top view of the switch bay without the door. There is an
icon printed near each switch and near each switch position indicating the function of each
switch and switch position. These functions are explained in the next paragraphs.

July 1, 2003 - 19 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Figure 11. ThermoView Imager Settings Switches

Laser On/Off Toggle Button

LCD backlight selection

Palette selection

Measurement mode selection

Level adjustment

Gain adjustment

Laser ON/OFF

Centigrade /
Fahrenheit selection

The Laser On/Off toggle button switches the laser on and off. By default, the guiding

tion you may or may not need the laser guidancelaser beam is off. Depending on the situa

beam.

July 1, 2003 - 20 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Laser Aperture

Optical Channel

Figure 12. Laser Aperture and Optical Channel

Note:

The laser is only a sighting aid. It is not required to take measurements. The laser is
not coaxial with the infrared channel, thus the laser dot is offset from the center of
the thermal image. The laser dot is not visible in the thermal image.

Important:

Avoid directing the laser to people’s eyes. See important safety information
on the warning laser label located on the side of the unit. There are different
laser warning labels for different geographic regions. These are identified
below.

North America

Europe / Latin America

Japanese Chinese

Figure 13. Laser Warning Labels For Different Geographic Regions

July 1, 2003 - 21 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Centigrade/Fahrenheit Toggle Button

Centigrade/Fahrenheit button toggles the displayed temperature data in either

Centigrade or Fahrenheit temperature scales. The factory default is Centigrade.

LCD Backlight Illumination Switch

LCD Backlight Illumination switch provides three backlight illumination levels as

shown below.

Off Medium Full

Full brightness is recommended for indoor use; use Medium brightness to save battery life,
and set backlight Off for outdoor applications. The default position is Full brightness.

Palette Switch

The Palette switch allows the ThermoView imager to display temperature patterns in
three different palettes as indicated below:

x Rainbow

x Ironbow

x Grayscale

See Selecting the Color Palette on page 42 for more information. The default position is
Rainbow.

Measurement Mode Switch

The Measurement mode switch permits the user to change the way thermal
information is presented on the display. Depending on the mode you choose, you will have
all temperature points shown on the thermal image, or you may have just a narrow interval
of temperature points being displayed at a time. The decision of which mode to use depends
on each operator’s needs and limitations.

July 1, 2003 - 22 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

There are three measurement mode positions associated with this switch:

Automatic Semi Automatic Manual

In Automatic mode the ThermoView imager automatically adjusts the image to show
the lowest temperature value present in the thermal scene (MIN) and the highest
temperature value in the scene (MAX).

In

Semi-Automatic mode the ThermoView imager keeps calculating the MIN limit

(lowest temperature value on the thermal scene) automatically.

In Manual mode the user can adjust Gain and Level manually.

See Selecting the Measurement Mode on page 42 for more information. The default position
is automatic mode.

Gain and Level Thumbwheels

The Level Thumbwheel control adjusts the median point of a given temperature
scale.

The Gain Thumbwheel control adjusts the temperature band around the median
Level point.

See Gain and Level Thumbwheels on page 45 for more information about these controls.

Focus Wheel

The Focus Wheel is located on the bottom of the imager’s housing in from of the trigger as
shown in Figure 14. Adjust the focus by turning the Focus Wheel with your fingers or
thumb.

July 1, 2003 - 23 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Focus Wheel

Figure 14. Location of the Focus Wheel

See The Importance of Focusing on page 41 for more details.

Trigger

Actuating the trigger freezes an image prior to storage. While in a regular measurement
mode, pull the trigger momentarily, release it, and the thermal image on the display will be
frozen so you can evaluate it for storage. If you don’t want to store it, simply pull the trigger
again and the unit will go back to measurement mode.

Trigger

Figure 15. Location of the Trigger

July 1, 2003 - 24 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]

Man Machine Interface Flow Charts

Main Loop

July 1, 2003 - 25 - Version 1.0

i

i

Tel: [phone]- WWW.ISSLTD.CO.UK - Fax: [phone]
