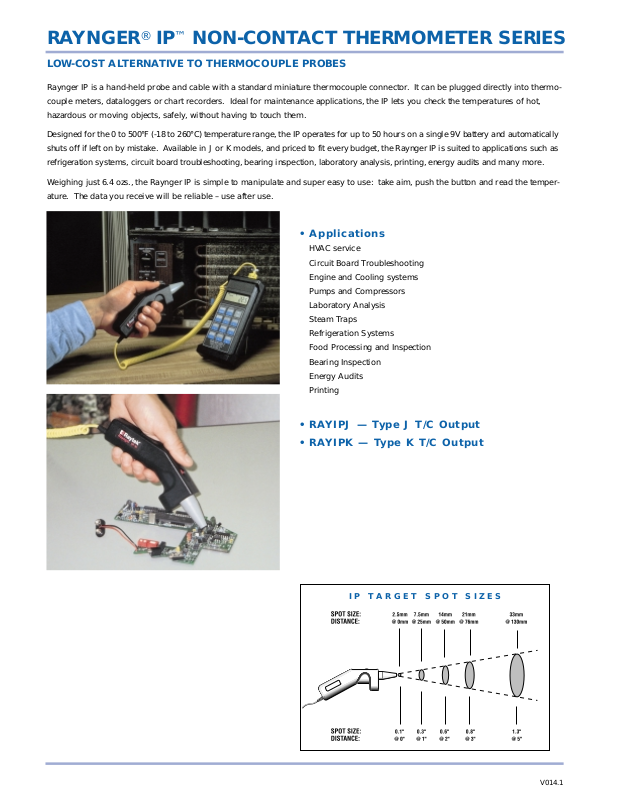

RAYNGER®IP™NON-CONTACT THERMOMETER SERIES
LOW-COST ALTERNATIVE TO THERMOCOUPLE PROBES
V014.1
Raynger IP is a hand-held probe and cable with a standard miniature thermocouple connector. It can be plugged directly into thermocouple meters, dataloggers or chart recorders. Ideal for maintenance applications, the IP lets you check the temperatures of hot,
hazardous or moving objects, safely, without having to touch them.
Designed for the 0 to 500°F (-18 to 260°C) temperature range, the IP operates for up to 50 hours on a single 9V battery and automatically
shuts off if left on by mistake. Available in J or K models, and priced to fit every budget, the Raynger IP is suited to applications such as
refrigeration systems, circuit board troubleshooting, bearing inspection, laboratory analysis, printing, energy audits and many more.
Weighing just 6.4 ozs., the Raynger IP is simple to manipulate and super easy to use: take aim, push the button and read the temperature. The data you receive will be reliable – use after use.
• Applications
HVAC service
Circuit Board Troubleshooting
Engine and Cooling systems
Pumps and Compressors
Laboratory Analysis
Steam Traps
Refrigeration Systems
Food Processing and Inspection
Bearing Inspection
Energy Audits
Printing
• RAYIPJ — Type J T/C Output
• RAYIPK — Type K T/C Output
IP TARGET SPOT SIZES
TEMPERATURE RANGE 0 to 500°F (-18 to 260°C)
ACCURACY ±2% of reading or ±3°F (±2°C), whichever is greater,
@ 81°F (27°C) ambient operating temperature
REPEATABILITY ±1% of reading or ±2°F (±1°C), whichever is greater
RESPONSE TIME (95%) 1 second response
SPECTRAL RESPONSE 8 to 14 microns nominal, Pyroelectric detector
AMBIENT OPERATING RANGE 32 to 150°F (0 to 65°C)
RELATIVE HUMIDITY 10 to 95% RH @ up to 86°F (30°C) under non-condensing conditions
STORAGE TEMPERATURE -13 to 158°F (-25 to 70°C) without battery
POWER 9 volt battery
DIMENSIONS 7.1 x 1.2 x 2 in (180 x 30 x 50 mm)
WEIGHT 6.4 oz. (180g)
BATTERY LIFE 50 hours @ 73°F (23°C)
EMISSIVITY 0.95 Preset
OUTPUT
MODEL IPJ Type J Thermocouple
MODEL IPK Type K Thermocouple
SPECIFICATIONS
ISO 9001
Certified
RAYNGER IP ORDERING INFORMATION
To create an ordering code fill in the boxes above with the appropriate number and/or letter from the corresponding box below.
R A IY P 1 2
Box 1: Output Type Price ($)
J = J Type Thermocouple Output 159
K = K Type Thermocouple Output 159
Box 2: Language
U = English 0
E = Spanish 0
B = Portugese 0
K = French 0
J = Japanese 0
V014.1
