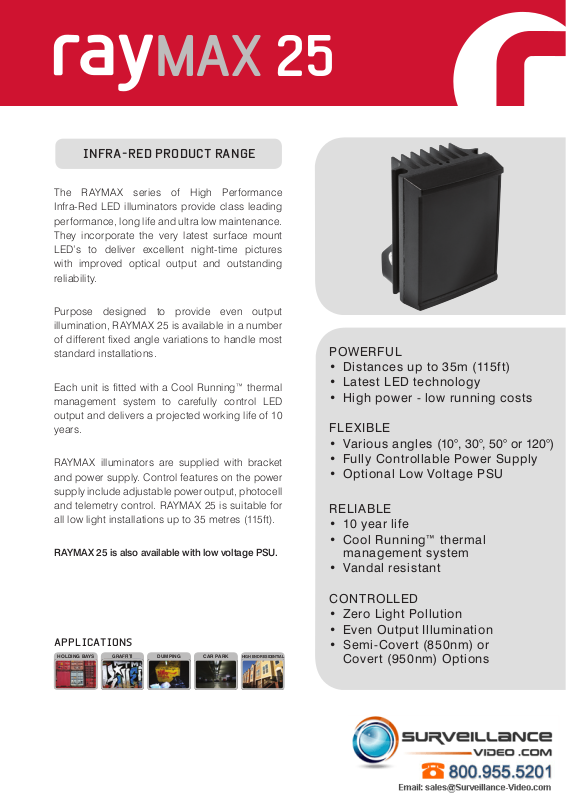

Raytec RM25-10 Specsheet

MAX 25

INFRA-RED PRODUCT RANGE

The RAYMAX series of High Performance
Infra-Red LED illuminators provide class leading
performance, long life and ultra low maintenance.
They incorporate the very latest surface mount
LED’s to deliver excellent night-time pictures
with improved optical output and outstanding
reliability.

Purpose designed to provide even output
illumination, RAYMAX 25 is available in a number
of different fixed angle variations to handle most
standard installations.

Each unit is fitted with a Cool Running™ thermal
management system to carefully control LED
output and delivers a projected working life of 10
years.

RAYMAX illuminators are supplied with bracket
and power supply. Control features on the power
supply include adjustable power output, photocell
and telemetry control. RAYMAX 25 is suitable for
all low light installations up to 35 metres (115ft).

RAYMAX 25 is also available with low voltage PSU.

POWERFUL

• Distances up to 35m (115ft)

• Latest LED technology

• High power - low running costs

FLEXIBLE

• Various angles (10°, 30°, 50° or 120°)

• Fully Controllable Power Supply

• Optional Low Voltage PSU

RELIABLE

• 10 year life

• Cool Running™ thermal
management system

• Vandal resistant

APPLICATIONS

HOLDING BAYS

GRAFFITI

DUMPING CAR PARK

HIGH END RESIDENTIAL

CONTROLLED

• Zero Light Pollution

• Even Output Illumination

• Semi-Covert (850nm) or
Covert (950nm) Options

INFRA-RED PRODUCT RANGE: RAYMAX 25

ADAPTIVE ILLUMINATION™

Adap tive Il lumination™ allows the insta ller to adjust the angle of the ligh t proje ction from a single unit to fit th e specific
dema nds of any inst allation. Adjust ment is quick a nd conv enient and any a ngle upto 180 degrees (d epe nding o n
model) is e asily s ele cta ble. Adaptive Il lumin ation is patent pendi ng tech nol ogy a va ila ble exclu sively fro m Ray tec.

COOL RUNNING™ Thermal Management System

Cu t tin g edg e materi als scie n ce techn iqu e s have be en emplo yed to impro ve therm al ef f ici e ncy thro ugho ut the
un it. C o ol Run nin g™ is specif icall y desi gned t o all o w all Ray tec L E D pro d uct s to provi d e exc ept iona lly long life

- up to 10 ye a rs.

SMT (Surface Mount Technology)

Th e f utu re of lightin g is surface mou nt LED te chn olo gy. Compar ed to standard th ro ugh hole L ED’s, sur face mo unt
LED’s a re a more rob ust soluti on increasing relia bility a nd im provi ng prod uct life. T hey a re also far m ore effi cient a t
the dissipati on of hea t allow ing t he LE D’s to run at hi gher power a nd ac hieve sig nif ica ntly im prove d per for man ce.

VANDAL RESISTANT

Th e po lyc arb ona te len s desig n pr otects agai nst severe bl ows from crow bars, b ase ball bats a nd c an even withst and
succ ess ive sho ts from a ir pistol s and rif les (rang e dep end ant).

ENERGY SAVING

All R aytec illuminato rs use hi gh efficienc y LED’s and ad van ced contr ol methods to delive r ex treme ly low ele ctric al
cons umpti on. Ray tec ill umina to rs are energy savi ng and de liver huge sav ings in run ning co sts com pared to tradition al
bulb ill uminators.

HIGH DEFINITION LIGHTING

High Defin ition Lig hting allow s ca mer as to provide c r ystal cle ar, hig h signal ima ges du rin g the hours of d ark ness.
Th e brea k throu gh in HD ligh ti ng is mad e possibl e wit h Ray tec’s high p ower LED tech nol ogy d eli verin g inc re ase d
powe r on sc ene.

5 YEAR WARRANTY

All Raytec CCTV illuminators are provided with a 5 year warrant y, unmatched anywhere in
the CCT V lighting industry. Raytec illuminators provide guaranteed long life!

TECHNICAL SPECIFICATIONS

ILLUMINATOR

Max Distance: up to 35m (115ft)
Angle: 30, 50 or 120 degrees
Optics: SMT LED’s
Consumption: 10W ma x
Voltage: 13.5V current controlled
Weight: 1.0kg
Environment al: IP6 6
Temp R ange: -50 to +50˚C (-58 to 122°F)
Cable Length: 2.5m
Colour: Black
Wavelength: 850 or 950nm
Dimensions: 75 x 100 x 54mm

3” x 4” x 2” approx

BRACKETRY

U Bracket included

POWER SUPPLY

Input: Universal 100-240V AC
auto-sensing

Output: 10W max
Temperature: -50 to +50°C (-58 to 122°F)
Weight:
Dimensions: 160mm x 120mm x 80mm

6” x 5” x 3” approx

Standard PSU (included)

Adjustable photocell
Adjustable power output for IR
Telemetry Control

Premium PSU (add ~PR to part code)

All standard PSU features PLUS:
Photocell following contact for switching of dual mode
cameras
12V dc output to power cameras

Pulsed PSU (add ~PU to part code)

To pulse Raytec lights in sync with cameras.
Power Adjustment
Video In and Video Out connections to sync light and
camera,
12V dc output to power cameras

0.9Kg

PA RT C OD E S DI S TA NC E S
RM 2 5-10 R AY M AX 2 5 , 10 ° AI , 8 5 0 n m + P SU 35 m (115 f t)

RM 2 5- 30 R AY M AX 2 5 , 3 0 ° AI , 85 0n m + P S U 20 m (6 6 f t)
RM 2 5- 50 R AY M AX 2 5 , 5 0 ° AI , 85 0n m + P S U 14 m (4 6 ft )
RM 2 5-12 0 R AYM A X 2 5, 12 0 ° AI , 8 5 0 n m + P SU 8m ( 26 f t )
RM 2 5-10 - C R AY M AX 2 5 , 10 ° AI , 9 5 0 n m + P SU Co n t a ct R ay te c
RM 2 5- 30 -C R AY MA X 2 5 , 3 0° A I , 9 5 0 n m + P SU Co n ta c t R ay t ec
RM 2 5- 50 -C RAY M AX 2 5 , 5 0° A I , 9 5 0 n m + P SU Co n ta c t R ay t ec
RM 2 5-12 0 -C R AY M AX 2 5 , 12 0 ° AI , 9 5 0n m + P S U Con t ac t R a y t ec
