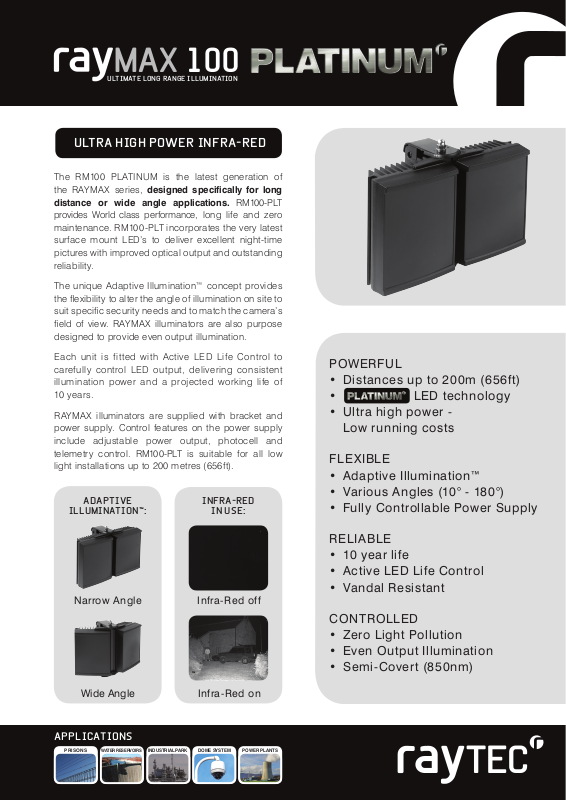

Raytec RM100-PLT-AI-10 Specsheet

MAX 100

ULTIMATE LONG RANGE ILLUMINATION

ULTRA HIGH POWER INFRA-RED

The RM100 PLATINUM is the latest generation of
the RAYMAX series, designed specifically for long
distance or wide angle applications. RM100 - PLT
provides World class performance, long life and zero
maintenance. RM100-PLT incorporates the very latest
surface mount LED’s to deliver excellent night-time
pictures with improved optical output and outstanding
reliability.

The unique Adaptive Illumination™ concept provides
the flexibility to alter the angle of illumination on site to
suit specific security needs and to match the camera’s
field of view. RAYMAX illuminators are also purpose
designed to provide even output illumination.

Each unit is fitted with Active LED Life Control to
carefully control LED output, delivering consistent
illumination power and a projected working life of
10 years.

RAYMAX illuminators are supplied with bracket and
power supply. Control features on the power supply
include adjustable power output, photocell and
telemetry control. RM100-PLT is suitable for all low
light installations up to 200 metres (656ft).

ADAPTIVE

ILLUMINATION™:

Narrow Angle

INFRA-RED

IN USE:

Infra-Red off

POWERFUL

• Distances up to 200m (656ft)

• LED technology

• Ultra high power -
Low running costs

FLEXIBLE

• Adaptive Illumination™

• Various Angles (10° - 180°)

• Fully Controllable Power Supply

RELIABLE

• 10 year life

• Active LED Life Control

• Vandal Resistant

CONTROLLED

• Zero Light Pollution

• Even Output Illumination

• Semi-Covert (850nm)

Wide Angle

APPLICATIONS

PRISONS

WATER RESERVOIRS

Infra-Red on

INDUSTRIAL PARK POWER PLANTSDOME SYSTEM

ADAPTIVE ILLUMINATION™

Adaptive Illumination™ allows the installer to adjust the angle of the light projection from a single unit to fit the specific
demands of any installation. Adjustment is quick and convenient and any angle up to 180 degrees (depending on
model) is easily selectable. Adaptive Illumination is patent pending technology available exclusively from Raytec.

PLATINUM ADVANCED LED TECHNOLOGY

INSIDE

PLATINUM illuminators use cutting edge SMT LED technology together with Light Intensification Miniature Optics
(LIMO™) and an enhanced Cool Running™ thermal management system into a single high performance LED.
The result is World leading power, reliability and flexibility.

ACTIVE LED LIFE CONTROL

All Raytec illuminators employ cutting edge materials science techniques to improve thermal efficiency throughout
the unit and ensure continuity of LED power. The New Advanced Cool Running™ system draws heat away from the
LEDs, shielding the LED from abnormal stress, and allows Raytec LED products to deliver outstanding performance
and consistency of illumination throughout the operational life of the illuminator.

VANDAL RESISTANT

The polycarbonate lens design protects against severe blows from crowbars, baseball bats and can even withstand
successive shots from air pistols and rifles (range dependant).

ENERGY SAVING

All Raytec illuminators use high efficiency LED’s and advanced control methods to deliver extremely low electrical

INFRA-RED PRODUCT RANGE: RM100-PLT

consumption. Raytec illuminators are energy saving and deliver huge savings in running costs compared to traditional
bulb illuminators.

HIGH DEFINITION LIGHTING

High Definition Lighting allows cameras to provide crystal clear, high signal images during the hours of darkness.
The breakthrough in HD lighting is made possible with Raytec’s high power LED technology delivering increased power
on scene. High definition cameras require high definition lighting.

5 YEAR WARRANTY

All Raytec CCTV illuminators are provided with a 5 year warranty, unmatched anywhere in
the CCTV lighting industry. Raytec illuminators provide guaranteed long life!

TECHNICAL SPECIFICATIONS

ILLUMINATOR

Max Distance: up to 200m (656ft)
Angle: Various - See Part Codes
Optics: SMT LED’s
Consumption: 50W max (1 x RM100-PLT)
Voltage: 13.5V current controlled
Weight: 2.5kg (5.5lbs)
Environmental: IP66
Temp Range: -50 to +50˚C (-58 to 122˚F)
Cable Length: 2.5m
Colour: Black
Wavelength: 850nm
Dimensions: 210 x 150 x 65mm

8” x 6” x 3” approx.

BRACKETRY

U Bracket and Adaptive Illumination bracket included.
Optional pole mount and wall mount brackets available

POWER SUPPLY

Input: Universal 100-230V AC
auto-sensing

Output: ~80W max
Temperature: -50 to +50°C (-58 to 122°F)
Weight: 1.8Kg (4lbs)
Dimensions: 160mm x 160mm x 90mm

6” x 6” x 4” approx.

Standard PSU (included)

Adjustable photocell
Adjustable power output for IR
Telemetry Control

Optional Upgrade: PRO Series PSU

PRO series PSU with optional PRO IQ and PRO Pulse
plug-in modules provides user defined multi-function
settings and remote control. In addition to photocell
following contact and 12V DC output, PRO series
features: Ecologic energy saving setting, Perma-Light
consistent power setting, remote dim and boost, as
well as deterrent, pulse and timer functions.

Version 4

PART CODES & DISTANCES NARROW ANGLE WIDE ANGLE
RM100-PLT-AI-10 RAYMAX 100 PLATINUM, 10-20 degree AI, 850nm + PSU 150m (492ft) 100m (328ft)

RM100-PLT-AI-30 RAYMAX 100 PLATINUM, 30-60 degree AI, 850nm + PSU 130m (427ft) 90m (295ft)
RM100-PLT-AI-50 RAYMAX 100 PLATINUM, 50-100 degree AI, 850nm + PSU 90m (295ft) 58m (190ft)
RM100-PLT-AI-120 RAYMAX 100 PLATINUM, 120-180+ degree AI, 850nm + PSU 50m (164ft) 33m (108ft)
