Raytec RL50-50-PoE, RL50-30-PoE, RL50-10-PoE, RL50-120-PoE User Manual

Power in

Made in UK

P-cell
adjust

-

+

Power
adjust

-

+

MAX 50 PoE LUX 50 PoE

and

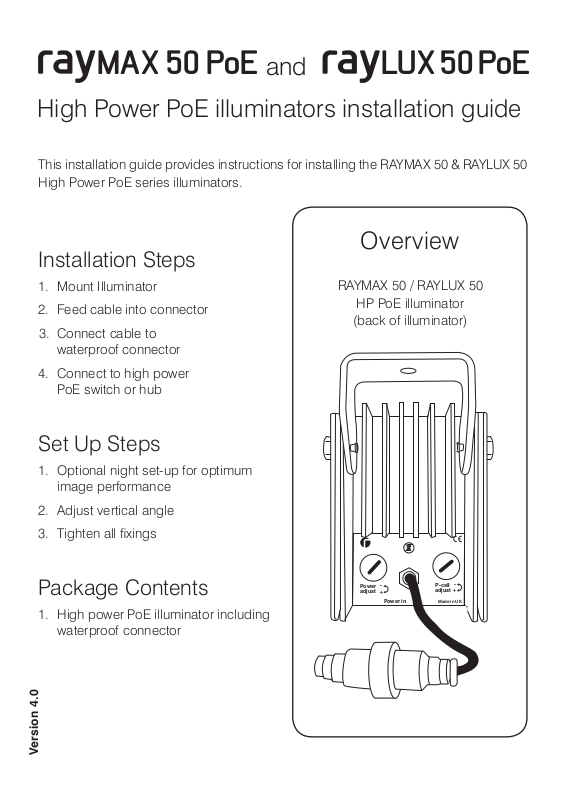

High Power PoE illuminators installation guide

This installation guide provides instructions for installing the RAYMAX 50 & RAYLUX 50
High Power PoE series illuminators.

Overview

Installation Steps

1. Mount Illuminator

2. Feed cable into connector

3. Connect cable to

waterproof connector

4. Connect to high power
PoE switch or hub

Set Up Steps

1. Optional night set-up for optimum
image performance

2. Adjust vertical angle

3. Tighten all fixings

Package Contents

1. High power PoE illuminator including
waterproof connector

RAYMAX 50 / RAYLUX 50

HP PoE illuminator

(back of illuminator)

Version 4.0

Power
Adjust

Power
adjust

-

+

Power in

P-cell

adjust

Made in UK

Photocell

Photocell

-

+

Adjust

Waterproof RJ45
connection

Install in a well
ventilated area

!

1.5 m

Do not continually

stare at lamp

The Raymax and Raylux 50 PoE illuminators

use the IEEE802.3af standard detection

method and require and injector that can

deliver up to 25W.

Specifications subject to change without

notice. Installation to be carried out by

suitable trained and qualified personnel.

2
