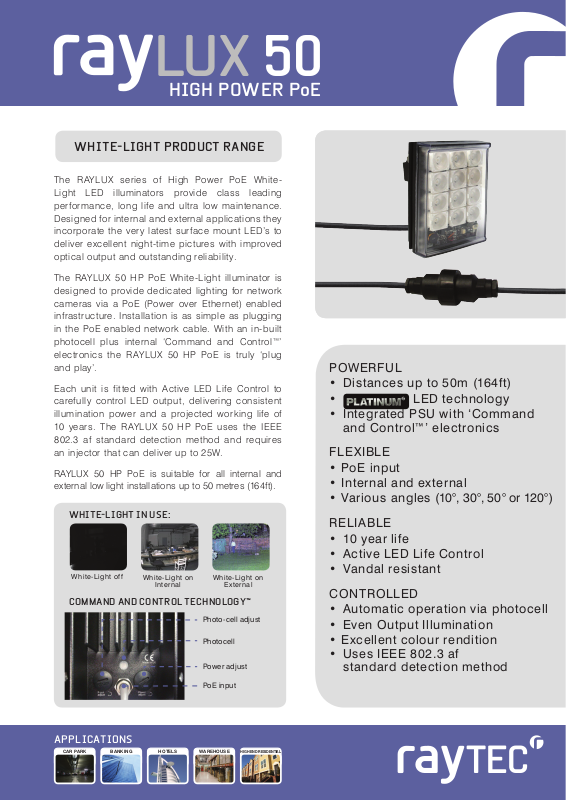

Raytec RL50-120-PoE Specsheet

LUX 50

HIGH POWER PoE

WHITE-LIGHT PRODUCT RANGE

The RAYLUX series of High Power PoE White­Light LED illuminators provide class leading
performance, long life and ultra low maintenance.
Designed for internal and external applications they
incorporate the very latest surface mount LED’s to
deliver excellent night-time pictures with improved
optical output and outstanding reliability.

The RAYLUX 50 HP PoE White-Light illuminator is
designed to provide dedicated lighting for network
cameras via a PoE (Power over Ethernet) enabled
infrastructure. Installation is as simple as plugging
in the PoE enabled network cable. With an in-built
photocell plus internal ‘Command and Control™’
electronics the RAYLUX 50 HP PoE is truly ‘plug
and play’.

Each unit is fitted with Active LED Life Control to
carefully control LED output, delivering consistent
illumination power and a projected working life of
10 years. The RAYLUX 50 HP PoE uses the IEEE

802.3 af standard detection method and requires
an injector that can deliver up to 25W.

RAYLUX 50 HP PoE is suitable for all internal and
external low light installations up to 50 metres (164ft).

WHITE-LIGHT IN USE:

White-Light off

COMMAND AND CONTROL TECHNOLOGY™

White-Light on

Internal

White-Light on

External

Photo-cell adjust

Photocell

Power adjust

POWERFUL

• Distances up to 50m (164ft)

• LED technology

• Integrated PSU with ‘Command
and Control™’ electronics

FLEXIBLE

• PoE input

• Internal and external

• Various angles (10°, 30°, 50° or 120°)

RELIABLE

• 10 year life

• Active LED Life Control

• Vandal resistant

CONTROLLED

• Automatic operation via photocell

• Even Output Illumination

• Excellent colour rendition

• Uses IEEE 802.3 af
standard detection method

APPLICATIONS

CAR PARK

PoE input

WAREHOUSEHOTELSBANKING

HIGH END RESIDENTIAL

PoE

INSIDE

PoE ENAbLED

The RAYMAX 50 and RAYLUX 50 HP PoE series is designed to provide dedicated lighting for IP cameras via a
PoE - (Power over Ethernet) enabled network infrastructure. Installation is as simple as plugging in the Ethernet
cable. With an in-built photocell plus internal command and control electronics the light is truly plug and play.

ACTIVE LED LIFE CONTROL

All Raytec illuminators employ cutting edge materials science techniques to improve thermal efficiency throughout
the unit and ensure continuity of LED power. The New Advanced Cool Running™ system draws heat away from the
LEDs, shielding the LED from abnormal stress, and allows Raytec LED products to deliver outstanding performance
and consistency of illumination throughout the operational life of the illuminator.

PLATINUM ADVANCED SMT LED TECHNOLOGY

PLATINUM illuminators integrate cutting-edge SMT LED technology, light intensification miniature optics and an
enhanced Cool Running™ thermal management system into a single high performance LED. The result is World
leading power, reliability and flexibility.

COMMAND AND CONTROL TECHNOLOGY

Integrated into all PoE Illuminators, Command and Control technology provides photocell, photocell level adjustment
and power adjustment functionality on the actual illuminator. This eliminates the need for a specialist external power

suppl y.

VANDAL RESISTANT

The polycarbonate lens design protects against severe blows from crowbars, baseball bats and can even withstand
successive shots from air pistols and rifles (range dependant).

WHITE-LIGHT PRODUCT RANGE: RAYLUX 50 HP PoE

ENERGY SAVING

All Raytec illuminators use high efficiency LED’s and advanced control methods to deliver extremely low electrical
consumption. Raytec illuminators are energy saving and deliver huge savings in running costs compared to traditional
bulb illuminators.

3 YEAR WARRANTY

All Raytec CCTV / PoE illuminators are provided with a 3 year warranty, unmatched
anywhere in the CCTV lighting industry. Raytec illuminators provide guaranteed long life!

TECHNICAL SPECIFICATIONS

ILLUMINATOR & INTEGRATED PSU

Max Distance: up to 50m (164ft)
Angle: 10, 30, 50 or 120 degrees
Optics: PLATINUM

SMT LED’s

Consumption: 25W max
Weight: 1.0kg (2.2lbs)
Environmental: Internal and

External Applications IP66

Temp Range: -30 to +50˚C (-58 to 122°F)
Colour: Silver
Wavelength: White-Light
Dimensions: 135 x 100 x 63mm

5.25” x 4” x 2.5” approx

INTEGRATED POWER SUPPLY

Input: PoE

Power over
Ethernet (PoE):

Compliant Interface

Output: 25W max (adjustable)
Photocell: Integrated

(adjustable sensitivity)

Power Control:

IEEE 802.3af

Full 10-100% adjustment

Version 2

BRACKETRY

U Bracket included

PART CODES & DISTANCES DISTANCES
RL50 -10-PoE RAYLUX 50, 10° White-Light & integrated PSU 50m (164ft)

RL50 -30-PoE RAYLUX 50, 30° White-Light & integrated PSU 35m (115ft)
RL50 -50-PoE RAYLUX 50, 50° White-Light & integrated PSU 25m (82ft)
RL50 -120-PoE RAYLUX 50, 120° White-Light & integrated PSU 10m (33ft)
